Name: T-HOBBY F1404 Micro Long-range Motor 3-6S KV2900/KV3800/KV4600
Brand: LIGPOWER
SKU: LIGPOWER001571
Price: 16.90 USD
Availability: InStock

Relevant Products

T-HOBBY F35A 3-6S Individual Racing ESC

$28.9
T-HOBBY F7 35A AIO

$99.9
T-HOBBY F7 45A AIO

$119

Detail information
Specifications

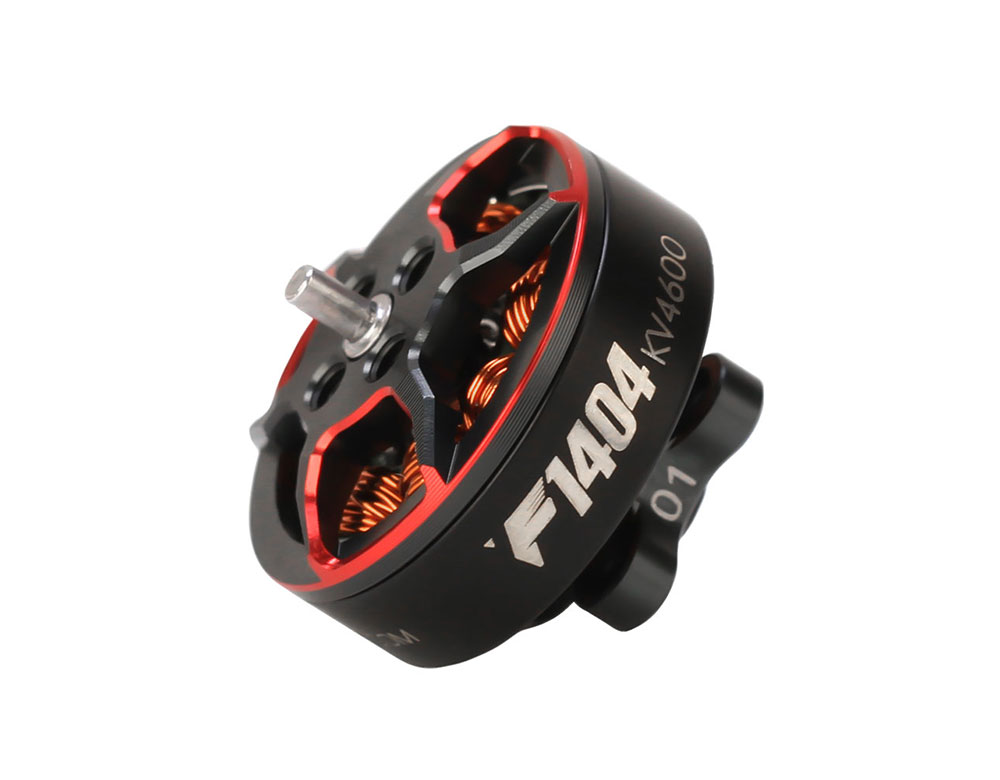

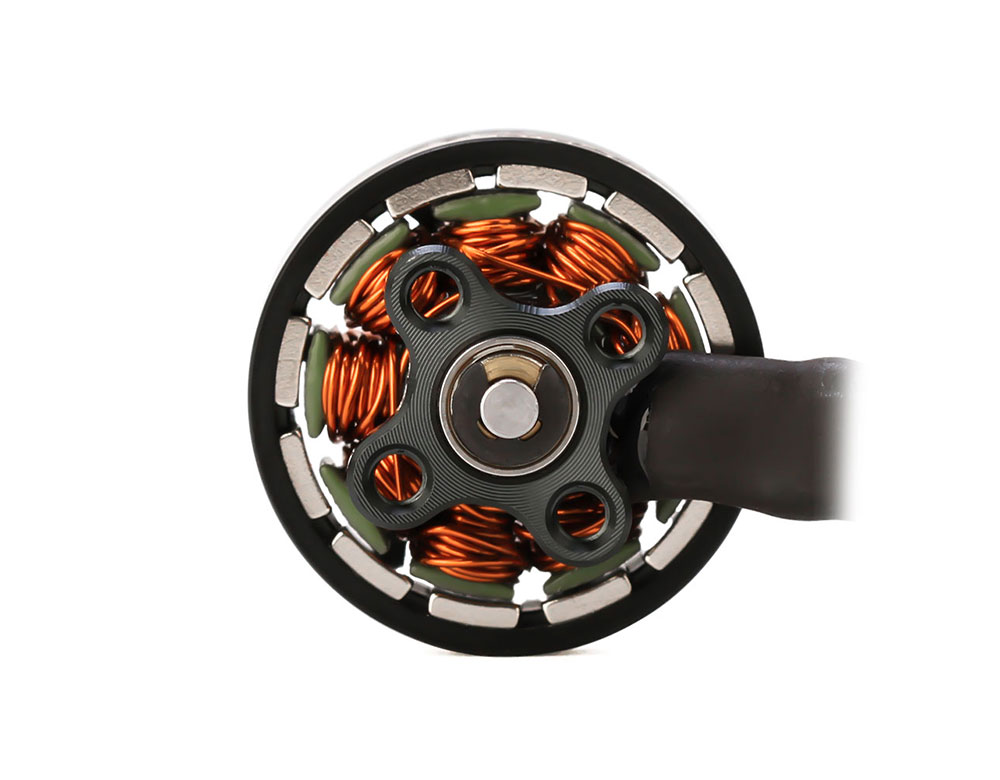

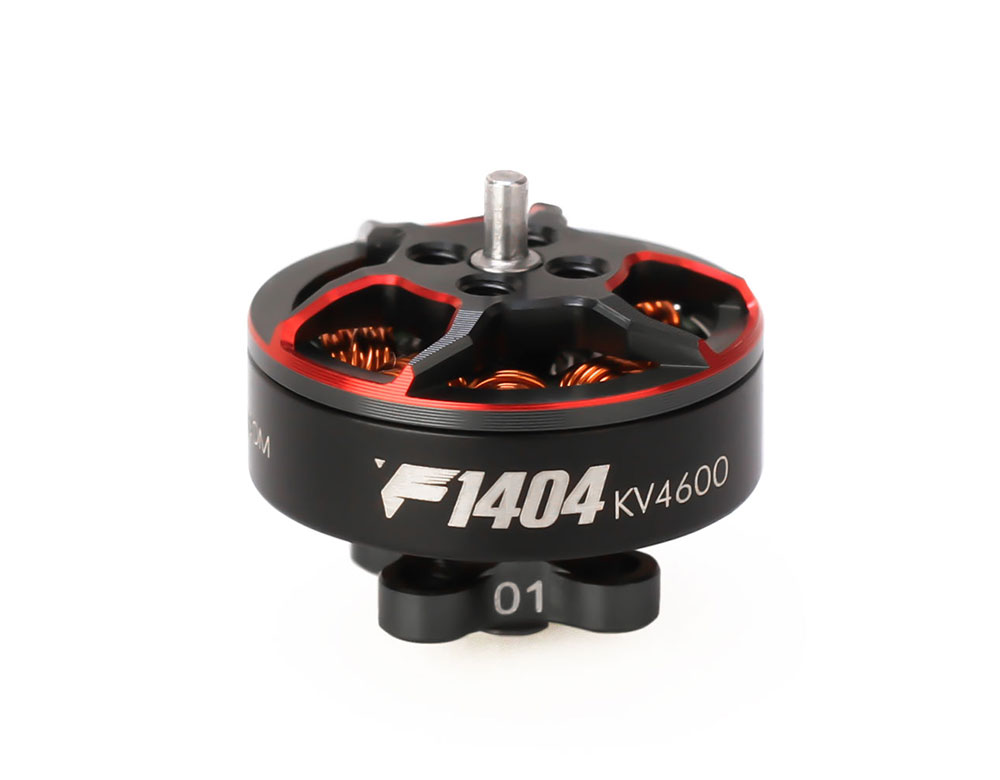

About T-HOBBY F1404 Micro Long-range Motor

Get micro long-range motor with the T-HOBBY F1404 2900KV/3800KV/4600KV Motor!

The F1404 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game! Great for 2.5-4 inch fpv builds!

F1404 Hightlight:

F1404 is a micro long-range motor with two KV options of 3800KV/4600KV. The 4600KV is specially designed for racing training and has stable power output.

With an ultra-light design, the 3800KV is suitable for 3-inch long-range freestyle and has a higher efficiency ratio.

The motor features a new sleek design and is made with high-quality components, making it ideal for 2.5-4 inch frames.

Packing List Includes:

1 x T-HOBBY F1404 2900KV/3800kv/4600KV Motor

1 x Parts Bag

Matching Frame:

2.5-4 Inch

Matching Guide:

Updating

Technical Drawing

Specification Export to Excel

Test Item	KV2900	Weight(Incl.Cable)	9.34g
Motor Dimensions	Φ17.9*16.6mm	Internal Resistance	310mΩ
Lead	24#AWG 150mm	Configuration	9N12P
Shaft Diameter	2mm	Rated Voltage(Lipo)	4-6S
Idle Current(10V)	0.4A	Peak Current(60s)	10.45A
Max.Power(60s)	262W

Test Item	KV3800	Weight(Incl.Cable)	9.34g
Motor Dimensions	Φ17.9*16.6mm	Internal Resistance	195mΩ
Lead	24#AWG 150mm	Configuration	9N12P
Shaft Diameter	2mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	0.5A	Peak Current(60s)	19A
Max.Power(60s)	304W

Test Item	KV4600	Weight(Incl.Cable)	9.34g
Motor Dimensions	Φ17.9*16.6mm	Internal Resistance	138mΩ
Lead	24#AWG 150mm	Configuration	9N12P
Shaft Diameter	2mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	0.6A	Peak Current(60s)	20A
Max.Power(60s)	316W

Test Data Export to Excel

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F1404 KV2900	GF 3028-3	50%	101.14	16.79	1.49	18626	25.02	4.04	49.5 (Ambient Temperature:24℃)
		55%	116.37	16.78	1.81	20037	30.37	3.83
		60%	133.92	16.78	2.16	21386	36.24	3.69
		65%	152.76	16.78	2.55	22764	42.79	3.57
		70%	170.61	16.78	3.00	24257	50.34	3.39
		75%	188.96	16.77	3.45	25447	57.86	3.27
		80%	209.26	16.76	3.93	26608	65.87	3.18
		85%	230.60	16.76	4.49	27892	75.25	3.06
		90%	253.06	16.75	5.10	29113	85.43	2.96
		95%	276.26	16.74	5.78	30312	96.76	2.86
		100%	294.98	16.73	6.38	31327	106.74	2.76
	HQ 3520-3	50%	137.20	16.77	1.96	16954	32.87	4.17	52 (Ambient Temperature:24℃)
		55%	158.88	16.77	2.42	18273	40.58	3.91
		60%	181.41	16.76	2.92	19408	48.94	3.71
		65%	201.38	16.76	3.45	20554	57.82	3.48
		70%	225.94	16.75	4.10	21611	68.68	3.29
		75%	250.33	16.74	4.76	22663	79.68	3.14
		80%	272.03	16.73	5.48	23645	91.68	2.97
		85%	291.77	16.72	6.18	24486	103.33	2.82
		90%	310.66	16.72	6.90	25303	115.37	2.69
		95%	332.24	16.70	7.71	26102	128.76	2.58
		100%	350.22	16.69	8.49	26739	141.70	2.47
	GF4023-3	50%	170.51	16.78	2.57	15090	43.12	3.95	56 (Ambient Temperature:24℃)
		55%	194.68	16.77	3.16	16226	52.99	3.67
		60%	217.53	16.76	3.81	17046	63.86	3.41
		65%	239.54	16.76	4.49	17831	75.25	3.18
		70%	260.85	16.75	5.19	18686	86.93	3.00
		75%	282.41	16.74	5.93	19409	99.27	2.84
		80%	304.33	16.73	6.71	19992	112.26	2.71
		85%	321.46	16.72	7.50	20606	125.40	2.56
		90%	337.24	16.71	8.30	21052	138.69	2.43
		95%	350.34	16.70	9.13	21450	152.47	2.30
		100%	361.95	16.70	9.90	21765	165.33	2.19
	GF4024-2	50%	158.42	16.82	2.25	16242	37.85	4.19	58 (Ambient Temperature:24℃)
		55%	184.12	16.82	2.78	17406	46.76	3.94
		60%	210.68	16.81	3.38	18446	56.82	3.71
		65%	236.43	16.81	4.01	19488	67.41	3.51
		70%	262.59	16.80	4.71	20469	79.13	3.32
		75%	289.41	16.79	5.48	21363	92.01	3.15
		80%	313.81	16.78	6.24	22153	104.71	3.00
		85%	336.89	16.77	7.06	22867	118.40	2.85
		90%	357.90	16.75	7.90	23547	132.33	2.70
		95%	377.11	16.74	8.70	24098	145.64	2.59
		100%	393.15	16.74	9.53	24573	159.53	2.46
	GF3028-3	50%	153.69	21.05	2.01	22275	42.31	3.63	60 (Ambient Temperature:24℃)
		55%	180.08	21.04	2.45	24011	51.55	3.49
		60%	207.63	21.04	3.01	25597	63.33	3.28
		65%	226.24	21.03	3.47	27086	72.97	3.10
		70%	250.98	21.02	4.06	28470	85.34	2.94
		75%	276.05	21.02	4.67	29959	98.16	2.81
		80%	305.71	21.01	5.34	31475	112.19	2.72
		85%	334.99	21.00	6.08	32893	127.68	2.62
		90%	363.73	20.99	6.89	34244	144.62	2.52
		95%	386.68	20.98	7.72	35483	161.97	2.39
		100%	413.56	20.97	8.59	36383	180.13	2.30
	HQ3520-3	50%	185.74	21.02	2.67	19884	56.12	3.31	64 (Ambient Temperature:24℃)
		55%	214.21	21.02	3.29	21321	69.16	3.10
		60%	243.77	21.01	4.00	22568	84.04	2.90
		65%	274.35	21.00	4.76	23722	99.96	2.74
		70%	301.01	20.99	5.55	24855	116.49	2.58
		75%	322.66	20.98	6.35	25777	133.22	2.42
		80%	345.46	20.97	7.14	26619	149.73	2.31
		85%	368.79	20.96	7.96	27383	166.84	2.21
		90%	388.26	20.95	8.81	28160	184.57	2.10
95%		408.37	20.94	9.72	28698	203.54	2.01
100%		421.77	20.93	10.57	29036	221.23	1.91
GF3028-3	50%	183.71	25.20	2.51	25035	63.25	2.90	68 (Ambient Temperature:24℃)
	55%	210.96	25.19	3.09	26682	77.84	2.71
	60%	239.65	25.18	3.70	28369	93.17	2.57
	65%	268.22	25.17	4.37	30036	109.99	2.44
	70%	301.44	25.17	5.05	31788	127.11	2.37
	75%	333.89	25.16	5.81	33425	146.18	2.28
	80%	368.79	25.15	6.57	35044	165.24	2.23
	85%	406.59	25.14	7.60	36664	191.06	2.13
	90%	436.56	25.13	8.59	37964	215.87	2.02
	95%	462.43	25.12	9.57	39075	240.40	1.92
	100%	480.22	25.10	10.44	39783	262.04	1.83
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
F1404 KV3800	GF3016	50%	158.01	15.96	4.28	22759	68.24	2.32	48 (Ambient Temperature:8℃)
		55%	184.56	15.95	5.37	24844	85.71	2.15
		60%	206.52	15.94	6.54	26555	104.25	1.98
		65%	229.16	15.92	7.73	28392	123.02	1.86
		70%	245.54	15.90	8.91	29967	141.76	1.73
		75%	263.84	15.88	10.14	31502	160.99	1.64
		80%	275.66	15.87	11.20	32843	177.78	1.55
		85%	290.17	15.84	12.31	34148	195.00	1.49
		90%	304.36	15.82	13.49	35355	213.38	1.43
		95%	315.45	15.79	14.74	36507	232.84	1.35
		100%	324.52	15.76	16.19	37705	255.08	1.27
	HQ333	50%	187.04	15.95	5.92	19767	94.41	1.98	45 (Ambient Temperature:8℃)
		55%	214.50	15.92	7.45	21382	118.65	1.81
		60%	232.18	15.90	8.71	22438	138.53	1.68
		65%	248.93	15.88	9.74	23265	154.64	1.61
		70%	259.14	15.87	10.98	23950	174.18	1.49
		75%	269.46	15.84	12.28	24750	194.64	1.38
		80%	278.38	15.82	13.86	25735	219.19	1.27
		85%	282.22	15.79	15.12	26322	238.79	1.18
		90%	291.97	15.76	16.49	26994	259.98	1.12
		95%	294.61	15.73	17.67	27103	277.87	1.06
		100%	301.03	15.70	19.40	27887	304.72	0.99
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
F1404 KV4600	GF3016	50%	184.21	15.93	5.23	26532	83.28	2.21	50 (Ambient Temperature:8℃)
		55%	210.22	15.91	6.37	28299	101.26	2.08
		60%	233.36	15.88	7.64	30006	121.40	1.92
		65%	254.72	15.85	8.85	31559	140.28	1.82
		70%	268.50	15.84	10.01	32770	158.49	1.69
		75%	287.60	15.81	11.32	34340	178.95	1.61
		80%	300.59	15.78	12.50	35813	197.32	1.52
		85%	316.02	15.75	13.70	37190	215.83	1.46
		90%	330.89	15.71	14.98	38436	235.41	1.41
		95%	340.24	15.68	16.24	39376	254.54	1.34
		100%	344.73	15.64	17.54	40053	274.32	1.26
	HQ333	50%	207.43	15.93	6.79	21921	108.07	1.92	45 (Ambient Temperature:8℃)
		55%	233.33	15.91	8.32	23260	132.39	1.76
		60%	248.36	15.88	9.53	24001	151.37	1.64
		65%	265.25	15.85	10.59	24791	167.85	1.58
		70%	277.23	15.84	11.96	25622	189.36	1.46
		75%	284.98	15.81	13.20	26175	208.75	1.37
		80%	288.18	15.78	14.55	26641	229.65	1.25
		85%	292.27	15.75	15.87	27260	249.92	1.17
		90%	302.37	15.71	17.29	27956	271.60	1.11
		95%	307.61	15.68	18.65	28299	292.41	1.05
		100%	310.57	15.64	20.23	28771	316.25	0.98
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
