Name: T-HOBBY F1408-Ⅱ FPV Cinewhoop Drone Motor 3-6S KV2800/KV3950
Brand: LIGPOWER
SKU: ligpower001272
Price: 18.90 USD
Availability: InStock

Relevant Products

T-HOBBY F35A 3-6S Individual Racing ESC

$28.9
T-HOBBY F7 35A AIO

$99.9
T-HOBBY F7 45A AIO

$119

Detail information
Specifications

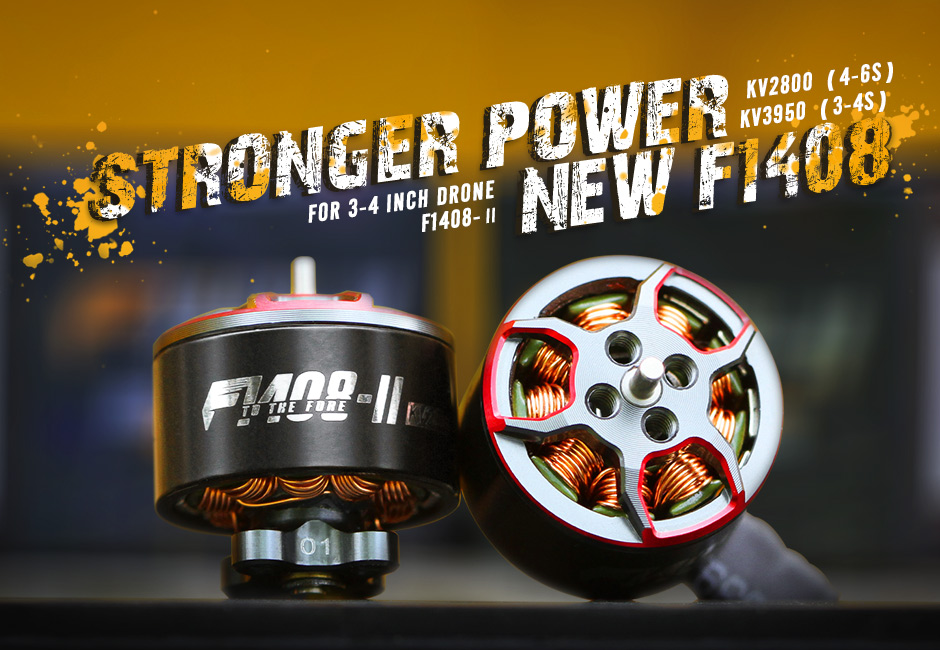

About T-HOBBY F1408-ⅡCinewhoop Drone Motor

The new F1408 is one of greatest additions to the Cinewhoop class of motors.

The F1408 cinewhoop motors are made of the finest quality CNC aluminum and provide stable power for a 3-4 inch cinewhoop build.

F1408 -Ⅱ Hightlight:

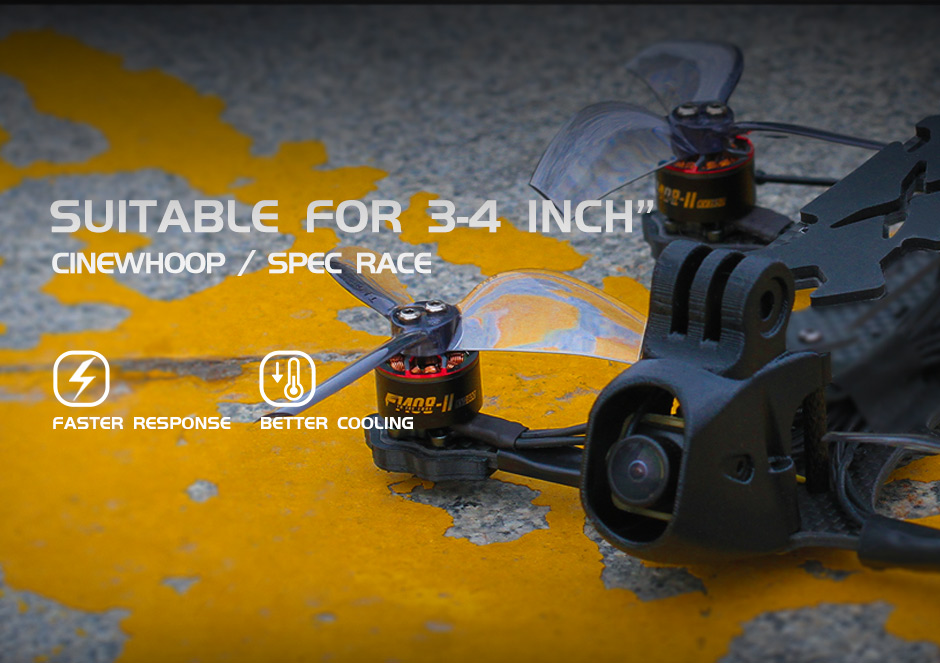

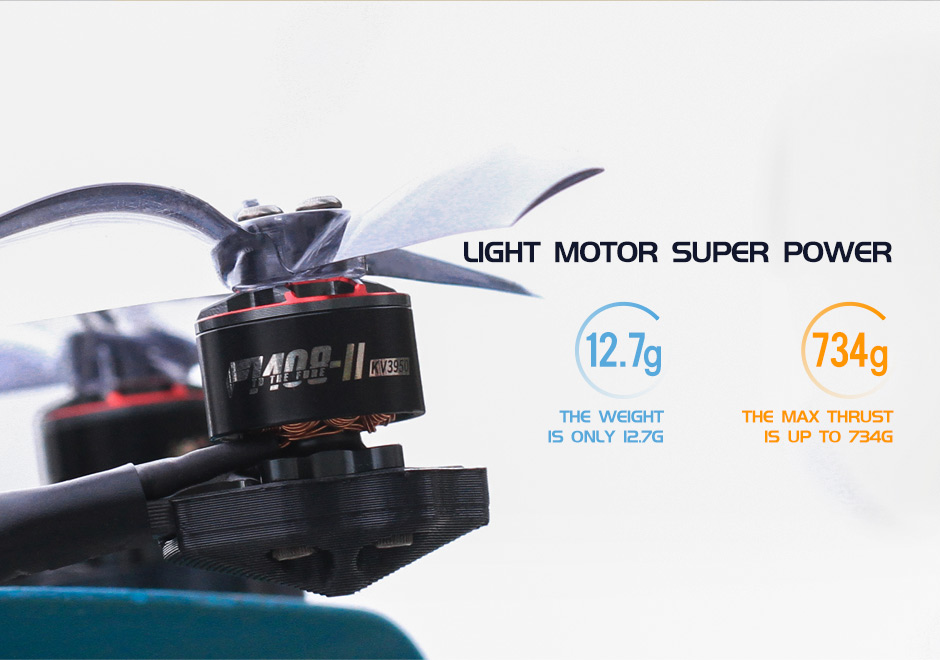

The F1408 motor weighs only 12.7g and has a maximum pulling force of 734g. It is small in size and powerful in explosion, and is suitable for 3-4 inch FPV drones.

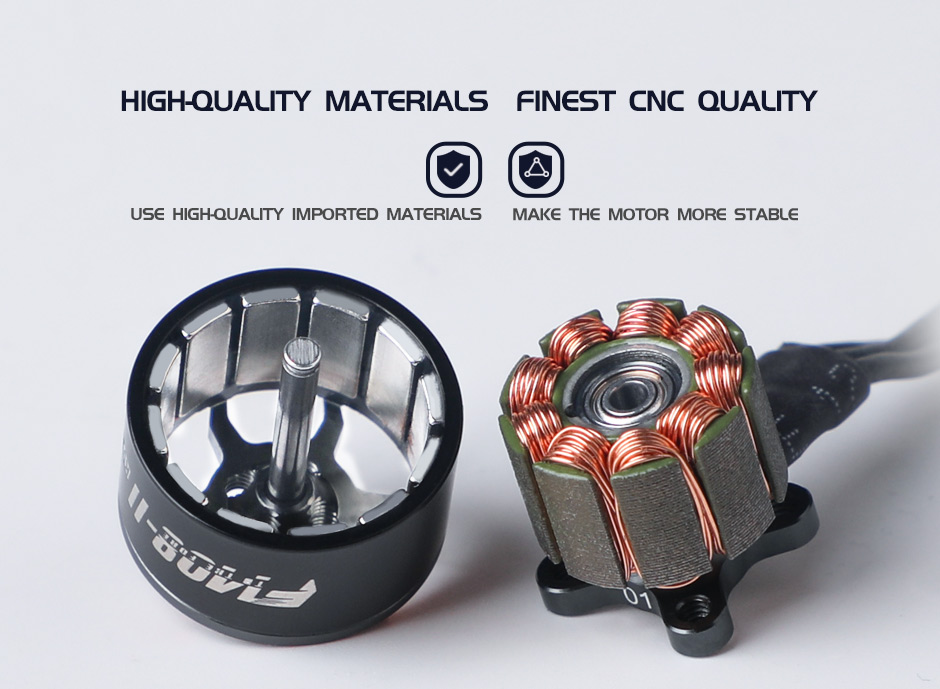

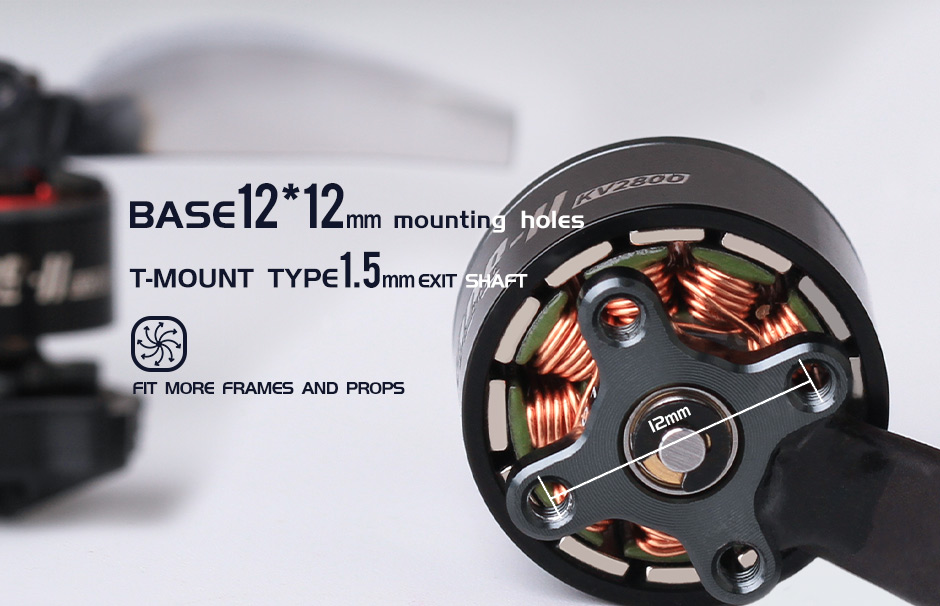

Made of the highest quality imported materials, the motor runs more stably. The base has 12*12mm mounting holes, and the T-MOUNT propeller locking method has a 1.5mm shaft extension, adapting to more props and frames.

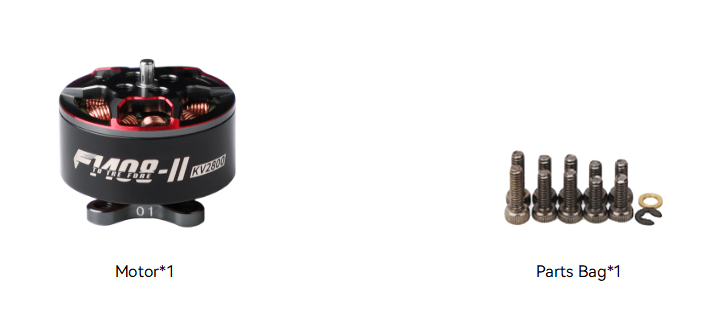

Packing List Includes:

1x T-HOBBY F1408-II Cinewhoop Motor (Choose Your KV)

1x Hardware Pack

Matching Frame:

3-4 Inch

Matching Guide:

Mini F7 flight controller

Mini F45A 6s 4in1 ESC

M12199 FPV Cinewhoop propeller

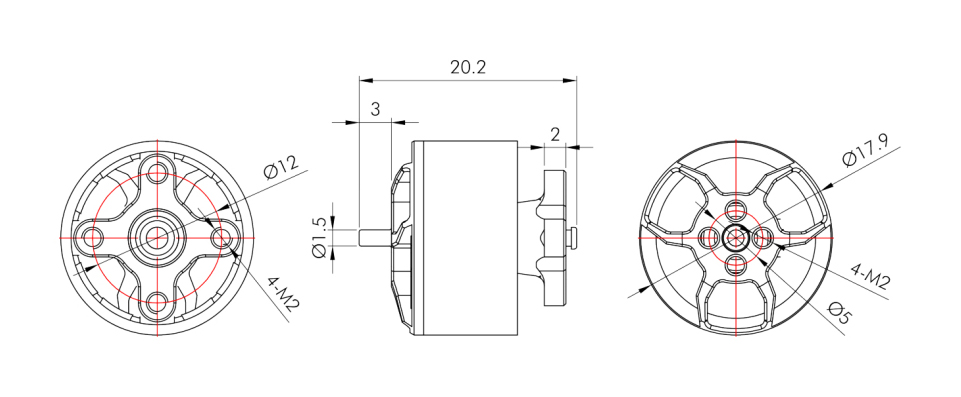

Technical Drawing

Specification

Test Item	2800	Configuration	9N12P
Internal Resistance	141mΩ	Motor Dimensions	Φ17.9*20.2mm
ShaftDiameter	2mm	Lead	24# BLACK 150mm
Weight(Incl.Cable)	14.9g	Weight(Excl.Cable)	12.7g
Rated Voltage(Lipo)	4～6S	Idle Current(10V)	0.62A
Max.Power(60s)	385W	Peak Current(60s)	15.3A

Test Item	3950	Configuration	9N12P
Internal Resistance	88mΩ	Motor Dimensions	Φ17.9*20.2mm
ShaftDiameter	2mm	Lead	24# BLACK 150mm
Weight(Incl.Cable)	14.95g	Weight(Excl.Cable)	12.75g
Rated Voltage(Lipo)	3~4S	Idle Current(10V)	0.86A
Max.Power(60s)	371W	Peak Current(60s)	22.4A

Test Data

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F1408-Ⅱ KV2800	GF 3028-3	50%	122.98	16.83	2.13	19940	35.85	3.43	62 (Ambient Temperature: 19℃)
		55%	146.82	16.83	2.59	21657	43.59	3.37
		60%	171.90	16.82	3.09	23394	51.97	3.31
		65%	195.85	16.81	3.62	24943	60.85	3.22
		70%	219.75	16.81	4.13	26435	69.43	3.17
		75%	244.27	16.81	4.68	27893	78.67	3.10
		80%	271.05	16.80	5.31	29306	89.21	3.04
		85%	298.03	16.79	5.99	30655	100.57	2.96
		90%	324.42	16.78	6.74	32100	113.10	2.87
		95%	355.99	16.77	7.64	33467	128.12	2.78
		100%	390.47	16.75	8.63	34930	144.55	2.70
	GF 3028-3	50%	181.30	21.01	3.03	24022	63.66	2.85	71 (Ambient Temperature: 19℃)
		55%	215.39	21.00	3.72	26015	78.12	2.76
		60%	243.15	20.99	4.34	27830	91.10	2.67
		65%	271.30	20.99	4.93	29718	103.48	2.62
		70%	311.37	20.98	5.72	31615	120.01	2.59
		75%	355.27	20.96	6.81	33472	142.74	2.49
		80%	390.62	20.96	7.39	34733	154.89	2.52
		85%	423.20	20.95	8.24	36630	172.63	2.45
		90%	468.34	20.94	9.34	38321	195.58	2.39
		95%	508.17	20.92	10.51	40045	219.87	2.31
		100%	557.14	20.90	11.90	41634	248.71	2.24
	GF 3028-3	50%	228.49	25.22	3.68	26539	92.81	2.46	80 (Ambient Temperature: 19℃)
		55%	265.84	25.21	4.45	28559	112.18	2.37
		60%	308.83	25.20	5.24	30868	132.05	2.34
		65%	356.29	25.19	6.17	33124	155.42	2.29
		70%	408.28	25.18	7.22	35356	181.80	2.25
		75%	459.62	25.17	8.20	37334	206.39	2.23
		80%	505.54	25.16	9.24	39489	232.48	2.17
		85%	562.16	25.15	10.60	41704	266.59	2.11
		90%	620.87	25.13	12.12	43819	304.58	2.04
		95%	678.78	25.11	13.74	45600	345.01	1.97
		100%	726.41	25.09	15.37	47442	385.63	1.88
	HQ 3520-3	50%	177.27	16.82	2.94	18867	49.45	3.58	69 (Ambient Temperature: 19℃)
		55%	208.13	16.82	3.57	20324	60.05	3.47
		60%	241.57	16.81	4.29	21796	72.11	3.35
		65%	276.19	16.80	5.05	23130	84.84	3.26
		70%	309.31	16.79	5.92	24519	99.40	3.11
		75%	340.41	16.78	6.69	25627	112.26	3.03
		80%	369.35	16.77	7.51	26720	125.94	2.93
		85%	407.32	16.76	8.55	27903	143.30	2.84
		90%	448.13	16.75	9.77	29249	163.65	2.74
		95%	488.01	16.73	11.04	30352	184.70	2.64
		100%	530.92	16.71	12.45	31361	208.04	2.55
	GF 4042-2	50%	224.04	16.82	3.45	18326	58.03	3.86	74 (Ambient Temperature: 19℃)
		55%	258.98	16.81	4.20	19774	70.60	3.67
		60%	294.33	16.80	4.96	20907	83.33	3.53
		65%	334.04	16.79	5.88	22179	98.73	3.38
		70%	370.61	16.78	6.82	23413	114.44	3.24
		75%	410.58	16.76	7.92	24536	132.74	3.09
		80%	447.28	16.75	8.90	25533	149.08	3.00
		85%	486.78	16.75	10.03	26566	168.00	2.90
		90%	531.27	16.72	11.36	27633	189.94	2.80
		95%	576.75	16.71	12.83	28571	214.39	2.69
		100%	618.08	16.69	14.38	29548	240.00	2.58
	GF 4023-3	50%	240.37	16.81	3.99	17429	67.07	3.58	75 (Ambient Temperature: 19℃)
		55%	281.02	16.80	4.91	18719	82.49	3.41
		60%	316.38	16.79	5.80	19861	97.38	3.25
		65%	354.29	16.78	6.80	20917	114.10	3.10
		70%	396.44	16.76	7.93	22006	132.91	2.98
		75%	436.94	16.75	9.18	23062	153.77	2.84
		80%	477.69	16.73	10.59	24090	177.17	2.70
		85%	514.94	16.72	11.82	24824	197.63	2.61
		90%	550.73	16.70	13.07	25680	218.27	2.52
95%		587.50	16.69	14.61	26495	243.84	2.41
100%		625.53	16.67	16.26	27159	271.05	2.31
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
		50%	234.44	12.59	5.81	15621	73.15	3.21
F1408-Ⅱ KV3950	GFD90-3	55%	269.39	12.57	7.07	16794	88.87	3.03	72 (Ambient Temperature: 19℃)
		60%	302.61	12.55	8.39	17876	105.29	2.87
		65%	339.70	12.54	9.89	18870	124.02	2.74
		70%	370.41	12.52	11.30	19705	141.48	2.62
		75%	402.81	12.50	12.80	20576	160.00	2.52
		80%	433.65	12.48	14.39	21550	179.59	2.41
		85%	466.41	12.46	16.19	22348	201.73	2.31
		90%	498.47	12.44	17.92	23049	222.92	2.24
		95%	525.44	12.42	19.73	23802	245.05	2.14
		100%	555.07	12.40	21.80	24557	270.32	2.05
	HQ3520-3	50%	163.82	12.59	3.75	18412	47.21	3.47	60 (Ambient Temperature: 19℃)
		55%	195.76	12.59	4.59	19967	57.79	3.39
		60%	224.86	12.58	5.43	21282	68.31	3.29
		65%	254.44	12.57	6.32	22562	79.44	3.2
		70%	286.47	12.55	7.35	23778	92.24	3.11
		75%	317.40	12.54	8.37	24903	104.96	3.02
		80%	348.33	12.53	9.39	25920	117.66	2.96
		85%	380.78	12.52	10.59	27022	132.59	2.87
		90%	414.34	12.50	11.94	28178	149.25	2.78
		95%	447.12	12.48	13.39	29278	167.11	2.68
		100%	485.65	12.47	15.10	30333	188.30	2.58
	GF 4024-2	50%	208.33	12.59	4.57	17807	57.54	3.62	65 (Ambient Temperature: 19℃)
		55%	247.07	12.58	5.62	19243	70.70	3.49
		60%	279.80	12.57	6.56	20410	82.46	3.39
		65%	311.22	12.56	7.56	21556	94.95	3.28
		70%	348.18	12.54	8.77	22673	109.98	3.17
		75%	389.88	12.53	10.16	23794	127.30	3.06
		80%	415.74	12.51	11.30	24876	141.36	2.94
		85%	448.93	12.50	12.59	25742	157.38	2.85
		90%	495.82	12.48	14.34	26839	178.96	2.77
		95%	540.57	12.46	16.21	27704	201.98	2.68
		100%	581.02	12.43	18.10	28675	224.98	2.58
	GF 4023-3	50%	230.59	12.59	5.27	17002	66.35	3.48	67 (Ambient Temperature: 19℃)
		55%	264.53	12.58	6.32	18190	79.51	3.33
		60%	302.78	12.56	7.55	19333	94.83	3.19
		65%	334.75	12.55	8.73	20346	109.56	3.06
		70%	374.49	12.53	10.16	21385	127.30	2.94
		75%	409.70	12.51	11.63	22316	145.49	2.82
		80%	450.53	12.50	13.31	23313	166.38	2.71
		85%	486.86	12.48	15.02	24155	187.45	2.60
		90%	521.73	12.46	16.71	24912	208.21	2.51
		95%	554.88	12.44	18.61	25742	231.51	2.40
		100%	592.73	12.41	20.76	26503	257.63	2.30
	GF 3028-3	50%	195.41	16.79	4.35	25096	73.04	2.68	74 (Ambient Temperature: 19℃)
		55%	225.45	16.78	5.11	26864	85.75	2.63
		60%	261.67	16.77	5.98	28844	100.28	2.61
		65%	297.60	16.76	6.94	30857	116.31	2.56
		70%	334.91	16.75	7.95	32701	133.16	2.52
		75%	374.08	16.73	9.05	34346	151.41	2.47
		80%	407.01	16.72	10.03	35940	167.70	2.43
		85%	442.03	16.70	11.11	37521	185.54	2.38
		90%	482.38	16.69	12.49	39124	208.46	2.31
		95%	528.33	16.67	14.10	40671	235.05	2.25
		100%	571.67	16.65	15.84	42314	263.74	2.17
	HQ 3520-3	50%	274.53	16.75	5.79	23251	96.98	2.83	81 (Ambient Temperature: 19℃)
		55%	320.31	16.73	7.11	24945	118.95	2.69
		60%	360.43	16.72	8.38	26284	140.11	2.57
		65%	399.25	16.71	9.57	27884	159.91	2.50
		70%	442.97	16.69	10.88	29064	181.59	2.44
		75%	488.57	16.67	12.39	30426	206.54	2.37
		80%	538.80	16.66	14.09	31687	234.74	2.30
		85%	585.61	16.63	15.90	32921	264.42	2.21
		90%	629.15	16.61	17.80	34186	295.66	2.13
		95%	680.29	16.58	19.93	35270	330.44	2.06
100%		734.72	16.55	22.42	36236	371.05	1.98
	Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
