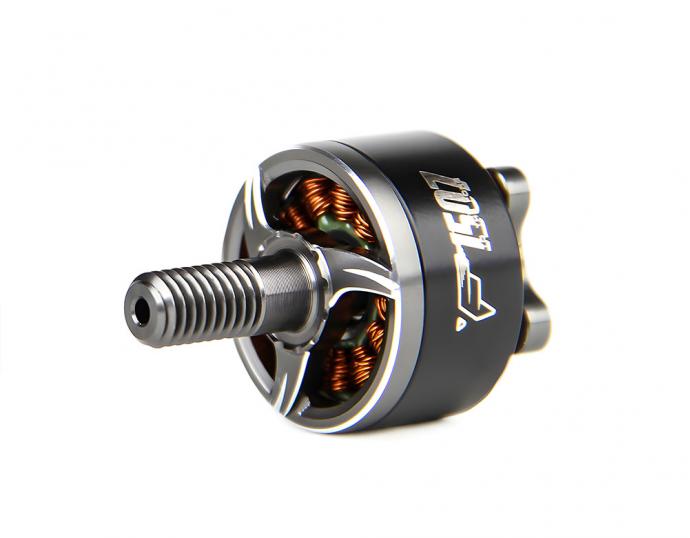

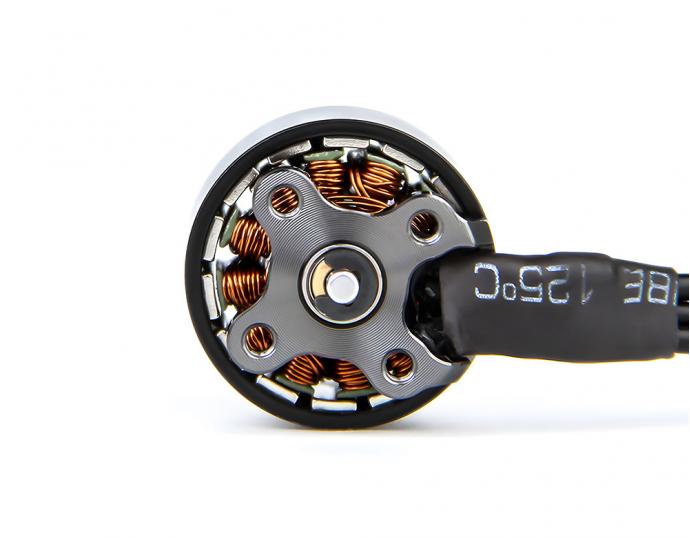

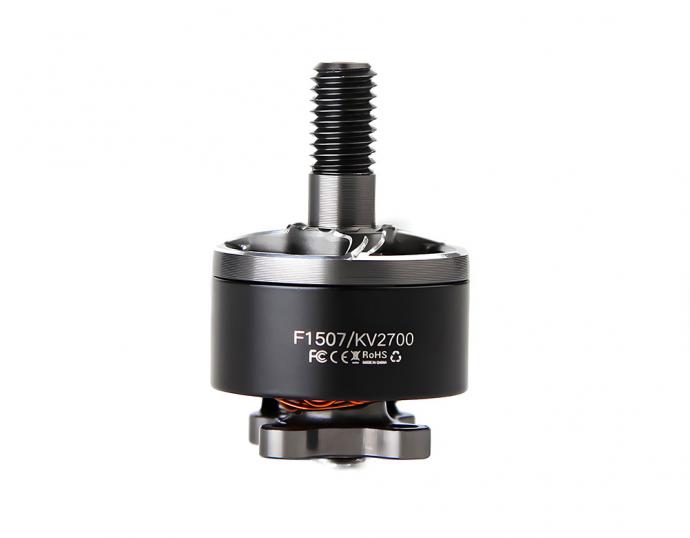

Name: T-HOBBY F1507 FPV Cinematic Motor 3-6S KV3800
Brand: LIGPOWER
SKU: AFD01010062
Price: 19.90 USD
Availability: InStock

T-HOBBY F1507 FPV Cinematic Motor 3-6S KV3800

19.90

Available points: 1000 Points Points reward: 19 Points

Promotion
- LIMITED-TIME FPV SALE 20% OFF

1. Specially for cinewhoop, 3" prop

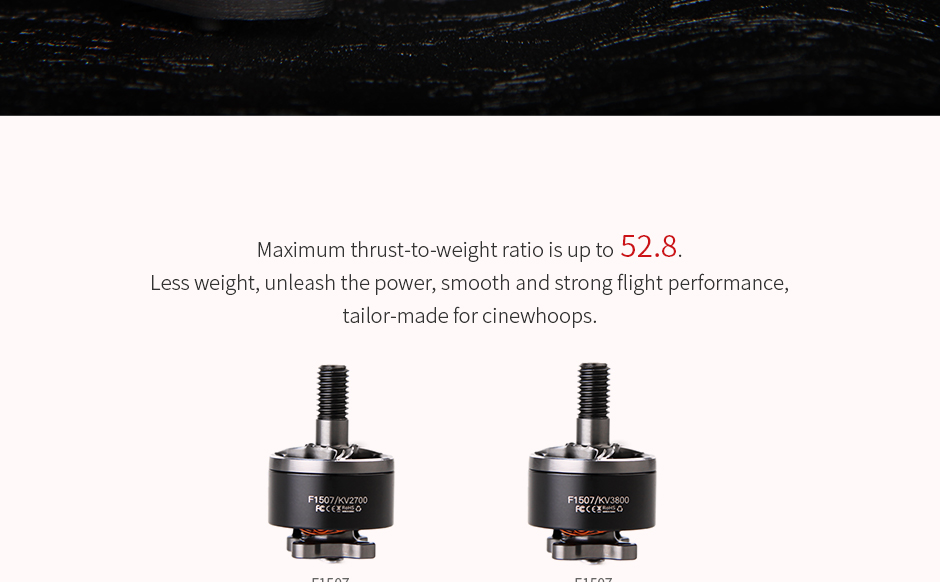

2. Maximum thrust-to-weight ratio is up to 52.8
3. Smooth brushless motor

Quantity：

19.90

Free Shipping by DHL/UPS Express

Relevant Products

T-HOBBY T3140 2Pairs/bag

$2.99
T-HOBBY F35A 3-6S Individual Racing ESC

$28.9

Detail information
Specifications

About T-HOBBY F1507 Cinewhoop/Cinematic Drone Motor

The T-HOBBY F1507 is the second version of one of T-HOBBY's greatest additions to the Cinewhoop class of motors.

F1507 Hightlight:

The T-HOBBY F1507 is the second version of one of T-HOBBY's greatest additions to the Cinewhoop class of motors.

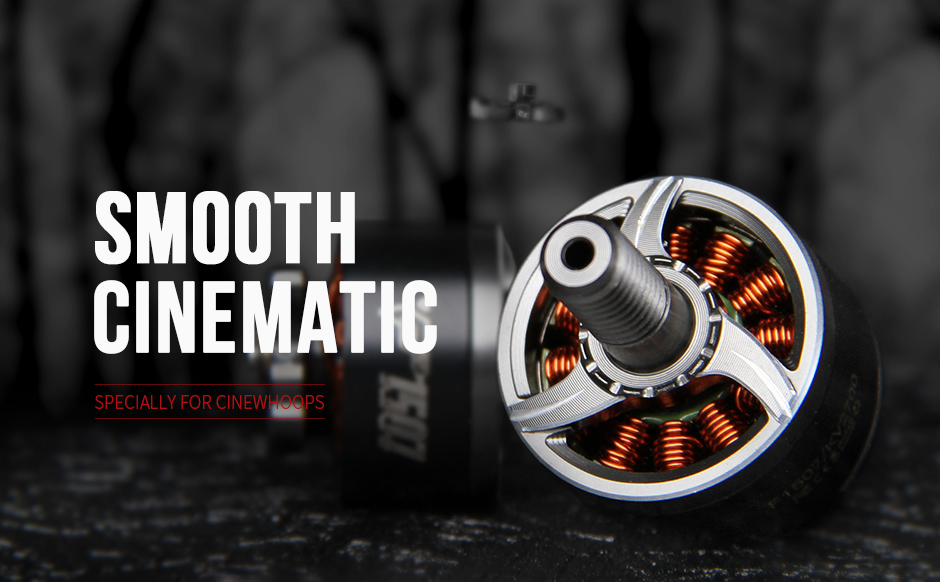

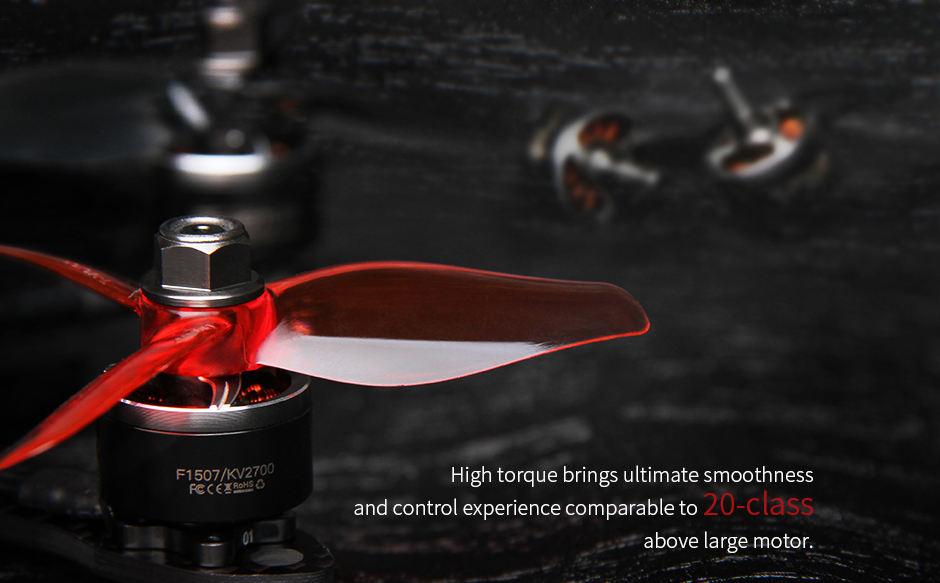

The cinematic design is perfect for a smooth flight and the high torque control experience is comparable to that of the 20-Class large motors out there. Specially for cinewhoop, 3 inch prop

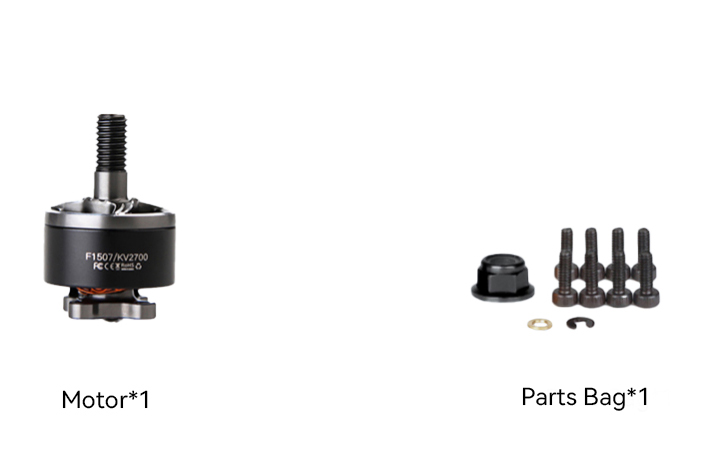

Packing List Includes:

1 x T-HOBBY F1507 2700KV/3800KV Motor

4 x M2*5 Hexagon Socket Head Cap Screw

4 x m2*5 Hexagon Socket Head Cap Screw

1 x M5 Black Self-Locking Nut

1 x E-clips

1 x H62 Washer

Matching Frame:

3 Inch

Matching Guide:

Mini F7 flight controller

Mini F45A 6s 4in1 ESC

F7 35A Aio flight controller

M12199 FPV Cinewhoop propeller

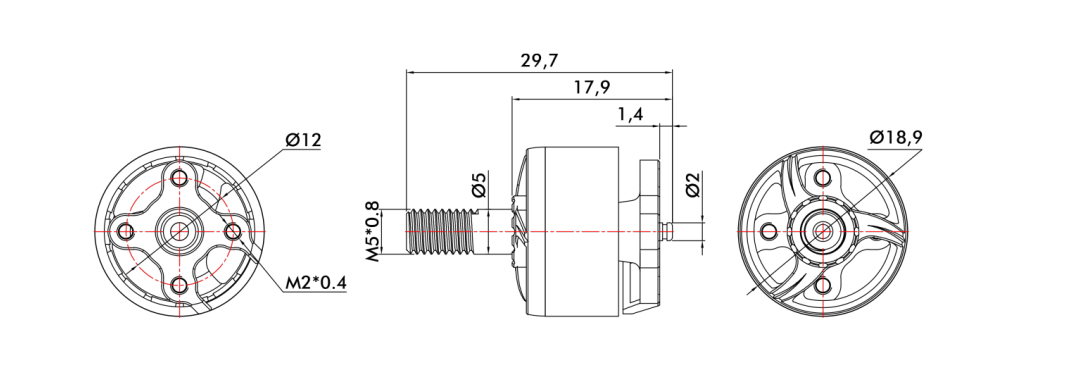

Technical Drawing

Specification Export to Excel

Test Item	KV2700	Weight(Incl.Cable)	15.2g
Motor Dimensions	Φ18.9*29.7mm	Internal Resistance	131mΩ
Lead	24#AWG100mm	Configuration	12N14P
Shaft Diameter	2mm	Rated Voltage(Lipo)	3-6S
Idle Current(5V)	0.6A	Peak Current(60s)	22A
Max.Power(60s)	519W

Test Item	KV3800	Weight(Incl.Cable)	15g
Motor Dimensions	Φ18.9*29.7mm	Internal Resistance	81mΩ
Lead	24#AWG100mm	Configuration	12N14P
Shaft Diameter	2mm	Rated Voltage(Lipo)	3-4S
Idle Current(5V)	0.9A	Peak Current(60s)	23A
Max.Power(60s)	372W

Test Data Export to Excel

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F1507 KV2700	GF3035 Tri-Blade	50%	205.53	23.40	3.12	29496	72.97	2.82	79.6 (Ambient Temperature: 28℃)
		55%	244.70	23.39	3.82	31949	89.30	2.74
		60%	285.16	23.35	4.53	34673	105.78	2.70
		65%	328.31	23.30	5.37	37031	125.03	2.63
		70%	375.52	23.26	6.30	39385	146.45	2.56
		75%	418.87	23.23	7.28	41489	169.00	2.48
		80%	464.96	23.31	8.60	43446	200.49	2.32
		85%	529.08	23.45	9.85	46200	230.96	2.29
		90%	579.13	23.41	11.16	48105	261.34	2.22
		95%	631.35	23.40	12.75	50032	298.22	2.12
		100%	687.07	23.18	14.24	52194	330.11	2.08
	GF3052 Tri-Blade	50%	281.23	23.30	5.07	27274	118.03	2.38	82.5 (Ambient Temperature: 28℃)
		55%	325.82	23.27	6.13	29203	142.57	2.29
		60%	372.05	23.23	7.35	31135	170.74	2.18
		65%	424.12	23.40	8.79	32829	205.70	2.06
		70%	468.12	23.47	9.97	34505	233.96	2.00
		75%	523.63	23.41	11.86	36703	277.73	1.89
		80%	577.45	23.36	13.68	38427	319.71	1.81
		85%	625.78	23.31	15.52	38955	361.79	1.73
		90%	667.92	23.27	17.41	41309	405.12	1.65
		95%	701.90	23.21	19.55	42230	453.73	1.55
		100%	803.49	22.92	22.68	45278	519.74	1.55
	T3140 Tri-Blade	50%	286.38	23.34	5.12	27171	119.40	2.40	85 (Ambient Temperature: 28℃)
		55%	326.32	23.32	6.19	29035	144.34	2.26
		60%	373.95	23.29	7.37	30930	171.71	2.18
		65%	423.87	23.48	8.66	32964	203.39	2.08
		70%	464.46	23.62	9.77	34236	230.76	2.01
		75%	523.49	23.59	11.45	36211	270.16	1.94
		80%	581.53	23.55	13.28	37948	312.70	1.86
		85%	631.14	23.55	15.12	39497	356.19	1.77
		90%	669.31	23.47	16.91	40842	396.74	1.69
		95%	701.24	23.42	19.05	41771	446.20	1.57

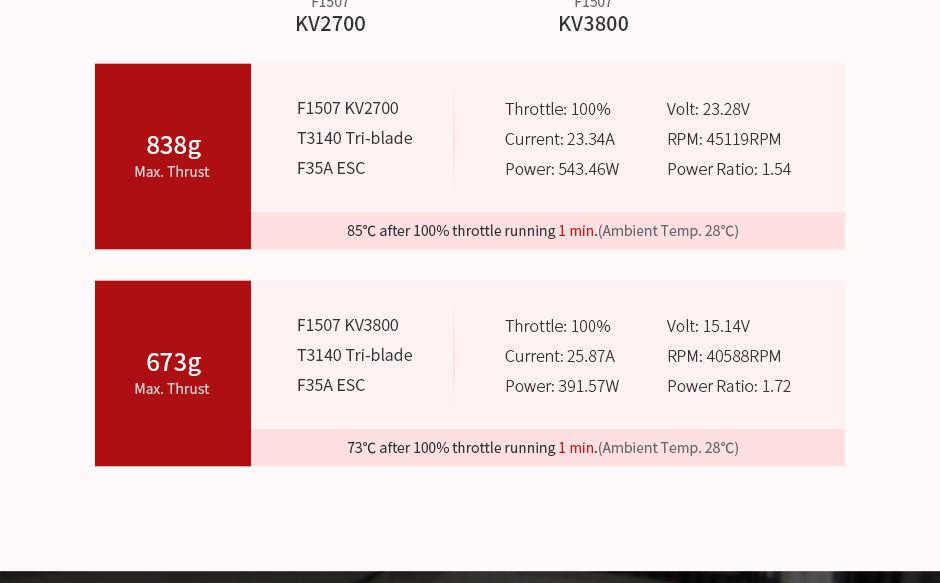

		100%	838.70	23.28	23.34	45119	543.46	1.54
F1507 KV3800	GF3035 Tri-Blade	50%	172.79	15.24	4.35	27308	66.26	2.61	61 (Ambient Temperature: 28℃)
		55%	202.69	15.22	5.22	29542	79.44	2.55
		60%	235.07	15.15	6.08	31356	92.13	2.55
		65%	266.61	15.15	7.02	33688	106.42	2.51
		70%	302.49	15.15	8.03	35761	121.67	2.49
		75%	345.12	15.30	9.25	37672	141.48	2.44
		80%	384.48	15.39	10.37	39842	159.61	2.41
		85%	422.72	15.32	11.48	41320	175.88	2.40
		90%	461.57	15.27	12.85	43101	196.21	2.35
		95%	502.25	15.21	14.43	44817	219.47	2.29
		100%	549.70	15.15	16.43	46701	248.97	2.21
	GF3052 Tri-Blade	50%	226.31	15.14	6.46	24408	97.70	2.32	65 (Ambient Temperature: 28℃)
		55%	258.38	15.07	7.74	26156	116.69	2.21
		60%	299.37	15.34	9.42	28303	144.54	2.07
		65%	341.70	15.50	11.02	30102	170.80	2.00
		70%	374.60	15.48	12.44	31517	192.52	1.95
		75%	411.84	15.44	14.07	33007	217.15	1.90
		80%	454.63	15.39	16.05	34486	246.94	1.84
		85%	495.66	15.32	17.93	35816	274.76	1.80
		90%	534.67	15.27	20.03	36695	305.86	1.75
		95%	576.51	15.19	22.35	38400	339.58	1.70
		100%	626.38	14.82	25.17	40137	372.86	1.68
	T3140 Tri-Blade	50%	238.15	15.36	6.16	24742	94.57	2.52	73 (Ambient Temperature: 28℃)
		55%	274.91	15.32	7.52	26270	115.14	2.39
		60%	309.43	15.28	8.86	28161	135.29	2.29
		65%	351.90	15.51	10.50	30122	162.83	2.16
		70%	394.52	15.58	12.07	31605	188.07	2.10
		75%	447.79	15.58	14.28	33458	222.54	2.01
		80%	468.07	15.54	15.34	34305	238.29	1.96
		85%	513.40	15.48	17.62	35847	272.70	1.88
		90%	547.14	15.42	19.60	37313	302.32	1.81
		95%	588.80	15.37	21.94	38329	337.22	1.75
		100%	673.83	15.14	25.87	40588	391.57	1.72
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
