Name: T-HOBBY F2004 FPV 3-5 Inch Cinewhoop Motor 3-6S KV1700/KV3000
Brand: LIGPOWER
SKU: ligpower001120
Price: 20.90 USD
Availability: InStock

T-HOBBY F2004 FPV 3-5 Inch Cinewhoop Motor 3-6S KV1700/KV3000

20.90

Available points: 1000 Points Points reward: 20 Points

Promotion
- LIMITED-TIME FPV SALE 20% OFF

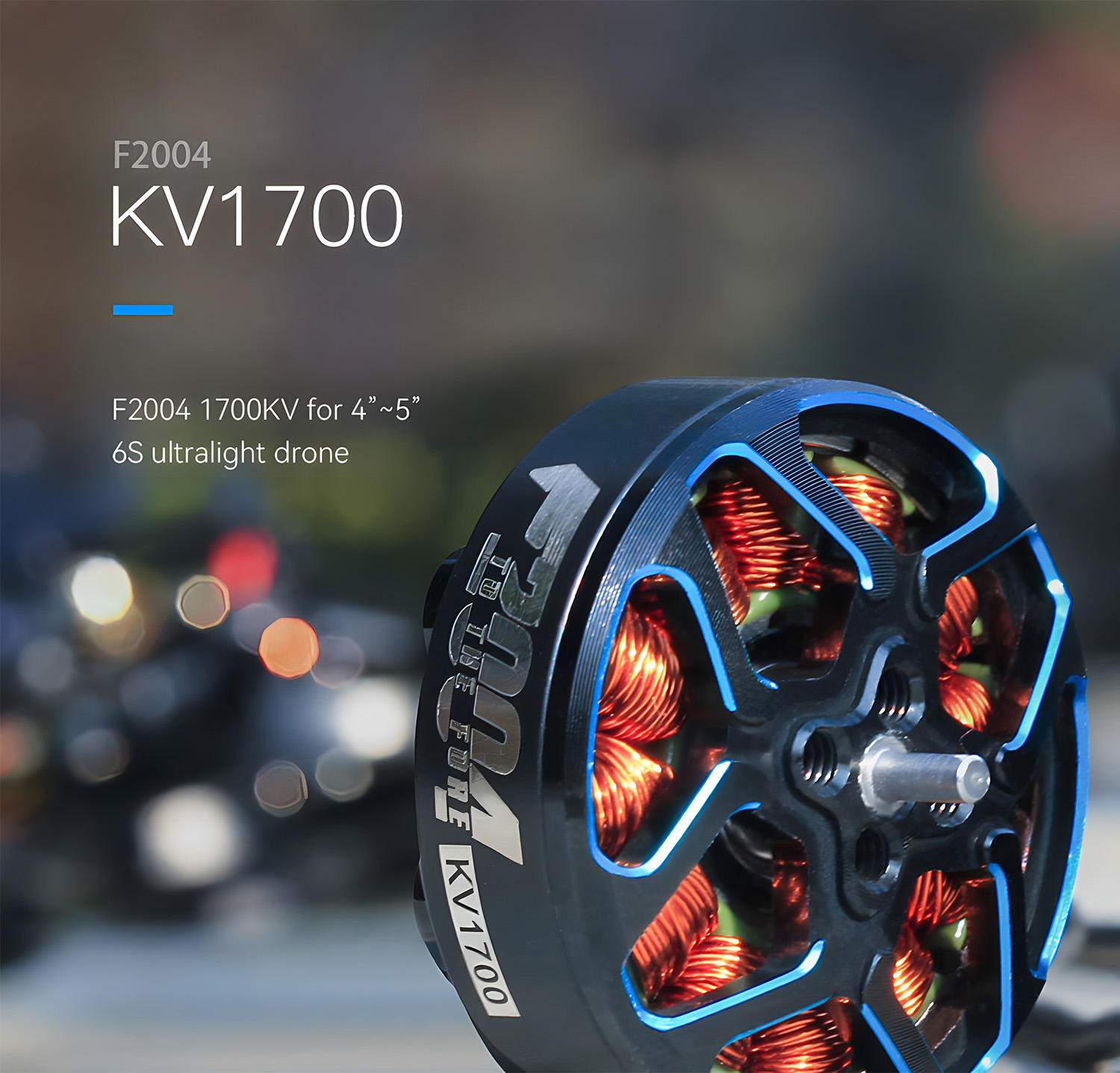

1. 1700KV for 4-5" 6s ultralight drone

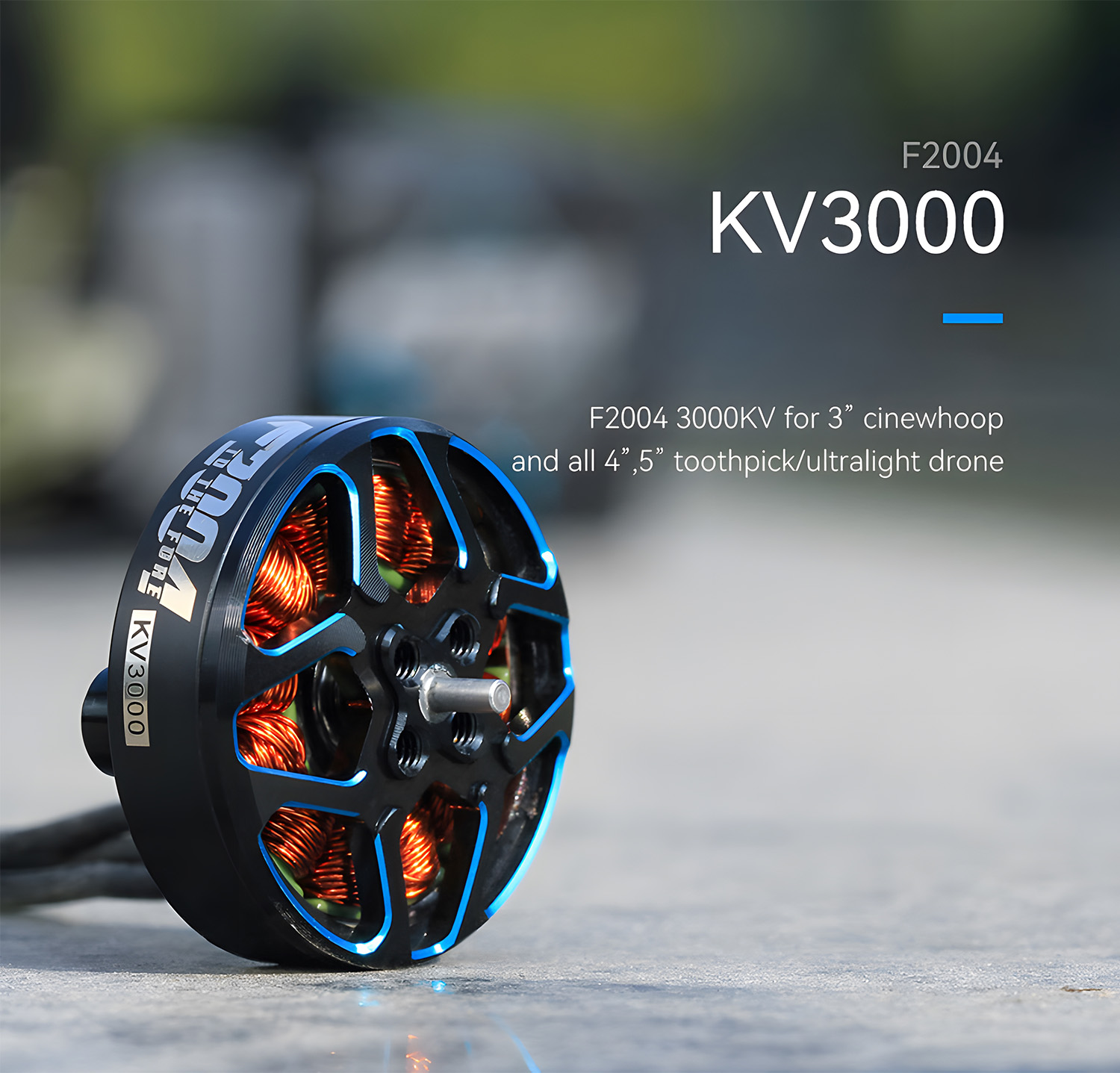

2. 3000KV for 3" cinewhoop, 4-5" toothpick/ultralight drone

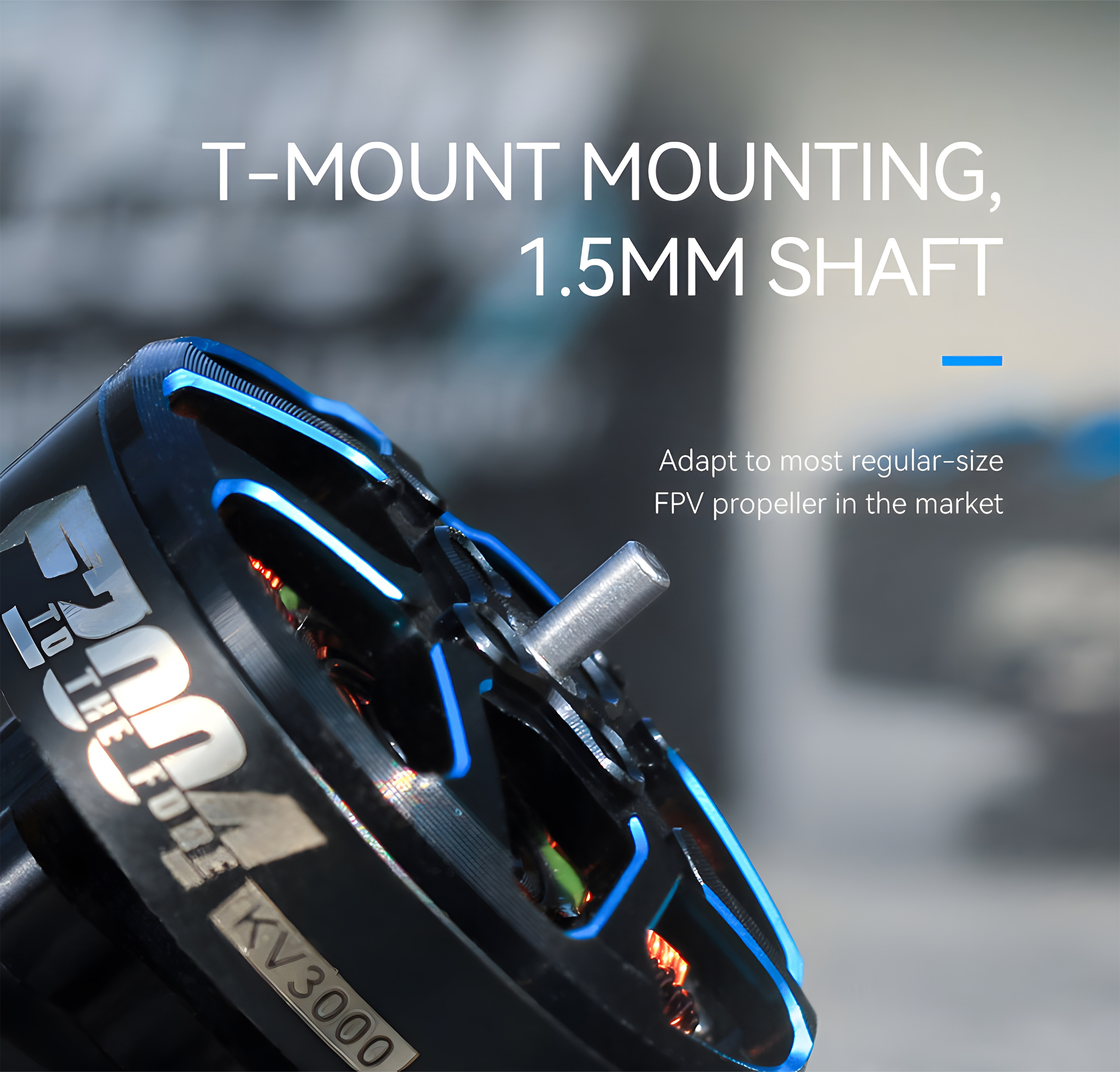

3. T-Mount mounting, 1.5mm shaft

Parameter：

KV1700
KV3000

Quantity：

20.90

Free Shipping by DHL/UPS Express

Relevant Products

T-HOBBY F35A 3-6S Individual Racing ESC

$28.9
T-HOBBY F7 35A AIO

$99.9
T-HOBBY F7 45A AIO

$119

Detail information
Specifications

About T-HOBBY F2004 Cinewhoop/Cinematic Drone Motor

Get fpv long-range motor with the T-HOBBY F2004 1700KV/3000KV Motor!

The F2004 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game!

Great for freestyle and racing drones, like 3 inch cinewhoops and 4-5 inch quad builds or ultralight drones!

F2004 Hightlight:

Suitable for 3-inch cinewhoop and 4-5 inch toothpick/ultralight drone, made of new appearance and high-quality raw materials.

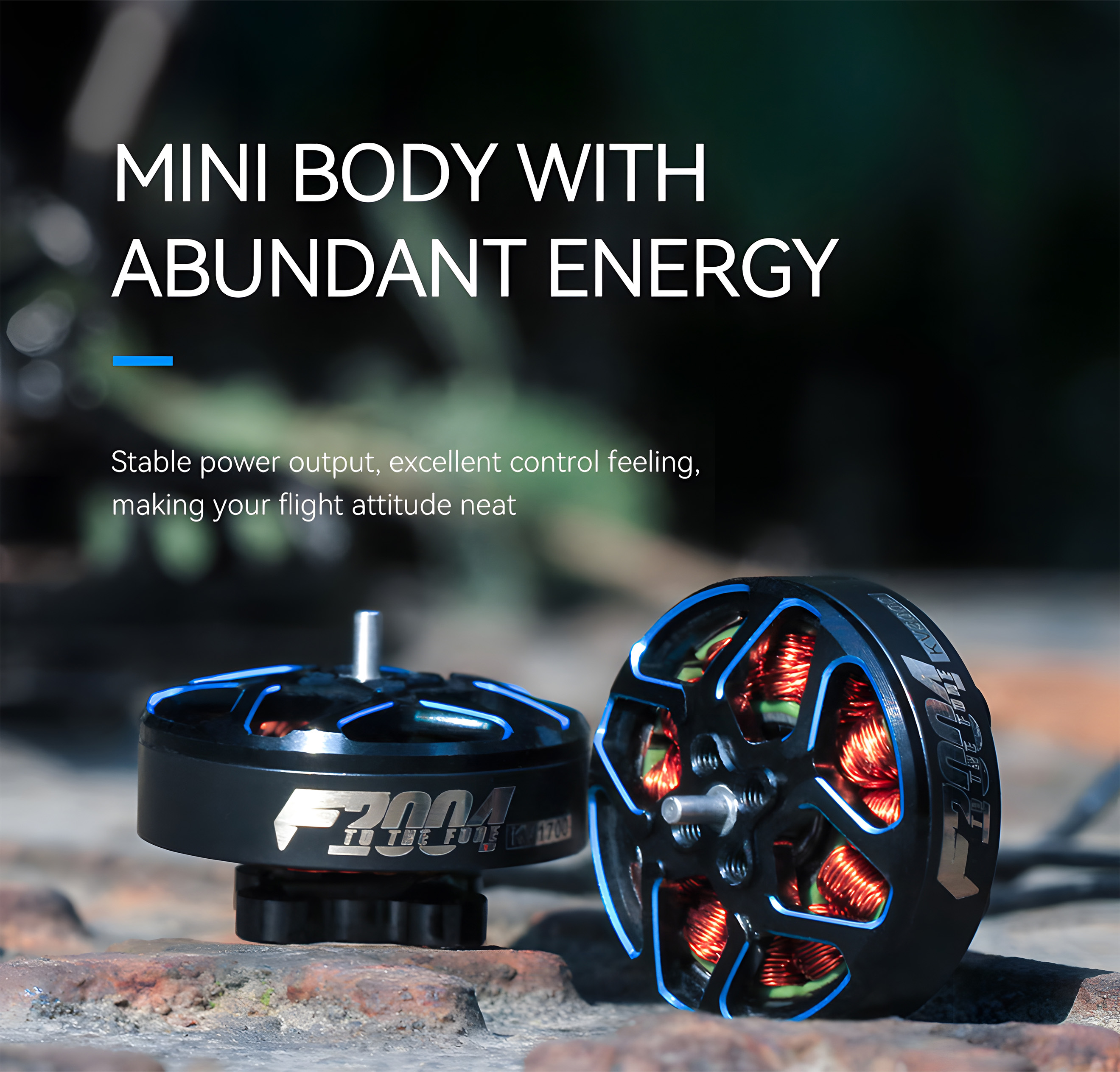

T-Mount locking propeller design, 1.5mm shaft, small body accumulates a lot of energy, its stable explosive power and good controllability make your flying posture clean and neat.

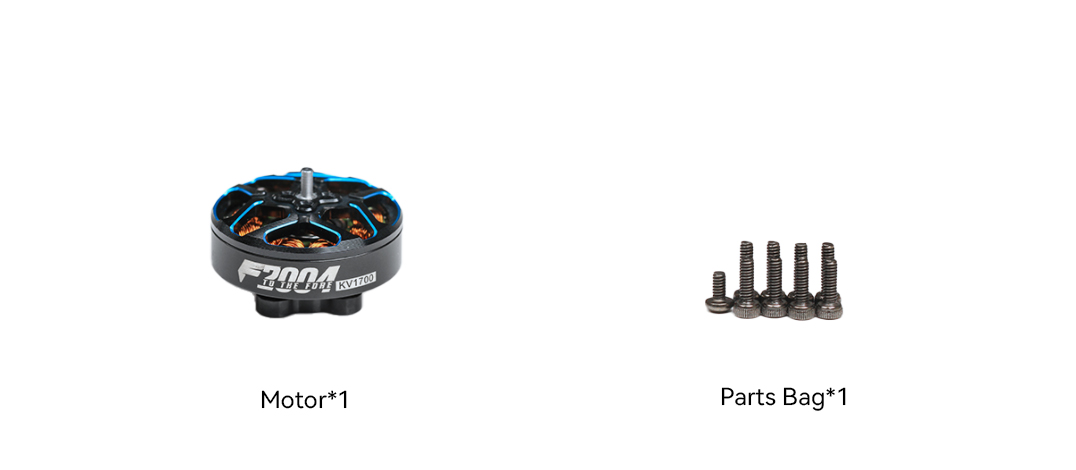

Packing List Includes:

1 x T-HOBBY F2004 1700KV/3000KV Motor

Matching Frame:

3-5 Inch

Matching Guide:

Mini F7 flight controller

Mini F45A 6s 4in1 ESC

F7 35A Aio flight controller

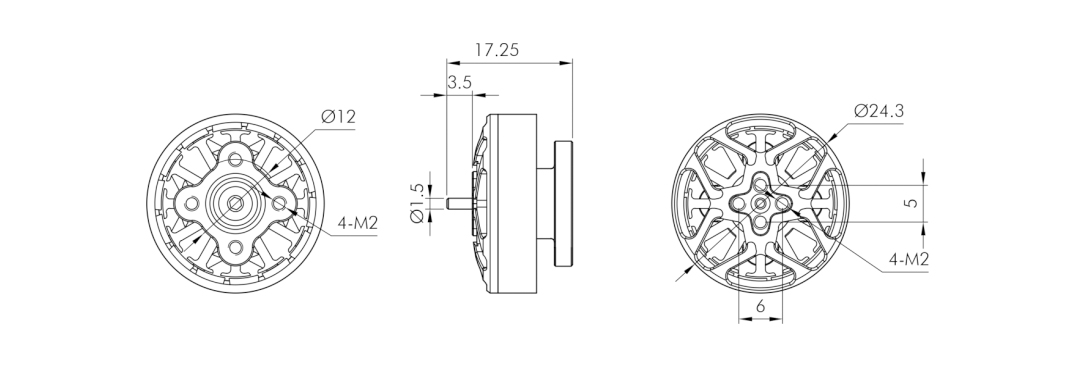

Technical Drawing

Specification Export to Excel

Test Item	KV1700	Weight(Incl.Cable)	16.4g
Motor Dimensions	Φ24.3*17.25mm	Internal Resistance	221mΩ
Lead	24#AWG 130mm	Configuration	12N14P
Shaft Diameter	3mm	Rated Voltage(Lipo)	6S
Idle Current(10V)	0.38A	Peak Current(60s)	21.2A
Max.Power(60s)	503W

Test Item	KV3000	Weight(Incl.Cable)	16.4g
Motor Dimensions	Φ24.3*17.25mm	Internal Resistance	90mΩ
Lead	24#AWG 130mm	Configuration	12N14P
Shaft Diameter	3mm	Rated Voltage(Lipo)	4-5S
Idle Current(10V)	0.88A	Peak Current(60s)	30.1A
Max.Power(60s)	460W

Test Data Export to Excel

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F2004 KV1700	GF4023	50%	224.70	23.98	2.38	20595	57.13	3.93	65 (Ambient Temperature: 8℃)
		55%	269.47	23.97	3.25	22734	77.92	3.46
		60%	321.74	23.95	4.29	24683	102.83	3.13
		65%	381.72	23.94	5.34	26569	127.87	2.99
		70%	424.27	23.92	6.15	28055	147.05	2.89
		75%	493.59	23.90	7.71	29998	184.17	2.68
		80%	555.63	23.87	9.27	31890	221.31	2.51
		85%	608.12	23.85	10.66	33052	254.29	2.39
		90%	650.62	23.83	12.03	34274	286.57	2.27
		95%	701.11	23.80	14.06	35525	334.66	2.09
		100%	857.41	23.77	18.19	39541	432.37	1.98
	GT5125	50%	309.73	23.95	3.35	18454	80.19	3.86	67 (Ambient Temperature: 8℃)
		55%	371.42	23.93	4.45	20267	106.47	3.49
		60%	428.96	23.91	5.61	21758	134.06	3.20
		65%	495.36	23.88	6.91	23402	165.07	3.00
		70%	558.66	23.83	8.28	24385	197.34	2.83
		75%	614.19	23.81	9.78	25736	232.95	2.64
		80%	664.74	23.79	11.14	26889	265.05	2.51
		85%	712.35	23.77	12.82	27590	304.63	2.34
		90%	750.23	23.73	14.52	28461	344.55	2.18
		95%	794.03	23.69	16.73	29201	396.41	2.00
		100%	929.72	23.67	20.63	32253	488.25	1.90
	T4944	50%	334.53	23.95	3.63	18204	87.03	3.84	69 (Ambient Temperature: 8℃)
		55%	390.41	23.92	4.74	19980	113.48	3.44
		60%	447.47	23.91	5.86	21283	140.01	3.20
		65%	509.13	23.88	7.08	22793	169.04	3.01
		70%	570.09	23.84	8.41	23838	200.53	2.84
		75%	628.69	23.82	10.02	25281	238.59	2.64
		80%	681.82	23.79	11.48	26230	273.09	2.50
		85%	725.17	23.77	13.10	26936	311.45	2.33
		90%	765.52	23.73	14.83	27897	351.92	2.18
		95%	803.27	23.70	17.02	28334	403.23	1.99
		100%	945.44	23.66	21.27	31604	503.10	1.88
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
F2004 KV3000	GF D76	50%	252.92	15.86	5.45	22447	86.49	2.92	63 (Ambient Temperature: 8℃)
		55%	293.93	15.82	6.99	24355	110.54	2.66
		60%	336.20	15.79	8.38	26029	132.38	2.54
		65%	379.70	15.77	9.55	27551	150.51	2.52
		70%	420.14	15.72	10.96	28769	172.32	2.44
		75%	479.02	15.68	13.03	30393	204.32	2.34
		80%	527.04	15.65	14.96	32003	234.14	2.25
		85%	574.19	15.59	17.12	33236	266.99	2.15
		90%	604.76	15.56	18.88	34462	293.68	2.06
		95%	649.57	15.49	21.62	35367	334.93	1.94
		100%	794.52	15.43	26.55	39050	409.71	1.94
	GF4023	50%	281.13	15.91	4.94	23132	78.51	3.58	68 (Ambient Temperature: 8℃)
		55%	330.10	15.87	6.34	25157	100.58	3.28
		60%	382.64	15.84	7.73	26865	122.42	3.13
		65%	440.47	15.80	9.12	28595	144.21	3.05
		70%	479.70	15.78	10.41	29886	164.21	2.92
		75%	544.83	15.74	12.36	31568	194.60	2.80
		80%	609.44	15.69	14.45	33319	226.77	2.69
		85%	650.18	15.66	16.19	34186	253.48	2.57
		90%	695.66	15.61	18.29	35738	285.51	2.44
		95%	737.42	15.57	20.73	36583	322.66	2.29
		100%	890.03	15.51	25.46	40309	394.93	2.25
	GF5125	50%	347.95	15.84	6.29	19417	99.63	3.49	72 (Ambient Temperature: 8℃)
		55%	403.42	15.79	7.93	21091	125.27	3.22
		60%	486.64	15.73	10.48	23039	164.83	2.95
		65%	554.75	15.63	13.57	24401	212.01	2.62
		70%	587.89	15.58	15.10	24912	235.35	2.50
		75%	625.25	15.60	15.61	25811	243.56	2.57
		80%	673.25	15.57	17.31	26954	269.45	2.50
		85%	723.05	15.51	19.55	27723	303.19	2.38
		90%	766.25	15.45	22.14	28811	341.91	2.24
		95%	804.38	15.38	25.01	29351	384.81	2.09
		100%	951.24	15.32	29.85	32718	457.20	2.08
	T76	50%	214.40	15.90	3.99	24197	63.40	3.38	61 (Ambient Temperature: 8℃)
		55%	261.45	15.87	5.26	26703	83.43	3.13
		60%	308.73	15.84	6.57	28691	104.01	2.97
		65%	355.65	15.82	7.84	30906	123.94	2.87
		70%	391.56	15.79	9.00	32212	142.00	2.76
		75%	450.25	15.76	10.64	34389	167.70	2.68
		80%	504.09	15.72	12.38	36039	194.74	2.59
		85%	548.46	15.68	14.17	37332	222.26	2.47
		90%	587.94	15.64	15.97	38846	249.85	2.35
		95%	627.19	15.60	18.29	40088	285.37	2.20
		100%	767.72	15.56	22.61	43870	351.87	2.18
	T4944	50%	365.46	15.82	6.69	18922	105.84	3.45	71 (Ambient Temperature: 8℃)
		55%	403.59	15.79	7.94	20147	125.30	3.22
		60%	476.12	15.73	10.11	21861	159.02	2.99
		65%	564.70	15.64	13.03	23849	203.88	2.77
		70%	599.67	15.57	15.28	24434	237.87	2.52
		75%	638.39	15.56	16.29	25440	253.50	2.52
		80%	680.47	15.55	17.63	26323	274.12	2.48
		85%	722.42	15.49	19.67	26952	304.65	2.37
		90%	761.90	15.43	22.23	27823	342.86	2.22
		95%	800.62	15.36	25.09	28427	385.38	2.08
		100%	946.11	15.29	30.12	31723	460.51	2.05
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
