T-HOBBY F30 3/4/6S 3'' Racing Motor with Max. Thrust of 300g

Name: T-HOBBY F30 3/4/6S 3'' Racing Motor with Max. Thrust of 300g
Brand: LIGPOWER
SKU: LIGPOWER001447
Price: 75.90 USD
Availability: InStock

75.90

Available points: 76 Points Points reward: 75 Points

Parameter：

Quantity：

75.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

POWERFUL
NEW RACING BENCHMARK

RAPID RESPONSE,
EFFORTLESS CONTROL

RELIABLE AND DURABLE

INNOVATIVE DESIGN
TO DIVERSE NEEDS

Technical Drawing

Specification

Type	F30	Motor Dimension	Φ17.9*17.4mm
Magnet	Nickel plated arc magnet	Coil insulation test	300V withstand voltage test
Waterproof anddustproof class	/	Configuration	9N12P
Dynamic balancerequirements standards	≤5Mg	Bearings	Imported MR63ZZ
Shaft Diameter	2mm	Lead	20AWG*150mm
Screw Diameter	Φ9-M2-4	Prop Adapter Shaft Thread	Φ5-Φ2mm-shaft
Packing Size	Φ68*35.0mm	Packing Weight	70g

Tech Specs
KV/Recommended Voltage	6S	Idle Current(10V)	0.62A
Max Power(1s)	273W	Internal Resistance	268mΩ
Rated Voltage (Lipo)	24V	Peak Current(1s)	11A
Max Thrust	432g	Weight (incl.cable)	9.8g

KV/Recommended Voltage	4S	Idle Current(10V)	0.8A
Max Power(1s)	205W	Internal Resistance	152mΩ
Rated Voltage (Lipo)	16V	Peak Current(1s)	13A
Max Thrust	351g	Weight (incl.cable)	9.8g

KV/Recommended Voltage	3S	Idle Current(10V)	0.99A
Max Power(1s)	176W	Internal Resistance	112mΩ
Rated Voltage (Lipo)	12V	Peak Current(1s)	15A
Max Thrust	312g	Weight (incl.cable)	9.8g

Recommended
Motor	T-HOBBY F30 6S*4PCS	Frame Type	X4
Prop	GF3020/HQ3018-3	Lipo Cells	6S
ESC	T-HOBBY F7 AIO 6S 35A	Recommended takeoff weight range	Within 150g
FC	T-HOBBY F7 AIO 6S 35A	Max Takeoff Weight	500g

Motor	T-HOBBY F30 4S*4PCS	Frame Type	X4
Prop	GF3020/HQ3018-3	Lipo Cells	4S
ESC	T-HOBBY F4 AIO 4S 20A	Recommended takeoff weight range	Within 150g
FC	T-HOBBY F4 AIO 4S 20A	Max Takeoff Weight	500g

Motor	T-HOBBY F30 3S*4PCS	Frame Type	X4
Prop	GF3020/HQ3018-3	Lipo Cells	3S
ESC	T-HOBBY F4 AIO 4S 20A	Recommended takeoff weight range	Within 150g
FC	T-HOBBY F4 AIO 4S 20A	Max Takeoff Weight	500g

Test Data

Type	Propeller	Voltage (V)	Throttle (%)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)	Torque (N*m)	Operating Temperature (℃)
F30 6S	GF 3020-3	24.01	10%	0.16	7136	6	4	1.52	0.00	93.3 (Ambient temperature: 24℃)
		24.01	20%	0.47	13737	27	11	2.38	0.00
		24.00	30%	0.98	19502	60	23	2.55	0.01
		23.99	40%	1.75	25231	105	42	2.50	0.01
		23.98	50%	2.81	30462	152	67	2.26	0.01
		23.96	60%	3.94	34487	201	94	2.13	0.02
		23.94	70%	5.46	38472	266	131	2.04	0.02
		23.91	80%	7.16	42344	321	171	1.88	0.03
		23.88	90%	9.21	45523	380	220	1.73	0.03
		23.85	100%	11.48	48180	433	274	1.58	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 6S	HQ 3018-3	24.01	10%	0.15	7173	5	4	1.30	0.00	82.6 (Ambient temperature: 24℃)
		24.01	20%	0.45	13841	22	11	2.07	0.00
		24.00	30%	0.92	20076	53	22	2.38	0.00
		23.99	40%	1.62	25860	92	39	2.38	0.01
		23.98	50%	2.55	30918	135	61	2.21	0.01
		23.96	60%	3.65	35421	185	87	2.12	0.01
		23.94	70%	4.99	39910	241	119	2.01	0.02
		23.92	80%	6.58	43881	296	157	1.88	0.02
		23.89	90%	8.43	47697	351	201	1.74	0.03
		23.86	100%	10.56	50785	406	252	1.61	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 6S	GF 3016-3	24.01	10%	0.15	7137	5	4	1.48	0.00	85.2 (Ambient temperature: 24℃)
		24.01	20%	0.44	13733	25	11	2.41	0.00
		24.00	30%	0.93	19955	57	22	2.55	0.00
		23.98	40%	1.65	25713	98	40	2.47	0.01
		23.98	50%	2.63	30741	143	63	2.28	0.01
		23.96	60%	3.67	35160	190	88	2.16	0.01
		23.94	70%	4.91	38999	239	118	2.03	0.02
		23.91	80%	6.75	43415	304	161	1.88	0.02
		23.89	90%	8.70	46836	359	208	1.72	0.03
		23.86	100%	10.83	49919	408	258	1.58	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 4S	GF 3020-3	16.03	10%	0.21	6547	5	3	1.63	0.00	67.3 (Ambient temperature: 24℃)
		16.02	20%	0.57	12464	20	9	2.25	0.00
		16.00	30%	1.17	18172	46	19	2.45	0.00
		15.98	40%	2.06	23322	80	33	2.42	0.01
		15.95	50%	3.28	28089	121	52	2.31	0.01
		15.92	60%	4.61	31720	159	73	2.17	0.01
		15.88	70%	6.22	35507	206	99	2.09	0.02
		15.82	80%	8.35	39021	258	132	1.95	0.02
		15.77	90%	10.48	42020	305	165	1.85	0.03
		15.70	100%	13.08	44782	351	205	1.71	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 4S	HQ 3018-3	16.03	10%	0.19	6557	4	3	1.20	0.00	61.5 (Ambient temperature: 24℃)
		16.02	20%	0.54	12565	17	9	1.94	0.00
		16.01	30%	1.11	18302	40	18	2.23	0.00
		15.99	40%	1.93	23665	70	31	2.27	0.01
		15.96	50%	3.02	28598	107	48	2.22	0.01
		15.93	60%	4.24	32520	142	67	2.11	0.01
		15.89	70%	5.69	36717	185	90	2.05	0.02
		15.85	80%	7.41	40340	228	117	1.94	0.02
		15.79	90%	9.51	43909	275	150	1.83	0.02
		15.73	100%	11.94	47016	319	188	1.70	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 4S	GF 3016-3	16.03	10%	0.20	6418	4	3	1.13	0.00	60.6 (Ambient temperature: 24℃)
		16.02	20%	0.58	12257	19	9	2.03	0.00
		16.00	30%	1.18	17833	44	19	2.33	0.00
		15.99	40%	2.00	22997	75	32	2.37	0.01
		15.96	50%	3.08	27761	113	49	2.30	0.01
		15.92	60%	4.36	31613	148	69	2.13	0.01
		15.89	70%	5.76	35485	190	92	2.08	0.02
		15.84	80%	7.61	39037	234	121	1.95	0.02
		15.78	90%	9.85	42767	286	155	1.84	0.02
		15.72	100%	12.10	45173	322	190	1.69	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 3S	GF 3020-3	12.02	10%	0.24	6355	4	3	1.49	0.00	58.4 (Ambient temperature: 24℃)
		12.01	20%	0.67	12117	18	8	2.25	0.00
		11.99	30%	1.42	17432	42	17	2.47	0.00
		11.96	40%	2.47	22387	73	30	2.47	0.01
		11.93	50%	3.84	26873	109	46	2.38	0.01
		11.89	60%	5.45	30433	145	65	2.23	0.01
		11.84	70%	7.28	33948	185	86	2.15	0.02
		11.78	80%	9.50	37154	226	112	2.02	0.02
		11.72	90%	12.12	40194	269	142	1.89	0.02
		11.64	100%	15.18	42781	313	177	1.77	0.03
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 3S	HQ 3018-3	12.02	10%	0.24	6375	4	3	1.44	0.00	55.3 (Ambient temperature: 24℃)
		12.01	20%	0.65	12224	17	8	2.10	0.00
		11.99	30%	1.33	17710	38	16	2.36	0.00
		11.97	40%	2.32	22780	65	28	2.36	0.01
		11.93	50%	3.59	27495	99	43	2.30	0.01
		11.90	60%	5.02	31279	130	60	2.18	0.01
		11.86	70%	6.71	35113	168	80	2.12	0.01
		11.80	80%	8.71	38503	206	103	2.00	0.02
		11.74	90%	11.12	41847	247	131	1.89	0.02
		11.67	100%	13.92	44830	287	162	1.77	0.02
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
F30 3S	GF 3016-3	12.02	10%	0.24	6395	5	3	1.84	0.00	51.4 (Ambient temperature: 34.5℃)
		12.01	20%	0.68	12240	19	8	2.38	0.00
		11.99	30%	1.39	17646	43	17	2.59	0.00
		11.96	40%	2.42	22752	74	29	2.55	0.01
		11.93	50%	3.75	27245	110	45	2.46	0.01
		11.89	60%	5.23	30898	144	62	2.32	0.01
		11.85	70%	6.99	34646	183	83	2.21	0.01
		11.79	80%	9.11	37939	225	107	2.09	0.02
		11.73	90%	11.62	41156	265	136	1.94	0.02
		11.66	100%	14.52	43946	306	169	1.81	0.02
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

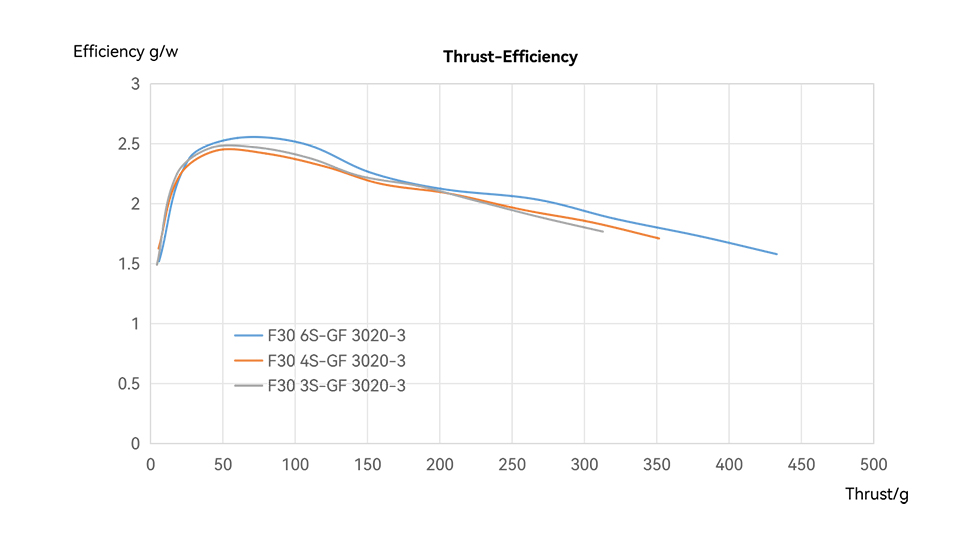

Analysis Chart

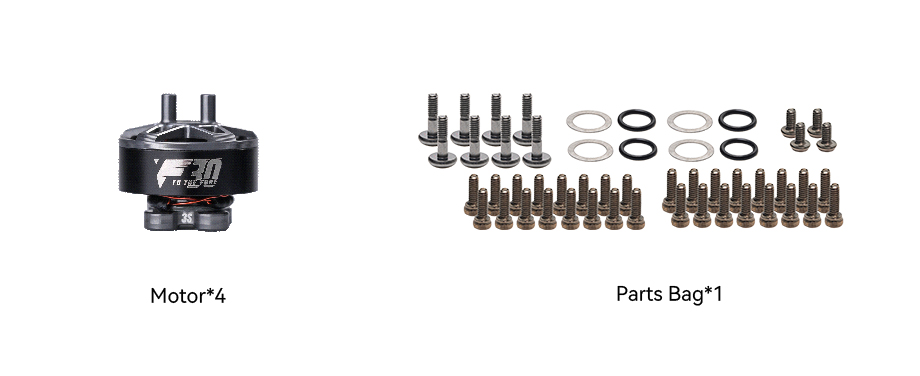

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
