Name: T-HOBBY F40 PRO V 2306.8 FPV Racing Drone Motor 6S KV1950/KV2150
Brand: LIGPOWER
SKU: ligpower001277
Price: 26.90 USD
Availability: InStock

T-HOBBY F40 PRO V 2306.8 FPV Racing Drone Motor 6S KV1950/KV2150

26.90

Available points: 27 Points Points reward: 26 Points

This is a motor for racing drones.
1. Optimized magnetic circuit
2. Lower flight temperature

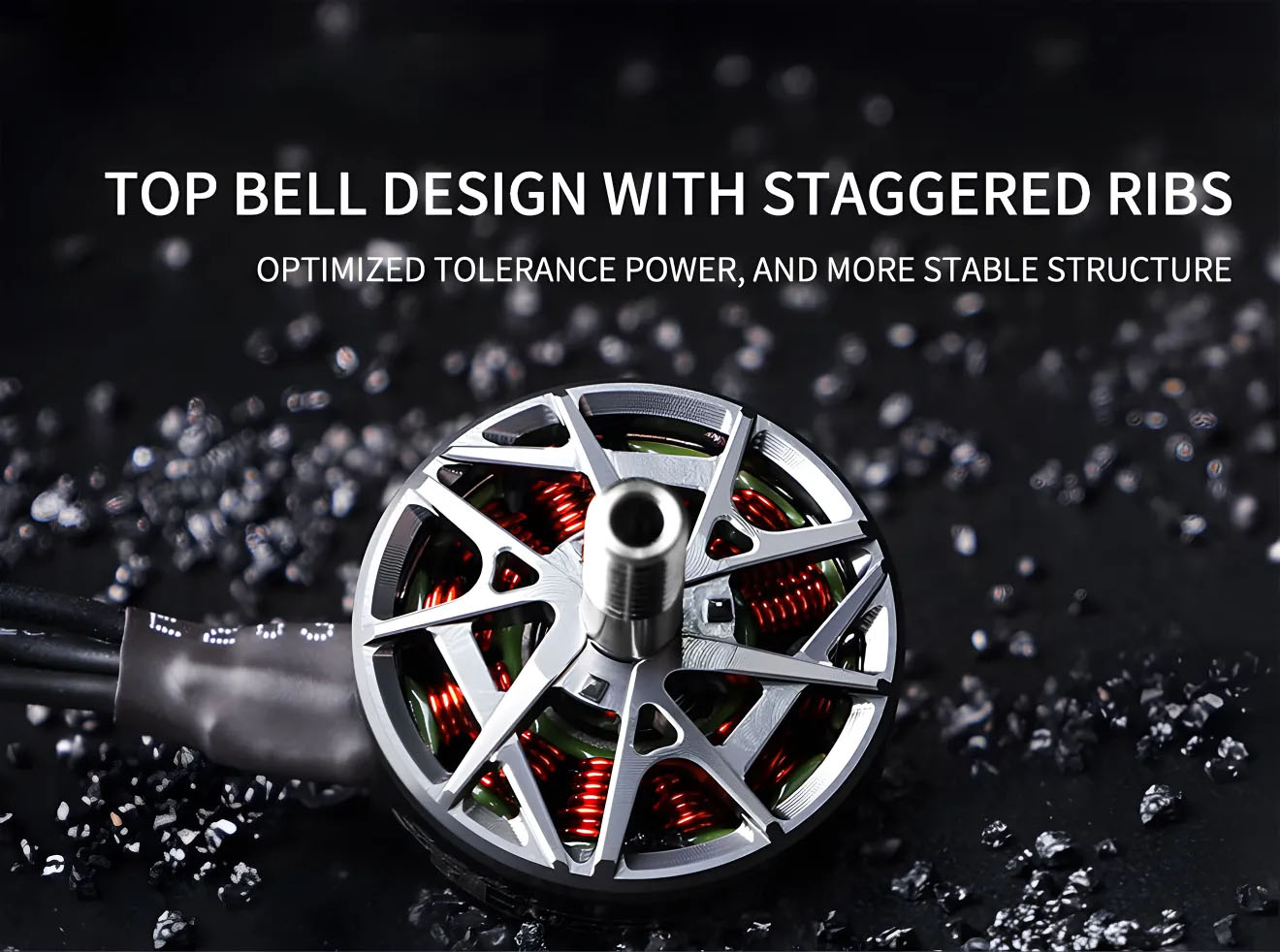

3. Staggered rib bell design
4. Raised propeller lock
5. Titanium alloy shaft
6. EZO bearings

Parameter：

KV1950
KV2150

Quantity：

26.90

Free Shipping by DHL/UPS Express

Relevant Products

Detail information
Specifications

About T-HOBBY F40 Pro V Racing Drone Motor

T-HOBBY F40 PRO V Motor, featuring a titanium alloy shaft and 2306.8 stator, delivers explosive power and precision.

Reaching 240km/h and 36,000 RPM, it ensures a super smooth racing flight experience.

F40 Pro V Hightlight:

The F40PRO V motor has high explosive power. The maximum speed of 2150KV can reach 240km/h. The speed increase per 100 kilometers only takes 0.5 seconds.

The maximum speed of the motor reaches 36,000 rpm. Its high efficiency, excellent heat dissipation and electromagnetic design enable high KV without losing pace.

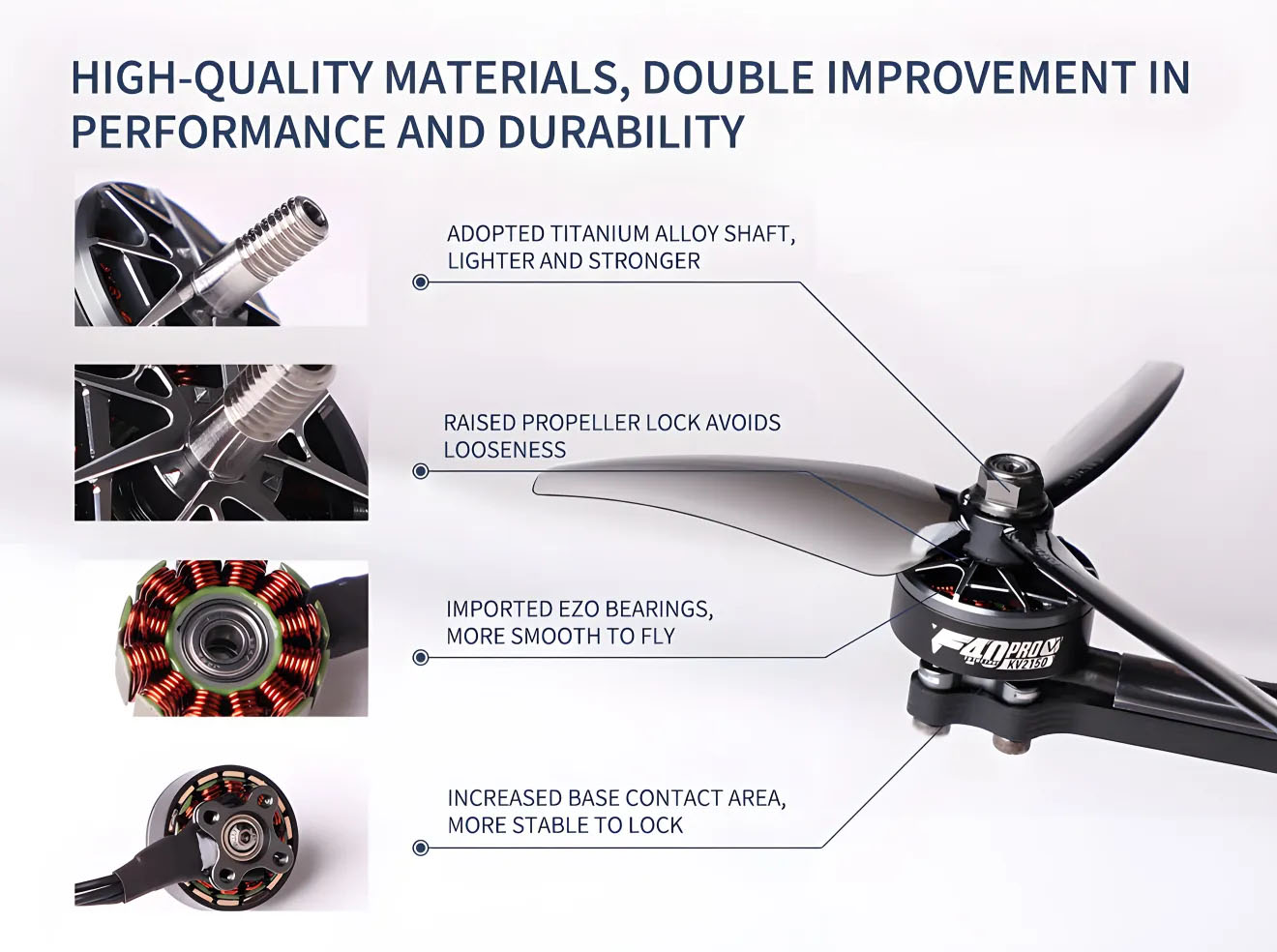

Excellent titanium alloy shaft, raised propeller lock, and imported EZO bearings ensure precision workmanship.

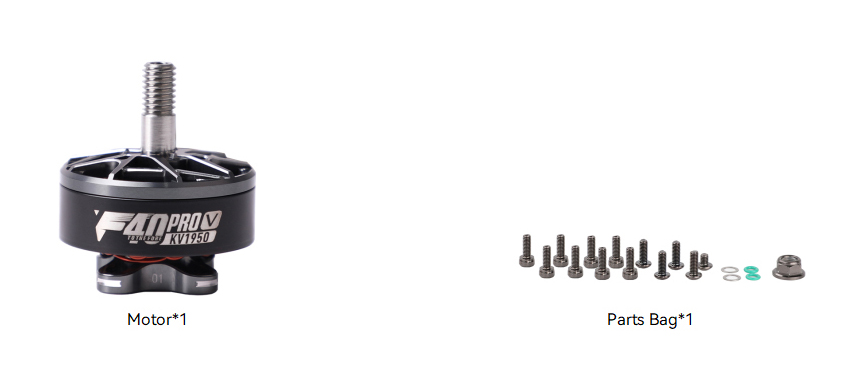

Packing List Includes:

1x T-HOBBY F40 PRO V Motor (Choose 1950KV or 2150KV)

1x Hardware Kit

Matching Guide:

Mini F7 Flight controller

Mini F45A 6S 4IN1 ESC

F5146 FPV Drone propeller

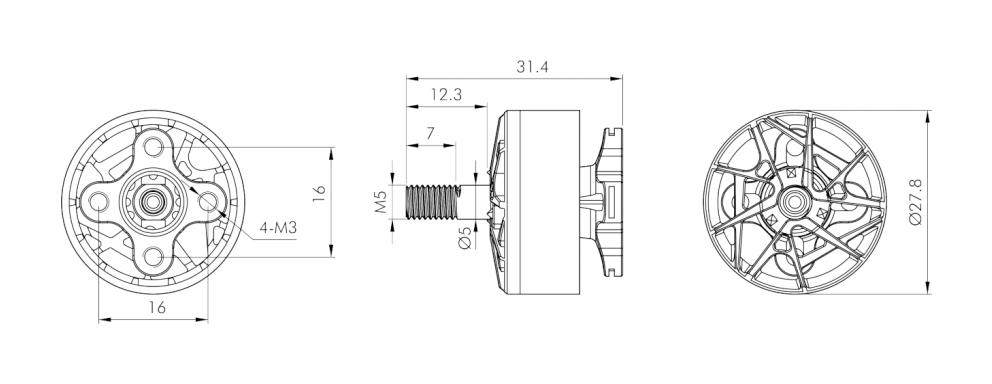

Technical Drawing

Specification Export to Excel

KV	KV1950	Configuration	12N14P
Shaft Diameter	IN:4mm OUT:5mm	Lead	20#150mm
Weight (Incl. Cable)	34.5g	Voltage	25.2V
Idle Current（10V）	1.49A	Max. Power（10s）	1354W
Peak Current（10s）	55.5A

KV	KV2150	Configuration	12N14P
Shaft Diameter	IN:4mm OUT:5mm	Lead	20#150mm
Weight (Incl. Cable)	33.7g	Voltage	25.2V
Idle Current（10V）	1.55A	Max. Power（10s）	1591W
Peak Current（10s）	65.6A

Test Data Export to Excel

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
T-HOBBY T5143S-3	1950KV	20%	25.2	2.7	13212.6	242.8	68.8	3.5
		40%	25.1	8.9	19856.2	588.9	223.6	2.6
		60%	25.0	16.0	24507.1	926.5	400.6	2.3
		80%	24.8	29.3	29978.4	1355.0	725.0	1.9
		100%	24.5	50.4	35275.0	1845.5	1233.8	1.5
	2150KV	20%	25.2	3.5	13970.8	270.0	87.9	3.1
		40%	25.0	11.5	21162.4	672.6	287.9	2.3
		60%	24.9	19.3	26030.8	1058.4	482.0	2.2
		80%	24.7	36.1	31585.5	1504.7	889.9	1.7
		100%	24.3	60.5	36418.5	1966.5	1470.4	1.3
T-HOBBY T5147-3	1950KV	20%	25.2	2.8	12081.1	269.8	70.9	3.8
		40%	25.1	9.4	18434.1	663.2	236.1	2.8
		60%	24.9	19.1	22987.9	1060.8	475.7	2.2
		80%	24.7	34.2	28369.3	1610.7	845.9	1.9
		100%	24.4	55.5	32523.4	2032.9	1353.9	1.5
	2150KV	20%	25.1	3.6	12977.3	315.4	90.4	3.5
		40%	25.0	12.1	19428.8	744.0	302.3	2.5
		60%	24.9	22.9	24400.5	1196.6	568.5	2.1
		80%	24.6	41.7	29377.8	1715.8	1026.1	1.7
		100%	24.2	65.6	33384.2	2108.3	1591.0	1.3
GF 51466-3	1950KV	20%	25.2	2.8	13043.2	271.1	69.3	3.9
		40%	25.1	9.1	19484.3	645.9	227.2	2.8
		60%	25.0	16.7	24054.7	1004.2	417.3	2.4
		80%	24.8	31.0	29316.5	1554.9	768.4	2.0
		100%	24.4	52.6	34381.8	1924.6	1286.4	1.5
	2150KV	20%	25.2	3.4	13859.1	311.0	86.7	3.6
		40%	25.0	11.6	20666.5	734.1	289.2	2.5
		60%	24.9	20.1	25474.7	1154.0	500.2	2.3
		80%	24.7	37.7	30890.7	1641.0	929.7	1.8
		100%	24.3	63.0	35369.5	2026.4	1530.0	1.3

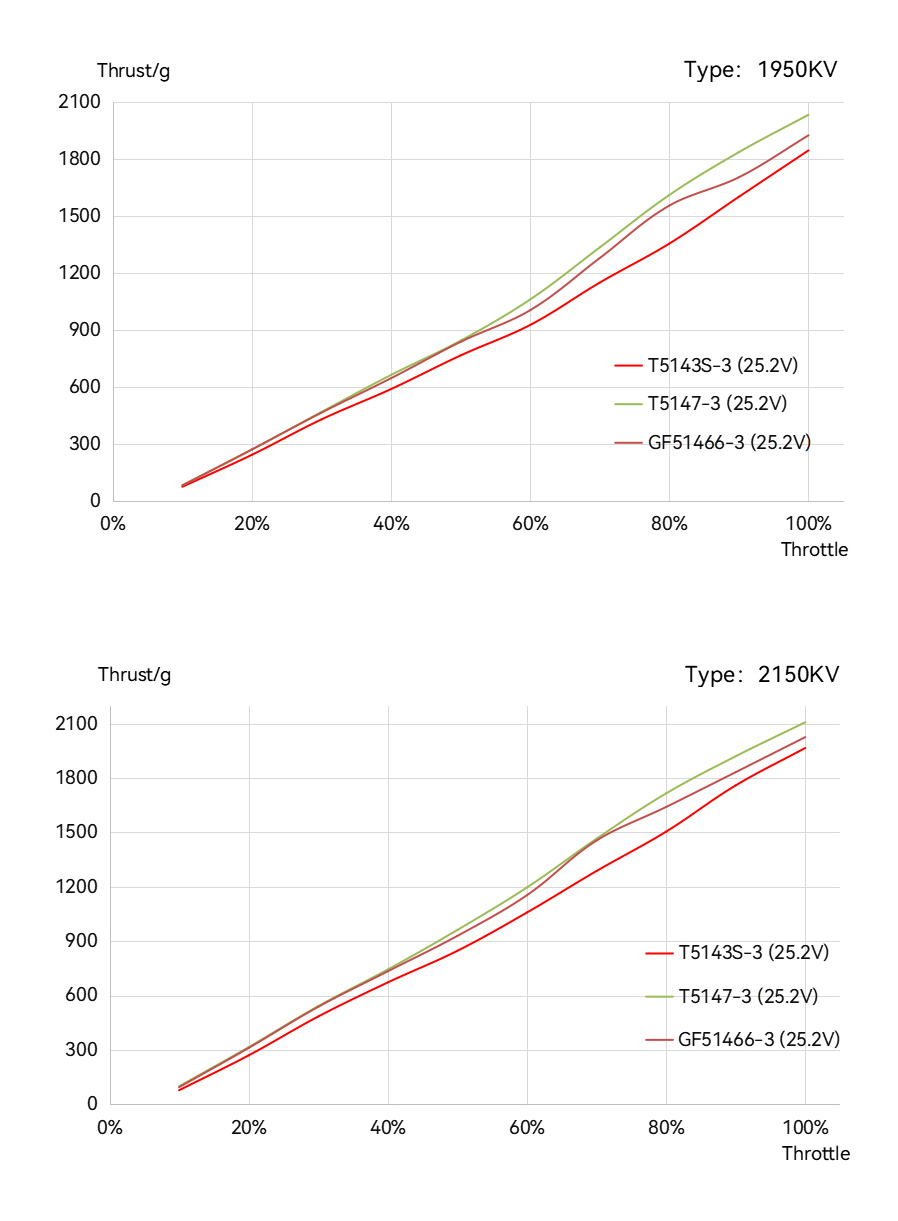

Analysis Chart


Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
