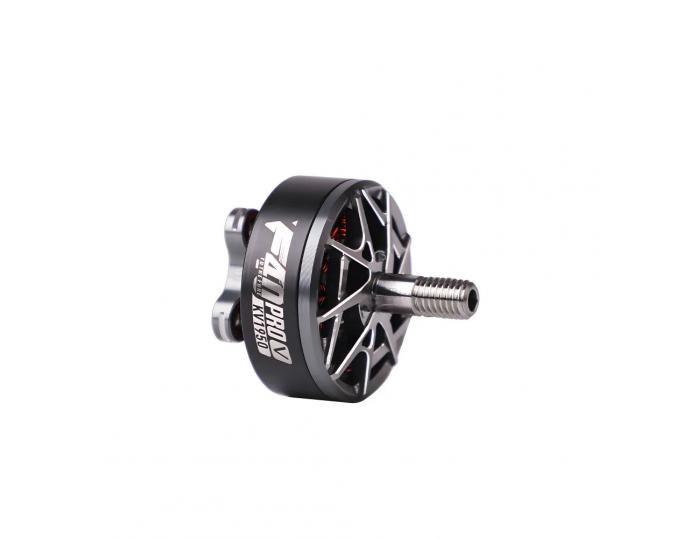

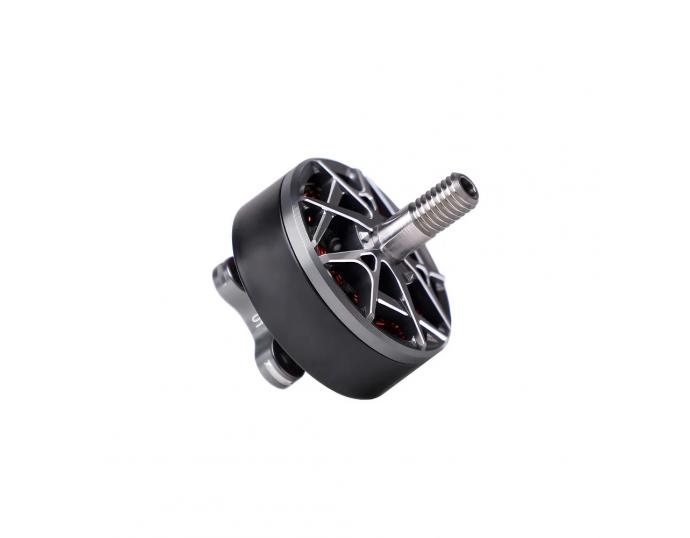

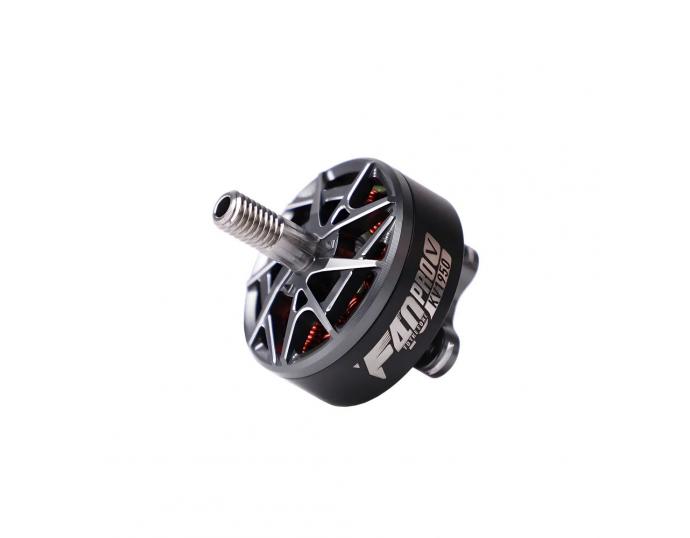

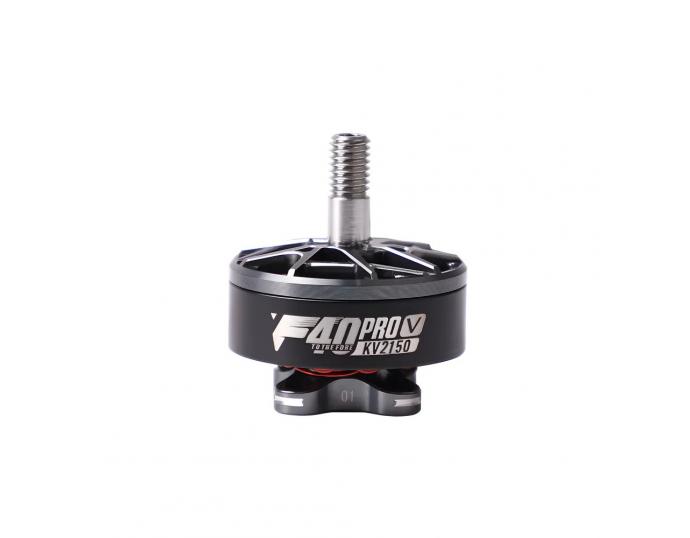

T-HOBBY F40 PRO V 2306.8 FPV Racing Drone Motor 6S KV1950/KV2150

26.90

Available points: 27 Points Points reward: 26 Points

This is a motor for racing drones.
1. Optimized magnetic circuit
2. Lower flight temperature
3. Staggered rib bell design
4. Raised propeller lock
5. Titanium alloy shaft
6. EZO bearings
Parameter：
Quantity：

26.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

About T-HOBBY F40 Pro V Racing Drone Motor


T-HOBBY F40 PRO V Motor, featuring a titanium alloy shaft and 2306.8 stator, delivers explosive power and precision.

Reaching 240km/h and 36,000 RPM, it ensures a super smooth racing flight experience.


F40 Pro V Hightlight:


The F40PRO V motor has high explosive power. The maximum speed of 2150KV can reach 240km/h. The speed increase per 100 kilometers only takes 0.5 seconds.

The maximum speed of the motor reaches 36,000 rpm. Its high efficiency, excellent heat dissipation and electromagnetic design enable high KV without losing pace.

Excellent titanium alloy shaft, raised propeller lock, and imported EZO bearings ensure precision workmanship.


Packing List Includes:


1x T-HOBBY F40 PRO V Motor (Choose 1950KV or 2150KV)

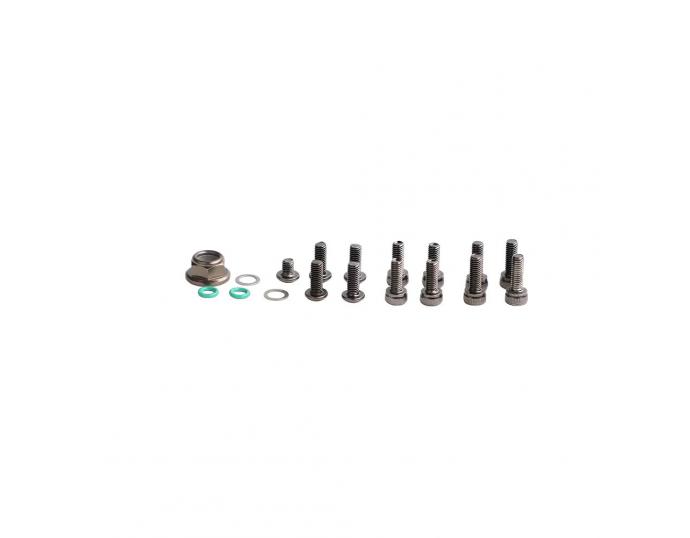

1x Hardware Kit


Matching Guide:


Mini F7 Flight controller

Mini F45A 6S 4IN1 ESC

F5146 FPV Drone propeller



Technical Drawing


Specification
KVKV1950Configuration12N14P
Shaft DiameterIN:4mm
OUT:5mm		Lead20#150mm
Weight (Incl. Cable)34.5gVoltage25.2V
Idle Current（10V）1.49AMax. Power（10s）1354W
Peak Current（10s）55.5A

KVKV2150Configuration12N14P
Shaft DiameterIN:4mm
OUT:5mm		Lead20#150mm
Weight (Incl. Cable)33.7gVoltage25.2V
Idle Current（10V）1.55AMax. Power（10s）1591W
Peak Current（10s）65.6A

Test Data
PropellerTypeThrottleVoltage
(V)		Current
(A)		RPMThrust
(g)		Power
(W)		Efficiency
(g/W)
T-HOBBY
T5143S-3		1950KV20% 25.22.713212.6242.868.83.5
40% 25.18.919856.2588.9223.62.6
60% 25.016.024507.1926.5400.62.3
80% 24.829.329978.41355.0725.01.9
100% 24.550.435275.01845.51233.81.5
2150KV20% 25.23.513970.8270.087.93.1
40% 25.011.521162.4672.6287.92.3
60% 24.919.326030.81058.4482.02.2
80% 24.736.131585.51504.7889.91.7
100% 24.360.536418.51966.51470.41.3
T-HOBBY
T5147-3		1950KV20% 25.22.812081.1269.870.93.8
40% 25.19.418434.1663.2236.12.8
60% 24.919.122987.91060.8475.72.2
80% 24.734.228369.31610.7845.91.9
100% 24.455.532523.42032.91353.91.5
2150KV20% 25.13.612977.3315.490.43.5
40% 25.012.119428.8744.0302.32.5
60% 24.922.924400.51196.6568.52.1
80% 24.641.729377.81715.81026.11.7
100% 24.265.633384.22108.31591.01.3
GF
51466-3		1950KV20% 25.22.813043.2271.169.33.9
40% 25.19.119484.3645.9227.22.8
60% 25.016.724054.71004.2417.32.4
80% 24.831.029316.51554.9768.42.0
100% 24.452.634381.81924.61286.41.5
2150KV20% 25.23.413859.1311.086.73.6
40% 25.011.620666.5734.1289.22.5
60% 24.920.125474.71154.0500.22.3
80% 24.737.730890.71641.0929.71.8
100% 24.363.035369.52026.41530.01.3
Analysis Chart


Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
