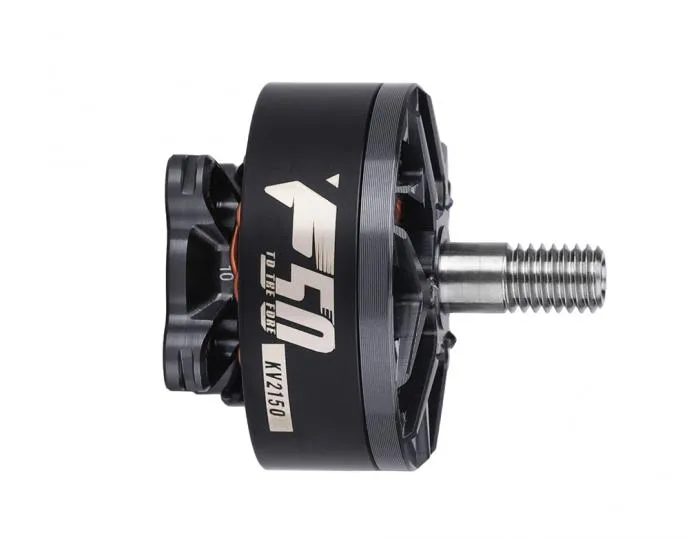

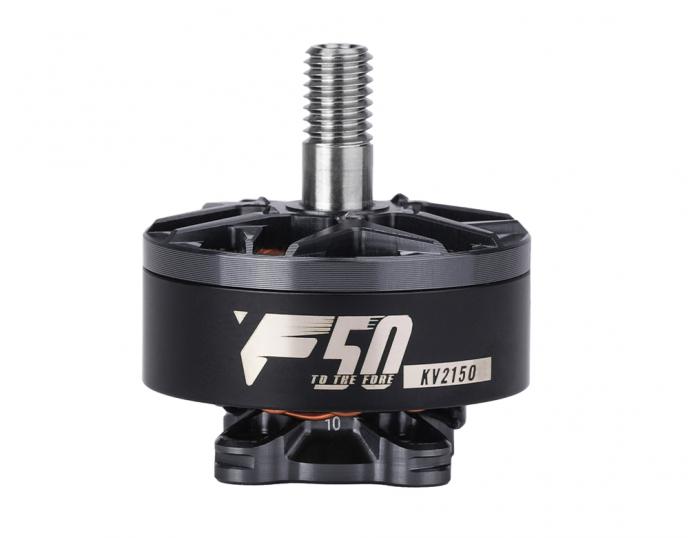

Name: T-HOBBY F50 5-Inch Ultralight Racing Motor
Brand: LIGPOWER
SKU: LIGPOWER001497
Price: 29.90 USD
Availability: InStock

Free Shipping by DHL/UPS Express

Collect

Detail information
Specifications

LIGHTWEIGHT DESIGN

Each motor weighs only 28.56g (excluding cables). Greatly reduces the drone weight and brings better rotational inertia.

TAKE THE LEAD IN CORNERING

Every subtle stick movement of pilots can be accurately captured andresponded to immediately. In the fiercely racing, the drone can quickly adjust its flight attitude and easily overtake on a curve, leaving the opponent far behind.

SUPERB CONTROL CAPABILITY

High instantaneous torque rapidly provides strong power output, enabling the racing drone to achieve rapid acceleration in a shorter time. The throttle response is linear and smooth, ensuring more stable flights.

FULL THROTTLE, AMPLE THRUST

The robust thrust enables the drone to attain high speed, swiftly exhibiting astonishing explosive power. Even at full throttle, the motor consistently delivers ample thrust, ensuring the drone maintains a stable flight attitude both during curve negotiation and straight-line acceleration.

Technical Drawing

Specification Export to Excel

Type	F50	Motor Dimension	Φ27*29.5mm
Magnet	Black nickel plated arc magnet	Coil insulation test	300V withstand voltage test
Waterproof and dustproof class	/	Configuration	12N14P
Dynamic balance requirements standards	≤3mg	Bearings	Imported 684ZZ/MR84ZZ bearings
Shaft Diameter	5mm	Lead	20AWG*150mm
Screw Diameter	Φ16-M3-4	Prop Adapter Shaft Thread	M5*10.75mm
Packing Size	Φ68*35.0mm	Packing Weight	55g

Tech Specs
KV	2150	Idle Current(10V)	≦1.6A
Max Power	1273W	Internal Resistance	50mΩ
Rated Voltage (Lipo)	24V	Peak Current	54.8A
Max Thrust	2136g	Weight (excl. cable)	28.56g
KV	2200	Idle Current(10V)	≦1.6A
Max Power	1315W	Internal Resistance	47mΩ
Rated Voltage (Lipo)	24V	Peak Current	56.63A
Max Thrust	2134g	Weight (excl. cable)	28.36g

Recommended
Motor	F50	Frame Type	X4
Prop	5-inch 3-blade prop with small and medium pitch （TMHOBBY F5146）	Lipo Cells	6S
ESC	TMHOBBY F60A 8S 4IN1	Recommended takeoff weight range	Within 500g
FC	TMHOBBY MINI F7 MPU6000	Max Takeoff Weight	800g
Recommended ESC settings: AM32: start power 100%, maximum timing angle, pwm frequency ≥ 32khz, kv value slightly higher than motor kv BL32: start power about 40%, maximum timing angle, pwm frequency: 48-byrpm Disclaimer: Desyncs is related to many factors, including FC parameters, motor usage, installation status, etc.

Test Data Export to Excel

Test Data
Type	Propeller	Voltage (V)	Throttle (%)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)	Torque (N*m)	Operating Temperature (℃)
F50 2150KV	TM-HOBBY F5146	24.04	10%	0.40	5436	38	10	3.97	0.00	102
		24.02	20%	1.41	10238	152	34	4.50	0.02
		23.99	30%	3.47	14754	341	83	4.10	0.03
		23.95	40%	6.67	18746	572	160	3.58	0.06
		23.88	50%	10.97	22194	824	262	3.15	0.08
		23.79	60%	17.23	25601	1120	410	2.73	0.11
		23.68	70%	24.76	28392	1407	586	2.40	0.14
		23.56	80%	33.12	31026	1704	780	2.19	0.17
		23.42	90%	42.80	33213	1975	1002	1.97	0.20
		23.28	100%	52.52	35042	2136	1222	1.75	0.22
Note: Motor temperature is motor surface temperature running at 80% throttle for 10 seconds. (Data above based on benchtest at T-HOBBY lab are for reference only.)
F50 2150KV	HQ MCK	24.03	10%	0.38	5425	37	9	3.96	0.00	132
		24.01	20%	1.39	10223	144	33	4.33	0.02
		23.99	30%	3.38	14796	316	81	3.90	0.03
		23.94	40%	6.51	18827	528	156	3.39	0.05
		23.88	50%	10.70	22363	758	256	2.97	0.08
		23.80	60%	16.71	25841	1019	398	2.56	0.11
		23.69	70%	23.89	28707	1281	566	2.26	0.13
		23.57	80%	32.06	31353	1531	756	2.03	0.16
		23.44	90%	41.15	33873	1788	964	1.85	0.19
		23.29	100%	51.16	35724	1983	1192	1.66	0.21
Note: Motor temperature is motor surface temperature running at 80% throttle for 10 seconds. (Data above based on benchtest at T-HOBBY lab are for reference only.)
F50 2150KV	GF51377-3	24.03	10%	0.39	5294	40	9	4.29	0.00	122
		24.01	20%	1.48	10018	161	35	4.55	0.02
		23.98	30%	3.69	14490	354	89	4.00	0.04
		23.93	40%	7.02	18241	577	168	3.43	0.06
		23.86	50%	11.63	21673	824	277	2.97	0.09
		23.77	60%	18.29	25020	1125	435	2.59	0.12
		23.64	70%	26.38	27739	1448	624	2.32	0.15
		23.52	80%	34.84	30073	1715	820	2.09	0.18
		23.38	90%	44.49	32041	1905	1040	1.83	0.20
		23.23	100%	54.80	33808	2100	1273	1.65	0.23
Note: Motor temperature is motor surface temperature running at 80% throttle for 10 seconds. (Data above based on benchtest at T-HOBBY lab are for reference only.)
F50 2200KV	TM-HOBBY F5146	24.02	10%	0.39	5560	39	9	4.20	0.00	125
		24.01	20%	1.45	10454	158	35	4.55	0.02
		23.97	30%	3.57	15080	353	86	4.12	0.03
		23.93	40%	6.99	19128	591	167	3.54	0.06
		23.87	50%	11.48	22602	844	274	3.08	0.08
		23.77	60%	18.05	26015	1144	429	2.67	0.11
		23.65	70%	25.83	28811	1429	611	2.34	0.14
		23.53	80%	34.76	31153	1695	818	2.07	0.17
		23.39	90%	44.82	33585	1997	1048	1.91	0.20
		23.26	100%	54.19	35287	2134	1260	1.69	0.22
Note: Motor temperature is motor surface temperature running at 80% throttle for 10 seconds. (Data above based on benchtest at T-HOBBY lab are for reference only.)
F50 2200KV	HQ MCK	24.02	10%	0.40	5546	38	10	3.97	0.00	152
		24.01	20%	1.46	10475	151	35	4.33	0.02
		23.98	30%	3.54	15107	330	85	3.89	0.03
		23.93	40%	6.86	19223	547	164	3.33	0.06
		23.87	50%	11.23	22759	776	268	2.90	0.08
		23.78	60%	17.52	26243	1042	416	2.50	0.11
		23.67	70%	24.92	29098	1293	590	2.19	0.13
		23.55	80%	33.38	31746	1548	786	1.97	0.16
		23.41	90%	42.92	34228	1804	1005	1.80	0.19
		23.27	100%	53.11	36000	1995	1236	1.61	0.21
Note: Motor temperature is motor surface temperature running at 80% throttle for 10 seconds. (Data above based on benchtest at T-HOBBY lab are for reference only.)
F50 2200KV	GF51377-3	24.01	10%	0.47	5390	42	11	3.69	0.01	145
		23.99	20%	1.72	10159	165	41	3.99	0.02
		23.96	30%	4.03	14725	362	97	3.74	0.04
		23.91	40%	7.53	18552	589	180	3.27	0.06
		23.84	50%	12.46	21944	841	297	2.83	0.09
		23.74	60%	19.45	25290	1145	462	2.48	0.12
		23.62	70%	27.84	28013	1459	657	2.22	0.15
		23.50	80%	36.50	30424	1708	858	1.99	0.18
		23.36	90%	46.20	32492	1928	1079	1.79	0.20
		23.21	100%	56.63	34082	2096	1315	1.59	0.23
Note: Motor temperature is motor surface temperature running at 80% throttle for 10 seconds. (Data above based on benchtest at T-HOBBY lab are for reference only.)

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
