T-HOBBY F60PROV 2207.5 FPV Racing Drone Motor 4-6S KV1750/KV1950/KV2020/KV2550

26.90

Available points: 1300 Points Points reward: 26 Points

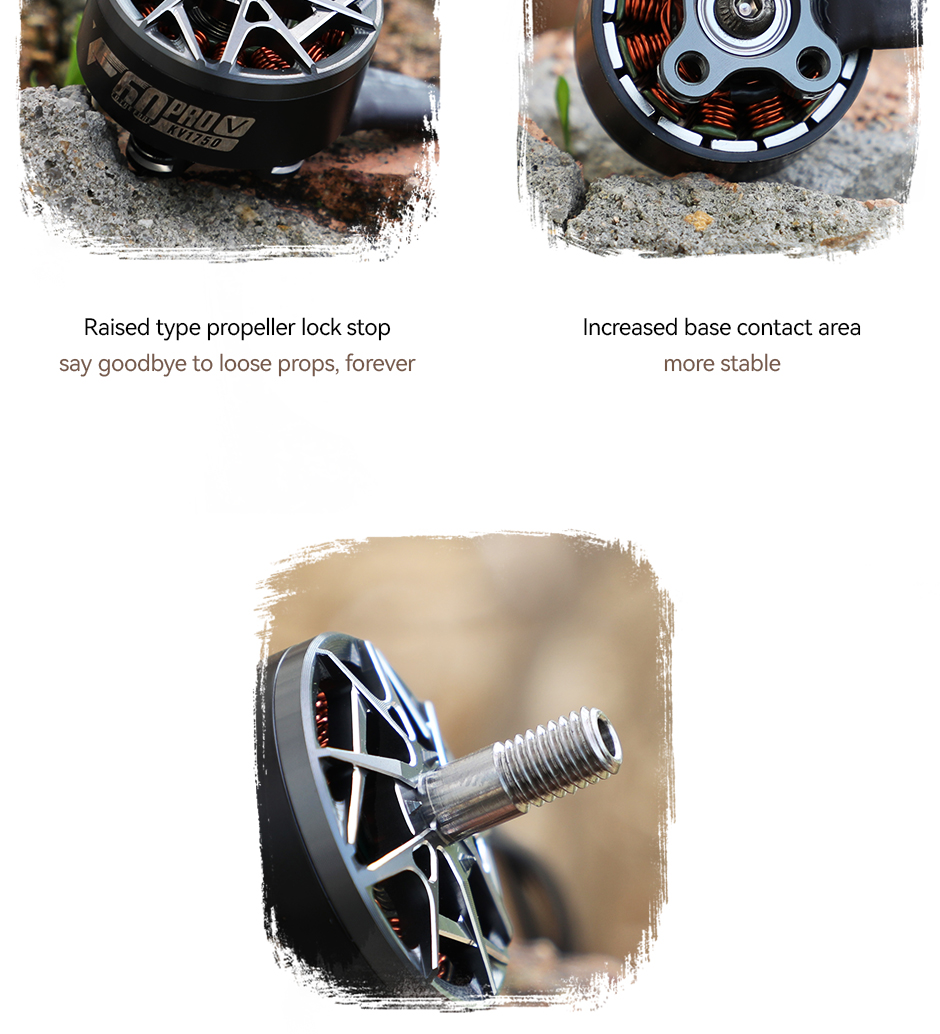

1. Lock Screw for Easy Motor Bell Removal
2. Anti-Slip Design
3. Excellent linearity
4. EZO Bearing
5. Multiple KV to meet different racing needs
Parameter：
Quantity：

26.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

About T-HOBBY F60PRO V Racing Drone Motor


F60 PRO V Motor continues the lineage of great FPV racing motors by T-HOBBY!

The Pro V provides more thrust and increased durability compared to its predecessor. Available in multiple KV options: 1750KV, 1950KV, 2020KV, or 2550KV.


F60PRO V Hightlight:


F60PRO V is a high-end FPV drone motor designed specifically for racing. This motor has the characteristics of high burst, high linearity, and super explosion resistance.

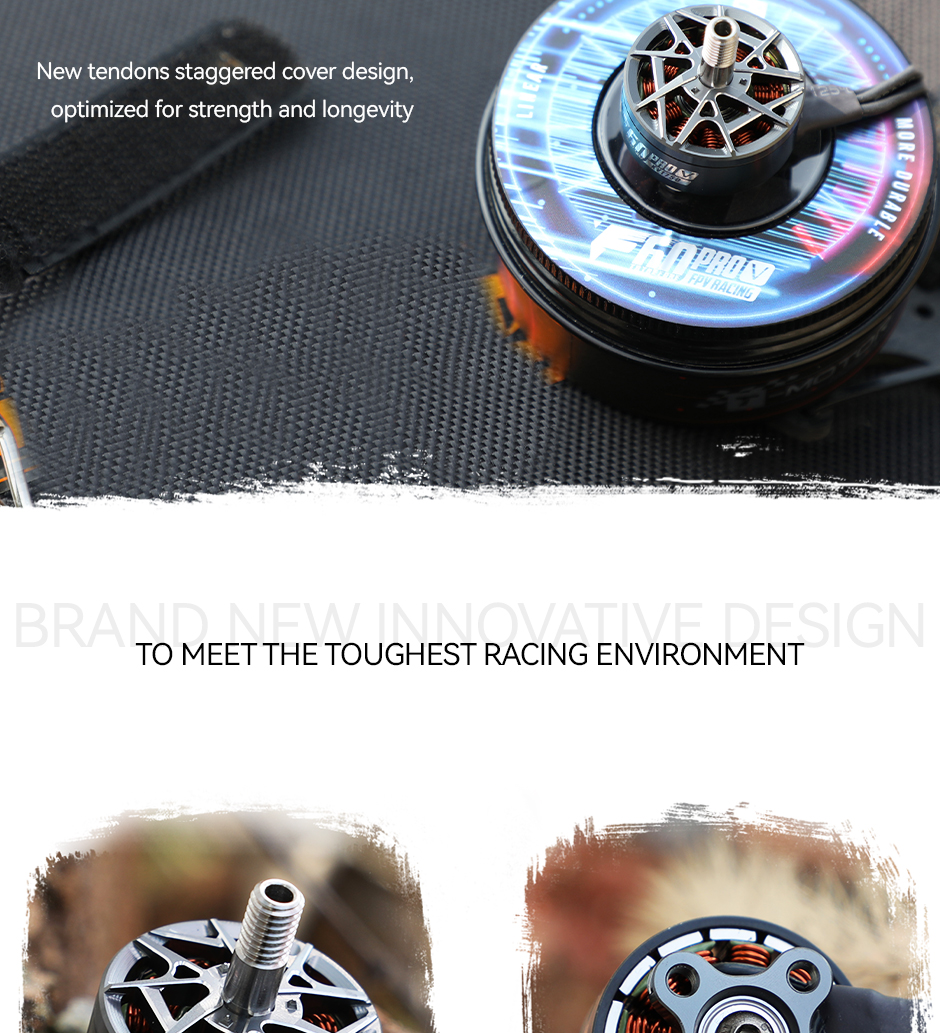

The upper cover of the rotor adopts a staggered rib design, which optimizes the force and makes the structure more stable, which can meet the needs of pilots for high-intensity racing track practice.

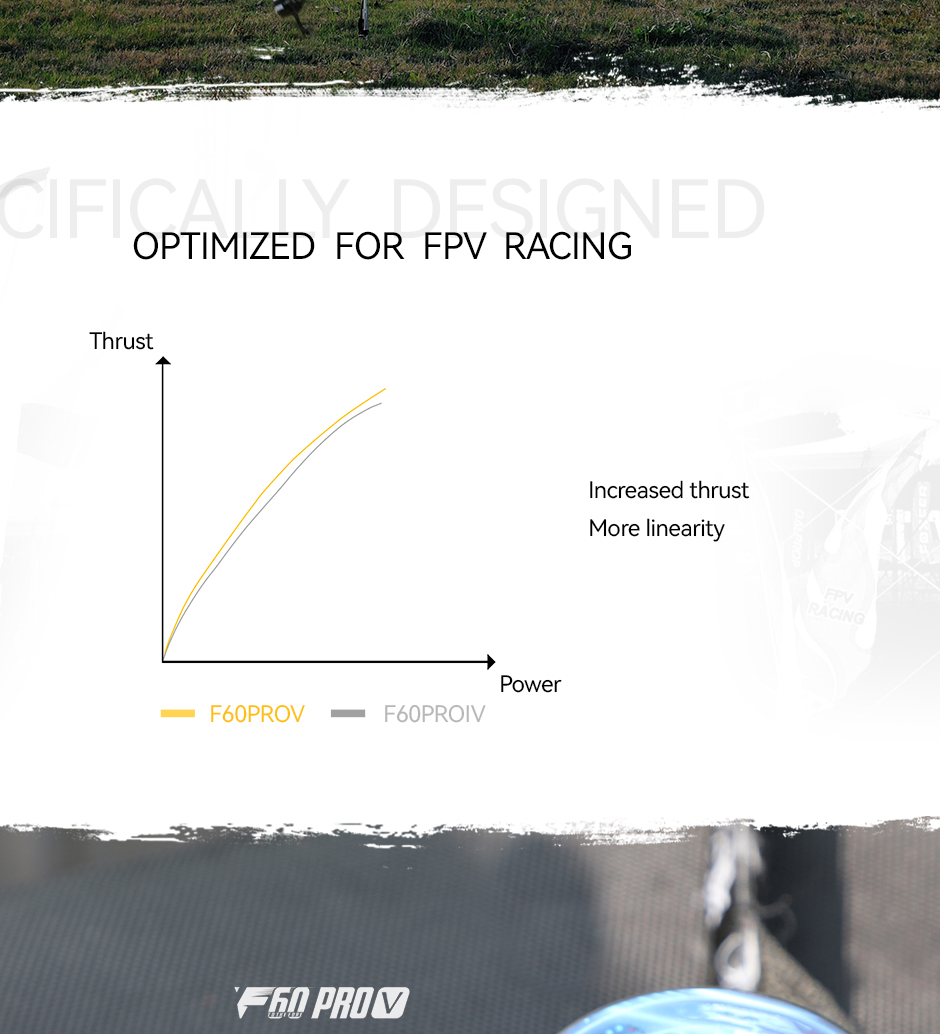

The designer has optimized the magnetic circuit design, and the motor pulling force has been significantly improved, making it more linear, making every turn and every flight movement smooth.

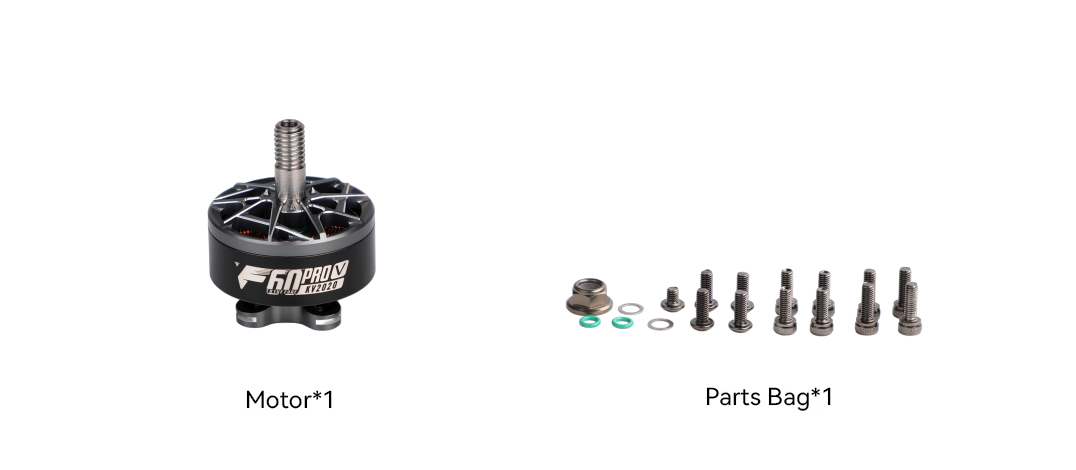

Packing List Includes:


1x T-HOBBY F60 PRO V Motor

4x Socket Head Screws

1x Prop Locknut

1x Shaft Screw


Matching Guide:


Mini Racer F7 Flight controller

Mini F60A ESC

T5146 FPV Drone propeller

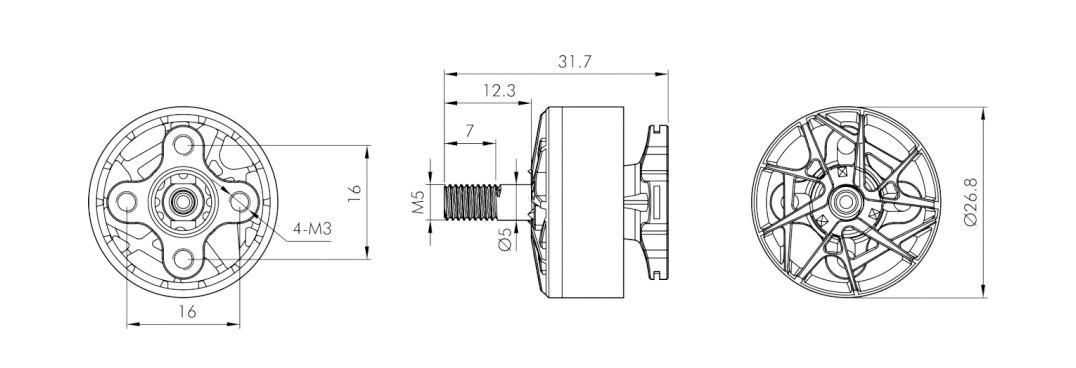

Technical Drawing

Specification Export to Excel
KV1750KVConfiguration12N14P
Shaft Diameter4mmLead20# 150mm
Weight (Incl. Cable)34.3gVoltage25.2V
Idle Current（10V）1.0AMax. Power（10s）1003W
Peak Current（10s）40.5A

KV1950KVConfiguration12N14P
Shaft Diameter4mmLead20# 150mm
Weight (Incl. Cable)33.9gVoltage25.2V
Idle Current（10V）1.1AMax. Power（10s）1216W
Peak Current（10s）49.3A

KV2020KVConfiguration12N14P
Shaft Diameter4mmLead20# 150mm
Weight (Incl. Cable)33.8gVoltage25.2V
Idle Current（10V）1.25AMax. Power（10s）1297W
Peak Current（10s）52.7A

KV2550KVConfiguration12N14P
Shaft Diameter4mmLead20# 150mm
Weight (Incl. Cable)33.3gVoltage16.8V
Idle Current（10V）1.6AMax. Power（10s）825W
Peak Current（10s）50.7A

Test Data Export to Excel
PropellerTypeThrottleVoltage
(V)		Current
(A)		RPMThrust
(g)		Power
(W)		Efficiency
(g/W)
T-HOBBY
T5147-3		1750KV20%25.22.111132227.053.64.24
40%25.26.616928558.6165.23.38
60%25.113.721409910.7342.42.66
80%25.024.3261221403.4606.92.31
100%24.840.5305271882.51002.81.88
1950KV20%25.22.611979257.865.93.91
40%25.28.618222635.8215.42.95
60%25.117.622540996.7441.32.26
80%24.930.5275821559.5758.42.06
100%24.749.3314011990.41215.81.64
2020KV20%25.22.712105265.167.53.93
40%25.29.618557667.1240.22.78
60%25.019.8229831054.7494.32.13
80%24.933.7280691636.1837.91.95
100%24.652.7316282025.51297.11.56
2550KV20%16.82.910441188.349.23.83
40%16.79.216163492.1153.43.21
60%16.618.320173783.9303.62.58
80%16.531.6243391199.9520.92.30
100%16.350.7282501629.4824.61.98
GF
51466-3		1750KV20%25.22.111954222.952.74.23
40%25.26.818208565.0170.13.32
60%25.113.222349877.6330.22.66
80%25.022.1270501340.0551.82.43
100%24.837.7318671829.2935.51.96
1950KV20%25.22.412682254.860.64.20
40%25.28.519262639.2214.12.98
60%25.116.123495981.0404.42.43
80%24.928.2287631530.8703.02.18
100%24.746.9331631958.31158.91.69
2020KV20%25.22.613071260.965.24.00
40%25.29.319740654.2233.62.80
60%25.117.3241351014.5433.02.34
80%24.931.1292751558.0773.52.01
100%24.751.1335381973.41260.41.57
2550KV20%16.82.911249192.648.24.00
40%16.89.217276496.7153.33.24
60%16.716.921242779.9282.02.77
80%16.529.0254041151.2479.02.40
100%16.347.6295021610.7775.62.08

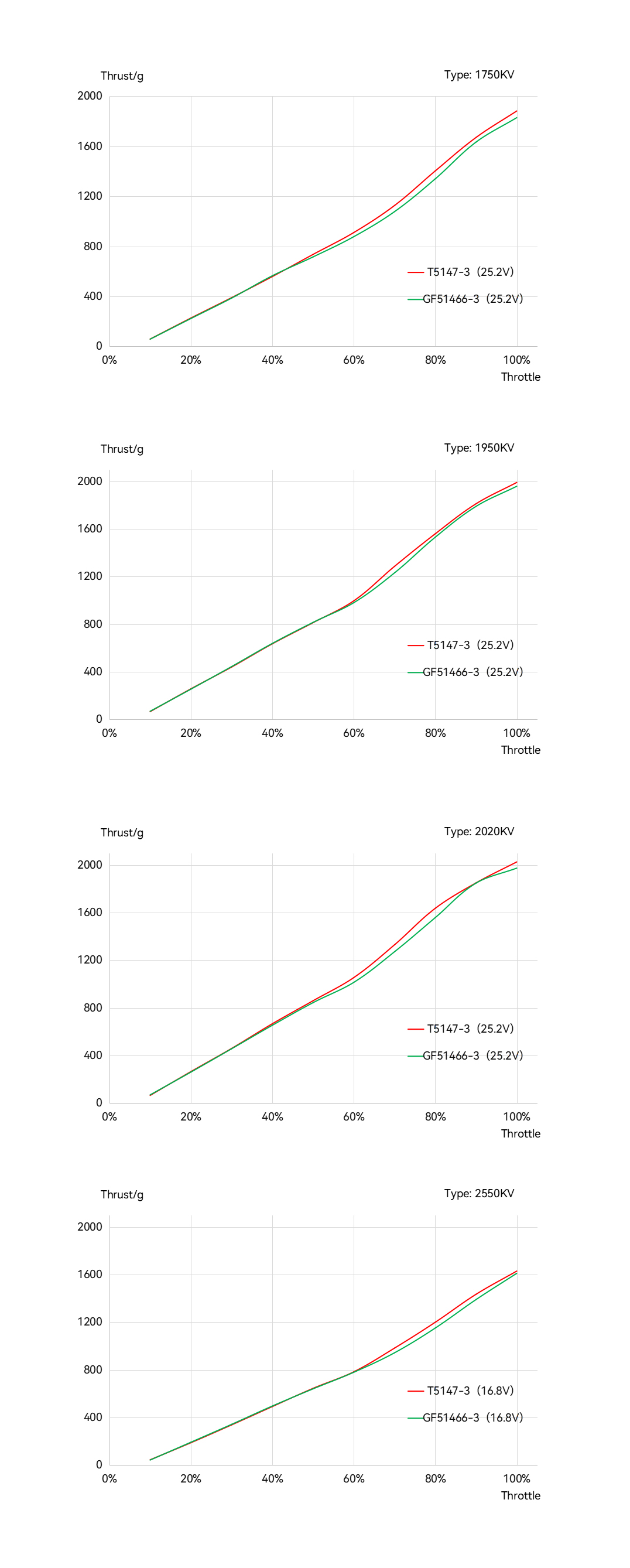

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
