Specification Export to Excel

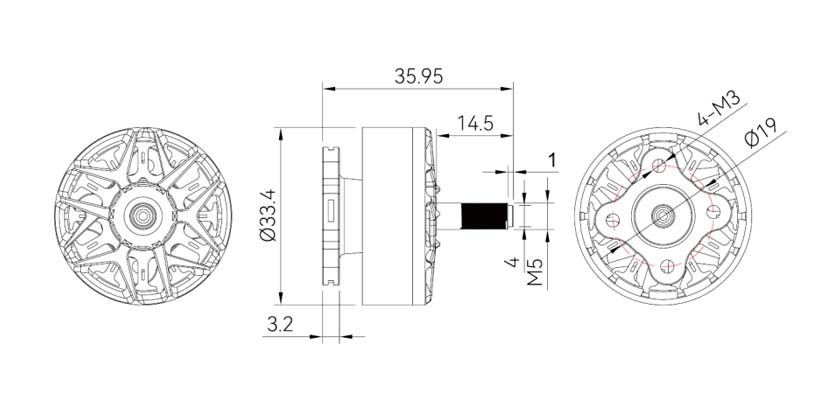

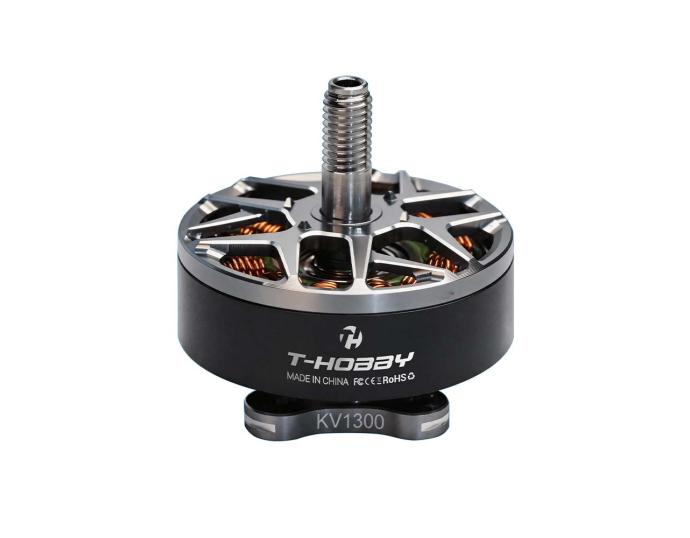

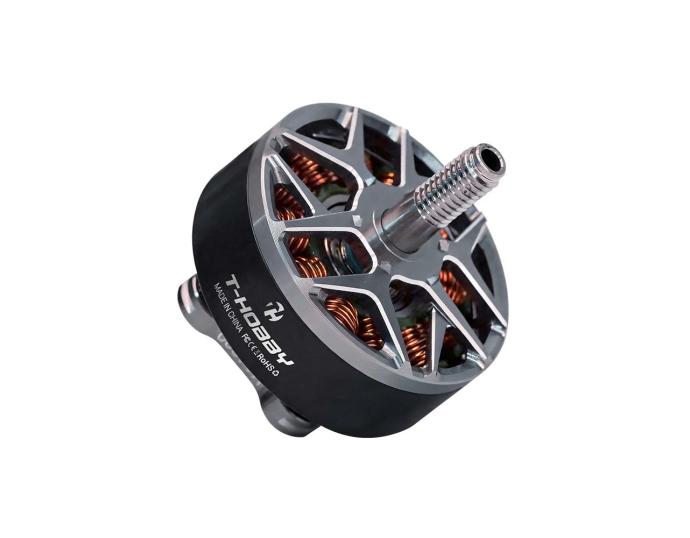

| Type | F70 | Motor Dimension | Φ33.4x36mm |
| Magnet | Nickel Plated
Arc Magnet | Coil Insulation
Test | 500V |
Waterproof And
Dustproof Class | / | Configuration | 12N14P |
Dynamic Balance
Requirements Standards | ≤5mg | Bearings | 694-ZZ |
| Shaft Diameter | 5mm | Lead | 18AWG PTFE Wire x 150mm |
| Screw Diameter | Φ19-M3-4 | Prop Adapter
Shaft Thread | M5 |
| Packing Size | Φ83.7x42mm | Packing Weight | 130g |
| Tech Specs |
| KV | 1300 | Idle Current (10V) | 1.5A |
| Max Power (1s) | 200W | Internal Resistance | 58mΩ |
| Rated Voltage (LiPo) | 6-8S | Peak Current (1s) | 53A |
| Max Thrust | 2450g | Weight (Incl.Cable) | 58g |
| Recommended |
| Motor | F70 KV1300 | Frame Type | 7-Inch X4 |
| Prop | 7040 | LiPo Cells | 6S |
| ESC | F55A PROII 8S 4IN1 | Recommended
Takeoff Weight | Within 2kg |
| FC | F7 V2 | Max Takeoff Weight | 4kg |
Recommended ESC Settings:
Note: Recommended ESC Settings: AM32 (V2.19+): Startup Power 100%, Timing 22.5, PWM Frequency 24–48kHz, Motor KV1460.
These settings provide optimal efficiency and flight performance. Incorrect settings may cause motor desync.
(DataabovebasedonbenchtestatT-HOBBYlabareforreferenceonly.) |

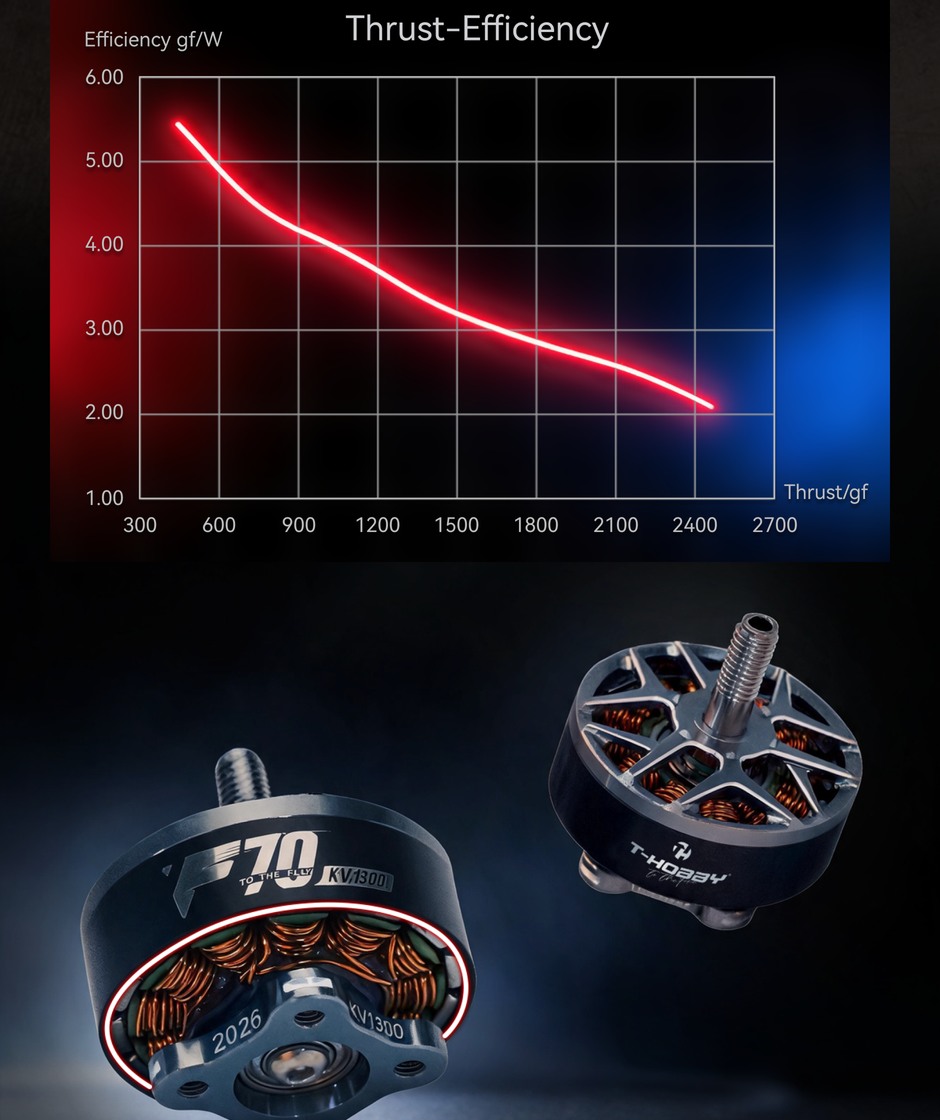

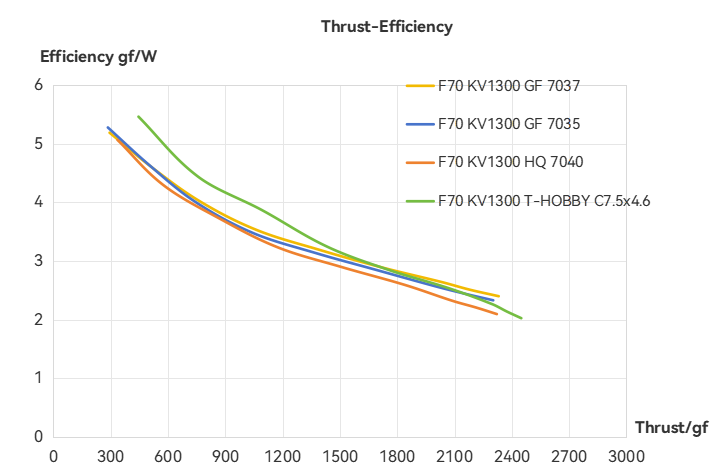

Test Data Export to Excel
| Type | Propeller | Voltage
(V) | Throttle | Current
(A) | RPM | Thrust
(gf) | Power
(W) | Overall
Efficiency
(gf/W) | Torque
(N·m) | Operating
Temperature
(℃) |
| F70 KV1300 | T-HOBBY C7.5x4.6 | 24.0 | 30% | 3.4 | 7533 | 446 | 57 | 5.46 | 0.07 | 68
(Ambient Temperature: 25) |
| 23.9 | 40% | 7.1 | 9721 | 757 | 121 | 4.44 | 0.12 |
| 23.8 | 50% | 11.9 | 11647 | 1093 | 208 | 3.87 | 0.17 |
| 23.7 | 60% | 18.6 | 13277 | 1433 | 309 | 3.25 | 0.22 |
| 23.6 | 70% | 26.3 | 14657 | 1760 | 417 | 2.84 | 0.27 |
| 23.4 | 80% | 34.7 | 15775 | 2066 | 532 | 2.54 | 0.32 |
| 23.3 | 90% | 43.6 | 16604 | 2297 | 614 | 2.26 | 0.35 |
| 23.2 | 95% | 48.0 | 16895 | 2376 | 650 | 2.14 | 0.37 |
| 23.1 | 100% | 52.4 | 17149 | 2449 | 680 | 2.02 | 0.38 |
|
| F70 KV1300 | HQ 7040 | 24.0 | 30% | 2.8 | 7922 | 336 | 46 | 5.07 | 0.06 | 58
(Ambient Temperature: 25) |
| 24.0 | 40% | 5.6 | 10173 | 575 | 97 | 4.30 | 0.09 |
| 23.9 | 50% | 9.8 | 12272 | 870 | 171 | 3.72 | 0.13 |
| 23.8 | 60% | 15.3 | 14108 | 1175 | 262 | 3.23 | 0.18 |
| 23.7 | 70% | 22.0 | 15816 | 1508 | 378 | 2.90 | 0.23 |
| 23.5 | 80% | 30.3 | 17368 | 1843 | 508 | 2.59 | 0.28 |
| 23.3 | 90% | 38.6 | 18455 | 2091 | 615 | 2.32 | 0.32 |
| 23.3 | 95% | 43.2 | 18903 | 2215 | 666 | 2.20 | 0.34 |
| 23.2 | 100% | 47.8 | 19338 | 2321 | 717 | 2.09 | 0.35 |
| F70 KV1300 | GF 7035 | 24.0 | 30% | 2.3 | 8182 | 285 | 36 | 5.28 | 0.04 | 52
(Ambient Temperature: 25) |
| 24.0 | 40% | 4.6 | 10629 | 506 | 77 | 4.63 | 0.07 |
| 23.9 | 50% | 7.8 | 12780 | 747 | 136 | 4.00 | 0.10 |
| 23.8 | 60% | 12.6 | 14910 | 1044 | 221 | 3.48 | 0.14 |
| 23.7 | 70% | 18.5 | 16969 | 1373 | 327 | 3.14 | 0.18 |
| 23.6 | 80% | 25.2 | 18692 | 1692 | 448 | 2.85 | 0.23 |
| 23.4 | 90% | 33.2 | 20204 | 1999 | 572 | 2.57 | 0.27 |
| 23.4 | 95% | 37.6 | 20843 | 2150 | 636 | 2.44 | 0.29 |
| 23.3 | 100% | 42.5 | 21483 | 2302 | 702 | 2.33 | 0.31 |
| F70 KV1300 | GF 7037 | 24.0 | 30% | 2.4 | 8122 | 8122 | 38 | 5.19 | 0.04 | 55
(Ambient Temperature: 25) |
| 24.0 | 40% | 4.7 | 10546 | 10546 | 82 | 4.59 | 0.07 |
| 23.9 | 50% | 8.0 | 12721 | 12721 | 143 | 4.01 | 0.11 |
| 23.8 | 60% | 12.6 | 14846 | 14846 | 224 | 3.53 | 0.14 |
| 23.7 | 70% | 18.4 | 16927 | 16927 | 334 | 3.19 | 0.19 |
| 23.6 | 80% | 25.3 | 18699 | 18699 | 455 | 2.89 | 0.23 |
| 23.4 | 90% | 32.9 | 20253 | 20253 | 577 | 2.64 | 0.27 |
| 23.4 | 95% | 37.1 | 20960 | 20960 | 644 | 2.51 | 0.29 |
| 23.3 | 100% | 41.7 | 21685 | 21685 | 710 | 2.40 | 0.31 |
Note:Temperatureinthechartisthebelltemperatureafterrunning@80%throttlefor10s
(DataabovebasedonbenchtestatT-HOBBYlabareforreferenceonly.) |

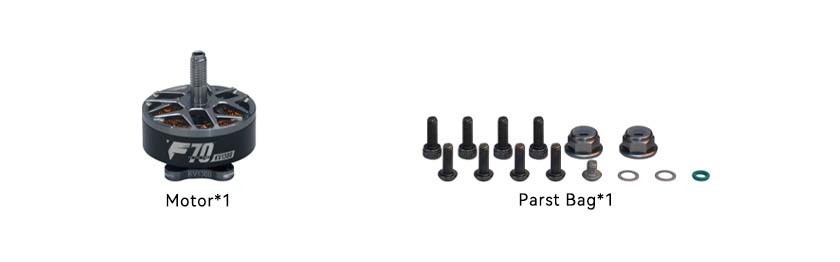

Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to "
onlinesales@ligpower.com " in time.
.jpg "F70-en (1).jpg")
