T-MOTOR FLAME 70A 6S Multi-Rotor Drone ESC 4-6S Controller

69.99

Available points: 3500 Points Points reward: 69 Points

• LiPo：4-6S
• Better compatibility with MN5208 MN5212 U8
• layered structure
Quantity：

69.99

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

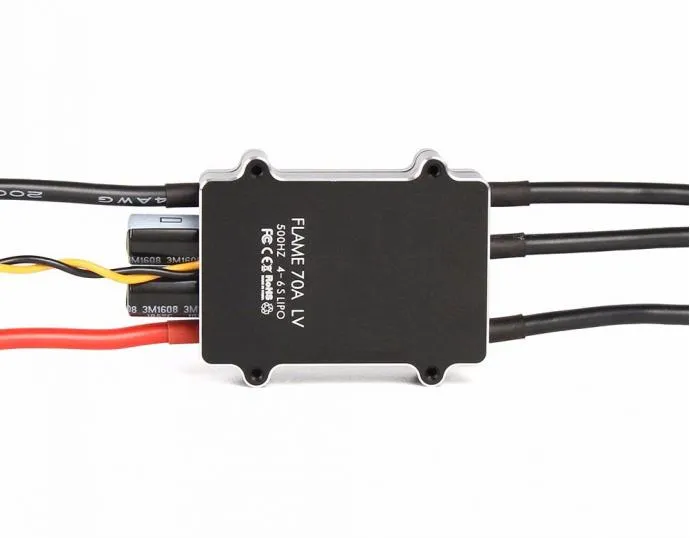

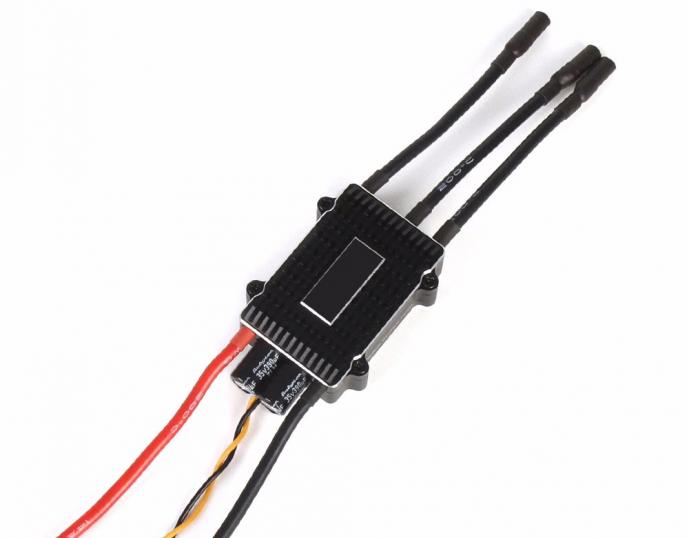

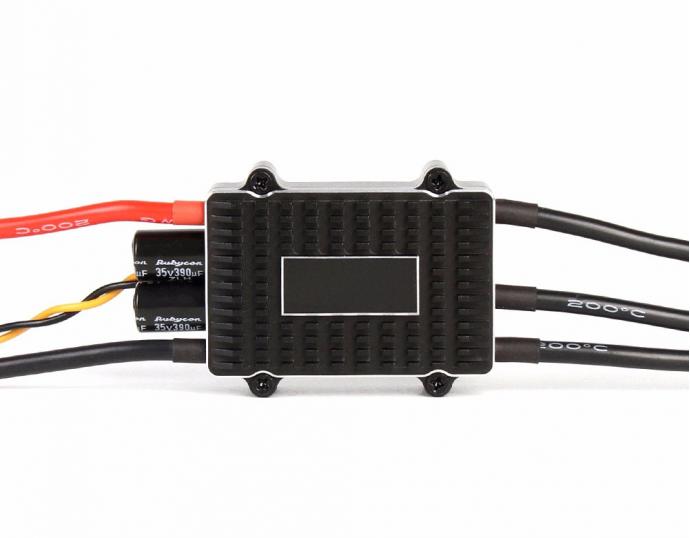

About T-MOTOR FLAME 70A 4-6S Multirotor UAVs ESC



T-MOTOR FLAME 70A 6S ESC provides 70A continuous and 80A peak power (10s) for multi-rotors, supporting 4-6S LiPo. Compatible with U12 and other motors, it features efficient heat dissipation, a CNC aluminum case, and low power consumption. With a 500Hz refresh rate and Nano Tech PCB, it’s perfect for specialized UAVs in agriculture and search operations.

FLAME 7A 4-6S ESC Highlights:

  • Better compatibility with MN5208 MN5212 U8

  • Layered structure

  • Refresh rate500Hz, supporting 4-6s lipo

  • PCB with Nano Technology

  • CNC aluminum alloy enclosure

  • Efficient Heat Dissipation

  • Low Power Consumption

  • Widely used in the special domain as UAV for Agriculture, Searching etc.

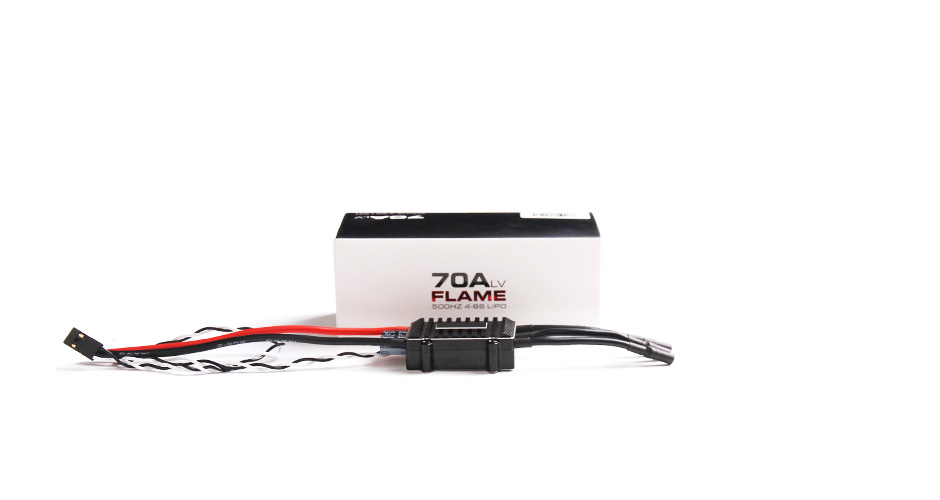

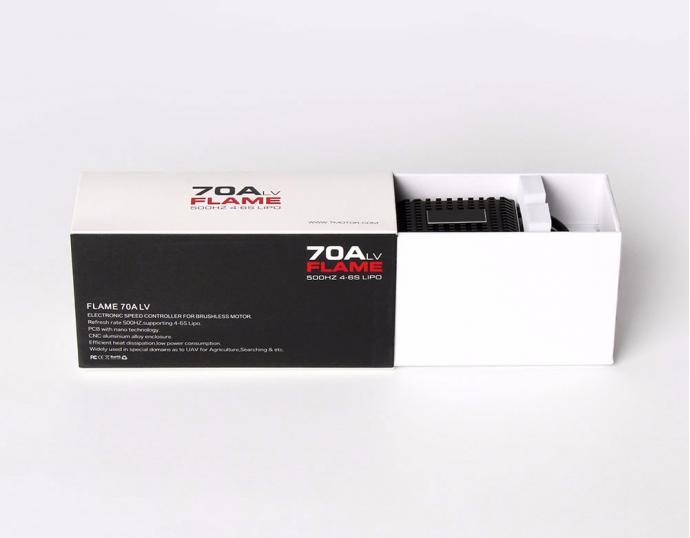

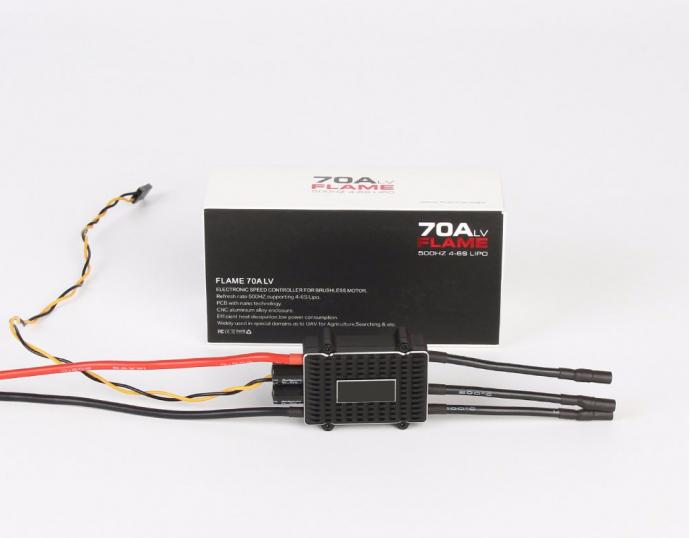

Packing List Includes:

1x T-MOTOR FLAME 70A 4-6S ESC

1x Hardware Kit


Matching Guide:

P60 Pin KV340 Motor / U12 V2 KV60 Motor

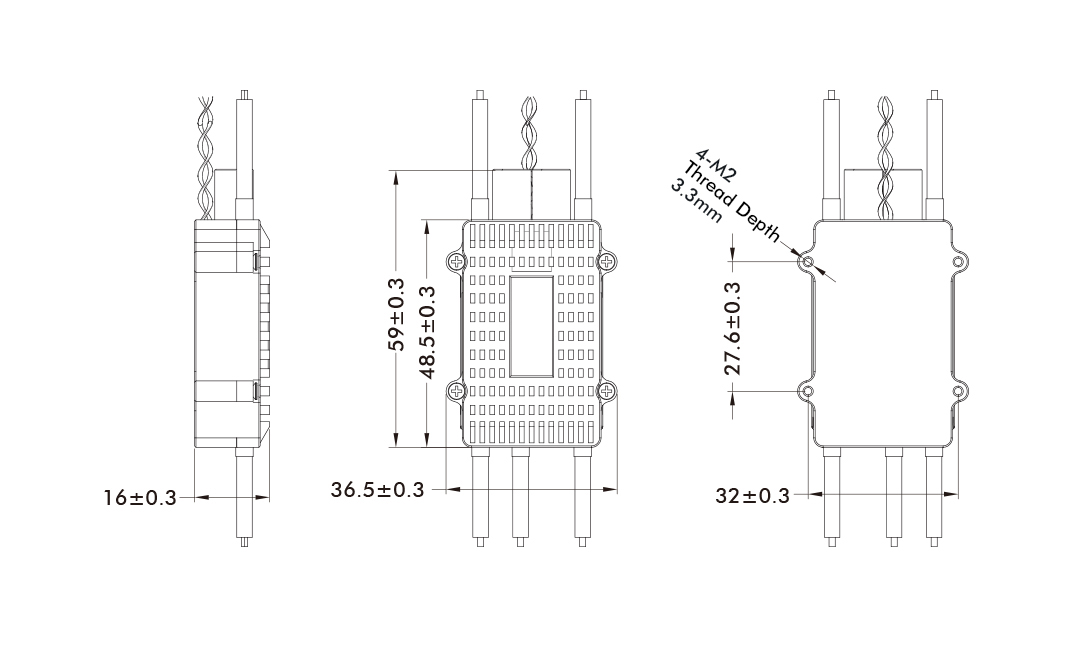

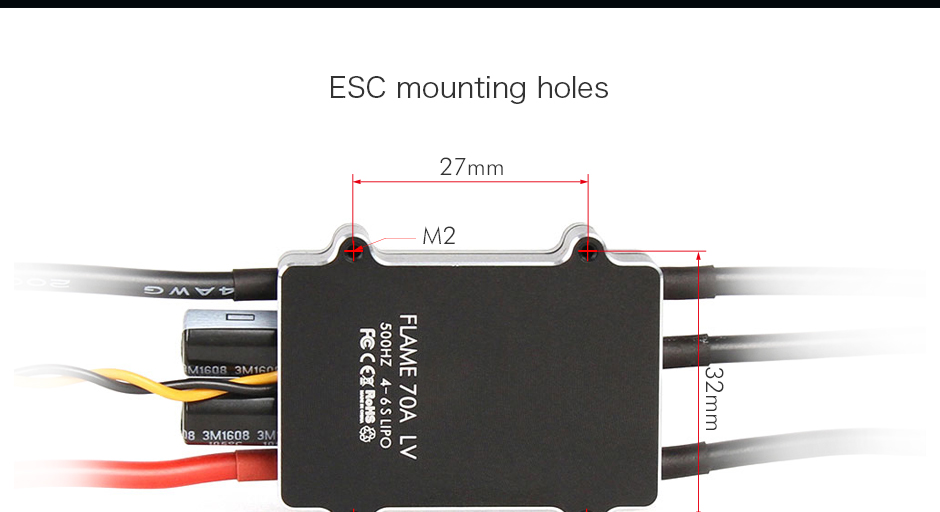

Technical Drawing


Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
