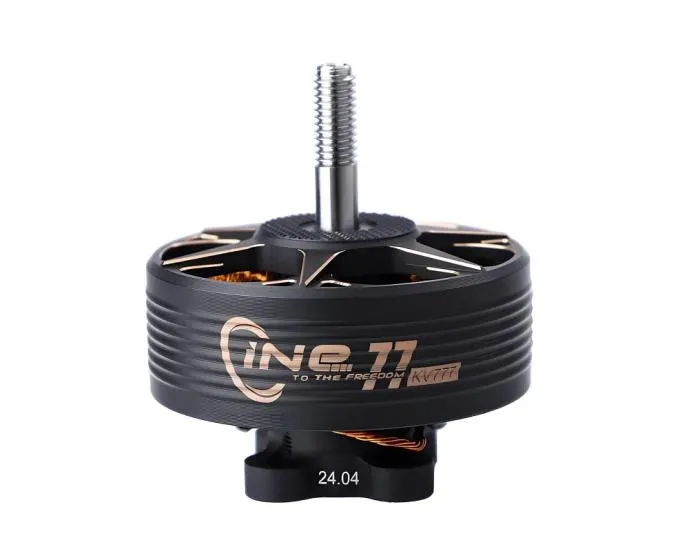

Name: T-HOBBY Cine77 6kg Thrust Cinematic Motor for 9-10'' X4&X8 Drones
Brand: LIGPOWER
SKU: ligpower001372
Price: 65.90 USD
Availability: InStock

T-HOBBY Cine77 6kg Thrust Cinematic Motor for 9-10'' X4&X8 Drones

65.90

Available points: 66 Points Points reward: 65 Points

• Suitable for cinematic drones
• 7-12 minutes flight time with a 2.5kg load
• Compatible with 6S/8S/12S
• Provides up to 6 kg of thrust

KV：

KV477
KV777
KV977

Quantity：

65.90

Free Shipping by DHL/UPS Express

Cine77 3610 Hightlight:

With an impressive thrust of over 6 kg from a single motor, the CINE77 motor ensures smooth and stable footage for your aerial photography and videography, no matter how intense your flight! Enjoy over 7 minutes of flight time with a 2.5 kg payload, and experience top-tier control thanks to enhanced torque and superior cooling performance! The Cine77 motor is specifically designed for 9-10 inch X4 or X8 filmmaking drones, elevating your aerial adventure photography to a whole new level.

EXCEPTIONAL THRUST POWERFUL PERFORMANCE

The maximum thrust of the Cine77 is over 6kg, which can support more exceptional power, making your cinematic shots smoother and more stable

6kgper motor

maximum thrust over

HIGH EFFICIENCY

WORRY-FREE SHOOTING

With a 2.5kg load, the Cine77 Offers flight times exceeding 7 minutesacross 6s,8s, and 12s batteries, giving you a relaxed and uniterrupted filming experience

CINE77

ENHANCED TORQUE

SMOOTH CONTROL

The wider stator significantly boosts torque. At low throttle, the control, the control is more precise; at higher throttle, the power response is quicker. Even the X8 cinematic drone can bring the flight feeling of a freestyle drone

low throttlehigher throttle

At low throttle,the control is more precise

STABLE AND RELIABLE
WORRY-FREE FLIGHT

Featuring a high-protection design, the Cine77 enhances motor durability. With its large diameter and excellent heat dissipation, it handles extended flights with high throttle without issues like thrust loss or overheating. Paired with the C80A 8s 4in1 ESC, the Cine77 maintains steady flight through demanding maneuvers without desync

C80A 8s 4in1

Recommended ESC

RECOMMENDED

CINE KV477

C10.5X5

C80A-12S

F7 PRO

Motor: Cine77 KV477*8PCS Prop: C10.5X5X3*8PCS ESC: C80A-12S single*8PCS+4IN 1 PDB*2PCS FC: F7 PRO*1PC+BEC 12S to 8S below*1PC

CINE KV777

C10.5X5

C80A-4IN1-8S

F7 PRO

Motor: Cine77 KV777*8PCS Prop: C10.5X5X3*8PCS ESC: C80A-4IN1-8S*2PCS FC: F7 PRO*1PC

CINE KV977

C10.5X5

C80A-4IN1-8S

F7 PRO

Motor: Cine77 KV977*8PCS Prop: C10.5X5X3*8PCS ESC: C80A-4IN1-8S*2PCS FC: F7 PRO*1PC

CINEMATIC FEAST

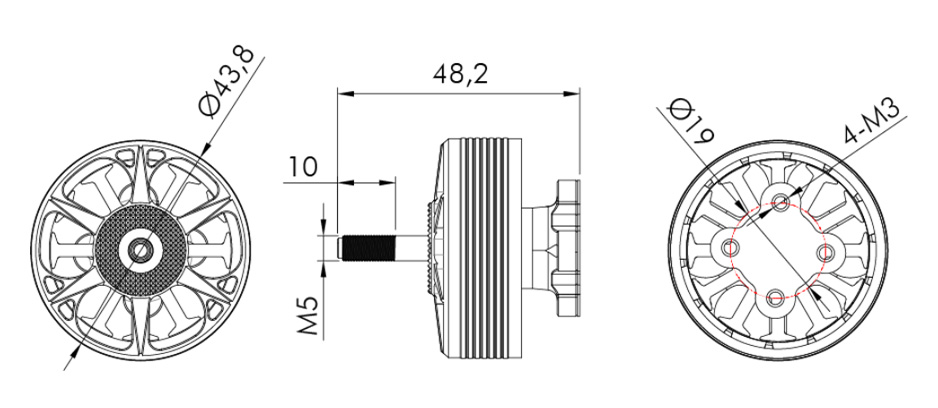

Type	CINE77	Motor Dimension	Φ43.8*48.2mm
Magnet	Black nickel plated arc magnet	Coil insulation test	500V withstand voltage test
Waterproof anddustproof class	/	Configuration	12N14P
Dynamic balance requirements standards	≤5Mg	Bearings	Imported 686ZZ
Shaft Diameter	5mm	Lead	16AWG*400mm
Screw Diameter	Φ19mm-4*M3	Prop Adapter Shaft Thread	M5*10mm
Packing Size	656555mm	Packing Weight	200g

KV	477	Idle Current(10V)	0.96A
Max Power(1s)	2745W	Internal Resistance	84mΩ
Rated Voltage (Lipo)	12S	Peak Current(1s)	58.8A
Max Thrust	6429g	Weight (incl.cable)	133.4g

KV	777	Idle Current(10V)	1.3A
Max Power(1s)	2655W	Internal Resistance	40mΩ
Rated Voltage (Lipo)	8S	Peak Current(1s)	88.8A
Max Thrust	5730g	Weight (incl.cable)	133.6g

KV	977	Idle Current(10V)	1.92A
Max Power(1s)	2019W	Internal Resistance	25mΩ
Rated Voltage (Lipo)	6S	Peak Current(1s)	92.8A
Max Thrust	5505g	Weight (incl.cable)	134.8g

Recommended
Motor	CINE77 KV477*8PCS	Frame Type	X8
Prop	C10.5X5X3*8PCS	Lipo Cells	12S
ESC	C80A-12SSingle8PCS +4IN1 PDB2PCS	Recommended takeoff weight range	Within 9kg
FC	F7 PRO1PCS+BEC(12S to 8S below)1PCS	Max Takeoff Weight	15kg
Test Data	1. 5500mah 12s battery (1.9kg), load weight 2kg, take-off weight 6.5g, flight time 11 minutes. 2. 5500mah 12s battery (1.9kg), load weight 4kg, take-off weight 8.5g, flight time 7 minutes.

T-HOBBY Cine77 6kg Thrust Cinematic Motor for 9-10'' X4&X8 Drones

About T-HOBBY Cine77 Cinematic Motor for 9-10 inch X4 / X8 drones

Cine77 3610 Hightlight:

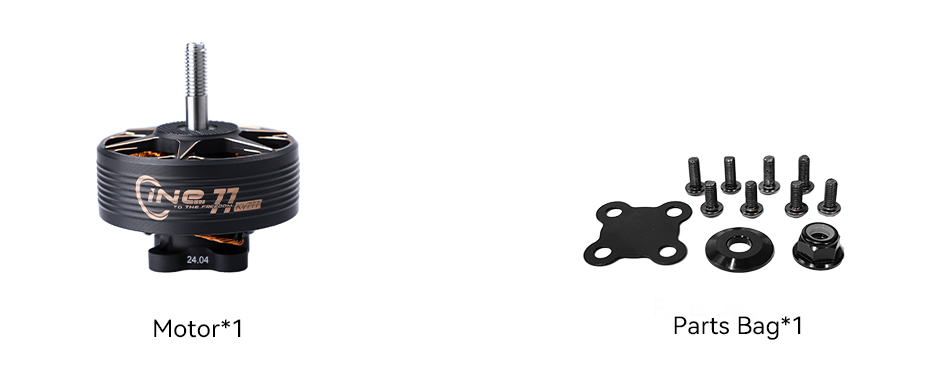

Packing List Includes:

Matching Frame:

Matching Guide:

Motor	CINE77 KV777*8PCS	Frame Type	X8
Prop	C10.5X5X3*8PCS	Lipo Cells	8S
ESC	C80A-4IN-8S*2PCS	Recommended takeoff weight range	Within 9kg
FC	F7 pro*1PCS	Max Takeoff Weight	15kg
Test Data	1. 5500mah 8s battery (1.3kg), load weight 2kg, take-off weight 5.9g, flight time 10 minutes. 2. 5500mah 8s battery (1.3kg), load weight 4kg, take-off weight 7.9g, flight time 6 minutes.

Motor	CINE77 KV977*8PCS	Frame Type	X8
Prop	C10.5X5X3*8PCS	Lipo Cells	6S
ESC	C80A-4IN-8S*2PCS	Recommended takeoff weight range	Within 8kg
FC	F7 pro*1PCS	Max Takeoff Weight	13kg
Test Data	1. 5500mah 6s battery (0.9kg), load weight 2kg, take-off weight 5.5g, flight time 8 minutes. 1. 5500mah 6s battery (0.9kg), load weight 4kg, take-off weight 7.5g, flight time 5 minutes.
Note: Recommended ESC settings: Startup power: 30%, Timing: AUTO, PWM frequency: 16- BY RPM, for best efficiency and flight experience (improper settings may cause desync)

Type	Propeller	Voltage (V)	Throttle (%)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)	Torque (N*m)
CINE77 KV477	C9.5X5X3	48.02	10%	0.12	1924	40	6	6.89	0.01
		48.01	20%	0.57	3976	217	27	7.96	0.04
		47.96	30%	1.57	5894	521	75	6.91	0.09
		47.91	40%	3.36	7772	937	161	5.82	0.16
		47.85	50%	6.07	9529	1443	290	4.97	0.24
		47.77	60%	9.63	11196	2011	460	4.37	0.33
		47.65	70%	14.61	12742	2644	696	3.80	0.44
		47.50	80%	21.01	14250	3343	998	3.35	0.56
		47.31	90%	29.17	15684	4099	1380	2.97	0.69
		47.05	100%	40.09	17070	4879	1887	2.59	0.84
CINE77 KV477	C10.5X5X3	48.01	10%	0.14	1882	53	7	7.77	0.02
		47.99	20%	0.74	3844	297	35	8.43	0.06
		47.94	30%	2.17	5718	733	104	7.04	0.14
		47.88	40%	4.76	7509	1310	228	5.76	0.24
		47.79	50%	8.65	9102	1967	413	4.76	0.35
		47.67	60%	13.66	10624	2698	651	4.14	0.48
		47.50	70%	20.99	12065	3516	997	3.53	0.63
		47.30	80%	29.54	13351	4322	1397	3.09	0.78
		47.00	90%	42.34	14484	5138	1990	2.58	0.93
		46.64	100%	58.86	15552	5800	2745	2.11	1.11
CINE77 KV477	HQ1050X3	48.04	10%	0.14	1887	50	7	7.68	0.01
		48.03	20%	0.70	3872	263	33	7.86	0.06
		47.97	30%	2.06	5758	662	99	6.70	0.13
		47.91	40%	4.53	7573	1203	217	5.55	0.22
		47.82	50%	8.21	9197	1821	392	4.64	0.33
		47.70	60%	13.16	10746	2539	628	4.05	0.46
		47.55	70%	19.94	12163	3297	948	3.48	0.60
		47.34	80%	28.79	13488	4131	1363	3.03	0.76
		47.04	90%	41.47	14671	4964	1951	2.55	0.92
		46.55	100%	56.81	15869	5583	2645	2.11	1.05
CINE77 KV477	P12X4X2	48.04	10%	0.14	1889	65	7	9.84	0.02
		48.03	20%	0.69	3883	323	33	9.73	0.06
		47.98	30%	1.98	5780	760	95	8.01	0.12
		47.91	40%	4.28	7608	1346	205	6.57	0.21
		47.83	50%	7.69	9271	2021	368	5.50	0.31
		47.72	60%	12.35	10871	2815	590	4.78	0.43
		47.57	70%	18.74	12303	3660	892	4.11	0.56
		47.38	80%	27.06	13692	4616	1282	3.60	0.71
		47.11	90%	38.57	14919	5596	1817	3.08	0.87
		46.74	100%	52.86	16152	6429	2471	2.60	1.02
CINE77 KV777	C9.5X5X3	32.05	10%	0.24	2069	46	8	6.02	0.01
		32.02	20%	1.10	4222	244	35	6.93	0.05
		31.98	30%	2.86	6148	573	91	6.28	0.10
		31.88	40%	5.96	8063	1020	190	5.37	0.17
		31.77	50%	10.60	9874	1550	337	4.60	0.25
		31.62	60%	16.93	11564	2160	535	4.04	0.35
		31.43	70%	25.02	12964	2774	786	3.53	0.46
		31.19	80%	35.26	14414	3453	1100	3.14	0.57
		30.89	90%	48.08	15732	4156	1485	2.80	0.70
		30.47	100%	64.90	16915	4862	1977	2.46	0.83
CINE77 KV777	C10.5X5X3	32.04	10%	0.28	2011	69	9	7.75	0.02
		32.02	20%	1.36	4017	340	44	7.81	0.07
		31.96	30%	3.84	5924	799	123	6.51	0.14
		31.83	40%	8.25	7723	1398	262	5.33	0.25
		31.68	50%	14.65	9323	2062	464	4.44	0.36
		31.48	60%	23.11	10811	2816	727	3.87	0.50
		31.21	70%	34.77	12132	3588	1085	3.31	0.63
		30.90	80%	48.02	13291	4353	1484	2.93	0.78
		30.43	90%	66.34	14269	5062	2019	2.51	0.91
		29.83	100%	85.22	15031	5730	2542	2.25	0.98
CINE77 KV777	HQ1050X3	32.04	10%	0.27	2028	62	9	7.26	0.02
		32.02	20%	1.30	4054	305	42	7.35	0.06
		31.96	30%	3.67	5968	726	117	6.20	0.13
		31.83	40%	7.85	7766	1286	250	5.14	0.23
		31.69	50%	14.03	9406	1925	445	4.33	0.35
		31.50	60%	22.09	10896	2637	696	3.79	0.47
		31.25	70%	33.03	12246	3366	1032	3.26	0.61
		30.93	80%	46.37	13429	4118	1434	2.87	0.75
		30.48	90%	64.27	14464	4846	1959	2.47	0.89
		29.90	100%	88.78	15090	5297	2655	2.00	0.98
CINE77 KV777	P12X4X2	32.04	10%	0.27	2028	81	9	9.30	0.02
		32.02	20%	1.29	4077	366	41	8.88	0.06
		31.97	30%	3.50	5997	826	112	7.38	0.13
		31.85	40%	7.44	7843	1433	237	6.05	0.22
		31.71	50%	13.20	9524	2129	418	5.09	0.33
		31.53	60%	20.80	11067	2914	656	4.44	0.45
		31.30	70%	31.01	12401	3720	971	3.83	0.57
		31.00	80%	43.71	13664	4582	1355	3.38	0.71
		30.58	90%	60.22	14780	5430	1841	2.95	0.85
		30.04	100%	82.86	15552	6029	2489	2.46	0.96
CINE77 KV977	C9.5X5X3	24.03	10%	0.34	2149	51	8	6.30	0.01
		24.00	20%	1.56	4317	265	37	7.09	0.05
		23.95	30%	3.97	6235	594	95	6.24	0.10
		23.85	40%	8.19	8085	1026	195	5.25	0.17
		23.70	50%	14.43	9839	1546	342	4.52	0.25
		23.51	60%	22.80	11436	2116	536	3.95	0.35
		23.25	70%	32.97	12743	2657	766	3.47	0.44
		22.95	80%	45.20	14021	3227	1038	3.11	0.53
		22.60	90%	60.22	15178	3816	1361	2.80	0.64
		22.17	100%	78.30	16212	4394	1736	2.53	0.74
CINE77 KV977	C10.5X5X3	24.03	10%	0.40	2088	72	10	7.50	0.02
		24.00	20%	1.88	4097	350	45	7.76	0.07
		23.91	30%	5.33	5978	815	128	6.39	0.15
		23.78	40%	11.20	7688	1376	266	5.17	0.24
		23.58	50%	19.50	9197	1992	460	4.33	0.35
		23.32	60%	30.66	10516	2624	715	3.67	0.46
		22.99	70%	43.56	11708	3285	1001	3.28	0.58
		22.61	80%	59.50	12708	3922	1345	2.92	0.70
		22.17	90%	78.32	13561	4514	1736	2.60	0.80
		21.61	100%	92.54	14225	5015	1999	2.51	0.90
CINE77 KV977	HQ1050X3	24.03	10%	0.38	2120	72	9	7.94	0.02
		23.99	20%	1.82	4137	325	44	7.44	0.06
		23.92	30%	5.07	5985	745	121	6.15	0.14
		23.79	40%	10.73	7751	1275	255	4.99	0.23
		23.60	50%	18.76	9285	1864	443	4.21	0.33
		23.34	60%	29.66	10652	2484	692	3.59	0.44
		23.01	70%	42.84	11870	3143	986	3.19	0.57
		22.65	80%	58.01	12873	3753	1314	2.86	0.68
		22.21	90%	76.80	13770	4334	1705	2.54	0.79
		21.65	100%	92.53	14481	4840	2004	2.42	0.88
CINE77 KV977	P12X4X2	24.03	10%	0.38	2118	88	9	9.57	0.02
		24.00	20%	1.80	4154	382	43	8.87	0.06
		23.92	30%	4.86	6058	845	116	7.27	0.13
		23.81	40%	10.06	7829	1401	240	5.85	0.21
		23.62	50%	17.80	9411	2076	421	4.94	0.32
		23.38	60%	28.08	10811	2770	656	4.22	0.42
		23.06	70%	40.80	12080	3509	941	3.73	0.54
		22.72	80%	55.14	13137	4199	1253	3.35	0.65
		22.29	90%	73.18	14066	4901	1631	3.01	0.76
		21.76	100%	92.83	14836	5506	2020	2.73	0.86
