Name: T-HOBBY GT2306
Brand: LIGPOWER
SKU: LIGPOWER001780
Price: 28.00 USD
Availability: InStock

T-HOBBY GT2306

28.00

Available points: 28 Points Points reward: 28 Points

Parameter：

KV2000
KV2200
KV2500

Quantity：

28.00

Free Shipping by DHL/UPS Express

Experience it Your Way—
Customization Channel Now Open!

Air Racing, Time Trials,
High-Speed Flight Breaking the
Limits of Air Resistance

Compact Size, Lightweight,
and High Power Density

Carbon Fiber Base

Aerospace
Aluminum
Alloy

High-Quality
Components

Compact Design

Compression
Power-to-Weight Ratio

Motor Weight 28.5g/Maximum 48W/g
ESC Weight 8.3g/Maximum 165W/g

Titanium
Alloy
Shaft

The Output Voltage
of the ESC BEC is Adjustable

ESC BEC output voltage: 5.8V/8.2V
(To switch to the 8.2V output,
use a tool to remove the solder
bridge)
The factory default voltage is 5.8V

Carbon Fiber Base

Aerospace Aluminum Alloy

Titanium
Alloy
Shaft

High-Quality Components

Compact Design

Compression
Power-to-Weight Ratio

Motor Weight 28.5g/Maximum 48W/g
ESC Weight 8.3g/Maximum 165W/g

The Output Voltage
of the ESC BEC is Adjustable

ESC BEC output voltage: 5.8V/8.2V
(To switch to the 8.2V output,
use a tool to remove the solder
bridge)
The factory default voltage is 5.8V

Slightly Expensive, High Power Consumption, Significant Heat Generation, Prone to Overheating, Relatively Dangerous

Genuine Material
Little Pricey

Extreme Operation
Damage the Battery

200℃ Celsius Heat
Be Well Protected

Extreme Working Conditions
Short Life Span

Extremely Fast Airplane
Be Safe

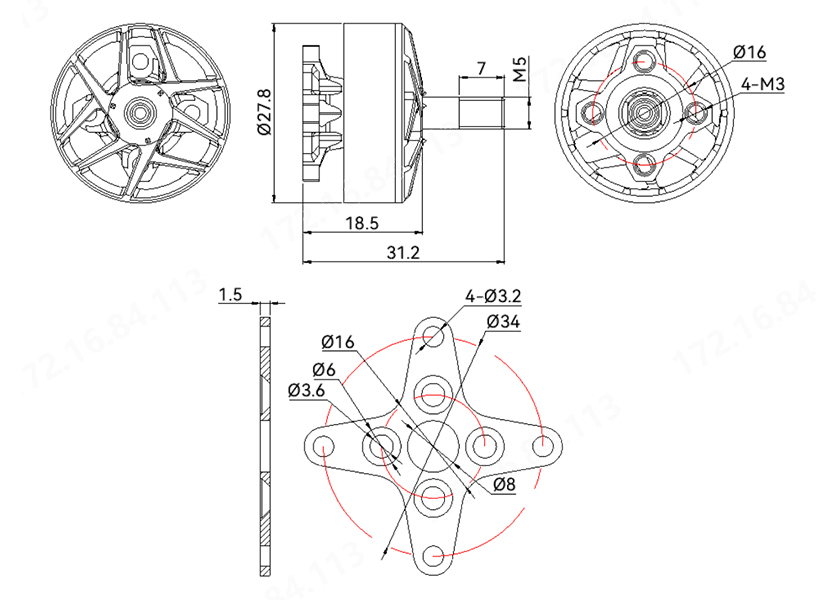

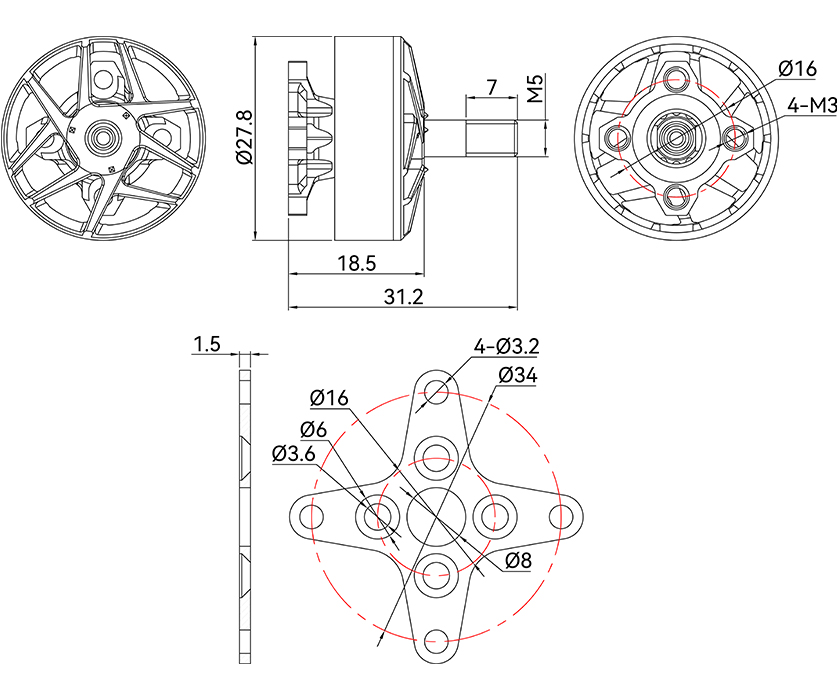

Type	GT2306	Motor Dimension	φ27.8x31.2mm
Shaft Diameter	5mm	Configuration	12N14P
Magnet	200°C High-Temperature Resistant	Coil Insulation Test	300V Withstand Voltage Test
Dynamic Balance Requirements Standards	≤5mg	Lead	20# Silicone Wire-180mm
Plug	/

Tech Specs
KV	2000	Idle Current (10V)	1.6A
Max Power	1109W	Peak Current	46A
Rated Voltage (LiPo)	4-6S	Internal Resistance	55mΩ
Max Thrust	1.7kg	Weight (Incl.Cable)	34g

KV	2200	Idle Current (10V)	1.9A
Max Power	1116W	Peak Current	48.9A
Rated Voltage (LiPo)	3-6S	Internal Resistance	49mΩ
Max Thrust	1.62kg	Weight (Incl.Cable)	34g

KV	2500	Idle Current (10V)	2.2A
Max Power	797W	Peak Current	51A
Rated Voltage (LiPo)	3-4S	Internal Resistance	42mΩ
Max Thrust	1.57kg	Weight (Incl.Cable)	34g

Recommended
Aircraft Dimensions	600-800mm	Recommended Takeoff Weight Range	2kg
ESC	GT45A	Prop	T5147/T6.5x5/T7.5x5

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N·m)	Thrust (gf)	Efficiency (gf/W)	Motor Temperature (℃)
GT2306 KV2000	T6.5x5	40%	25.0	8.5	212	15344	0.09	750	3.54	/ (Ambient Temperature: 25)
		45%	24.9	11.2	280	16596	0.10	889	3.18
		50%	24.9	14.4	358	17694	0.12	1016	2.84
		55%	24.8	18.5	457	18567	0.13	1130	2.47
		60%	24.7	22.4	552	18270	0.14	1225	2.22
		65%	24.6	25.0	615	18390	0.15	1312	2.14
		70%	24.5	25.9	637	20660	0.16	1418	2.23
		75%	24.5	29.0	709	21352	0.17	1497	2.11
		80%	24.4	32.4	790	21761	0.18	1569	1.99
		90%	24.2	37.8	915	22471	0.19	1667	1.82
		100%	24.1	42.6	1028	22647	0.20	1707	1.66
GT2306 KV2000	T5147	40%	25.1	6.7	167	17204	0.06	514	3.07	/ (Ambient Temperature: 25)
		45%	25.0	8.5	211	18622	0.08	608	2.88
		50%	25.0	10.5	263	20000	0.09	709	2.70
		55%	24.9	12.9	320	21315	0.10	809	2.53
		60%	24.8	16.2	403	23181	0.12	968	2.40
		65%	24.7	19.5	482	24585	0.13	1106	2.29
		70%	24.6	23.0	567	25803	0.15	1234	2.18
		75%	24.5	26.5	650	26943	0.16	1345	2.07
		80%	24.4	30.1	735	27884	0.17	1445	1.97
		90%	24.3	36.6	888	29193	0.19	1597	1.80
		100%	24.0	46.2	1110	30247	0.20	1706	1.54
GT2306 KV2200	T6.5x5	40%	16.6	6.3	105	12241	0.05	432	4.10	/ (Ambient Temperature: 25)
		45%	16.6	8.1	135	13396	0.06	522	3.86
		50%	16.5	10.3	170	14520	0.08	617	3.62
		55%	16.5	12.7	210	15530	0.09	713	3.40
		60%	16.4	15.4	252	16489	0.10	811	3.21
		65%	16.3	18.2	298	17356	0.11	905	3.04
		70%	16.3	21.5	349	18140	0.12	1047	3.00
		75%	16.2	25.0	405	18876	0.13	1166	2.88
		80%	16.1	28.8	463	19672	0.15	1277	2.76
		90%	15.9	36.2	574	20751	0.16	1442	2.51
		100%	15.7	43.8	687	21488	0.18	1545	2.25
GT2306 KV2200	T7.5x5	40%	16.6	8.4	139	10814	0.08	572	4.13	/ (Ambient Temperature: 25)
		45%	16.5	11.3	187	11914	0.09	703	3.77
		50%	16.5	14.3	235	12801	0.11	818	3.49
		55%	16.4	17.4	284	13525	0.12	919	3.24
		60%	16.3	21.1	343	14286	0.14	1030	3.01
		65%	16.2	24.8	401	14928	0.15	1129	2.81
		70%	16.1	28.1	453	15390	0.16	1201	2.65
		75%	16.0	31.6	506	15885	0.17	1278	2.53
		80%	15.9	35.6	566	16352	0.18	1362	2.41
		90%	15.7	43.1	677	17013	0.19	1465	2.17
		100%	15.6	48.9	760	17171	0.20	1500	1.97
GT2306 KV2200	T5147	40%	25.0	8.6	215	18551	0.07	588	2.73	/ (Ambient Temperature: 25)
		45%	24.9	11.1	276	20168	0.09	700	2.54
		50%	24.9	13.7	341	21516	0.10	798	2.34
		55%	24.8	16.8	416	23320	0.11	957	2.30
		60%	24.7	20.3	501	24792	0.13	1089	2.17
		65%	24.6	24.1	592	26021	0.14	1208	2.04
		70%	24.5	27.2	667	26879	0.15	1292	1.94
		75%	24.4	31.9	777	28019	0.17	1407	1.81
		80%	24.3	34.6	842	28501	0.17	1457	1.73
		90%	24.1	42.3	1021	29571	0.19	1580	1.55
		100%	24.0	46.5	1117	29831	0.20	1621	1.45
GT2306 KV2500	T6.5x5	40%	12.5	5.7	71	10633	0.04	325	4.54	/ (Ambient Temperature: 25)
		45%	12.4	7.5	93	11707	0.05	397	4.25
		50%	12.4	9.3	115	12661	0.06	468	4.05
		55%	12.3	11.6	143	13632	0.07	546	3.83
		60%	12.2	14.0	172	14566	0.08	622	3.62
		65%	12.2	16.8	205	15422	0.09	722	3.53
		70%	12.1	19.5	236	16147	0.10	835	3.53
		75%	12.0	22.5	270	16850	0.11	913	3.38
		80%	11.9	25.9	309	17498	0.11	992	3.21
		90%	11.8	32.8	385	18674	0.13	1133	2.94
		100%	11.6	40.3	466	19603	0.15	1253	2.69
GT2306 KV2500	T7.5x5	40%	12.4	7.5	93	9347	0.06	426	4.57	/ (Ambient Temperature: 25)
		45%	12.4	10.0	123	10312	0.07	531	4.31
		50%	12.3	13.1	161	11231	0.09	636	3.96
		55%	12.2	16.0	195	11981	0.10	728	3.74
		60%	12.1	19.2	232	12643	0.11	816	3.52
		65%	12.0	22.7	272	13243	0.12	900	3.31
		70%	11.9	26.2	312	13833	0.13	979	3.13
		75%	11.8	30.0	355	14288	0.14	1051	2.96
		80%	11.7	33.7	395	14727	0.15	1120	2.83
		90%	11.5	41.3	476	15408	0.16	1229	2.58
		100%	11.3	49.1	556	15863	0.17	1304	2.35
GT2306 KV2500	T6.5x5	40%	16.6	8.5	141	13284	0.07	520	3.69	/ (Ambient Temperature: 25)
		45%	16.5	11.0	182	14534	0.08	673	3.71
		50%	16.5	13.9	228	15605	0.09	789	3.46
		55%	16.4	17.1	280	16715	0.10	904	3.23
		60%	16.3	20.3	331	17503	0.11	999	3.02
		65%	16.2	24.4	395	18434	0.13	1108	2.81
		70%	16.1	27.8	447	18939	0.13	1174	2.63
		75%	16.0	33.0	527	19999	0.15	1327	2.52
		80%	15.9	37.1	588	20521	0.16	1407	2.39
		90%	15.7	44.6	699	21308	0.18	1519	2.18
		100%	15.5	51.5	797	21643	0.18	1572	1.97
GT2306 KV2500	T5147	40%	16.6	7.2	119	15242	0.05	396	3.33	/ (Ambient Temperature: 25)
		45%	16.6	8.7	144	16326	0.06	457	3.17
		50%	16.5	10.7	177	17548	0.07	533	3.02
		55%	16.5	13.0	214	18757	0.08	616	2.88
		60%	16.4	15.7	258	19955	0.09	700	2.71
		65%	16.3	18.7	306	21141	0.10	790	2.59
		70%	16.3	22.0	358	22231	0.11	888	2.48
		75%	16.1	26.6	429	23522	0.12	1006	2.35
		80%	16.0	30.5	489	24449	0.13	1095	2.24
		90%	15.8	38.4	608	26049	0.15	1243	2.05
		100%	15.6	46.2	722	27330	0.16	1354	1.88
Note: The motor temperature refers to the casing temperature after running at 100% throttle for 1 min. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
