T-HOBBY M0703 65-75mm Tiny Whoop Indoor Racing Fpv Motor KV19000

11.90

Available points: 12 Points Points reward: 11 Points

1. Blue and silver unibell design

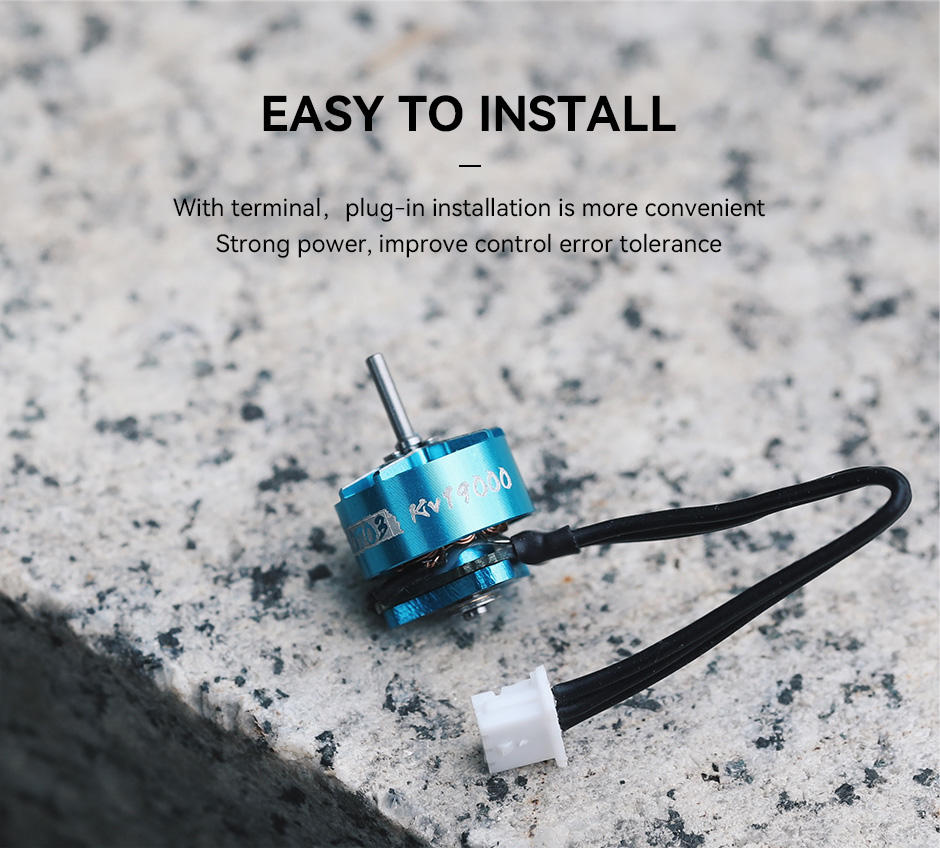

2. Easy to install
3. Lightweight

KV：

KV19000

Quantity：

11.90

Free Shipping by DHL/UPS Express

Relevant Products

Detail information
Specifications

About T-HOBBY Mirco M0703 Indoor racing&freestyle Motor

Discover a motor that is more resistant to crashes and provides ultimate performance.

The T-HOBBY M0703 19000KV Tinywhoop Brushless Motor has a rated voltage of 1S and weighs 1.7g,

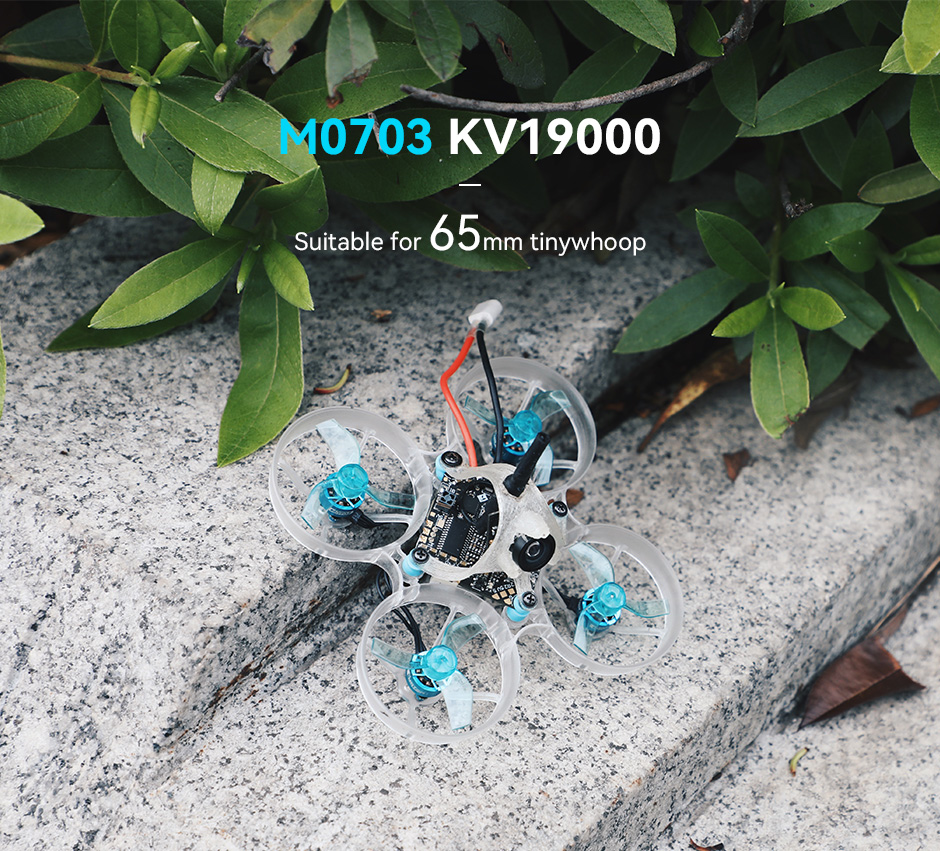

making it perfect for your 65MM Whoop racing drone. Its unibell design in fantasy blue and silver adds a stylish touch that is sure to dazzle! Soar through the sky with confidence.

Mirco M0703 Hightlight:

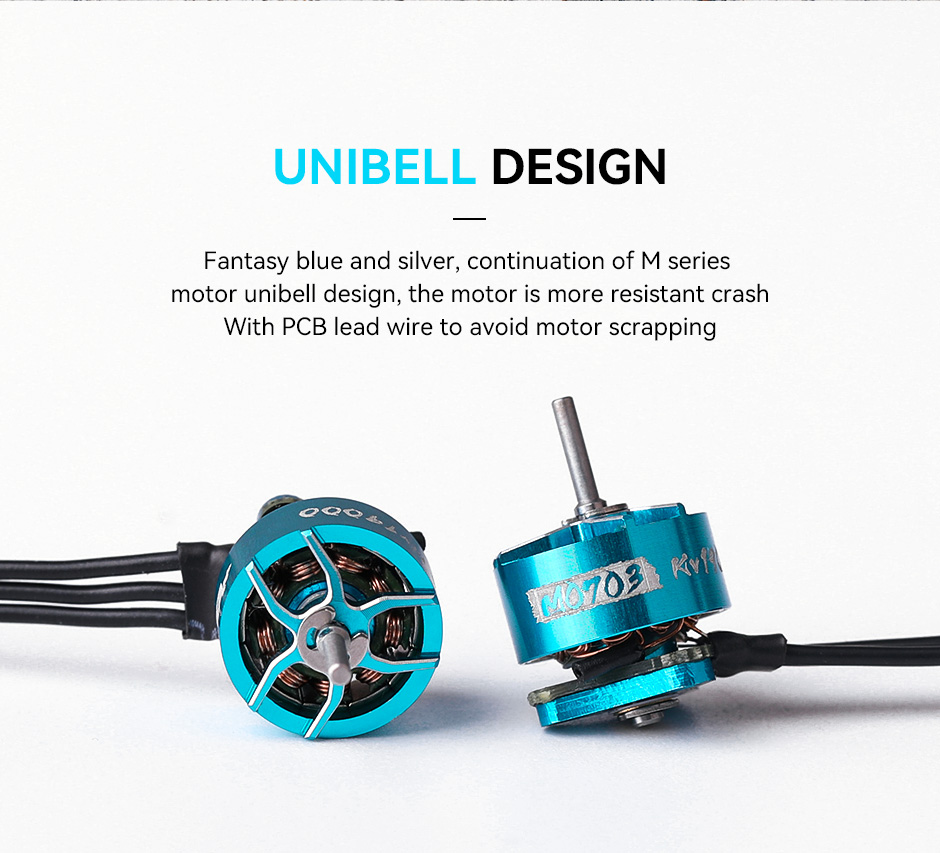

The M0703 brushless motor is the first 07xx series motor. Suitable for 65mm tinywhoop. Fantasy blue and silver unibell design, more durable.

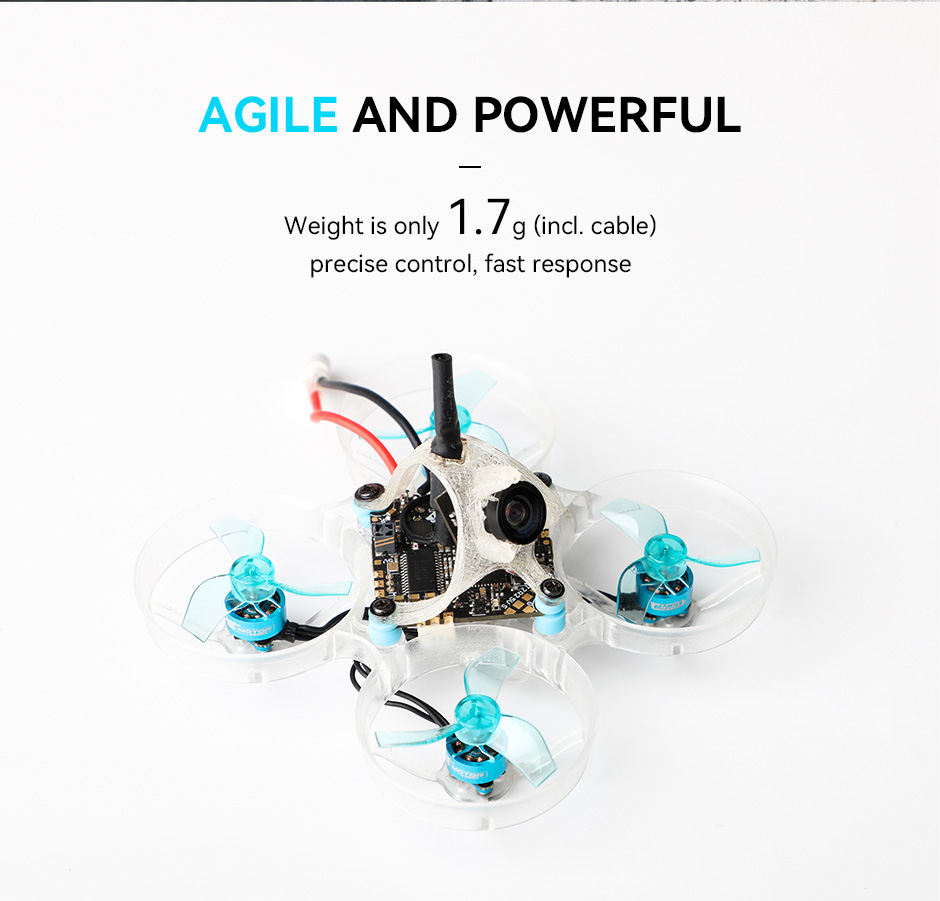

With PCB lead wire to avoid motor scrapping. Agile and powerful, weight only 1.7g (Incl. cable), fast response.

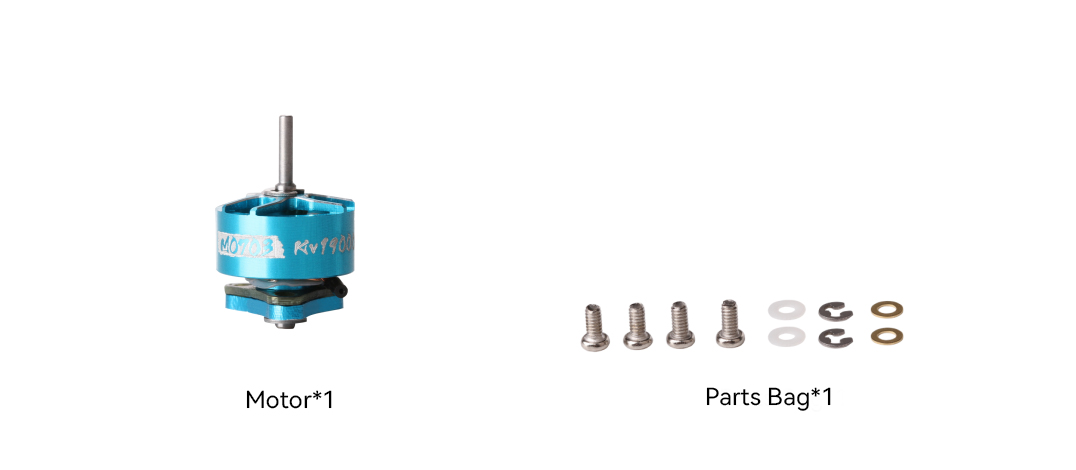

Packing List Includes:

1x T-HOBBY M0703 Micro Motor

1x Hardware Set

Matching Frame:

65mm

Matching Guide:

F411 aio 1s 13a / F411 aio 1s 6

Technical Drawing

Specification Export to Excel

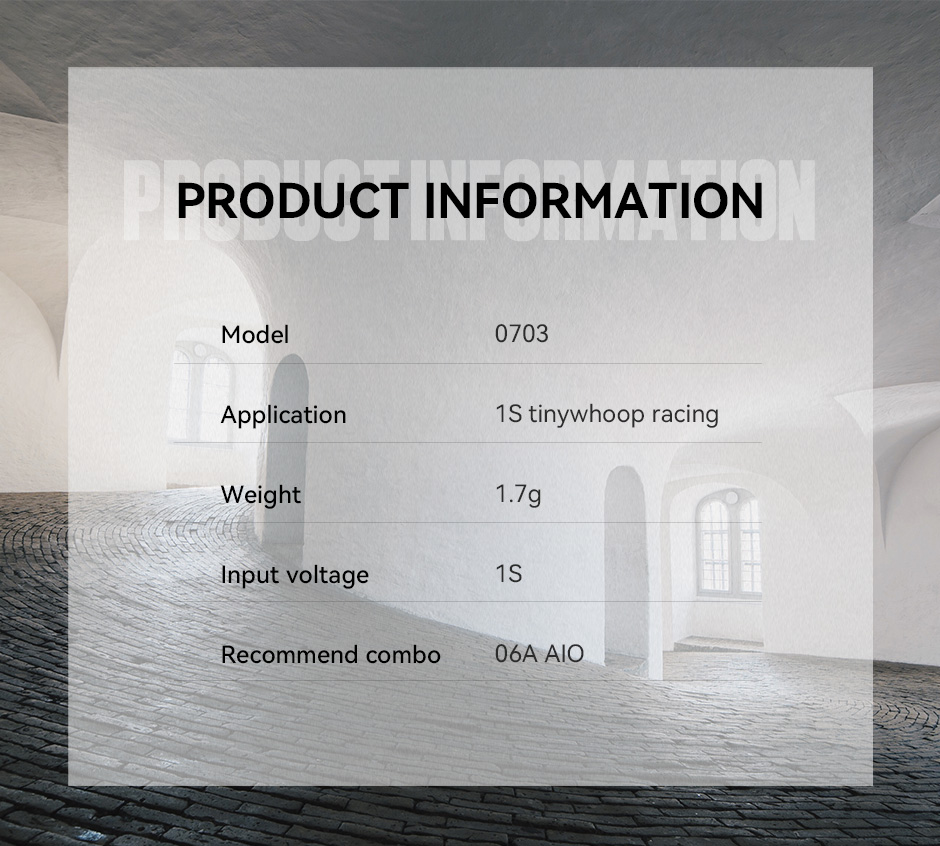

KV	KV19000	Configuration	9N12P
Shaft Diameter	IN: 1.5mm OUT:1mm	Lead	JST-1.25 40mm
Weight (Incl. Cable)	1.7g	Voltage	1S
Idle Current（10V）	0.5A	Max. Power（10s）	7.5W
Peak Current（10s）	2.03A

Test Data Export to Excel

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
M12199	KV19000	20%	3.7	0.4	17217	3.6	1.3	2.78
		40%	3.7	0.8	28087	11.4	3.1	3.66
		60%	3.7	1.2	34799.1	15.5	4.5	3.44
		80%	3.7	1.6	39056.5	18.7	5.7	3.29
		100%	3.7	2.0	44120.4	23.0	7.5	3.06

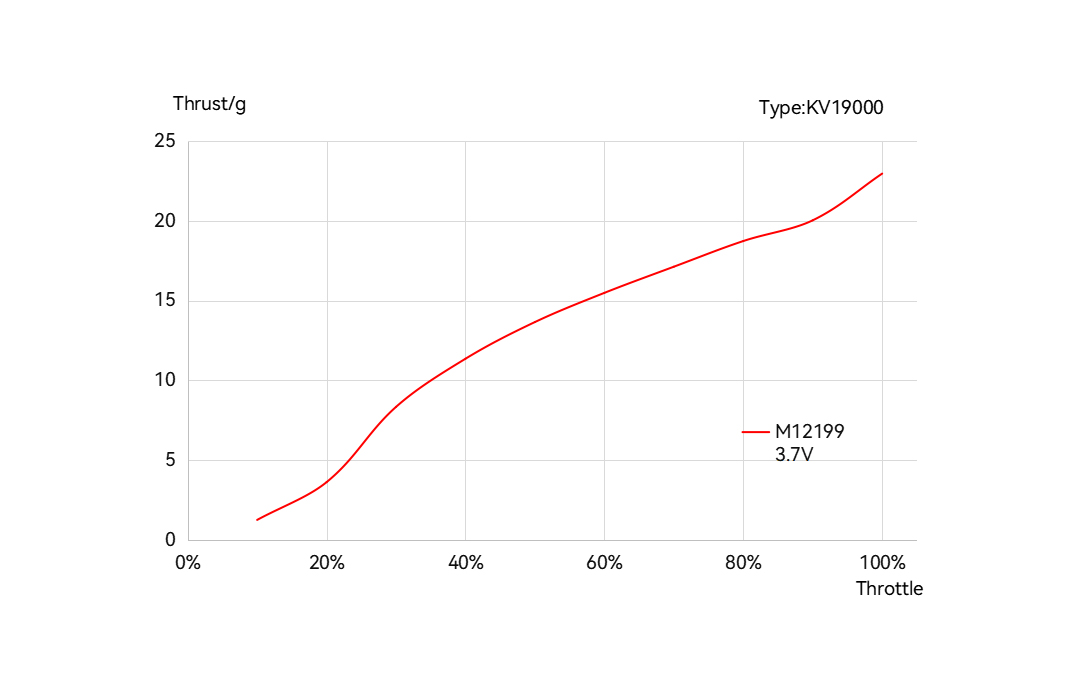

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
