Discover a motor that is more resistant to crashes and provides ultimate performance.
The LIGPOWER M0803 Tinywhoop Brushless Motor has a rated voltage of 1S. Making it perfect for your 75MM Whoop racing drone.
Its unibell design in fantasy blue and silver adds a stylish touch that is sure to dazzle! Soar through the sky with confidence.

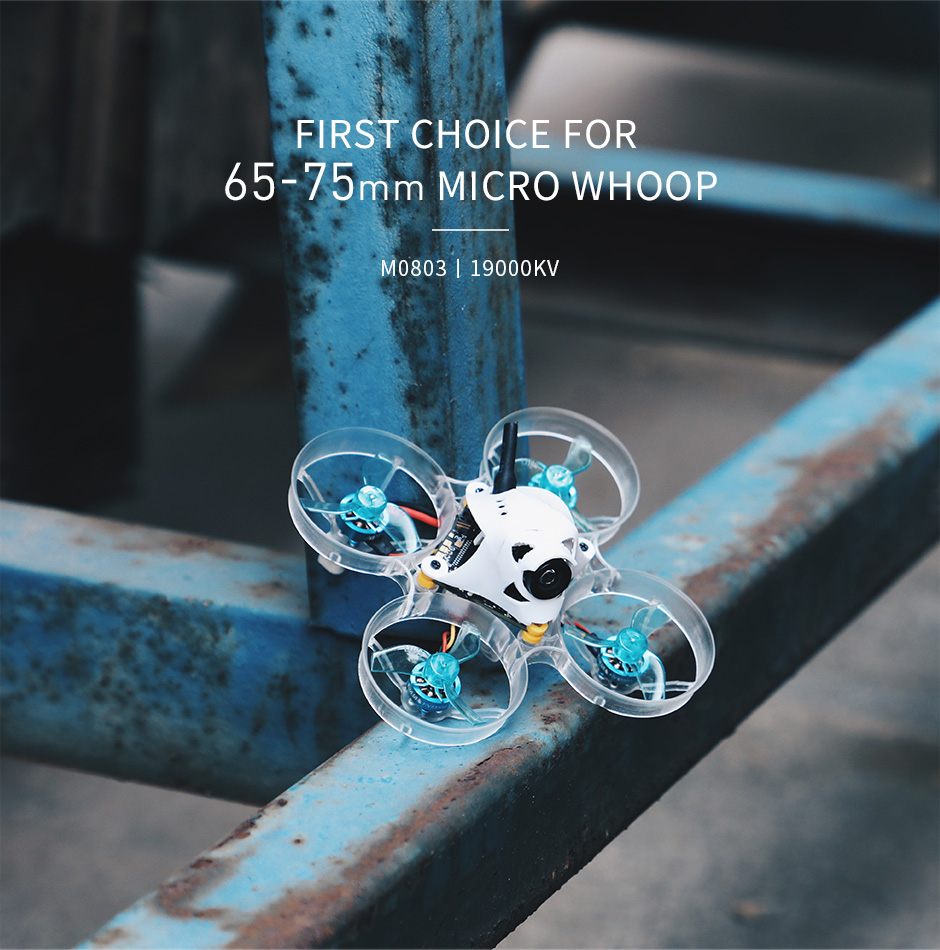

The M0803 brushless motor with 2 different KVs: 19000KV, 22000KV. Suitable for 65-75mm tinywhoop.

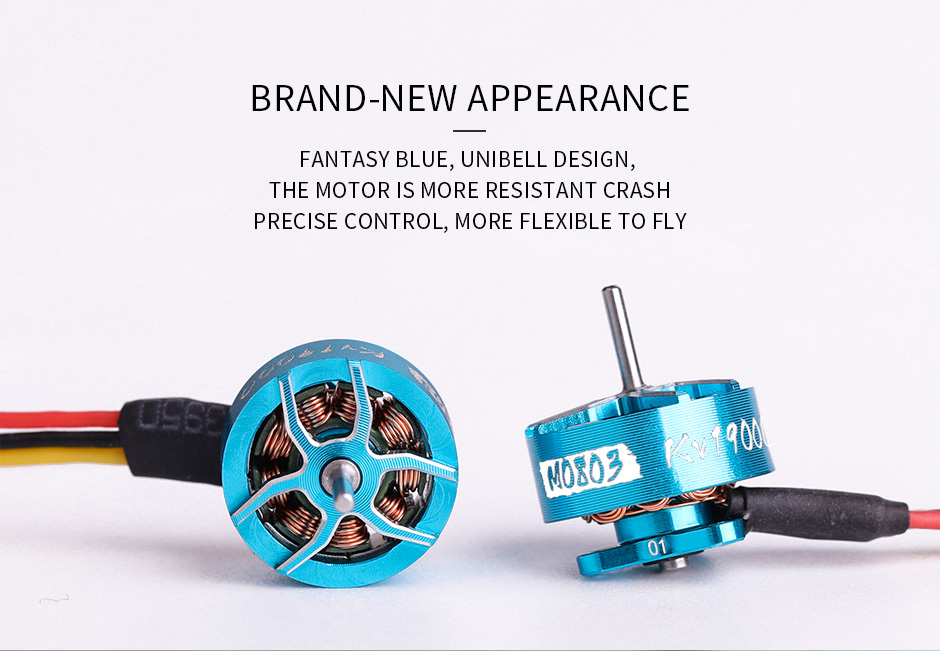

Fantasy blue and silver unibell design, more durable. With PCB lead wire to avoid motor scrapping.

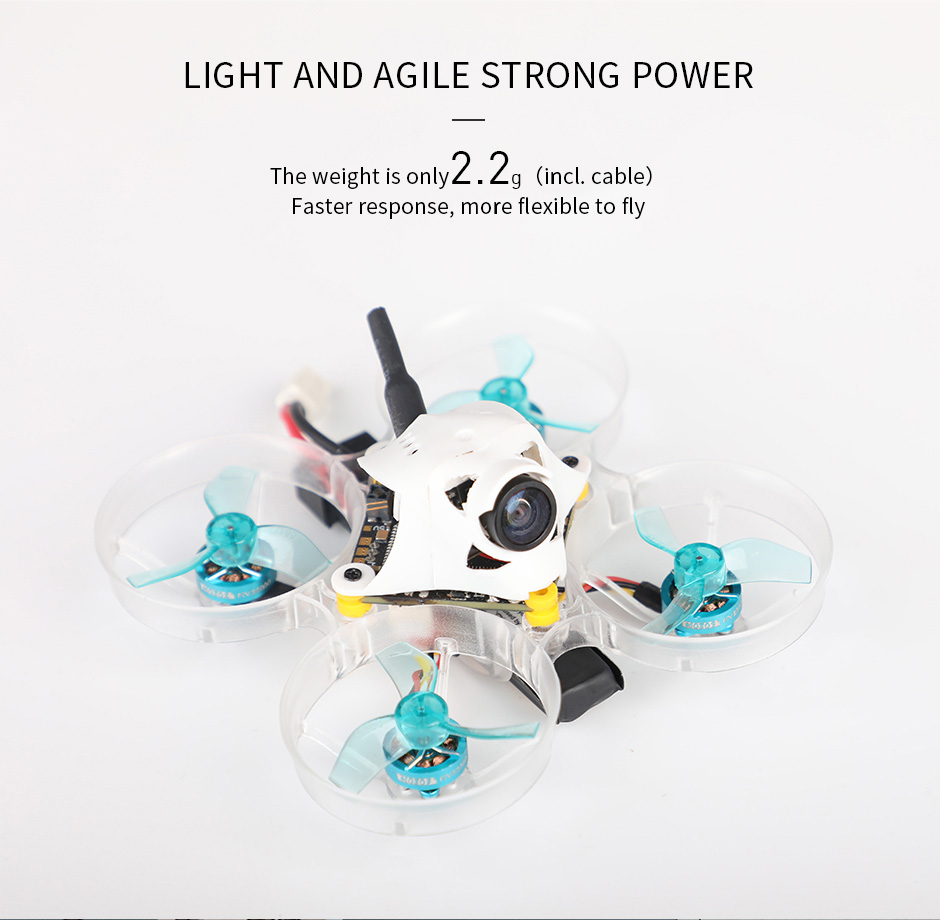

Agile and powerful, weight only 1.8g (Incl. cable), fast response.

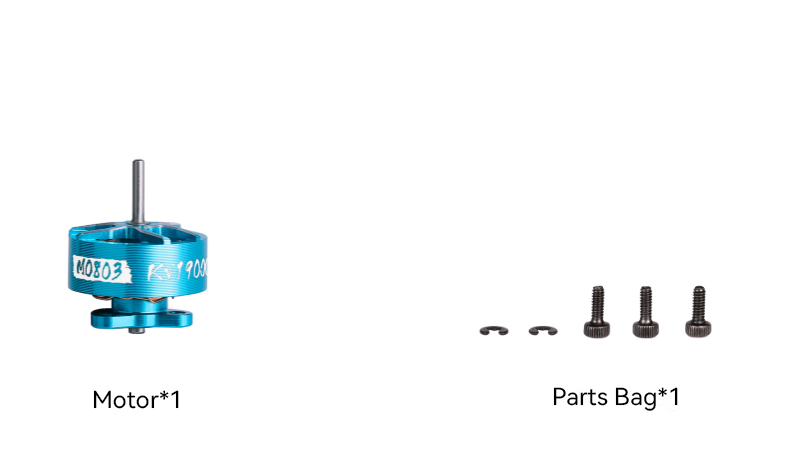

1x LIGPOWER M0803 Micro Motor
1x Hardware Set
65-75mm
| KV | KV19000 | Configuration | 9N12P |

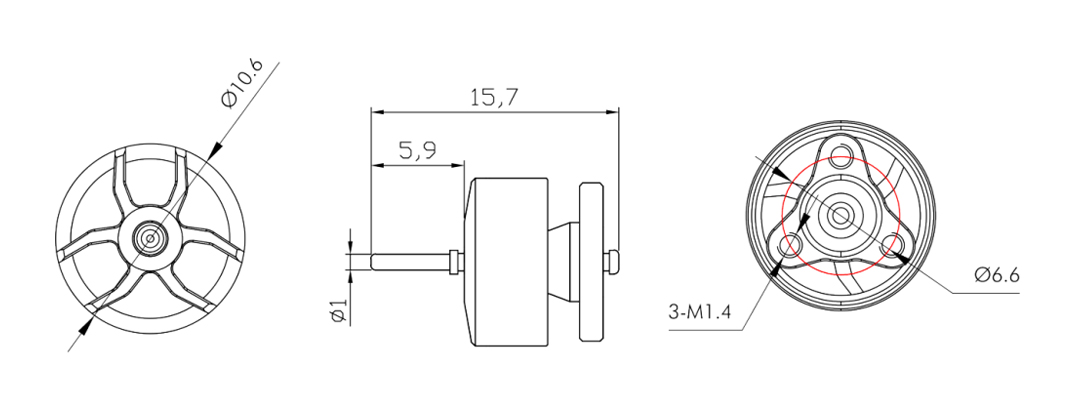

| Shaft Diameter | 1mm | Lead | JST-1.25 Line length 33.5mm |
| Weight (Incl. Cable) | 1.91g | Voltage | 4.2V |
| Idle Current（4V） | 0.49A | Max. Power（10s） | 18.1W |
| Peak Current（10s） | 4.4A |

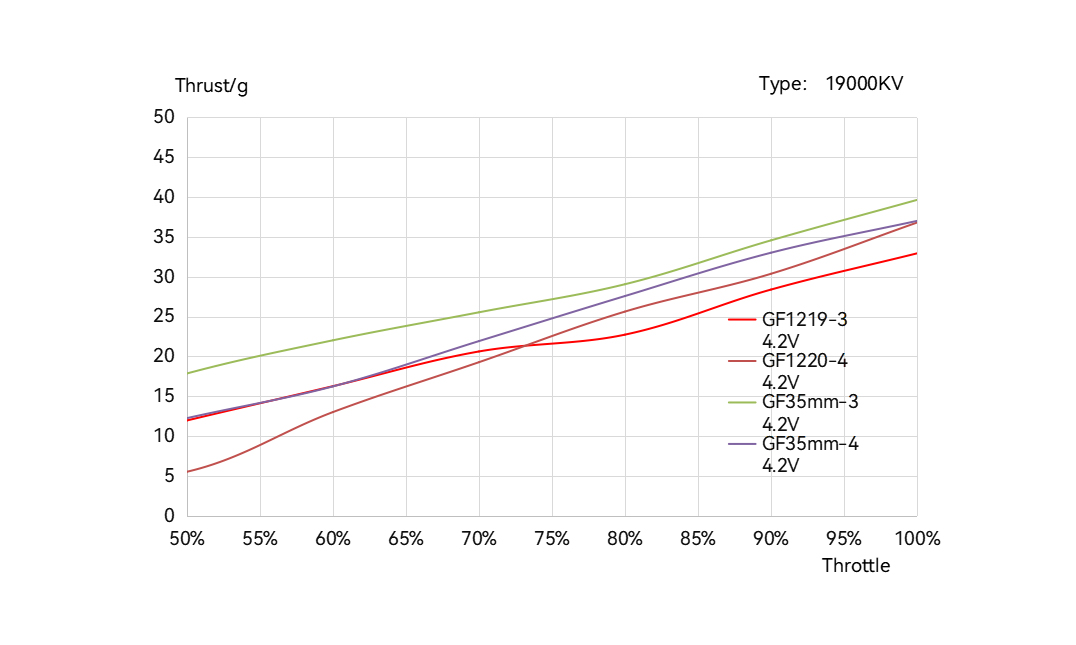

| Propeller | Type | Throttle | Voltage (V) | Current (A) | RPM | Thrust (g) | Power (W) | Efficiency (g/W) |
| GF1219-3 | KV19000 | 50% | 4.2 | 1.4 | 36954 | 12.0 | 6.0 | 2.00 |
| 60% | 4.2 | 1.7 | 40138 | 16.3 | 7.2 | 2.26 | ||
| 70% | 4.2 | 2.1 | 42863 | 20.6 | 8.8 | 2.34 | ||
| 80% | 4.2 | 2.5 | 43233 | 22.7 | 10.2 | 2.23 | ||
| 90% | 4.2 | 3.1 | 50337 | 28.4 | 12.7 | 2.23 | ||
| 100% | 4.1 | 3.8 | 54506 | 32.9 | 15.7 | 2.10 | ||
| GF1220-4 | KV19000 | 50% | 4.2 | 1.5 | 33290 | 5.5 | 6.3 | 0.37 |
| 60% | 4.2 | 1.9 | 37549 | 13.0 | 7.9 | 2.10 | ||
| 70% | 4.2 | 2.2 | 40898 | 19.3 | 9.3 | 2.38 | ||
| 80% | 4.2 | 2.7 | 42744 | 25.6 | 11.3 | 2.51 | ||
| 90% | 4.1 | 3.5 | 46679 | 30.4 | 14.6 | 2.39 | ||
| 100% | 4.1 | 4.2 | 51790 | 36.8 | 17.2 | 2.43 | ||
| GF35mm-3 | KV19000 | 50% | 4.2 | 1.5 | 33302 | 17.9 | 6.3 | 2.83 |
| 60% | 4.2 | 1.9 | 37837 | 22.0 | 7.9 | 2.79 | ||
| 70% | 4.2 | 2.3 | 40928 | 25.5 | 9.4 | 2.72 | ||
| 80% | 4.2 | 2.7 | 44966 | 29.1 | 11.0 | 2.64 | ||
| 90% | 4.1 | 3.3 | 47981 | 34.6 | 13.8 | 2.50 | ||
| 100% | 4.1 | 4.1 | 52615 | 39.6 | 17.0 | 2.33 | ||
| GF35mm-4 | KV19000 | 50% | 4.2 | 1.5 | 33337 | 12.3 | 6.4 | 1.92 |
| 60% | 4.2 | 1.9 | 36395 | 16.2 | 8.0 | 2.03 | ||
| 70% | 4.2 | 2.4 | 39573 | 21.9 | 9.9 | 2.21 | ||
| 80% | 4.2 | 2.8 | 42164 | 27.6 | 11.6 | 2.38 | ||
| 90% | 4.1 | 3.5 | 45813 | 33.0 | 14.6 | 2.26 | ||
| 100% | 4.1 | 4.4 | 48974 | 37.0 | 18.1 | 2.04 |
