Name: T-HOBBY M0803 KV22000 31mm Tiny Whoop Indoor Racing Fpv Motor
Brand: LIGPOWER
SKU: ligpower001297
Price: 10.90 USD
Availability: InStock

Relevant Products

T-HOBBY F411 LITE

$36.9
T-HOBBY M12199 2Pairs/bag

$1.99

Detail information
Specifications

About T-HOBBY Mirco M0803 Indoor racing&freestyle Motor

Discover a motor that is more resistant to crashes and provides ultimate performance.

The T-HOBBY M0803 Tinywhoop Brushless Motor has a rated voltage of 1S. Making it perfect for your 75MM Whoop racing drone.

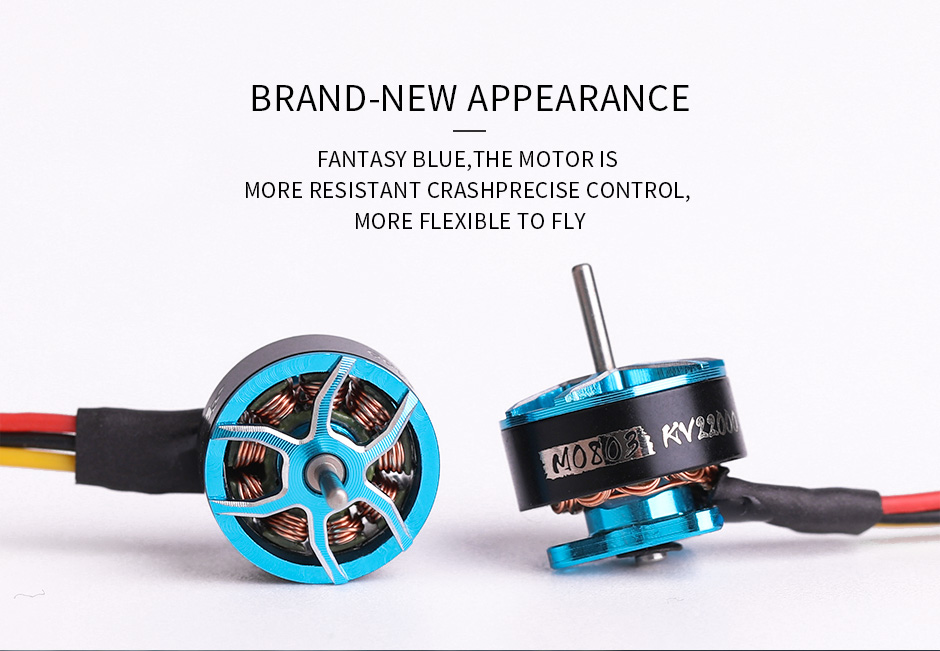

Its unibell design in fantasy blue and silver adds a stylish touch that is sure to dazzle! Soar through the sky with confidence.

Mirco M0803 Hightlight:

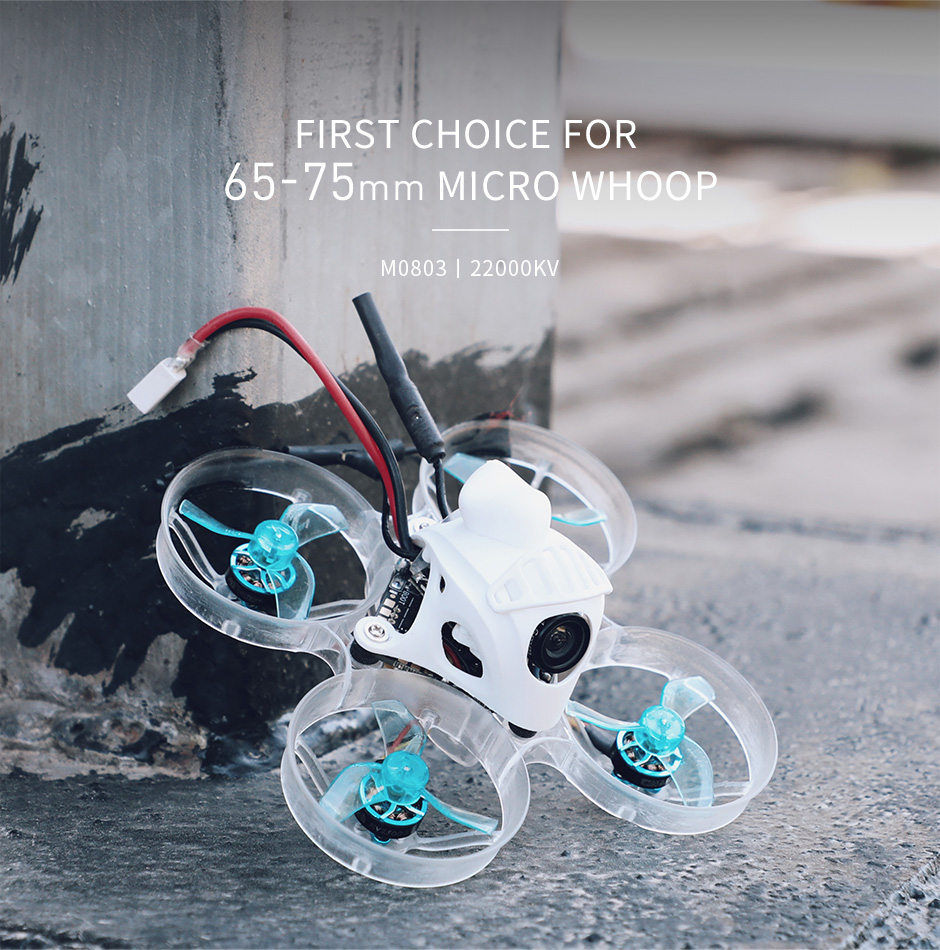

The M0803 brushless motor with 2 different KVs: 19000KV, 22000KV. Suitable for 65-75mm tinywhoop.

Fantasy blue and silver unibell design, more durable. With PCB lead wire to avoid motor scrapping.

Agile and powerful, weight only 1.8g (Incl. cable), fast response.

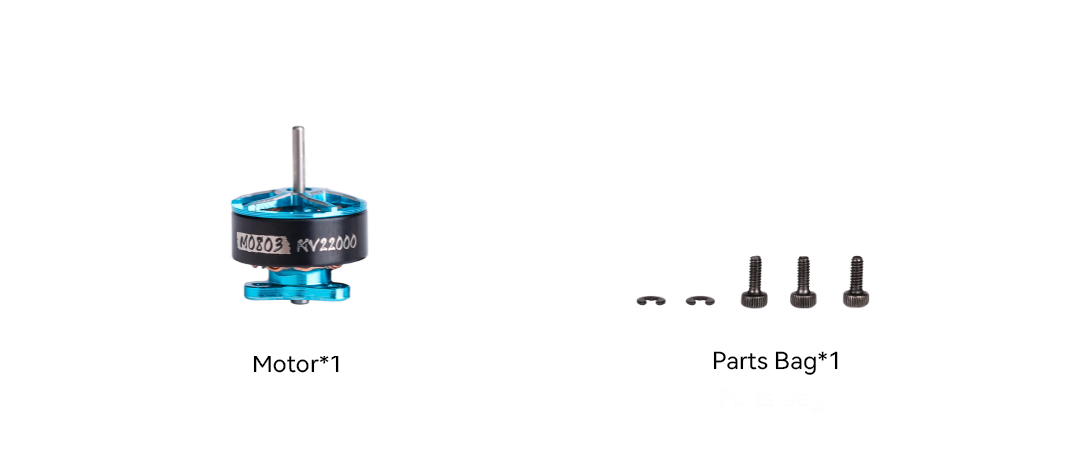

Packing List Includes:

1x T-HOBBY M0803 Micro Motor

1x Hardware Set

Matching Frame:

65-75mm

Matching Guide:

F411 aio 1s 13a / F411 aio 1s 6a

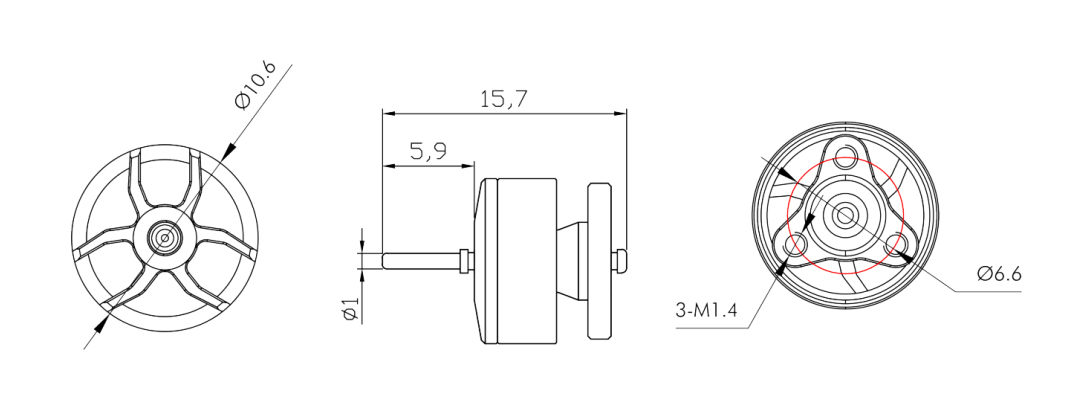

Technical Drawing

Specification Export to Excel

KV	22000	Configuration	9N12P
Internal Resistance	122mΩ	Motor Dimension	Φ10.6*15.7mm
Shaft Diameter	1mm	Lead	JST-1.25 Linelength33.5mm
Weight(Incl.Cable)	2.47g	Weight(Excl. Cable)	2.24g
Rated Voltage(Lipo)	1S	Idle Current(10V)	0.65A
Max. Power(60s)	22.66W	Peak Current(60s)	5.46A

Test Data Export to Excel

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	Power (W)	Efficiency (g/W)
F0803 KV22000	GF 1219-3 1S	50%	17.30	4.19	2.37	9.93	1.74
		55%	19.06	4.18	2.60	10.87	1.75
		60%	20.79	4.18	2.80	11.70	1.78
		65%	22.50	4.18	2.99	12.50	1.80
		70%	24.21	4.18	3.20	13.38	1.81
		75%	25.68	4.17	3.37	14.05	1.83
		80%	27.18	4.17	3.55	14.80	1.84
		85%	28.49	4.17	3.70	15.43	1.85
		90%	30.13	4.17	3.89	16.22	1.86
		95%	32.14	4.16	4.11	17.10	1.88
		100%	35.07	4.16	4.56	18.97	1.85
	GF 1220-4 1S	50%	12.27	4.18	2.38	9.95	1.23
		55%	14.60	4.18	2.62	10.95	1.33
		60%	16.25	4.18	2.85	11.91	1.36
		65%	18.29	4.17	3.07	12.80	1.43
		70%	19.72	4.17	3.29	13.72	1.44
		75%	21.17	4.17	3.48	14.51	1.46
		80%	22.78	4.17	3.67	15.30	1.49
		85%	24.28	4.17	3.85	16.05	1.51
		90%	26.00	4.16	4.04	16.81	1.55
		95%	28.57	4.16	4.35	18.10	1.58
		100%	31.40	4.16	4.75	19.76	1.59
	GF 35mm-3 1S	50%	19.06	4.19	2.63	11.02	1.73
		55%	22.22	4.18	2.88	12.04	1.85
		60%	24.18	4.18	3.11	13.00	1.86
		65%	26.56	4.18	3.35	14.00	1.90
		70%	28.88	4.17	3.55	14.80	1.95
		75%	30.70	4.17	3.76	15.68	1.96
		80%	32.87	4.17	3.99	16.64	1.98
		85%	34.31	4.17	4.20	17.51	1.96
		90%	36.64	4.16	4.45	18.51	1.98
		95%	39.18	4.16	4.79	19.93	1.97
		100%	41.42	4.16	5.28	21.96	1.89
	GF 35mm-4 1S	50%	19.93	4.18	2.69	11.24	1.77
		55%	23.15	4.18	2.91	12.16	1.90
		60%	25.44	4.17	3.18	13.26	1.92
		65%	27.53	4.17	3.41	14.22	1.94
		70%	29.48	4.17	3.64	15.18	1.94
		75%	31.01	4.16	3.88	16.14	1.92
		80%	32.63	4.16	4.10	17.06	1.91
		85%	34.37	4.16	4.33	18.01	1.91
		90%	36.31	4.16	4.57	19.01	1.91
		95%	39.42	4.15	4.93	20.46	1.93
		100%	42.46	4.15	5.46	22.66	1.87

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
