Name: T-HOBBY M1002 75MM Whoop&2inch FPV Tinywhoop Motor KV18000
Brand: LIGPOWER
SKU: ligpower001290
Price: 13.90 USD
Availability: InStock

T-HOBBY M1002 75MM Whoop&2inch FPV Tinywhoop Motor KV18000

13.90

Available points: 14 Points Points reward: 13 Points

1. Blue and silver unibell design

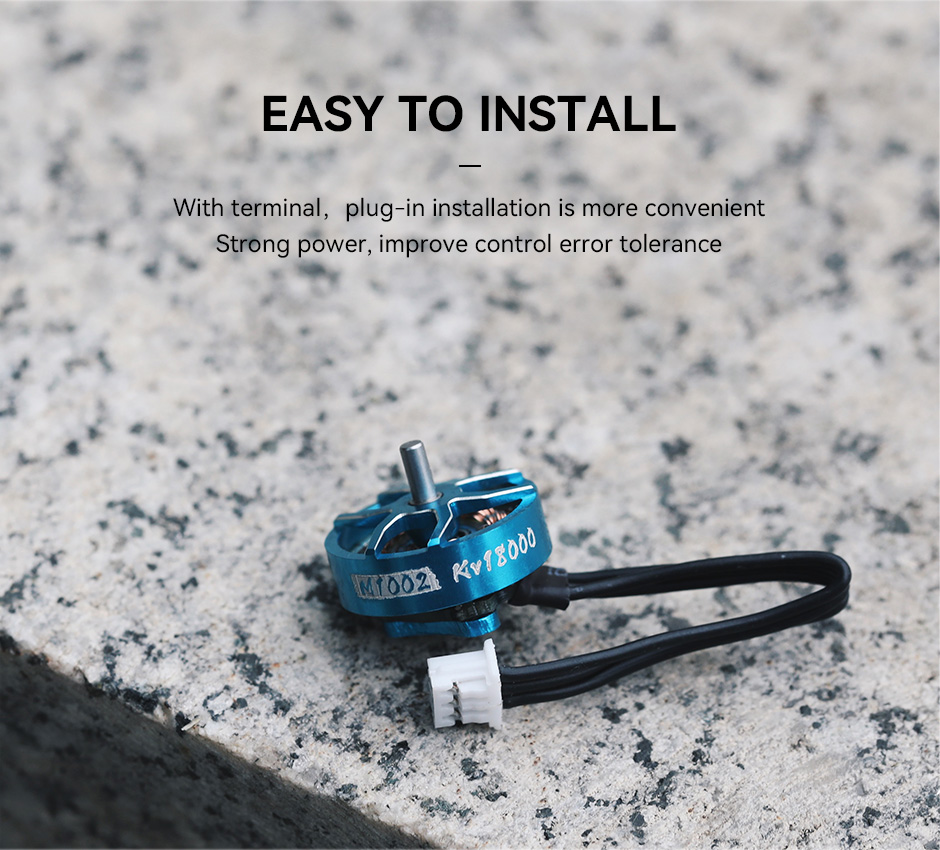

2. Easy to install
3. Lightweight

KV：

KV18000

Quantity：

13.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

About T-HOBBY Mirco M1002 Indoor racing&freestyle Motor

Discover a motor that is more resistant to crashes and provides ultimate performance.

The T-HOBBY M1002 18000KV Tinywhoop Brushless Motor has a rated voltage of 1S and weighs 2.4g, making it perfect for your 75MM Whoop/2inch racing drone.

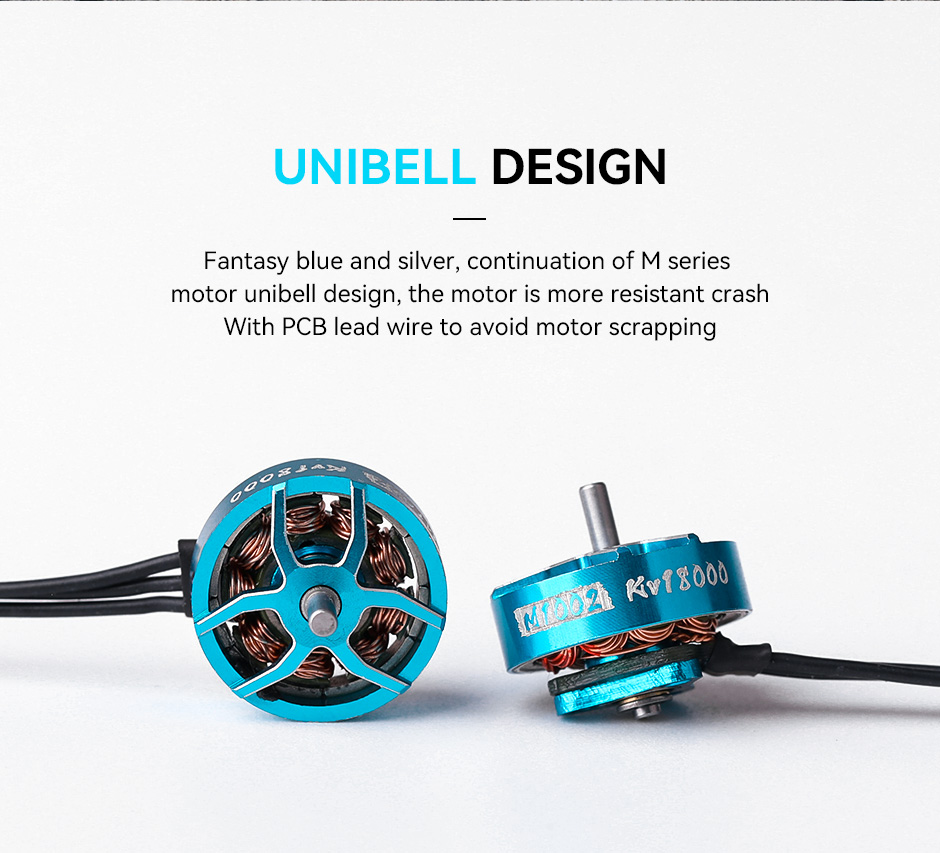

Its unibell design in fantasy blue and silver adds a stylish touch that is sure to dazzle! Soar through the sky with confidence.

Mirco M1002 Hightlight:

The M1002 18000KV brushless motor is suitable for 75mm tinywhoop. Fantasy blue and silver unibell design, more durable. With PCB lead wire to avoid motor scrapping. Agile and powerful, weight only 2.4g (Incl. cable), fast response.

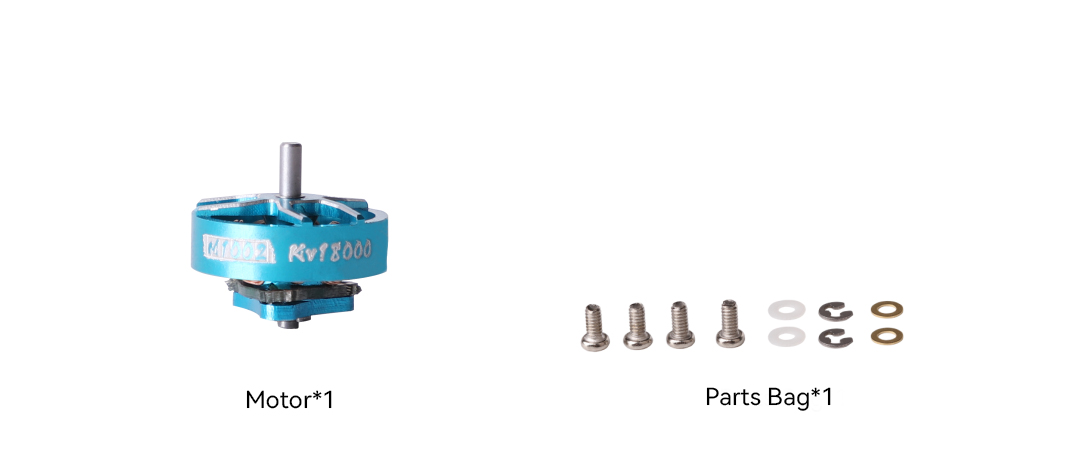

Packing List Includes:

1x T-HOBBY M1002 Micro Motor

1x Hardware Set

Matching Frame:

75mm,2inch

Matching Guide:

F411 aio 1s 13a / F411 aio 1s 6a

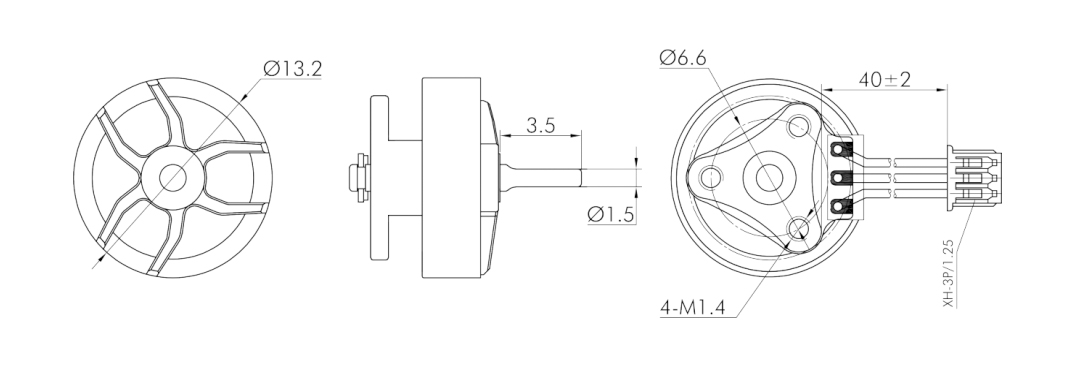

Technical Drawing

Specification Export to Excel

KV	KV18000	Configuration	9N12P
Shaft Diameter	IN: 1.5mm OUT:1mm	Lead	JST-1.25 40mm
Weight (Incl. Cable)	2.4g	Voltage	1S
Idle Current（10V）	0.6A	Max. Power（10s）	18.7W
Peak Current（10s）	5.16A

Test Data Export to Excel

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
GF 35MM-3	KV18000	20%	3.7	0.4	17725.5	8.4	1.5	5.60
		40%	3.7	1.1	28033.2	16.1	3.9	4.12
		60%	3.7	1.6	34983.1	22.6	6.1	3.71
		80%	3.7	2.2	38656.8	27.8	8.0	3.48
		100%	3.7	3.1	46259.2	35.4	11.4	3.11
GF 40MM-2	KV18000	20%	3.7	0.4	15850	6.1	1.6	3.78
		40%	3.7	1.1	24724.8	13.0	4.2	3.09
		60%	3.7	1.8	30870.8	19.4	6.7	2.90
		80%	3.7	2.5	35523.9	25.2	9.0	2.80
		100%	3.6	3.7	41649	35.6	13.5	2.64
GF 1635-3	KV18000	20%	3.7	0.4	13475.4	1.8	1.6	1.09
		40%	3.7	1.2	21362.6	10.7	4.5	2.37
		60%	3.7	2.0	27035.3	20.4	7.5	2.72
		80%	3.7	2.8	31274.4	27.6	10.3	2.68
		100%	3.6	4.4	37158.8	40.3	16.1	2.50
GF 2015-2	KV18000	20%	3.7	0.4	12202.9	4.9	1.6	3.06
		40%	3.7	1.2	19047	13.9	4.5	3.08
		60%	3.7	2.1	23852.2	23.5	7.8	3.01
		80%	3.7	3.2	28081.5	33.6	11.7	2.88
		100%	3.6	5.2	33388.6	46.9	18.7	2.51

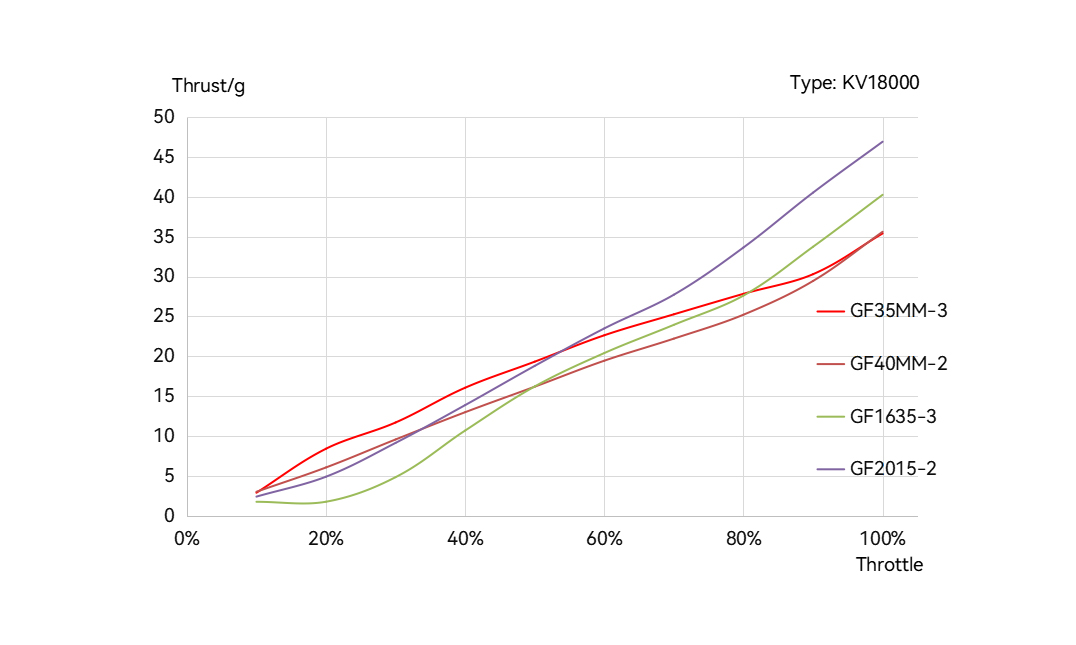

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
