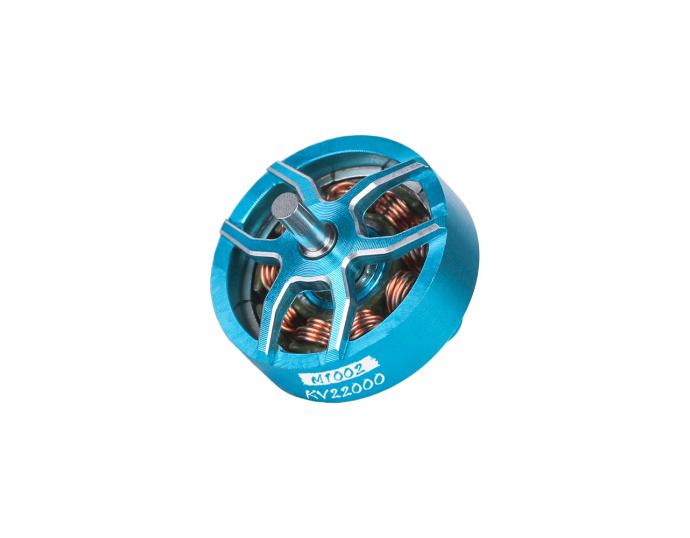

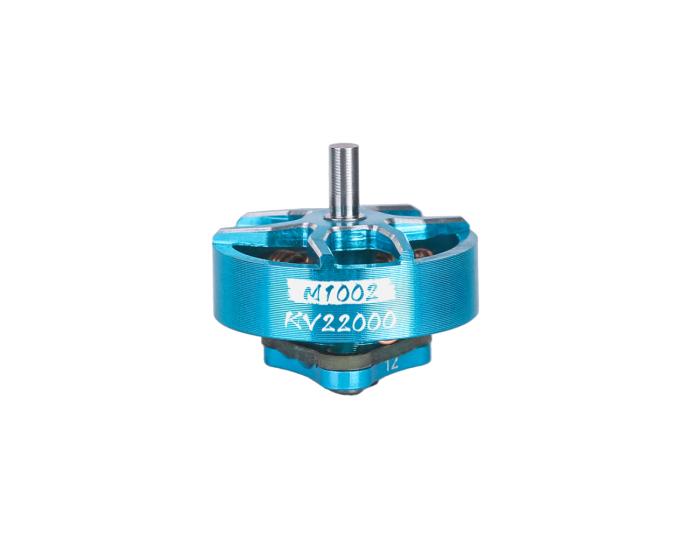

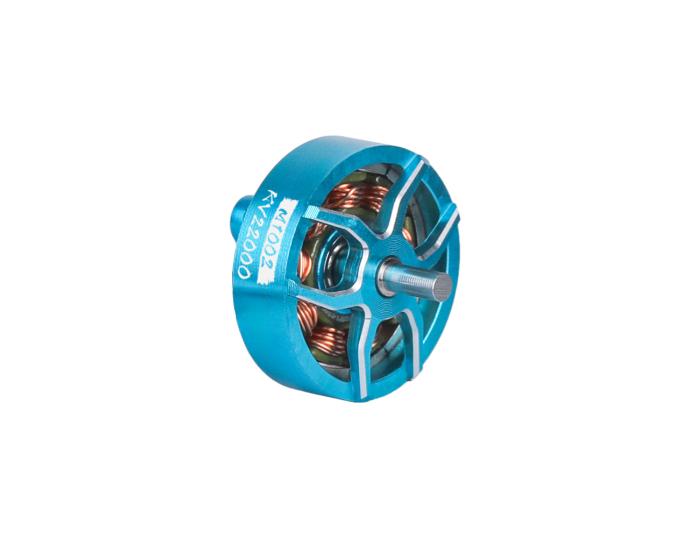

T-HOBBY M1002 KV14000 /KV19000 / KV22000

Name: T-HOBBY M1002 KV14000 /KV19000 / KV22000
Brand: LIGPOWER
SKU: LIGPOWER001965
Price: 13.90 USD
Availability: InStock

$13.90

Available points: 14 Points Points reward: 13 Points

1. Blue and silver unibell design
2. Easy to install
3. Lightweight

KV：

KV14000
KV19000
KV22000

Quantity：

13.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

M1002KV14000
/19000/22000

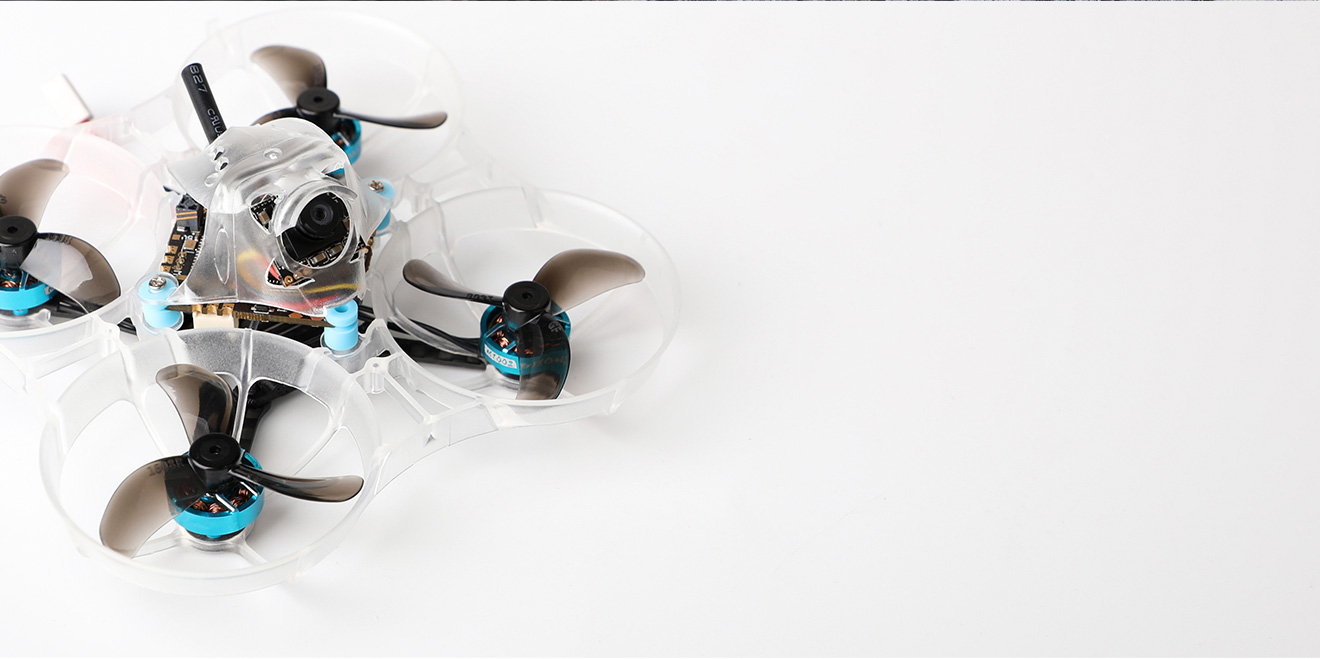

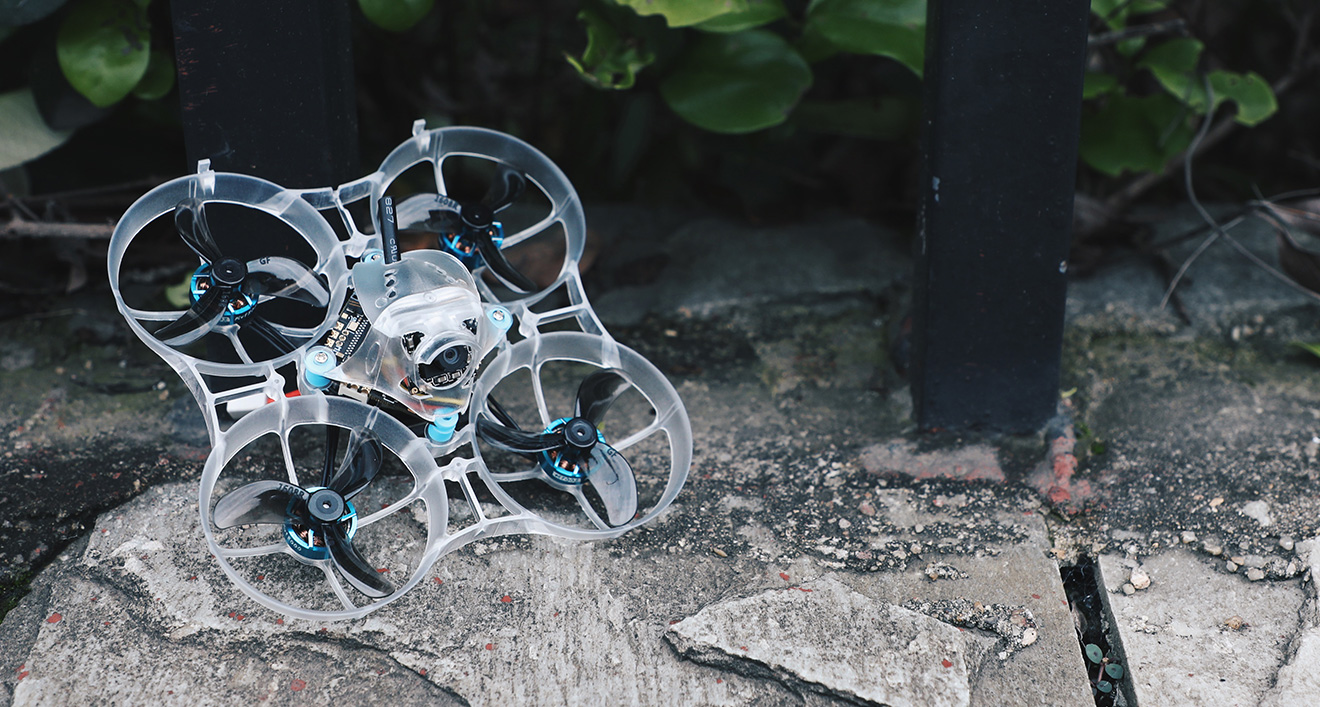

Suitable for 75mm tinywhoop

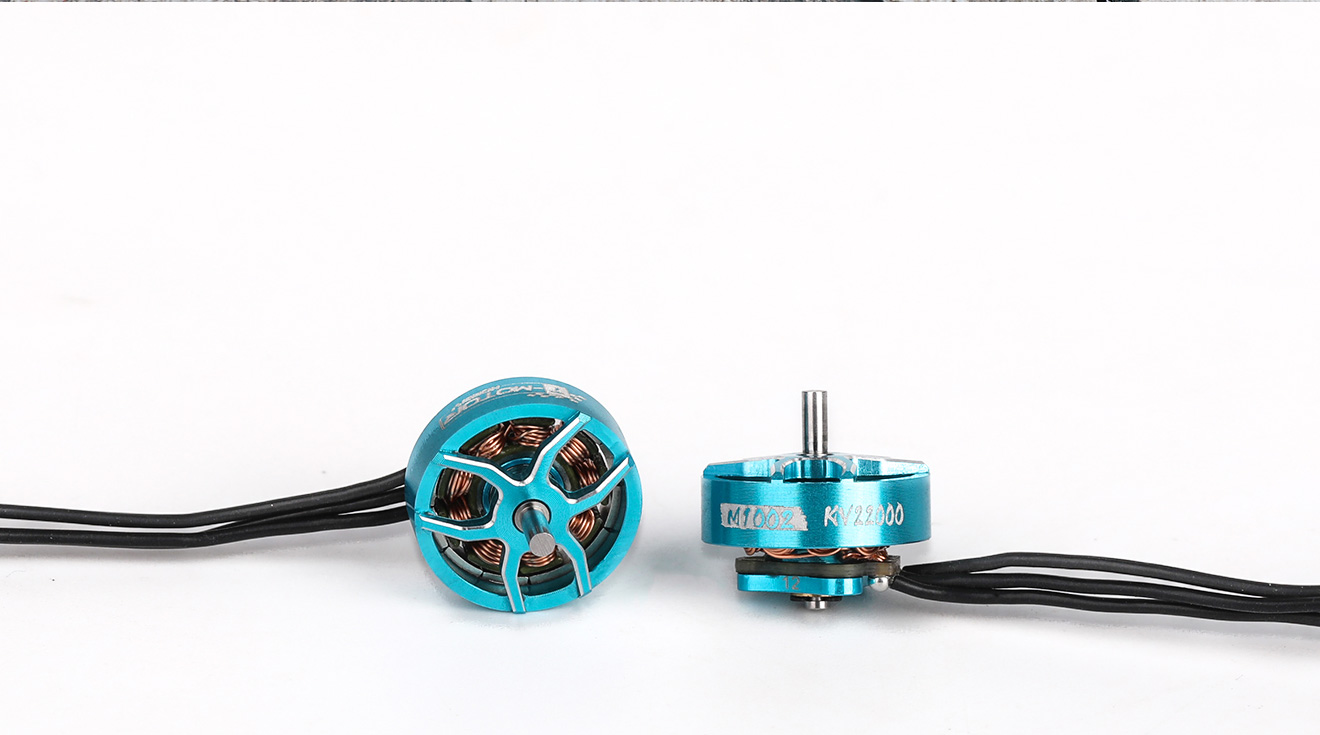

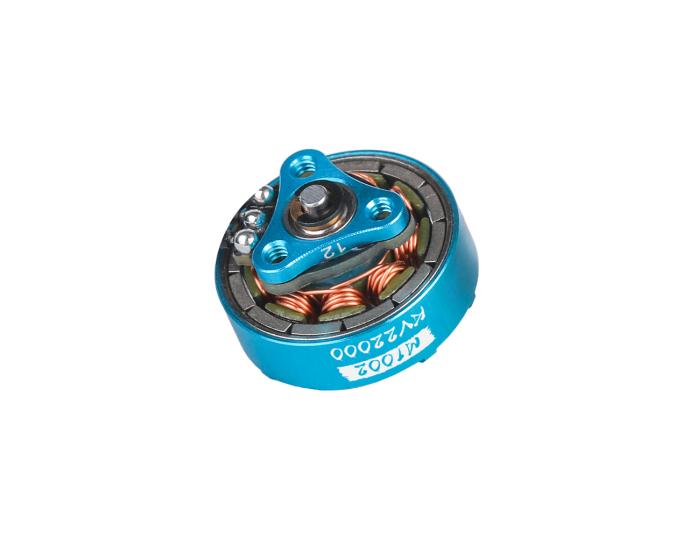

UNIBELL DESIGN

Fantasy blue and silver, continuation of M
series motor unibell design, the motor is more resistant crash

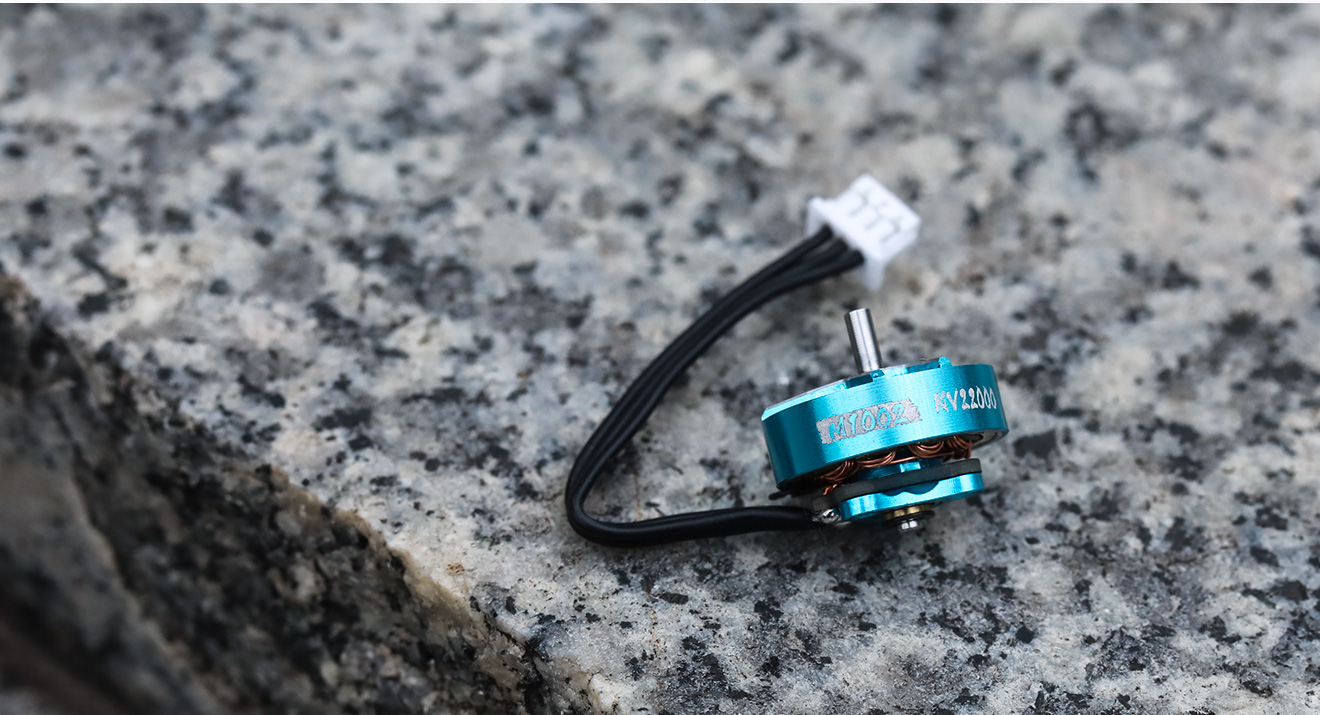

With PCB lead wire to avoid motor scrapping

EASY TO INSTALL

With terminal, plug-in installation is more convenient
Strong power, improve control error tolerance

AGILE AND POWERFUL

Weight is only 2.5g (incl. cable) precise control, fast response

PRODUCT INFORMATION

ModelM1002Application1-2S tinywhoop racingWeight2.5gInput voltage1-2SRecommend comboT-HOBBY F411 AIO 1S 6A / T-HOBBY F411 AIO 2-4S 20A

Technical Drawing

Specification Export to Excel

Type	M1002	Motor Dimensions	Φ13.2x7.9mm
Magnet	Nickel-plated Arc Magnet	Coil Insulation Test	200V Withstand Voltage Test
Waterproof and Dustproof Class	/	Configuration	9N12P
Dynamic Balance Requirements Standards	≤5mg	Bearings	Imported 681X
Shaft Diameter	Φ1.5mm	Lead	30#x40 (3P-1.25)mm
Screw Diameter	Φ6.6-M1.4, 3 Holes	Prop Adapter Shaft Thread	Φ1.5x3.5mm
Packing Size	90x130x20mm	Package Weight	6.9g

Tech Specs
Recommended Voltage	14000	Idle Current (2V)	1.3A
Max Power	70.9W	Internal Resistance	185mΩ
Rated Voltage (LiPo)	2S	Peak Current	9.8A
Max Thrust	93.2g	Weight (Incl. Cable)	2.5g

Recommended Voltage	19000	Idle Current (2V)	1.7A
Max Power	21.7W	Internal Resistance	133mΩ
Rated Voltage (LiPo)	1S	Peak Current	6.1A
Max Thrust	38.2g	Weight (Incl. Cable)	2.5g

Recommended Voltage	22000	Idle Current (2V)	2.1A
Max Power	22.3W	Internal Resistance	120mΩ
Rated Voltage (LiPo)	1S	Peak Current	6.2A
Max Thrust	34.5g	Weight (Incl. Cable)	2.5g

Recommended
Motor	M1002 KV14000	Frame Type	X4/WHOOP
Prop	GF2015-2/GF1611-3	LiPo Cells	2S
ESC	T-HOBBY F411 AIO 2-4S 20A	Recommended Takeoff Weight Range	≤40g
FC	T-HOBBY F411 AIO 2-4S 20A	Max Takeoff Weight	60g

Motor	M1002 KV19000/KV22000	Frame Type	X4/WHOOP
Prop	GF2015-2/GF1611-3	LiPo Cells	1S
ESC	T-HOBBY F411 AIO 1S 6A	Recommended Takeoff Weight Range	≤40g
FC	T-HOBBY F411 AIO 1S 6A	Max Takeoff Weight	60g

Test Data Export to Excel

Type	Propeller	Voltage (V)	Throttle	Current (A)	RPM	Thrust (gf)	Power (W)	Efficiency (gf/W)	Torque (N·m)	Operating Temperature (℃)
M1002 KV14000	GF1614-3	7.4	10%	0.2	12750	3.3	1.8	1.85	/	/
		7.4	20%	0.8	22988	10.6	6.3	1.69	/
		7.4	30%	1.6	29365	19.9	12.1	1.65	/
		7.4	40%	2.5	35025	28.9	18.3	1.58	/
		7.4	50%	3.3	51985	37.1	24.4	1.52	/
		7.3	60%	4.1	43732	44.9	30.1	1.49	/
		7.3	70%	4.9	47993	53.0	36.1	1.47	/
		7.3	80%	6.1	52325	62.6	44.6	1.40	/
		7.3	90%	7.5	56206	73.0	54.1	1.35	/
		7.2	100%	9.0	59788	82.6	64.7	1.28	/
M1002 KV14000	GF1611-3	7.4	10%	0.2	12846	3.5	1.7	2.07	/	/
		7.4	20%	0.8	23060	11.8	6.3	1.89	/
		7.4	30%	1.6	28316	20.7	12.2	1.70	/
		7.4	40%	2.5	33904	29.5	18.6	1.59	/
		7.4	50%	3.4	39736	37.7	25.1	1.51	/
		7.3	60%	4.2	43656	44.4	30.5	1.46	/
		7.3	70%	5.1	45378	53.2	37.6	1.41	/
		7.3	80%	6.4	49849	62.6	46.7	1.34	/
		7.3	90%	7.8	53279	71.6	56.6	1.27	/
		7.2	100%	9.3	56258	79.1	66.9	1.18	/
M1002 KV14000	GF2015-2	7.4	10%	0.3	11198	4.2	1.9	2.23	/	/
		7.4	20%	0.9	20315	14.1	6.6	2.12	/
		7.4	30%	1.7	28635	24.9	12.7	1.96	/
		7.4	40%	2.6	31814	36.8	19.5	1.89	/
		7.4	50%	3.5	37301	46.0	26.0	1.77	/
		7.3	60%	4.5	41821	54.4	32.7	1.67	/
		7.3	70%	5.4	41958	63.8	39.2	1.63	/
		7.3	80%	6.8	45799	74.5	49.3	1.51	/
		7.2	90%	8.2	48560	84.2	59.4	1.42	/
		7.2	100%	9.8	50829	93.2	70.9	1.32	/
M1002 KV14000	GF45mm-2	7.4	10%	0.3	12395	3.3	1.9	1.74	/	/
		7.4	20%	0.9	22271	11.9	6.4	1.87	/
		7.4	30%	1.6	29102	22.6	12.2	1.86	/
		7.4	40%	2.5	35303	32.2	18.5	1.74	/
		7.4	50%	3.4	46212	41.5	24.8	1.68	/
		7.3	60%	4.1	45858	48.7	30.2	1.61	/
		7.3	70%	5.1	47025	58.1	37.1	1.57	/
		7.3	80%	6.3	51040	69.9	46.2	1.51	/
		7.3	90%	7.7	54557	78.4	55.9	1.40	/
		7.2	100%	9.2	57960	88.4	66.6	1.33	/
M1002 KV19000	GF1614-3	3.7	10%	0.2	7177	0.8	0.8	1.06	/	/
		3.7	20%	0.6	13912	4.0	2.3	1.72	/
		3.7	30%	1.2	18579	7.4	4.4	1.68	/
		3.7	40%	1.8	22241	11.0	6.7	1.64	/
		3.7	50%	2.4	25126	14.6	8.9	1.65	/
		3.7	60%	3.0	27990	17.9	10.8	1.66	/
		3.6	70%	3.5	30166	20.6	12.8	1.61	/
		3.6	80%	4.0	32145	24.0	14.6	1.64	/
		3.6	90%	4.8	34794	28.3	17.4	1.63	/
		3.6	100%	5.7	37396	32.1	20.6	1.56	/
M1002 KV19000	GF1611-3	3.7	10%	0.2	6912	1.0	0.8	1.30	/	/
		3.7	20%	0.7	13413	4.2	2.5	1.70	/
		3.7	30%	1.2	17898	7.7	4.6	1.69	/
		3.7	40%	1.9	21066	11.2	6.8	1.64	/
		3.7	50%	2.5	24030	14.8	9.1	1.64	/
		3.7	60%	3.0	26688	18.0	11.1	1.62	/
		3.6	70%	3.6	28877	21.4	13.1	1.64	/
		3.6	80%	4.2	30741	24.4	15.1	1.62	/
		3.6	90%	4.9	33383	28.5	17.8	1.60	/
		3.6	100%	5.9	35435	33.0	21.3	1.55	/
M1002 KV19000	GF2015-2	3.7	10%	0.2	6613	1.3	0.8	1.61	/	/
		3.7	20%	0.7	12943	5.0	2.4	2.04	/
		3.7	30%	1.2	17658	9.2	4.6	2.00	/
		3.7	40%	1.9	20175	13.5	6.9	1.96	/
		3.7	50%	2.5	23118	17.6	9.3	1.90	/
		3.7	60%	3.1	25413	21.6	11.4	1.89	/
		3.6	70%	3.7	27234	25.6	13.4	1.91	/
		3.6	80%	4.3	29313	29.1	15.4	1.89	/
		3.6	90%	5.1	31504	34.3	18.4	1.86	/
		3.6	100%	6.1	33401	38.2	21.7	1.76	/
M1002 KV19000	GF45mm-2	3.7	10%	0.2	6742	0.9	0.7	1.27	/	/
		3.7	20%	0.6	14152	4.5	2.3	1.96	/
		3.7	30%	1.2	18140	8.5	4.3	1.98	/
		3.7	40%	1.8	21775	12.5	6.5	1.93	/
		3.7	50%	2.3	25306	16.5	8.6	1.93	/
		3.7	60%	2.9	27486	20.4	10.6	1.93	/
		3.7	70%	3.5	29791	24.2	12.7	1.91	/
		3.6	80%	4.0	31923	27.5	14.4	1.91	/
		3.6	90%	4.7	34660	31.4	17.1	1.84	/
		3.6	100%	5.7	37248	36.9	20.5	1.80	/
M1002 KV22000	GF1614-3	3.7	10%	0.4	132	0.0	1.4	0.00	/	/
		3.7	20%	0.8	12635	3.1	3.0	1.04	/
		3.7	30%	1.4	17121	6.2	5.3	1.17	/
		3.7	40%	2.1	20598	9.1	7.7	1.18	/
		3.7	50%	2.7	23655	11.8	10.0	1.19	/
		3.7	60%	3.3	26169	14.7	12.1	1.21	/
		3.6	70%	3.8	28254	17.3	13.7	1.26	/
		3.6	80%	4.3	30114	20.2	15.7	1.29	/
		3.6	90%	4.9	32392	23.2	17.7	1.31	/
		3.6	100%	5.8	34870	26.6	20.9	1.27	/
M1002 KV22000	GF1611-3	3.7	10%	0.2	5976	0.6	0.9	0.67	/	/
		3.7	20%	0.8	11985	3.2	2.8	1.13	/
		3.7	30%	1.4	16553	6.1	5.3	1.15	/
		3.7	40%	2.1	19650	9.5	7.7	1.23	/
		3.7	50%	2.8	22890	12.4	10.1	1.23	/
		3.7	60%	3.4	25082	15.5	12.3	1.26	/
		3.6	70%	3.9	27572	17.2	14.1	1.22	/
		3.6	80%	4.4	29445	19.9	16.0	1.24	/
		3.6	90%	5.1	31566	23.2	18.3	1.27	/
		3.6	100%	6.0	33584	27.4	21.6	1.27	/
M1002 KV22000	GF2015-2	3.7	10%	0.3	4456	0.3	1.0	0.31	/	/
		3.7	20%	0.8	11385	3.7	2.9	1.29	/
		3.7	30%	1.4	15574	7.5	5.2	1.43	/
		3.7	40%	2.1	18951	11.2	7.7	1.46	/
		3.7	50%	2.8	21807	15.5	10.1	1.53	/
		3.7	60%	3.4	24036	19.2	12.5	1.53	/
		3.6	70%	4.0	26030	22.9	14.7	1.56	/
		3.6	80%	4.5	27827	26.4	16.5	1.60	/
		3.6	90%	5.2	30021	29.9	18.7	1.60	/
		3.6	100%	6.2	31746	34.5	22.3	1.55	/
M1002 KV22000	GF45mm-2	3.7	10%	0.3	118	0.1	1.3	0.08	/	/
		3.7	20%	0.8	12590	3.5	2.8	1.24	/
		3.7	30%	1.4	17239	7.0	5.2	1.36	/
		3.7	40%	2.1	21005	10.8	7.6	1.42	/
		3.7	50%	2.7	24219	14.8	10.0	1.48	/
		3.7	60%	3.2	26407	17.7	11.9	1.49	/
		3.7	70%	3.7	28788	20.9	13.6	1.54	/
		3.6	80%	4.2	30857	23.7	15.3	1.55	/
		3.6	90%	4.9	33330	27.3	17.6	1.55	/
		3.6	100%	5.8	35642	32.0	21.0	1.53	/
DataabovebasedonbenchtestatT-HOBBYlabareforreferenceonly.

Analysis Chart

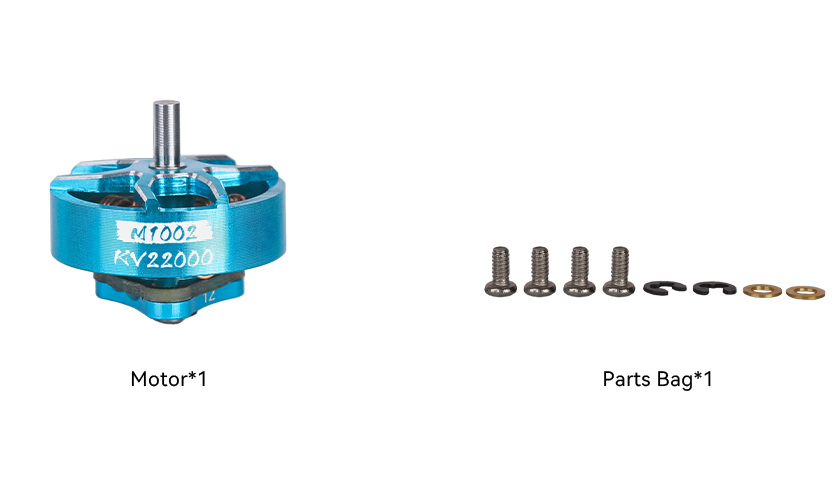

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
