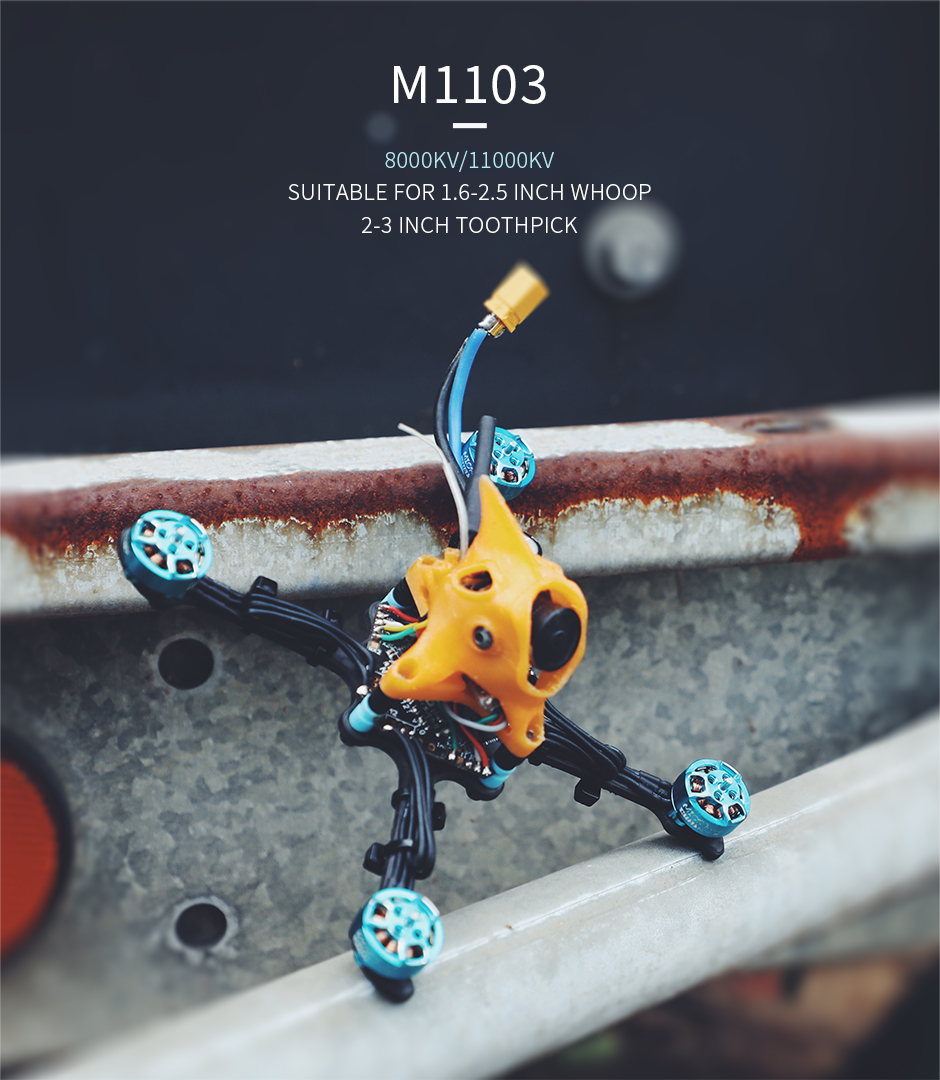

Name: M1103 1.6 Inch FPV Racing Drone Motor
Brand: LIGPOWER
SKU: AFD01010404
Price: 11.90 USD
Availability: InStock

Detail information
Specifications

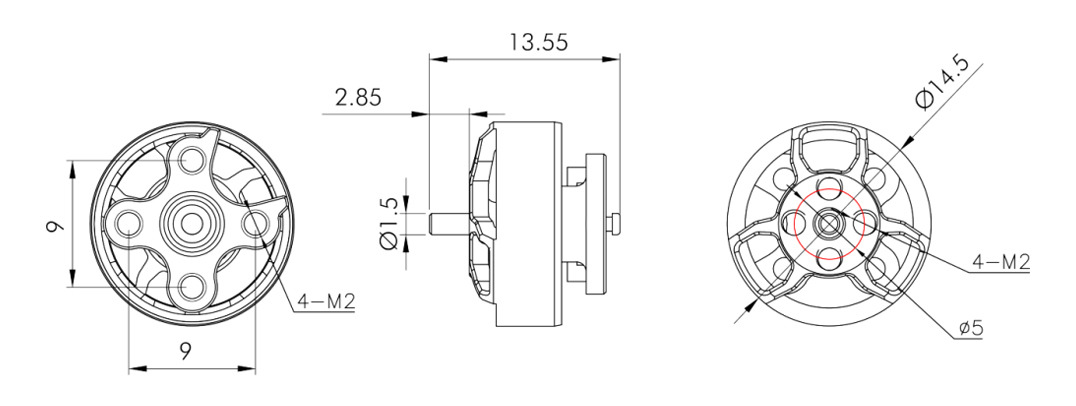

Technical Drawing

Specification

KV	KV8000	Configuration	9N12P
Shaft Diameter	1.5MM	Lead	24#75MM

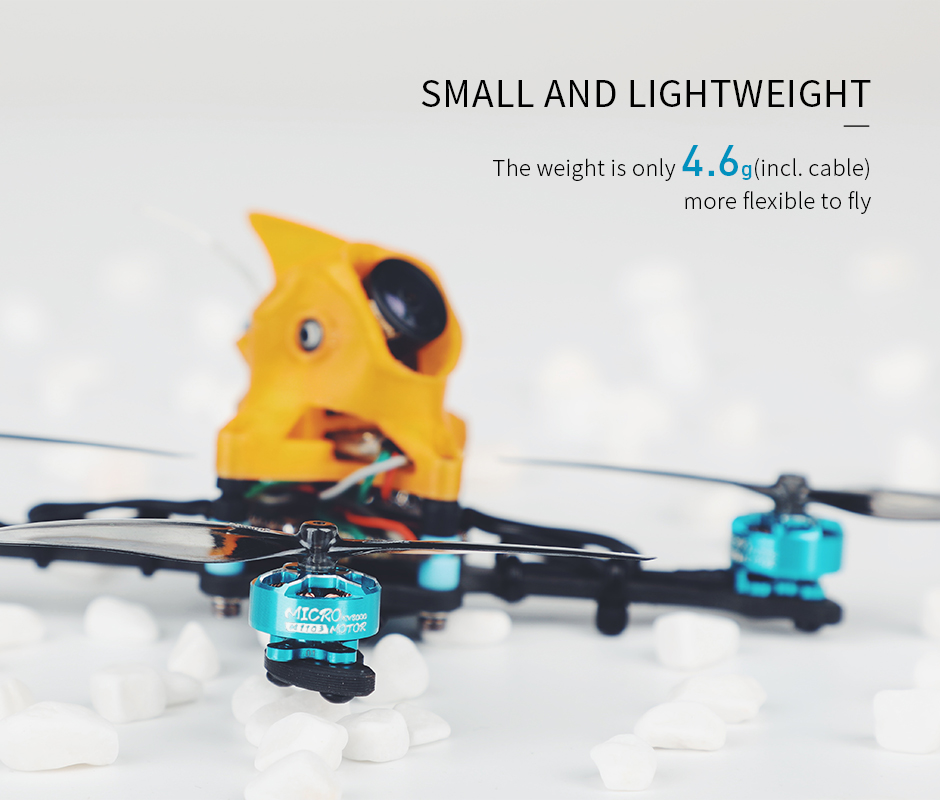

Weight (Incl. Cable)	4.64g	Voltage	2-3S
Idle Current（10V）	0.48A	Max. Power（10s）	284W
Peak Current（10s）	18.4A

KV	KV11000	Configuration	9N12P
Shaft Diameter	1.5MM	Lead	24#75MM
Weight (Incl. Cable)	4.61g	Voltage	2-3S
Idle Current（10V）	0.52A	Max. Power（10s）	188W
Peak Current（10s）	15.2A

Test Data

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
GF 1635-3	8000KV	20%	16.8	1.3	35524	34.6	21.2	1.63
		40%	16.8	3.2	33220	85.0	53.9	1.58
		60%	16.7	5.3	12701	130.0	88.4	1.47
		80%	16.7	7.1	14072	157.9	118.7	1.33
		100%	16.6	11.5	23831	215.8	190.4	1.13
GF 2015-2	8000KV	20%	16.8	1.3	32030	45.6	22.6	2.02
		40%	16.8	3.5	45888	104.5	58.5	1.79
		60%	16.7	5.9	23499	154.0	98.8	1.56
		80%	16.7	8.6	8223	204.5	143.3	1.43
		100%	16.3	18.4	15420	225.3	283.9	0.79
GF 1636-4	8000KV	20%	12.6	1.0	26698	19.4	12.1	1.60
		40%	12.6	2.7	41196	54.8	33.5	1.64
		60%	12.6	4.0	49497	81.3	50.6	1.61
		80%	12.5	5.5	23518	114.5	69.3	1.65
		100%	12.5	8.6	9758	155.6	107.8	1.44
GF 2023-3	8000KV	20%	12.6	1.3	18793	19.2	15.8	1.21
		40%	12.6	3.6	29032	50.6	44.7	1.13
		60%	12.5	5.5	35864	81.5	68.3	1.19
		80%	12.5	8.8	42235	114.5	110.1	1.04
		100%	12.3	15.4	45760	137.3	189.5	0.72
GF 65MMS-2	8000KV	20%	12.6	1.0	26216	28.9	12.2	2.37
		40%	12.6	2.8	39422	72.7	34.8	2.09
		60%	12.5	4.3	47094	106.2	53.8	1.97
		80%	12.5	6.0	50444	138.3	75.5	1.83
		100%	12.4	9.7	6278	194.6	120.9	1.61
GF 65MMS-2	8000KV	20%	8.4	0.5	14208	10.2	4.2	2.43
		40%	8.4	1.6	22661	35.1	13.1	2.68
		60%	8.4	2.8	28715	54.4	23.3	2.33
		80%	8.3	4.6	34265	86.7	38.1	2.28
		100%	8.3	7.4	40489	122.1	61.2	1.99
GF 63MM-3	8000KV	20%	8.4	0.6	8060	12.8	4.7	2.73
		40%	8.4	2.2	13646	35.8	18.7	1.91
		60%	8.3	6.2	17115	62.8	51.5	1.22
		80%	8.3	7.9	21579	87.3	65.7	1.33
		100%	8.2	11.7	23374	109.8	96.3	1.14
GF 3018-2	8000KV	20%	8.4	0.5	10835	13.4	4.5	2.98
		40%	8.4	1.9	17409	38.0	16.1	2.36
		60%	8.4	3.9	22693	69.4	32.4	2.14
		80%	8.3	6.7	27507	107.2	55.7	1.92
		100%	8.3	10.4	30606	139.8	85.9	1.63
GF 1636-3	11000KV	20%	12.6	1.5	32880	31.2	18.5	1.68
		40%	12.6	3.7	49013	72.3	46.2	1.57
		60%	12.5	6.1	20902	110.7	76.3	1.45
		80%	12.5	7.8	12120	134.1	97.5	1.38
		100%	12.4	12.9	21746	198.1	160.1	1.24
GF 2015-2	11000KV	20%	12.6	1.6	29417	38.2	19.6	1.95
		40%	12.6	4.1	43826	89.7	51.3	1.75
		60%	12.5	6.8	28165	134.4	85.3	1.58
		80%	12.5	9.8	11934	176.3	122.6	1.44
		100%	12.4	15.2	12552	238.0	188.2	1.26
GF 2023-3	11000KV	20%	8.4	0.8	14932	16.4	6.7	2.44
		40%	8.4	2.6	23959	40.9	21.5	1.90
		60%	8.4	4.9	29557	70.8	40.7	1.74
		80%	8.3	8.0	36024	98.8	66.6	1.48
		100%	8.2	12.4	40794	131.2	102.0	1.29
GF 65MMS-2	11000KV	20%	8.4	0.8	16372	20.5	6.4	3.21
		40%	8.4	2.5	25690	55.9	20.7	2.70
		60%	8.4	4.5	31951	90.8	37.4	2.43
		80%	8.3	7.3	38370	131.7	60.6	2.17
		100%	8.2	11.3	44143	173.8	93.2	1.86

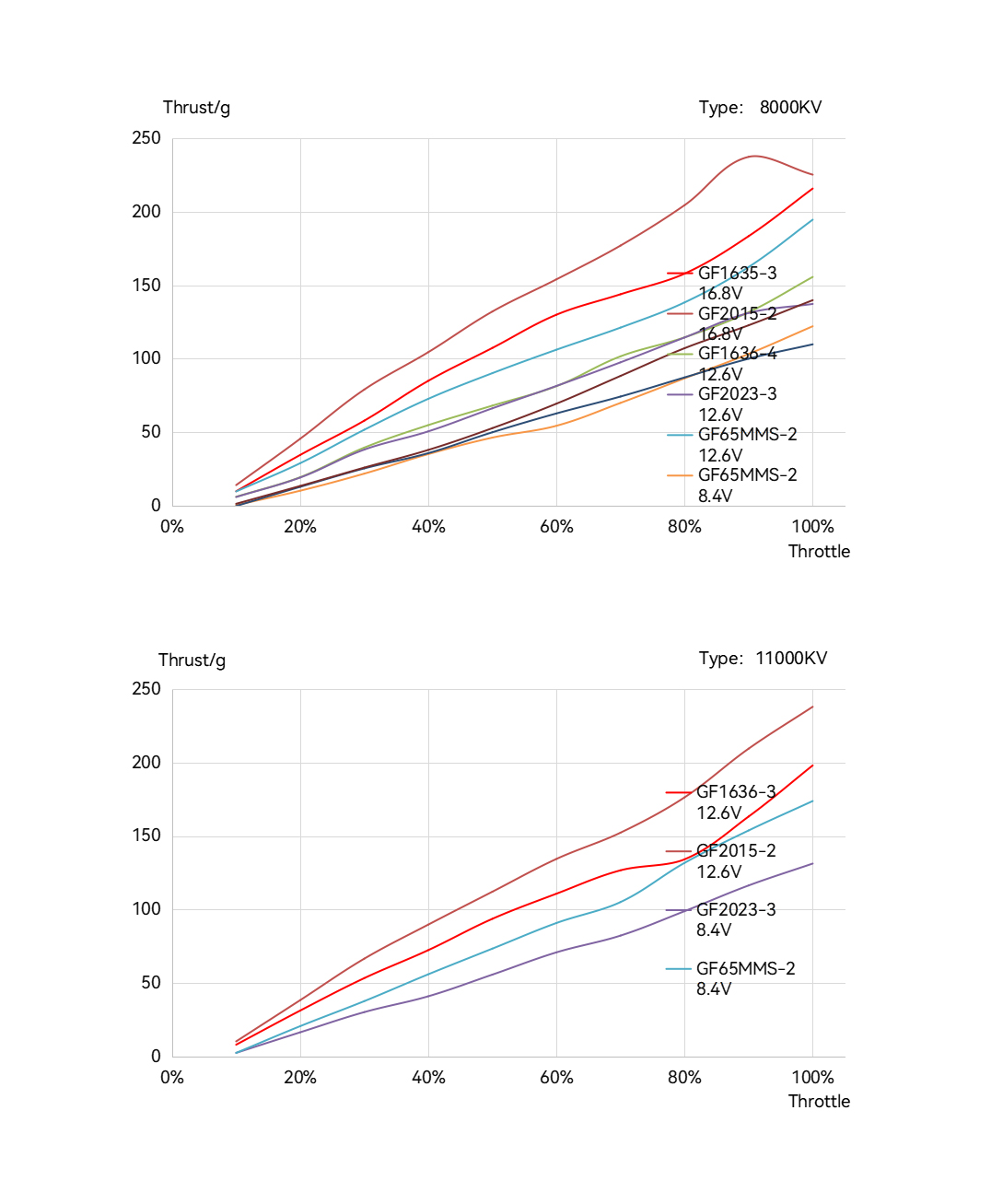

Analysis Chart

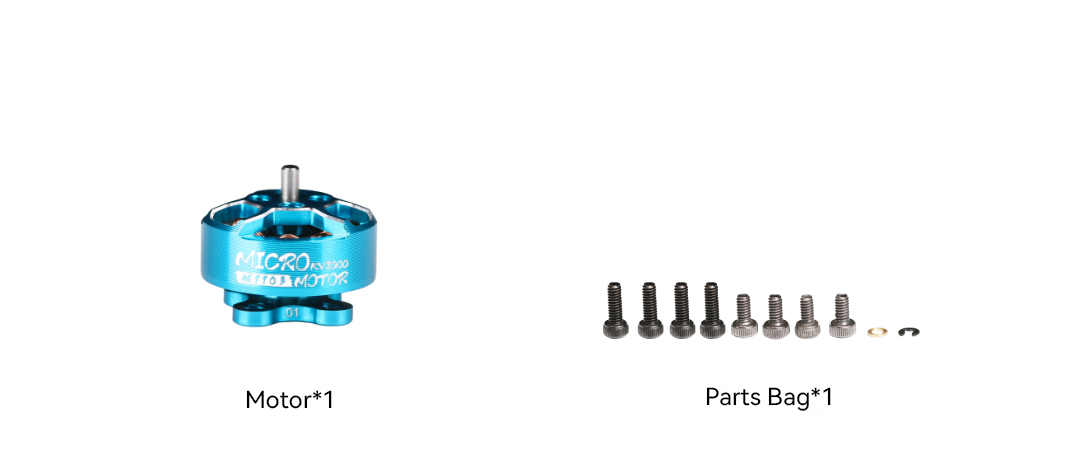

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
