Name: T-HOBBY M1104 1.6"-2"Fpv Drone Racing/Freestyle Motor
Brand: LIGPOWER
SKU: ligpower001218
Price: 11.90 USD
Availability: InStock

T-HOBBY M1104 1.6"-2"Fpv Drone Racing/Freestyle Motor

11.90

Available points: 600 Points Points reward: 11 Points

1. Blue and silver unibell design
2. Easy to install
3. Lightweight

KV：

KV7500

Quantity：

11.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

About T-HOBBY Mirco M1104 Indoor racing&freestyle Motor

T-HOBBYs new "Micro" motor, perfect for small lightweight toothpick builds and tinywhoops.

The entire series can meet the pilots that in pursuit of lightweight flight. Tiny yet powerful.

M1104 is a micro-sized motor that is perfect for your 2-3S toothpick builds! It is much more durable with the unibell design.

Mirco M1104 Hightlight:

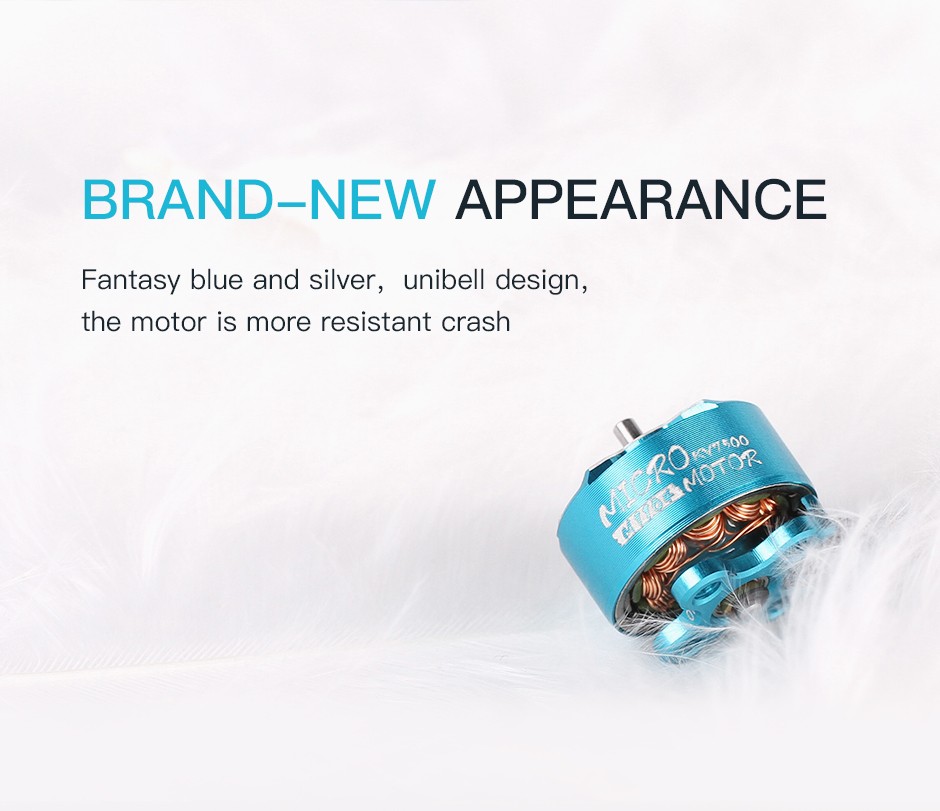

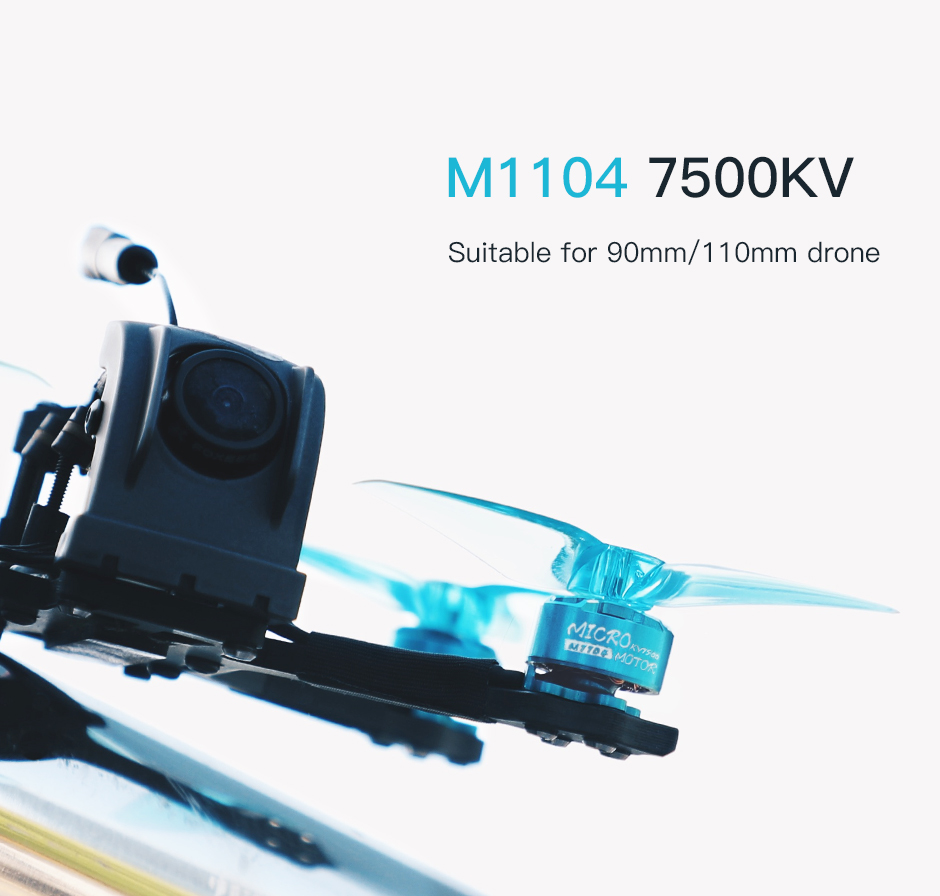

The M1104 7500KV brushless motor is suitable for 90mm/110mm FPV drone. Fantasy blue and silver unibell design, more durable.

With PCB lead wire to avoid motor scrapping. Agile and powerful, weight only 5.6g (Incl. cable), more flexible to fly.

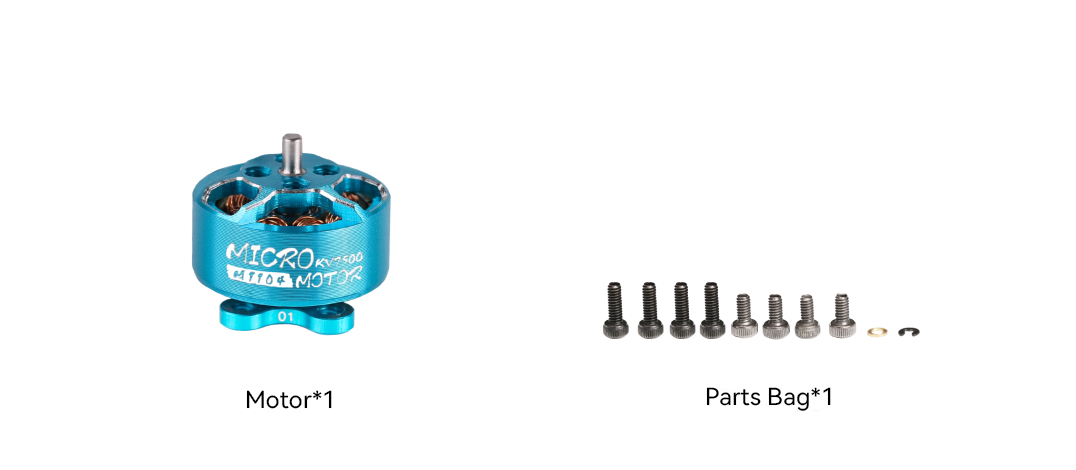

Packing List Includes:

1x T-HOBBY M1104 Micro Motor

1x Hardware Set

Matching Frame:

1.6-2Inch,90mm/110mm

Matching Guide:

Updating

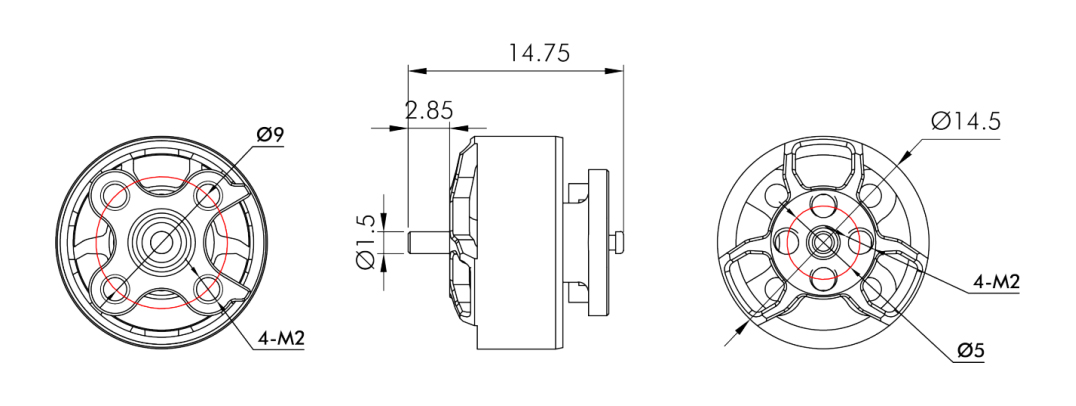

Technical Drawing

Specification Export to Excel

KV	KV7500	Configuration	9N12P
Shaft Diameter	1.5mm	Lead	24#75mm
Weight (Incl. Cable)	5.6g	Voltage	16.8V/12.6V/8.4V
Idle Current（10V）	0.44A	Max. Power（10s）	198W
Peak Current（10s）	13.1A

Test Data Export to Excel

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
GF 1636-4	7500KV	20%	16.8	1.2	33572	34.3	19.4	1.77
		40%	16.8	2.8	50831	79.6	47.0	1.70
		60%	16.8	4.4	62932	118.9	73.5	1.62
		80%	16.8	6.7	74857	170.6	111.9	1.53
		100%	16.7	11.8	84940	251.4	197.7	1.27
GF 2020-4	7500KV	20%	12.6	0.9	18129	27.3	11.8	2.32
		40%	12.6	2.5	27280	62.5	30.9	2.03
		60%	12.6	4.3	34670	101.4	54.6	1.86
		80%	12.5	8.1	45317	171.7	101.2	1.70
		100%	12.5	13.1	54613	240.0	163.0	1.47
GF 3028-3	7500KV	20%	8.4	0.7	9070	24.4	5.7	4.26
		40%	8.4	2.2	14346	63.5	18.4	3.44
		60%	8.4	4.6	18862	111.4	38.3	2.91
		80%	8.3	8.2	23402	175.5	68.1	2.58
		100%	8.4	12.7	26811	231.4	106.3	2.18

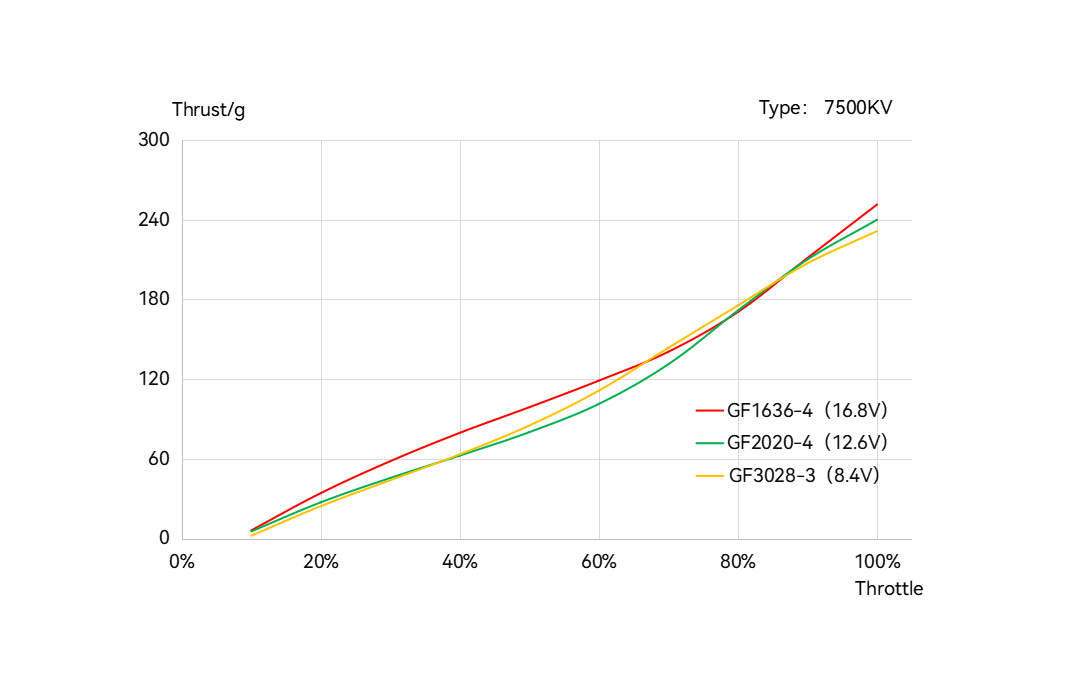

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
