T-HOBBY M1106 1.6"-2.5"FPV Tinywhoop Racing/Freestyle Motor

13.90

Available points: 700 Points Points reward: 13 Points

1. Blue and silver unibell design
2. Easy to install
3. Lightweight
KV：
  • KV6000
Quantity：

13.90

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications

About T-HOBBY Mirco M1106 Indoor racing&freestyle Motor


Introducing T-HOBBYs new "Micro" motor, perfect for small lightweight toothpick builds and tinywhoops.

The entire series can meet the pilots that in pursuit of lightweight flight. Tiny yet powerful.

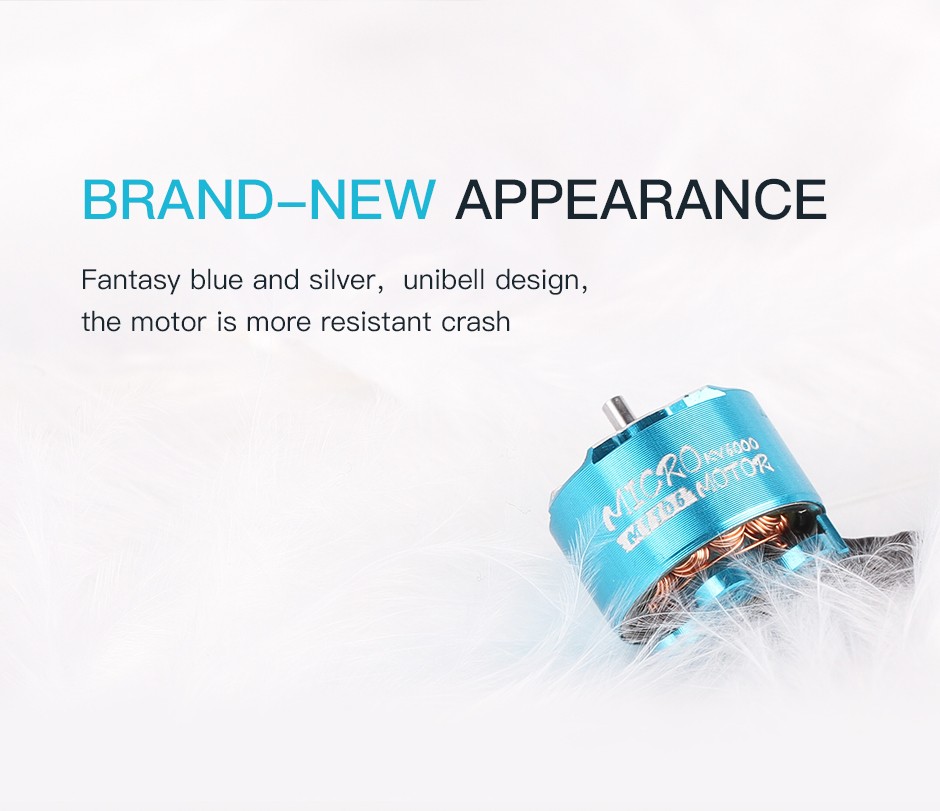

M1106 is a micro-sized motor that is perfect for your 2-3S toothpick builds! It is much more durable with the unibell design.


Mirco M1106 Hightlight:

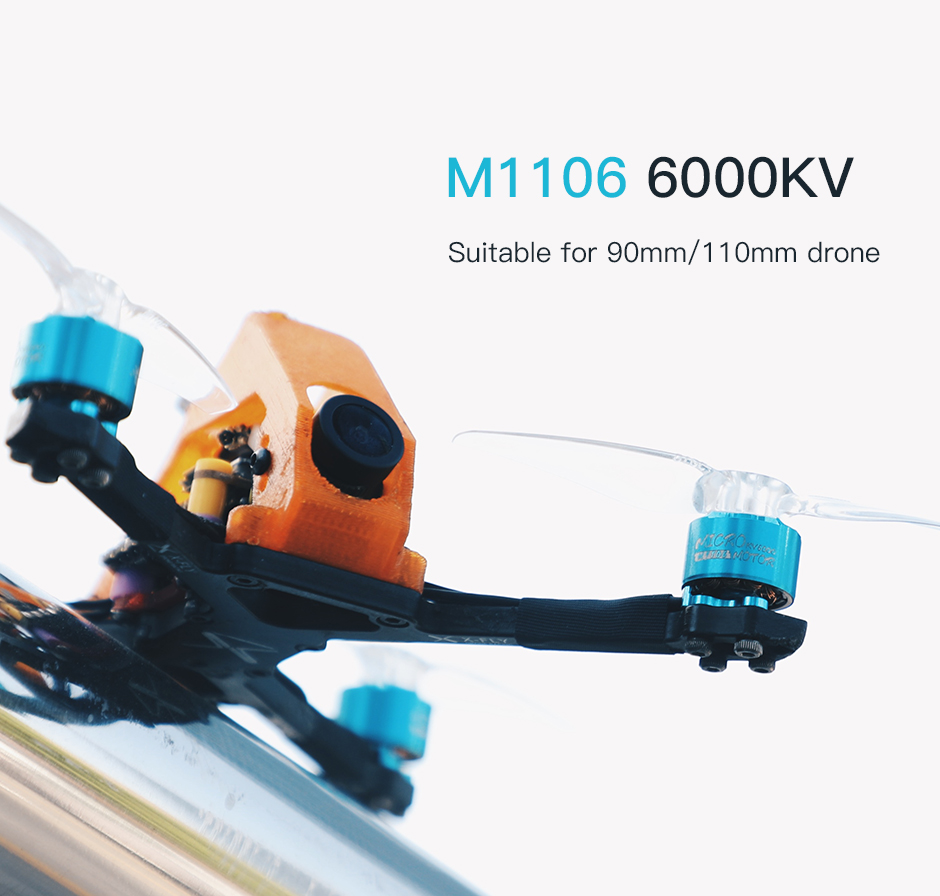

The M1106 6000KV brushless motor is suitable for 90mm/110mm FPV drone. Fantasy blue and silver unibell design, more durable.

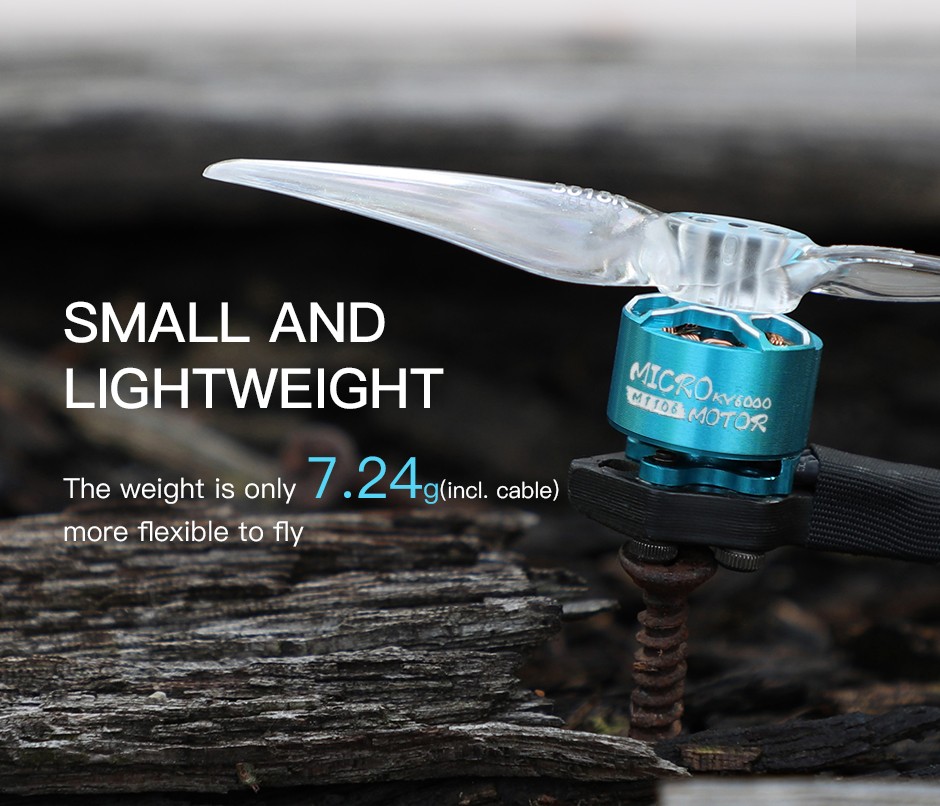

With PCB lead wire to avoid motor scrapping. Agile and powerful, weight only 7.24g (Incl. cable), more flexible to fly.

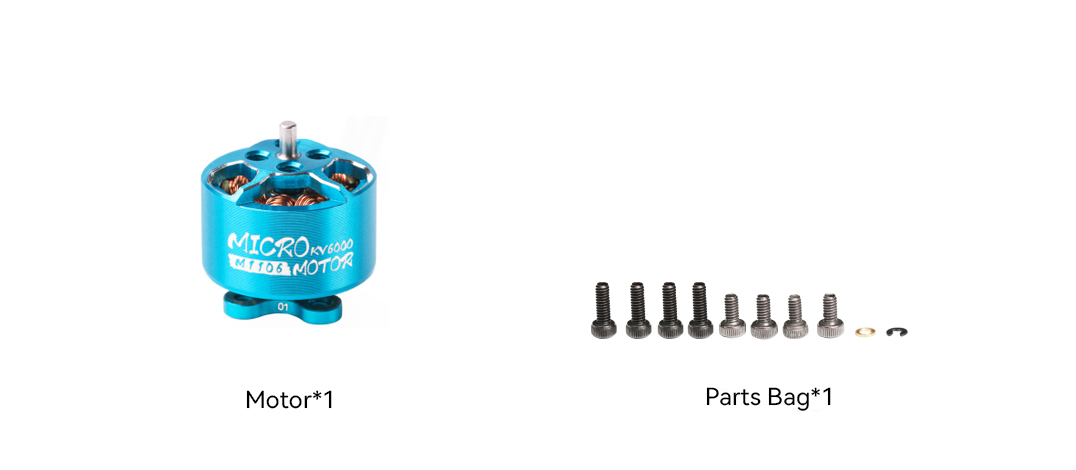

Packing List Includes:


1x T-HOBBY M1106 Micro Motor

1x Hardware Set


Matching Frame:


1.6-2.5Inch,90mm/110mm


Matching Guide:


Updating

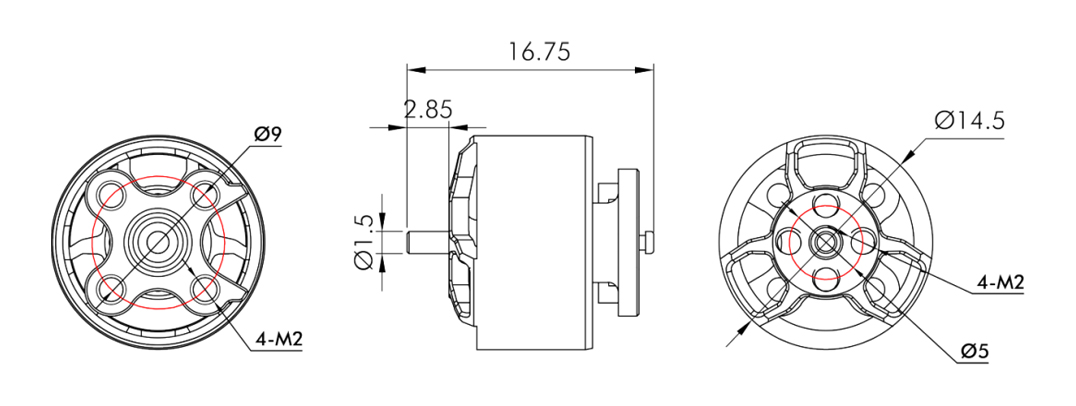

Technical Drawing

Specification
KVKV6000Configuration9N12P
Shaft Diameter1.5mmLead24#75mm
Weight (Incl. Cable)7.2gVoltage16.8V/12.6V
Idle Current（10V）0.4AMax. Power（10s）214W
Peak Current（10s）14.9A

Test Data
PropellerTypeThrottleVoltage
(V)		Current
(A)		RPMThrust
(g)		Power
(W)		Efficiency
(g/W)
GF
2020-4		6000KV20%16.81.12364948.217.82.71
40%16.82.734568103.245.62.26
60%16.84.542364151.674.82.03
80%16.87.753026233.9128.91.81
100%16.712.863559336.4214.41.57
GFD
63-3		6000KV20%12.60.81268033.510.53.18
40%12.62.31877773.329.12.52
60%12.64.524128119.456.52.11
80%12.58.931661206.6111.11.86
100%12.514.937884297.2186.21.60
GF
3028-3		6000KV20%12.60.81340239.210.33.81
40%12.62.21986188.928.23.16
60%12.64.325182146.253.52.73
80%12.58.632784258.8108.22.39
100%12.514.338647357.5178.12.01

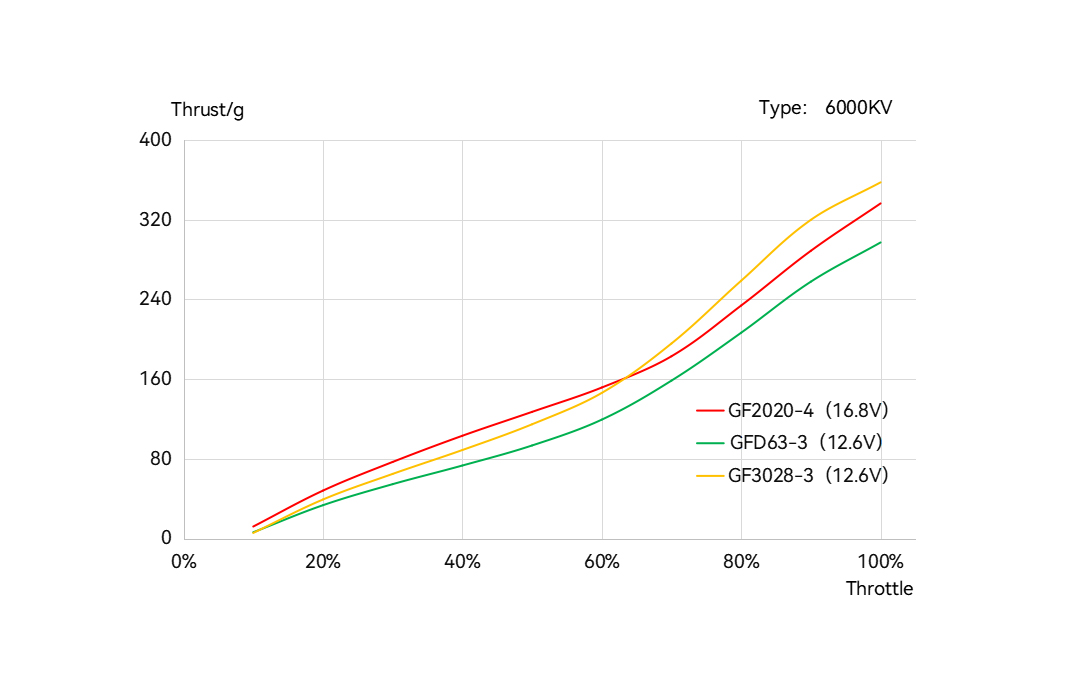

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
