MF3016-2PCS/PAIR

89.90

Available points: 4000 Points Points reward: 89 Points

• Prop Strength X2
• Ultimate durability, longer life time
• Energy-Snubber

• Caution: Polymer props for coaxial configuration are under testing. Please DO NOT run polymer props on coaxial frames

89.90

Free Shipping by DHL/UPS Express

Combo pack
Relevant Products
  • Detail information
  • Specifications

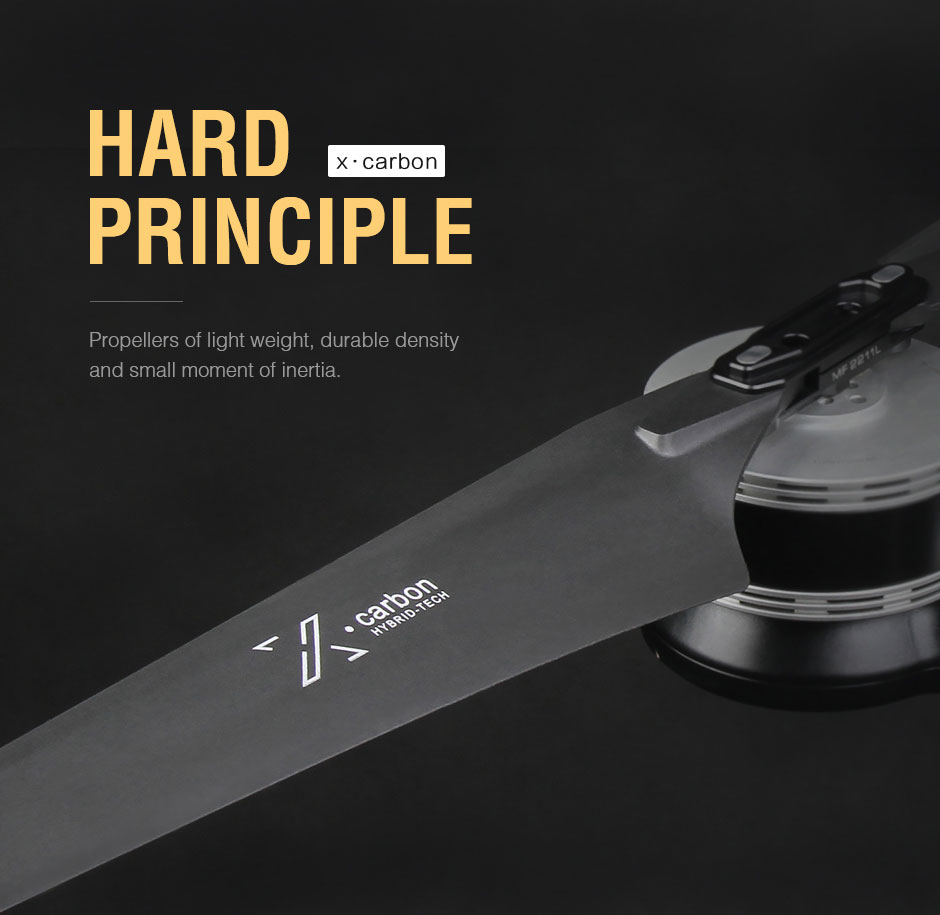

MF3016 Propellers with lightweight design, enhanced strength, and reduced moment of inertia

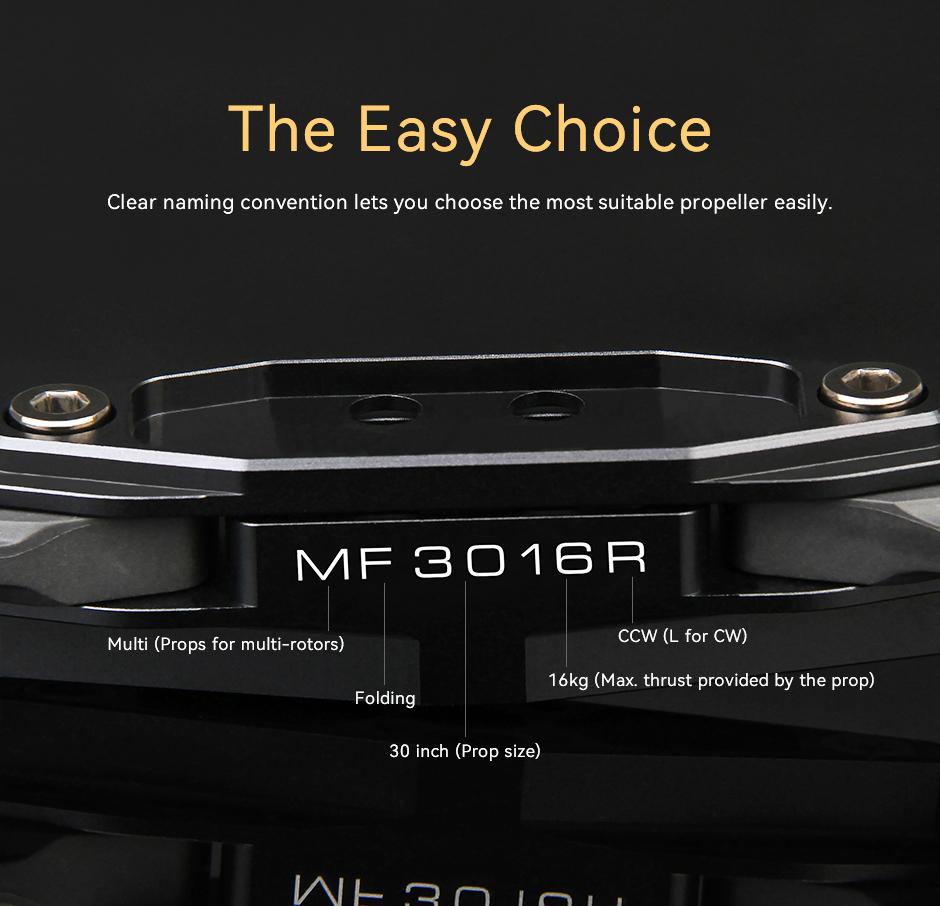

MF3016 Quick identification of propeller parameters based on naming convention

MF3016 Prop surface 1.5x more durable, 3.5% lighter, 2x stronger

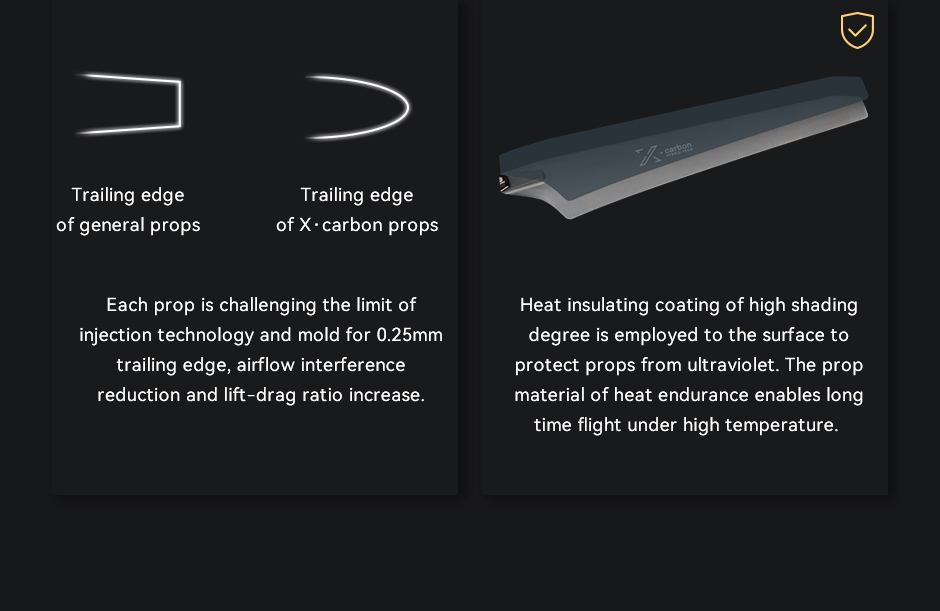

MF3016 Propeller with 0.25mm trailing edge, heat-insulating coating for long-time flight under high temperatures

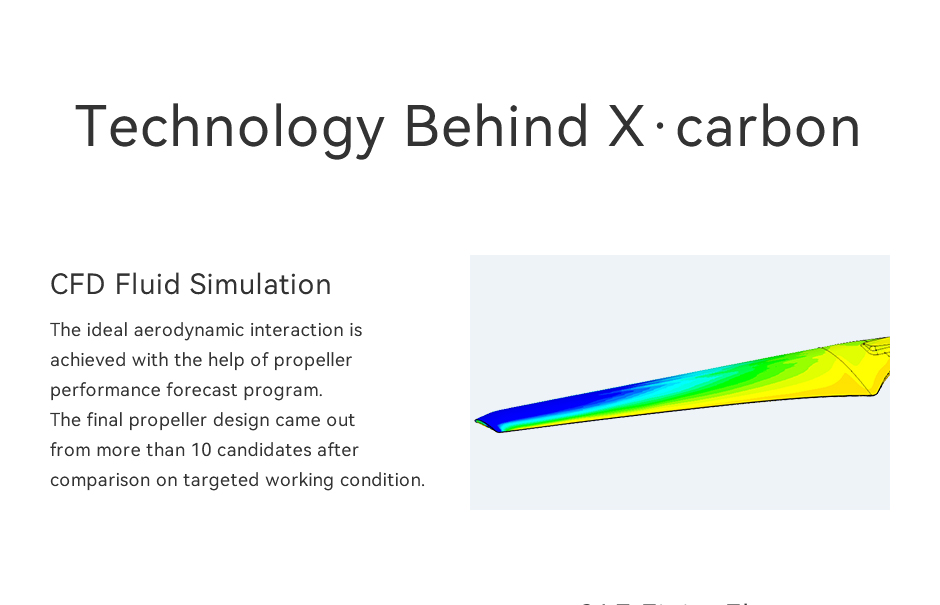

MF3016 Optimized aerodynamic performance through CFD fluid simulation

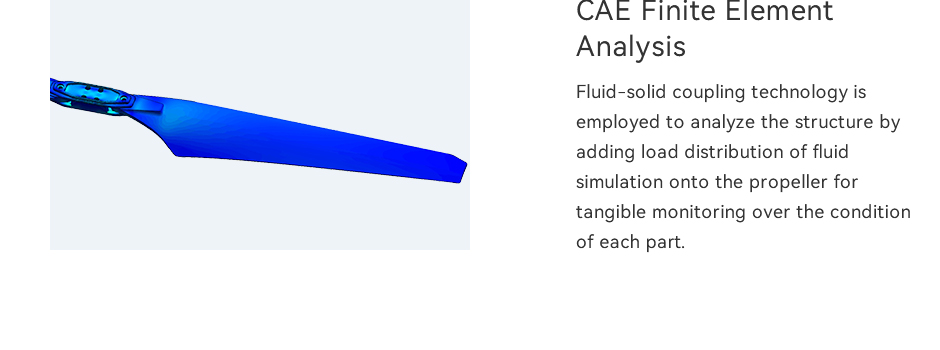

MF3016 Structural strength enhanced by CAE finite element analysis

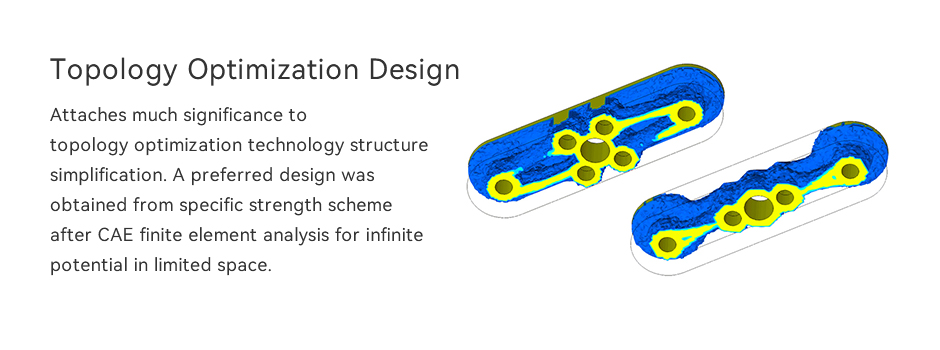

MF3016 Topology-optimized design for improved performance and stability

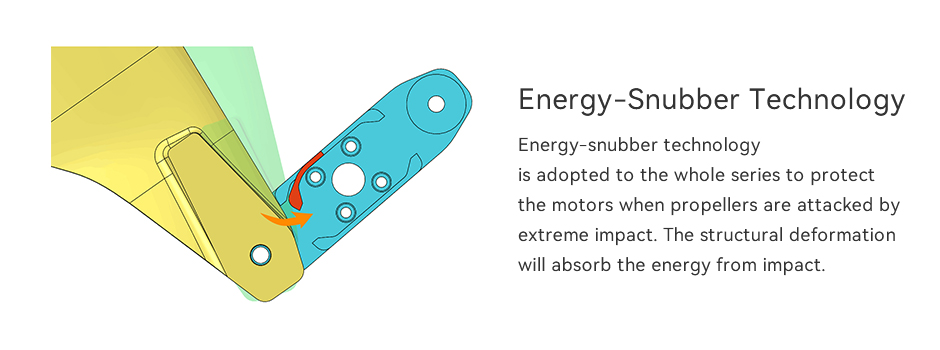

MF3016 EnergySnubber technology for improved energy efficiency

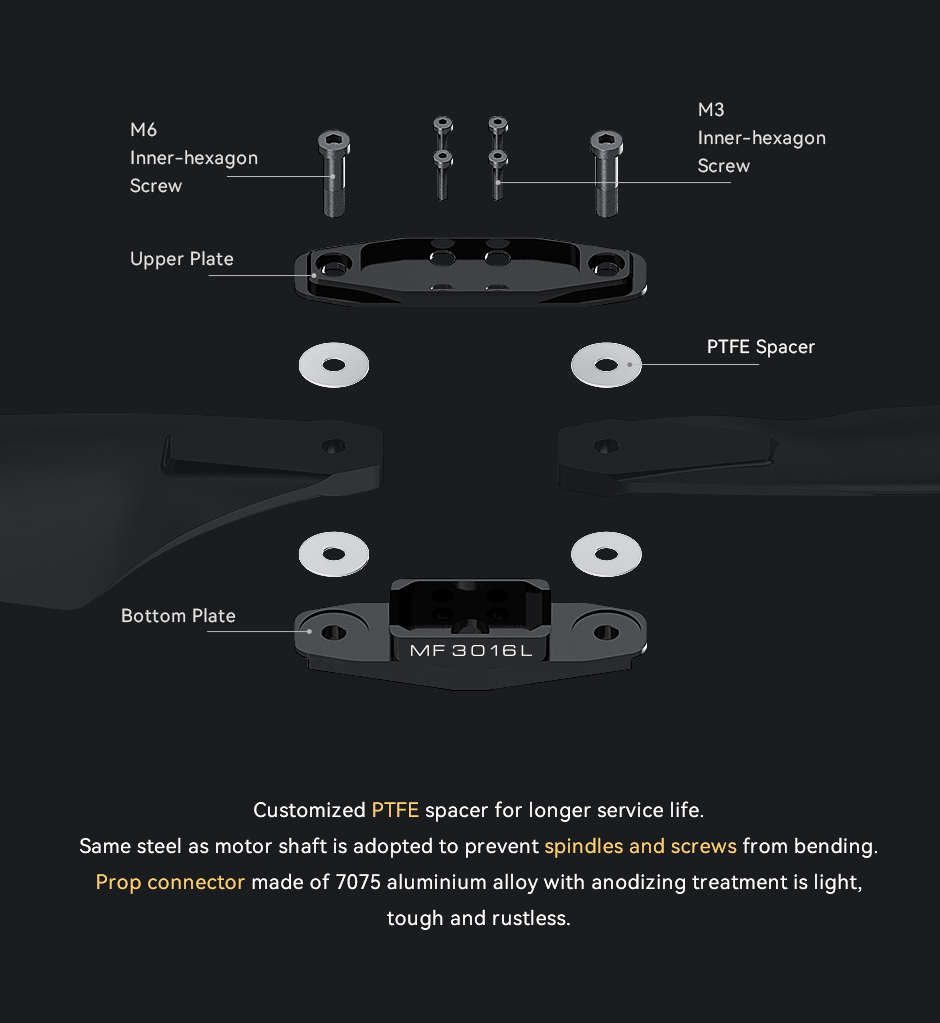

MF3016 Selection of high-quality customized materials for durability

MF3016 Optimized motor magnetic circuit design for improved propeller compatibility

MF3016 Folding mechanism tested for 100,000 cycles to ensure durability

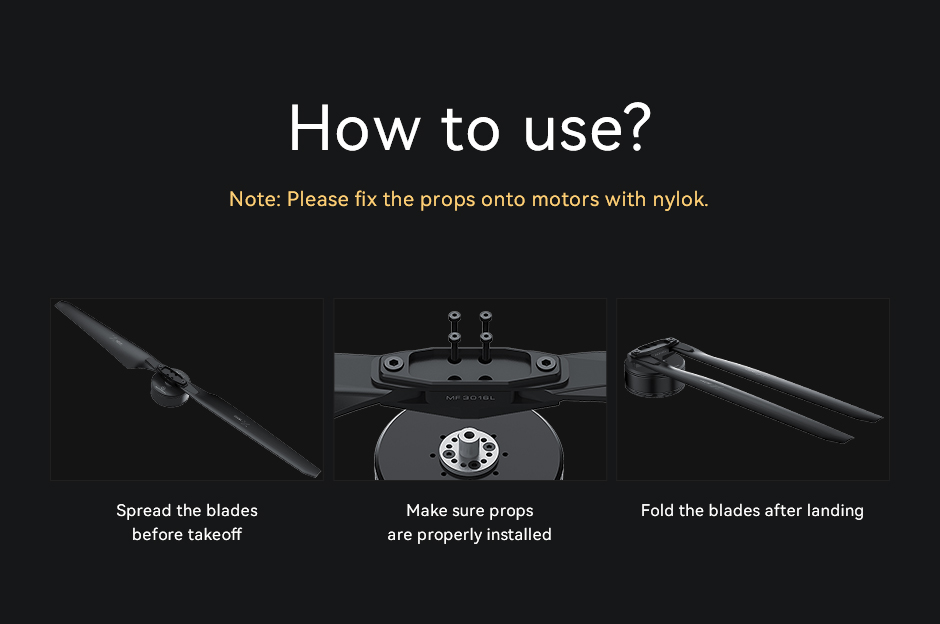

MF3016 User manual for easy guidance

Technical Drawing


Specification
Model NO.MF3016LIGPOWER SeriesFolding
Weight(Single Blade)184gPackage Weight604g
Diameter30.4inch(775.8mm)Package Size380*155*65mm
Pitch10.9inch(275.8mm)MaterialPolymer+CF
Recommended Thrust/RPM4~8kg/2000-2800RPMRecommended Max Thrust/RPM16kg/4000RPM
Ambient Temp-40℃～65℃Storage Temp/Humidity-10℃～50℃/＜85%
Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
Note

1.Please make sure that screws of cover plates are mounted well.
2.Do not add force onto the propellers.
3.Fall-off or experience equivalent impact to propellers will lead to deformation or cracks. In this case, you will need to replace them with good ones.
4.NEVER decompose the propellers. Decomposition of which will result in safety issues.  Do not use the propellers in hostile environments containing H2O,SO2,NO2,Cl2,organosilicon,cyanogroup and phenol.
5.Keep the propellers away from the mentioned environments in (4).
6.For long time storage of over 6 months, please keep it in sealed preservation.
