Name: MN1010 KV90 All-Round Heavy Lift UAV Motor with 16.3kg Max Thrust
Brand: LIGPOWER
SKU: AWD01010006
Price: 339.90 USD
Availability: InStock

Relevant Products

G32*11 Prop-2PCS/PAIR

$357.9
G34*11.5 Prop-2PCS/PAIR

$379.9
ALPHA 120A 12S Waterproof FOC Brushless ESC for UAVs

$169.99

Detail information
Specifications

About LIGPOWER Navigator MN1010 Multirotor Fixed Wing UAV Motor KV90

LIGPOWER MN1010 Navigator Type UAV Motor: Lightweight and powerful with 21.5kg thrust at 100% throttle, perfect for heavy payloads and long flights. Features excellent cooling, high-temperature resistance, and anti-overload protection. Its built-in fan array ensures reliable performance even in hot conditions. Ideal for mapping, inspection, security, and small cargo delivery. Weighs just 0.645kg (incl. cables), offering remarkable efficiency and durability.

Navigator MN1010 Highlights:

Max thrust: 21.5kg
MTBF: About 1000hours
Features: Excellent cooling performance; Dust-resistance/Waterproof/Anti-corrosion; Heavy Payload Long Flight Time

"Navigator" motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings.

Application Areas：

Cargo Drones, Tethered, Mapping and Inspection.

Packing List Includes:

1x LIGPOWER MN1010 Motor KV90 ( kv which you choose)

1x Hardware pack

Matching Guide:

LIGPOWER G36*11.5 Prop / G32*11 Prop / ALPHA 120A 12S ESC

If you have any questions or inquires, please contact us: onlinesales@ligpower.com

MN1010 Multi-disciplinary application

heat & coldness fly fearlessl

light reamrkable potential

smart and powerful driving soar at leisure

Technical Drawing

Specification

Motor Size	Φ118*34mm	Copper Wire	220℃ high temperature resistance: Level C
Stator	Imported silicon steel sheet; Anti-rust treatment; 150°Chigh temperature-resisting coatings	Coil Insulation Test	1000V
Configuration	36N42P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：15mm	Rotor Dynamic Balance Standard	≤5Mg
Bearing	Imported 6902ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	N45SH

KV	90	Rated Voltage ( Lipo )	6-12S
Idle Current（10V）	1.3A	Propeller Recommendation	32-34寸
Peak Current（180s）	56A	Motor Weight (indl. Cable)	630g
Max.Power（180s）	2739W	Package Weight	1010g
Internal Resistance	46mΩ

KV	135	Rated Voltage ( Lipo )	6-12S
Idle Current（10V）	2A	Propeller Recommendation	30-32寸
Peak Current（180s）	104A	Motor Weight (indl. Cable)	645g
Max.Power（180s）	4930W	Package Weight	1028g
Internal Resistance	25mΩ

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
MN1010- KV90	G32*11	40%	44.05	1864	0.72	3.10	1368	137	13.66	58℃
		45%	44.01	2381	0.90	4.13	1518	182	13.11
		50%	43.97	2874	1.07	5.21	1658	229	12.55
		55%	43.90	3354	1.24	6.40	1786	281	11.94
		60%	43.82	3957	1.46	8.25	1936	361	10.95
		65%	43.77	4658	1.72	10.14	2089	444	10.49
		70%	43.67	5405	1.99	12.60	2245	550	9.82
		75%	43.59	6208	2.27	15.15	2393	661	9.40
		80%	43.51	6930	2.56	17.99	2528	783	8.85
		90%	43.33	8628	3.16	24.61	2797	1066	8.09
		100%	43.14	10313	3.77	32.62	3091	1407	7.33
	G34*11.5	40%	44.00	2310	0.92	3.70	1345	163	14.18	75℃
		45%	43.94	2893	1.15	4.97	1493	218	13.26
		50%	43.86	3465	1.36	6.45	1627	283	12.26
		55%	43.80	4033	1.58	7.86	1749	344	11.72
		60%	43.63	4766	1.85	10.05	1894	438	10.87
		65%	43.52	5564	2.14	12.36	2031	538	10.34
		70%	43.43	6468	2.50	15.41	2187	669	9.66
		75%	43.36	7324	2.83	18.42	2326	798	9.17
		80%	43.28	8251	3.18	22.02	2460	953	8.66
		90%	43.05	9970	3.84	29.52	2716	1271	7.85
		100%	42.77	12061	4.63	39.71	2990	1698	7.10
MN1010- KV90	G32*11	40%	49.79	2574	0.97	4.23	1557	210	12.25	77℃
		45%	49.74	3245	1.20	5.47	1746	272	11.93
		50%	49.71	3925	1.45	7.25	1920	360	10.90
		55%	49.69	4725	1.74	9.28	2094	461	10.25
		60%	49.61	5420	2.00	11.25	2244	558	9.71
		65%	49.58	6192	2.27	13.61	2397	675	9.17
		70%	49.53	7010	2.57	16.38	2548	811	8.64
		75%	49.46	7938	2.92	19.64	2704	971	8.17
		80%	49.40	9039	3.29	23.46	2870	1159	7.80
		90%	49.24	11154	4.05	32.24	3180	1588	7.03
		100%	49.07	13541	4.90	42.76	3469	2098	6.45
	G34*11.5	40%	49.75	3228	1.27	5.22	1535	260	12.44	97℃
		45%	49.71	4074	1.59	7.02	1719	349	11.69
		50%	49.64	4889	1.91	9.30	1887	462	10.59
		55%	49.60	5824	2.27	11.95	2047	593	9.83
		60%	49.56	6707	2.61	14.35	2190	711	9.43
		65%	49.53	7631	2.97	17.30	2328	857	8.91
		70%	49.44	8645	3.36	21.07	2469	1042	8.30
		75%	49.34	9800	3.79	25.23	2617	1245	7.87
		80%	49.28	11026	4.28	30.18	2766	1487	7.41
		90%	49.06	13783	5.34	42.29	3059	2075	6.64
		100%	48.83	16341	6.38	56.08	3316	2738	5.97
MN1010- KV135	G32*11	40%	43.79	3708	1.40	8.27	1893	362	10.24	HOT
		45%	43.66	4744	1.76	11.34	2114	495	9.58
		50%	43.55	5986	2.19	15.39	2346	670	8.93
		55%	43.42	7207	2.64	20.10	2568	873	8.26
		60%	43.30	8433	3.08	25.20	2763	1091	7.73
		65%	43.15	9608	3.51	30.73	2953	1326	7.24
		70%	43.00	10738	3.92	36.57	3126	1573	6.83
		75%	42.84	12023	4.39	43.58	3315	1867	6.44
		80%	42.64	13308	4.86	51.29	3490	2187	6.08
		90%	42.03	15897	5.81	69.29	3806	2912	5.46
		100%	41.86	17155	6.29	78.42	3943	3283	5.23
MN1010- KV135	G30*10.5	40%	49.24	3948	1.41	8.52	2174	420	9.41	120℃
		45%	49.18	5101	1.81	11.96	2461	588	8.67
		50%	49.10	6307	2.25	16.17	2732	794	7.95
		55%	49.02	7523	2.68	20.72	2978	1016	7.41
		60%	48.93	8702	3.10	25.83	3197	1264	6.89
		65%	48.83	9906	3.52	31.30	3412	1528	6.48
		70%	48.71	11320	4.03	38.16	3626	1859	6.09
		75%	48.59	12616	4.47	44.84	3819	2179	5.79
		80%	48.45	14126	5.02	53.52	4034	2593	5.45
		90%	48.09	17193	6.13	73.82	4422	3549	4.84
		100%	47.88	18739	6.67	84.83	4587	4062	4.61
	G32*11	40%	49.20	4943	1.82	10.57	2131	520	9.50	HOT
		45%	49.13	6341	2.31	14.70	2403	722	8.78
		50%	49.02	7790	2.83	19.80	2661	971	8.03
		55%	48.92	9233	3.35	25.42	2896	1243	7.43
		60%	48.82	10611	3.85	31.43	3107	1534	6.92
		65%	48.71	12084	4.38	38.25	3310	1863	6.49
		70%	48.56	13711	4.94	46.51	3506	2259	6.07
		75%	48.40	15359	5.56	56.22	3702	2721	5.65
		80%	48.22	16992	6.14	65.75	3883	3170	5.36
		90%	47.79	20218	7.36	90.39	4238	4320	4.68
		100%	47.56	21561	7.85	103.67	4372	4930	4.37
Note: Motor temperature is motor surface temperature at 100% throttle running 5mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)

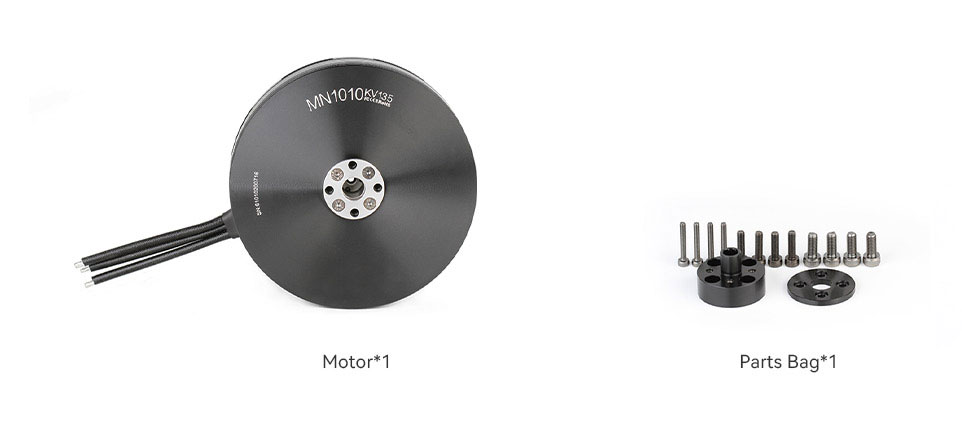

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
