Name: T-MOTOR MN3520 KV400 High-Performance UAV Motor with 3.6kg Max Thrust
Brand: LIGPOWER
SKU: AWD01010121
Price: 109.90 USD
Availability: InStock

Relevant Products

T-MOTOR AIR 40A 2-6S ESC for Multirotor UAVs

$39.99
T-MOTOR P15*5 Prop-2PCS/PAIR

$55.9
T-MOTOR P16*5.4 Prop-2PCS/PAIR

$62.9
T-MOTOR P17*5.8 Prop-2PCS/PAIR

$71.9

Detail information
Specifications

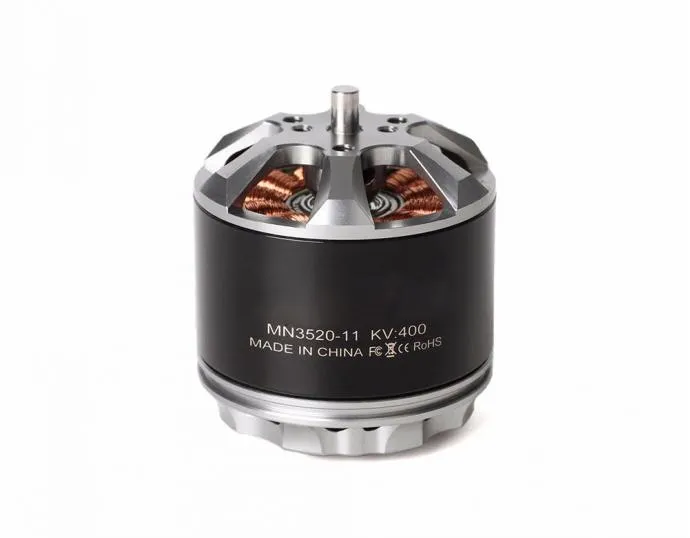

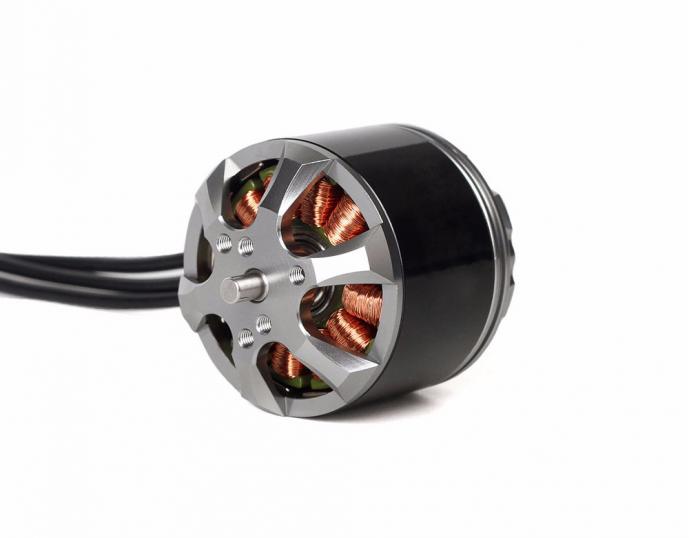

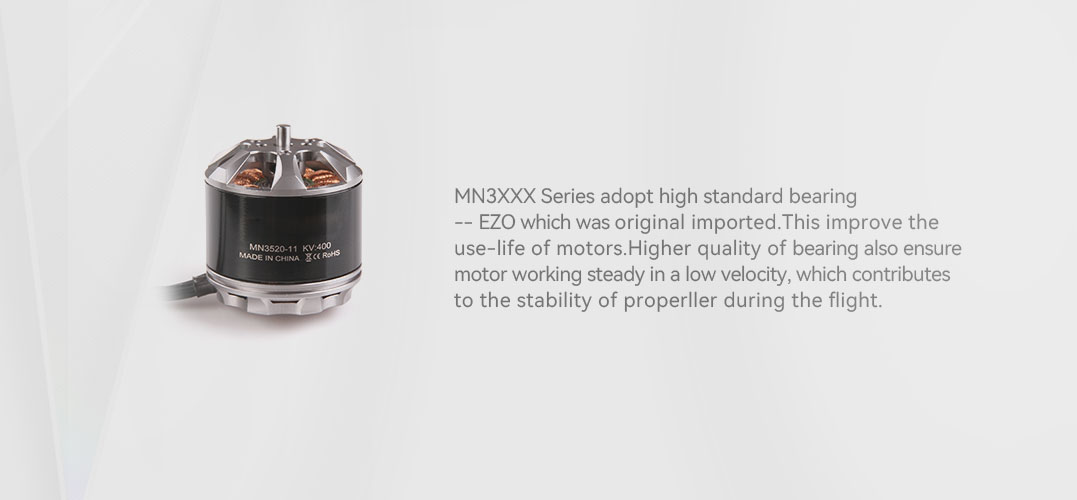

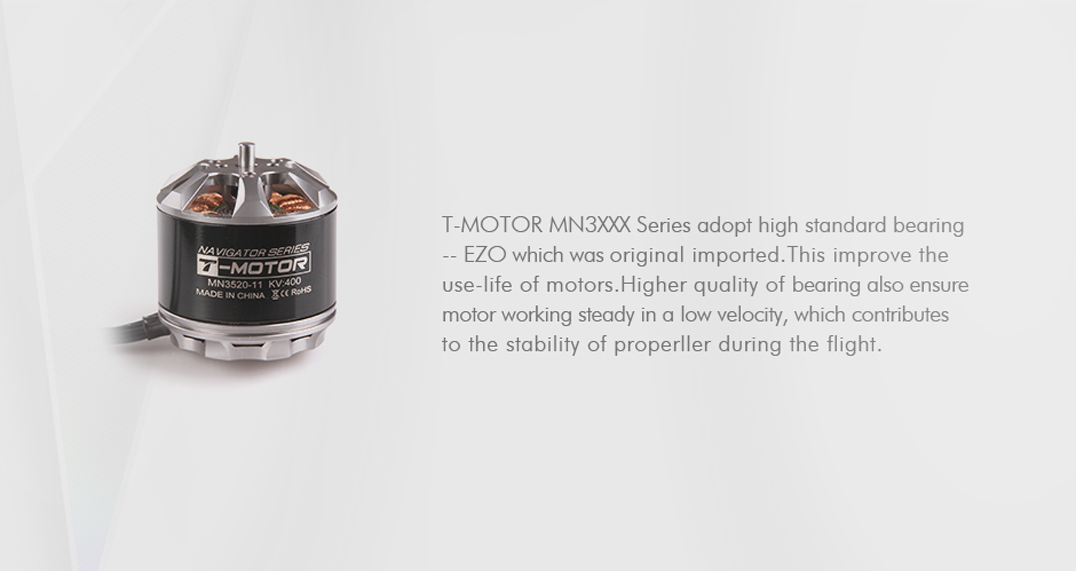

About T-MOTOR Navigator MN3520 Multirotor Fixed Wing UAV Motor KV400

T-MOTOR MN3520 Navigator Series Motor offers exceptional performance for both fixed-wing and multicopter UAVs, making it ideal for aerial photography, multi-rotors, VTOL, and fixed-wing applications.

Featuring a self-cooling design, it ensures optimal performance with a maximum thrust of 3.6kg and an MTBF of around 1000 hours.

Recommended with T-MOTOR P17*5.8 props, its super balance and high-strength construction make it a reliable choice for demanding drone operations.

Navigator MN3520 Highlights:

Max thrust: 3.6kg
MTBF: About 1000hours
Features: Super Balance; High Strength Construction

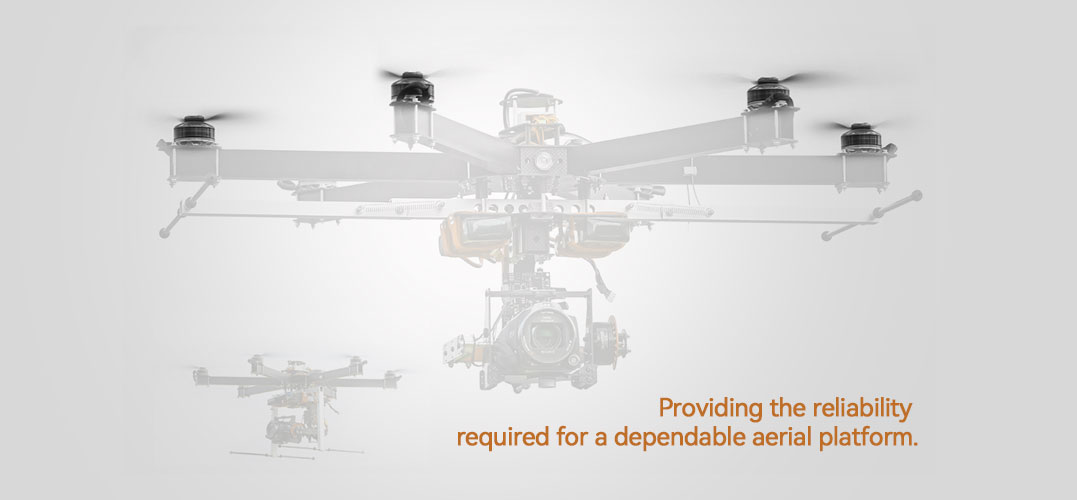

"Navigator" motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings.

Application Areas：

Cargo Drones, Tethered, Mapping and Inspection.

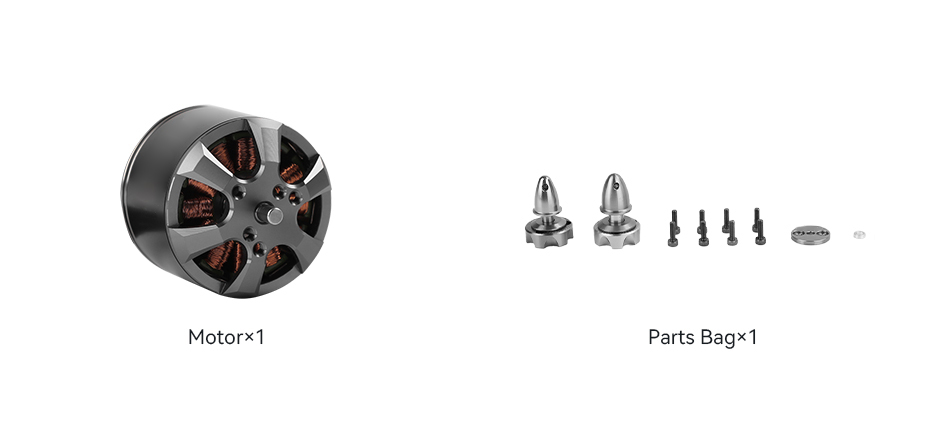

Packing List Includes:

1x T-MOTOR MN3520 Motor KV400 ( kv which you choose)

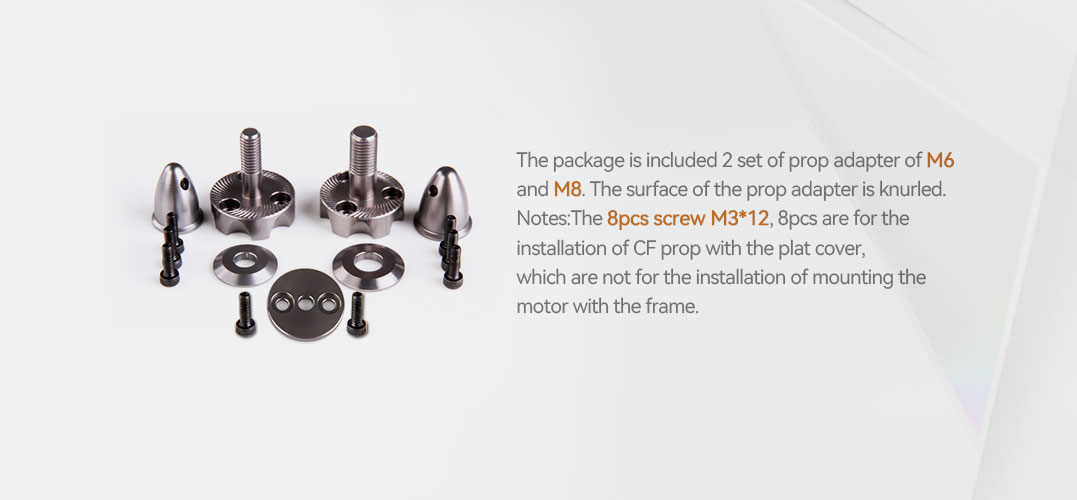

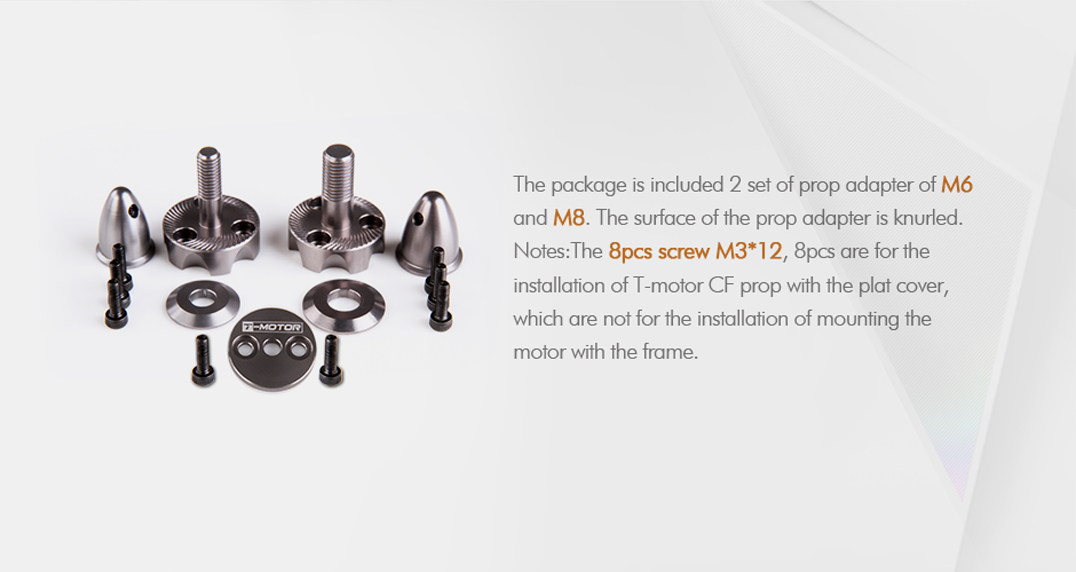

1x Hardware pack

Matching Guide:

T-MOTOR P17.5.8 Prop / Air 40a 6s esc

If you have any questions or inquires, please contact us: onlinesales@ligpower.com

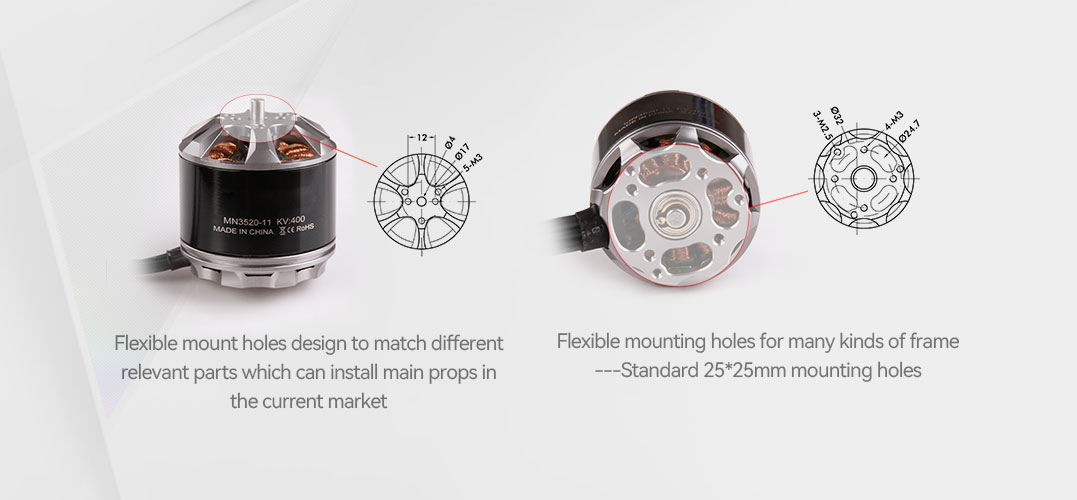

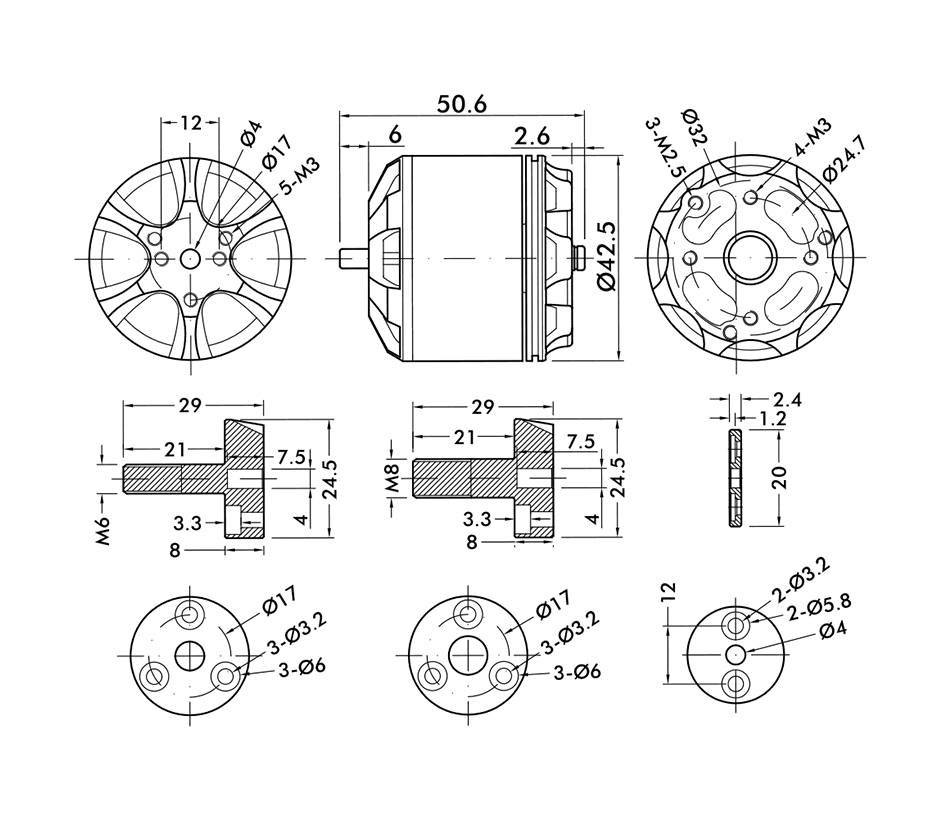

Technical Drawing

Specification Export to Excel

Test Item	MN3520 KV400	Report NO.	MN.00018
Internal Resistance	82mΩ	Configuration	12N14P
Shaft Diameter	4mm	Motor Dimensions	Φ42.5×42mm
Stator Diameter	35mm	Stator Height	20mm
AWG	16#	Cable Length	600mm
Weight Including Cables	222g	Weight Excluding Cables	194g
No.of Cells(Lipo)	4-8S	Idle Current@10v	1.2A
Max Power (180S)	1140W	Max Continuous Current 180S	38A

Test Data Export to Excel

Item No.	Voltage (V)	Prop	Throttle	Current (A)	Power (W)	Thrust (G)	RPM	Efficiency (G/W)	Operating Temperature (℃)
MN3520 KV400	22.2	T-MOTOR 15*5CF	50%	4.5	99.90	1010	4280	10.11	50
			65%	8.8	195.36	1540	5400	7.88
			75%	12.3	273.06	1920	6050	7.03
			85%	16.6	368.52	2380	6700	6.46
			100%	20.3	450.66	2700	7100	5.99
		T-MOTOR 16*5.4CF	50%	5.3	117.66	1140	4160	9.69	55
			65%	10.2	226.44	1780	5260	7.86
			75%	14.4	319.68	2200	5850	6.88
			85%	19.4	430.68	2680	6500	6.22
			100%	23.2	515.04	3000	6800	5.82
		T-MOTOR 17*5.8CF	50%	6.5	144.30	1340	4000	9.29	67
			65%	12.5	277.50	2120	5000	7.64
			75%	17.7	392.94	2670	5600	6.79
			85%	23.3	517.26	3200	6100	6.19
			100%	28.1	623.82	3600	6450	5.77
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
