Name: T-MOTOR MN4004 KV300 Antigravity Ultralight & Efficient UAV Motor 2PCS/SET
Brand: LIGPOWER
SKU: AWD01010172
Price: 145.90 USD
Availability: InStock

T-MOTOR MN4004 KV300 Antigravity Ultralight & Efficient UAV Motor 2PCS/SET

145.90

Available points: 7000 Points Points reward: 145 Points

• Ultrathin Design Lightest Weight
• Unique Ventilation and Cooling System

Parameter：

KV300
KV400

Quantity：

145.90

Free Shipping by DHL/UPS Express

Relevant Products

T-MOTOR AIR 40A 2-6S ESC for Multirotor UAVs

$39.99
T-MOTOR P15*5 Prop-2PCS/PAIR

$55.9
T-MOTOR P16*5.4 Prop-2PCS/PAIR

$62.9
T-MOTOR P17*5.8 Prop-2PCS/PAIR

$71.9
T-MOTOR NS14*4.8 Prop-2PCS/PAIR

$49.99

Detail information
Specifications

About T-MOTOR MN4004 Multirotor UAV Motor KV300 2PCS/SET

T-MOTOR Antigravity MN4004 KV300 is a cutting-edge motor built for unmatched efficiency and endurance. With its ultra-thin, lightweight design and advanced cooling system, this motor is a game-changer for professional UAV applications, offering smooth operation and exceptional reliability. up to 1.1kg

Antigravity MN4006 Highlights:

Ultrathin design, processed by high strength aluminium, light weight
Single thick copper wire winding reduces energy dissipation of motor
Higher level bearing with the service life of 60 hours
Unique ventilation and cooling system
up to 1.1kg

Application Areas：

Multi-rotors, VTOL, UAV

Packing List Includes:

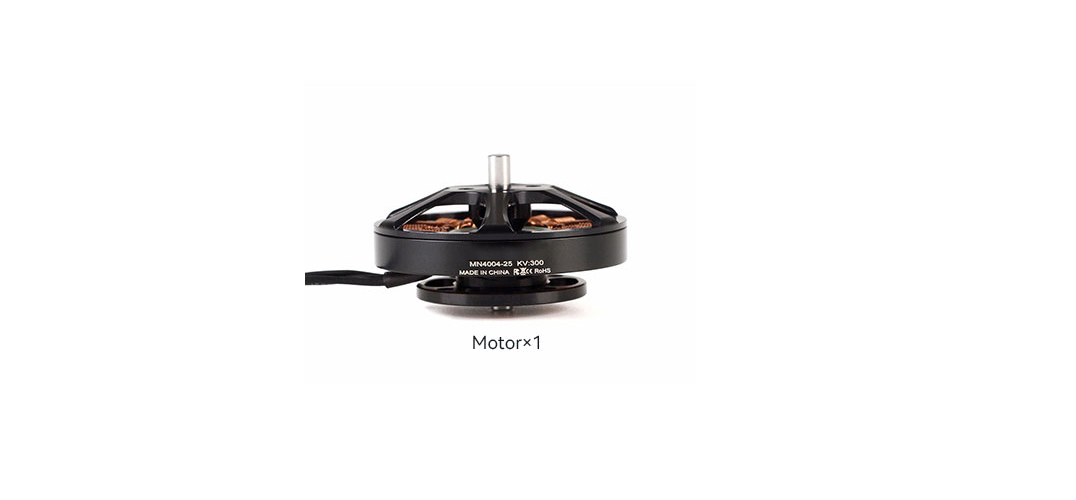

2x T-MOTOR MN4004Motor KV300

1x CW prop adapter

1x CCWprop adapter

Matching Guide:

T-MOTOR T16*5.4 Prop / AIR 40A 2-6S MultiRotor UAV Drone ESC

If you have any questions or inquires, please contact us: onlinesales@ligpower.com

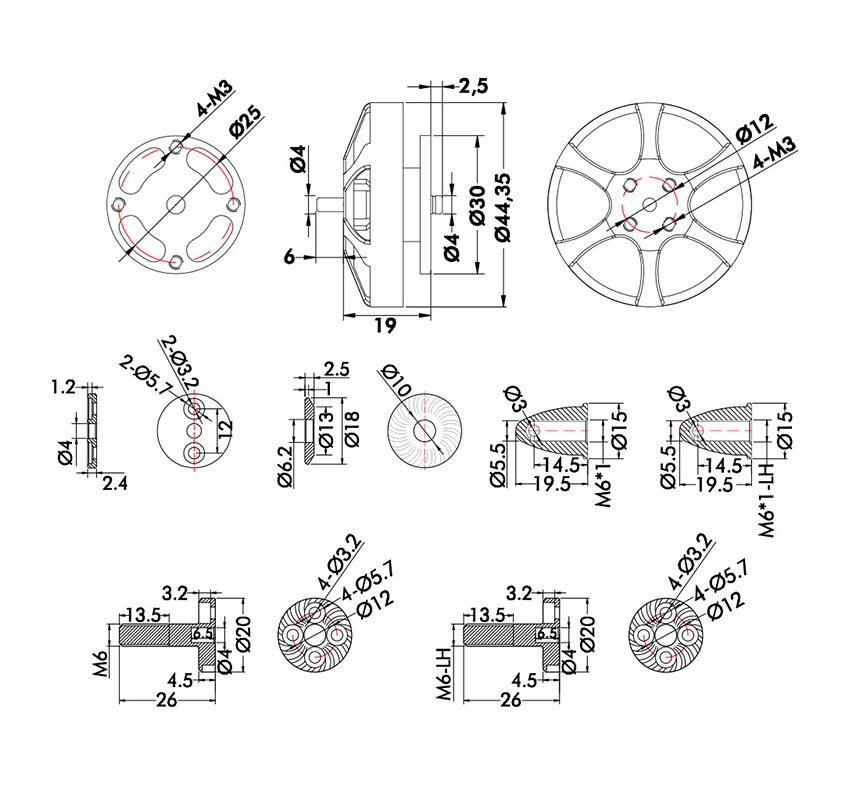

Technical Drawing

Specification Export to Excel

Test Item	300	Weight (Incl. Cable)	53g
Motor Dimensions	Φ44.35×19mm	Internal Resistance	452mΩ
Lead	50mm	Configuration	18N24P
Shaft Diameter	4mm	Rated Voltage(Lipo)	4-6S
Idle Current(22V)	0.2A	Peak Current(180s)	9A
Max Power (180S)	216W

Test Item	400	Weight (Incl. Cable)	53g
Motor Dimensions	Φ44.35×19mm	Internal Resistance	359mΩ
Lead	50mm	Configuration	18N24P
Shaft Diameter	4mm	Rated Voltage(Lipo)	4-6S
Idle Current(22V)	0.2A	Peak Current(180s)	12A
Max Power (180S)	300W

Test Data Export to Excel

Type	Voltage (V)	Propeller	Throttle	Current (A)	Power (W)	RPM	Torqu （N*m）	Thrust (g)	Efficiency (g/W)	Operatin Temperature (℃)
MN4004 KV300	24	T-MOTOR 13*4.4” CF	50%	0.90	22	3173	0.06	311	14.40	30
			55%	1.10	26	3415	0.07	358	13.56
			60%	1.40	34	3660	0.07	416	12.38
			65%	1.70	41	3914	0.09	477	11.69
			75%	2.40	58	4394	0.11	608	10.56
			85%	3.30	79	4876	0.13	754	9.52
			100%	4.20	101	5317	0.16	895	8.88
		T-MOTOR 14*4.8” CF	50%	1.10	26	3045	0.08	374	14.17	44
			55%	1.40	34	3285	0.09	439	13.07
			60%	1.70	41	3530	0.10	507	12.43
			65%	2.10	50	3740	0.11	586	11.63
			75%	3.10	74	4208	0.14	753	10.12
			85%	4.30	103	4670	0.17	930	9.01
			100%	5.40	130	5092	0.20	1107	8.54
		T-MOTOR 15*5” CF	50%	1.40	34	2860	0.09	474	14.11	56
			55%	1.90	46	3108	0.11	561	12.30
			60%	2.30	55	3336	0.12	646	11.70
			65%	2.80	67	3540	0.14	727	10.82
			75%	4.00	96	3966	0.17	918	9.56
			85%	5.60	134	4383	0.20	1110	8.26
			100%	7.50	180	4711	0.24	1311	7.28
		T-MOTOR 16*5.4” CF	50%	1.80	43	2689	0.11	534	12.36	75
			55%	2.30	55	2928	0.13	636	11.52
			60%	2.90	70	3135	0.15	742	10.66
			65%	3.50	84	3325	0.17	829	9.87
			75%	5.10	122	3640	0.20	1028	8.40
			85%	7.10	170	4000	0.24	1203	7.06
			100%	8.90	214	4210	0.27	1295	6.06
		T-MOTOR 17*5.8” CF	50%	2.10	50	2600	0.13	586	11.63	HOT
			55%	2.70	65	2801	0.15	691	10.66
			60%	3.40	82	2990	0.17	802	9.83
			65%	4.10	98	3162	0.19	890	9.04
			75%	5.90	142	3455	0.23	1088	7.68
			85%	8.40	202	3670	0.24	1241	6.16
			100%	10.20	245	3750	0.26	1290	5.27
MN4004 KV400	24	T-MOTOR 13*4.4” CF	50%	1.80	43	3813	0.08	448	10.37	33
			55%	2.20	53	4146	0.09	535	10.13
			60%	2.70	65	4458	0.10	609	9.40
			65%	3.30	79	4736	0.12	698	8.81
			75%	4.60	110	5308	0.14	885	8.02
			85%	6.30	151	5841	0.18	1067	7.06
			100%	8.20	197	6391	0.21	1311	6.66
		T-MOTOR 14*4.8” CF	50%	2.20	53	3623	0.10	566	10.72	54
			55%	2.70	65	3915	0.11	670	10.34
			60%	3.30	79	4175	0.13	766	9.67
			65%	4.10	98	4448	0.15	872	8.86
			75%	5.80	139	4941	0.18	1078	7.74
			85%	7.80	187	5392	0.21	1270	6.78
			100%	10.40	250	5766	0.24	1521	6.09
Note: The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
