Name: T-MOTOR MN4012 KV400 2.3kg Max Thrust UAV Motor for Aerial Photography
Brand: LIGPOWER
SKU: AWD01010119
Price: 92.90 USD
Availability: InStock

T-MOTOR MN4012 KV400 2.3kg Max Thrust UAV Motor for Aerial Photography

92.90

Available points: 4500 Points Points reward: 92 Points

• Long Flight Time
• Best Flying Performance

Parameter：

KV340
KV400
KV480

Quantity：

92.90

Free Shipping by DHL/UPS Express

Relevant Products

T-MOTOR AIR 40A 2-6S ESC for Multirotor UAVs

$39.99
T-MOTOR P14*4.8 Prop-2PCS/PAIR

$48.9
T-MOTOR P15*5 Prop-2PCS/PAIR

$55.9
T-MOTOR P16*5.4 Prop-2PCS/PAIR

$62.9
T-MOTOR NS14*4.8 Prop-2PCS/PAIR

$49.99

Detail information
Specifications

Technical Drawing

Specification Export to Excel

Test Item	MN4012 KV340	Report NO.	MN.00022
Internal Resistance	133mΩ	Configuration	18N24P
Shaft Diameter	4mm	Motor Dimensions	Φ44.7×32.5mm
Stator Diameter	40mm	Stator Height	12mm
AWG	18#	Cable Length	600mm
Weight Including Cables	155g	Weight Excluding Cables	134g
No.of Cells(Lipo)	4-8S	Idle Current@10v	0.9A
Max Power (180S)	660W	Max Continuous Current 180S	22A

Test Item	MN4012 KV400	Report NO.	MN.00023
Internal Resistance	75mΩ	Configuration	18N24P
Shaft Diameter	4mm	Motor Dimensions	Φ44.7×32.5mm
Stator Diameter	40mm	Stator Height	12mm
AWG	18#	Cable Length	600mm
Weight Including Cables	155g	Weight Excluding Cables	134g
No.of Cells(Lipo)	4-8S	Idle Current@10v	1.0A
Max Power (180S)	750W	Max Continuous Current 180S	25A

Test Item	MN4012 KV480	Report NO.	MN.00024
Internal Resistance	57mΩ	Configuration	18N24P
Shaft Diameter	4mm	Motor Dimensions	Φ44.7×32.5mm
Stator Diameter	40mm	Stator Height	12mm
AWG	18#	Cable Length	600mm
Weight Including Cables	155g	Weight Excluding Cables	134g
No.of Cells(Lipo)	4-8S	Idle Current@10v	1.3A
Max Power (180S)	870W	Max Continuous Current 180S	29A

Test Data Export to Excel

Item No.	Voltage (V)	Prop	Throttle	Current (A)	Power (W)	Thrust (G)	RPM	Efficiency (G/W)	Operating Temperature (℃)
MN4012 KV340	22.2	T-MOTOR 14*4.8CF	50%	2.9	64.38	650	3950	10.10	47
			65%	4.4	97.68	860	4500	8.80
			75%	5.9	130.98	1090	5100	8.32
			85%	7.6	168.72	1330	5600	7.88
			100%	9	199.80	1530	6000	7.66
		T-MOTOR 15*5CF	50%	3.4	75.48	790	3600	10.47	50
			65%	5.4	119.88	1110	4400	9.26
			75%	7.2	159.84	1360	5100	8.51
			85%	9.6	213.12	1670	5400	7.84
			100%	11.4	253.08	1920	5700	7.59
		T-MOTOR 16*5.4	50%	3.7	82.14	910	3400	11.08	54
			65%	6.2	137.64	1330	4200	9.66
			75%	8.4	186.48	1620	4700	8.69
			85%	11.3	250.86	1960	5100	7.81
			100%	13.4	297.48	2220	5400	7.46
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
MN4012 KV400	22.2	T-MOTOR 13*4.4CF	50%	3.7	82.14	740	4900	9.01	50
			65%	4.8	106.56	850	5650	7.98
			75%	6	133.20	1040	6000	7.81
			85%	7.9	175.38	1260	6700	7.18
			100%	9.4	208.68	1450	7150	6.95
		T-MOTOR 14*4.8CF	50%	4.2	93.24	870	4500	9.33	52
			65%	6.4	142.08	1150	5300	8.09
			75%	8.2	182.04	1420	5700	7.80
			85%	10.9	241.98	1720	6300	7.11
			100%	13.1	290.82	1960	6700	6.74
		T-MOTOR 15*5CF	50%	4.8	106.56	1010	4000	9.48	54
			65%	7.9	175.38	1410	5000	8.04
			75%	10.4	230.88	1730	5400	7.49
			85%	13.4	297.48	2090	6000	7.03
			100%	16.2	359.64	2370	6300	6.59
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
MN4012 KV480	14.8	T-MOTOR 14*4.8CF	50%	4.3	63.64	580	3900	9.11	49
			65%	5.7	84.36	780	4500	9.25
			75%	7.4	109.52	980	4900	8.95
			85%	9.8	145.04	1200	5500	8.27
			100%	11.8	174.64	1400	5800	8.02
		T-MOTOR 15*5CF	50%	4.5	66.60	660	3600	9.91	49
			65%	6.8	100.64	900	4200	8.94
			75%	8.9	131.72	1100	4700	8.35
			85%	11.7	173.16	1380	5250	7.97
			100%	14.6	216.08	1600	5600	7.40
		T-MOTOR 16*5.4CF	50%	4.7	69.56	700	3300	10.06	50
			65%	7.8	115.44	1060	4000	9.18
			75%	10.5	155.40	1310	4500	8.43
			85%	14	207.20	1620	5000	7.82
			100%	16.9	250.12	1860	5400	7.44
	22.2	T-MOTOR 13*4.4CF	50%	5.7	126.54	900	5900	7.11	52
			65%	7.7	170.94	1200	6700	7.02
			75%	9.6	213.12	1400	7300	6.57
			85%	13	288.60	1800	8000	6.24
			100%	15.4	341.88	2000	8600	5.85
		T-MOTOR 14*4.8CF	50%	7	155.40	1170	5500	7.53	60
			65%	10	222.00	1530	6200	6.89
			75%	13.4	297.48	1860	6800	6.25
			85%	17.6	390.72	2300	7500	5.89
			100%	21.3	472.86	2600	8000	5.50
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

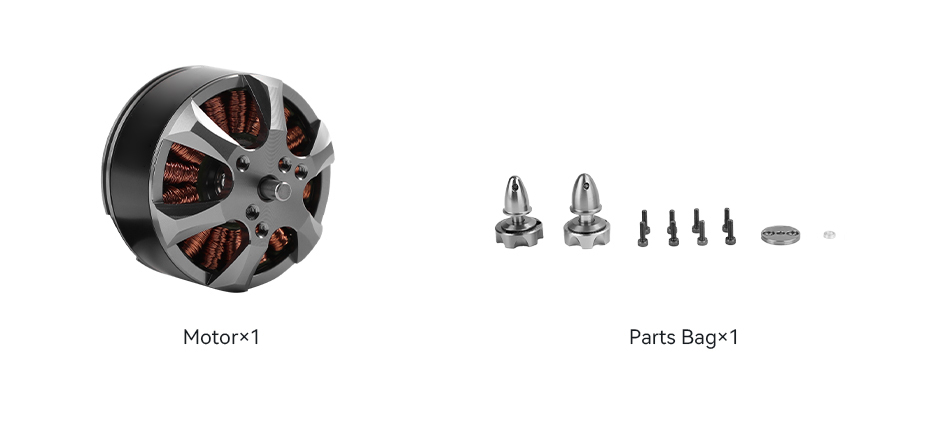

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
