Name: MN5006 KV450 Antigravity UAV Motor with 3.2kg Max Thrust
Brand: LIGPOWER
SKU: AWD01010017
Price: 84.99 USD
Availability: InStock

Detail information
Specifications

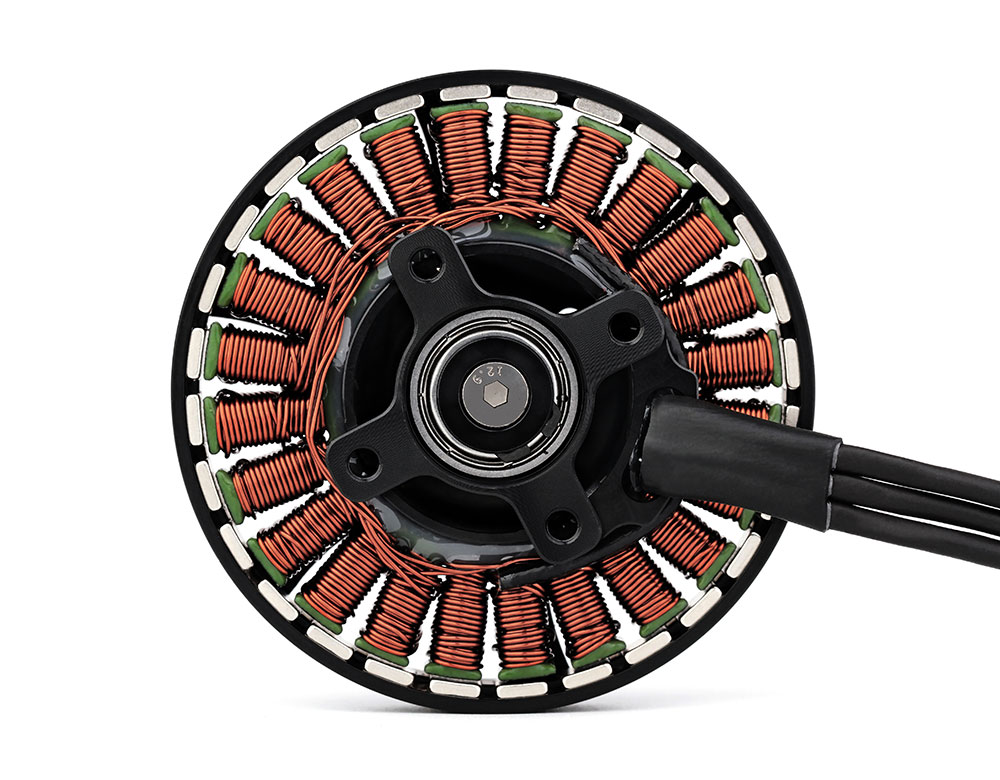

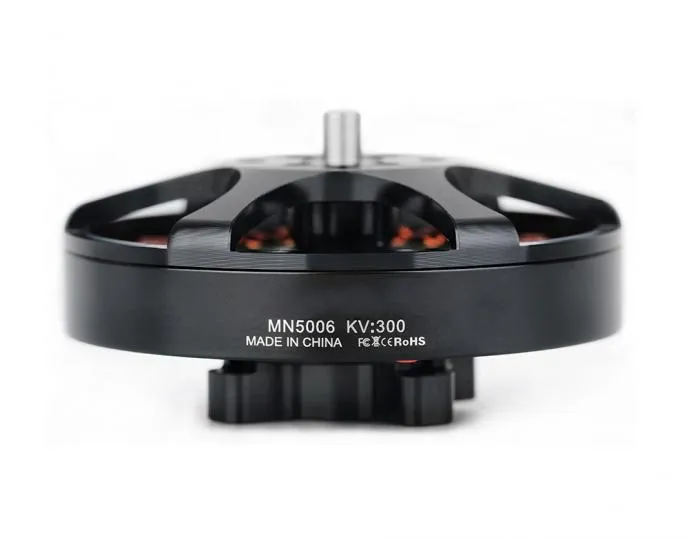

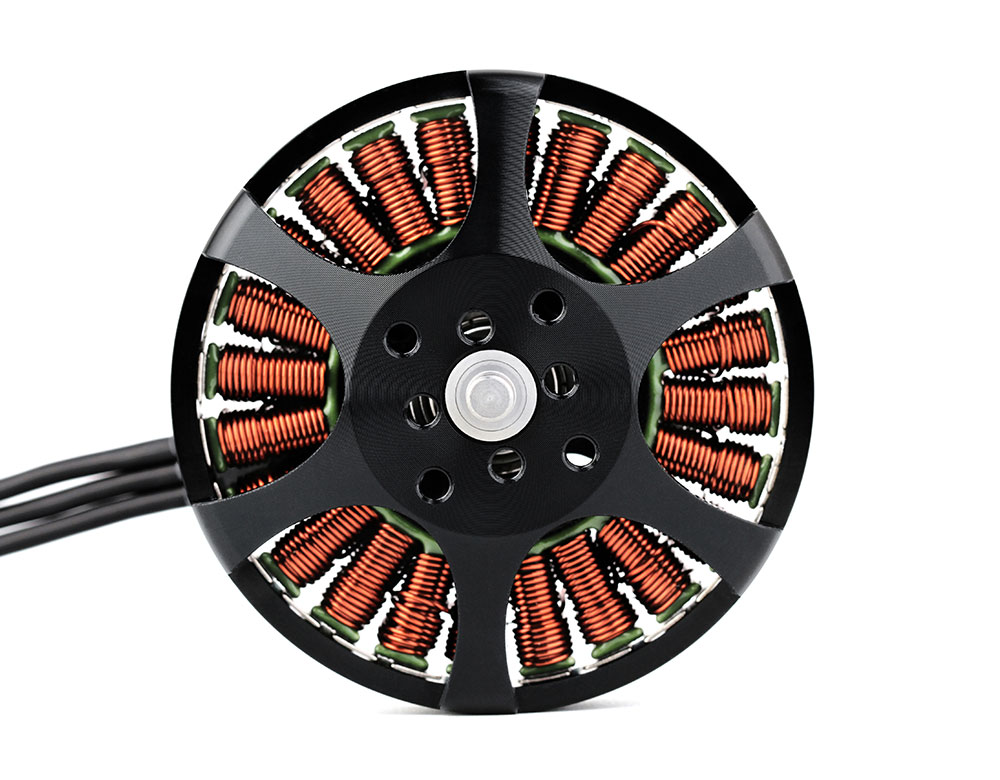

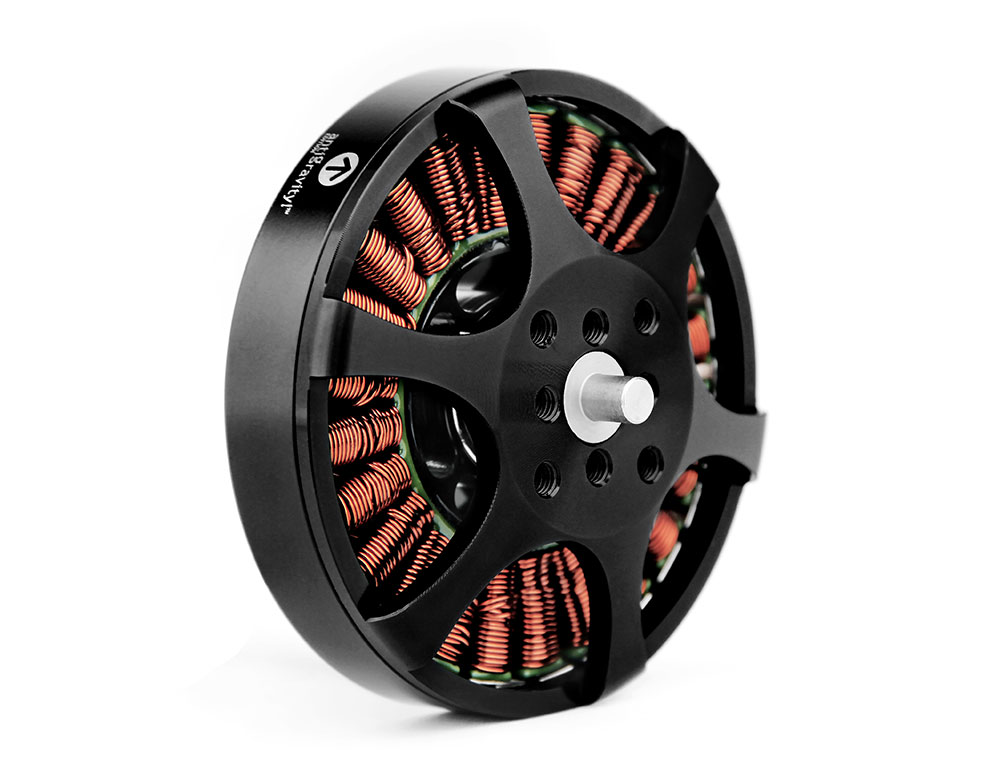

About LIGPOWER MN5006 Multirotor VTOL UAV Motor KV450

LIGPOWER Antigravity MN5006 series is a powerful, lightweight brushless motor designed to meet the demanding needs of professional UAV operators. Ideal for aerial photography, surveying, and mapping, this motor combines ultra-lightweight design with high efficiency and superior thrust, making it the perfect choice for long-duration flights and precise aerial maneuvers.

Antigravity MN5006 Highlights:

• Ultra light, high efficiency

• Devote to long flight

• Quadcopter of 4kg, 60mins flight time

• Run smoothly, low cogging torque

" Antigravity Series" motors are an ultra-light zero gravity for Multi-rotor motor.
High-Qualityimported Materials; High Slot Space Factor On Winding For Longer, Clearer And More Stable Flight.

Application Areas：

Aerial Photography
Surveying and Mapping
Environmental Monitoring
Traffic Flow Analysis

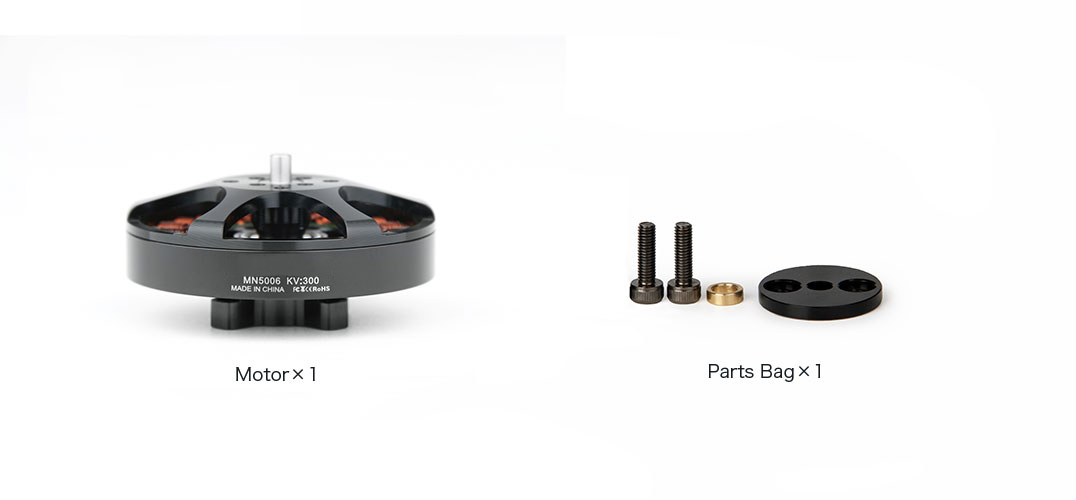

Packing List Includes:

1 x LIGPOWER MN5006 KV450( kv which you choose)

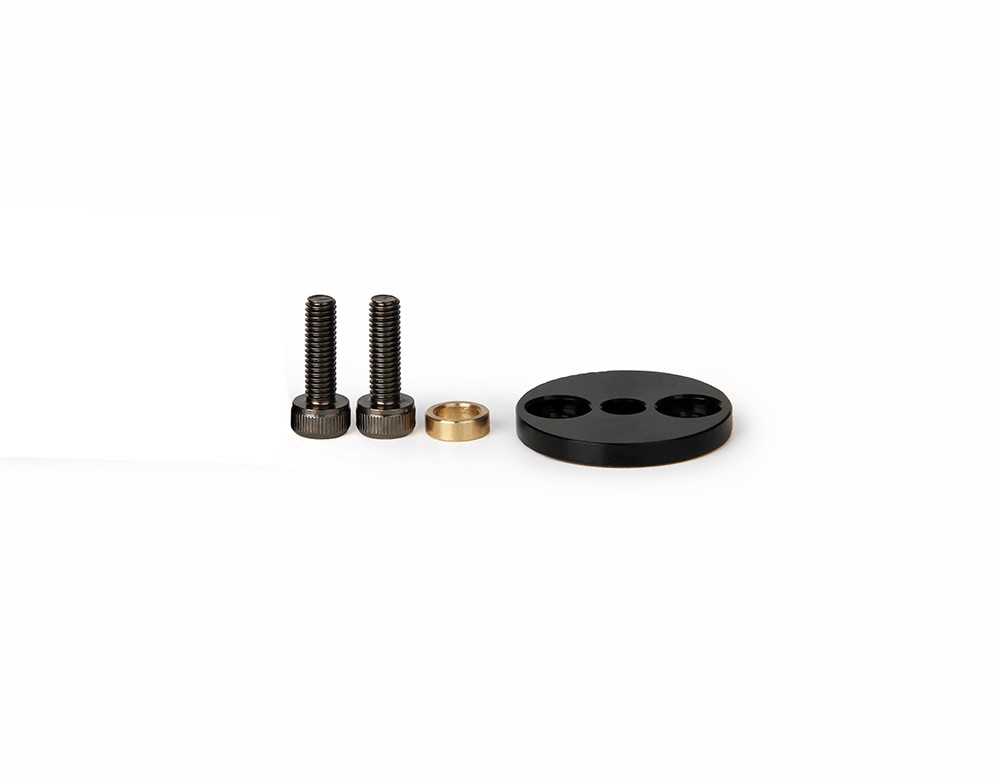

1 x Hardware pack

Matching Guide:

LIGPOWER Propeller P17*5.8 / Air 40A 12S ESC

If you have any questions or inquires, please contact us: onlinesales@ligpower.com

MN5006 parameters

flight time up to 60 mins

mighty power for aerial photography

motor temperature after working with 601w load for 10 mins is only 82℃

Selection of high-temp resistant wire、high quality bearing、silicone steel sheet and Arc magnet

prop installation

Technical Drawing

Specification

Motor Size	Φ55.6*30mm	Copper Wire	180℃ high temperature resistance: Level H
Stator	Imported silicon steel sheet; Anti-rust treatment; 180℃high temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：6mm	Rotor Dynamic Balance Standard	≤15mg
Bearing	Imported 696ZZ	Motor Dynamic Balance Standard	≤10mg
Magnet Level	150℃ high temperature resistance: Level E	Packing Size	1068135mm
Lead Cable	80mm

KV	300	Rated Voltage（Lipo）	4-6S
Idle Current（22V）	0.6A	ESC Recommendation	AIR 40A
Peak Current（180s）	20A	Propeller Recommendation	P17-18”
Max. Power（180s）	500W	Motor Weight（Incl. Cable）	108g
Internal Resistance	125mΩ	Package Weight	170g

KV	450	Rated Voltage（Lipo）	4-6S
Idle Current（22V）	0.9A	ESC Recommendation	AIR 40A
Peak Current（180s）	26A	Propeller Recommendation	P14-18”
Max. Power（180s）	650W	Motor Weight（Incl. Cable）	106g
Internal Resistance	60mΩ	Package Weight	170g

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
MN5006 KV300	LIGPOWER P17*5.8” CF	40%	23.70	1.63	39	2481	0.10	501	13.02	67
		45%	23.67	2.21	52	2790	0.13	640	12.24
		50%	23.64	2.88	68	3103	0.15	784	11.5
		55%	23.61	3.71	88	3410	0.19	942	10.75
		60%	23.57	4.66	110	3689	0.22	1119	10.18
		65%	23.54	5.68	134	3947	0.25	1289	9.64
		70%	23.50	6.78	159	4203	0.29	1454	9.13
		75%	23.46	8.00	188	4442	0.32	1631	8.69
		80%	23.42	9.28	217	4664	0.35	1798	8.28
		90%	23.32	12.31	287	5105	0.43	2186	7.62
		100%	23.22	15.41	358	5491	0.50	2538	7.09
	LIGPOWER P18*6.1” CF	40%	23.68	2.04	48	2410	0.14	629	13	82
		45%	23.64	2.80	66	2702	0.17	792	11.96
		50%	23.61	3.67	87	2988	0.21	968	11.18
		55%	23.57	4.75	112	3264	0.24	1162	10.38
		60%	23.53	5.91	139	3525	0.29	1366	9.82
		65%	23.48	7.25	170	3762	0.33	1572	9.24
		70%	23.43	8.69	204	3996	0.38	1777	8.73
		75%	23.38	10.22	239	4219	0.42	1980	8.29
		80%	23.33	11.89	277	4424	0.46	2183	7.87
		90%	23.21	15.70	364	4807	0.55	2618	7.19
		100%	23.09	19.63	453	5131	0.63	2996	6.61
MN5006 KV450	LIGPOWER P14*4.8” CF	40%	23.65	2.66	63	3983	0.11	610	9.69	42
		45%	23.62	3.31	78	4318	0.12	724	9.25
		50%	23.60	4.04	95	4674	0.14	840	8.82
		55%	23.56	5.01	118	5059	0.17	988	8.37
		60%	23.52	6.17	145	5440	0.19	1160	8
		65%	23.44	7.60	178	5757	0.22	1291	7.27
		70%	23.43	8.64	202	6136	0.24	1479	7.31
		75%	23.38	10.24	240	6527	0.27	1674	6.99
		80%	23.33	11.96	279	6883	0.31	1878	6.73
		90%	23.20	16.06	372	7588	0.37	2296	6.16
		100%	23.07	20.16	465	8168	0.44	2672	5.75
	LIGPOWER P15*5” CF	40%	23.63	3.17	75	3730	0.13	723	9.66	63
		45%	23.58	4.20	99	4141	0.16	895	9.03
		50%	23.54	5.41	127	4528	0.20	1084	8.51
		55%	23.50	6.67	157	4887	0.23	1259	8.03
		60%	23.45	8.17	191	5239	0.27	1458	7.61
		65%	23.40	9.76	228	5573	0.30	1643	7.2
		70%	23.34	11.43	267	5868	0.34	1839	6.89
		75%	23.27	13.56	316	6219	0.38	2079	6.59
		80%	23.20	15.88	368	6550	0.42	2307	6.26
		90%	23.05	21.08	486	7169	0.51	2792	5.75
		100%	22.89	26.28	601	7682	0.59	3218	5.35
MN5006 KV450	LIGPOWER P17*5.8” CF	40%	15.69	2.15	34	2353	0.09	438	12.99	45
		45%	15.67	2.85	45	2614	0.11	562	12.6
		50%	15.63	3.78	59	2912	0.14	694	11.76
		55%	15.58	4.91	76	3206	0.17	840	10.98
		60%	15.55	6.09	95	3477	0.20	987	10.43
		65%	15.50	7.41	115	3711	0.23	1144	9.97
		70%	15.45	8.84	137	3942	0.25	1294	9.47
		75%	15.40	10.49	161	4167	0.28	1453	9
		80%	15.35	12.13	186	4377	0.31	1603	8.61
		90%	15.23	15.95	243	4800	0.38	1934	7.97
		100%	15.11	19.85	300	5153	0.44	2228	7.43
	LIGPOWER P18*6.1” CF	40%	15.67	2.74	43	2271	0.12	555	12.92	64
		45%	15.63	3.62	57	2524	0.15	694	12.27
		50%	15.59	4.84	75	2805	0.19	853	11.31
		55%	15.54	6.23	97	3067	0.22	1030	10.64
		60%	15.49	7.74	120	3314	0.26	1204	10.03
		65%	15.44	9.37	145	3534	0.29	1374	9.51
		70%	15.37	11.22	173	3757	0.33	1540	8.93
		75%	15.32	13.10	201	3959	0.37	1720	8.57
		80%	15.25	15.27	233	4142	0.41	1911	8.21
		90%	15.10	19.98	302	4504	0.48	2274	7.54
		100%	14.96	24.82	371	4801	0.55	2609	7.03
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
