Name: T-MOTOR MN601-S KV320 Waterproof UAV Motor with 5.5kg Max Thrust 2PCS/SET
Brand: LIGPOWER
SKU: AWD01010164
Price: 259.98 USD
Availability: InStock

T-MOTOR MN601-S KV320 Waterproof UAV Motor with 5.5kg Max Thrust 2PCS/SET

259.98

Available points: 13000 Points Points reward: 259 Points

• Strong power ,long service life
• Excellent cooling performance
• Anti-high temperature/Anti-overload
• Dust-resistance/Waterproof/Anti-corrosion

Parameter：

KV170
KV320

Quantity：

259.98

Free Shipping by DHL/UPS Express

Relevant Products

T-MOTOR P20*6 Prop-2PCS/PAIR

$108.9
T-MOTOR P21*6.3 Prop-2PCS/PAIR

$124.9
T-MOTOR ALPHA 60A 6S Waterproof FOC Brushless ESC for UAVs

$69.99
T-MOTOR NS20*6.2 Prop-2PCS/PAIR

$119.99

Detail information
Specifications

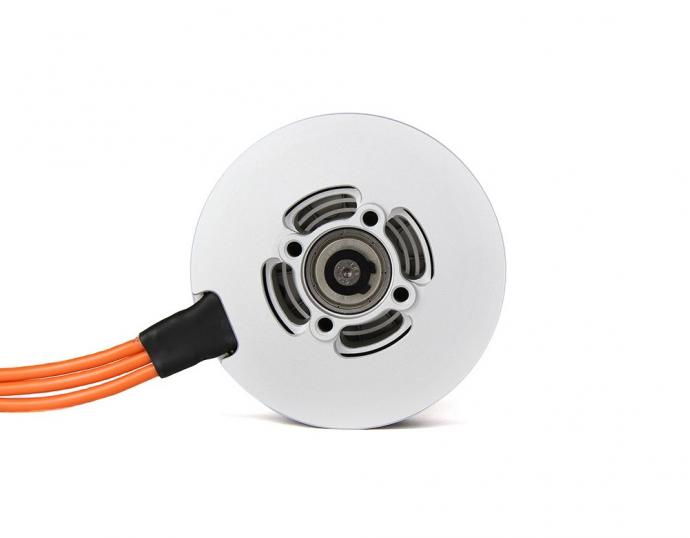

About T-MOTOR Navigator MN601-S Multirotor Fixed Wing UAV Motor KV320

T-MOTOR Navigator MN601-S-320KV Brushless Motor (2 pcs/set) offers exceptional durability and cooling with its centrifugal fan design and enhanced heat dissipation.

Built with high-temperature resistant magnets and varnished wires, it ensures long life, overload resistance, and efficient cooling.

With water, dust, and corrosion resistance, it’s perfect for tough UAV applications. Available in various RPM/V options, providing thrust from 900g to over 5,000g.

Navigator MN601-S Highlights:

Max thrust: 6.6kg
MTBF: About 1000hours
Features: Dust-resistance/Waterproof/Anti-corrosion

"Navigator" motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings.

Application Areas：

Cargo Drones, Tethered, Mapping and Inspection.

Packing List Includes:

1x T-MOTOR MN601 Motor KV320 ( kv which you choose)

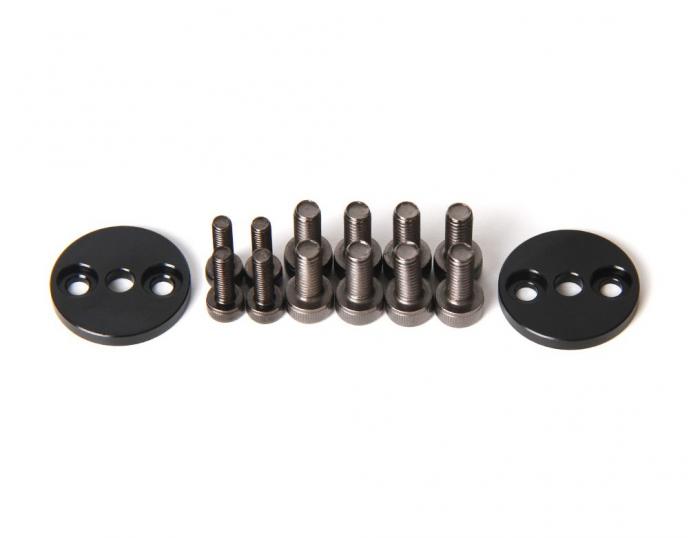

1x Hardware pack

Matching Guide:

T-MOTOR P20*6 Prop / Alpha 60A 12s

If you have any questions or inquires, please contact us: onlinesales@ligpower.com

Technical Drawing


Specification Export to Excel

Motor Size	Φ68.8*34.9mm	Copper Wire	180℃ high temperature resistance: Level H
Stator	Imported silicon steel sheet; Anti-rust treatment; 150°Chigh temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：6mm，OUT：6mm	Rotor Dynamic Balance Standard	≤5Mg
Bearing	Imported 626ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	150℃ high temperature resistance	IP	IP45
Lead Cable	16AWG*150mm

KV	170	Rated Voltage ( Lipo )	6-12S
Idle Current（20V）	0.8A	ESC Recommendation	FLAME 60A 12S
Peak Current（180s）	30A	Propeller Recommendation	20-21"
Max.Power（180s）	1500W	Motor Weight (indl. Cable)	250g
Internal Resistance	115mΩ	Package Weight	820g(2PCS/SET)

KV	320	Rated Voltage ( Lipo )	6S
Idle Current（17V）	1.6A	ESC Recommendation	FLAME 70A 6S
Peak Current（180s）	50A	Propeller Recommendation	20-21"
Max.Power（180s）	1200W	Motor Weight (indl. Cable)	246g
Internal Resistance	39mΩ	Package Weight	815g(2PCS/SET)

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g/W)	Operating Temperature (℃)
MN601S KV170	T-MOTOR P20*6	40%	47.96	1414	0.33	2.70	3272	129	10.92	67.5 (Ambient Temperature: 34.5℃)
		42%	47.95	1530	0.36	3.00	3389	144	10.64
		44%	47.94	1620	0.39	3.30	3506	158	10.24
		46%	47.93	1736	0.41	3.60	3624	173	10.06
		48%	47.92	1879	0.43	4.00	3753	192	9.80
		50%	47.90	1957	0.46	4.30	3851	206	9.50
		52%	47.89	2151	0.48	4.80	3994	230	9.36
		54%	47.88	2258	0.51	5.20	4121	249	9.07
		56%	47.85	2388	0.54	5.60	4225	268	8.91
		58%	47.84	2459	0.55	5.80	4228	277	8.86
		60%	47.82	2540	0.59	6.20	4362	296	8.57
		62%	47.81	2683	0.61	6.70	4481	320	8.38
		64%	47.79	2819	0.64	7.10	4589	339	8.31
		66%	47.76	2948	0.66	7.50	4690	358	8.23
		68%	47.74	3115	0.70	8.30	4791	396	7.86
		70%	47.73	3277	0.72	8.90	4923	425	7.71
		75%	47.67	3572	0.80	10.10	5144	481	7.42
		80%	47.62	3932	0.88	11.70	5395	557	7.06
		90%	47.48	4751	1.07	15.40	5901	731	6.50
		100%	47.34	5809	1.27	20.70	6482	980	5.93
MN601S KV170	T-MOTOR P21*6.3	40%	48.00	1677	0.40	3.10	3272	149	11.27	85 (Ambient Temperature: 34.5℃)
		42%	47.98	1774	0.42	3.50	3389	168	10.56
		44%	47.97	1966	0.45	4.00	3506	192	10.25
		46%	47.96	2062	0.49	4.30	3624	206	10.00
		48%	47.94	2182	0.51	4.60	3753	221	9.89
		50%	47.92	2307	0.54	5.10	3851	244	9.44
		52%	47.91	2463	0.58	5.50	3994	264	9.35
		54%	47.88	2624	0.61	6.00	4121	287	9.13
		56%	47.86	2726	0.64	6.60	4225	316	8.63
		58%	47.85	2912	0.69	7.10	4228	340	8.57
		60%	47.82	3027	0.68	7.50	4362	359	8.44
		62%	47.81	3165	0.73	8.00	4481	382	8.27
		64%	47.78	3366	0.77	8.80	4589	420	8.01
		66%	47.75	3485	0.80	9.30	4690	444	7.85
		68%	47.73	3641	0.84	9.80	4791	468	7.78
		70%	47.70	3799	0.88	10.40	4923	496	7.66
		75%	47.63	4186	0.97	12.10	5144	576	7.26
		80%	47.55	4593	1.06	13.90	5395	661	6.95
		90%	47.38	5412	1.25	18.10	5901	858	6.31
		100%	47.21	6605	1.49	24.70	6482	1166	5.66
MN601S KV320	T-MOTOR P20*6	40%	23.90	976	0.24	3.80	2751	91	10.75	54.5 (Ambient Temperature: 34.5℃)
		42%	23.89	1058	0.25	4.20	2850	100	10.54
		44%	23.87	1183	0.28	4.80	2996	115	10.33
		46%	23.85	1275	0.30	5.20	3088	124	10.28
		48%	23.83	1389	0.33	5.80	3235	138	10.05
		50%	23.82	1492	0.35	6.40	3376	152	9.79
		52%	23.79	1658	0.38	7.30	3520	174	9.55
		54%	23.76	1757	0.40	7.80	3618	185	9.48
		56%	23.73	1894	0.42	8.50	3699	202	9.39
		58%	23.71	1972	0.44	9.00	3829	213	9.24
		60%	23.69	2130	0.47	9.80	3924	232	9.17
		62%	23.66	2203	0.50	10.60	4044	251	8.78
		64%	23.62	2307	0.52	11.40	4142	269	8.57
		66%	23.59	2443	0.55	12.40	4268	293	8.35
		68%	23.56	2587	0.57	13.70	4372	323	8.01
		70%	23.53	2731	0.60	14.80	4505	348	7.84
		75%	23.44	3040	0.68	17.00	4748	398	7.63
		80%	23.35	3418	0.77	19.90	5017	465	7.36
		90%	23.13	4191	0.94	26.40	5511	611	6.86
		100%	22.92	4904	1.07	34.20	5980	784	6.26
MN601S KV320	T-MOTOR P21*6.3	40%	23.89	1194	0.30	4.50	2644	108	11.11	76.2 (Ambient Temperature: 34.5℃)
		42%	23.87	1212	0.32	4.80	2777	115	10.58
		44%	23.85	1349	0.35	5.50	2915	131	10.28
		46%	23.83	1448	0.38	6.10	3022	145	9.96
		48%	23.81	1599	0.41	6.80	3165	162	9.88
		50%	23.78	1677	0.44	7.40	3272	176	9.53
		52%	23.75	1871	0.47	8.40	3420	200	9.38
		54%	23.71	2035	0.51	9.30	3563	221	9.23
		56%	23.68	2123	0.55	10.00	3650	237	8.97
		58%	23.65	2254	0.58	10.80	3729	255	8.82
		60%	23.61	2351	0.61	11.50	3814	272	8.66
		62%	23.58	2450	0.64	12.40	3954	292	8.38
		64%	23.54	2593	0.68	13.20	4045	311	8.34
		66%	23.50	2820	0.71	14.50	4154	341	8.28
		68%	23.46	2987	0.75	15.90	4281	373	8.01
		70%	23.42	3077	0.78	16.90	4394	396	7.77
		75%	23.32	3490	0.86	19.60	4616	457	7.64
		80%	23.20	3878	0.95	23.10	4851	536	7.24
		90%	22.94	4725	1.12	31.10	5369	713	6.62
		100%	22.70	5510	1.27	39.40	5755	894	6.16
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)

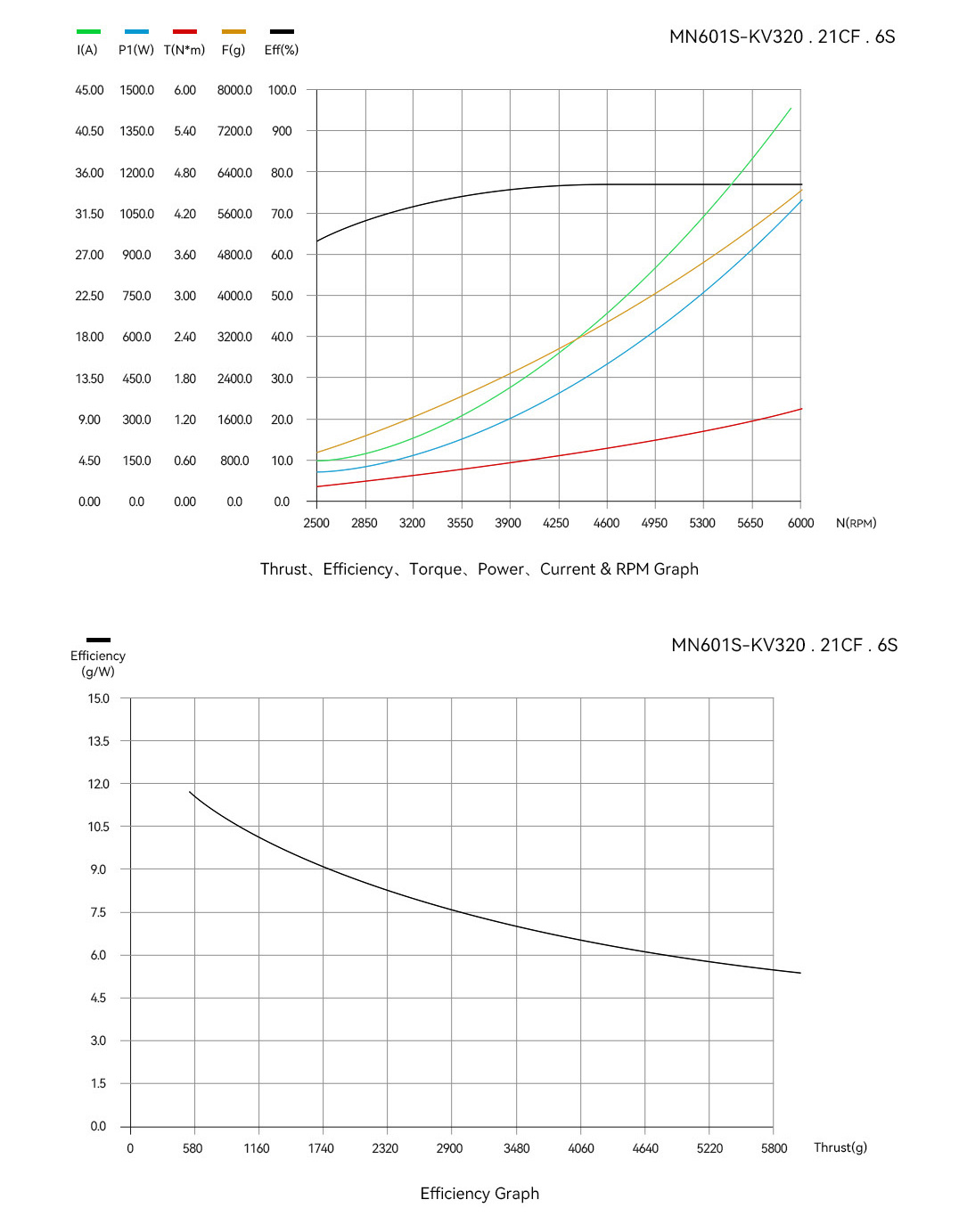

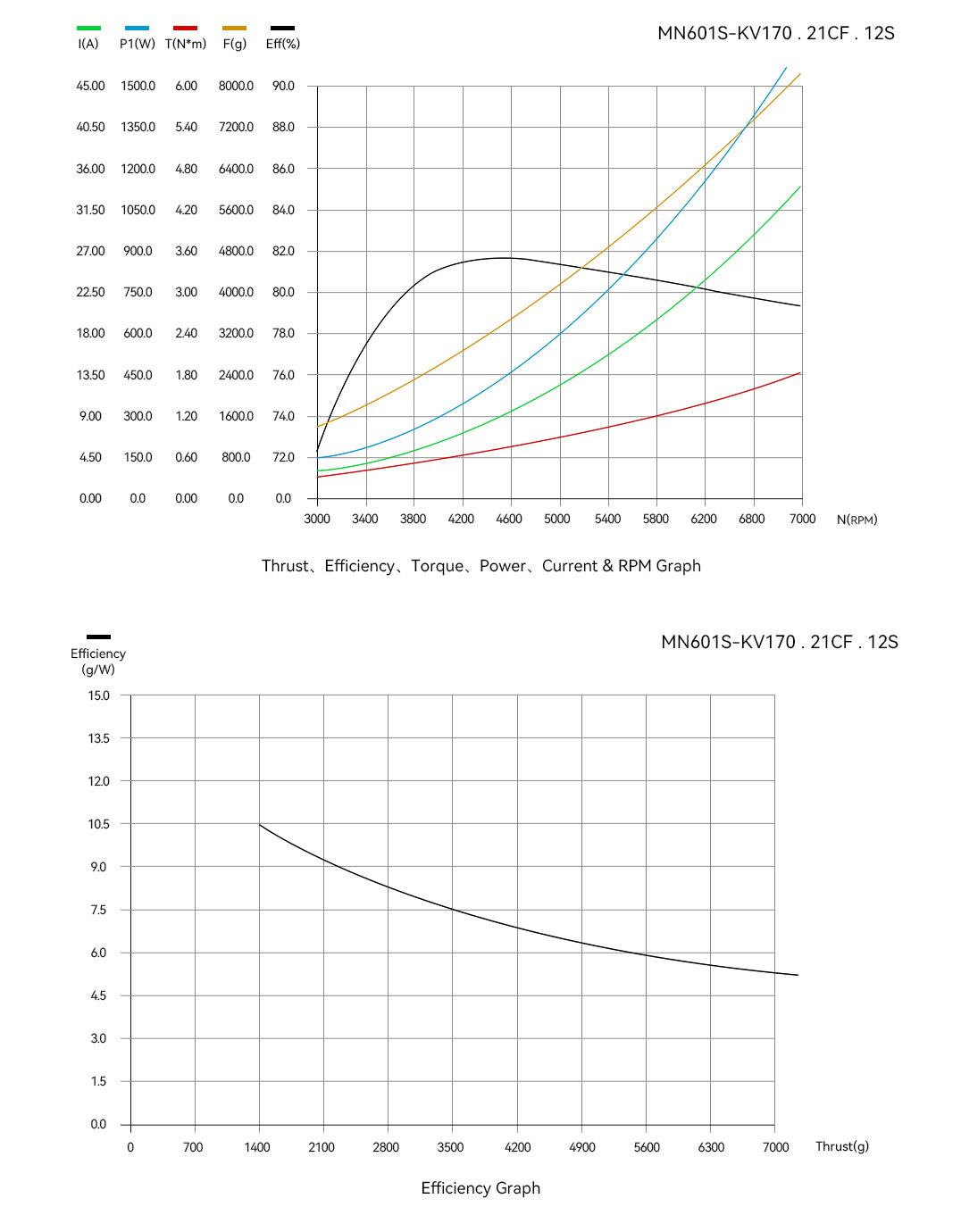

Analysis Chart

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
