Name: T-MOTOR MN605-S KV320 Waterproof UAV Motor with 7.1kg Max Thrust 2PCS/SET
Brand: LIGPOWER
SKU: AWD01010170
Price: 279.98 USD
Availability: InStock

T-MOTOR MN605-S KV320 Waterproof UAV Motor with 7.1kg Max Thrust 2PCS/SET

279.98

Available points: 14000 Points Points reward: 279 Points

• Strong power ,long service life
• Excellent cooling performance
• Anti-high temperature/Anti-overload
• Dust-resistance/Waterproof/Anti-corrosion

Parameter：

KV170
KV320

Quantity：

279.98

Free Shipping by DHL/UPS Express

Relevant Products

T-MOTOR P20*6 Prop-2PCS/PAIR

$108.9
T-MOTOR P22*6.6 Prop-2PCS/PAIR

$140.9
T-MOTOR ALPHA 60A 6S Waterproof FOC Brushless ESC for UAVs

$69.99
T-MOTOR MF2211-2PCS/PAIR

$54.9
T-MOTOR NS22*6.6 Prop-2PCS/PAIR

$169.99

Detail information
Specifications

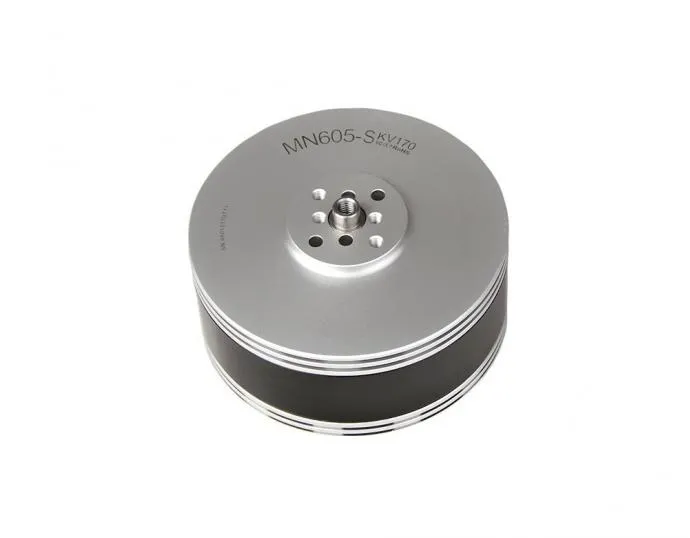

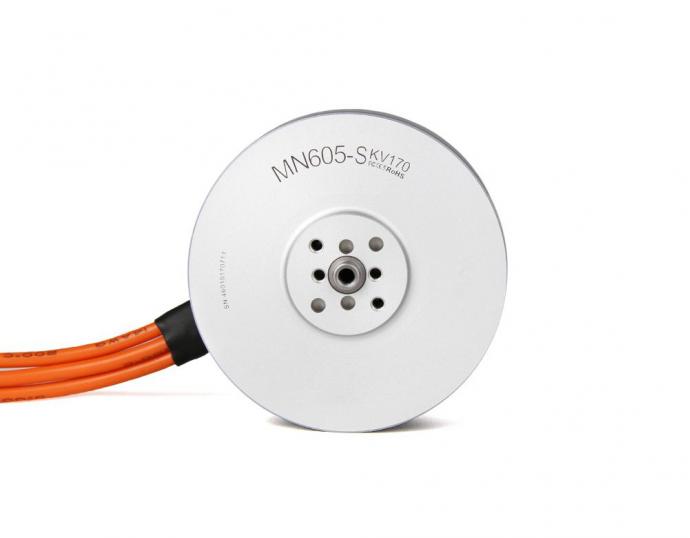

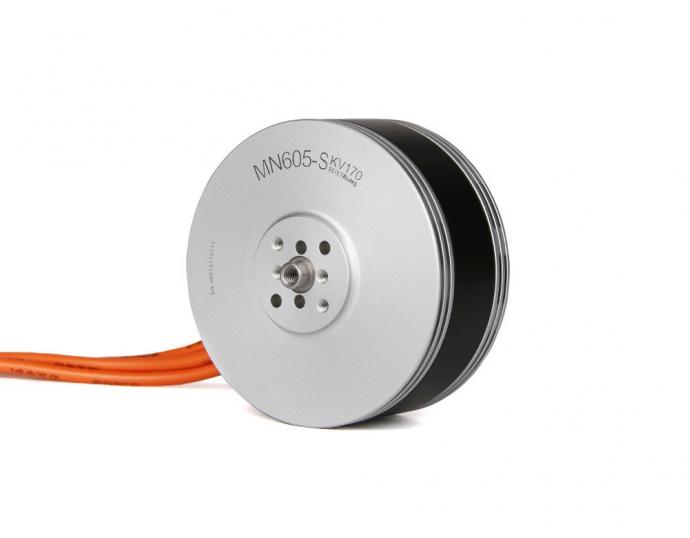

About T-MOTOR Navigator MN605-S Multirotor Fixed Wing UAV Motor KV320

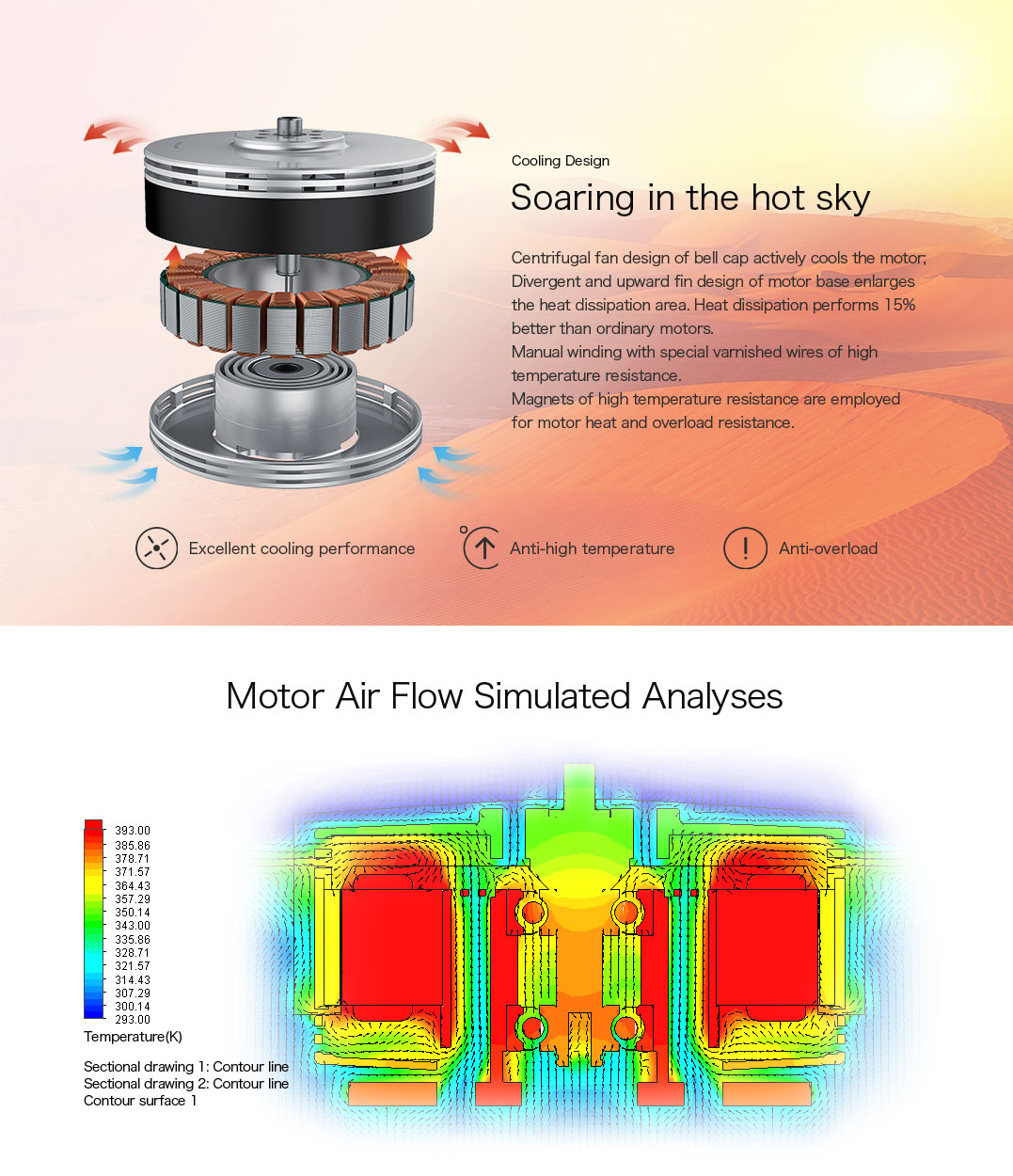

T-MOTOR MN605-S KV320 Multirotor Motor delivers high performance for multi-rotors, VTOL, and fixed-wing UAVs. Its advanced cooling design improves heat dissipation by 15%, while high-temperature resistant components ensure durability. Features include dust, water, and corrosion resistance, easy mounting, and a modular propulsion system. Max thrust: 8.6kg, MTBF: 1000 hours. Recommended with T-MOTOR P22*6.6" prop.

Navigator MN605-S Highlights:

Max thrust: 8.6kg
MTBF: About 1000hours
Features: Dust-resistance/Waterproof/Anti-corrosion

"Navigator" motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings.

Application Areas：

Cargo Drones, Tethered, Mapping and Inspection.

Packing List Includes:

1x T-MOTOR MN601 Motor KV320 ( kv which you choose)

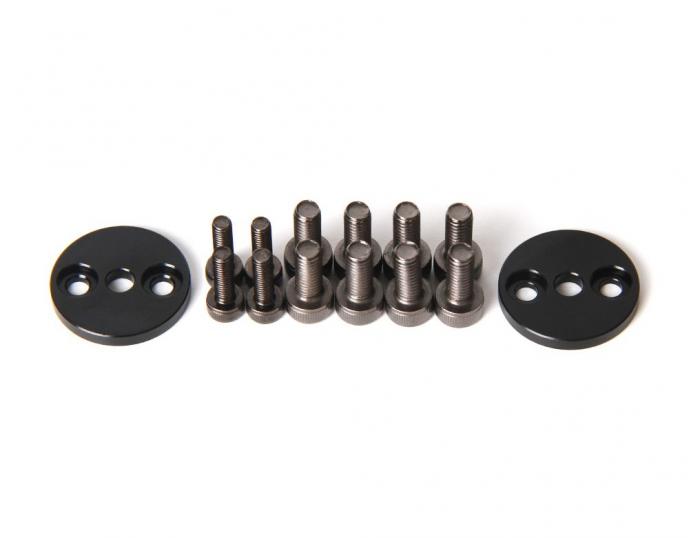

1x Hardware pack

Matching Guide:

T-MOTOR P22*6.6 Prop / Alpha 60A 12s

If you have any questions or inquires, please contact us: onlinesales@ligpower.com

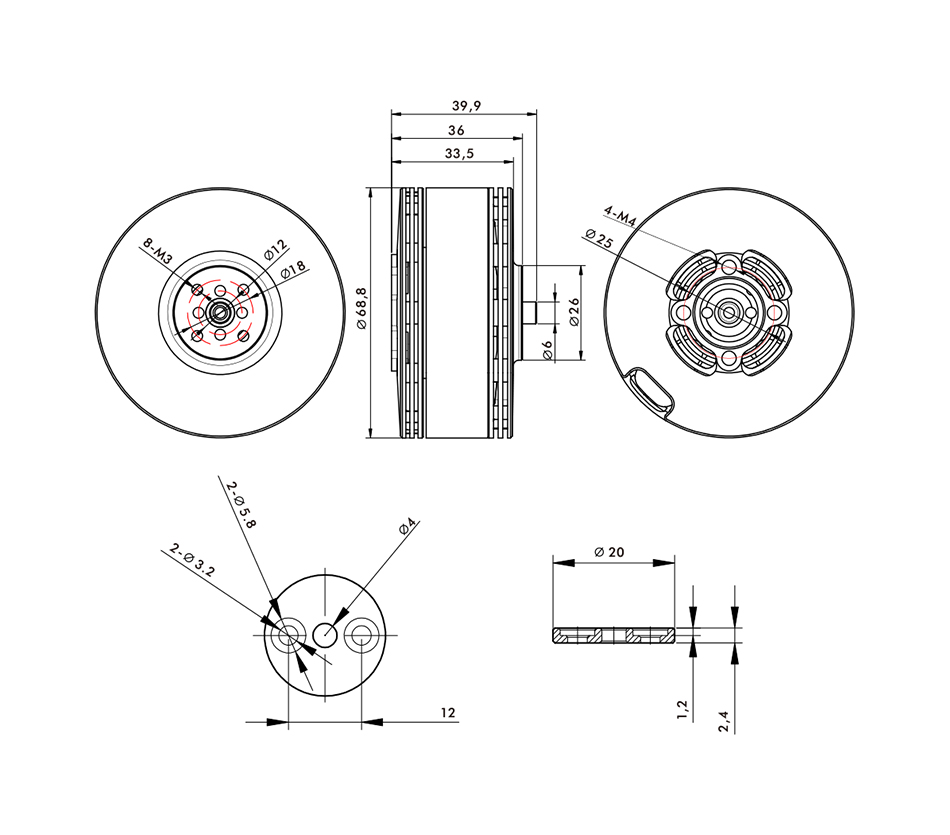

Technical Drawing

Specification Export to Excel

Motor Size	Φ68.8*34.9mm	Copper Wire	180℃ high temperature resistance: Level H
Stator	Imported silicon steel sheet; Anti-rust treatment; 180°Chigh temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：6mm，OUT：6mm	Rotor Dynamic Balance Standard	≤5Mg
Bearing	Imported 626ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	150℃ high temperature resistance	IP	IP45
Lead Cable	14AWG*150mm

KV	170	Rated Voltage ( Lipo )	6-12S
Idle Current（20V）	1A	ESC Recommendation	FLAME 60A 12S
Peak Current（180s）	35A	Propeller Recommendation	20-22"
Max.Power（180s）	1700W	Motor Weight (indl. Cable)	350g
Internal Resistance	65mΩ	Package Weight	980g(2PCS/SET)

KV	320	Rated Voltage ( Lipo )	6S
Idle Current（17V）	2.2A	ESC Recommendation	FLAME 70A 6S
Peak Current（180s）	55A	Propeller Recommendation	20-22"
Max.Power（180s）	1400W	Motor Weight (indl. Cable)	350g
Internal Resistance	21mΩ	Package Weight	960g(2PCS/SET)

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g/W)	Operating Temperature (℃)
MN605S KV170	T-MOTOR P21*6.3	40%	47.87	1787	0.43	3.80	3358	182	9.82	62.6 (Ambient Temperature: 34.5℃)
		42%	47.86	1862	0.45	4.00	3437	191	9.73
		44%	47.85	2016	0.48	4.50	3574	215	9.36
		46%	47.84	2153	0.51	4.90	3675	234	9.18
		48%	47.82	2311	0.55	5.50	3789	263	8.79
		50%	47.80	2483	0.58	6.00	3922	287	8.66
		52%	47.78	2669	0.62	6.50	4042	311	8.59
		54%	47.75	2763	0.66	6.90	4165	329	8.39
		56%	47.73	2947	0.67	7.50	4288	358	8.23
		58%	47.71	3115	0.71	8.10	4363	386	8.06
		60%	47.69	3315	0.75	8.70	4471	415	7.99
		62%	47.66	3435	0.79	9.30	4598	443	7.75
		64%	47.64	3582	0.83	9.80	4705	467	7.67
		66%	47.61	3746	0.88	10.40	4822	495	7.57
		68%	47.58	3951	0.92	11.20	4927	533	7.41
		70%	47.56	4108	0.95	12.00	5017	571	7.20
		75%	47.48	4584	1.05	13.90	5274	660	6.95
		80%	47.40	5018	1.16	15.90	5531	754	6.66
		90%	47.21	6144	1.43	21.30	6061	1006	6.11
		100%	47.02	7651	1.71	29.10	6650	1368	5.59
MN605S KV170	T-MOTOR P22*6.6	40%	47.92	2067	0.52	4.30	3265	206	10.03	88 (Ambient Temperature: 34.5℃)
		42%	47.91	2208	0.56	4.70	3313	225	9.81
		44%	47.89	2384	0.60	5.20	3509	249	9.57
		46%	47.88	2553	0.65	5.70	3627	273	9.35
		48%	47.86	2704	0.69	6.30	3745	302	8.97
		50%	47.84	2892	0.73	6.90	3860	330	8.76
		52%	47.81	3067	0.77	7.50	3973	359	8.55
		54%	47.79	3273	0.81	8.20	4085	392	8.35
		56%	47.76	3471	0.85	9.00	4208	430	8.08
		58%	47.74	3584	0.88	9.60	4287	458	7.82
		60%	47.71	3736	0.94	10.20	4386	487	7.68
		62%	47.69	3896	0.99	10.90	4473	520	7.49
		64%	47.66	4104	1.03	11.70	4577	558	7.36
		66%	47.63	4283	1.08	12.60	4697	600	7.14
		68%	47.60	4500	1.12	13.50	4808	643	7.00
		70%	47.57	4721	1.18	14.30	4903	680	6.94
		75%	47.48	5477	1.30	17.40	5196	826	6.63
		80%	47.39	6064	1.44	20.20	5450	957	6.33
		90%	47.18	7201	1.72	26.20	5923	1236	5.83
		100%	46.97	8626	2.06	34.60	6469	1625	5.31
MN605S KV320	T-MOTOR P21*6.3	40%	23.87	1465	0.28	6.50	3044	155	9.44	54 (Ambient Temperature: 34.5℃)
		42%	23.86	1552	0.30	7.00	3116	167	9.29
		44%	23.84	1629	0.33	7.50	3215	179	9.11
		46%	23.81	1757	0.36	8.20	3322	195	9.00
		48%	23.79	1883	0.39	8.90	3413	212	8.89
		50%	23.76	2046	0.42	10.00	3564	238	8.61
		52%	23.72	2196	0.46	11.00	3716	261	8.42
		54%	23.69	2354	0.50	11.90	3820	282	8.35
		56%	23.65	2467	0.52	12.70	3904	300	8.21
		58%	23.62	2606	0.56	13.60	4006	321	8.11
		60%	23.59	2751	0.61	14.70	4113	347	7.93
		62%	23.55	2930	0.63	16.00	4228	377	7.78
		64%	23.51	3100	0.67	17.20	4345	404	7.67
		66%	23.47	3262	0.72	18.40	4460	432	7.55
		68%	23.43	3473	0.74	19.80	4585	464	7.49
		70%	23.39	3660	0.80	21.70	4727	508	7.21
		75%	23.28	4111	0.89	25.50	4997	594	6.93
		80%	23.15	4601	0.99	29.80	5297	690	6.67
		90%	22.86	5557	1.19	39.20	5781	896	6.20
		100%	22.61	6542	1.41	50.50	6250	1142	5.73
MN605S KV320	T-MOTOR P22*6.6	40%	23.84	1502	0.34	6.70	2832	139	10.13	64 (Ambient Temperature: 34.5℃)
		42%	23.83	1696	0.37	7.70	2988	155	9.88
		44%	23.80	1772	0.40	8.30	3084	172	9.67
		46%	23.77	1913	0.44	9.00	3197	192	9.41
		48%	23.75	2092	0.47	10.00	3311	213	9.17
		50%	23.71	2294	0.51	11.40	3462	236	8.96
		52%	23.68	2483	0.55	12.50	3586	264	8.65
		54%	23.64	2658	0.59	14.00	3704	292	8.43
		56%	23.60	2797	0.62	14.70	3801	321	8.25
		58%	23.56	2989	0.67	16.30	3926	350	7.96
		60%	23.52	3140	0.72	17.40	4031	378	7.70
		62%	23.48	3277	0.77	18.70	4137	407	7.64
		64%	23.44	3509	0.81	20.20	4265	439	7.36
		66%	23.40	3620	0.85	21.70	4346	476	7.25
		68%	23.35	3875	0.91	23.30	4465	508	7.17
		70%	23.30	4054	0.95	25.20	4584	544	7.00
		75%	23.17	4584	1.06	30.00	4859	636	6.69
		80%	23.05	5038	1.17	35.10	5105	726	6.38
		90%	22.75	6108	1.42	45.30	5591	939	5.90
		100%	22.46	7178	1.67	58.60	6008	1136	5.52
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)

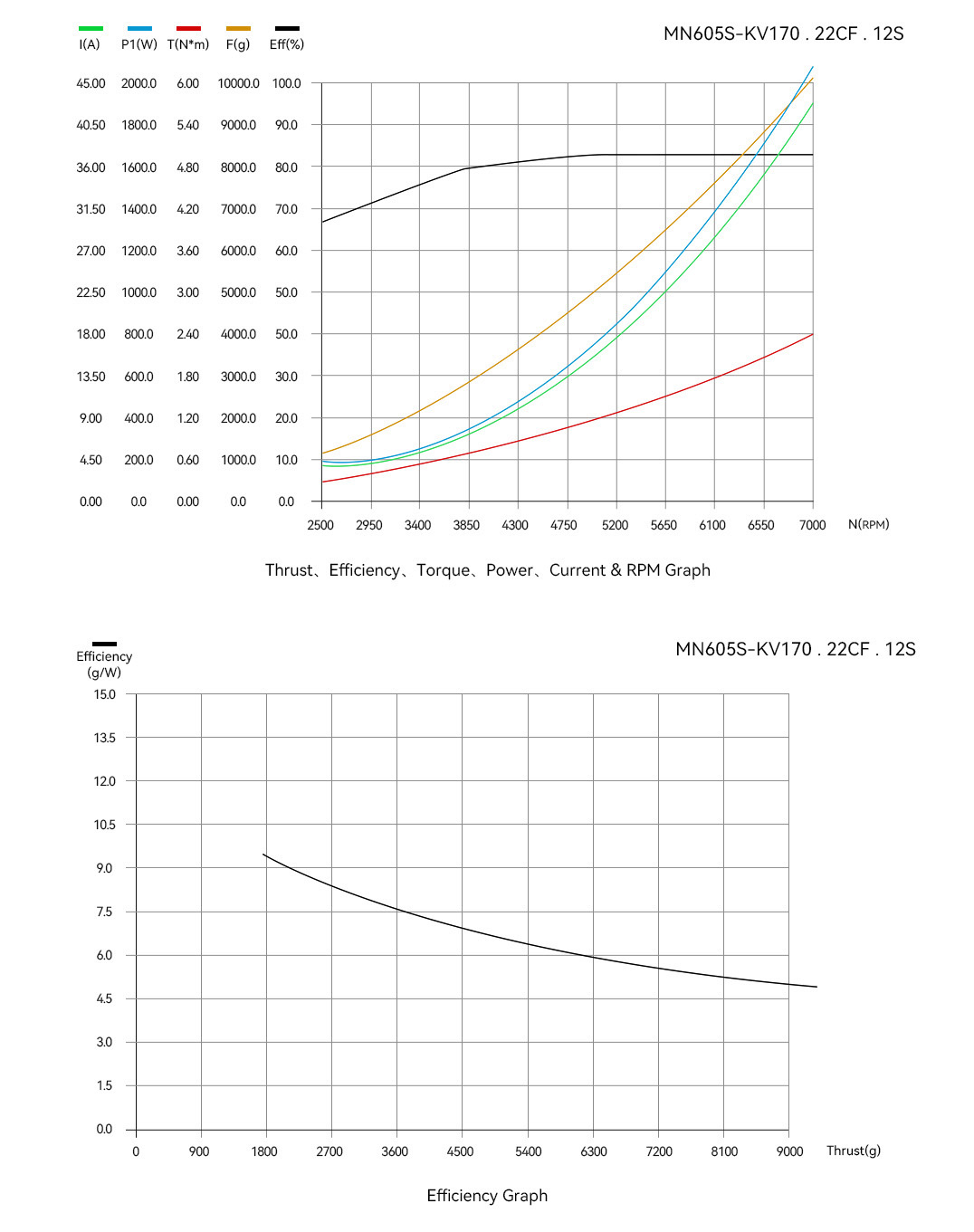

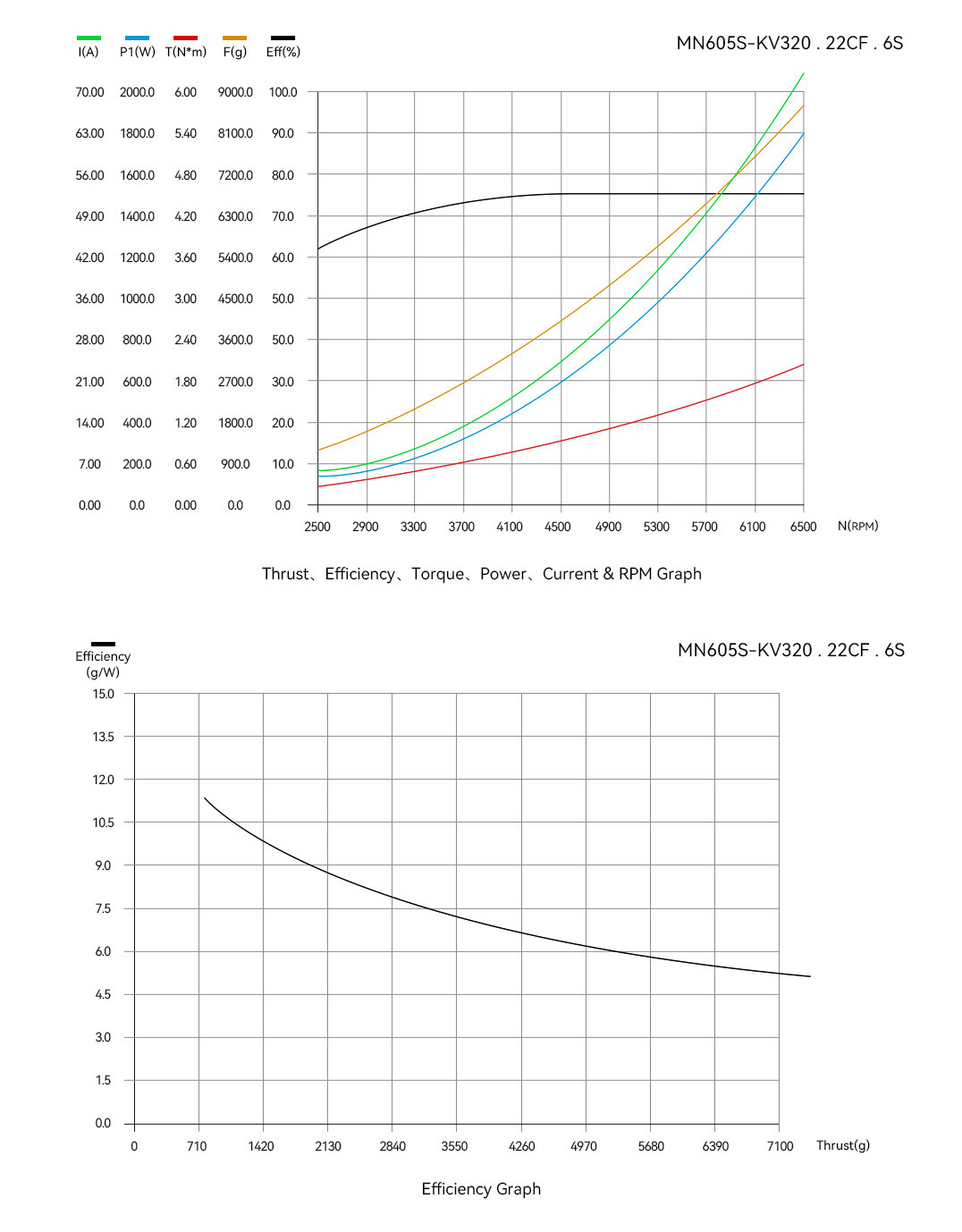

Analysis Chart

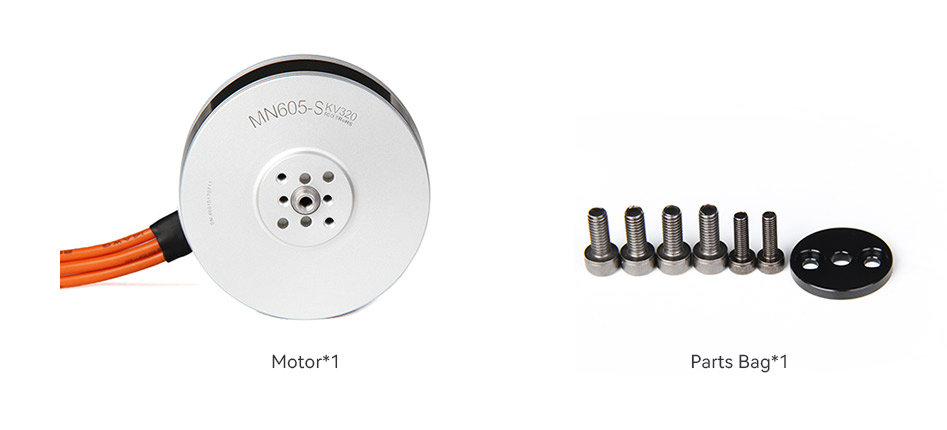

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
