Name: T-MOTOR MN701-S KV280 Waterproof UAV Motor with 9kg Max Thrust 2PCS/SET
Brand: LIGPOWER
SKU: AWD01010168
Price: 439.98 USD
Availability: InStock

T-MOTOR MN701-S KV280 Waterproof UAV Motor with 9kg Max Thrust 2PCS/SET

439.98

Available points: 440 Points Points reward: 439 Points

• Strong power ,long service life
• Excellent cooling performance
• Anti-high temperature/Anti-overload
• Dust-resistance/Waterproof/Anti-corrosion

Parameter：

KV135
KV280

Quantity：

439.98

Free Shipping by DHL/UPS Express

Relevant Products

T-MOTOR FLAME 60A 12S V2.0 Multi-Rotor UAVs ESC

$99.99
T-MOTOR G26*8.5 Prop-4PCS/PAIR

$235.9
T-MOTOR G24*7.8 Prop-2PCS/PAIR

$243.9
T-MOTOR P26*7.8 Prop-2PCS/PAIR

$212.9
T-MOTOR P24*7.2 Prop-2PCS/PAIR

$176.9
T-MOTOR FLAME 80A 12S V2.0 Multi-Rotor UAVs ESC

$119.99
T-MOTOR NS24*7.2 Prop-2PCS/PAIR

$219.99
T-MOTOR NS26*8.5 Prop-2PCS/PAIR

$269.99

Detail information
Specifications

About T-MOTOR Navigator MN701-S Multirotor Fixed Wing UAV Motor KV280

T-MOTOR MN701-S KV280 Brushless Motor (2x) delivers exceptional performance with 9.7+ kg thrust and advanced cooling design.

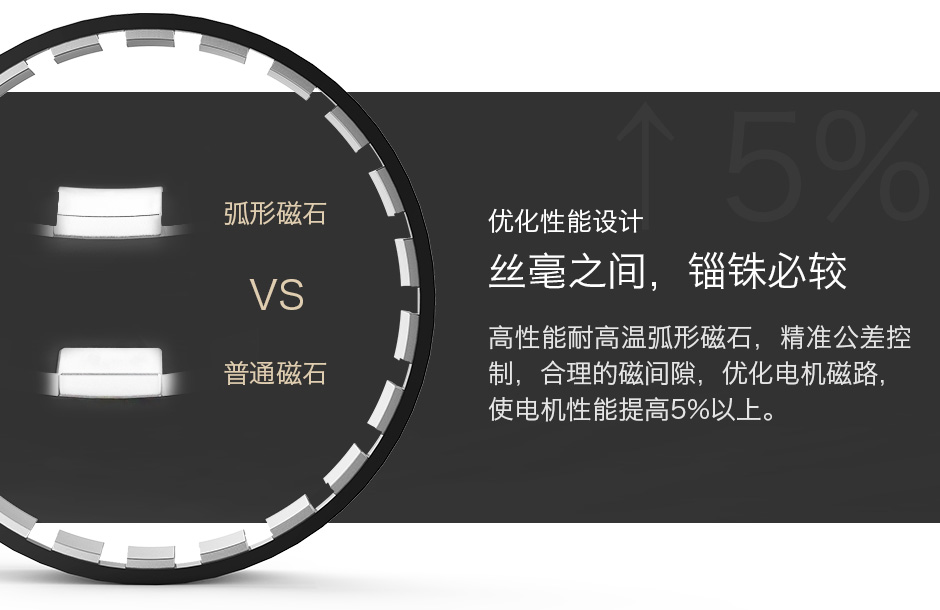

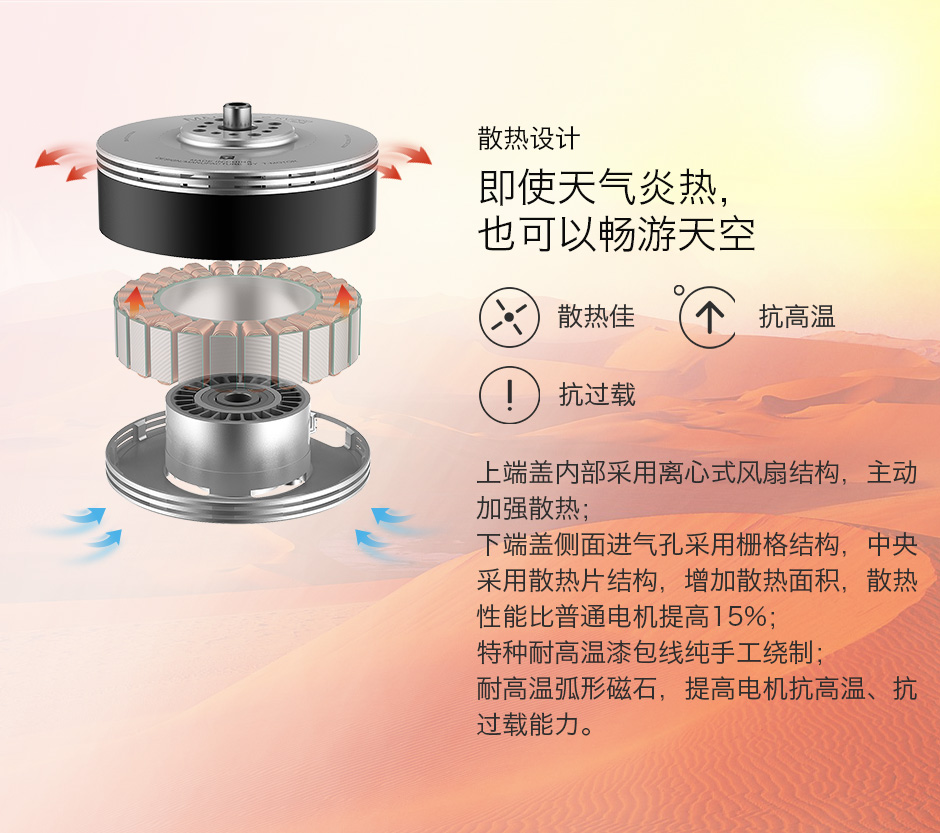

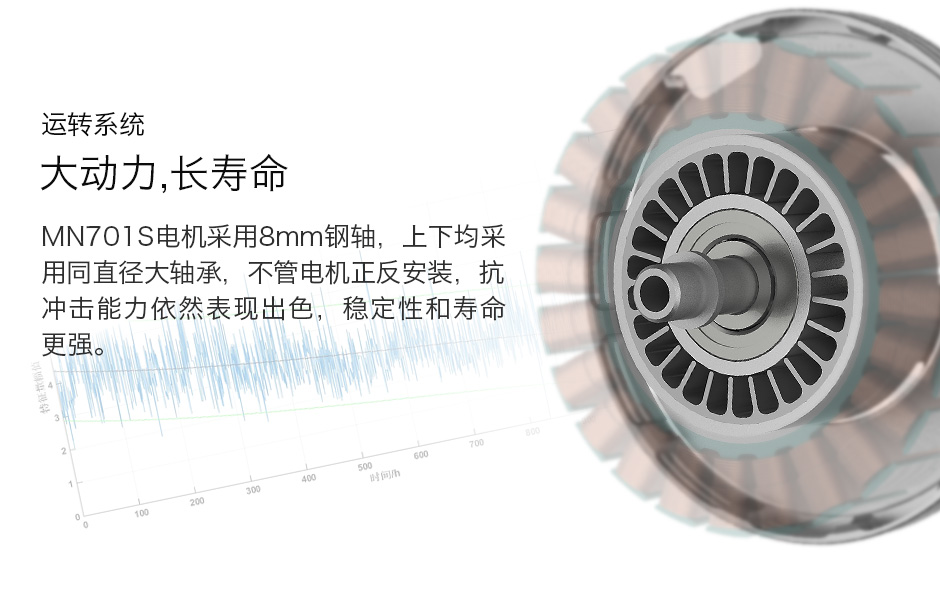

Its centrifugal fan and enhanced motor base improve heat dissipation by 15%, ensuring stability and reliability. Built with high-temperature resistant magnets and varnished wires, it offers excellent heat and overload resistance. Featuring IP45 protection, dust-resistance, waterproofing, and anti-corrosion, this motor is perfect for multi-rotors, VTOL, and fixed-wing UAVs. MTBF: 1000 hours.

Navigator MN701-S Highlights:

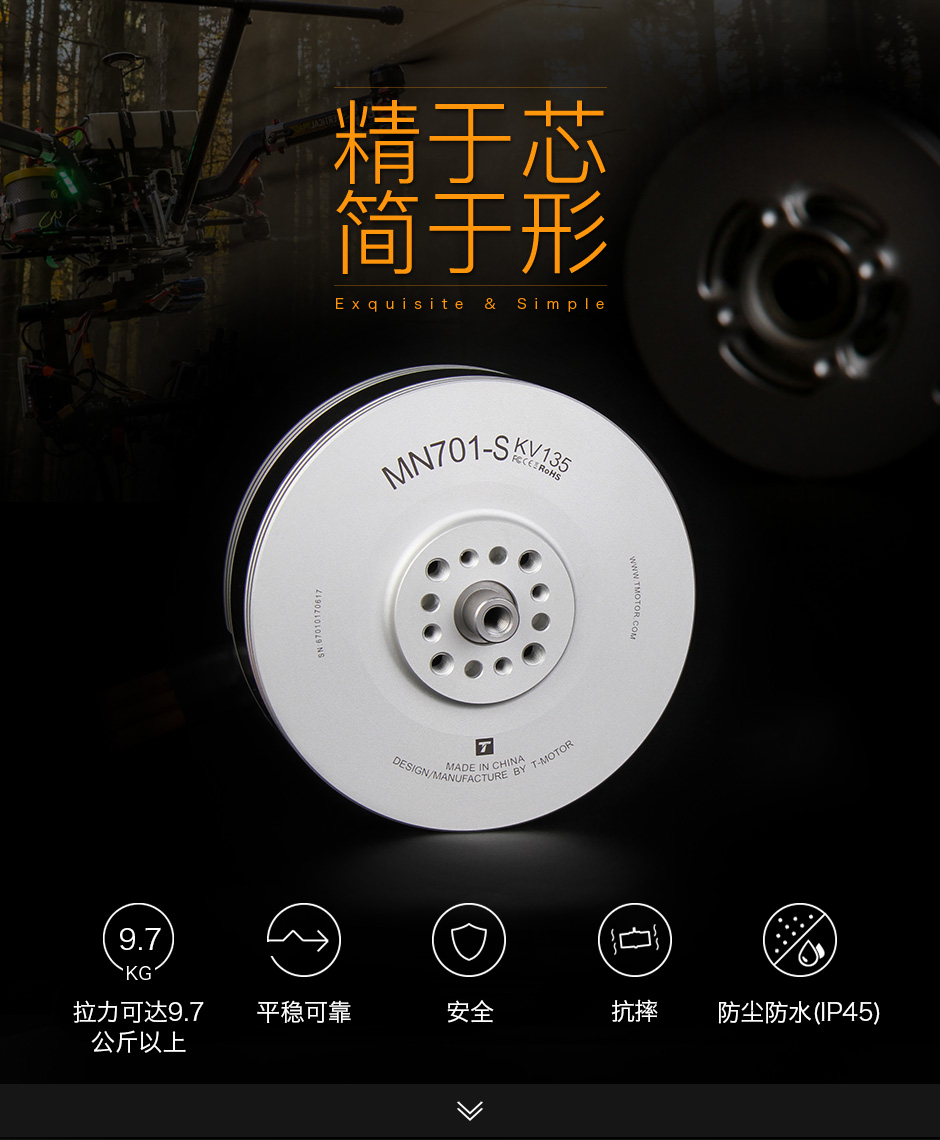

Max thrust: 9.7kg
MTBF: About 1000hours
Features: Dust-resistance/Waterproof/Anti-corrosion

"Navigator" motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings.

Application Areas：

Cargo Drones, Tethered, Mapping and Inspection.

Packing List Includes:

1x T-MOTOR MN701 Motor KV280 ( kv which you choose)

1x Hardware pack

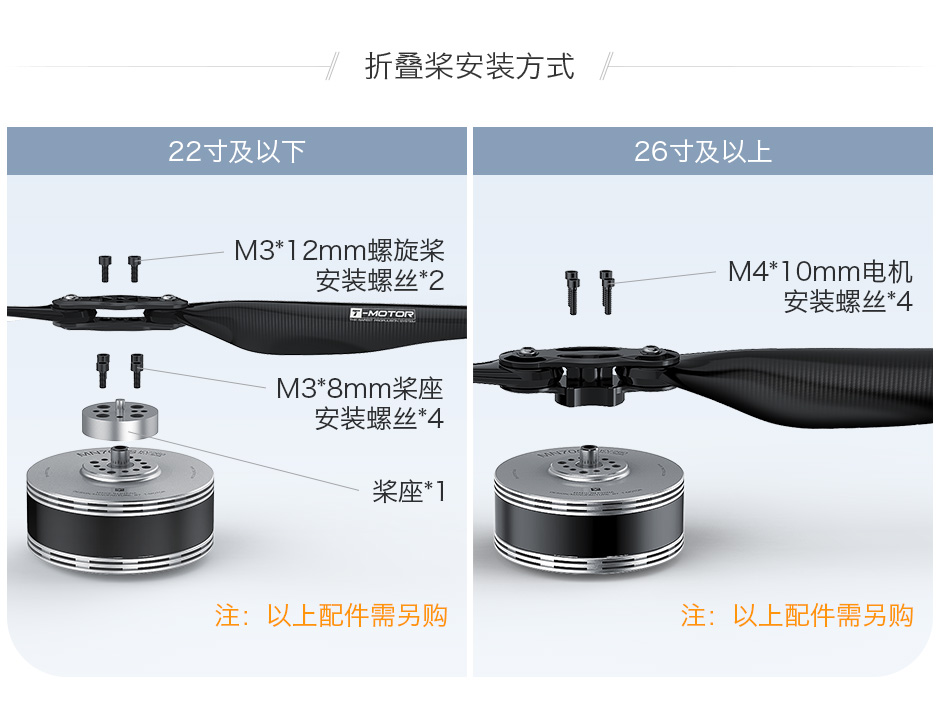

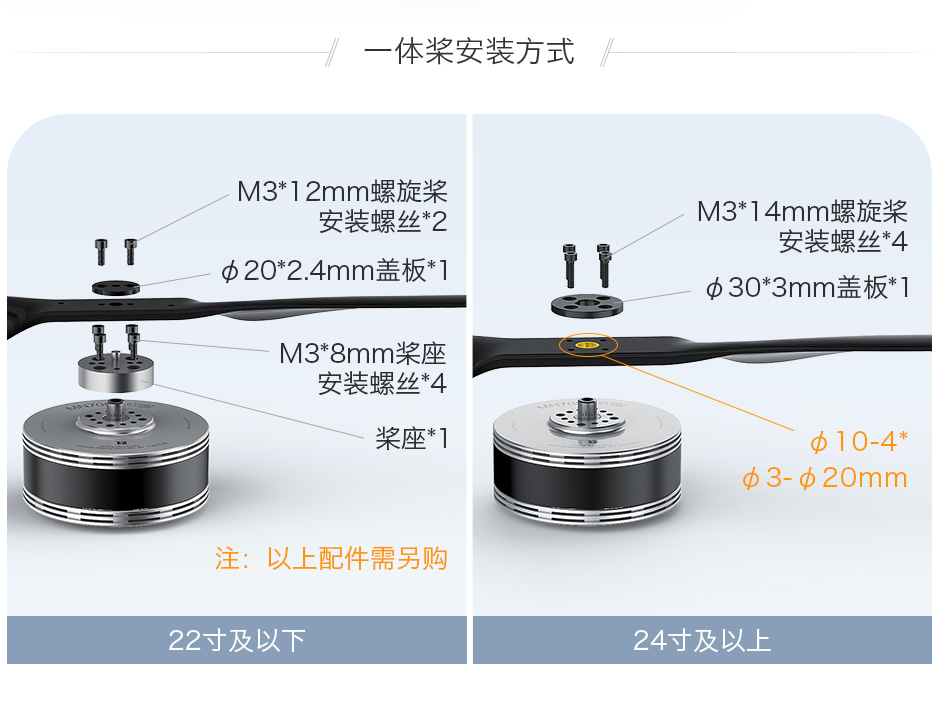

Matching Guide:

T-MOTOR G26*8.5 Prop

If you have any questions or inquires, please contact us: onlinesales@ligpower.com

Technical Drawing

Specification Export to Excel

Motor Size	Φ79.2*37.4mm	Copper Wire	220℃ high temperature resistance: Level C
Stator	Imported silicon steel sheet; Anti-rust treatment; 180°Chigh temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：8mm，OUT：8mm	Rotor Dynamic Balance Standard	≤5Mg
Bearing	Imported 608ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	150℃ high temperature resistance	IP	IP45
Lead Cable	14AWG*150mm

KV	135	Rated Voltage ( Lipo )	6-12S
Idle Current（20V）	0.9A	ESC Recommendation	FLAME 60A 12S FLAME 80A 12S V2.0
Peak Current（180s）	42A	Propeller Recommendation	24-26"
Max.Power（180s）	1900W	Motor Weight (indl. Cable)	350g
Internal Resistance	94mΩ	Package Weight	1050g(2PCS/SET)

KV	280	Rated Voltage ( Lipo )	6S
Idle Current（17V）	2.0A	ESC Recommendation	FLAME 70A 6S FLAME 100A 6S
Peak Current（180s）	65A	Propeller Recommendation	24-26"
Max.Power（180s）	1600W	Motor Weight (indl. Cable)	355g
Internal Resistance	23mΩ	Package Weight	1068g(2PCS/SET)

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g/W)	Operating Temperature (℃)
MN701S KV135	T-MOTOR P24*7.2	40%	47.87	1875	0.60	3.30	2487	158	11.87	70 (Ambient Temperature: 34.5℃)
		42%	47.85	1976	0.65	3.60	2560	172	11.47
		44%	47.84	2220	0.70	4.20	2692	201	11.05
		46%	47.82	2380	0.74	4.60	2773	220	10.82
		48%	47.80	2477	0.80	4.90	2853	234	10.58
		50%	47.79	2692	0.85	5.50	2972	263	10.24
		52%	47.76	2812	0.90	6.00	3058	287	9.81
		54%	47.74	3155	0.95	7.10	3202	339	9.31
		56%	47.73	3239	1.00	7.40	3273	353	9.17
		58%	47.70	3387	1.07	8.00	3469	382	8.88
		60%	47.68	3625	1.13	8.80	3456	420	8.64
		62%	47.66	3801	1.18	9.40	3517	448	8.48
		64%	47.63	3934	1.24	10.00	3600	476	8.26
		66%	47.61	4165	1.29	10.80	3687	514	8.10
		68%	47.58	4403	1.34	11.60	3755	552	7.98
		70%	47.55	4628	1.43	12.40	3856	590	7.85
		75%	47.48	5047	1.54	14.20	4024	674	7.49
		80%	47.39	5561	1.70	16.30	4221	772	7.20
		90%	47.22	6515	2.00	21.10	4546	996	6.54
		100%	47.03	8011	2.31	28.60	4981	1345	5.96
MN701S KV135	T-MOTOR G26*8.5	40%	47.78	2774	0.98	5.10	2380	244	11.38	HOT (Ambient Temperature: 34.5℃)
		42%	47.76	3067	1.04	5.70	2484	272	11.27
		44%	47.74	3212	1.10	6.50	2568	310	10.35
		46%	47.71	3378	1.16	6.90	2643	329	10.26
		48%	47.69	3546	1.24	7.50	2707	358	9.91
		50%	47.67	3837	1.30	8.30	2812	396	9.70
		52%	47.64	4094	1.38	9.20	2903	438	9.34
		54%	47.61	4279	1.46	9.80	2962	467	9.17
		56%	47.58	4494	1.53	10.60	3037	504	8.91
		58%	47.53	4943	1.63	12.20	3172	580	8.52
		60%	47.50	5002	1.71	12.60	3212	599	8.36
		62%	47.47	5230	1.77	13.50	3285	641	8.16
		64%	47.44	5470	1.83	14.50	3362	688	7.95
		66%	47.41	5637	1.89	15.50	3446	735	7.67
		68%	47.37	5824	1.96	16.40	3516	777	7.50
		70%	47.33	6011	2.04	17.40	3617	824	7.30
		75%	47.24	6613	2.21	20.10	3730	950	6.96
		80%	47.13	7194	2.39	22.90	3869	1079	6.67
		90%	46.89	8321	2.72	29.60	4164	1388	6.00
		100%	46.64	9733	2.98	39.50	4468	1842	5.28
MN701S KV280	T-MOTOR P24*7.2	40%	23.82	1511	0.50	6.00	2262	143	10.57	58 (Ambient Temperature: 34.5℃)
		42%	23.79	1684	0.55	6.80	2382	162	10.41
		44%	23.75	1810	0.59	7.40	2476	176	10.30
		46%	23.72	2022	0.65	8.70	2592	206	9.80
		48%	23.68	2252	0.71	9.80	2754	232	9.70
		50%	23.63	2483	0.77	11.40	2880	269	9.22
		52%	23.58	2648	0.83	12.60	3004	297	8.91
		54%	23.54	2881	0.89	14.00	3096	330	8.74
		56%	23.50	3077	0.94	15.30	3193	360	8.56
		58%	23.45	3268	0.99	16.60	3260	389	8.40
		60%	23.43	3466	1.02	18.20	3312	426	8.13
		62%	23.36	3669	1.10	19.60	3463	458	8.01
		64%	23.31	3862	1.16	21.20	3555	494	7.82
		66%	23.25	4087	1.23	22.80	3638	530	7.71
		68%	23.19	4247	1.29	24.40	3724	566	7.51
		70%	23.14	4490	1.35	27.10	3820	627	7.16
		75%	22.99	4963	1.49	30.80	4004	708	7.01
		80%	22.85	5398	1.61	35.30	4206	807	6.69
		90%	22.46	6602	1.92	48.10	4604	1080	6.11
		100%	22.10	7618	2.17	60.60	4935	1339	5.69
MN701S KV280	T-MOTOR G26*8.5	40%	23.55	2189	0.66	8.70	2161	205	10.68	HOT (Ambient Temperature: 34.5℃)
		42%	23.50	2351	0.73	9.80	2236	230	10.21
		44%	23.46	2603	0.81	11.10	2336	260	10.00
		46%	23.41	2854	0.88	12.40	2433	290	9.83
		48%	23.33	3100	0.97	14.00	2536	327	9.49
		50%	23.27	3376	1.03	15.90	2642	370	9.12
		52%	23.21	3675	1.09	17.60	2757	409	9.00
		54%	23.13	3879	1.16	19.50	2835	451	8.60
		56%	23.05	4144	1.24	21.40	2923	493	8.40
		58%	22.97	4441	1.30	23.80	3024	547	8.12
		60%	22.90	4612	1.37	25.30	3089	579	7.96
		62%	22.81	4831	1.44	27.70	3164	632	7.65
		64%	22.72	5180	1.51	30.40	3265	691	7.50
		66%	22.65	5355	1.58	32.00	3322	725	7.39
		68%	22.58	5555	1.64	34.10	3391	770	7.21
		70%	22.50	5782	1.74	36.30	3457	817	7.08
		75%	22.24	6390	1.92	43.00	3634	956	6.68
		80%	22.05	6860	2.08	48.80	3773	1076	6.38
		90%	21.58	8005	2.40	63.70	4076	1375	5.82
		100%	21.11	9040	2.66	80.60	4333	1701	5.31
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)

Analysis Chart

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
