T-MOTOR MN8014 High Efficiency Multirotors UAV Motor with 13.9kg Max Thrust KV100

279.90

Available points: 13000 Points Points reward: 279 Points

• Ultra light, high efficiency
• Max.Thrust:13.9kg, Motor Weight:392g, Power Ratio:35
KV：
  • KV100
Quantity：

279.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

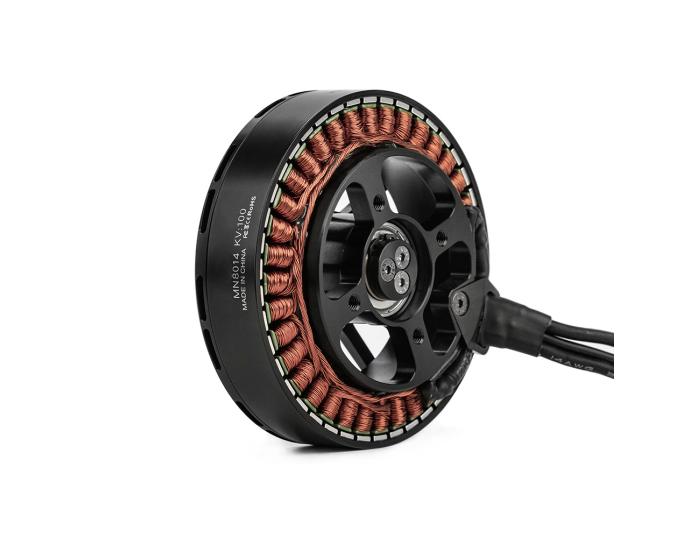

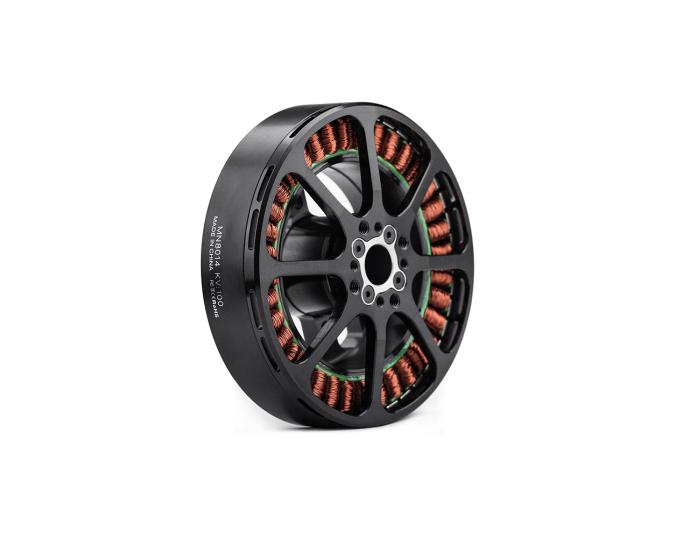

About T-MOTOR MN8014 Multirotor VTOL UAV Motor KV100

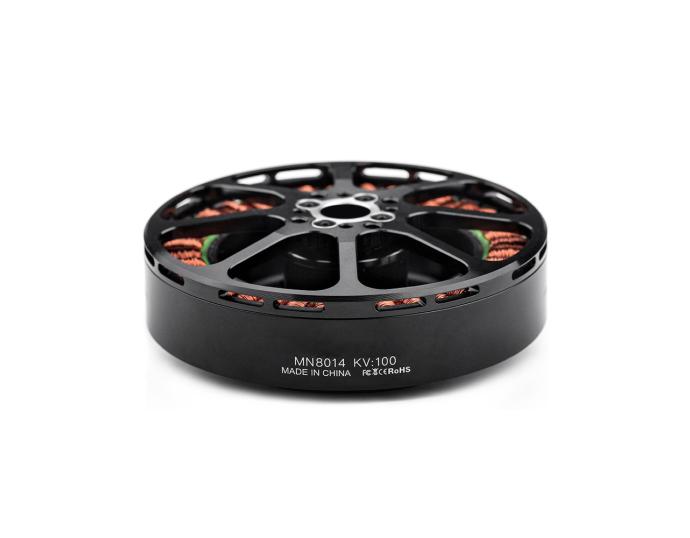

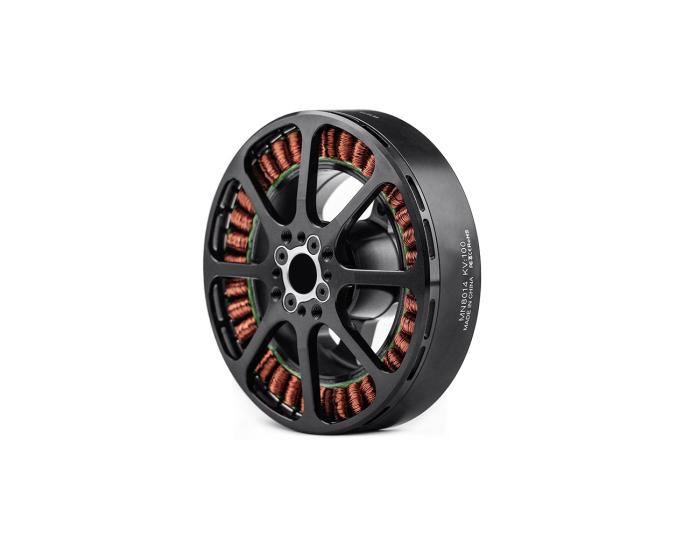

T-MOTOR Antigravity MN8014 KV100 Brushless Motor is designed to deliver exceptional power and reliability for professional UAVs, including multi-rotors and VTOL applications. With a maximum thrust of 13.9kg and a power ratio of 35, this motor provides the perfect balance of performance and durability, ensuring smooth, stable flights even under heavy loads.

Antigravity MN8014 Highlights:


  • Ultra light, high efficiency

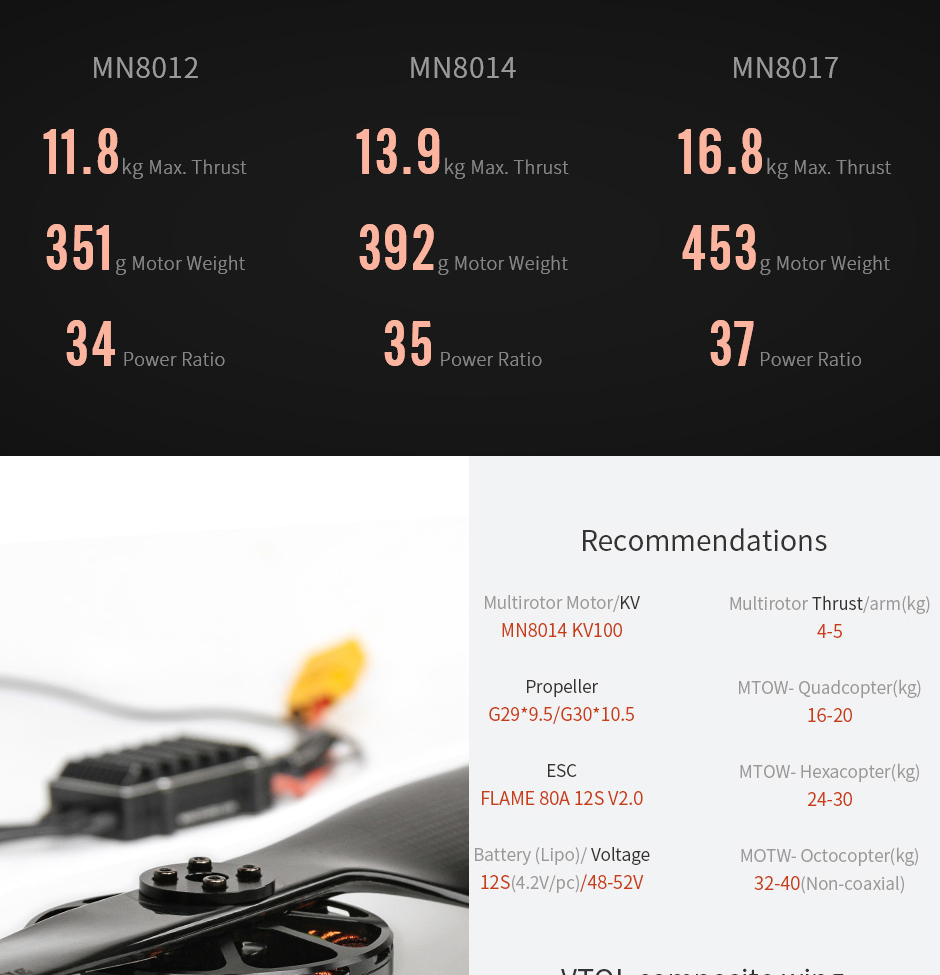

  • Max.Thrust:13.9kg, Motor Weight:439g, Power Ratio:35

  • Employment of 15mm aluminium shaft and 24mm big bearing for stability improvement and service life extension.

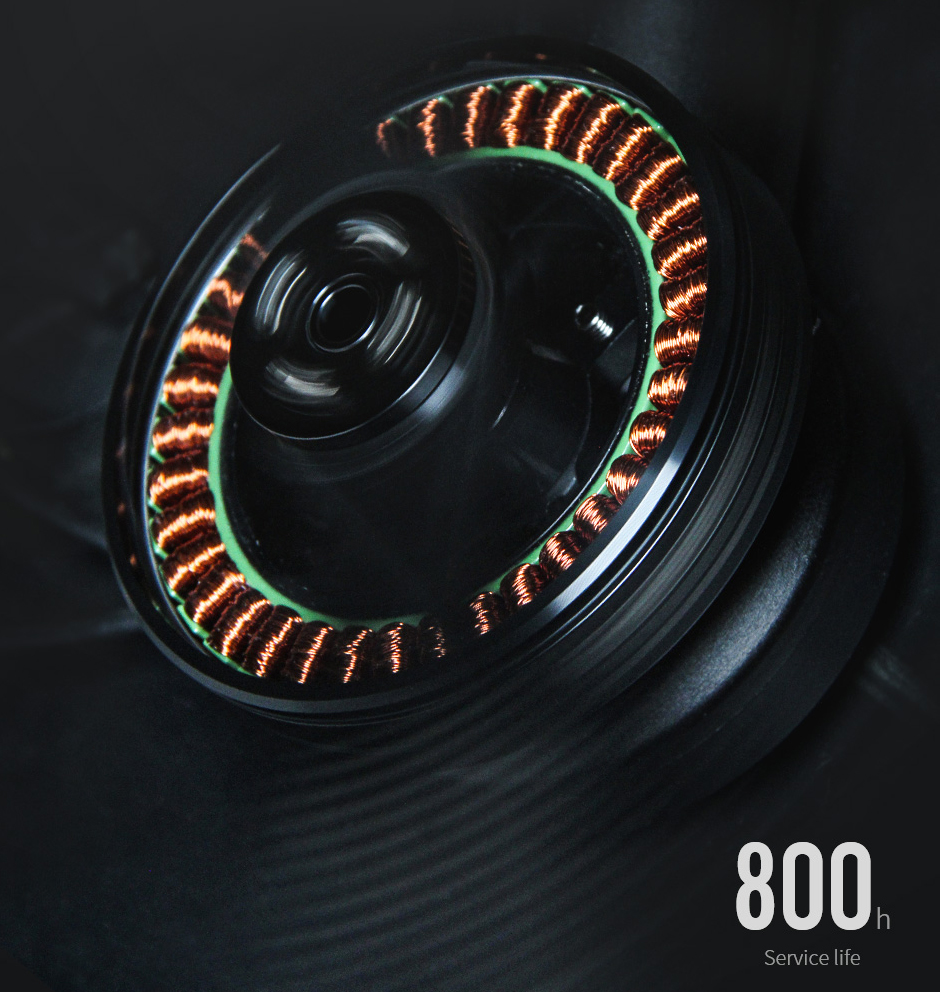

  • Motor service life: 800 hours

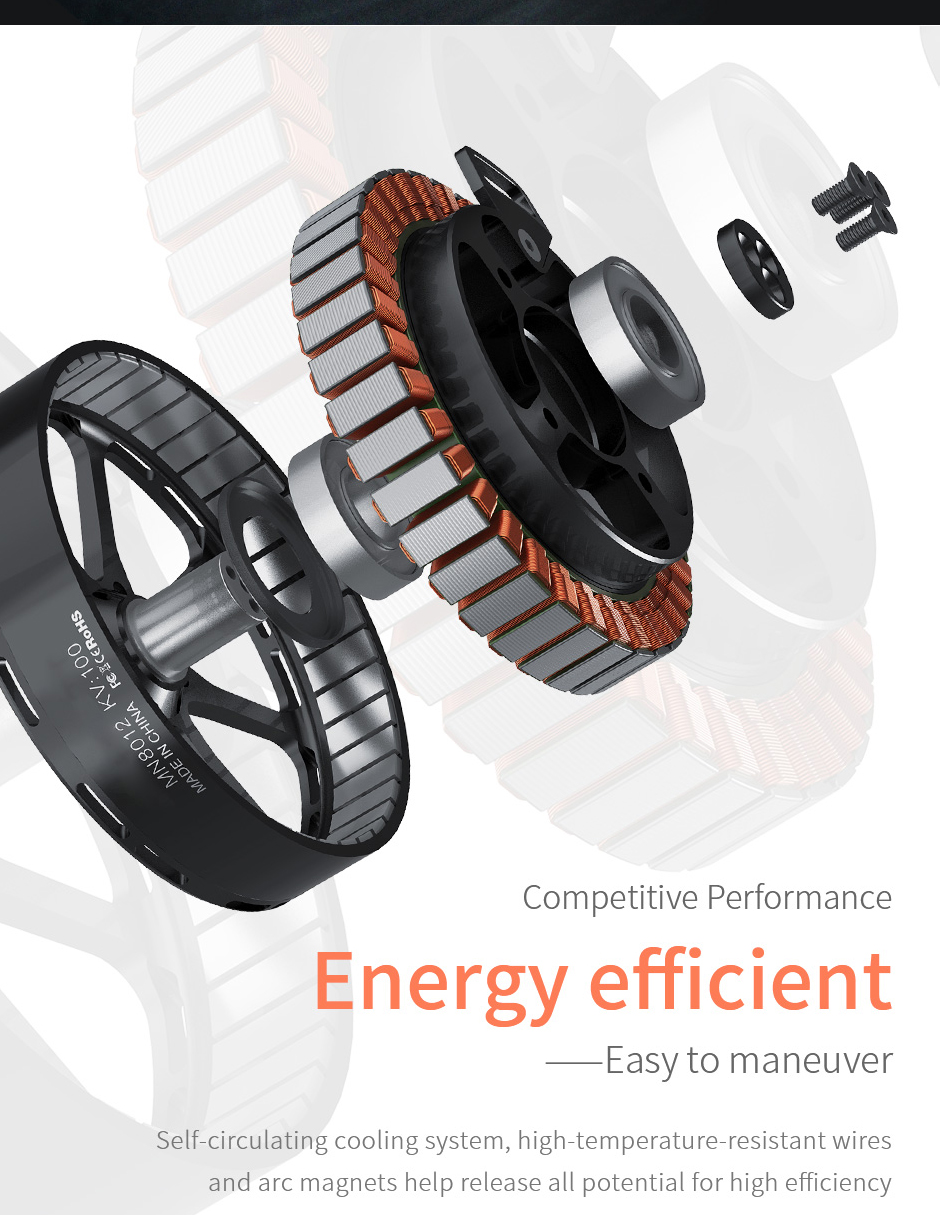

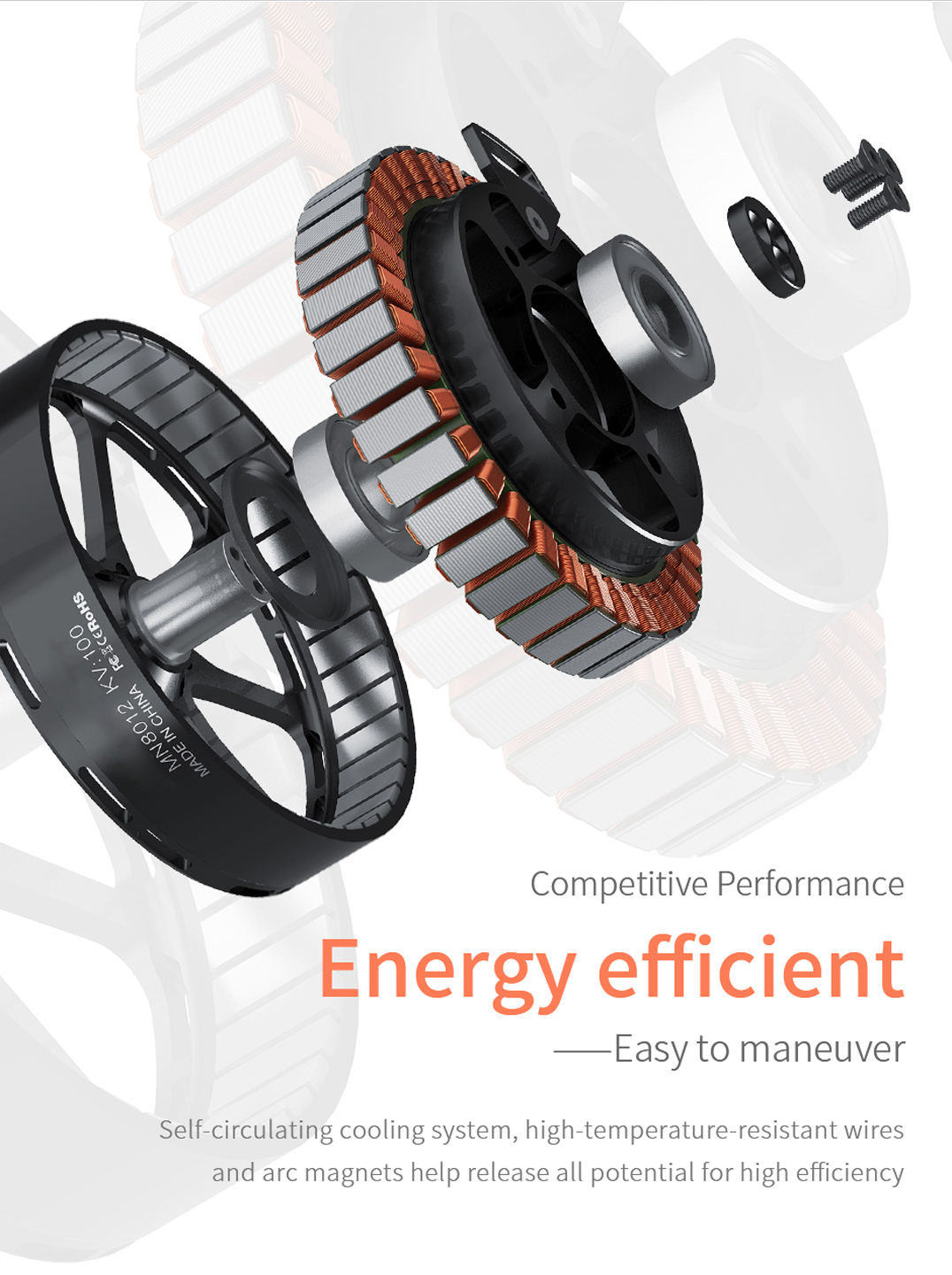

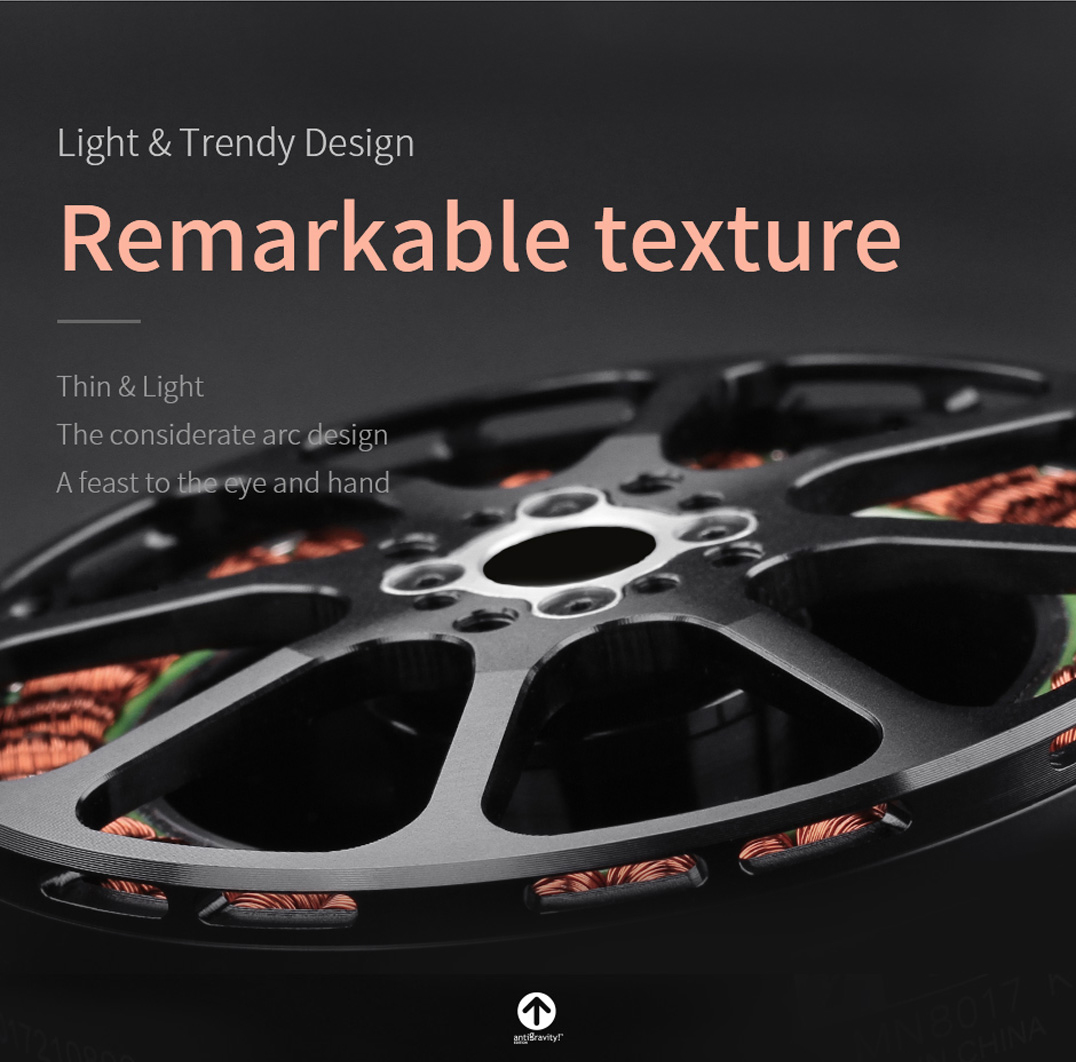

  • Self-circulating cooling system, high-temperature-resistant wires and arc magnets help release all potential for high efficiency.

  • Imported bearings and high strength 7075 aviation aluminium alloy for long motor endurance.


" Antigravity Series" motors are an ultra-light zero gravity for Multi-rotor motor.
High-Qualityimported Materials; High Slot Space Factor On Winding For Longer, Clearer And More Stable Flight.


Application Areas：

Multi-rotors, VTOL，UAVs，Heavy-duty professional drones

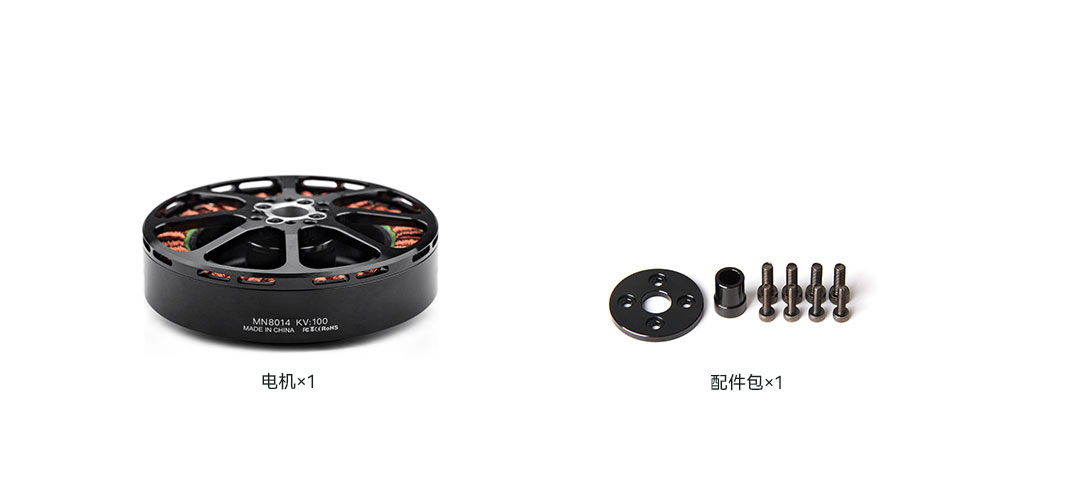

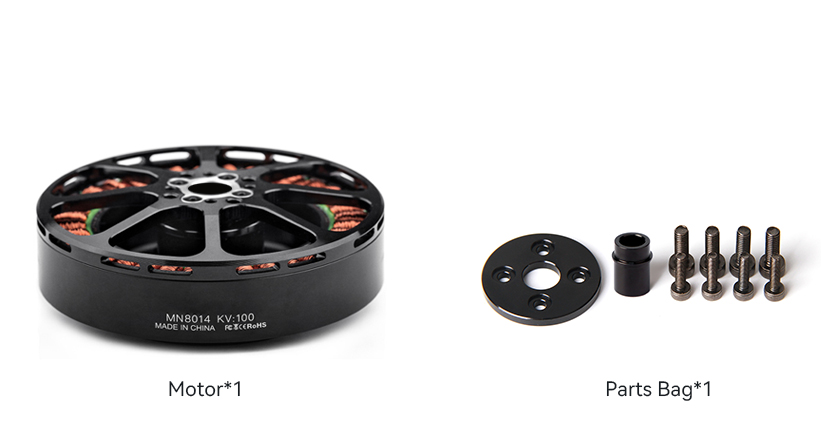

Packing List Includes:

1 x T-MOTOR MN8014 Motor KV100( kv which you choose)

1 x Hardware pack

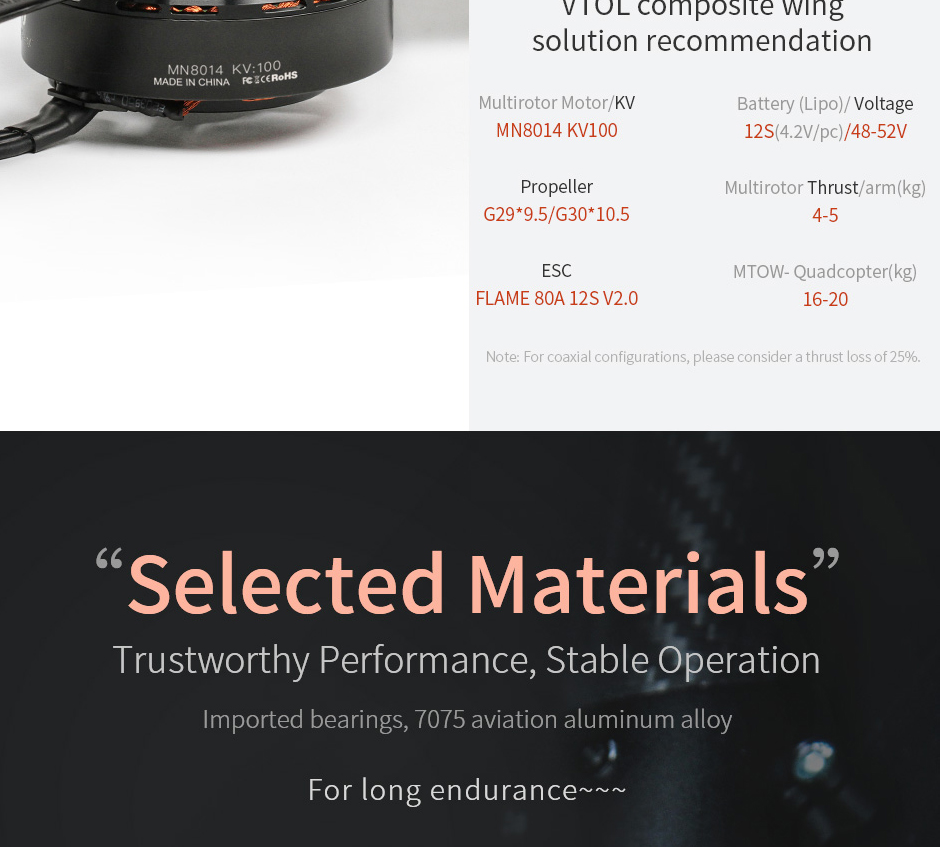

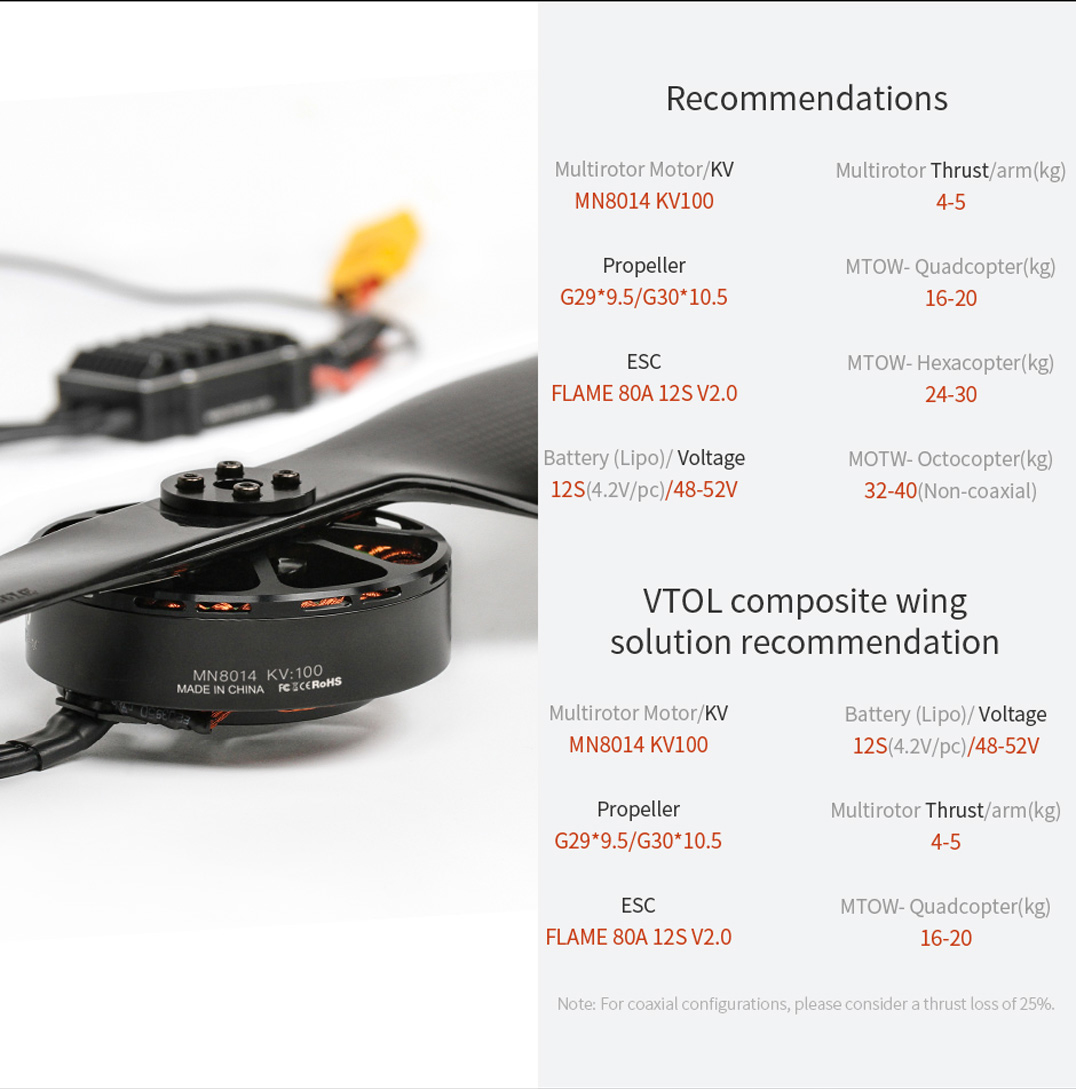

Matching Guide:

T-MOTOR Propeller G29*9.5 / G30*10.5 / FLAME 80A 12S V2.0 ESC

If you have any questions or inquires, please contact us:  onlinesales@ligpower.com


Technical Drawing


Specification Export to Excel
Motor SizeΦ87.8*31.5mmMagnet Level180℃ high temperature resistance
StatorAnti-rust treatment;
180℃high temperature-resisting coatings		Lead14AWG*90mm
Configuration36N42PCopper Wire220℃ high temperature resistance
Shaft DiameterIN：12mmCoil Insulation Test1000V/5s
BearingImported 6901ZZRotor Dynamic Balance Standard≤15Mg
KV100Rated Voltage(Lipo)12S
Idle Current（24V）1.4AInternal Resistance65mΩ
Peak Current（180s）52AWeight (Incl. Cable)392g
Max. Power （180s）2423WPackage Weight602g
Test Data Export to Excel
TypePropellerThrottleVoltage
(V)		Thrust
(g)		Torque
(N*m)		Current
(A)		RPMPower
(W)		Efficiency
(g/W)

Operating

Temperature

(℃)
MN8014
KV100

T-MOTOR

G29*9.5”

40%47.7223250.794.00174019112.2066℃
45%47.6928310.955.17191024711.48
50%47.6634691.166.80210832410.70
55%47.6042831.429.1123334349.88
60%47.5351361.6911.5925525519.32
65%47.4760191.9914.7627607018.59
70%47.3969412.2818.1929588628.05
75%47.3378182.5621.59313610227.65
80%47.2587122.8525.48330012047.24
90%46.99105363.4433.82360315896.63
100%46.77128234.1945.68394721366.00

T-MOTOR

G30*10.5”

40%47.6827200.944.62172522012.3592℃
45%47.6332551.126.01188228611.37
50%47.5039491.367.79206237010.68
55%47.4048581.6710.5122784989.75
60%47.2958512.0113.5724946429.12
65%47.2567712.3216.9326778008.46
70%47.1477982.6720.9328659877.90
75%47.0787903.0125.04303811797.46
80%47.0198153.3629.61319813927.05
90%46.86117784.0439.55349318536.36
100%46.65139404.7951.94377524235.75
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

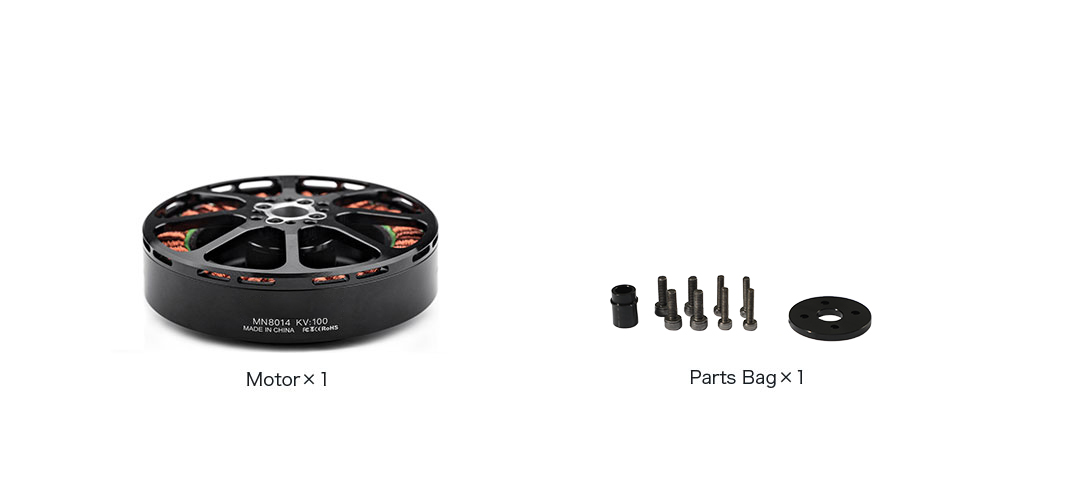

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
