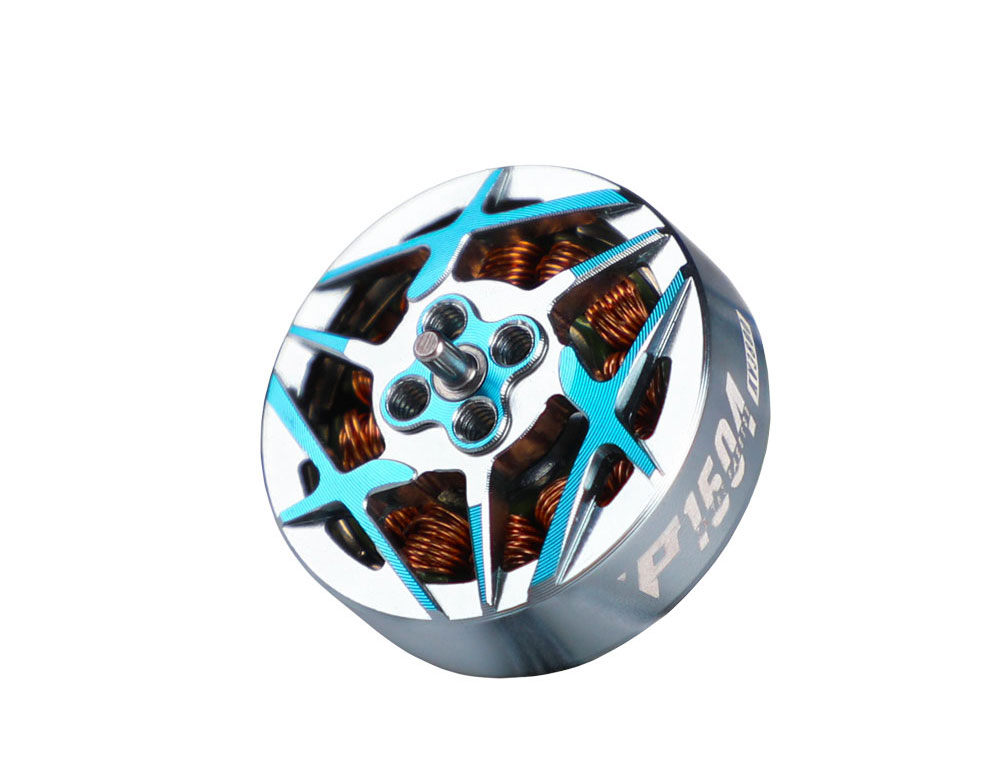

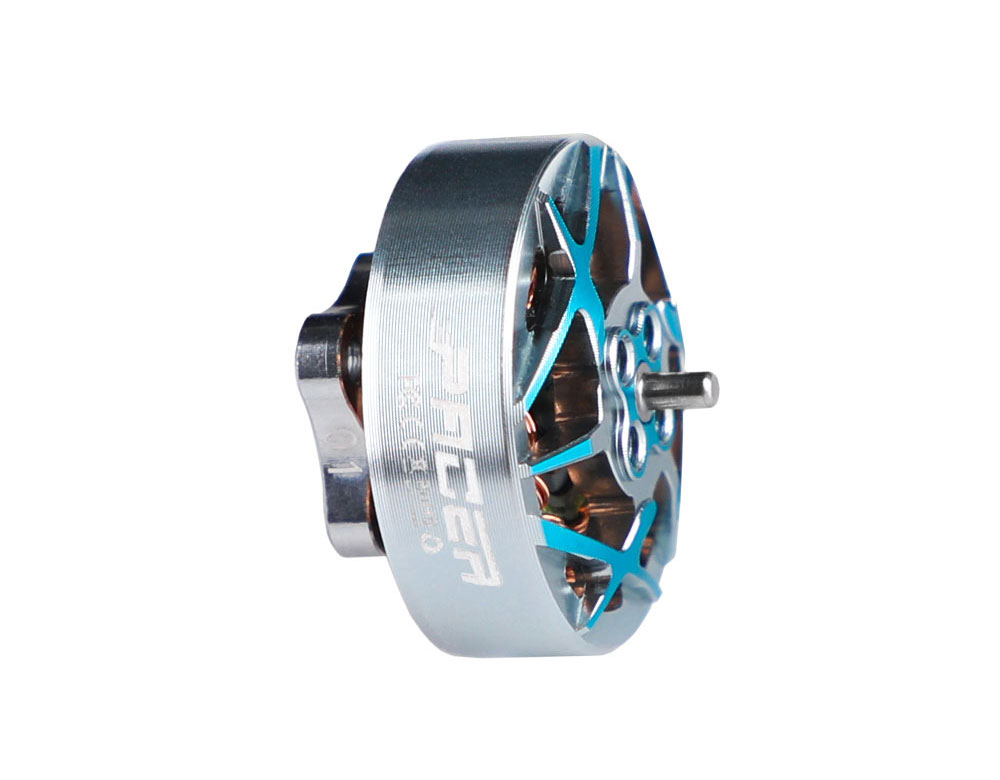

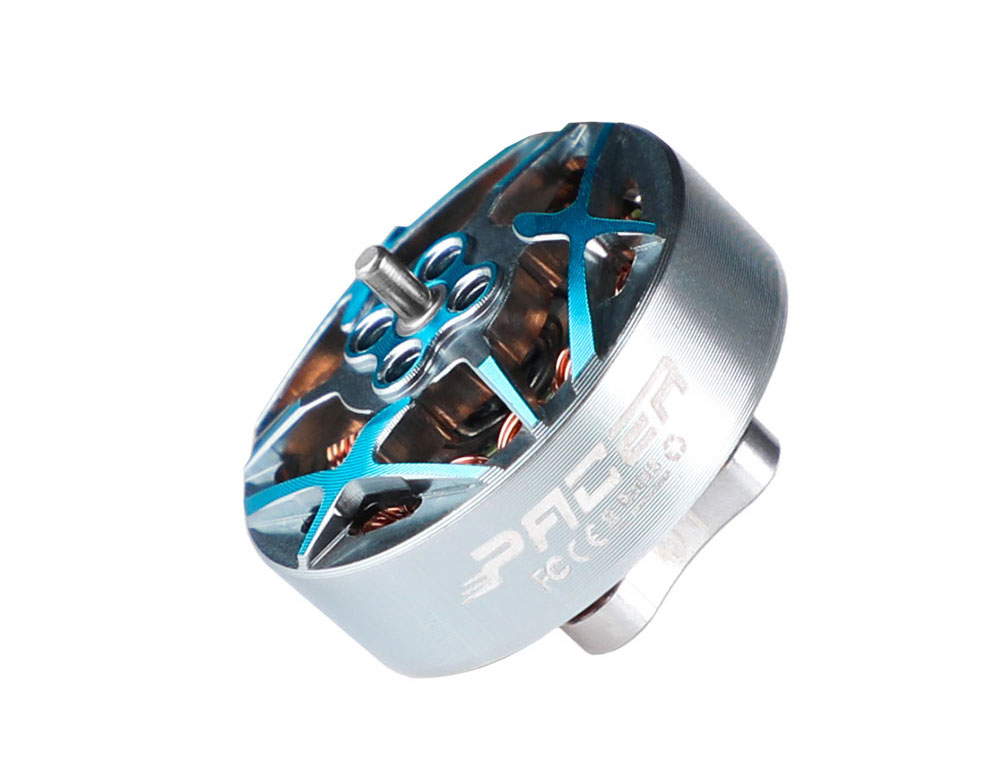

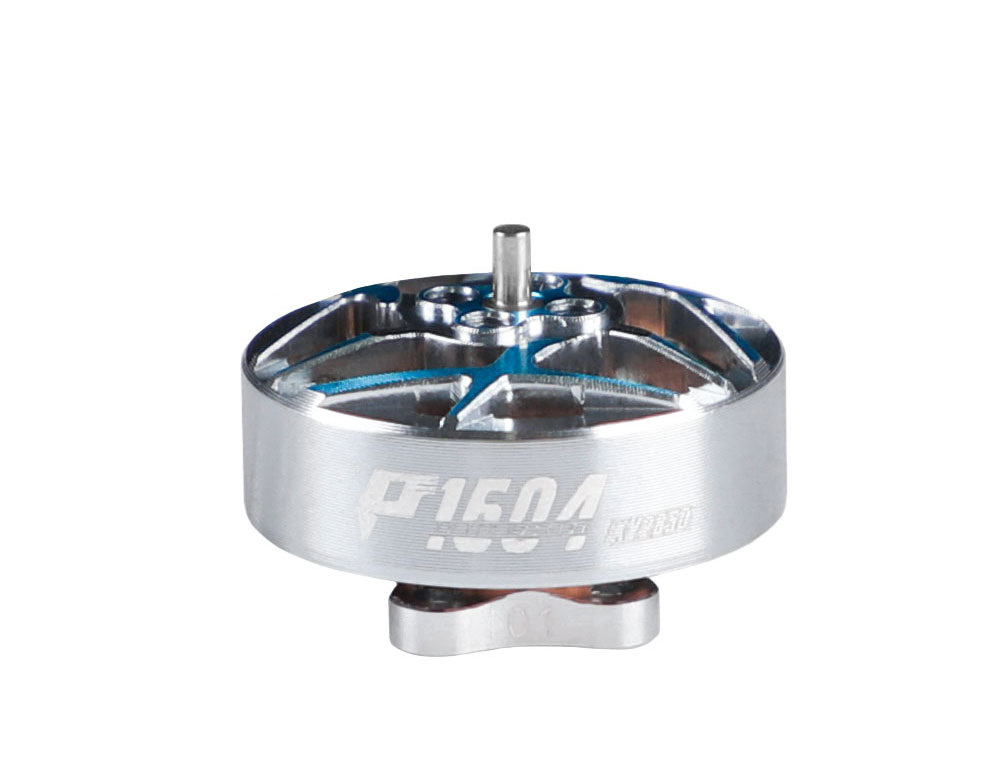

Name: T-HOBBY P1604 3.5'' Freestyle FPV Motor KV2850/KV3800
Brand: LIGPOWER
SKU: LIGPOWER001525
Price: 19.90 USD
Availability: InStock

T-HOBBY P1604 3.5'' Freestyle FPV Motor KV2850/KV3800

19.90

Available points: 20 Points Points reward: 19 Points

1. Unibell-design
2. T-Mount

Parameter：

KV2850
KV3800

Quantity：

19.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

About T-HOBBY P1604 3''Freestyle FPV Motor

The T-HOBBY PACER P1604 Motor is a continuation of the PACER series, but more durable and comes with a bell design!

The 1.5mm shaft and 9x9 mounting holes make this motor appropriate for more props and frames. The P1604 Motor is super light and only weighs 11.6g and is suitable for 3.5" freestyle Sub 250g drones!

Two KV options to chose from: 2850KV (6S) , 3800KV (4S)

P1604 Hightlight:

The Pacer 1604 brushless motor is specially designed for 3.5" freestyle and sub250g drone. Super lightweight, only 11.6g (Incl. cable).

Continuation of the Pacer series sliver unibell design, which is more durable. T-Mount version(1.5mm shaft), suitable for more props and frames.

Packing List Includes:

1x T-HOBBY PACER P1604 Motor

Matching Frame:

3.5 Inch

Matching Guide:

f7 35A aio flight controller

Technical Drawing

Specification Export to Excel

KV	KV2850	Configuration	12N14P
Shaft Diameter	2mm	Lead	24#120mm
Weight (Incl. Cable)	11.6g	Voltage	25.2V
Idle Current（10V）	0.4A	Max. Power（10s）	394.6W
Peak Current（10s）	15.8A

KV	KV3800	Configuration	12N14P
Shaft Diameter	2mm	Lead	24#120mm
Weight (Incl. Cable)	11.6g	Voltage	16.8V
Idle Current（10V）	0.8A	Max. Power（10s）	277.8W
Peak Current（10s）	16.8A

Test Data Export to Excel

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
GF 3520-3	2850KV	20%	25.2	1.4	19580.2	104.1	35.4	2.94
		40%	25.1	4.2	28436.5	235.7	105.8	2.23
		60%	25.1	7.2	34220.1	349.7	179.9	1.94
		80%	25.0	10.4	38863.2	461.7	259.5	1.78
		100%	24.9	15.8	44031.6	618.8	394.6	1.57
	3800KV	20%	16.8	1.5	17311.1	91.2	25.9	3.52
		40%	16.7	4.6	25611.5	202.2	76.6	2.64
		60%	16.7	7.7	30692.7	292.4	127.6	2.29
		80%	16.6	11.0	35219.6	380.5	182.5	2.08
		100%	16.5	16.8	40750.1	514.1	277.8	1.85

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
