Name: T-HOBBY P1804 3''/3.5''/4''Freestyle FPV Motor KV2400/KV3400
Brand: LIGPOWER
SKU: ligpower001280
Price: 20.90 USD
Availability: InStock

T-HOBBY P1804 3''/3.5''/4''Freestyle FPV Motor KV2400/KV3400

20.90

Available points: 21 Points Points reward: 20 Points

Promotion
- LIMITED-TIME FPV SALE 20% OFF

1. Unibell-design
2. Two shaft sizes option

Parameter：

Quantity：

20.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

About T-HOBBY P1804 3''/3.5''/4''Freestyle FPV Drone Motor

The T-HOBBY PACER P1804 Motor is a continuation of the PACER series, but more durable and comes with a bell design! Have 1.5mm and 5mm two shaft sizes.

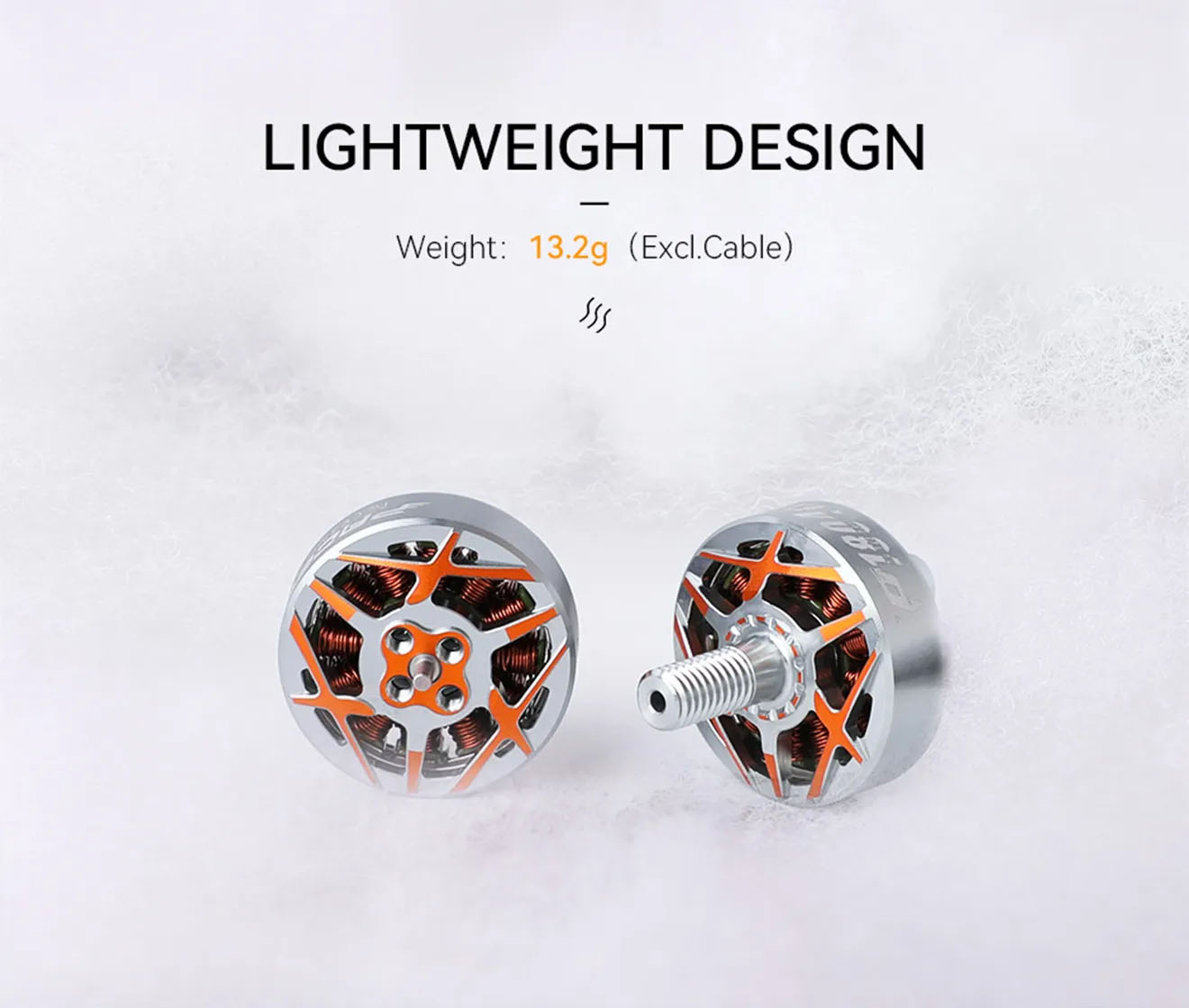

The P1804 Motor is super light and only weighs 13.2g and is suitable for 3", 3.5",4" fpv drone.

P1804 Hightlight:

The P1804 brushless motor is suitable for 3",3.5",4" fpv drone. Lightweight design, only 13.2(Excl. cable). Two KV 2400 and 3400KV

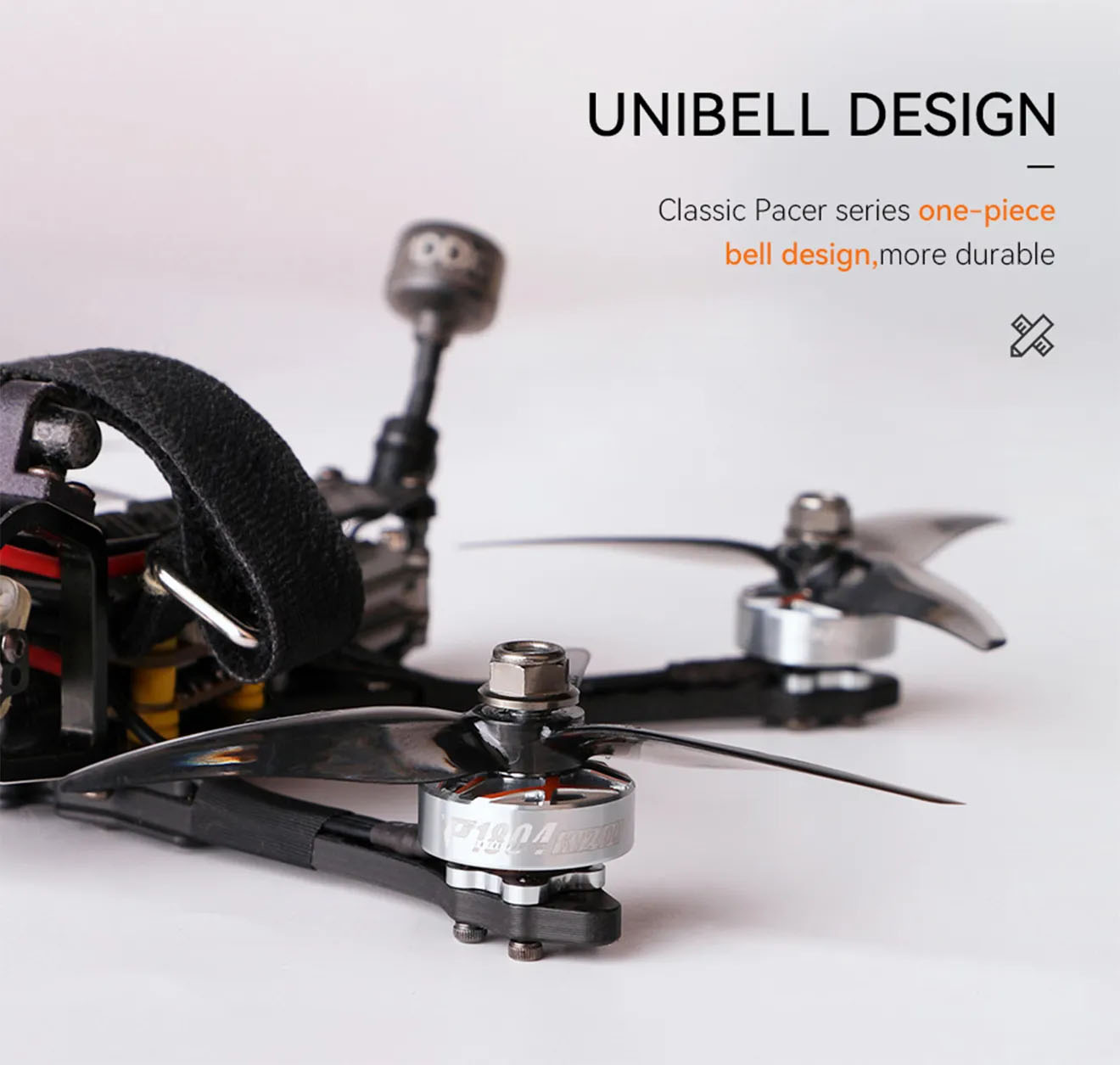

suitable for 3-4s cinewhoop and toothpick, enjoy the smooth flight. Continuation of the Pacer series sliver unibell design

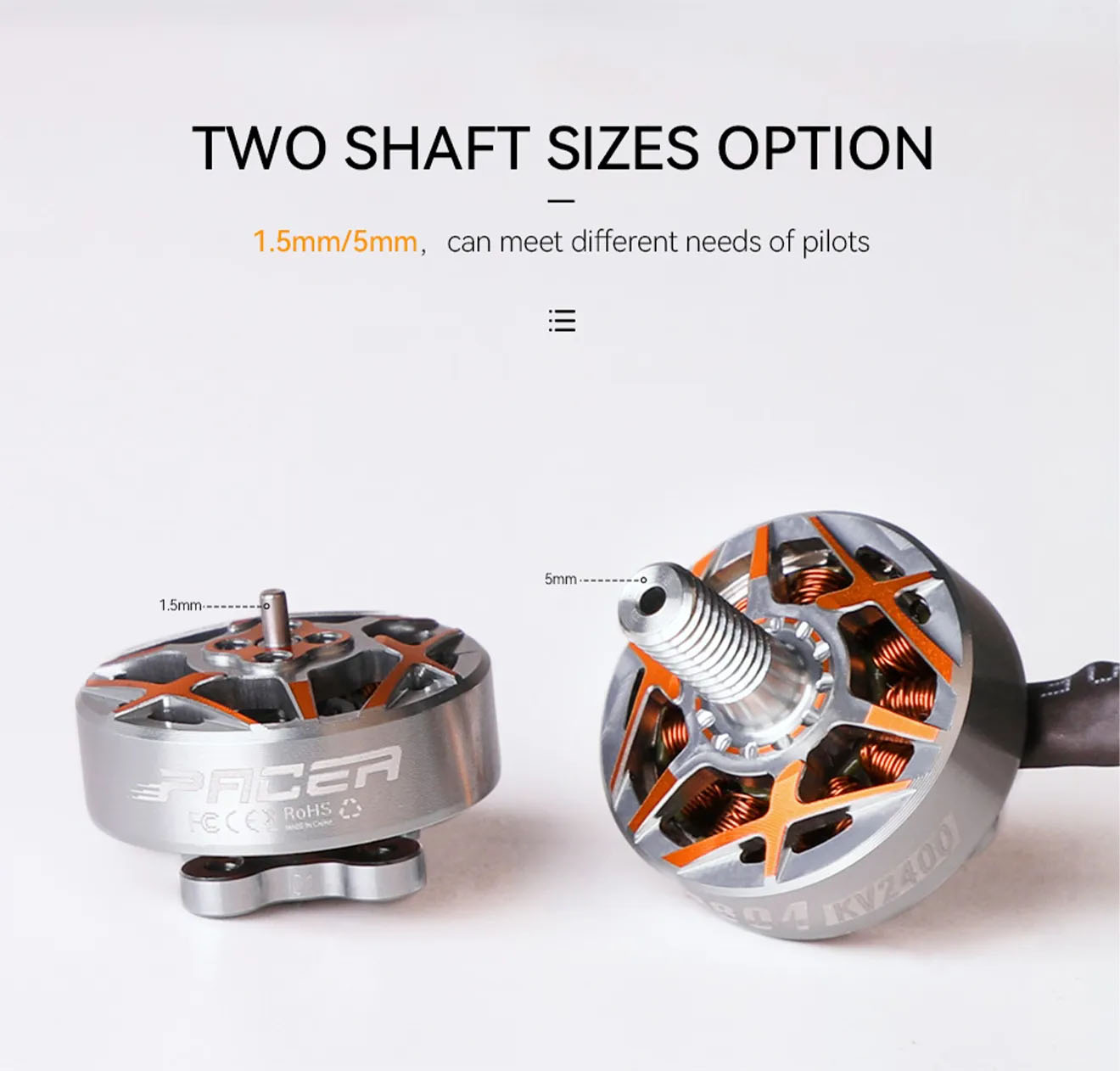

which is more durable. Have 1.5mm and 5mm two shaft sizes, which can meet the different needs of pilots.

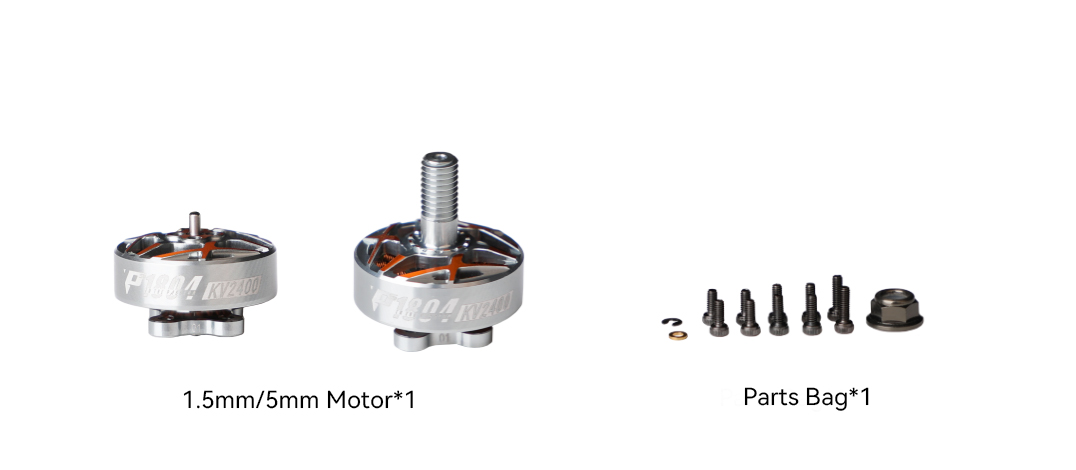

Packing List Includes:

1 x T-HOBBY P1804 2400KV/3400KV Motor

Matching Frame:

3-3.5-4 Inch

Matching Guide:

f7 45A aio flight controller

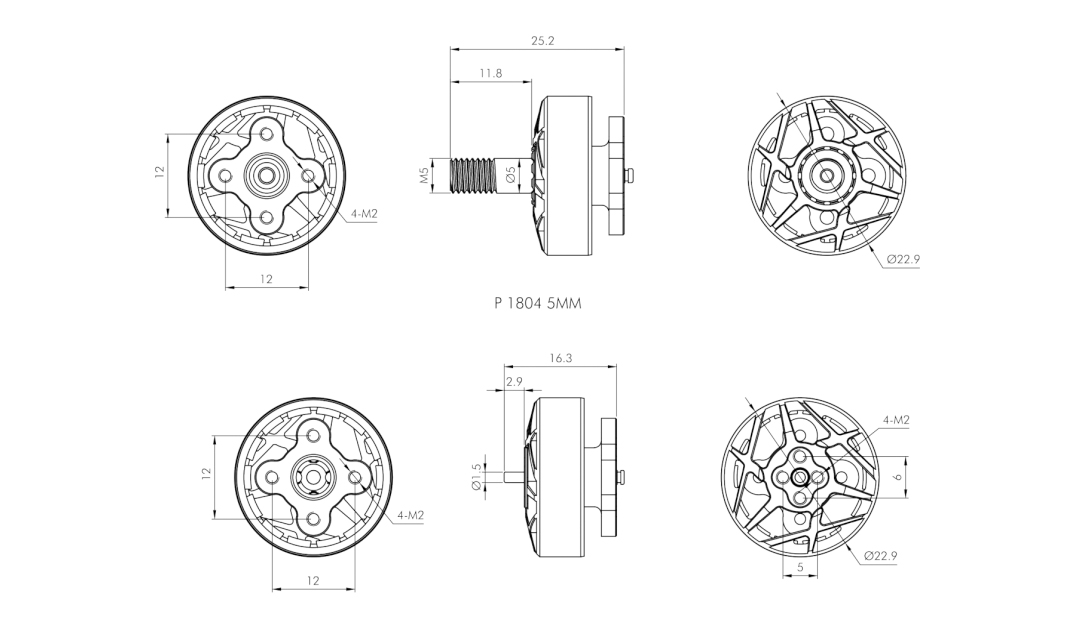

Technical Drawing

Specification Export to Excel

KV	KV2400	Configuration	12N14P
Shaft Diameter	IN: 2mm OUT:1.5mm	Lead	24# 110mm
Weight (Incl. Cable)	13.78	Voltage	6S
Idle Current（10V）	0.45A	Max. Power（10s）	379.8W
Peak Current（10s）	16A

KV	KV3400	Configuration	12N14P
Shaft Diameter	IN: 2mm OUT:1.5mm	Lead	24# 110mm
Weight (Incl. Cable)	14.3	Voltage	4S
Idle Current（10V）	0.8A	Max. Power（10s）	318.3W
Peak Current（10s）	20.2A

KV	KV2400	Configuration	12N14P
Shaft Diameter	IN: 2mm OUT:5mm	Lead	24# 150mm
Weight (Incl. Cable)	14.3	Voltage	6S
Idle Current（10V）	0.51A	Max. Power（10s）	379.8W
Peak Current（10s）	16A

KV	KV3400	Configuration	12N14P
Shaft Diameter	IN: 2mm OUT:1.5mm	Lead	24# 150mm
Weight (Incl. Cable)	14.9	Voltage	4S
Idle Current（10V）	0.79A	Max. Power（10s）	318.3W
Peak Current（10s）	20.2A

Test Data Export to Excel

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
T-HOBBY 76s-3	2400KV	20%	24.0	0.9	13037.8	69.4	22.3	3.11
		40%	24.0	3.3	19874.2	162.8	78.8	2.07
		60%	23.9	6.5	23984.5	238.7	154.0	1.55
		80%	23.8	10.0	29372.1	359.0	238.8	1.50
		100%	23.8	15.4	34307.2	492.5	365.5	1.35
	3400KV	20%	16.1	1.2	12186.9	58.7	19.6	2.99
		40%	16.0	4.1	18906	143.5	65.9	2.18
		60%	15.9	8.8	22820.6	211.5	139.7	1.51
		80%	15.9	12.6	28773.7	339.1	199.8	1.70
		100%	15.8	20.0	33785.1	467.7	315.1	1.48
GF76-5	2400KV	20%	24.0	1.0	11920.2	74.3	24.9	2.98
		40%	23.9	3.6	18082.3	166.2	85.5	1.94
		60%	23.9	7.6	22463.7	259.4	180.2	1.44
		80%	23.8	10.9	27186.2	368.6	260.7	1.41
		100%	23.7	16.0	31491.2	495.6	379.8	1.30
	3400KV	20%	16.1	1.4	11025	59.6	22.8	2.61
		40%	16.0	4.0	17226.1	147.3	64.0	2.30
		60%	16.0	8.1	22100.2	243.5	129.0	1.89
		80%	15.9	14.0	26726.7	355.2	221.5	1.60
		100%	15.8	21.5	31484.6	491.8	338.4	1.45
GF D90-3	2400KV	20%	24.0	1.0	12213.5	90.8	24.6	3.69
		40%	24.0	3.8	18229.7	196.3	91.7	2.14
		60%	23.9	8.0	22668.5	295.7	189.9	1.56
		80%	23.8	10.1	28576.3	460.4	240.6	1.91
		100%	23.8	15.3	33091.2	609.6	363.0	1.68
	3400KV	20%	16.1	1.5	10384.7	74.0	24.7	2.99
		40%	16.0	4.3	16501.4	184.7	69.1	2.67
		60%	16.0	8.4	21408.9	264.4	133.8	2.26
		80%	15.9	14.9	25717.8	428.4	236.4	1.81
		100%	15.8	22.3	30173	584.5	351.7	1.66
GF4023-3	2400KV	20%	24.0	0.9	13335	81.1	22.0	3.69
		40%	24.0	3.3	20065.7	198.4	77.9	2.55
		60%	23.9	6.5	23910.5	294.2	154.3	1.91
		80%	23.8	10.0	29283.6	454.8	237.8	1.91
		100%	23.8	15.3	33571.8	618.8	364.4	1.70
	3400KV	20%	16.1	1.2	12554	72.5	19.1	3.79
		40%	16.0	4.1	19217.7	186.6	65.6	2.84
		60%	16.0	8.6	23136.3	274.6	137.6	2.00
		80%	15.9	12.5	28743.3	437.5	198.5	2.20
		100%	15.8	20.2	33346.9	611.4	318.3	1.92

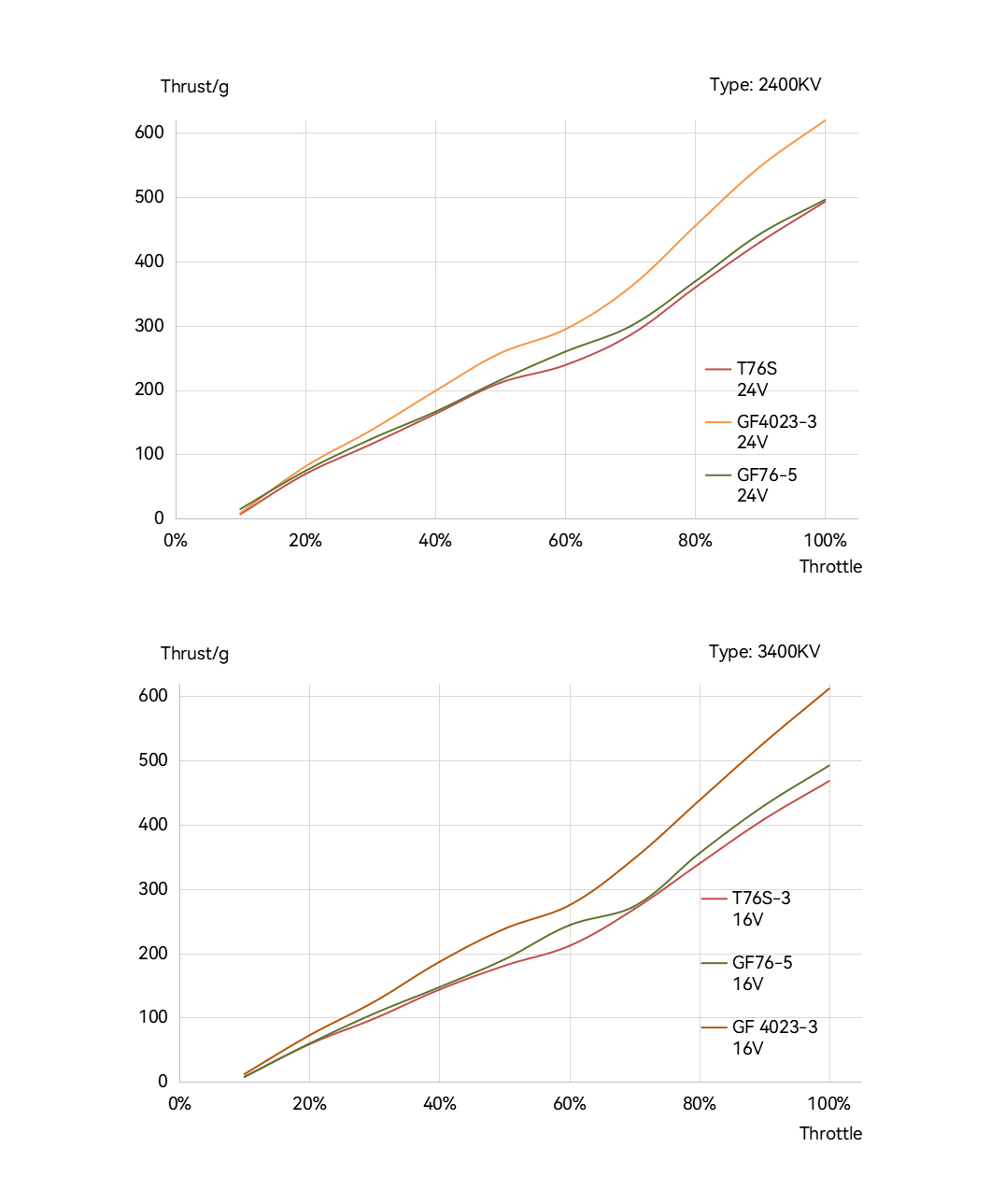

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
