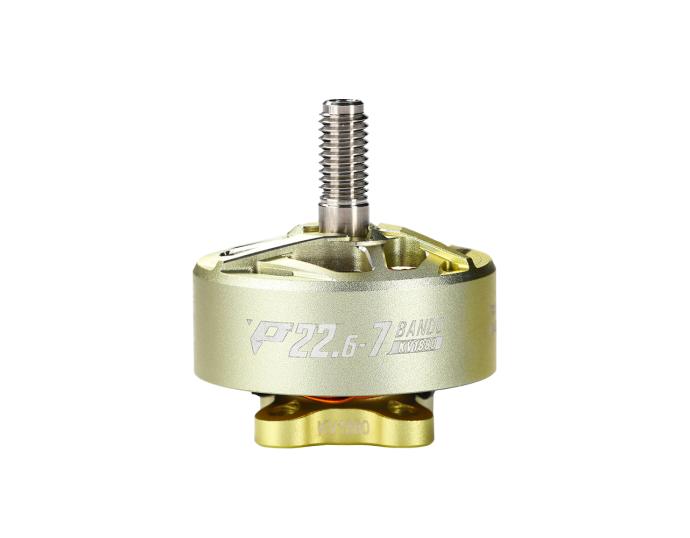

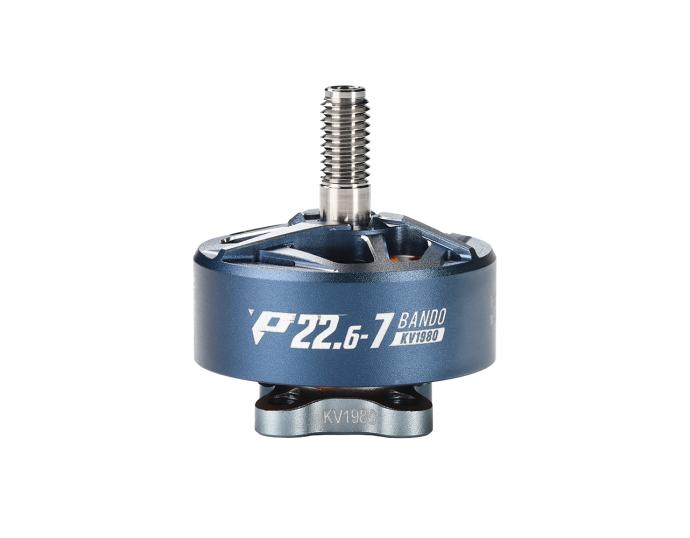

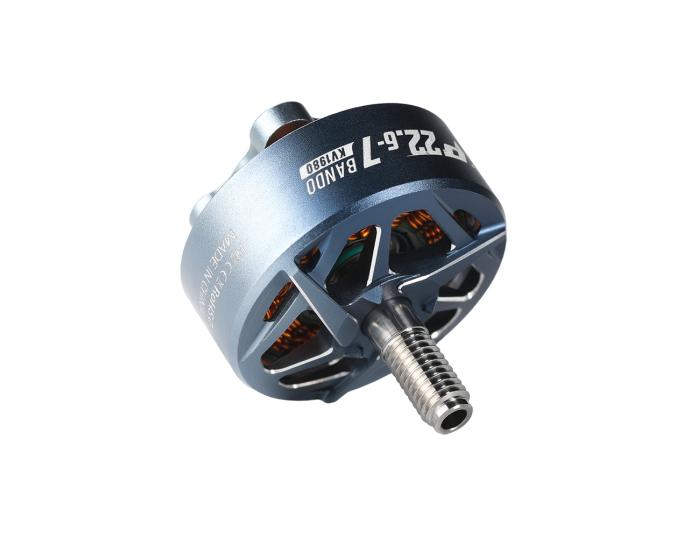

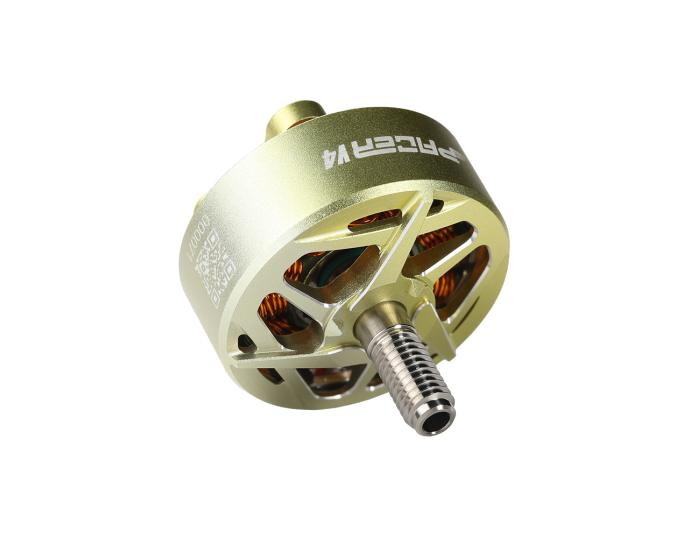

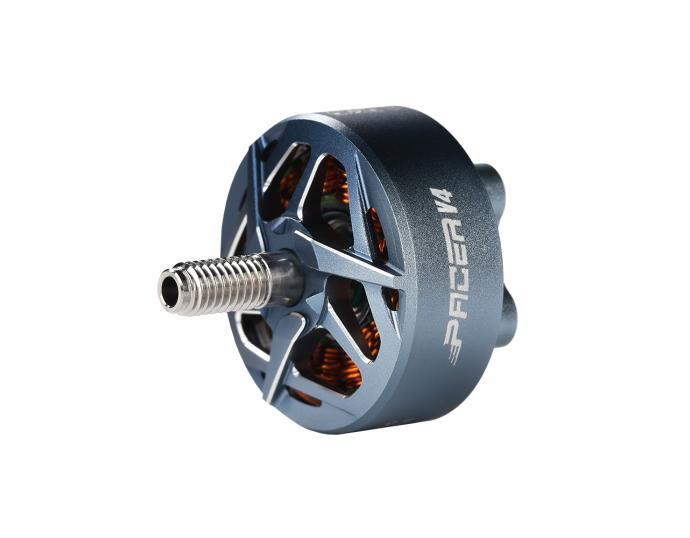

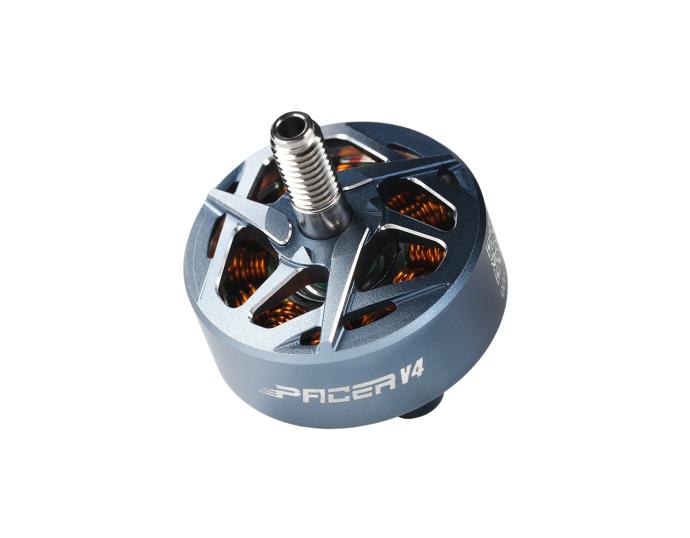

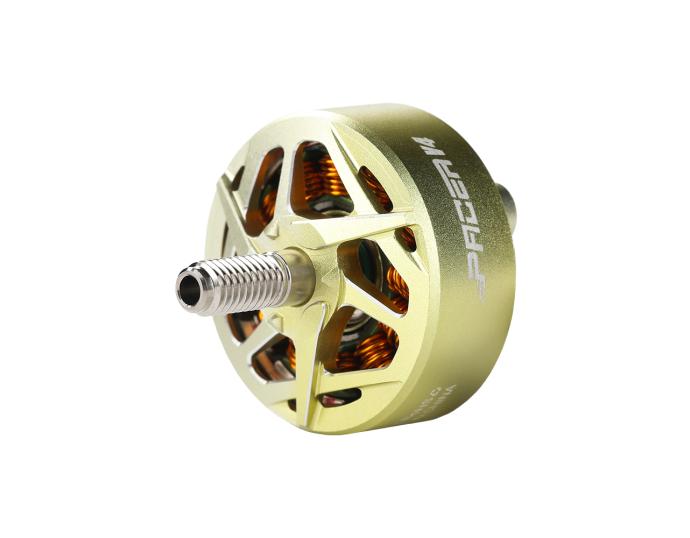

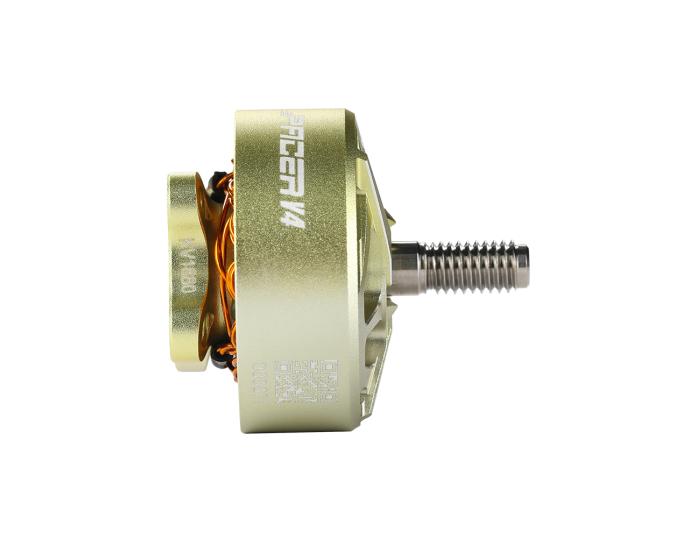

T-HOBBY P22.6-7 5" Freestyle Motor with 5mm Shaft

24.90

Available points: 25 Points Points reward: 24 Points

Promotion
- LIMITED-TIME FPV SALE 20% OFF

Parameter：

KV1880
KV1980

Quantity：

24.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

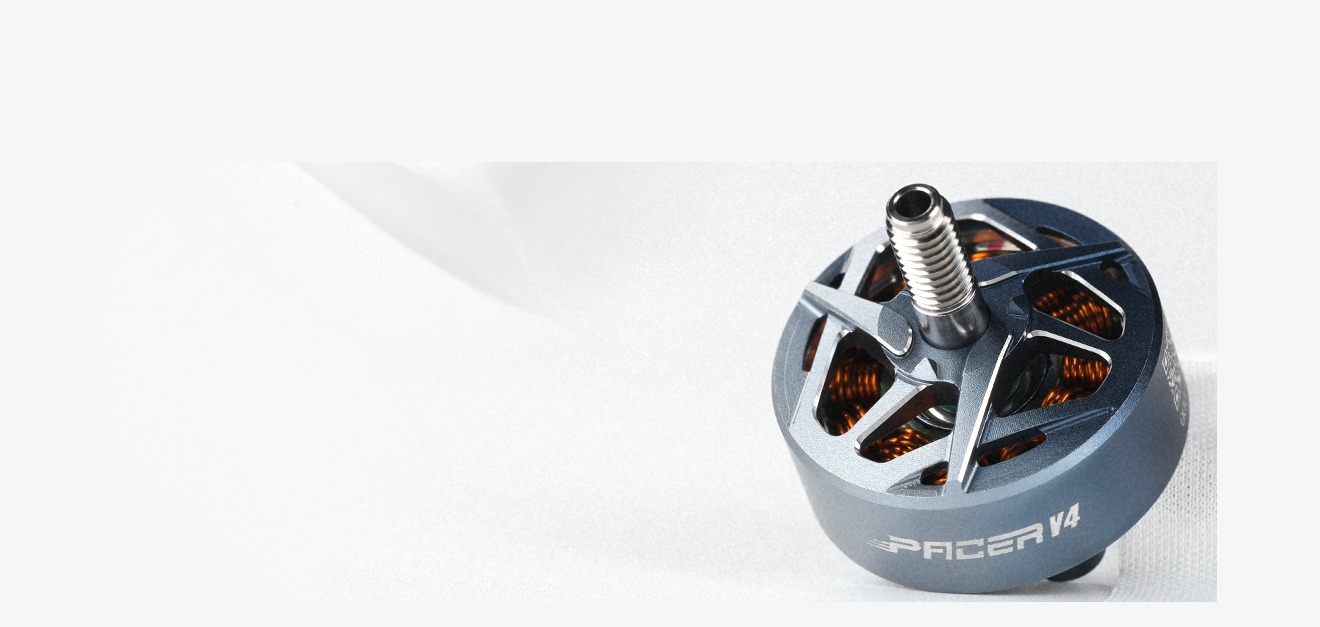

Precise Control,
Instant Response

The new stator and electromagnetic design bring ultra-smooth throttle control,
experiencing next-level precision through tight gaps and flight lines.

Effortlessly handle complex freestyle flying, like FLOW、BANDO、MIND BENDING、ACRO.

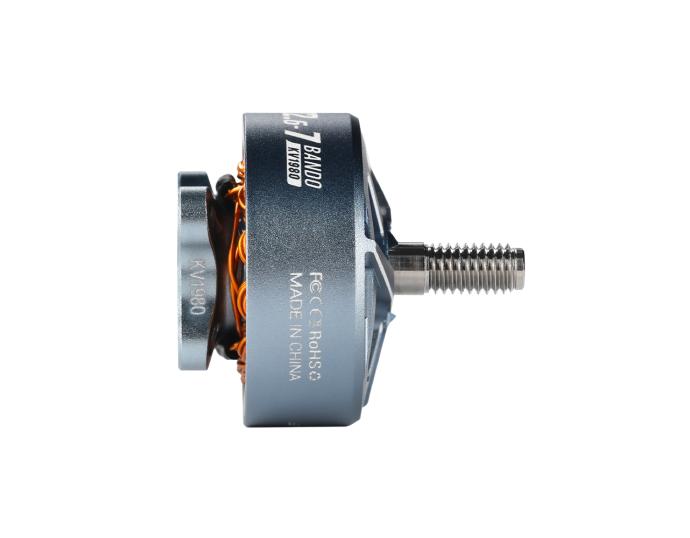

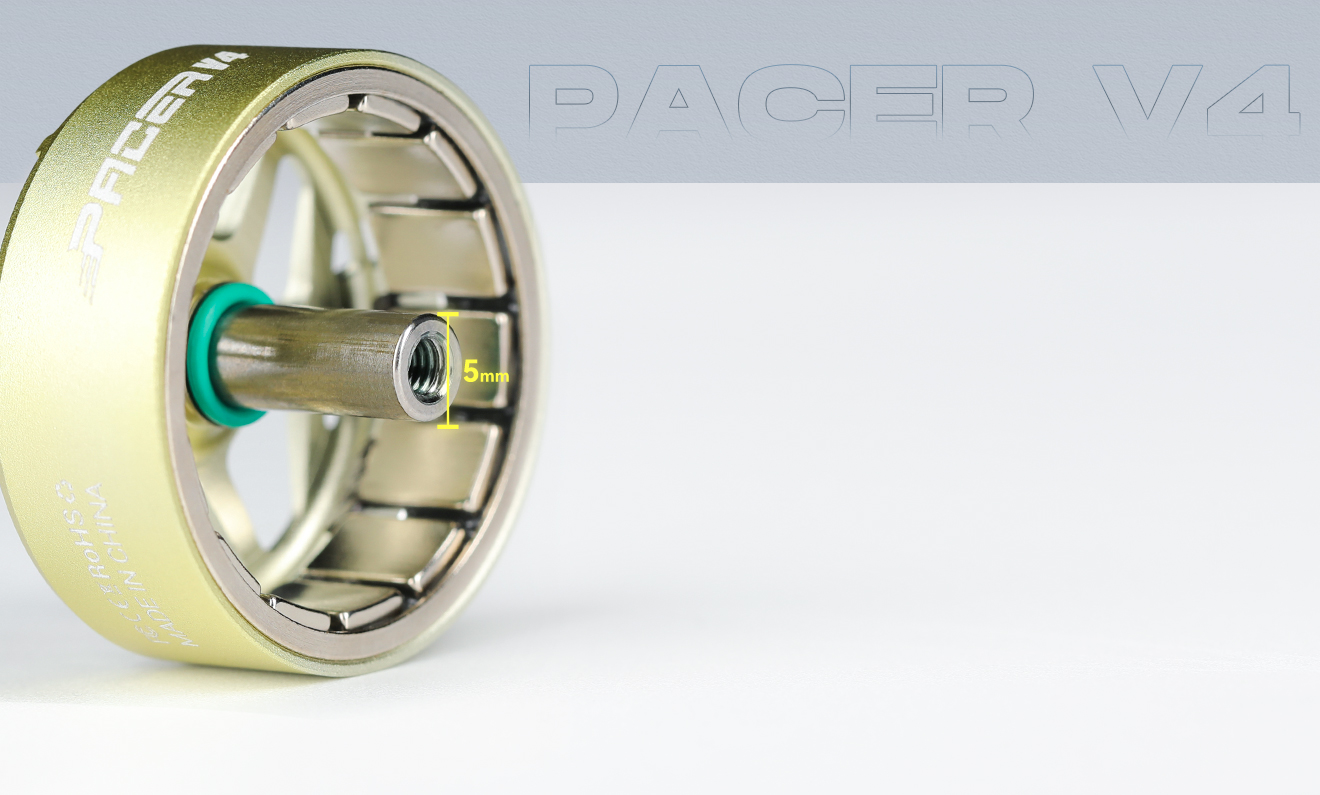

Innovative
5mm,
Inner
Shaft Design

Breaking the 4mm shaft norm of 5″ motors, it
eliminates bent-shaft issues once and for all.
Even after brutal crashes in tight bando spots,
you can take off again—worry-free and
budget-friendly.

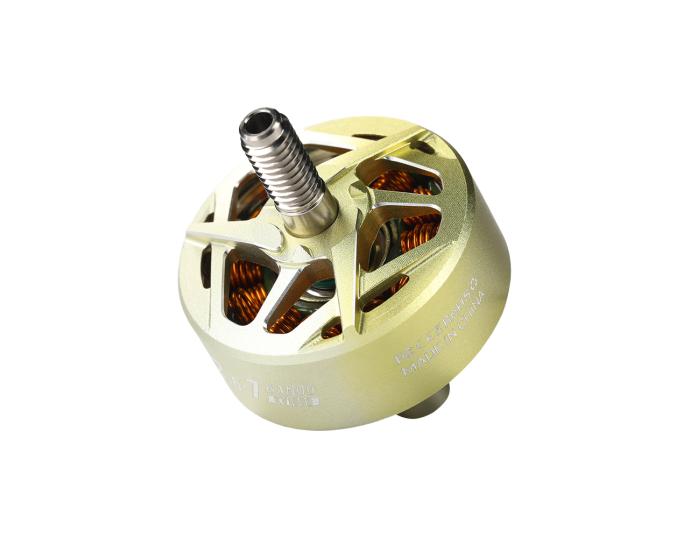

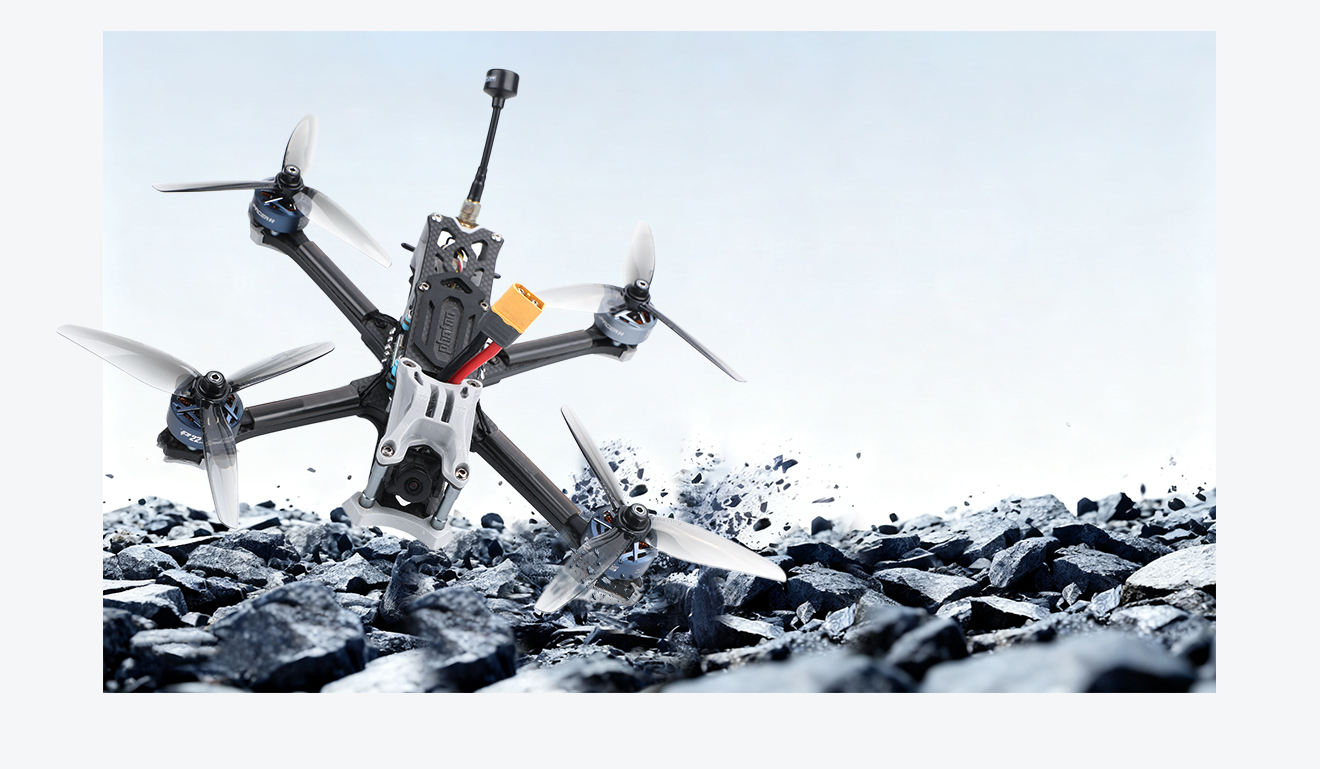

Extreme Crash Resistance

A thickened aluminum alloy rotor
and reinforced rib structure take on
the hardest hits.

Even brutal impacts on concrete or rebar
won’t stop the motor—reducing jam
risk to near zero.

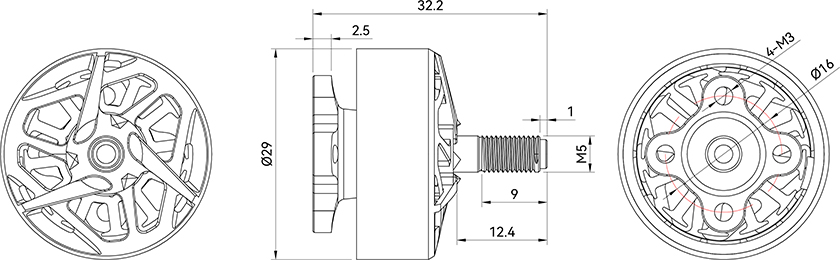

Technical Drawing


Specification Export to Excel

Type	P22.6-7	Motor Dimension	Φ29x32.2mm
Magnet	Nickel Plated Arc Magnet	Coil Insulation Test	500V Withstand Voltage Test
Waterproof And Dustproof Class	/	Configuration	12N14P
Dynamic Balance Requirements Standards	≤5mg	Bearings	Imported MR105
Shaft Diameter	5mm	Lead	20AWG PTFE Wire x170mm
Screw Diameter	Φ16-M3-4	Prop Adapter Shaft Thread	M5
Packing Size	61x41.5x32.5mm	Packing Weight	50g

Recommended Voltage	KV1880	Idle Current (10V)	1.1A
Max Power	173W	Internal Resistance	55mΩ
Rated Voltage (LiPo)	6S	Peak Current	39A
Max Thrust	1646g	Weight (Incl. Cable)	36g

Recommended Voltage	KV1980	Idle Current (10V)	1.2A
Max Power	193W	Internal Resistance	50mΩ
Rated Voltage (LiPo)	6S	Peak Current	43A
Max Thrust	1739g	Weight (Incl. Cable)	36.5g

Recommended
Motor	P22.6-7	Frame Type	5 Inch X4 Bando Frame
Prop	5-Inch 3-Blade Prop (Pitch 2.7-4.7)	LiPo Cells	6S
ESC	F55A PROIII 8S 4IN1/ V50A SE 6S 4IN1/ P60A V2 6S 4IN1	Recommended Takeoff Weight Range	Within 1000g
FC	Velox F7 SE	Max Takeoff Weight	2000g
Recommended ESC Settings	Timing: 22.5-30, PWM Frequency: 24-48k (AM32) Startup Power: 60%, Timing: 30, PWM Frequency: 24-48k/24k-BYRPM (BL32)

Test Data Export to Excel

Type	Propeller	Voltage (V)	Throttle	Current (A)	RPM	Thrust (gf)	Power (W)	Efficiency (gf/W)	Torque (N·m)	Operating Temperature (℃)
P22.6-7 KV1880	T-HOBBY F5146	24.0	20%	0.9	8953	96	22	4.28	0.01	49 (Ambient Temperature: 25)
		24.0	30%	2.3	13471	232	55	4.23	0.02
		23.9	40%	4.4	17152	401	106	3.78	0.04
		23.8	50%	7.4	20358	586	176	3.33	0.06
		23.7	60%	11.3	23503	799	268	2.99	0.08
		23.6	70%	16.2	26355	1026	383	2.68	0.10
		23.4	80%	22.2	29005	1252	521	2.41	0.12
		23.3	90%	29.5	31360	1486	687	2.16	0.15
		23.1	100%	35.5	33071	1644	819	2.01	0.17
P22.6-7 KV1880	T-HOBBY T5143S	24.0	20%	1.0	8780	100	25	4.02	0.01	48 (Ambient Temperature: 25)
		24.0	30%	2.6	13068	235	63	3.74	0.03
		23.9	40%	5.0	16700	404	120	3.37	0.05
		23.8	50%	8.4	19917	590	200	2.95	0.07
		23.7	60%	12.7	22866	790	301	2.62	0.09
		23.6	70%	18.1	25606	1000	427	2.34	0.12
		23.4	80%	24.6	28011	1210	575	2.11	0.14
		23.2	90%	32.0	30114	1402	742	1.89	0.16
		23.0	100%	38.4	31544	1539	883	1.74	0.18
P22.6-7 KV1880	HQ 5.1x2.9x3	24.0	20%	0.9	8969	92	22	4.22	0.01	45 (Ambient Temperature: 25)
		24.0	30%	2.3	13369	224	56	4.03	0.02
		23.9	40%	4.5	17038	393	107	3.66	0.04
		23.8	50%	7.5	20316	575	179	3.21	0.06
		23.7	60%	11.6	23393	782	274	2.85	0.08
		23.6	70%	16.8	26156	1011	395	2.56	0.11
		23.4	80%	23.1	28688	1242	541	2.30	0.13
		23.2	90%	30.7	30946	1472	712	2.07	0.16
		23.0	100%	37.0	32409	1629	852	1.91	0.17
P22.6-7 KV1880	GF 5127	24.0	20%	1.0	8894	106	24	4.45	0.01	51 (Ambient Temperature: 25)
		24.0	30%	2.5	13193	252	60	4.17	0.03
		23.9	40%	4.8	16911	426	115	3.69	0.05
		23.8	50%	8.1	20071	611	192	3.18	0.07
		23.7	60%	12.3	23084	815	292	2.79	0.09
		23.6	70%	17.7	25826	1038	417	2.49	0.11
		23.4	80%	24.1	28283	1263	563	2.24	0.14
		23.2	90%	31.6	30473	1481	733	2.02	0.16
		23.0	100%	37.9	31925	1636	872	1.88	0.18
P22.6-7 KV1980	T-HOBBY F5146	24.0	20%	1.0	9218	103	25	4.15	0.01	46 (Ambient Temperature: 25)
		23.9	30%	2.6	13799	251	63	3.98	0.03
		23.9	40%	4.9	17700	428	117	3.66	0.04
		23.8	50%	8.1	21086	622	193	3.22	0.06
		23.7	60%	12.4	24251	846	295	2.87	0.09
		23.5	70%	17.9	27239	1081	422	2.56	0.11
		23.4	80%	24.7	29868	1330	577	2.30	0.14
		23.2	90%	32.8	32261	1571	759	2.07	0.16
		23.0	100%	39.5	33991	1740	907	1.92	0.18
P22.6-7 KV1980	T-HOBBY T5143S	24.0	20%	1.2	9086	110	29	3.86	0.01	52 (Ambient Temperature: 25)
		24.0	30%	3.0	13651	255	71	3.60	0.03
		23.9	40%	5.5	17236	428	131	3.26	0.05
		23.8	50%	9.3	20563	621	221	2.81	0.07
		23.7	60%	14.1	23633	839	332	2.52	0.10
		23.5	70%	20.1	26410	1062	472	2.25	0.12
		23.3	80%	27.2	28936	1279	634	2.02	0.15
		23.1	90%	35.7	31078	1476	823	1.79	0.17
		22.9	100%	42.3	32638	1616	968	1.67	0.19
P22.6-7 KV1980	HQ 5.1x2.9x3	24.0	20%	1.1	9294	102	25	4.00	0.01	42 (Ambient Temperature: 25)
		24.0	30%	2.6	13763	244	63	3.85	0.03
		23.9	40%	5.0	17698	427	120	3.56	0.05
		23.8	50%	8.4	20987	616	199	3.09	0.07
		23.7	60%	12.8	24143	838	303	2.76	0.09
		23.5	70%	18.6	26959	1081	439	2.47	0.11
		23.4	80%	25.6	29553	1326	599	2.21	0.14
		23.1	90%	34.0	31862	1547	787	1.97	0.17
		22.9	100%	40.7	33468	1703	934	1.82	0.19
P22.6-7 KV1980	GF 5127	24.0	20%	1.1	9241	115	27	4.30	0.01	49 (Ambient Temperature: 25)
		23.9	30%	2.8	13695	268	68	3.95	0.03
		23.9	40%	5.3	17357	450	127	3.55	0.05
		23.8	50%	9.1	20608	654	215	3.04	0.07
		23.7	60%	13.8	23680	870	325	2.67	0.10
		23.5	70%	19.6	26540	1098	460	2.38	0.12
		23.3	80%	26.7	29047	1338	622	2.15	0.15
		23.1	90%	35.3	31162	1557	815	1.91	0.17
		22.9	100%	42.0	32789	1727	962	1.80	0.19
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

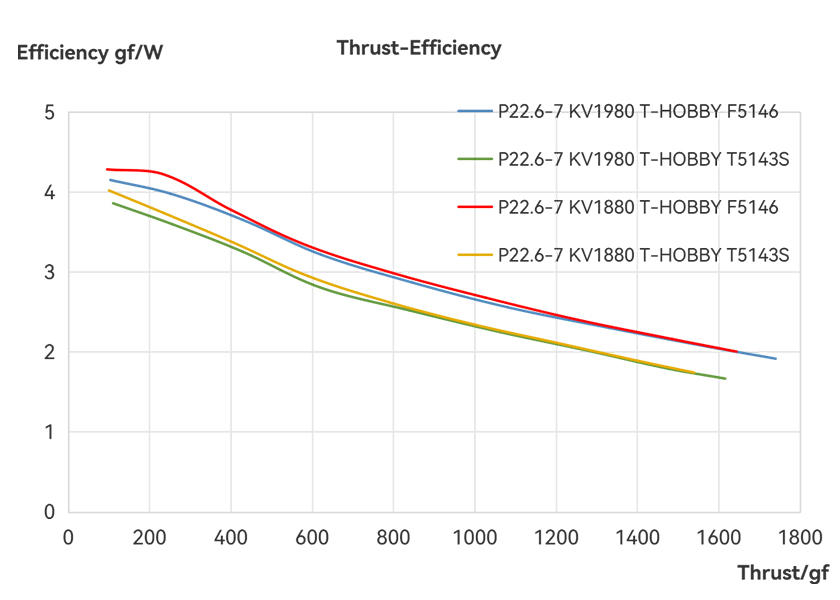

Analysis Chart

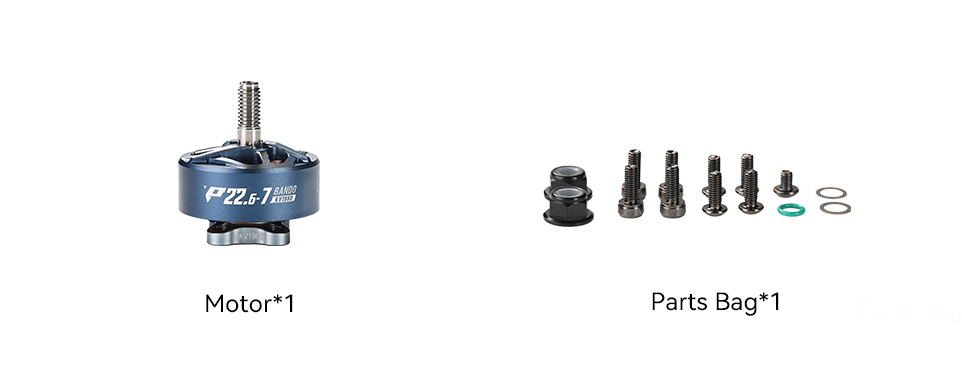

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
