Name: Pacer P2406 V4 Juicy FPV freestyle motor 5-6'' 2060KV
Brand: LIGPOWER
SKU: LIGPOWER001460
Price: 29.90 USD
Availability: InStock

Free Shipping by DHL/UPS Express

Collect

Detail information
Specifications

PRIME PICK FOR
VIBRANT FREESTYLE

Designed for 5-6 inch freestyle FPV drones, its high thrust can meet various ejection and full-throttle maneuvers in SBANG style, making the flight more challenging and enjoyable.

LONG SERVICE LIFE

Efficient current transmission and a large heat dissipation area of the motor ensure that the coils do not discolor even under extreme tuning and aggressive settings, extending the motor's service life.

EXTREME RESPONSE TO THROTTLE

High motor torque and rapid yet smooth throttle acceleration give the stick operation a strong sense of locking. The swift throttle response greatly enhances the control capabilities of JUICY pilots.

STRONG DURABILITY

With exceptional structural strength, it can easily handle JUICY pilots' frequent and intense misoperation.

Technical Drawing

Specification Export to Excel

Type	PV4 juicy	Motor Dimension	Φ30.2*31mm
Magnet	Nickel plated arc magnet	Coil insulation test	500V withstandvoltage test (5s)
Waterproof anddustproof class	/	Configuration	12N14P
Dynamic balancerequirements standards	≤5mg	Bearings	Imported 684ZZ
Shaft Diameter	5mm	Lead	20AWG*150mm
Screw Diameter	Φ16-M3-4	Prop Adapter Shaft Thread	M5*10mm
Packing Size	6141.532.5mm	Packing Weight	50g

Tech Specs
KV	2060	Idle Current(10V)	1.9A
Max Power(1s)	1116W	Internal Resistance	45mΩ
Rated Voltage (Lipo)	24V	Peak Current(1s)	48A
Max Thrust	1993g	Weight (incl.cable)	36g

Recommended
Motor	PV4 juicy KV2060	Frame Type	X4
Prop	5-inch 3-blade medium-low pitch freestyle prop (pitch 2.9-4.7)	Lipo Cells	24V
ESC	TMHOBBY P60A V2/V50A SE	Recommended takeoff weight range	Within 810g
FC	TMHOBBY Pacer G4	Max Takeoff Weight	2000g
Note:	The BL32 firmware specifies the use of V50A SE ESC, other ESCs may result in desync Recommended ESC settings: Startup power: 75%, timing: 30, PWM frequency: 24-BYRPM, demagnetization compensation: low To obtain the best efficiency and flight experience (improper settings may cause desync)

Test Data Export to Excel

Type	Propeller	Voltage (V)	Throttle (%)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)	Torque (N*m)	Operating Temperature (℃)
PV4 juicy KV2060	TMHOBBY F-5146	24.00	20%	1.31	9648	128	31	4.10	0.01	112 (Ambient temperature: 25℃)
		23.97	30%	3.06	13896	281	73	3.83	0.03
		23.93	40%	5.85	17675	486	140	3.48	0.05
		23.88	50%	9.49	20897	700	227	3.09	0.07
		23.80	60%	14.74	24143	960	351	2.74	0.10
		23.70	70%	21.26	26101	1214	504	2.41	0.12
		23.60	80%	28.13	29320	1472	664	2.22	0.15
		23.48	90%	36.67	31578	1735	861	2.02	0.18
		23.34	100%	46.56	33750	1993	1087	1.83	0.21
Note: Motor temperature is motor surface temperature at 80% throttle running for 10s (Data above based on bench tests are for reference only. Comparison with that of other motor types is not recommended.)
PV4 juicy KV2060	TMHOBBY P-49436	23.97	20%	1.33	9606	121	32	3.80	0.02	116 (Ambient temperature: 25℃)
		23.94	30%	3.11	13714	262	74	3.51	0.03
		23.90	40%	5.88	17307	447	141	3.18	0.05
		23.85	50%	9.47	20738	640	226	2.83	0.07
		23.77	60%	14.75	23981	874	351	2.49	0.10
		23.67	70%	21.11	26759	1095	500	2.19	0.12
		23.58	80%	27.89	29231	1313	658	2.00	0.15
		23.46	90%	36.19	31549	1523	849	1.79	0.18
		23.31	100%	46.29	33733	1756	1079	1.63	0.21
Note: Motor temperature is motor surface temperature at 80% throttle running for 10s (Data above based on bench tests are for reference only. Comparison with that of other motor types is not recommended.)
PV4 juicy KV2060	HQ J33	24.00	20%	1.38	9614	128	33	3.85	0.02	114 (Ambient temperature: 25℃)
		23.97	30%	3.19	13757	276	77	3.61	0.03
		23.93	40%	5.93	17536	456	142	3.21	0.05
		23.88	50%	9.59	20809	653	229	2.85	0.07
		23.81	60%	14.76	24120	887	351	2.52	0.10
		23.70	70%	21.38	26104	1156	507	2.28	0.13
		23.61	80%	28.15	29276	1392	664	2.09	0.15
		23.48	90%	36.52	31620	1598	858	1.86	0.18
		23.34	100%	46.27	33840	1776	1080	1.64	0.21
Note: Motor temperature is motor surface temperature at 80% throttle running for 10s (Data above based on bench tests are for reference only. Comparison with that of other motor types is not recommended.)
PV4 juicy KV2060	HQ J37	24.00	20%	1.39	9613	129	33	3.89	0.02	112 ( Ambient temperature: 25℃)
		23.97	30%	3.24	13739	283	78	3.64	0.03
		23.93	40%	6.05	17495	476	145	3.29	0.05
		23.88	50%	9.82	20728	686	234	2.92	0.07
		23.80	60%	15.21	23895	938	362	2.59	0.10
		23.69	70%	21.88	26621	1175	518	2.27	0.13
		23.59	80%	29.18	28938	1374	688	2.00	0.16
		23.46	90%	37.76	31123	1578	886	1.78	0.18
		23.32	100%	47.87	33338	1784	1116	1.60	0.21
Note: Motor temperature is motor surface temperature at 80% throttle running for 10s (Data above based on bench tests are for reference only. Comparison with that of other motor types is not recommended.)

Analysis Chart

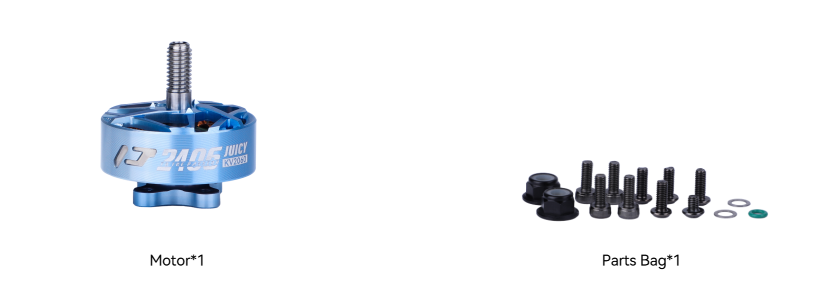

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
