Name: T-HOBBY Slattfpv 2306.3 Frestyle FPV Motor KV1700 KV2500
Brand: LIGPOWER
SKU: LIGPOWER001532
Price: 25.90 USD
Availability: InStock

T-HOBBY Slattfpv 2306.3 Frestyle FPV Motor KV1700 KV2500

25.90

Available points: 26 Points Points reward: 25 Points

Parameter：

KV1700
KV2500

Color：

Pink
Grey

Quantity：

25.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

About T-HOBBY IT'S 2306.5 FPV Freestyle Motor

The T-HOBBY Slatts 2306.3 Motor continues the lineage of great FPV racing motors by T-HOBBY!

Slatts were designed in collaboration with SlattFPV for Bando, Flow, and Freestyle flying.

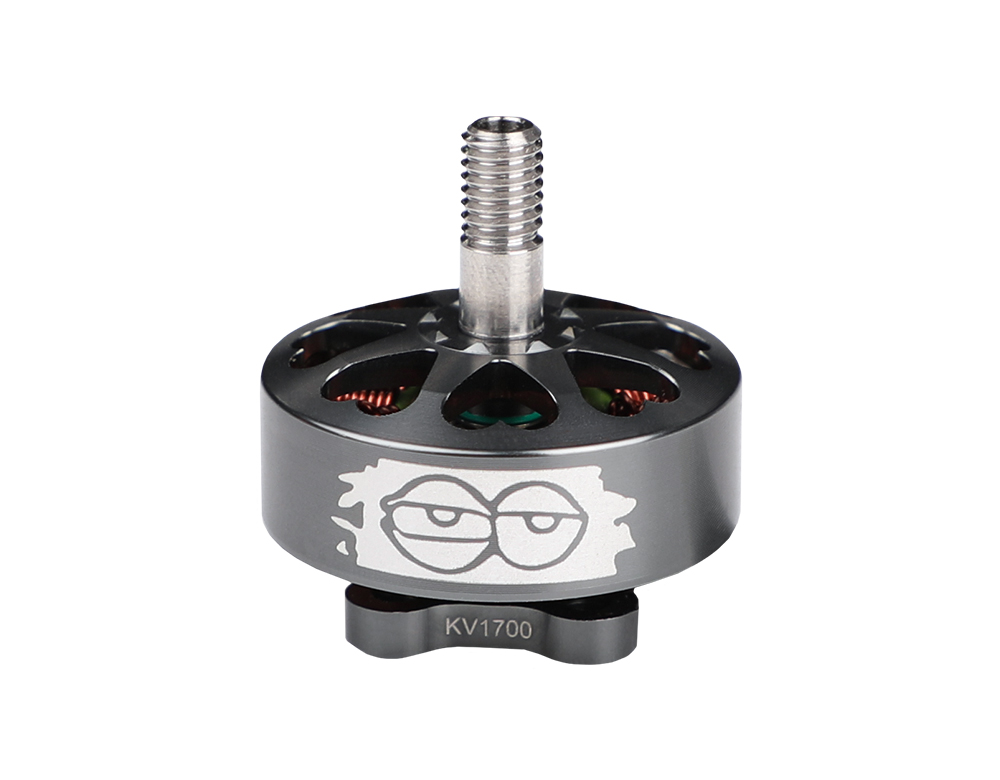

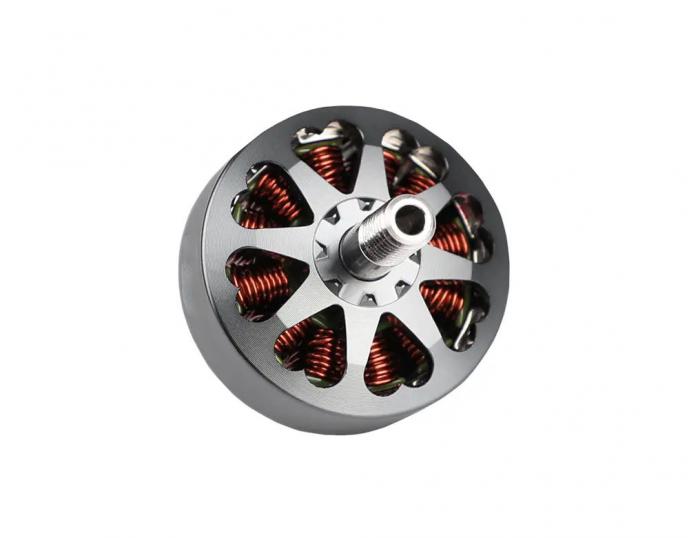

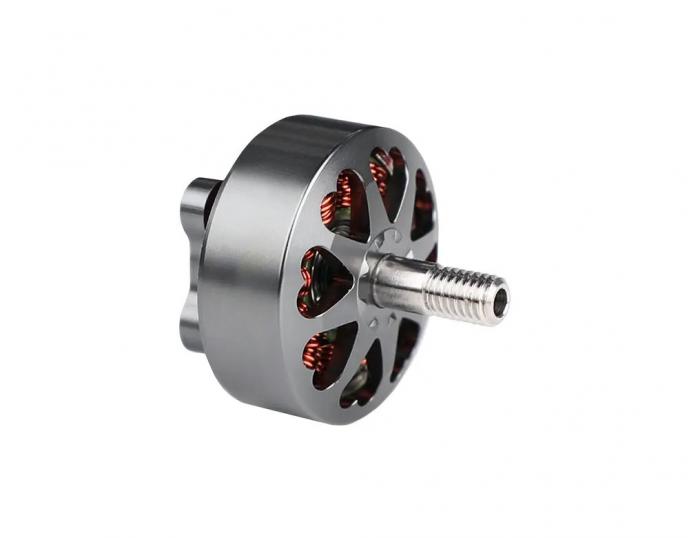

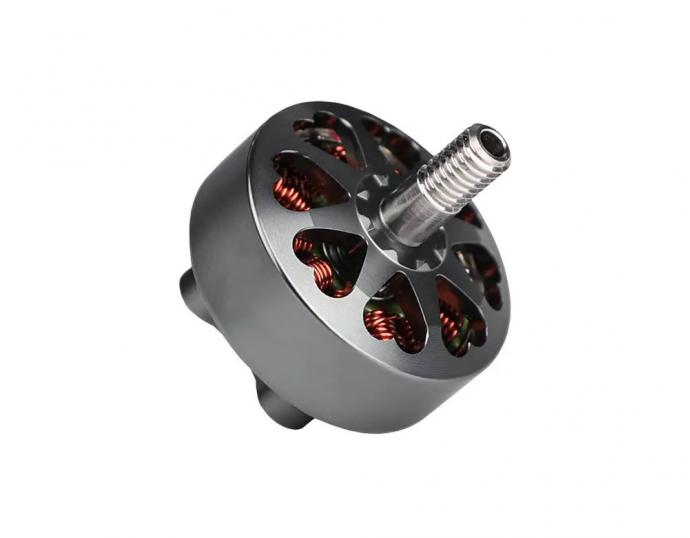

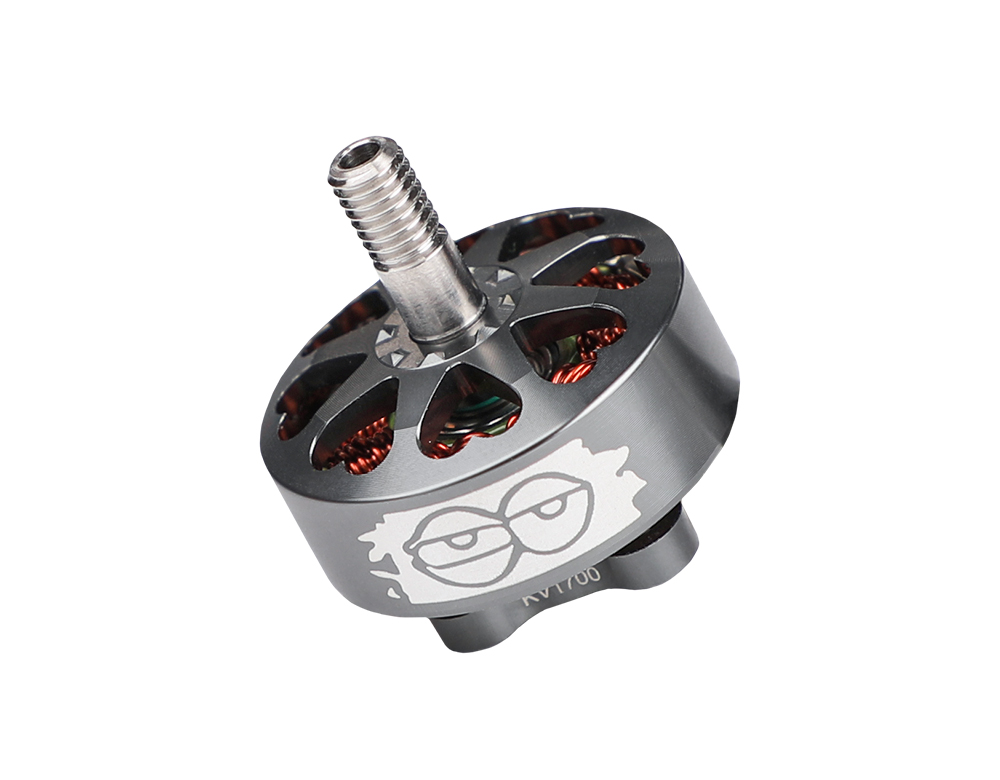

This motor features a 2306.3 stator and unibell design with a 5mm shaft in a classic gray color.

IT'S 2306.5 Hightlight:

T-HOBBY Slatts 2306.3 Motor - 1700KV/2500KV

The T-HOBBY Slatts 2306.3 Motor continues the lineage of great FPV racing motors by T-HOBBY! Slaats was designed in collaboration with SlattFPV.

Packing List Includes:

1xT-HOBBY x slatts Powerful Freestyle Motor 1700KV 2500KV

1x Hardware Set

Matching Frame:

5 Inch

Matching Guide:

F55A PROⅡ 6S 4IN1

F7 flight controller / Pacer F7 flight controller

P49436 Propeller / T5143s Propeller


Technical Drawing

Specification Export to Excel

KV	KV1700	Configuration	12N14P
Shaft Diameter	4mm	Lead	20#150mm
Weight (Incl. Cable)	34.1g	Voltage	25.2V
Idle Current（10V）	0.93A	Max. Power（10s）	856.7W
Peak Current（10s）	34.7A

KV	KV2500	Configuration	12N14P
Shaft Diameter	4mm	Lead	20#150mm
Weight (Incl. Cable)	33.8g	Voltage	25.2V
Idle Current（10V）	1.45A	Max. Power（10s）	629.3W
Peak Current（10s）	38.7A

Test Data Export to Excel

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
T-HOBBY T5143S-3	1700KV	20%	25.2	1.7	11559.6	148.0	42.5	3.48
		40%	25.1	6.0	18247.2	445.3	149.7	2.97
		60%	25.0	11.9	23370.1	756.4	297.0	2.55
		80%	24.9	23.8	29470.4	1191.8	591.7	2.01
		100%	24.7	34.7	32684.5	1463.0	856.7	1.71
	2500KV	20%	16.8	2.1	10666.3	127.2	35.4	3.59
		40%	16.7	7.4	16992.4	377.5	123.1	3.07
		60%	16.6	13.6	21227	612.2	226.3	2.71
		80%	16.5	26.1	26555.4	977.1	429.6	2.27
		100%	16.3	38.6	29911.7	1233.7	627.5	1.97
GF F3-3	1700KV	20%	25.2	1.7	11730.5	161.9	42.1	3.85
		40%	25.1	5.9	18390	484.2	148.3	3.27
		60%	25.1	11.6	23415.4	812.6	289.7	2.80
		80%	24.9	23.3	29720.8	1335.8	578.4	2.31
		100%	24.7	33.8	33130.2	1680.6	834.7	2.01
	2500KV	20%	16.8	2.1	10845.6	140.4	35.3	3.98
		40%	16.7	7.3	17109.5	417.4	122.4	3.41
		60%	16.7	13.4	21334.3	668.6	222.5	3.00
		80%	16.5	25.6	26706.9	1076.8	420.6	2.56
		100%	16.3	37.6	30188.1	1390.2	612.6	2.27
HQ J37-3	1700KV	20%	25.2	1.7	11655.2	160.1	42.3	3.78
		40%	25.1	5.9	18440.8	471.5	148.3	3.18
		60%	25.1	11.6	23394.9	783.2	291.1	2.69
		80%	24.9	23.8	29532.3	1244.4	591.9	2.10
		100%	24.7	34.6	32861.9	1468.9	853.4	1.72
	2500KV	20%	16.8	2.1	10732.1	120.9	35.7	3.39
		40%	16.7	7.4	17154	392.9	123.0	3.19
		60%	16.7	13.4	21314.8	634.9	223.9	2.84
		80%	16.5	26.1	26629.3	1017.2	428.9	2.37
		100%	16.3	38.7	29982	1280.8	629.3	2.04

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
