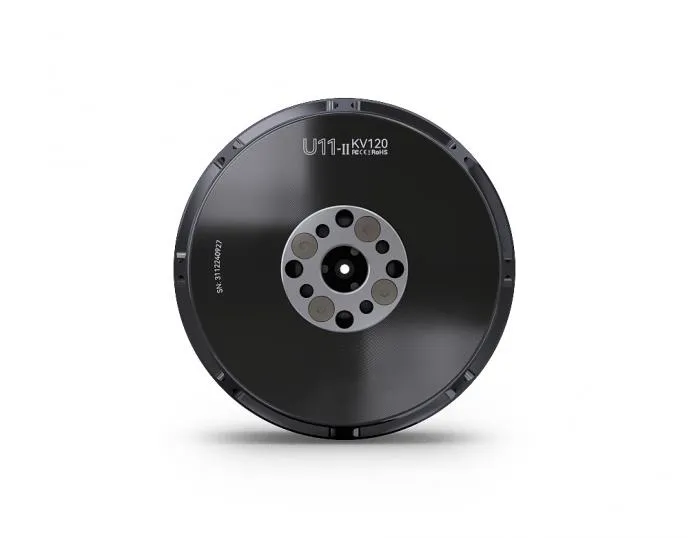

Name: T-MOTOR U11Ⅱ KV120 UAV Motor with 14.16kg Max Thrust
Brand: LIGPOWER
SKU: LIGPOWER000768
Price: 349.90 USD
Availability: InStock

T-MOTOR U11Ⅱ KV120 UAV Motor with 14.16kg Max Thrust

349.90

Available points: 17000 Points Points reward: 349 Points

• Optimized Configuration, Stronger Endurance
• Heavy Lifted Industry Application
• 1000hours lifetime

KV：

KV120

Quantity：

349.90

Free Shipping by DHL/UPS Express

Relevant Products

T-MOTOR G27*8.8 Prop-4PCS/PAIR

$247.9
T-MOTOR G27*8.8 Prop-2PCS/PAIR

$296.9
T-MOTOR G27*8.8 CF Three-blade propeller

$378.9
T-MOTOR FLAME 80A 12S V2.0 Multi-Rotor UAVs ESC

$119.99

Detail information
Specifications

About T-MOTOR U11Ⅱ Power Type UAV Motor KV120

T-MOTOR U11 II 120KV is a strong power king motor for multi-copter with heavy lift and large thrust. It's unique design provides swift airflow that cools motor 2.5 times faster than other T-MOTORs with waterproof and dustproof features.

Handmade high-temperature enameled wire has excellent fire protection, industrial grade waterproofing, anti-aging and other properties, which greatly extends the service life of the motor. The precision winding ensures the tightness of coil and slot.It helps reduce the copperloss while improve the utilization. Adoption of imported high-quality bearing ，enables motor run more smoothly and longer with lower noise.

U11ⅡHighlights:

Optimal structure
Sine wave features
Military grade high-temperature resistant enamel led wires
Max. thrust increase by 4%
Flight time increase by 2%

1.Max. thrust ：14.16kg

2.MTBF：About 1000hours

3.Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings

Application Areas：

Aerial photography, Filming, Delivery service and Agriculture applications.

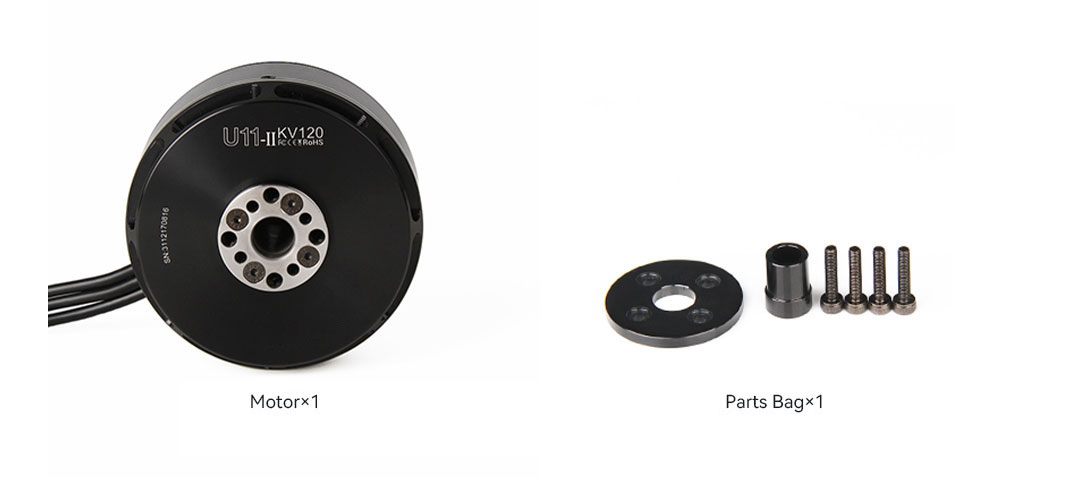

Packing List Includes:

1x T-MOTOR U11Ⅱ Motor

1x Hardware pack

Matching Guide:

T-MOTOR CF27*8.8 Propeller

If you have any questions or inquires, please contact us: onlinesales@ligpower.com

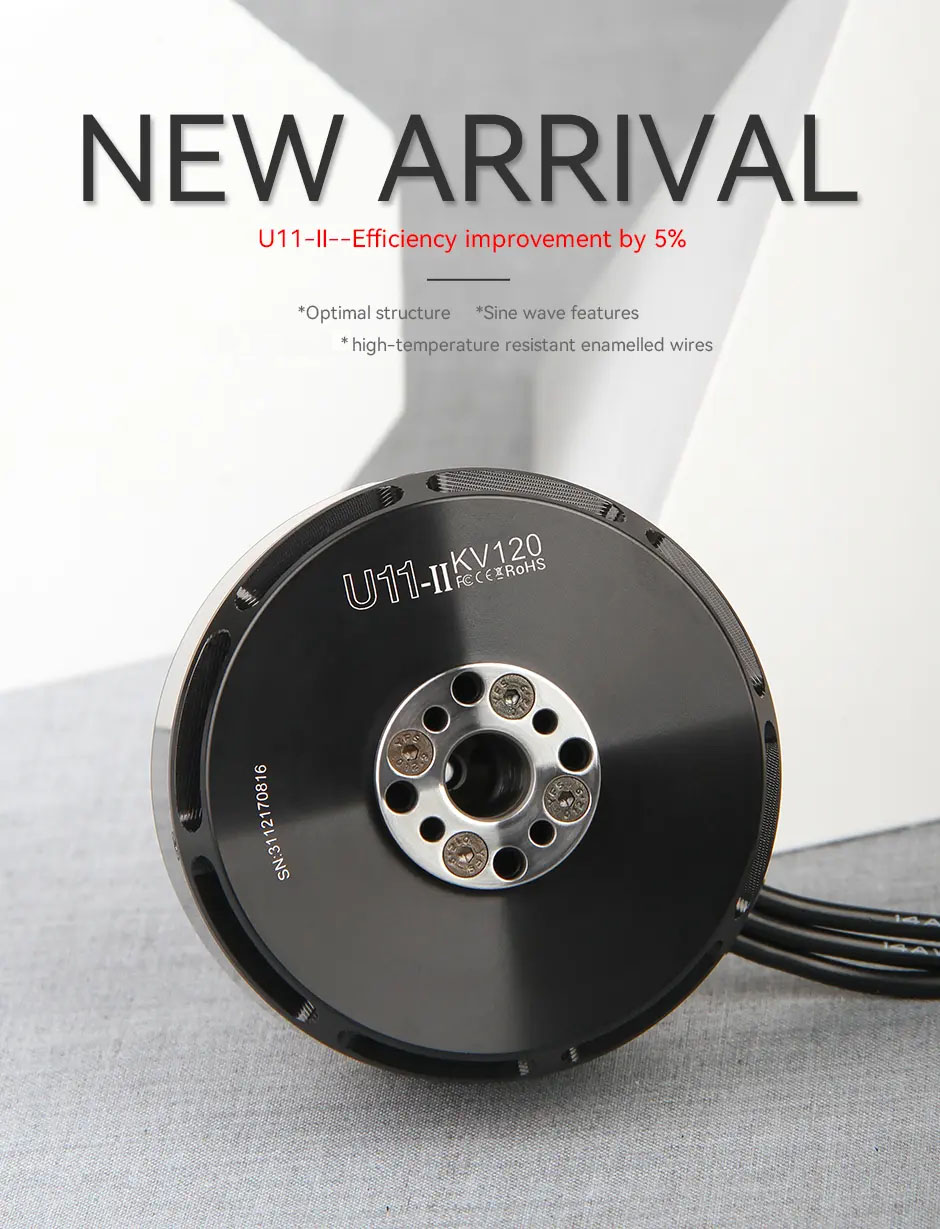

newly released U11

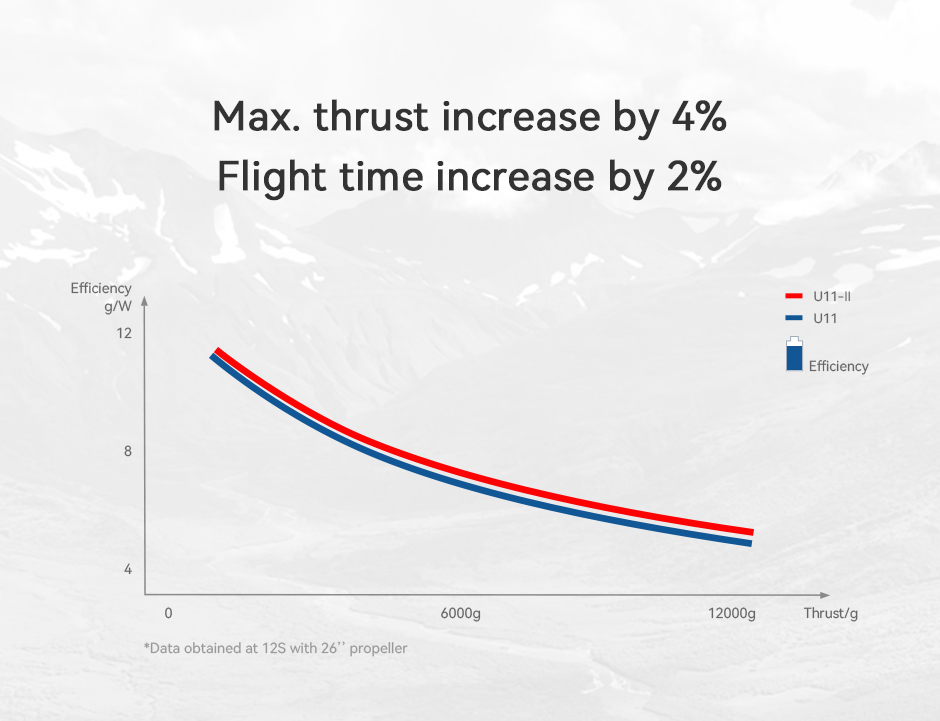

U11Ⅱ Max.thrust increase by 4%,Flight time increase by 2%

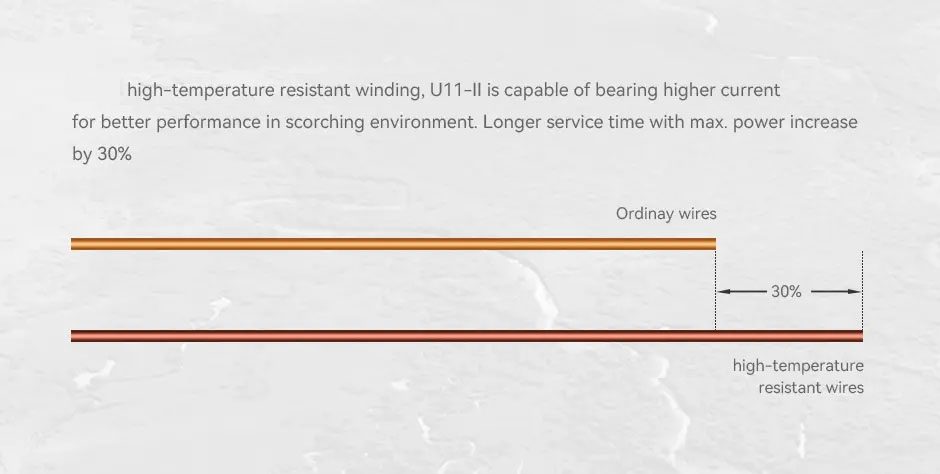

U11Ⅱ imported customo silver wires

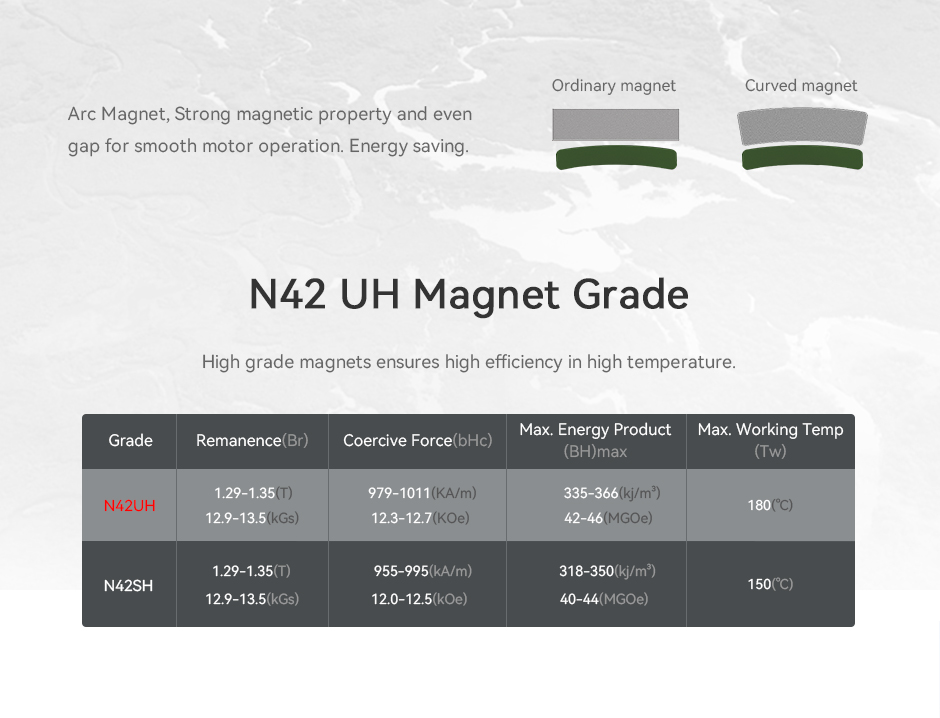

U11Ⅱ N42 UH magnet grade

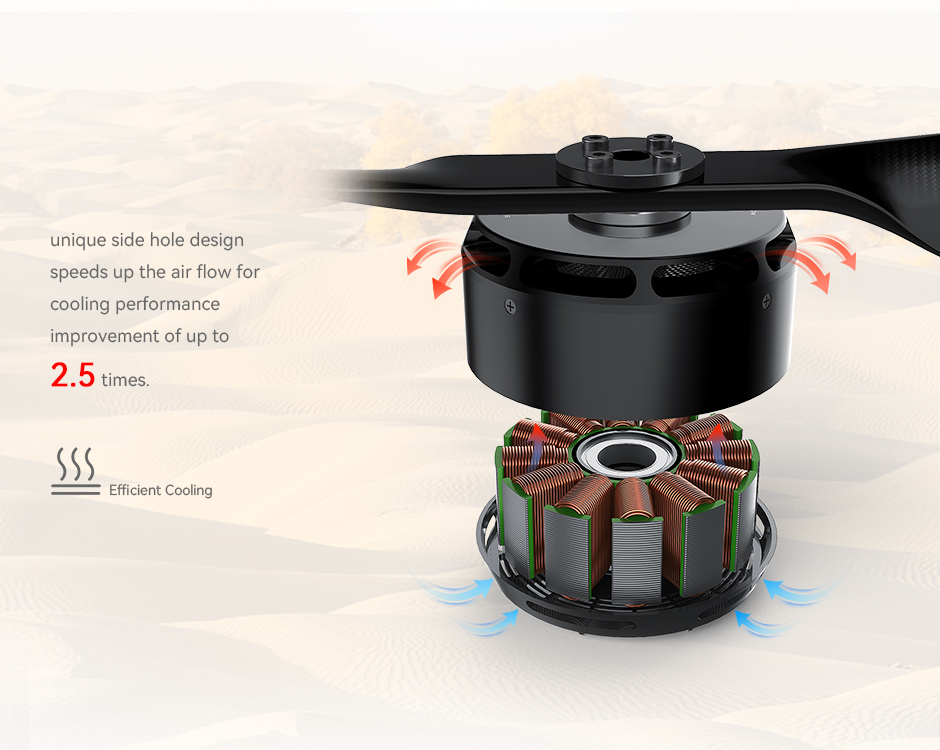

U11Ⅱ efficient cooling

U11Ⅱ IP55 motor protection

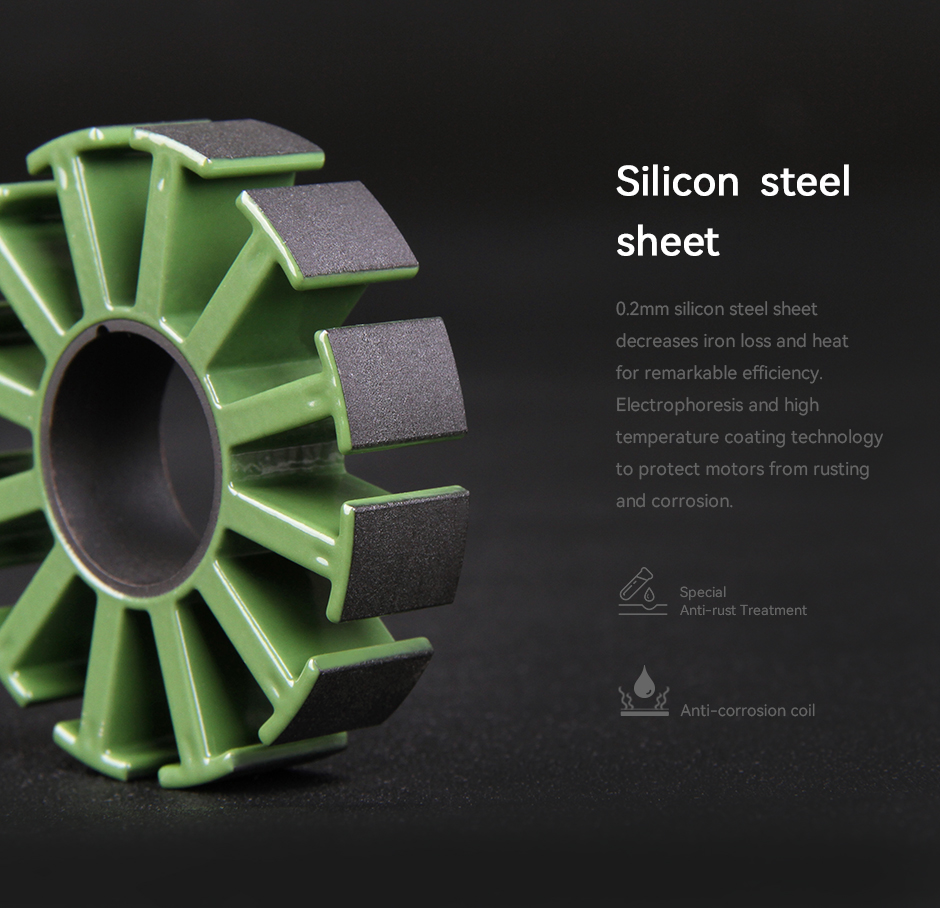

U11Ⅱ 0.2mm silicon steel sheet decreases iron loss and heat for remarkable efficiency

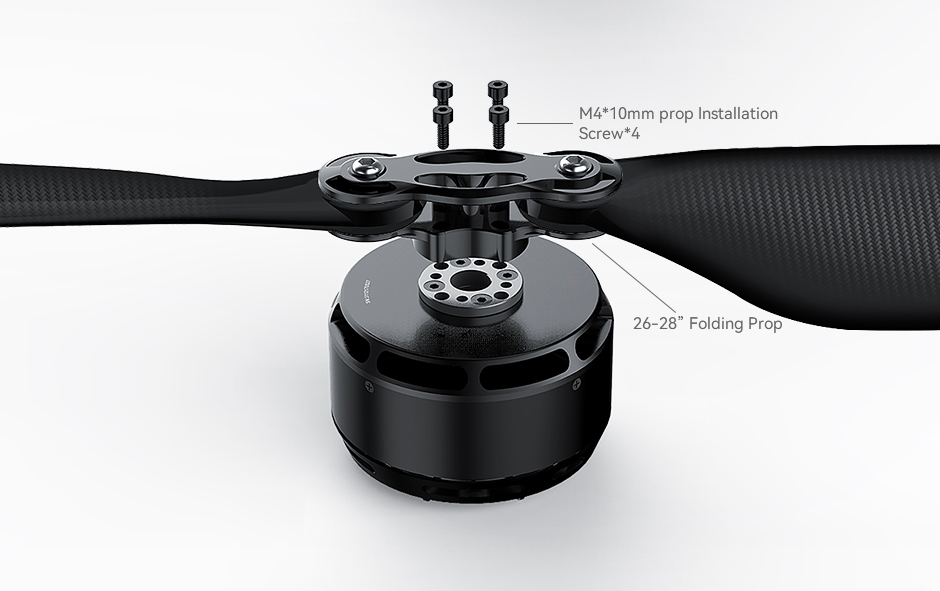

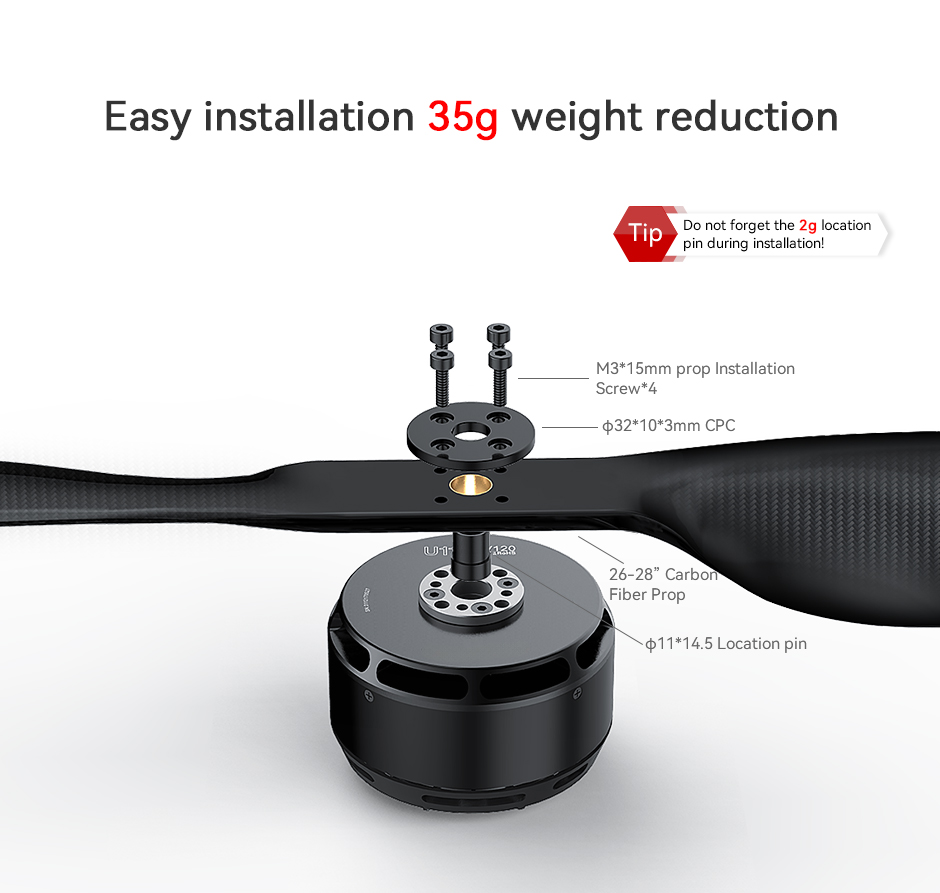

U11Ⅱ easy installation 35g weight reduction

Technical Drawing


Specification Export to Excel

Test Item	KV120	Weight (Incl. Cable)	772g
Motor Dimensions	Φ79.5*51.6 mm	Internal Resistance	80±5mΩ
Lead	14# AWG 1250mm	Configuration	12N14P
Shaft Diameter	15mm	Rated Voltage(Lipo)	12S
Idle Current(18V)	1.5A	Peak Current(180s)	57.3A
Max. Power	2783W

Test Data Export to Excel

Type	Voltage (V)	Propeller	Throttle	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
U11-Ⅱ KV120	48	T-MOTOR 26*8.5“ CF	40%	2357	0.71	4.25	1978	206	11.45	85 (Ambient Temperature: 19℃)
			42%	2613	0.78	4.91	2095	238	10.97
			44%	2882	0.85	5.62	2214	272	10.58
			46%	3127	0.93	6.33	2312	307	10.19
			48%	3359	0.98	6.99	2401	338	9.92
			50%	3595	1.09	7.71	2513	374	9.61
			52%	3833	1.15	8.47	2608	411	9.33
			54%	4134	1.25	9.41	2715	456	9.06
			56%	4422	1.31	10.35	2818	502	8.81
			58%	4679	1.42	11.26	2914	546	8.56
			60%	4931	1.49	12.39	3023	601	8.21
			62%	5361	1.62	13.69	3123	664	8.07
			64%	5683	1.72	14.97	3245	727	7.82
			66%	6077	1.81	16.23	3344	787	7.71
			68%	6340	1.92	17.61	3440	855	7.42
			70%	6692	2	18.88	3539	916	7.3
			75%	7503	2.28	22.66	3768	1100	6.82
			80%	8475	2.58	26.98	3988	1310	6.47
			90%	10172	3.14	36.82	4425	1788	5.68
			100%	12114	3.78	48.83	4818	2370	5.11
Note: Motor temperature is motor surface temperature at 100% throttle running 5mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
U11-Ⅱ KV120	48	T-MOTOR 27*8.8" CF	40%	2561	0.81	4.63	1963	224	11.41	120 (Ambient Temperature: 19℃)
			42%	2805	0.89	5.30	2078	257	10.92
			44%	3085	0.97	6.08	2190	295	10.46
			46%	3336	1.06	6.85	2310	332	10.04
			48%	3556	1.13	7.53	2405	365	9.73
			50%	3826	1.22	8.33	2498	404	9.46
			52%	4080	1.28	9.14	2588	443	9.21
			54%	4381	1.41	10.20	2696	495	8.85
			56%	4655	1.48	11.19	2793	543	8.58
			58%	4945	1.58	12.18	2883	591	8.37
			60%	5240	1.67	13.27	2974	643	8.14
			62%	5680	1.79	14.64	3099	710	8.01
			64%	6093	1.9	15.85	3210	769	7.92
			66%	6410	2.01	17.03	3306	826	7.76
			68%	6935	2.12	18.91	3401	917	7.56
			70%	7287	2.23	20.58	3493	999	7.3
			75%	8092	2.53	23.98	3723	1164	6.95
			80%	8948	2.81	28.57	3927	1387	6.45
			90%	10816	3.4	39.23	4353	1904	5.68
			100%	12617	4.04	52.07	4723	2529	4.99
Note: Motor temperature is motor surface temperature at 100% throttle running 2mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
U11-Ⅱ KV120	48	T-MOTOR 28*9.2" CF	40%	2950	0.93	5.19	1934	252	11.72	118 (Ambient Temperature: 19℃)
			42%	3217	1.03	5.87	2039	284	11.31
			44%	3400	1.08	6.34	2099	307	11.05
			46%	3875	1.22	7.66	2267	372	10.42
			48%	4158	1.32	8.49	2357	411	10.1
			50%	4463	1.39	9.39	2451	456	9.79
			52%	4759	1.49	10.27	2532	498	9.55
			54%	5071	1.58	11.33	2622	550	9.22
			56%	5477	1.7	12.60	2723	612	8.95
			58%	5835	1.81	13.85	2821	673	8.67
			60%	6195	1.92	15.18	2910	737	8.4
			62%	6614	2.04	16.61	3026	807	8.19
			64%	6921	2.14	17.97	3119	872	7.93
			66%	7317	2.27	19.80	3220	962	7.6
			68%	7799	2.4	21.50	3317	1044	7.46
			70%	8137	2.52	23.25	3400	1130	7.2
			75%	9124	2.8	27.63	3624	1342	6.79
			80%	10137	3.09	32.46	3819	1577	6.42
			90%	12007	3.68	43.47	4210	2113	5.68
			100%	14159	4.33	57.27	4583	2783	5.08
Note: Motor temperature is motor surface temperature at 100% throttle running 1mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

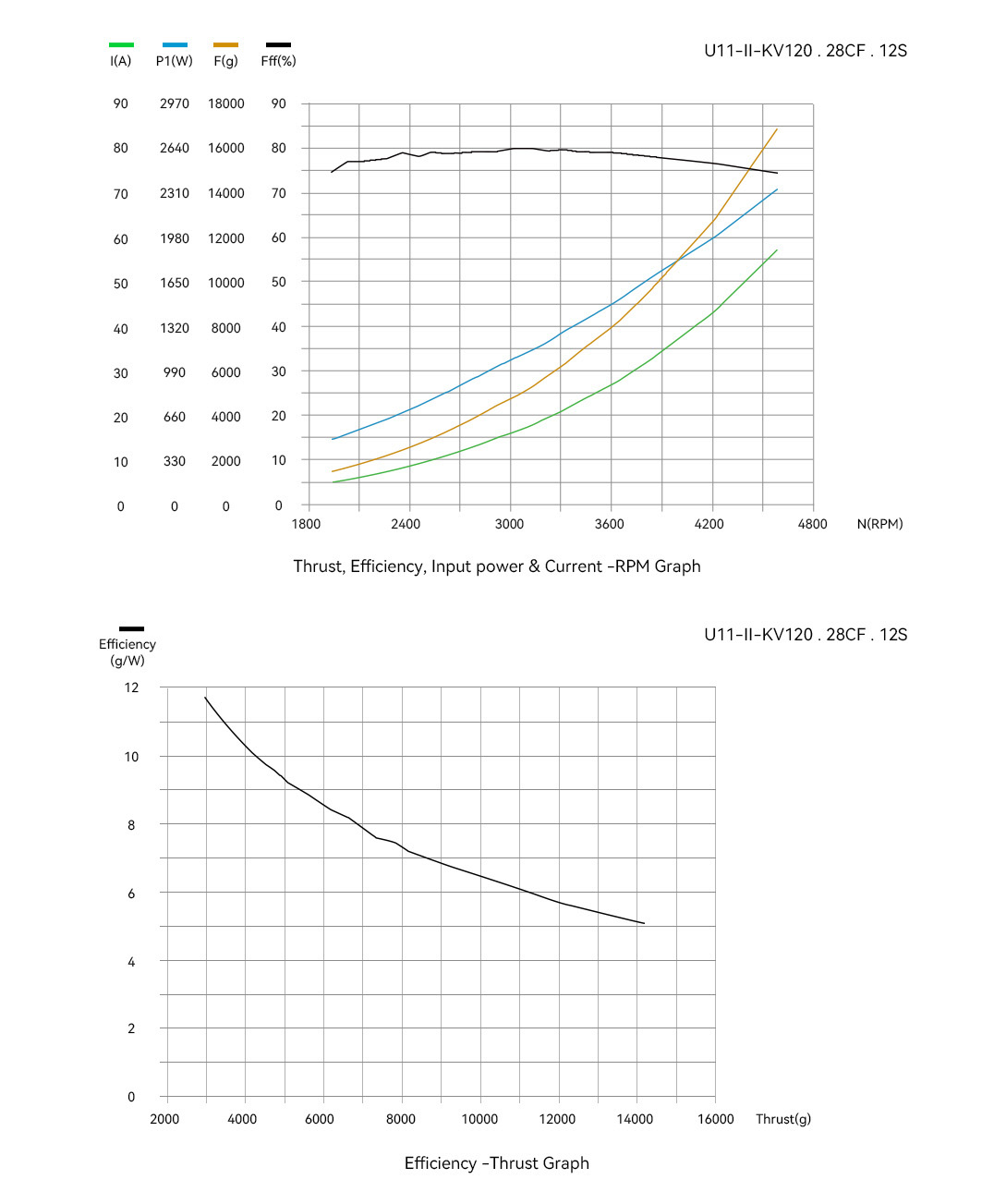

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
