T-MOTOR U13Ⅱ KV65 Heavy-lift UAV Motor with 28.7kg Max Thrust

379.90

Available points: 18500 Points Points reward: 379 Points

• Max.Thrust:28.7KG
• 1000h Service life
• Heavy load and industrial appplication

Parameter：

KV65
KV130

Quantity：

379.90

Free Shipping by DHL/UPS Express

Relevant Products

T-MOTOR G32*11 Prop-2PCS/PAIR

$357.9
T-MOTOR ALPHA 60A 24S Waterproof FOC Brushless ESC for UAVs

$299.9

Detail information
Specifications

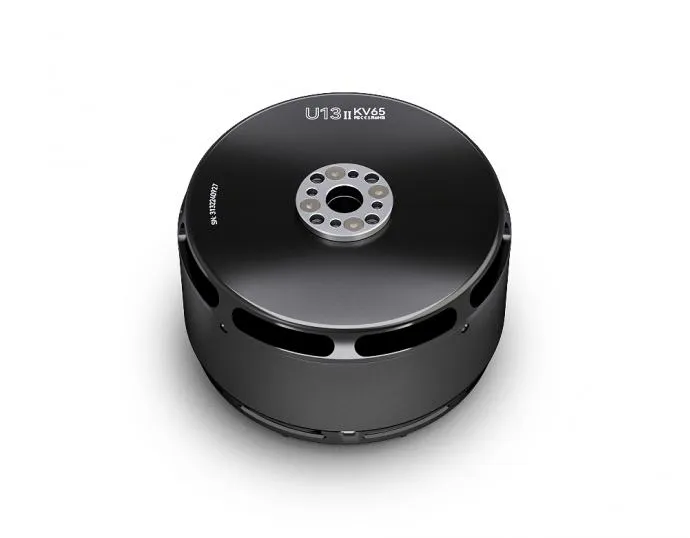

About T-MOTOR U13ⅡPower Type Multirotor UAV Motor KV65

T-MOTOR UAV Brushless Multirotor Motor U13II KV65 delivers up to 24.3 kg thrust and has a 1000-hour service life. Designed for heavy loads and industrial use, it performs well at high temperatures. The newly redesigned iron core increases coil space and reduces weight, boosting the aircraft's payload capacity.

U13ⅡKV65 Highlights:

1.Max. thrust ：28.7kg

2.MTBF：About 1000hours

3.Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings

4.Industrial grade, dust proof, water proof.

Application Areas：

Aerial photography, Filming, Delivery service and Agriculture applications.

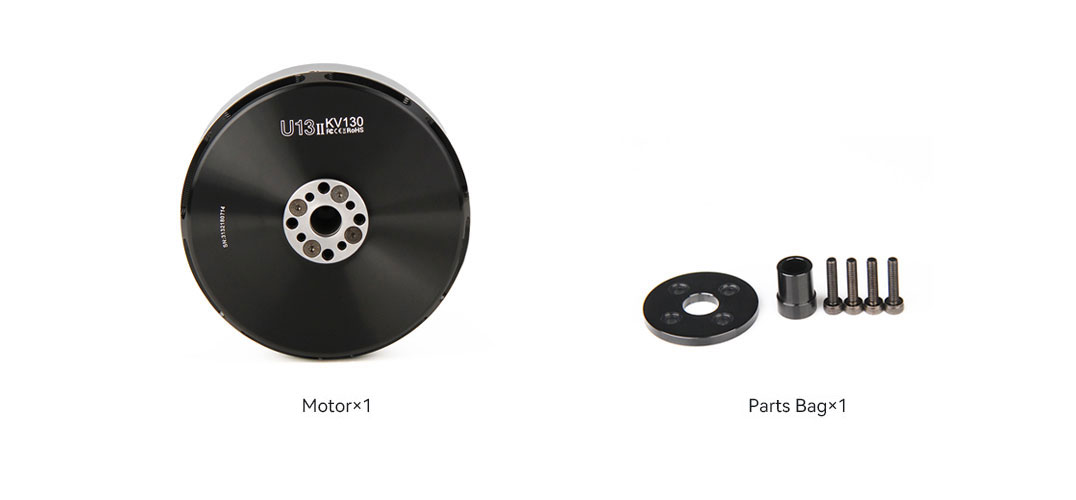

Packing List Includes:

1x T-MOTOR U13ⅡMotor KV65

1x Hardware pack

Matching Guide:

T-MOTOR G32*11 prop

If you have any questions or inquires, please contact us: onlinesales@ligpower.com

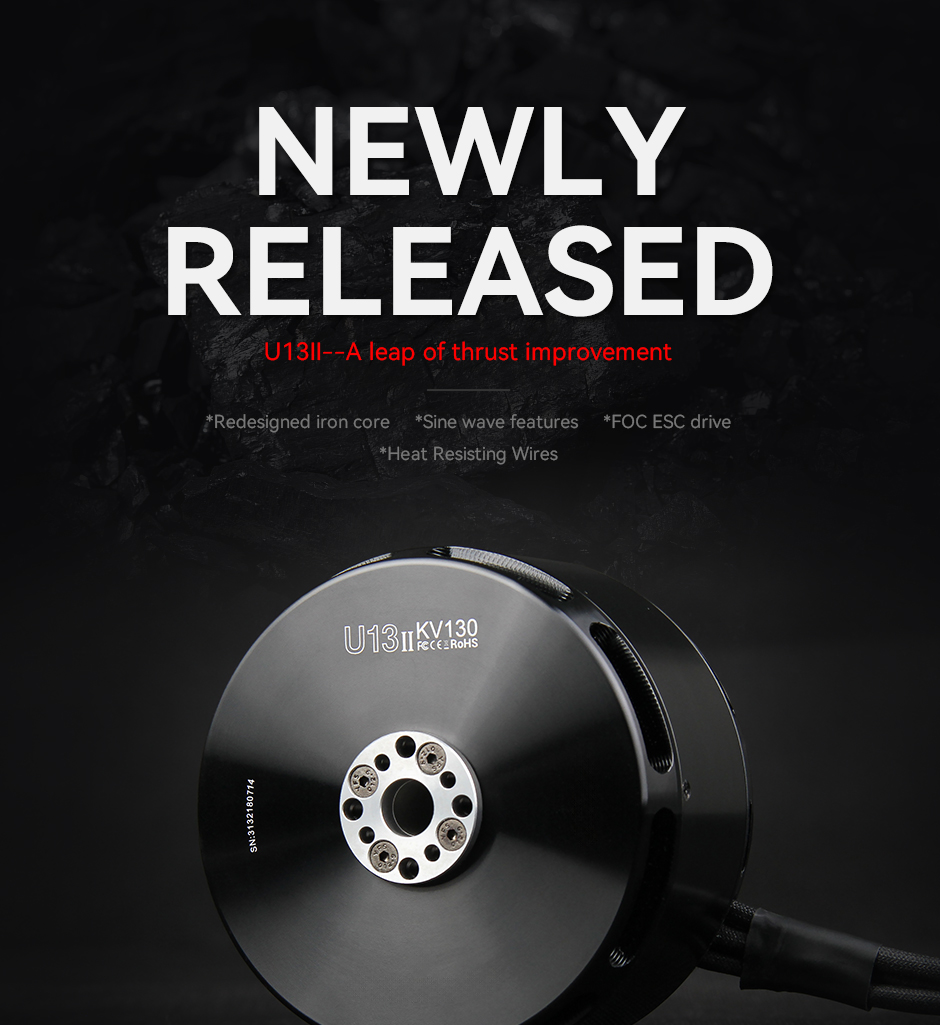

newly released U13

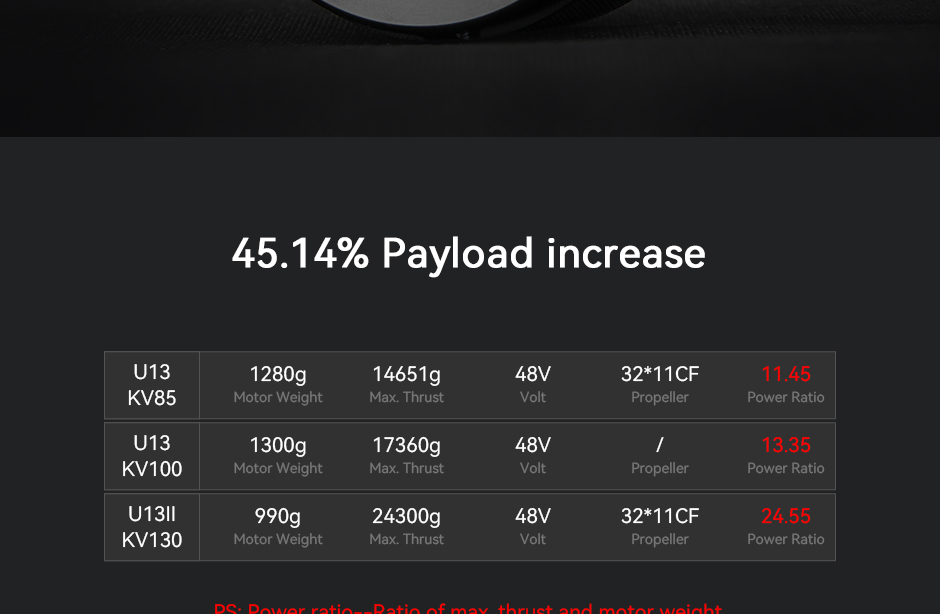

45.14% payload increase

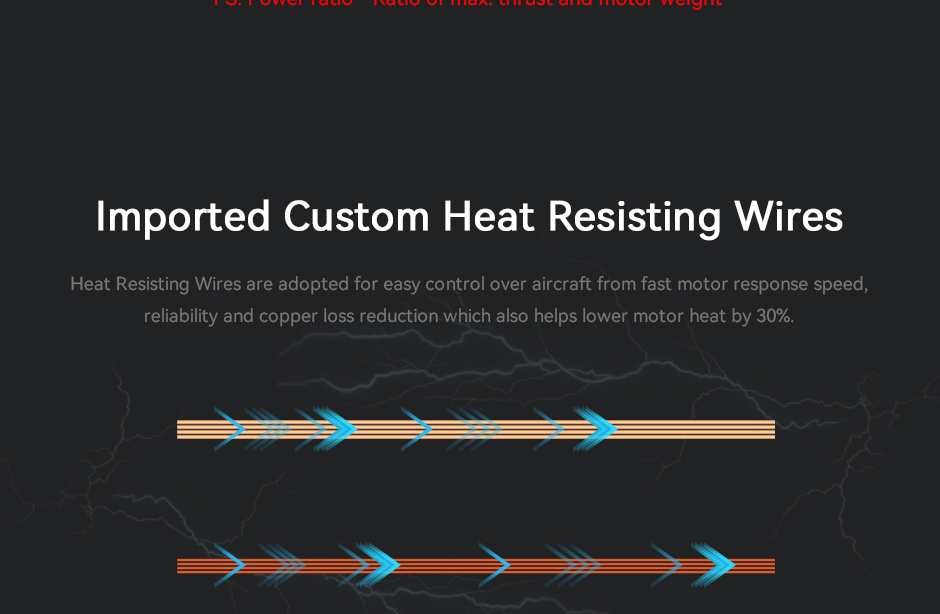

imported customo silver wires

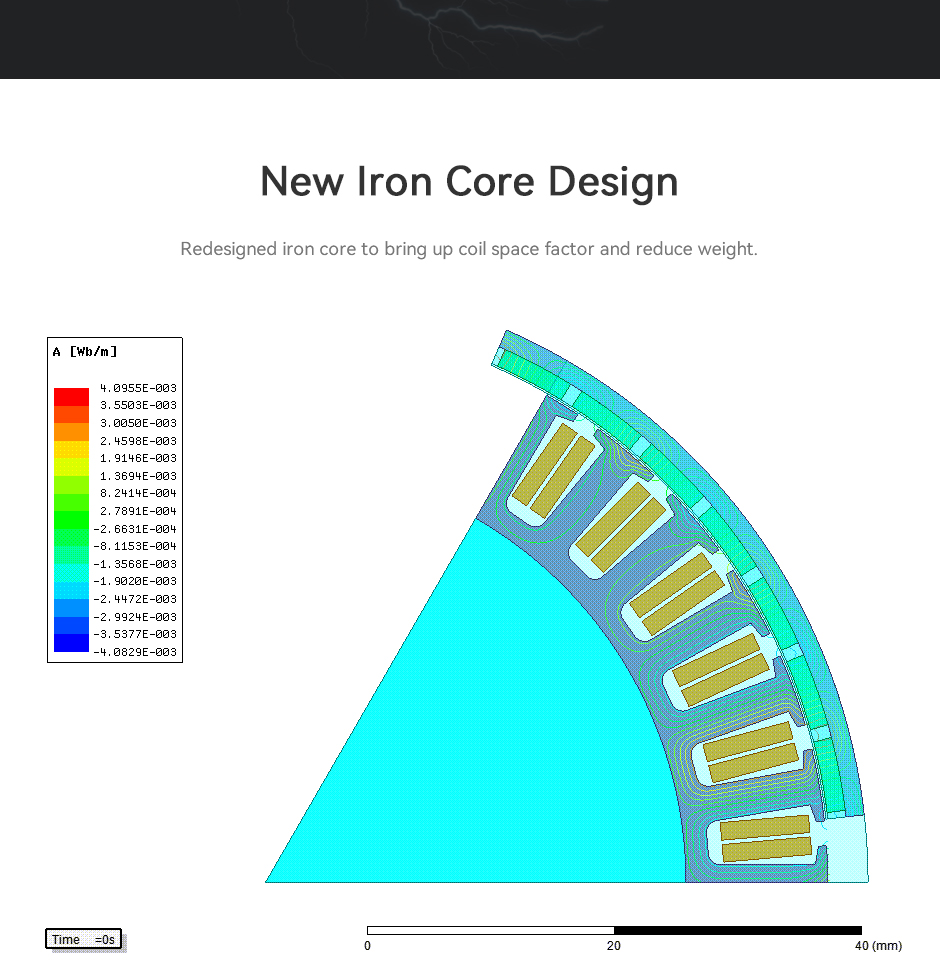

new iron core design

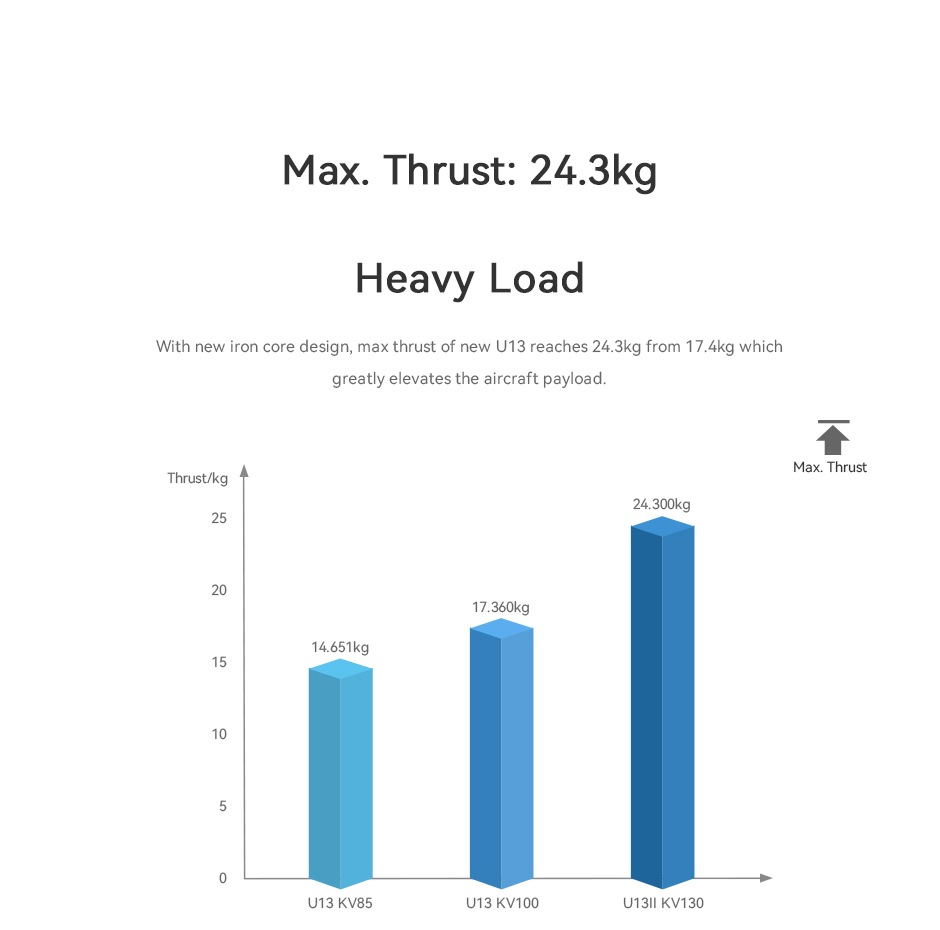

Max.Thrust: 24.3kg

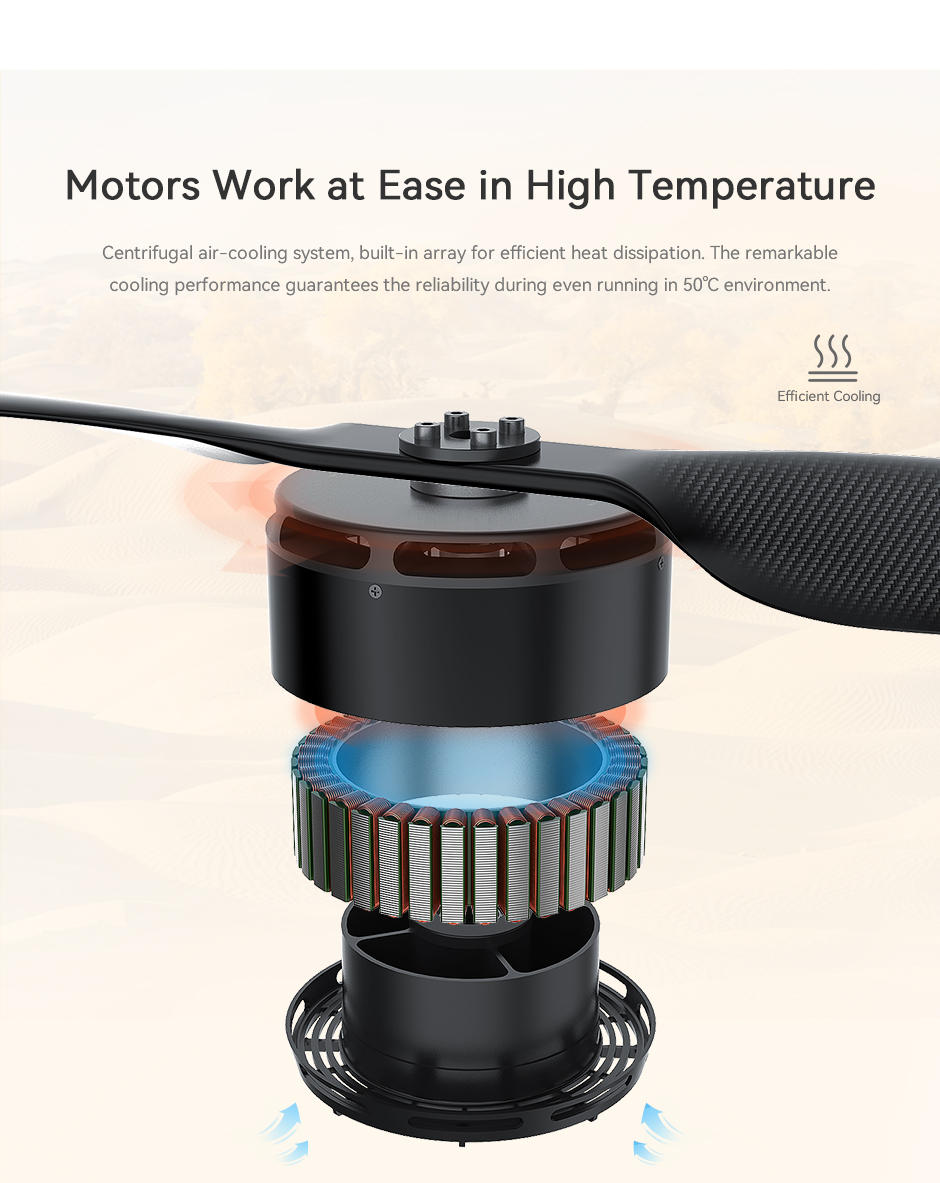

efficient cooling

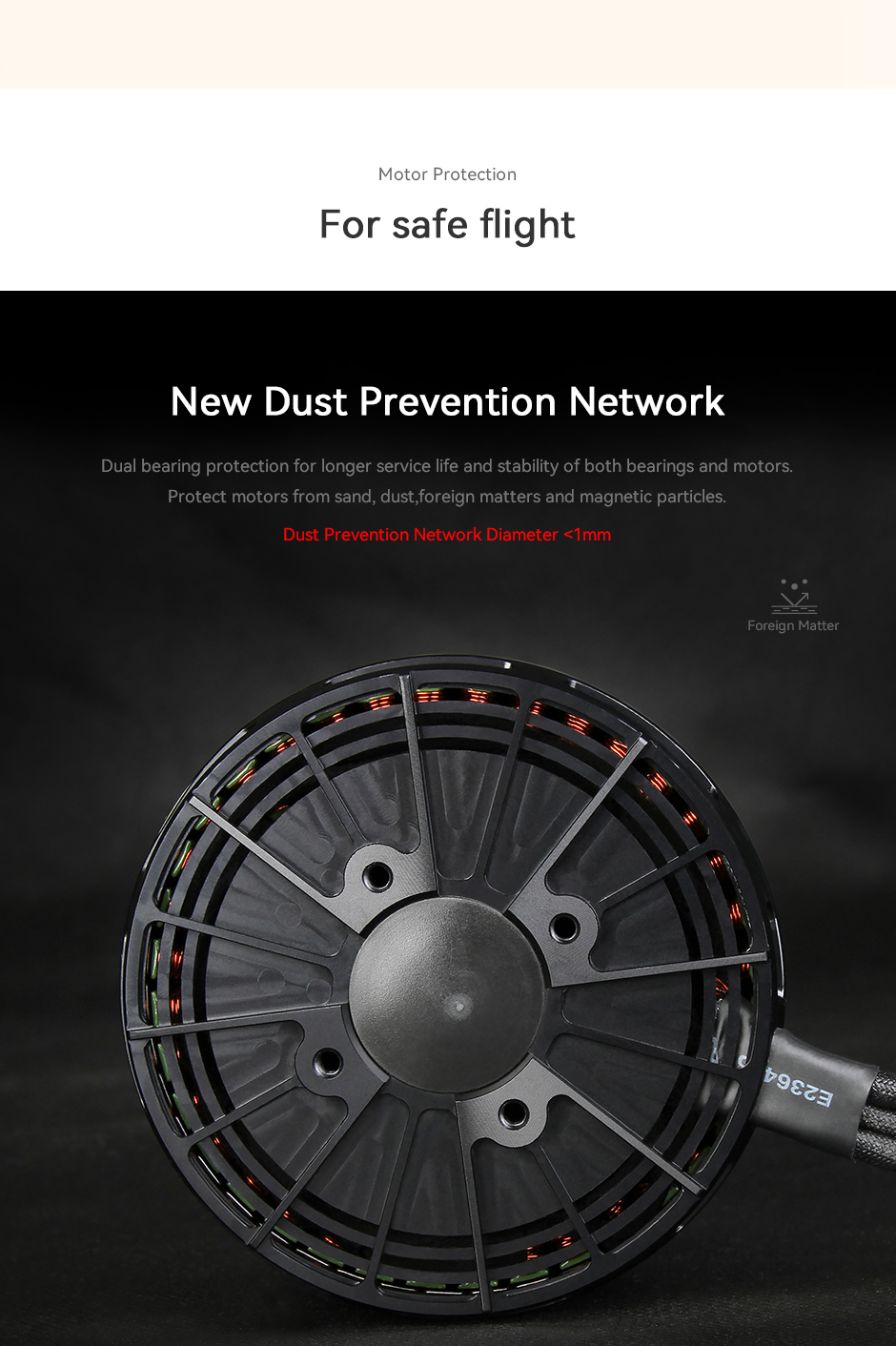

new dust prevention network

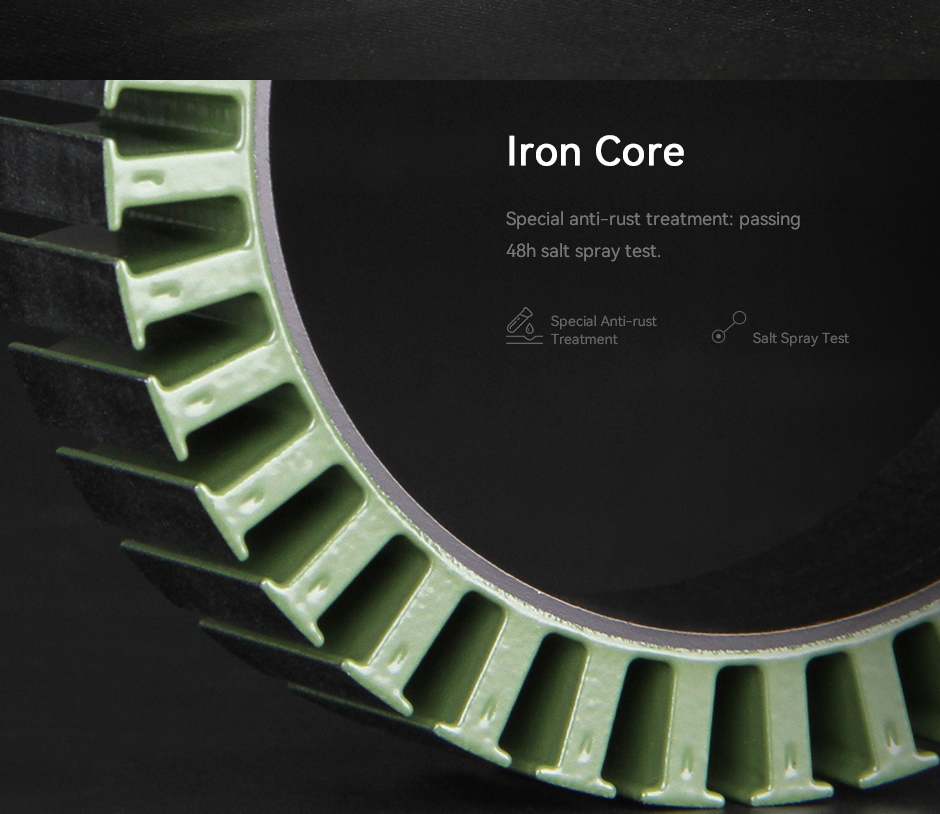

iron core special anti-rust treatment

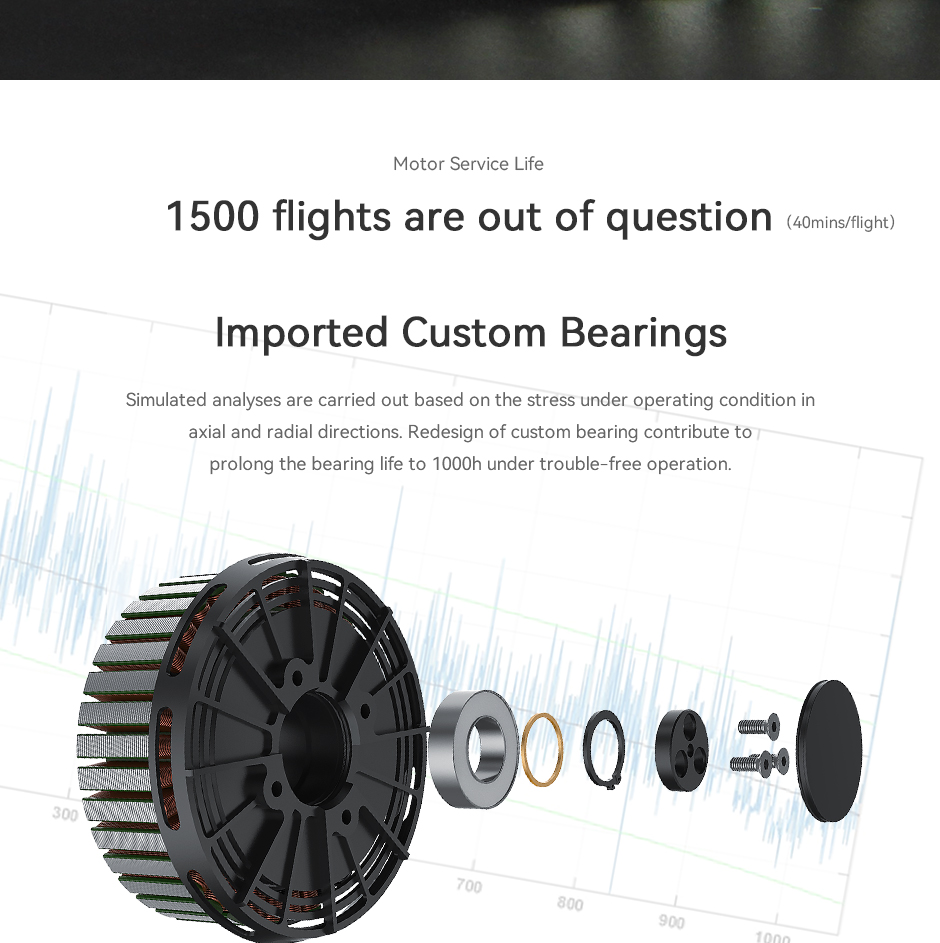

prolong the bearing life to 1000h under trouble-free operation

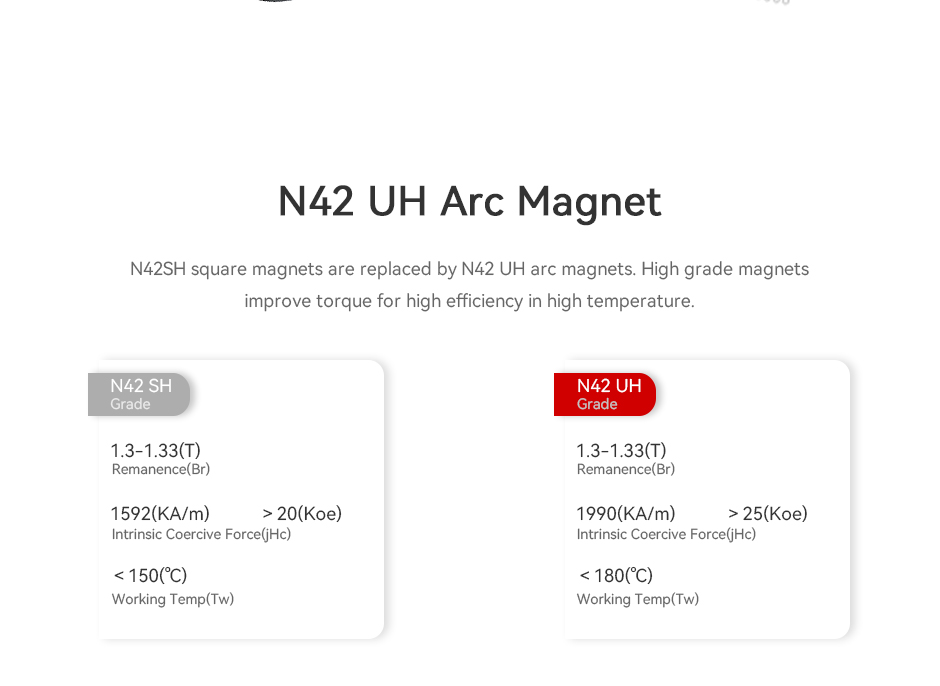

N42 UH Arc Magnet

Technical Drawing


Specification Export to Excel

Test Item	KV130	Weight (Incl. Cable)	990g
Motor Dimensions	Φ100*60mm	Internal Resistance	18mΩ
Lead	Enameled Wire 100mm	Configuration	36N42P
Shaft Diameter	15mm	Rated Voltage(Lipo)	10-14S
Idle Current(18V)	1.5A	Peak Current(180s)	118A
Max. Power	5659W

Test Item	KV65	Weight (Incl. Cable)	975g
Motor Dimensions	Φ100*60mm	Internal Resistance	73mΩ
Lead	Enameled Wire 100mm	Configuration	36N42P
Shaft Diameter	15mm	Rated Voltage(Lipo)	22-25S
Idle Current(18V)	1.7A	Peak Current(180s)	68A
Max. Power	6720W

Test Data Export to Excel

Type	Voltage (V)	Propeller	Throttle	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
U13Ⅱ KV130	48	T-MOTOR G32*11“CF	50%	7700	3.1	20.40	2612	979	7.86	132 (Ambient Temperature: 24℃)
			55%	10000	4	30.80	3000	1478	6.76
			60%	11500	4.7	38.40	3215	1843	6.24
			65%	13500	5.5	46.70	3428	2242	6.02
			75%	16700	6.9	65.40	3832	3139	5.32
			85%	19700	8.1	83.70	4164	4018	4.9
			100%	24300	10	117.90	4609	5659	4.29
Note: Motor temperature is motor surface temperature at 100% throttle running 5mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
U13 II KV65	99.51	G30*10.5	40%	7975	3.3	10.8	2679	1079	7.4	97℃
	99.47		45%	8784	3.7	12.5	2823	1243	7.1
	99.44		50%	9759	4.1	14.4	2964	1431	6.8
	99.39		55%	10896	4.4	16.3	3106	1622	6.7
	99.33		60%	11879	4.7	18.5	3235	1838	6.5
	99.28		65%	13078	5.0	21.3	3406	2110	6.2
	99.21		70%	14500	5.6	24.4	3571	2420	6.0
	99.11		75%	15971	6.2	28.3	3769	2809	5.7
	99.02		80%	17675	7.0	33.1	3964	3278	5.4
	98.79		90%	21522	8.5	44.1	4342	4355	4.9
	98.54		100%	24744	9.7	54.7	4654	5389	4.6
	99.44	G32*11	40%	8585	3.5	11.7	2485	1161	7.4	115℃
	99.40		45%	9671	3.9	13.8	2639	1374	7.0
	99.36		50%	10714	4.3	16.0	2777	1589	6.7
	99.29		55%	11871	4.7	18.7	2922	1854	6.4
	99.23		60%	13128	5.2	21.4	3055	2125	6.2
	99.15		65%	14798	5.9	25.3	3235	2512	5.9
	99.06		70%	16439	6.6	29.8	3414	2955	5.6
	98.93		75%	18380	7.4	34.9	3596	3450	5.3
	98.78		80%	20889	8.3	42.1	3803	4156	5.0
	98.53		90%	24982	9.9	54.7	4125	5392	4.6
	98.22		100%	28711	11.4	68.5	4397	6727	4.3
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
