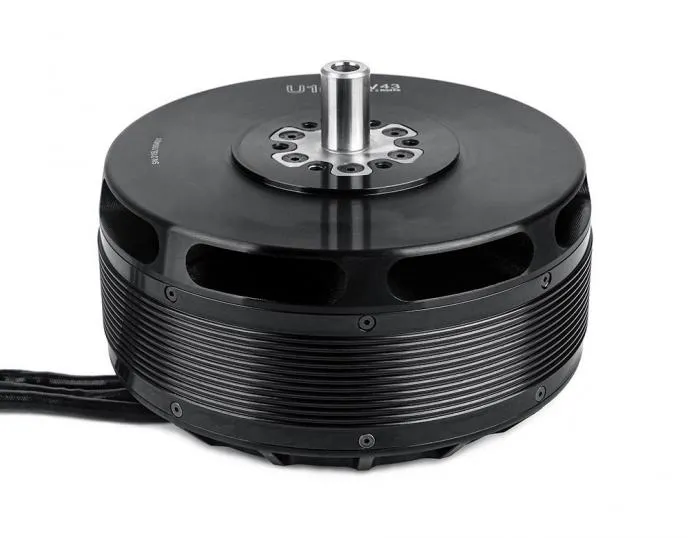

U15L KV43 — High-performance Manned Aircraft & Transport Drones Heavy-duty Motor

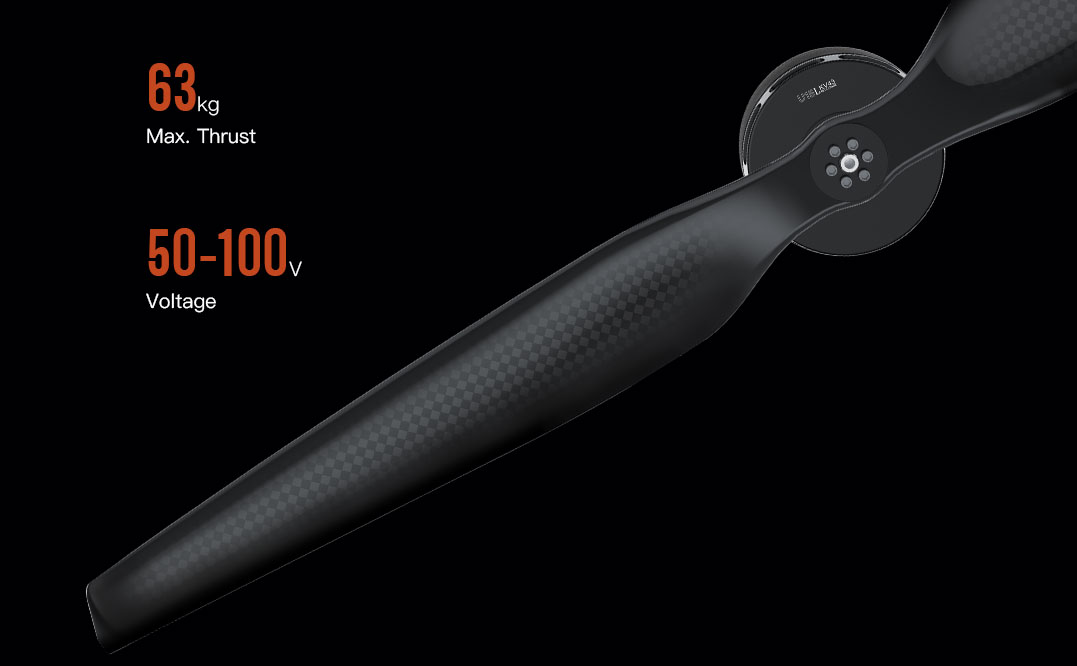

U15L high-thrust drone brushless DC electric motor provides super thrust and extreme reliability for industrial drones, manned aircraft and rescue equipment, with a maximum thrust of 63.3kg (100% throttle, 24S voltage), rated power of 2800W, peak current of 135A, and can easily cope with heavy-duty tasks13. U15L motors strictly follow international certification standards such as GB/T19001-2016 (equivalent to ISO9001:2015) and GB12350-2009, pass the AQL2.5 quality acceptance system and cooperate with the SIP inspection process, implement 100% full inspection of key raw materials, and use CPK process control technology to ensure the production of high-reliability, high-quality, high-power drone motors.
| Item | Value | Item | Value |
|---|
| Motor weight | 3600g（Incl. Cable） | Shaft Diameter | 25mm |
| Rated Voltage(LiPo) | 12-24S（88.8V） | Internal Resistance | 20mΩ |
| Peak Current(120s) | 135A | Idle Current(10V) | 4.0A |
| Match ESC | LIGPOWER Thunder 300A 24S | Recommended Propeller | LIGPOWER NS47×18" Ultra-lightweight Carbon Fiber Integrated Propeller |
| Best Efficiency Range | 50%~70% Throttle（Efficiency 6.1~7.6g/W） | |
Performance test (24S voltage, 47×18" propeller)
50% throttle: 24.8kg pulling force, only 3279W power consumption, high efficiency and energy saving.
75% throttle: 48.0kg pulling force, instantaneous response without delay, meeting sudden power requirements.
Application Areas
Heavy-duty logistics drones: A single motor can carry a load of more than 63.3kg, suitable for material transportation in mountainous areas and emergency rescue delivery.
Manned aircraft: Multiple aircraft work together to achieve stable lift, pass 2000 hours of durability aging test, and safety redundancy to ensure the safety of passengers.
Industrial inspection platform: compatible with PWM/CAN dual backup signals, adapt to UAVCAN, DRONECAN and other multi-protocol flight control, seamlessly integrate various industry airborne equipment.
Certification and Warranty
Passed EU CE, US FCC certification and ISO900 quality management system.
Provide one-year warranty and support customized services (voltage and other performance parameters, control and interface protocols, environmental adaptability customization,certification and standard compliance).
Matching Guide

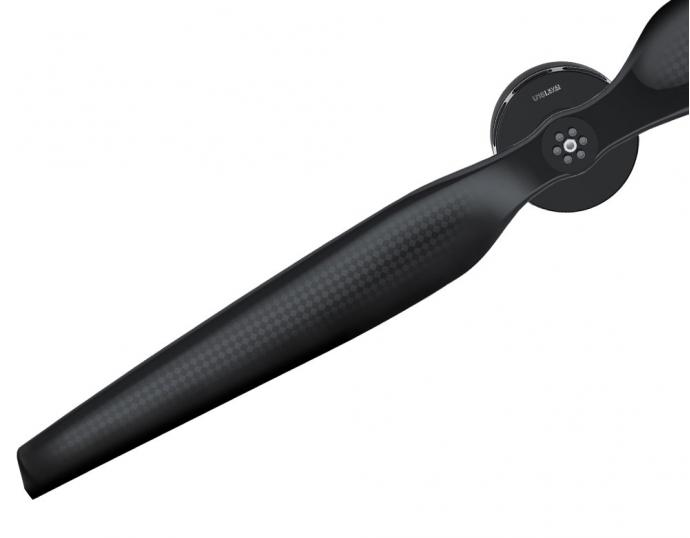

Propeller: NS47x18 Ultralight Carbon Fiber Integrated Propeller
ESC: Thunder 300A 12-24S ESC
Combo pack: U15L KV43 Manned Aircraft kits
