Name: T-MOTOR U15xxl kv29 100 kg Thrust Kits for Heavy-lift drone
Brand: LIGPOWER
SKU: LIGPOWER000891
Price: 1999.00 USD
Availability: InStock

T-MOTOR U15xxl kv29 100 kg Thrust Kits for Heavy-lift drone

1999.00

Available points: 100000 Points Points reward: 1999 Points

• This kit features a high-thrust motor that provides up to 100 kg of thrust
• Designed specifically for heavy-lift aircraft, such as cargo transport, emergency rescue, agricultural spraying drones, and manned aircraft
• Support voltage 12-24S

Parameter：

U15XXL KV29
U15XL KV38
U15L KV43

ESC：

Thunder 300A 24S

Propellers：

NS57*22
NS62*24

Quantity：

1999.00

Free Shipping by DHL/UPS Express

Relevant Products

T-MOTOR U15XXL Manned Aircraft Type UAV Motor 12-24S 29KV

$1999
T-MOTOR Thunder 300A 24S High-Power Manned Aircraft ESCs for Heavy-Lift Drones & eVTOL

$1599
T-MOTOR NS57*22

$2399
T-MOTOR NS62*24

$2599

Detail information
Specifications

Product Description

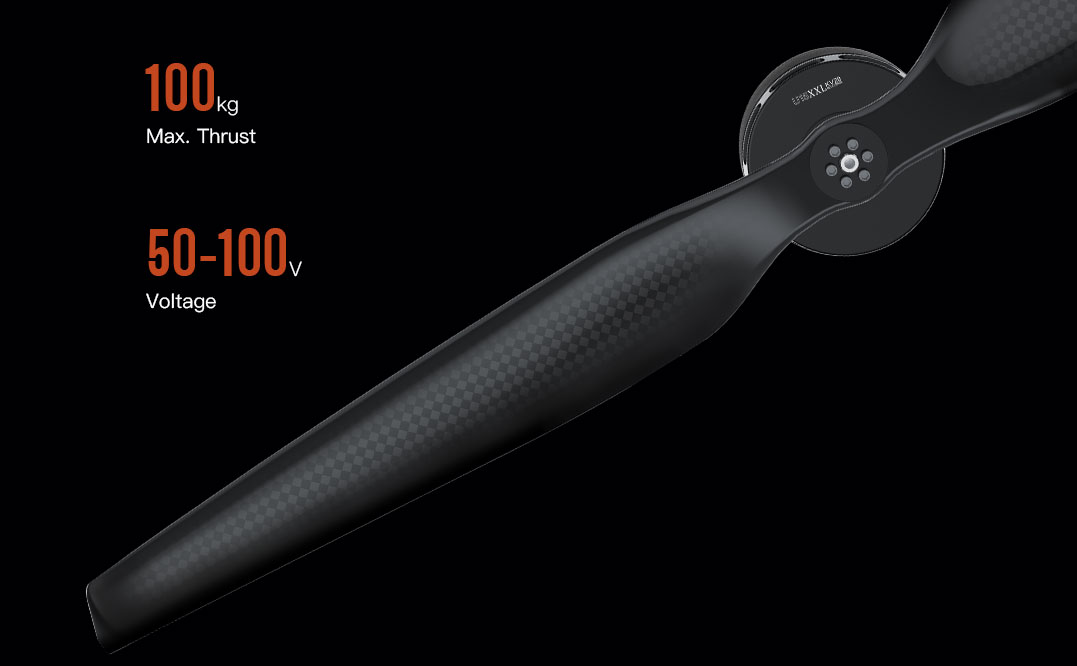

The T-MOTOR U15XXL KV29 motor kit redefines heavy-lift UAV performance with unparalleled power density. Designed for commercial and industrial applications, this system combines a 24S high-voltage motor, 300A Thunder ESC, and carbon fiber propellers to achieve 100kg max thrust while maintaining an ultra-lightweight 6.95kg total weight，Making it an ideal solution for heavy duty industrial UAV power propulsion systems.

Key Features & Technical Specifications

✅ Extreme Power Output

3300W Rated Power: Sustained heavy-load operation for agricultural spraying, logistics, and search/rescue missions.
24S LiPo Compatibility: Wider voltage range (14–24S) ensures stable performance in extreme conditions.

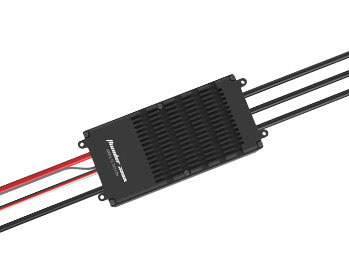

Thunder 300A ESC: Delivers 240A continuous/300A peak current for rapid throttle response and overload protection.

✅ Advanced Engineering

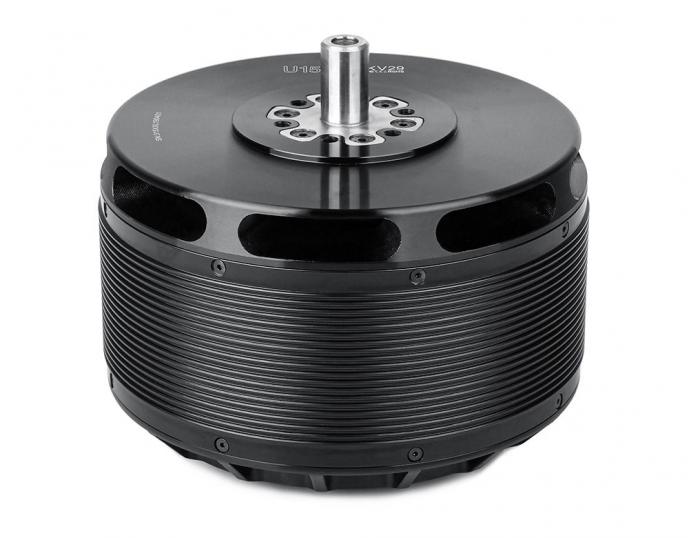

U15XXL KV29 Motor: 36N42P configuration reduces cogging torque, while 20mΩ internal resistance maximizes efficiency.

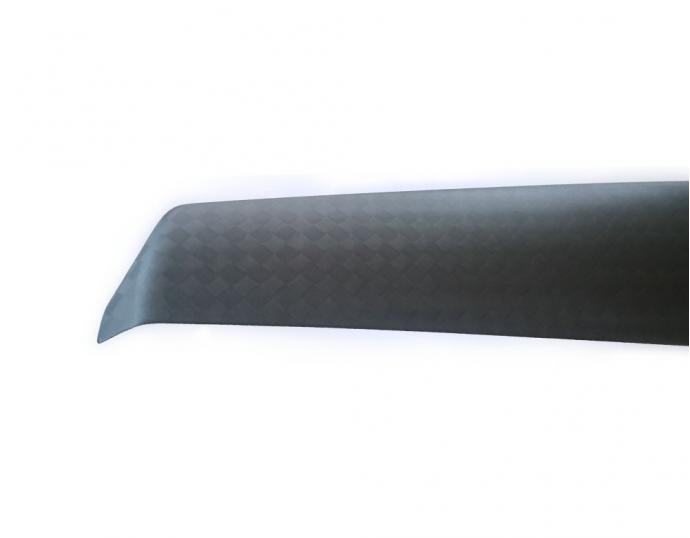

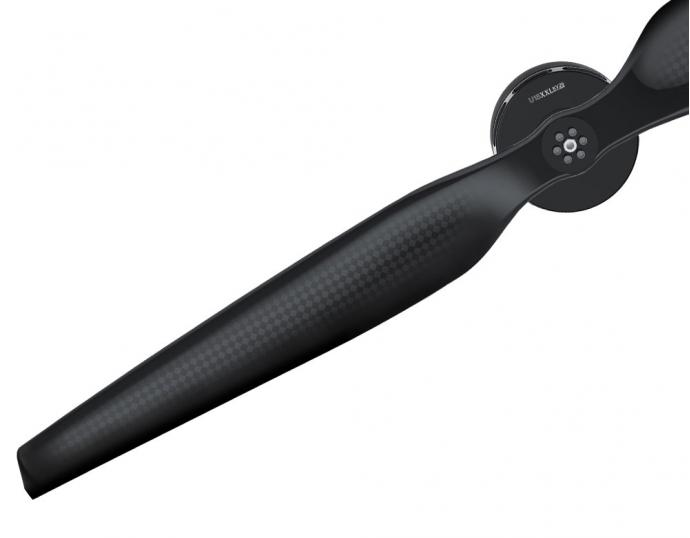

CF+Epoxy Propellers: Choose between NS57x22" (530g) or NS62x24" (920g) blades for optimized thrust-to-weight ratio.
Industrial Durability: Dust and waterproofing protects against dust, moisture and vibration in harsh environments.

Ideal Applications

Cargo Delivery Drones: Lift payloads up to 100kg for urban logistics or remote area supply chains.
Aerial Firefighting: Power heavy water/foam dispersal systems in emergency operations.
Agricultural Spraying: Support large-capacity liquid tanks for efficient crop treatment.
Engineered for Prototype eVTOLs and Manned Multicopters: Certified thrust redundancy (100kg/pod) meets human-carrying safety thresholds.


Technical Drawing


Specification Export to Excel

Motor Item	U15XXL KV29	Weight (Incl. Cable)	5130g
Motor Dimensions	Φ151.5*106mm	Internal Resistance	20mΩ
Lead	Enameled Wire200mm	Configuration	36N42P
Shaft Diameter	25mm	Rated Voltage(LiPo)	24S
Idle Current(10V)	3.3A	Peak Current(80s)	210A
Rated Power	3300W

ESC Item	thunder 300A 24S	Weight(Incl. cables)	870g
Size	154.969.648.9mm	BEC	No
Programable Item(s)	No	Support Voltage	14-24S
Con. Current	240A	Peak Current(10S)	300A

Model NO.	57*22	Weight(Single Blade)	530±20g
Material	CF+Epoxy	Suface Treatment	Glossy
T-MOTOR Series	2blades-intergrated

Model NO.	62*24	Weight(Single Blade)	920±40g
Material	CF+Epoxy	Suface Treatment	Glossy
T-MOTOR Series	2blades-intergrated

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
U15XXL KV29	57*22"	30%	99	11804	8.41	10.01	864	987	12.00	158 （Ambient Temperature： 32℃）
		35%	99	16098	11.37	14.82	1032	1461	11.00
		40%	98	19557	13.84	19.31	1134	1900	10.30
		45%	98	23319	16.46	24.62	1224	2425	9.60
		50%	98	29643	20.92	34.43	1374	3382	8.80
		55%	98	34191	24.25	42.37	1512	4160	8.20
		60%	98	40059	28.46	53.44	1596	5238	7.60
		65%	98	48710	34.64	71.27	1770	6962	7.00
		70%	98	55823	39.87	87.08	1878	8491	6.60
		75%	97	59448	42.63	96.22	1950	9377	6.30
		80%	97	64474	46.35	108.79	2022	10590	6.10
		85%	97	69449	50.22	122.32	2112	11875	5.80
		90%	97	74318	53.78	136.07	2172	13184	5.60
		95%	97	80266	58.08	153.89	2232	14890	5.40
		100%	97	85493	61.72	169.42	2310	16395	5.20
Note: Temperature is motor coiling temperature at 100% throttle running 2mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
U15XXL KV29	62*24"	30%	99	13633	9.80	11.20	834	1104	12.30	184 （Ambient Temperature： 32℃）
		35%	98	19599	14.01	18.15	996	1787	11.00
		40%	98	23521	16.94	23.37	1122	2299	10.20
		45%	98	27670	20.02	29.22	1212	2876	9.60
		50%	98	33170	24.10	37.94	1296	3727	8.90
		55%	98	40488	29.59	50.66	1437	4971	8.10
		60%	98	48312	35.40	65.63	1560	6421	7.50
		65%	98	53443	39.10	75.88	1635	7414	7.20
		70%	97	67606	50.04	109.04	1800	10613	6.40
		75%	97	72109	53.46	119.37	1890	11591	6.20
		80%	97	76707	57.09	132.01	1950	12796	6.00
		85%	97	82635	61.78	148.66	2010	14390	5.70
		90%	97	88756	66.85	167.53	2085	16180	5.50
		95%	96	95211	72.18	188.35	2130	18153	5.20
		100%	96	101449	76.97	209.09	2203	20089	5.00
Note: Temperature is motor coiling temperature at 100% throttle running 1mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
