T-MOTOR V LINK

99.90

Available points: 100 Points Points reward: 99 Points
?

★ V ESC Recommendations

Quantity：

99.90

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
  • Download

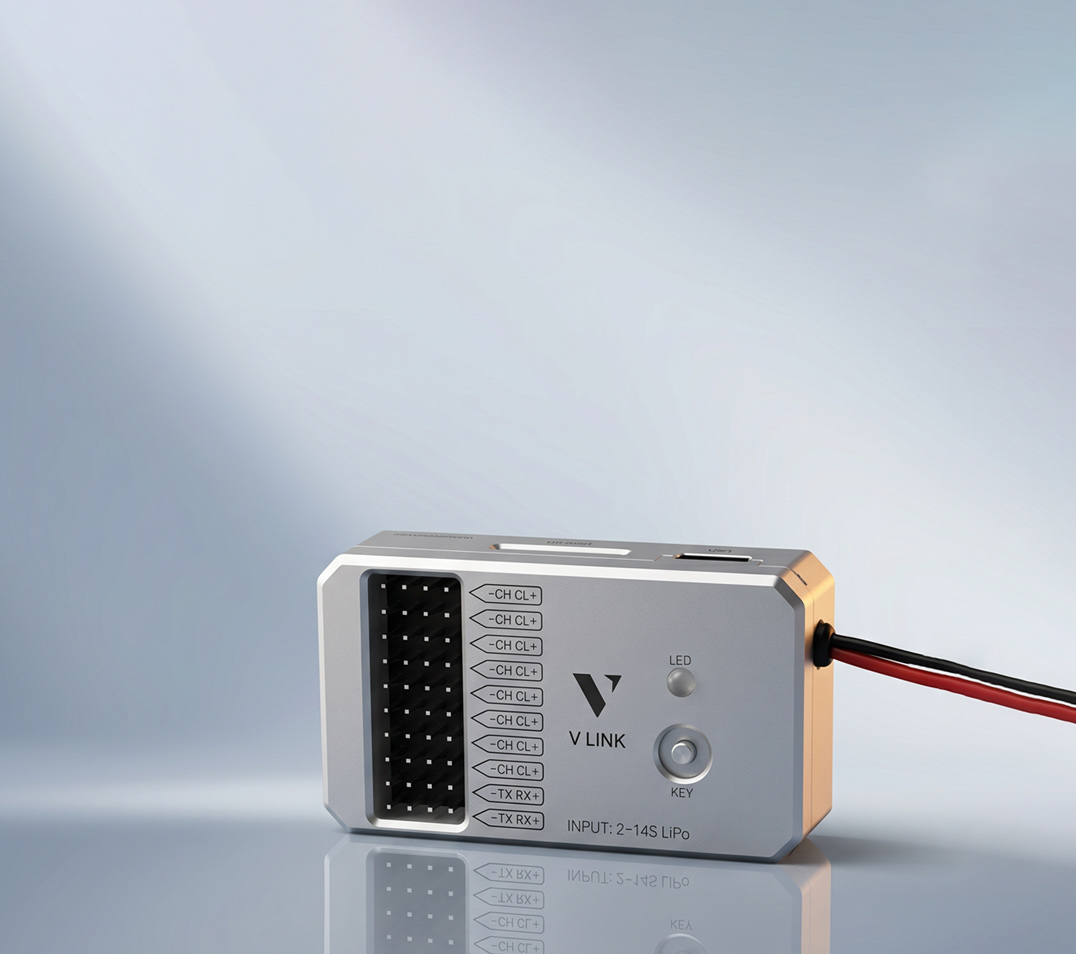

V LINK 2.0 data link

V LINK 2.0

High-Speed CAN Communication & Dual Throttle Output

Real-Time Data Monitoring | Offline Log Storage | One-Click Firmware Updates

Complete Visibility into Power System Performance

Data box (V LINK) is a communication device that integrates data acquisition and storage with V series ESCs, which can record the real-time status of the propulsion system, meet the needs of users for fault data analysis, detection of aircraft operating status for improvement of flight safety.

With the data box (V-LINK), users can use PC software to perform the following operations: upgrade firmware upgrade, read online real-time data, store data offline, download the failure data stored and adjust ESC settings.

Disclaimer: Thanks for purchasing T-MOTOR products. The particularity of V Series ESCs requires special attention to this User Manual before use. Please keep strict compliance with what’s indicated in the V Series ESC matching table.The propellers to be used with corresponding ESCs should not surpass the size limitation (T-MOTOR standard) shown in V Series ESC matching table. Any improper use including but not limited to over loading, or not following V Series ESC matching table may result in injury and damage to human and devices. We assume no responsibility for personal injury property damage or consequential losses resulting from the product.

Parameter

Date box (V LINK)

Communication method: Serial port, CAN, USB

Voltage:18-60V(6-14S)

Size:47.4*32.4*14.3mm

Weight:29g

Matching Table
ESCMOTORVolt.PropPropeller Locking
V40A 14S8108 KV1706SCustomer-
supplied
U5 V2.0 KV4006SP17
U8 II KV8512SNS30
ESCMOTORVolt.PropPropeller Locking
V60A 14SVL5009 KV27512SVD17YES
VL6011 KV180P21YES
VL5005 KV4106SP18YES
1006 KV9512SP30
1007 KV115PL32
U8II LITE KV100FA29.2
MN501S KV24014SP18
12SP15
6SG22
MN5008 KV3407SP18
U7 KV4206SP17
U8 II KV10012SG28
G29
U10 II KV100G30YES
MN601 KV3207SP21
MN605 KV17012SG22
MN805 KV12012SG30
U8 II KV1907SG24
U8 II KV1508SG28
12SG22
14S
U8 LITE KV15013SMF24
6007 II KV3206SP18
MN601S KV17012SG22
MN605S KV170
MN705S KV125G27
MN1005 KV90G32
14SG30
MN8012 KV10012S
14S
U8LITE L KV11012S
MN505 KV3806SP18
V505 KV26012SP1758
ESCMOTORVolt.PropPropeller Locking
V80A 14SVL6013 KV21012SP22YES
VL7015 KV165G28YES
VL7015 KV190P24YES
VL8015 KV170G26YES
MN8017 KV120G30
FA30.2
U11 II KV120G29
V605 KV210V22&P21
MN705 KV125G27
MN705 KV220G22
MN805 KV150G28
MN805 KV170G26
P80 III KV10014SG32
12S
P80 III KV12014SG29
12SG30
V605S KV210G22
AT4130 KV3006SG20
AT5230 KV20012SG18
MN801S KV150G26
P60 KV170G22
AT4130 KV2301712
ESCMOTORVolt.PropPropeller Locking
V120A 14SVL8018 KV18012SG26YES
U12 II KV120G30YES
ESCMOTORVolt.PropPropeller Locking
V150A 14SVL8022 KV14014SVZ42YES
VL8022 KV17012SVZ29YES
VL8020 KV170VZ28YES
13515 KV60OZ40
(Folding Three-blade
Propeller)
ESCMOTORVolt.PropPropeller Locking
V200A 14SVL1028 KV19012SG28YES
VL1032 KV180G30YES
VL1035 KV15014SG32YES
10015 KV20012SVZ42
V10 XL KV100VZ42
MN11015 KV85FA40
ESCMOTORVolt.PropPropeller Locking
V60A 24SU13 II KV6524SG32
ESCMOTORVolt.PropPropeller Locking
V120A 24SV13 L KV6524SG36
ESCMOTORVolt.PropPropeller Locking
V200A 24SU13 II KV6524SG38
Continuously updated
