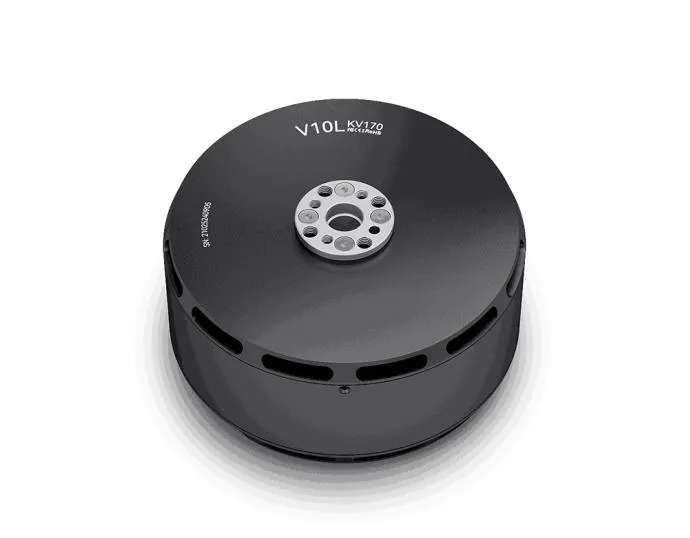

Name: T-MOTOR V10L KV170 12S High-Power VTOL Motor with 31kg Max Thrust
Brand: LIGPOWER
SKU: AWD040100071
Price: 399.00 USD
Availability: InStock

T-MOTOR V10L KV170 12S High-Power VTOL Motor with 31kg Max Thrust

399.00

Available points: 18000 Points Points reward: 399 Points

KV：

KV170

Quantity：

399.00

Free Shipping by DHL/UPS Express

Detail information
Specifications

big pull-to-weight ratio,strong overload ability & environment adaptiveveness features

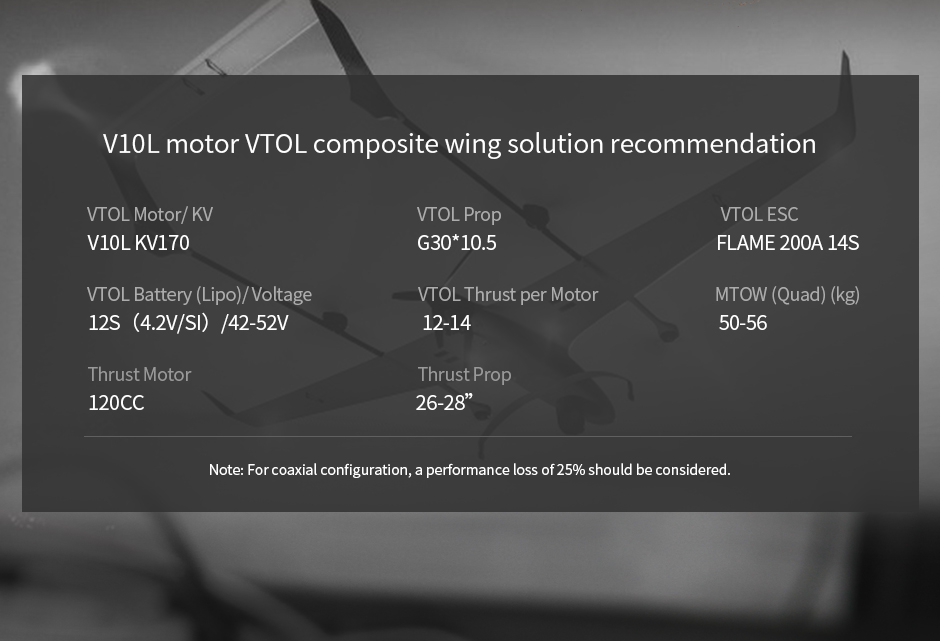

recommendation

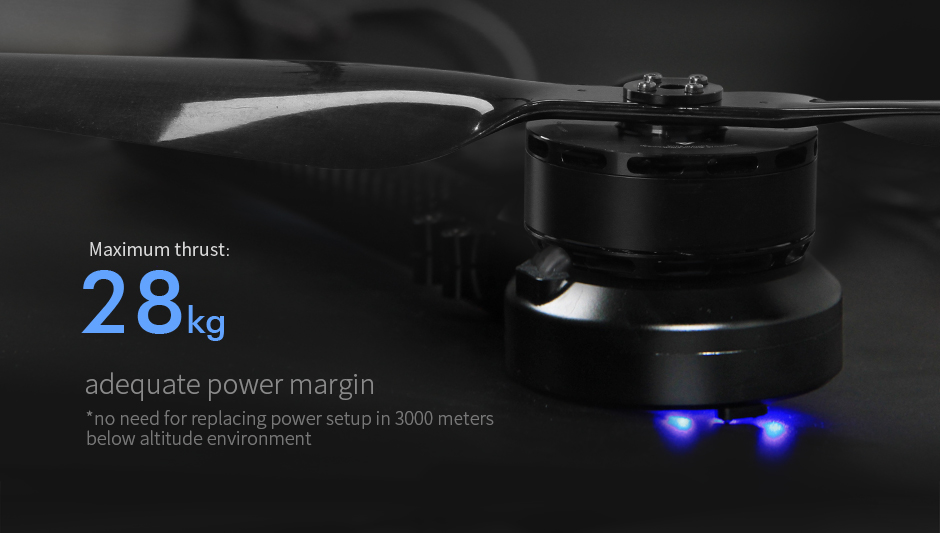

maximum thrust 28kg

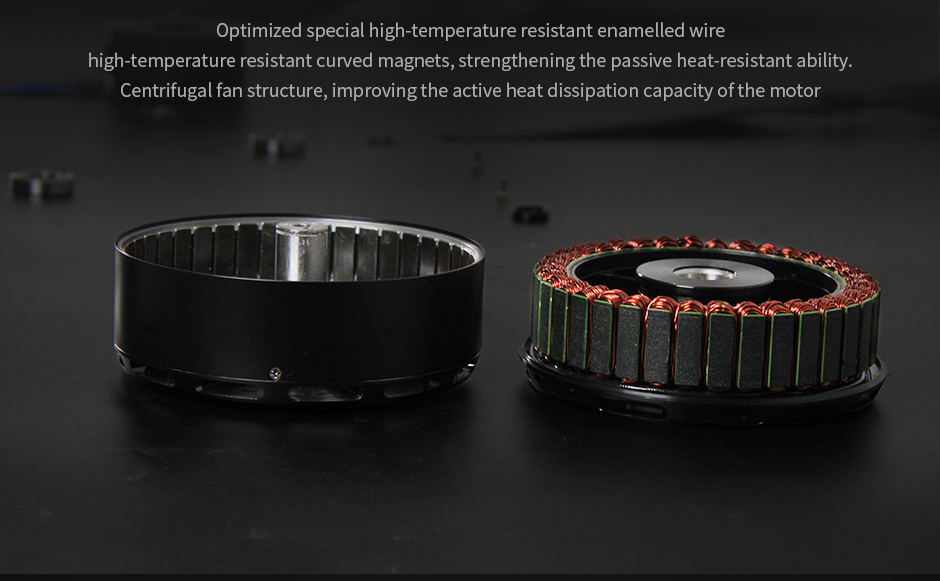

High heat dissipation capacity

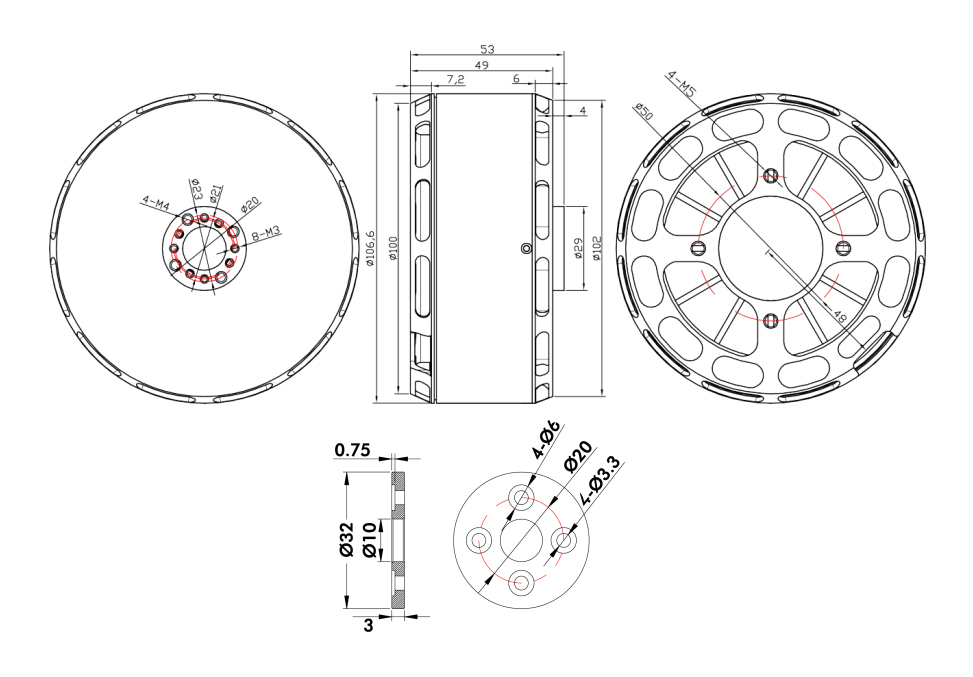

Technical Drawing


Specification Export to Excel

Model No./ Kv	V10L KV170	Magnet Temperature Resistance Grade	180℃
Motor Size（mm）	Φ106.6*53	Lead（mm）	Enameled Wire 150mm
Stator Technology	Anti-rust treatment ;180°C high temperature-resisting coatings	Enamelled Wires Temperature Resistance Grade	Class C 220℃
Configuration	36N42P	Coil Withdraw Voltage	1000V/5s
Shaft Diameter（mm）	IN:15	Rotor Dynamic Balance Standard	≤5mg
Bearing	Imported 6202ZZ	IP	IP35

KV Value	KV170	Battery (lipo)/Voltage Recommendation	12S（4.2V/Sl）/42-52V
Idle Current（18V）	4.4A	ESC Recommendation	FLAME 200A 14S
Peak Current（A）	196A/Continuous 180s	Propeller Recommendation	G30*10.5
Max. Power（W）	9000W/Continuous 180s	Motor Weight（g）	980g Weight (incl. cables)
Internal Resistance（mΩ）	8	Package Weight（g）	1340g

Test Data Export to Excel

Item No.	Prop	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Inputpower (W)	Efficiency (g/W)	Operating Temperature ℃)
V10L KV170	T-MOTOR G29*9.5	40%	47.39	6527	2.15	20.29	2887	961.70	6.79	121℃
		45%	47.29	7915	2.59	26.22	3177	1240.05	6.38
		50%	47.17	9501	3.12	33.26	3472	1568.88	6.06
		55%	47.02	11254	3.69	41.80	3759	1965.33	5.73
		60%	46.86	12909	4.24	50.47	4003	2364.78	5.46
		65%	46.59	14691	4.81	60.59	4254	2822.56	5.21
		70%	46.38	16509	5.42	72.05	4509	3341.97	4.94
		75%	46.20	18463	6.08	84.09	4751	3884.70	4.76
		80%	45.94	20407	6.73	98.31	4978	4516.04	4.52
		90%	45.31	24463	8.14	131.18	5446	5944.10	4.12
		100%	44.53	28869	9.69	172.33	5888	7673.50	3.76
	T-MOTOR G30*10.5	40%	47.39	7033	2.41	21.25	2751	1007.10	6.98	HOT
		45%	47.24	8969	3.08	29.56	3108	1396.31	6.42
		50%	47.08	10802	3.71	37.81	3392	1780.30	6.07
		55%	46.86	12716	4.38	48.01	3669	2250.11	5.65
		60%	46.54	14600	5.03	58.24	3903	2710.09	5.39
		65%	46.32	16335	5.66	69.31	4128	3210.35	5.09
		70%	46.08	18570	6.41	82.55	4365	3804.08	4.88
		75%	45.87	20650	7.14	97.10	4598	4453.91	4.64
		80%	45.62	22826	7.89	113.22	4808	5164.64	4.42
		90%	44.95	27116	9.46	149.64	5247	6726.47	4.03
		100%	44.08	31798	11.23	196.24	5651	8650.57	3.68
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )

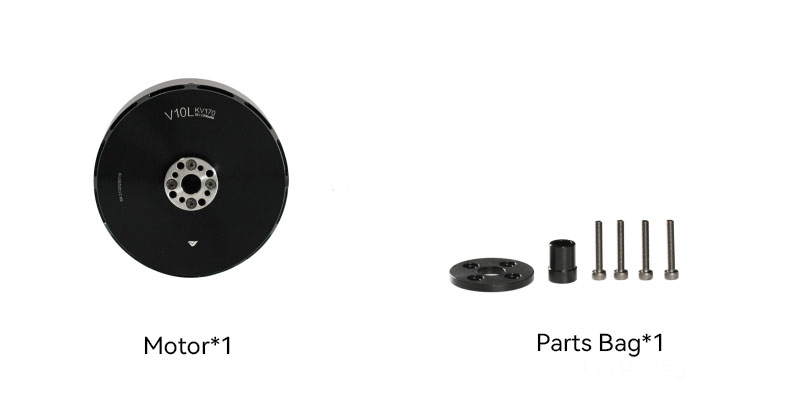

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
