T-MOTOR V120A 14S

199.90

Available points: 200 Points Points reward: 199 Points

Quantity：

199.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications
  • Download

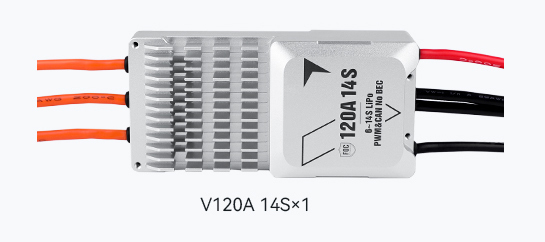

V120A 14S
V120A 14SThe advanced edition of FOC ESCsFast response Efficient driving
Accurate control Low-noise operation
VL8018
MOTOR
V120A
ESC
G26
PROPELLER

Specification

6~14S

Support Voltage

60A

Con.Current

130A(3S)

Peak Current

130g(excl.cable)/170g

ESC Weight

103*50*26mm

ESC Size

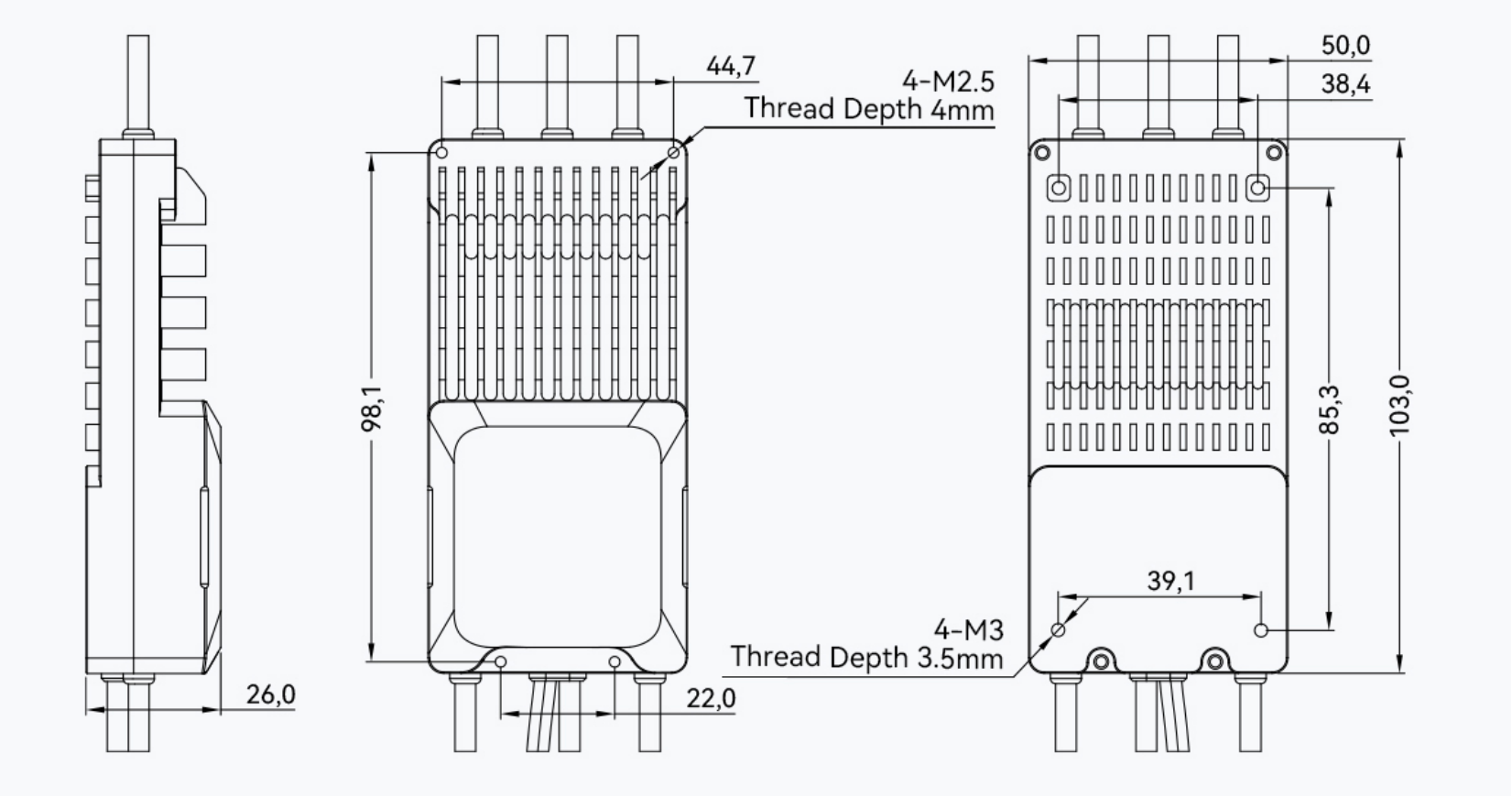

Technical Drawing


工程图 英.png

Specification
Model No.V120A 14SPower CableSilicone wire-red/black
-12AWG-180mm
Size103*50*26mm (L*W*H)Signal CableShielded cables-Black-OD4.2-5C
-500mm-JP-3P*2-Black blank
white-green yellow gray
Weight(Incl. cables)170gEncoder cablesShielded cables-Black-24AWG-5C
-450mm-M6 aviation connector
Motor CableSilicone wire-orange-12AWG-85mmProtocolPWM/CAN
Support Voltage18~60V (6~14S)BECNO
Continuous Current60AThrottle Pos. Range1040-1940
Peak Current(<10s)130AThrottle Refresh
Frequency		50-500HZ
Standby Consumption≤50mA@48VThrottle Response Speed300ms

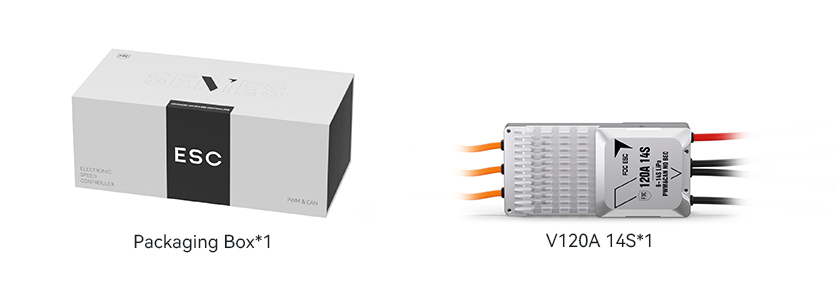

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
