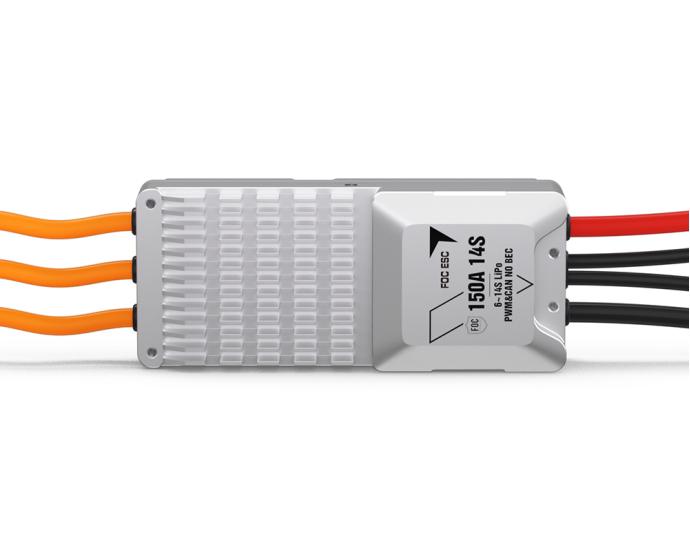

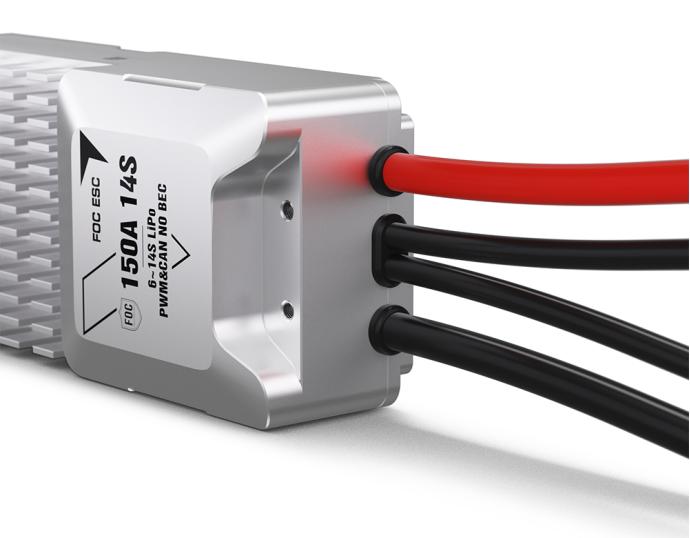

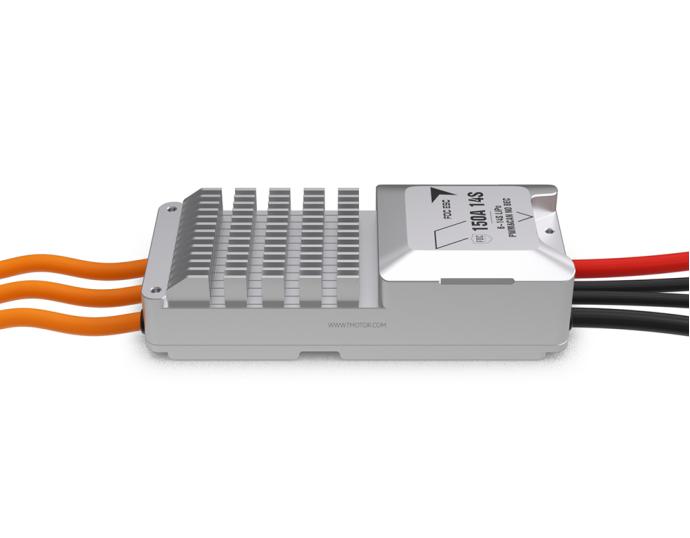

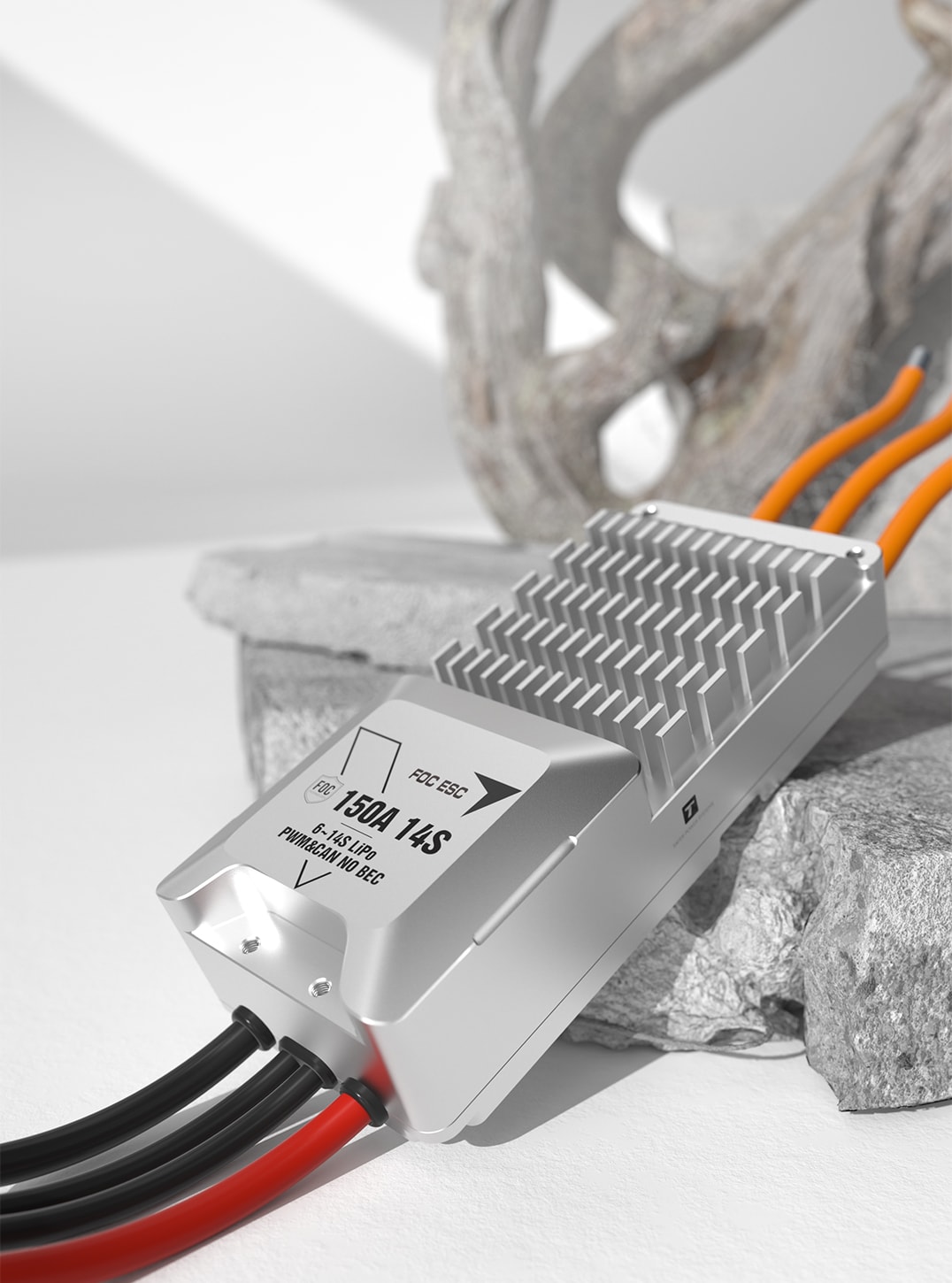

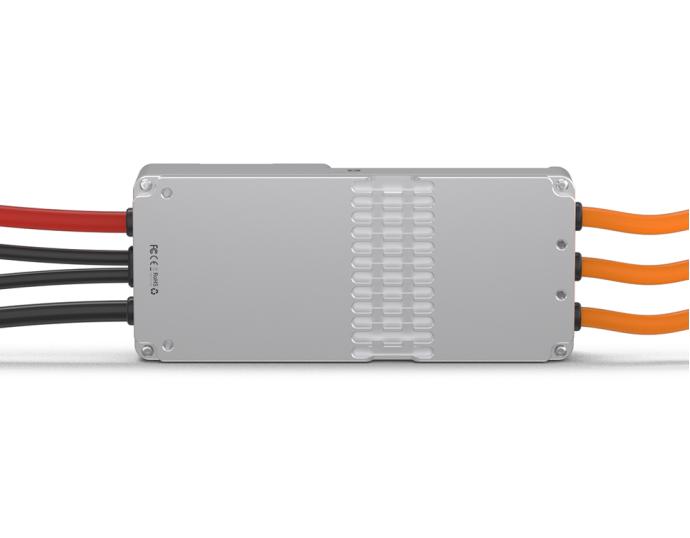

T-MOTOR V150A 14S

329.90

Available points: 330 Points Points reward: 329 Points

Quantity：

329.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications
  • Download
V150A 14S
V150A 14STHE ADVANCED EDITION OF FOC ESCS

Fast
response

Efficient
driving

Accurate
control

Low-noise
operation

recommendation

VL8020/8022
MOTOR
V150A
ESC
VZ28/29
PROPELLER

Specification

6~14S

Support Voltage

70A

Con. Current

160A(3S)

Peak Current

206g(excl. cable)/295g

ESC Weight

116*49*31mm

ESC Size

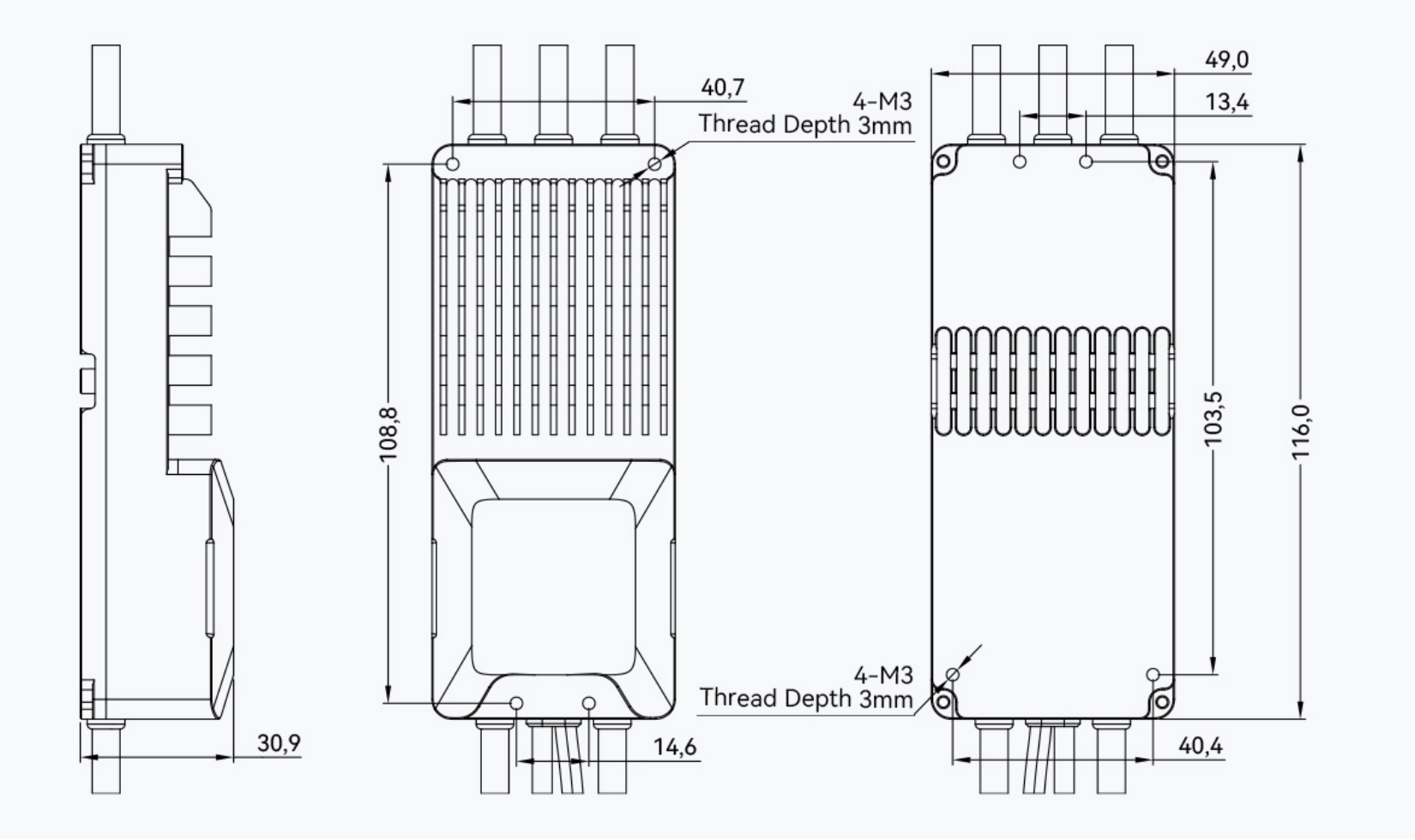

Technical Drawing

V150A 14S-draw-en.png

Specification
Model No.V150A 14SPower CableSilicone wire-red/black
-10AWG-200mm
Size116*49*31mm (L*W*H)Signal CableShielded cables-Black-OD4.2-5C
-500mm-JP-3P*2-Black blank
white-green yellow gray
Weight(Incl. cables)295gEncoder cablesShielded cables-Black-24AWG-5C
-450mm-M6 aviation connector
Motor CableSilicone wire-orange-10AWG-150mmProtocolPWM/CAN
Support Voltage18~60V (6~14S)BECNO
Continuous Current70AThrottle Pos. Range1040-1940
Peak Current(<10s)160AThrottle Refresh Frequency50-500HZ
Standby Consumption≤50mA@48VThrottle Response Speed300ms

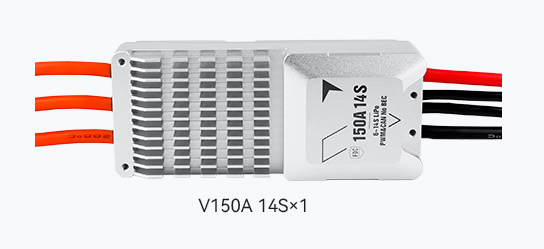

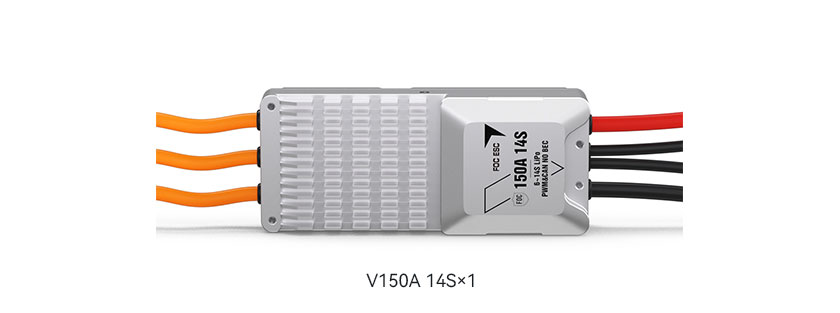

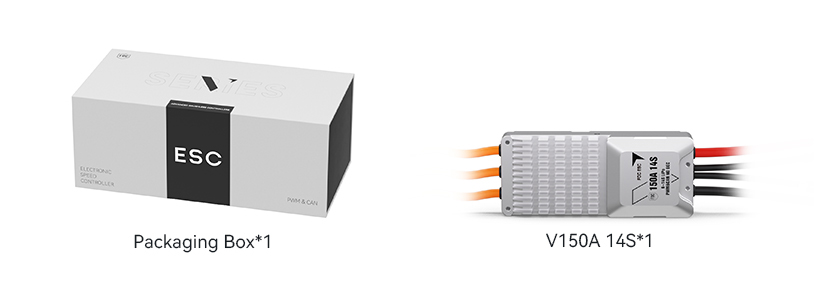

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
