Detail information
Specifications

X-A12XL II-14S

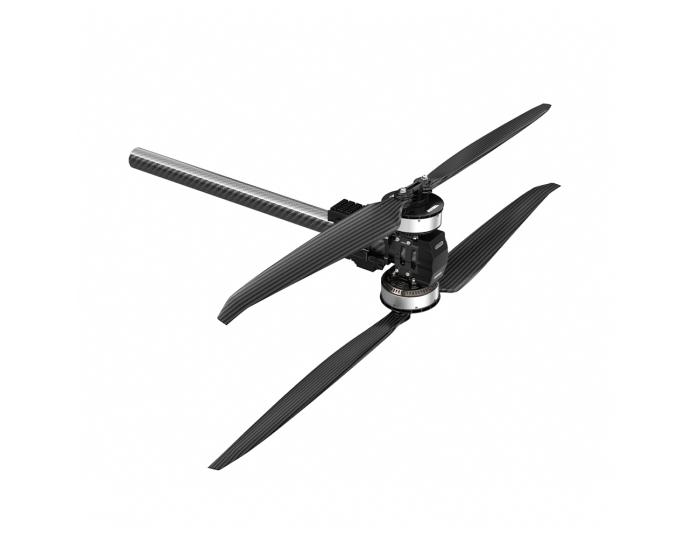

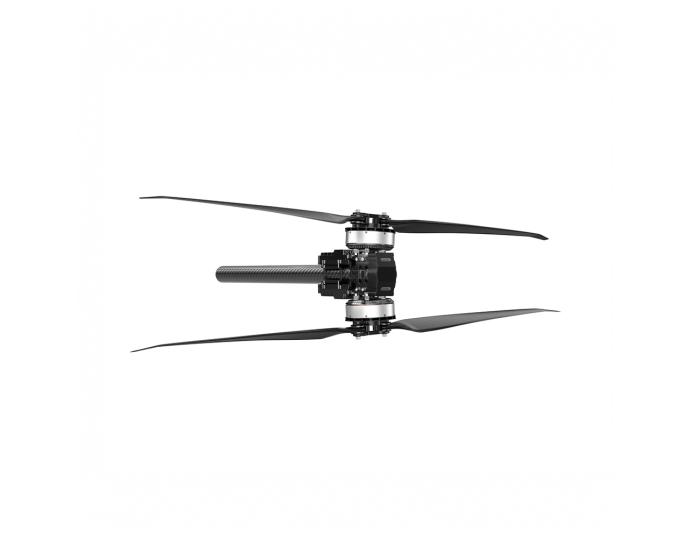

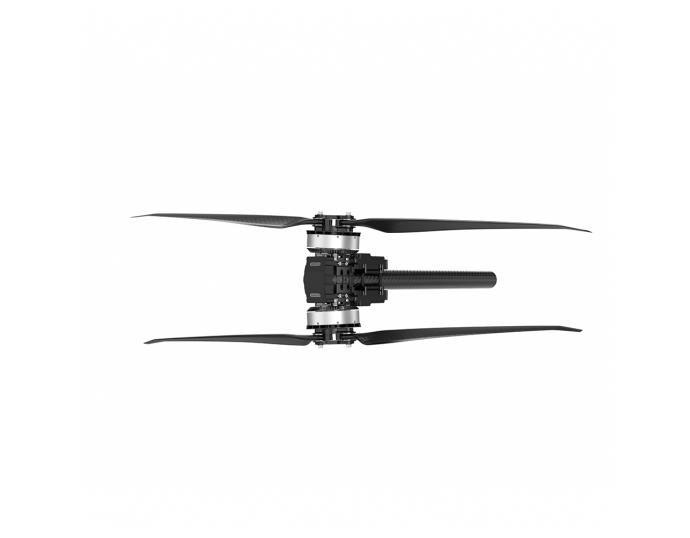

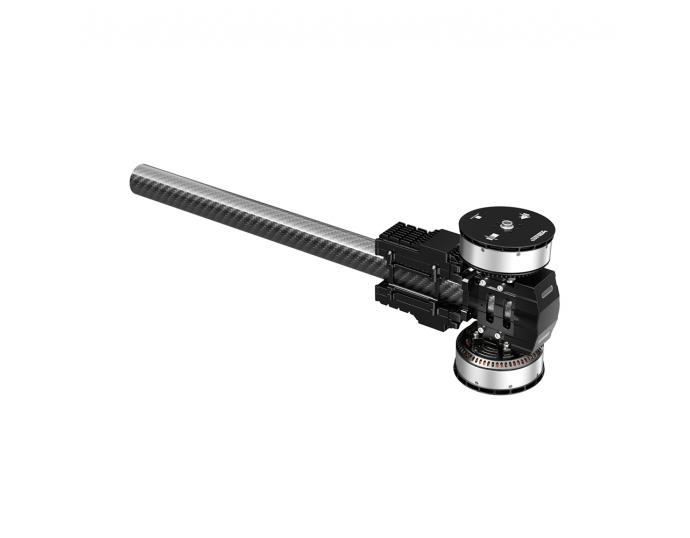

Name: T-MOTOR X-A12XL II-14S
Brand: LIGPOWER
SKU: LIGPOWER001938
Availability: InStock

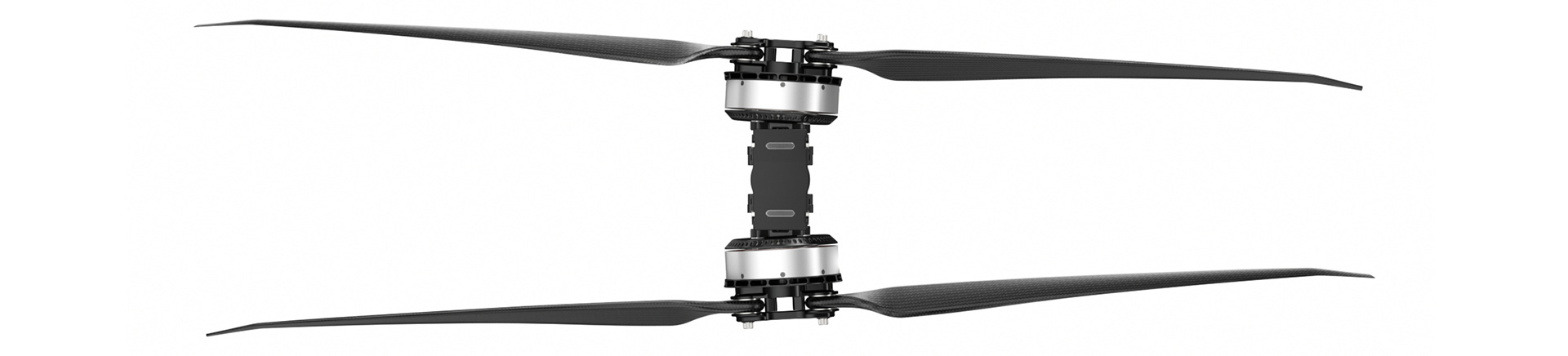

MODULAR Propulsion System

X-A12XL II-14SMOTOR

14SFOC 200AESC

PFZ4918PPROPELLER

RECOMMENDATIONS

Take-off weight

120kgQuadcopter

Take-off weight

180kgHexacopter

Technical Drawing

Specification Export to Excel

Model No.	X-A12XL II-14S KV74	Tube Size	50mm
Setup	X-A12XL II-14S (Motor)+14S FOC 200A (ESC)+PFZ4918P (Propeller)	Wire Material, Wire Gauge, Color	Power Wires: 10#AWG Red & Black Signal Wires: 5P Teflon
Recommended Battery	12~14S (LiPo)	Wire Length	1695±10mm
Rated Thrust	28~34kg	Weight	4980±2%g (Incl. Wires+Propeller)
Efficiency At Rated Thrust	7.7g/W (28kg)	IP	IPX6
Max. Thrust	71.8kg	Recommended Ambient Temperature	-20~55℃

Motor Specs
Stator Size	111*22mm	KV	74

ESC Specs
Throttle Range	1100~1940us (Fixed)	Max. Voltage	61V
Protocol	DRONE CAN、UAV CAN、 CUBE CAN	Peak Current (For A Short Time)	200A (OpenEnvironment AndTemperature≤60℃)
Control Method	PWM/CAN	BEC	NO

Prop Specs
Model No.	PFZ4918P (Folding Carbon Fiber)	Length	49 Inch (1245.17mm)

Test Data Export to Excel

Type	Voltage (V)	Throttle	Current (A)	Thrust (gf)	Torque (N·m)	RPM	Motor Efficiency (%)	Overall Efficiency (gf/W)	Operating Temperature (℃)
X-A12XL II-14S KV74 + 14S FOC 200A + PFZ4918P	54	30%	10.92	8432	4.88	1049	92.57	14.38	75 (Ambient Temperature: 25)
		35%	19.63	12662	7.27	1282	91.35	12.01
		40%	32.39	17449	9.94	1503	90.89	10.03
		45%	47.17	22731	12.94	1710	90.21	8.97
		50%	67.84	28257	16.03	1904	89.98	7.76
		55%	88.02	34136	19.46	2086	89.90	7.22
		60%	112.52	40116	22.89	2255	89.43	6.64
		65%	138.08	46003	26.30	2410	89.52	6.20
		70%	164.83	51850	29.70	2554	89.12	5.86
		75%	198.24	57626	33.00	2683	87.08	5.41
		80%	231.84	62977	36.17	2801	85.19	5.06
		85%	255.51	67017	38.43	2885	84.61	4.88
		90%	280.84	70323	40.40	2949	82.73	4.66
		95%	293.90	71892	41.30	2978	81.58	4.56
		100%	290.36	71872	41.32	2976	82.57	4.61
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min. (Data above based on benchtest at T-MOTOR lab are for reference only.)

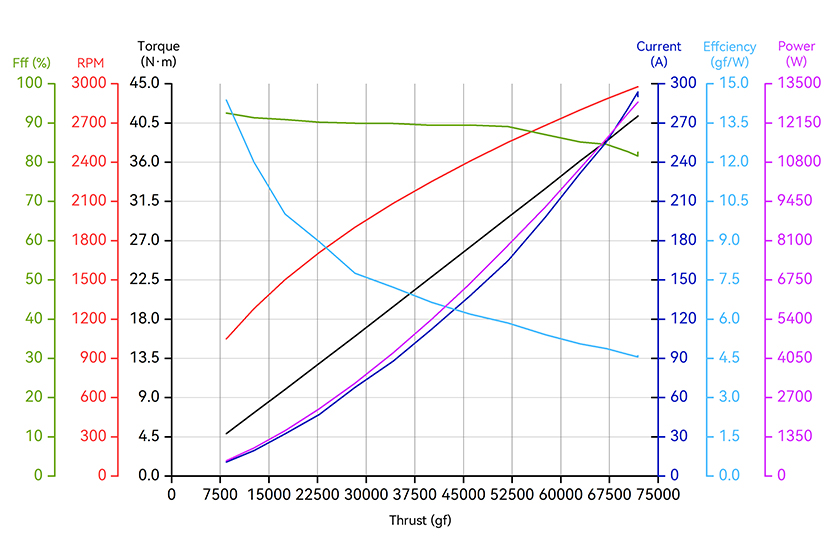

Analysis Chart

X-A12XL II-14S-line-en.jpg

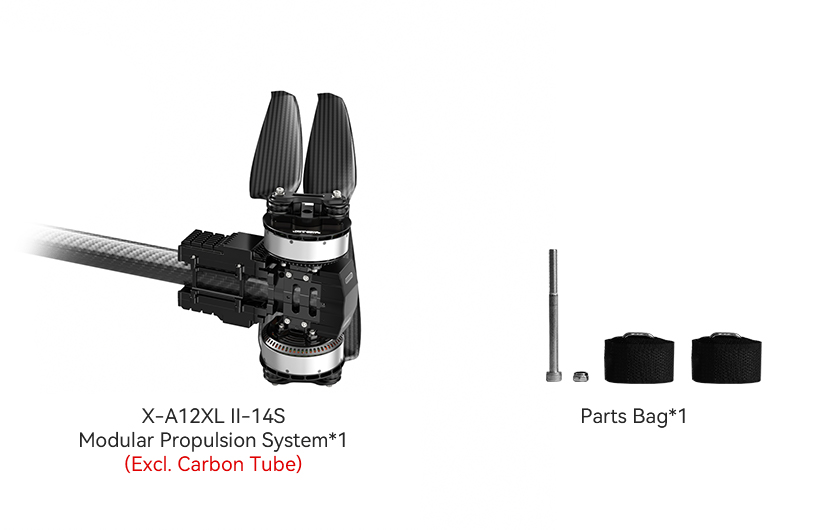

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
