Detail information
Specifications

X-A12XL II-18S

Name: T-MOTOR X-A12XL II-18S
Brand: LIGPOWER
SKU: LIGPOWER001939
Availability: InStock

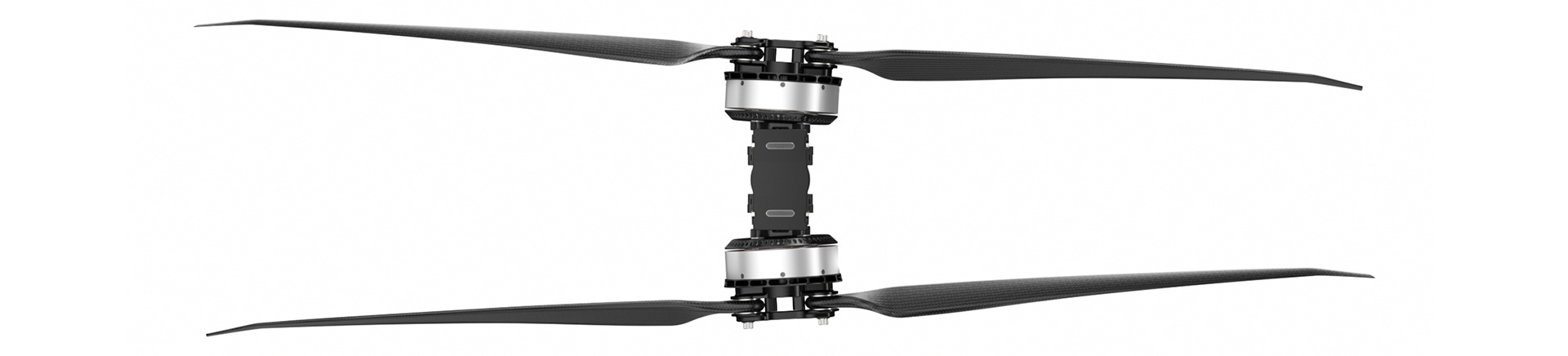

MODULAR Propulsion System

X-A12XL II-18SMOTOR

18SFOC 150AESC

PFZ4918PPROPELLER

RECOMMENDATIONS

Take-off weight

120kgQuadcopter

Take-off weight

180kgHexacopter

Technical Drawing

Specification Export to Excel

Model No.	X-A12XL II-18S KV68	Tube Size	50mm
Setup	X-A12XL II-18S (Motor)+18S FOC 150A (ESC)+PFZ4918P (Propeller)	Wire Material, Wire Gauge, Color	Power Wires: 10#AWG Red & Black Signal Wires: 5P Teflon
Recommended Battery	14~18S (LiPo)	Wire Length	1695±10mm
Rated Thrust	28~34kg	Weight	4980±2%g (Incl. Wires+Propeller)
Efficiency At Rated Thrust	7.5g/W (31kg)	IP	IPX6
Max. Thrust	74.9kg	Recommended Ambient Temperature	-20~55℃

Motor Specs
Stator Size	111*22mm	KV	68

ESC Specs
Throttle Range	1100~1940us (Fixed)	Max. Voltage	76V
Protocol	DRONE CAN、UAV CAN、 CUBE CAN	Peak Current (For A Short Time)	150A (OpenEnvironment AndTemperature≤60℃)
Control Method	PWM/CAN	BEC	NO

Prop Specs
Model No.	PFZ4918P (Folding Carbon Fiber)	Length	49 Inch (1245.17mm)

Test Data Export to Excel

Type	Voltage (V)	Throttle	Current (A)	Thrust (gf)	Torque (N·m)	RPM	Motor Efficiency (%)	Overall Efficiency (gf/W)	Operating Temperature (℃)
X-A12XL II-18S KV68 + 18S FOC 150A + PFZ4918P	69	30%	7.37	7636	4.24	1009	87.38	14.87	73 (Ambient Temperature: 25)
		35%	13.60	11368	6.33	1228	88.65	11.99
		40%	20.53	15637	8.80	1436	89.21	10.93
		45%	31.89	20511	11.50	1638	88.77	9.23
		50%	44.64	25709	14.40	1829	88.65	8.26
		55%	59.93	31339	17.67	2015	89.22	7.50
		60%	77.43	37157	20.91	2189	88.83	6.88
		65%	98.33	43369	24.53	2358	88.38	6.33
		70%	120.34	49584	28.20	2515	88.55	5.91
		75%	147.03	56063	31.90	2666	86.92	5.47
		80%	176.23	62428	35.62	2807	85.26	5.08
		85%	199.93	67472	38.60	2913	84.49	4.84
		90%	224.99	71830	41.18	3001	82.51	4.58
		95%	240.22	74911	43.02	3062	82.38	4.47
		100%	240.54	74847	43.01	3059	82.17	4.46
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min. (Data above based on benchtest at T-MOTOR lab are for reference only.)

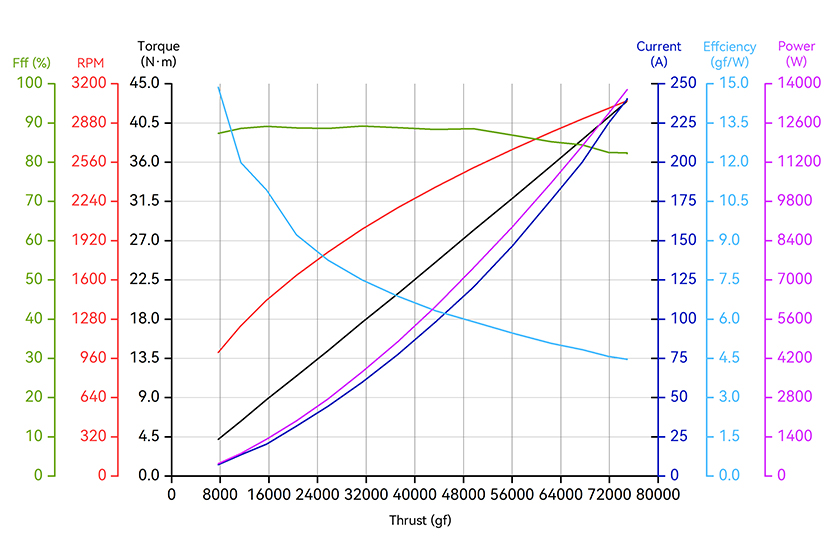

Analysis Chart

X-A12XL II-18S-line-en.jpg

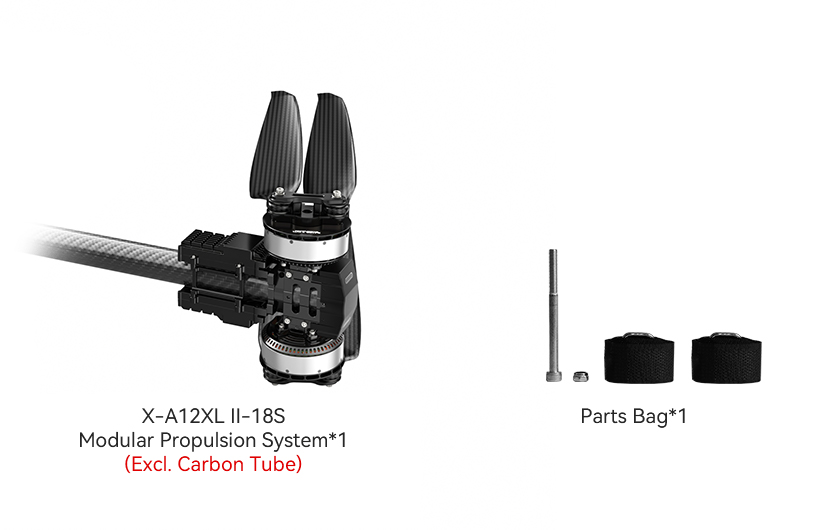

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
