Top 12 Carbon Fiber Propellers for Drones 2025

Carbon fiber propellers are widely used on medium to large aerial photography,mapping,inspection,agricultural,and industrial multirotor platforms due to their high rigidity,low vibration,and lightweight characteristics.Compared with plastic or glass-fiber propellers,carbon fiber blades maintain their aerodynamic shape under heavy load and high RPM,significantly improving thrust efficiency,flight-path accuracy,and image quality—especially on larger 12–30 inch propellers where the advantages are most pronounced.

This article highlights the top-performing 12 carbon fiber propellers of 2025.covering sizes from 7 to 30 inches,and provides clear,reliable selection guidance based on key specifications,typical use cases,and practical recommendations.

Carbon Fiber Propeller Basics

1. What is a Carbon Fiber Propeller?

Carbon fiber propellers are formed by curing carbon fiber cloth and resin in a mold. Their key advantage comes from the extremely high Stiffness-to-Weight Ratio of carbon fiber itself. Compared to common PC (Polycarbonate), nylon + glass fiber, or wooden props, carbon fiber props exhibit almost no significant deformation during high-speed rotation, thus maintaining a stable aerodynamic profile and improving overall thrust efficiency.

Based on their structure, carbon fiber props can be divided into:

Full Carbon: 100% carbon fiber laminate, offering the highest rigidity, suitable for high-payload and professional aerial photography.

Hybrid Carbon: Carbon fiber surface layer + composite core material, offering high strength at a lower cost, more suitable for long-duration engineering tasks.

Their core flight characteristics include:

High Rigidity: Reduces deformation, improving efficiency.

Low Vibration: Beneficial for video image quality and flight path stability.

Lightweight: Lowers power consumption, extending endurance.

High Structural Strength: Suitable for medium to large payload missions.

Therefore, carbon fiber props are commonly used for: long-endurance platforms, aerial photography/mapping, industrial inspection, agricultural drones, heavy-lift logistics platforms, etc.

2. Advantages and Disadvantages of Carbon Fiber Propellers

Advantages

High Rigidity: Maintains aerodynamic shape under heavy loads and high-speed rotation for better thrust efficiency.

Low Vibration: Easier to achieve professional-grade dynamic and static balance, helping to improve aerial image quality and IMU accuracy.

High Durability: Good material fatigue performance; not easily deformed over long-term operation.

Low Noise: Increased rigidity leads to less propeller tip deformation, resulting in a softer overall noise profile.

Significant Efficiency Improvement: Especially noticeable on medium to large platforms (10 inches and above).

Disadvantages

Higher Cost: Prices are typically 3–10 times that of plastic props.

Brittle in Crashes: High rigidity means poor impact resistance; may fracture or shatter on impact.

Not Suitable for Freestyle FPV: Insufficient flexibility, brittle, and too costly for "crash-heavy" scenarios.

3. Comparison of Carbon Fiber with Other Propeller Materials

7–10 inch: Small Multirotors / Light-Load Long-Endurance

7–10 inch carbon fiber propellers are primarily used on 0.5–2 kg light-load inspection, small aerial photography, and long-endurance platforms. Compared to plastic props, carbon fiber props in this size range offer better rigidity, deformation control, and endurance efficiency. They are typically paired with 22xx/23xx motors and 900–1700KV power systems, forming a high-efficiency solution for lightweight multirotors.

1. QWinOut 8×5.0 3K Carbon Fiber Propeller

Basic Parameters:

Size: 8×5.0 in

Diameter: Approx. 203.2 mm

Pitch: 5.0 in

Blades: 2

Material: 3K Carbon Fiber

Direction: CW + CCW

Reference Price: Approx. US$10–15 / 4 pcs

Reason for Recommendation:

This 8×5 carbon fiber prop features lightweight and high-rigidity characteristics, making it ideal for small long-endurance and light-load inspection platforms with 22xx / 23xx motors. It is budget-friendly and highly compatible, providing both good static thrust and excellent efficiency during sustained low-load flights. It is a common choice for entry-level and high-volume deployment scenarios.

2. Gemfan (T-Motor Style) 8×5.5 Carbon Fiber Propellers

Basic Parameters:

Size: 8×5.5 in

Diameter: Approx. 203.2 mm

Pitch: 5.5 in

Blades: 2

Material: Carbon Fiber

Mounting: T-Style / T-Motor Style mounting holes

Single Weight: Approx. 7 g

Direction: 1× CW + 1× CCW (Sold as a pair)

Reference Price: Approx. US$7–12 / pair

Reason for Recommendation:

This 8×5.5 model from Gemfan uses T-Motor Style mounting, offering outstanding performance in dynamic balance and vibration control. The higher pitch is suitable for small platforms requiring faster lateral movement or a greater climb rate while maintaining low vibration, making it especially suitable for light aerial photography, mapping, and high-stability inspection tasks that require stable imagery.

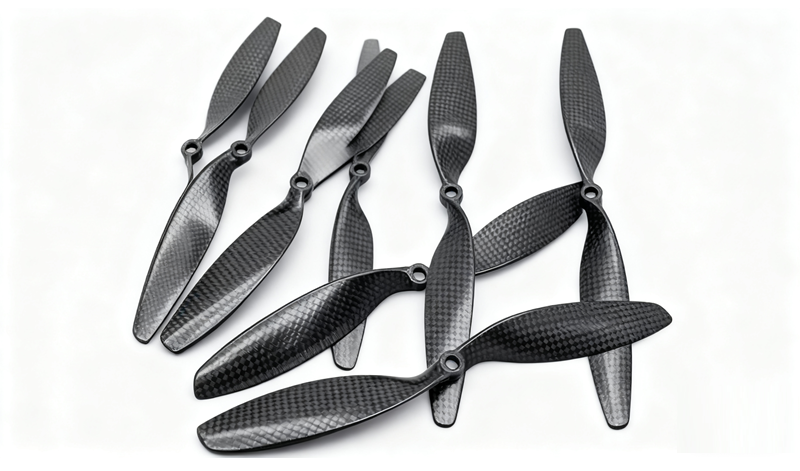

3. SpeedyFPV 10×4.5 Carbon Fiber Propeller

Basic Parameters:

Size: 10×4.5 in (1045)

Diameter: Approx. 254 mm

Pitch: 4.5 in

Blades: 2

Material: Carbon Fiber

Direction: 2× CW + 2× CCW (Set of 4)

Shaft Hole Diameter: 8 mm / 6 mm / 5 mm (includes multi-spec adapter rings)

Single Weight: Approx. 9 g

Package: Set of 4 (2× CW + 2× CCW)

Reference Price: Approx. US$15.99 / 4 pcs

Reason for Recommendation:

On 1–2 kg small long-endurance platforms, 10-inch carbon fiber props can significantly improve hovering efficiency. The low pitch (4.5) provides more power-efficient flight characteristics, making it ideal for missions involving continuous hovering, slow-speed inspection, and light surveying. This model has a significant price advantage, suitable for fleets requiring a large number of spare parts or long-term operations.

Summary

QWinOut 8×5: Lightweight, power-efficient, low cost. Suitable for light-load, long-endurance, and budget-sensitive platforms.

Gemfan 8×5.5: Best dynamic balance. Suitable for aerial photography and mapping with high requirements for image quality and vibration control.

SpeedyFPV 10×4.5: Large diameter, low pitch, high efficiency. Suitable for endurance-priority and long-duration inspection tasks.

11–13 inch: Medium Aerial Photography / Surveying Multirotors

11–13 inch carbon fiber props are the mainstream choice for 2–4 kg medium aerial photography, surveying, and engineering platforms. Paired with 35xx–40xx class motors and 6S–12S power systems, they maintain good propeller shape stability, torsional rigidity, and low vibration performance even with increased payloads, thereby enhancing flight path accuracy and image quality stability.

1. T-Motor P12×4 Carbon Fiber Propeller

Basic Parameters:

Size: 12×4 in

Diameter: 304.8 mm

Pitch: 4 in

Blades: 2

Material: Carbon Fiber + Epoxy Resin (High-rigidity laminated structure)

Single Weight: Approx. 14.5 g

Thrust Limit: Approx. 4 kg (Max test thrust per prop)

Optimal Working RPM: Approx. 5.000–9.000 rpm

Operating Temp: -40 ℃ ~ +65 ℃

Storage Temp: -10 ℃ ~ +50 ℃ (Humidity < 85%)

Surface: Polished

Reference Price: Approx. US$38.9 / pair

Reason for Recommendation:

The P-series is T-Motor's long-standing, engineering-grade propeller line, known for excellent stability. The P12×4 boasts outstanding dynamic and static balance, maintaining low vibration performance even when carrying 3-axis gimbals or surveying equipment during high-speed maneuvers and wind compensation. Its rigidity prevents the prop shape from deforming under high torque, thereby improving flight path stability. It is one of the most common standard configurations for medium aerial photography and engineering platforms.

2. Foxtech Supreme C/F Propeller 12×4.5

Basic Parameters:

Size: 12×4.5 in

Pitch: 4.5 in

Blades: 2

Material: Carbon Fiber + High-strength composite core structure

Direction: CW + CCW

Center Hole: 6 mm

Mounting Holes: 4-hole layout (Multirotor standard)

Single Weight: Approx. 12 g

Reference Price: Approx. US$48 / pair

Reason for Recommendation:

The Foxtech Supreme series emphasizes torsional rigidity and industrial-grade durability. The 12×4.5 model's composite core structure maintains blade curvature accuracy even under high loads, making it particularly suitable for vibration-sensitive applications like aerial surveying, RTK mapping, and industrial inspection. In complex wind conditions, its low prop-tip deformation results in better overall noise performance than ordinary hybrid-carbon props. It is the "durable" choice for engineering applications.

3. HQProp 12×4.5 Carbon Fiber Composite Propeller

Basic Parameters:

Size: 12×4.5 in

Diameter: 12 in

Pitch: 4.5 in

Blades: 2

Material: Carbon Fiber Composite

Single Weight: Approx. 17.46 g

Hub Diameter: 16 mm

Hub Thickness: 8.5 mm

Shaft Options: 9.5 mm / 8 mm / 6 mm

Included Adapters: 6 mm / 5 mm / 4 mm / 3 mm

Direction: CW / CCW

Reference Price: Approx. US$6-8 / pair

Reason for Recommendation:

This 12×4.5 composite carbon fiber prop from HQProp is a Cost-effective model that balances durability, rigidity, and cost. Compared to full carbon props, it is better suited for engineering work, as it is less likely to be destroyed by minor collisions. Its multi-specification adapters allow for flexible installation, making it a "stable and universal" choice for mapping operations, engineering pilots, and medium-sized aerial photography drones.

Summary

T-Motor P12×4: Most precise dynamic/static balance. Ideal for professional aerial photography, RTK, and high-precision mapping missions.

Foxtech 12×4.5: Strong torsional rigidity, high durability. Suitable for high-frequency engineering inspections and long-duration operations.

HQProp 12×4.5: Better cost, strong compatibility. Suitable for medium aerial photography and high-volume mission fleets.

14–18 inch: Light-Duty Heavy-Lift / Industrial Inspection / Entry-Level Agriculture

14–18 inch propellers are often used for 4–8 kg light-duty heavy-lift, entry-level agricultural, and industrial inspection platforms. This range requires props to withstand greater air loads, thus demanding higher propeller shape stability, torsional rigidity, and vibration suppression. They are typically paired with 40xx–50xx industrial-grade motors and 6S–12S power systems.

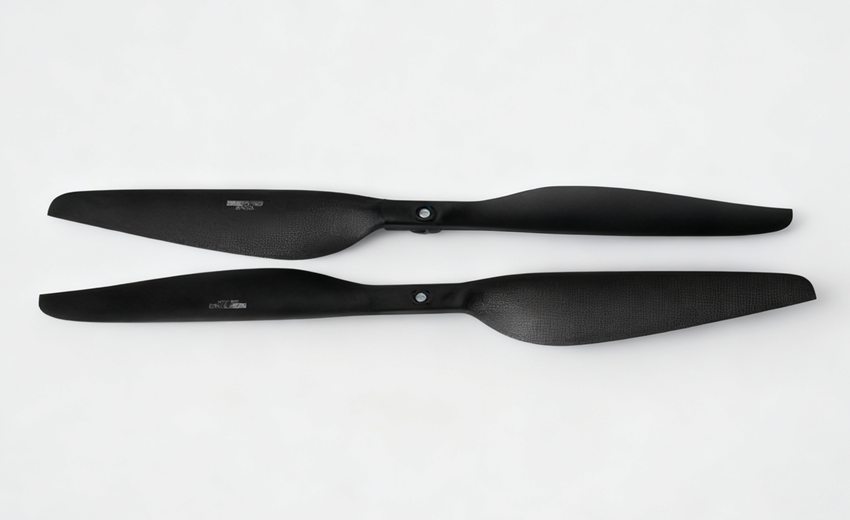

1. T-Motor P15×5 Carbon Fiber Propeller

Basic Parameters:

Size: 15×5 in

Diameter: 381 mm

Pitch: 5 in

Material: Carbon Fiber + Epoxy Resin

Blades: 2

Single Weight: Approx. 21 ± 1.5 g

Thrust Limit: Approx. 6 kg

Optimal RPM: Approx. 5.200–7.000 rpm

Operating Temp: -40 ℃ ~ +65 ℃

Storage Temp: -10 ℃ ~ +50 ℃ (Humidity < 85%)

Surface: Polished

Reference Price: Approx. US$55.9 / pair

Reason for Recommendation:

The P15×5 is one of the most common models in the T-Motor P-series used for light heavy-lift platforms. Its stable, industrial-grade balance performance maintains good vibration control even during high-payload operations. The 5-inch pitch provides ample medium-to-high-speed efficiency, allowing it to balance payload capacity, long endurance, and wind resistance. Whether for agricultural spraying, forestry inspection, or medium-load aerial surveying, this propeller is an industry-standard choice.

2. Foxtech Supreme C/F Propeller 15×5.0 V2

Basic Parameters:

Size: 15×5.0 in

Pitch: 5.0 in

Blades: 2

Material: Carbon Fiber + High-strength composite core (V2 structurally reinforced)

Single Weight: Approx. 20 g

Direction: CW + CCW

Reference Price: Approx. US$68 / pair

Reason for Recommendation:

Compared to its predecessor, the V2 version further improves torsional strength, structural stability, and long-term durability. This structural optimization is particularly important for long-duration, high-payload tasks such as industrial inspections, wind turbine checks, pipeline patrols, and light agricultural spraying. This model's ability to maintain its shape under sustained high loads surpasses that of ordinary carbon fiber props, making it a robust choice for pilots and engineering teams with high-reliability requirements.

3. Xoar PJP-T-L 18×6.5 Carbon Fiber Precision Pair

Basic Parameters:

Size: 18×6.5 in

Diameter: 18 inch

Pitch: 6.5 in

Blades: 2 (Precision Pair, matched)

Material: High-quality carbon fiber fabric + special resin system

Avg. Net Weight: 31 g ± 2 g / blade

Main Hole: 6 mm

Side Holes: 3.2 mm, 12 mm spacing

Hub Size: 40 × 18 × 4 mm

Direction: CW + CCW (Sold as a pair)

Recommended Max RPM: 7.000 rpm

Reference Price: Approx. US$88 / pair

Reason for Recommendation:

As a high-end propeller commonly used on large industrial platforms, the Xoar PJP-T-L series features extremely high dynamic balance accuracy, low noise, and high efficiency. The 18×6.5 model is especially suited for high-precision missions, professional aerial surveying, cinematic aerials, and the VTOL vertical lift phase, all of which are extremely sensitive to vibration and require aerodynamic consistency. On large-diameter platforms, its stability and efficiency are markedly superior to ordinary hybrid-carbon props, making it the "quality" choice for professional-grade platforms.

Summary

T-Motor P15×5: Balanced aerodynamic performance. Suitable for various agricultural, inspection, and surveying tasks.

Foxtech 15×5 V2: Structurally reinforced, high durability. Suitable for long-term, high-load, and high-frequency industrial use.

Xoar 18×6.5: Highest dynamic balance accuracy. Suitable for surveying, filmmaking, and VTOL scenarios most sensitive to vibration.

19–30 inch: Heavy-Lift Industrial / Plant Protection / Logistics Platforms

19–30 inch carbon fiber propellers are core power components for 10–40 kg heavy-lift industrial UAVs, widely used in plant protection drones, logistics platforms, VTOL vertical lift phases, and large-scale inspection tasks. Props of this size must maintain their shape under high torque and immense air loads, typically paired with U8/U10/U12/U13 large motors and 12S–14S high-voltage systems.

1. T-Motor P30×10 Carbon Fiber Propeller

Basic Parameters:

Model: P30*10 (762 × 254 mm)

Size: 30 × 10 inch

Blades: 2 (One-piece carbon fiber, non-folding)

Material: CF + Epoxy (Carbon Fiber + Epoxy Resin)

Weight / Single Blade: 93 g

Thrust Limitation: 28 kg

Optimal Working RPM: Approx. 1.800–3.500 RPM

Operating Temp: -40 ℃ ~ 65 ℃

Storage Env.: -10 ℃ ~ 50 ℃, Humidity < 85%

Surface: Polished

Reference Price: Approx. US$279 / pair

Reason for Recommendation:

The P30×10 is one of the most common propeller types for heavy-lift industrial UAVs. Its 30-inch large diameter provides extremely high static thrust and better hovering efficiency, while the 10-inch pitch maintains high energy efficiency in the medium-to-high speed range. This model is known for its stable profile, strong overall rigidity, and excellent dynamic balance. It is the industry mainstream choice for 20–40 kg plant protection drones, logistics payload testbeds, and large-scale inspection platforms, suitable for professional organizations requiring long-duration, high-payload missions.

2. Xoar PJP-T-L 30×10 Carbon Fiber Precision Pair

Basic Parameters:

Size: 30 × 10 inch

Blades: 2 (CW + CCW Precision Pair)

Material: Premium Carbon Fiber Fabric + Resin System

Avg. Net Weight: Approx. 98–115 g / blade

Bore (Center Hole): 10 mm

Side Holes: 6 × M4 screw holes, distributed on a Φ23 mm bolt circle

Recommended Max RPM: ≤ 4.000 RPM

Life Span: 200 hr

Reference Price: Approx. US$220 / pair

Reason for Recommendation:

Xoar's PJP-T-L series is renowned for its extremely high surface consistency, aerodynamic precision, and dynamic balance quality, performing exceptionally well on large UAVs, industrial-grade multirotors, and during the vertical takeoff phase of VTOLs. The 30×10 model is particularly suited for high-precision flight missions, long-endurance platforms, and heavy-lift VTOL tasks. Its torsional rigidity and shape retention are superior to ordinary full-carbon props, allowing it to maintain stable thrust in high-load and complex wind conditions. It is a high-end selection for professional engineering teams and aviation-grade UAVs.

3. Foxtech Supreme C/F Propeller 24×9.0

Basic Parameters:

Size: 24 × 9.0 inch

Pitch: 9.0 in

Blades: 2 (CW + CCW one pair)

Material: Carbon fiber surface + cork wood sandwich (lightweight composite core)

Single Weight: Approx. 86 g

Total Weight: Approx. 220 g (Package weight incl. pair of props and accessories)

Center Hole: 1 × 10 mm

Side Holes: 4 × 3 mm, distributed on a Φ20 mm bolt circle

Reference Price: Approx. US$214.99 / pair

Reason for Recommendation:

The 24×9.0 is a "transitional" large prop between medium and heavy-lift, offering more thrust overhead than 20–22 inch props while being lighter and more responsive than 28–30 inch heavy props. It is therefore suitable for various industrial scenarios like 6–12 kg agricultural, inspection, and surveying drones. The Foxtech Supreme's composite core structure provides higher torsional stability and durability, allowing the blade to maintain its shape during long-duration loaded hovering or high-frequency power changes. It is a widely adopted "reliability-focused" configuration in engineering fieldwork.

Summary

T-Motor 30×10: Maximum thrust reserve. Suitable for plant protection, heavy-lift logistics, and large industrial platforms.

Xoar 30×10 Precision: Best dynamic balance and profile consistency. Ideal for high-precision mapping and VTOL vertical lift.

Foxtech 24×9: Lightweight, durable, high efficiency. Suitable for 6–12 kg agricultural, inspection, and medium-heavy-lift tasks.

How to Choose Carbon Fiber Propellers?

1. What scenarios are suitable for carbon fiber (CF) props?

The greatest value of carbon fiber props is not "more thrust," but rather a stable propeller shape, lower vibration, and higher efficiency.

If your flight mission meets any of the following, CF props are the priority:

Aerial Photography / Surveying / RTK / 3D Modeling: Extremely sensitive to vibration; requires stable imagery and flight path accuracy.

Long-Endurance Inspection / Engineering Flights: Requires a stable power consumption curve; CF props deform less at high RPM.

Medium-to-Heavy Payloads / Agricultural Spraying / Industrial Drones: Under large aerodynamic loads, plastic props easily distort; CF props are more efficient.

Strong Wind Operations: High rigidity significantly improves the platform's wind resistance and attitude consistency.

Large Props (14-inch+): For props over 14 inches, it is nearly impossible to maintain a stable shape long-term if not made of carbon fiber.

Therefore, as long as the mission has "high value, heavy payload, or sensitivity to vibration," carbon fiber props are suitable.

2. Motor KV and Prop Diameter Must Match

Carbon fiber props have high rigidity, which can amplify motor insufficiencies. Therefore, the "match between KV and prop diameter" is more important than the prop itself.

Simple engineering rules of thumb:

Low KV (100–400 KV) → Drives large props (15–30 inch)

Med-Low KV (300–900 KV) → Drives medium props (10–15 inch)

Med-High KV (900–1600 KV) → Drives small props (7–10 inch)

If the motor KV is mismatched with the prop diameter or pitch, the most common issues include excessive current, motor overheating, amplified vibration, and a significant drop in overall efficiency. Therefore, the choice of prop must also strictly adhere to the prop diameter range recommended by the motor manufacturer.

3. Pitch Determines Efficiency and Flight Characteristics

A larger pitch is not always better. It determines the aircraft's "energy consumption curve" and "response characteristics."

Basic rules for pitch:

Low Pitch (3–4.5) → Power-saving, stable, low noise.

Better for aerial photography, mapping, inspection, and long-endurance hovering.

Medium Pitch (5–6) → All-rounder.

A balance of thrust and efficiency, this is the default range for most industrial drones.

High Pitch (6.5+) → Strong thrust, but consumes more power.

Suitable for heavy-lift climbing or high-speed cruise; demands high motor torque.

Therefore, choose a low pitch for extremely stable video or long endurance; increase pitch when pursuing climb power or high speed; for most engineering inspections and medium-load tasks, a medium pitch is the most balanced and safest choice.

4. Vibration Control is More Important Than Thrust

In professional tasks like aerial photography, surveying, and inspection, propeller vibration is amplified and transmitted to the entire airframe, affecting everything from the IMU and gimbal to the frame structure. Compared to the "inability to fly fast" or "climb high" caused by insufficient thrust, the problems caused by vibration are often more hidden and critical:

IMU noise increases, leading to flight path drift; the gimbal cannot fully filter high-frequency vibrations, resulting in the jello effect; RTK/LiDAR point clouds will show altitude fluctuations or even positioning deviations. For engineering aircraft, high-frequency vibration also accelerates the fatigue of key components like arms, motor bearings, and prop mounts, reducing flight reliability.

Therefore, on a professional platform, the most important aspect of a propeller is not its maximum thrust, but its stable, controllable, and low-vibration aerodynamic performance. Only when vibration is controlled and the propeller shape is stable can thrust, efficiency, and endurance be truly realized. This is the fundamental reason why industrial-grade CF props (like T-Motor, Xoar, and Foxtech Supreme) have long been the top choice for engineering teams.

Conclusion

Selecting carbon fiber propellers is never about the single metric of chasing "bigger" or "stronger." It is about achieving a balance between mission requirements, power system matching, and flight quality. Different sizes are suitable for different classes of platforms, while motor KV, blade size, pitch, and dynamic balance collectively determine the aircraft's efficiency and stability. Whether for aerial photography, surveying, or heavy-lift industrial flights, as long as you follow the principles of "letting the mission define the size, the power system define the prop type, and prioritizing stability over thrust," you can select the most suitable carbon fiber propeller for your platform, making your flights more reliable, your footage more stable, and your missions more efficient.
