Large drones are widely used in agriculture, aerial surveying, inspection, logistics, and special missions, with propellers being the critical component determining thrust, efficiency, and stability. As platform payloads increase, 24–40 inch carbon fiber propellers have become mainstream. However, different missions have distinct requirements for propeller diameter, pitch, and structural design, making the selection process complex due to the vast number of models available.
To help users quickly find the right platform configuration, this article uses four mission categories—Agriculture / Aerial Surveying & Inspection / Logistics & Heavy-Lift / Special Platforms—as a framework. We have selected large propeller models that are currently common in the industry, have long-term market availability, and possess high engineering verification. This guide summarizes the key parameters and applicable scenarios for each model to form a directly referenceable recommendation list.
Understanding Large Drone Propellers
Large Drone Propellers typically refer to blades with a diameter between 24–40 inches, designed for professional mission platforms such as agriculture, industrial inspection, aerial surveying, logistics transport, and special operations. Compared to small or medium propellers (5–22 inches), large propellers exhibit significant differences in thrust capacity, structural strength, energy efficiency, and wind resistance stability, making them the core component of commercial UAV power systems.
The industry generally classifies propellers by size as follows:
Small Props (≤12 inch): FPV, light-load high-speed drones.
Medium Props (13–22 inch): Aerial photography, multi-sensor inspection, and light-load surveying.
Large Props (24–40+ inch): Agriculture, industrial mapping, logistics, and special platforms.
The "Large Drone Propellers" discussed in this article refer specifically to those above 24 inches, primarily used for high-payload, long-endurance, and high-stability tasks.
1. Core Characteristics of Large Drone Propellers
(1) High Static Thrust Output
Large propellers can generate powerful static thrust at low RPM, making them suitable for high-payload takeoffs, hovering for spraying, and lifting operations.
(2) High Efficiency at Low RPM
A larger propeller disk (disk area) means lower disk loading. This gives large propellers a distinct endurance advantage during mid-to-low throttle cruising, which is crucial for long-endurance missions.
(3) Wind Resistance & Vibration Control
Large propellers offer better stability in turbulent environments and reduce vibration amplitude, ensuring data quality for precision equipment like LiDAR and multispectral cameras.
(4) Motor Compatibility
Large propellers must be paired with low KV, high-torque industrial motors to form the standard propulsion system for high-payload UAVs.
2. Applicable Mission Scenarios
Large propellers are standard configurations for professional mission drones, primarily appearing in the following four scenarios:
Agricultural Spraying (28–32 inch): Long-duration hovering, high payload, corrosive environments.
Industrial Inspection & Mapping (24–28 inch): Low-throttle cruising, stable vibration control.
Logistics & Heavy-Lift (30–36 inch): High thrust output, strong wind resistance.
Special & Ultra-Large Platforms (36–40+ inch): Extreme payloads, tethered lighting, engineering lifting, hybrid gas-electric platforms.
Different scenarios require different dimensions, structures, and performance specs. To help you quickly find mainstream specifications, we will introduce representative models for each category below.
Large Drone Propellers for Agriculture / Crop Spraying
Agricultural spraying drones need to hover for extended periods under full load and maintain stable thrust in low-altitude, highly turbulent environments. Therefore, the core requirements are high static thrust, long-duration hovering efficiency, and reliable corrosion-resistant structures. The 28–32 inch range is the most common specification for 10–30L crop protection platforms, balancing payload capacity with flight time.
The following two models cover mainstream needs for medium to large crop protection platforms and are representative models with high market retention.

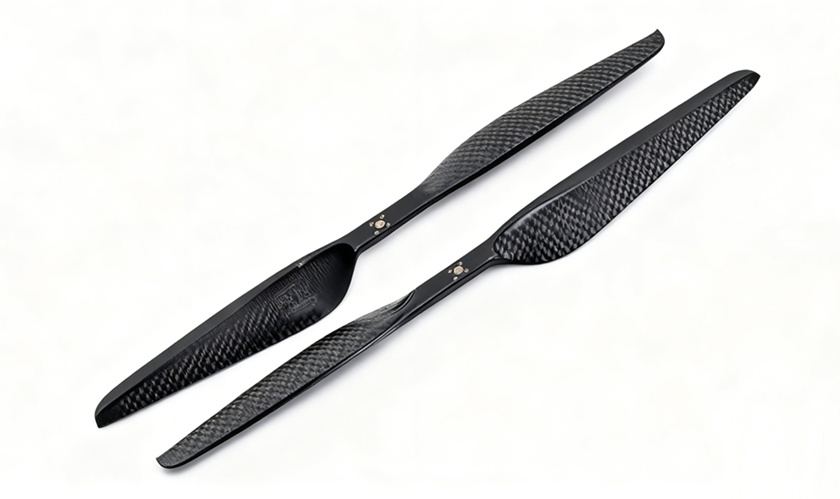

1. RJXHOBBY 28×9.2 Carbon Fiber Propeller
Specifications:
Diameter: 28 inch
Pitch: 9.2 inch
Blade Count: 2 Blades
Structure: Integrated Fixed-Pitch Propeller
Material: Carbon Fiber + Epoxy Resin (CF+Epoxy)
Process: PMI Foam Core + 3K Carbon Fiber Wrap
Weight: Approx. 85–95 g
Center Hole: Φ10 mm
Mounting Holes: 4 × Φ3 mm (Symmetrical distribution)
Operating Temp: -40 ℃ ~ 65 ℃
Recommended RPM: 1500–3700 RPM
Max Thrust Limit: 27.5 kg
Reference Price: Approx. US$299.99/pair
Why Recommended:
The RJXHOBBY 28×9.2 is a common medium-sized carbon fiber prop for 10–16L crop protection platforms. Its aerodynamic design favors static thrust, providing sufficient lift at low RPM, making it suitable for long-duration hovering spraying. The PMI foam core structure offers high rigidity, maintaining stability even in turbulent spraying and humid pesticide environments. It is a classic, stable specification for medium-sized agricultural drones.
2. T-Motor G32×11 Carbon Fiber Propeller
Specifications:
Diameter: 32 inch
Pitch: 11 inch
Blade Count: 2 Blades
Structure: Integrated Carbon Fiber Propeller
Material: Carbon Fiber + Epoxy Resin
Process: Internal Light Foam Core
Weight: Approx. 107±5 g per prop
Mounting Holes: Compatible with center hole and multi-hole mounting plates
Max Thrust Limit: Approx. 35 kg
Recommended RPM: Approx. 1200–3000 RPM
Operating Temp: -40℃ ~ 65℃
Reference Price: Approx. US$ 358/pair
Why Recommended:
The T-Motor G32×11 is the workhorse for 16–30L class large agricultural drones. The 32" disk and 11" pitch provide strong static thrust at low RPM, suitable for full-load takeoffs and extended hovering. The foam core structure enhances torsional resistance, ensuring consistent thrust during high-humidity, long-shift operations. It is a standard configuration validated by large-scale agricultural fleets.
Summary:
Agricultural tasks emphasize static thrust, structural strength, corrosion resistance, and stable hovering.
RJX 28×9.2: Fits 10–20 kg MTOW medium sprayers; stable and cost-effective.
T-Motor G32×11: Targeted at 20–30 kg MTOW large platforms; highly industry-verified.
Industrial Inspection & Mapping Propellers
Industrial inspection and mapping missions emphasize long endurance (flight time) and data stability. Therefore, propellers need to maintain high efficiency and low vibration performance at mid-to-low throttle settings. The 24–28 inch range is the most commonly used specification, balancing cruise efficiency with the imaging stability required for onboard sensors.
The following two models are widely used in the industry, possess a stable reputation, and remain currently available.

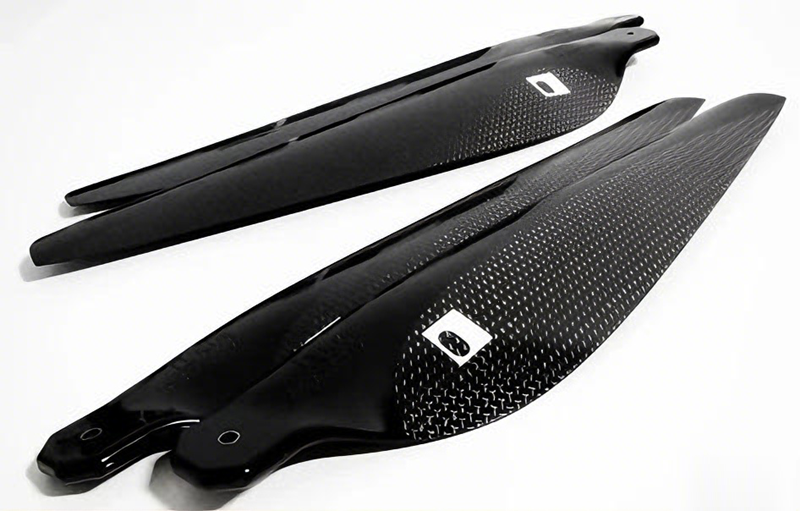

1. KDE-CF245-DP Carbon-Fiber Propeller Blades
Specifications:
Diameter: 24.5 inch
Pitch: 8.1 inch
Blade Count: 2 Blades (Dual-Edition, CW/CCW pair)
Structure: Folding Propeller
Material: Carbon-Fiber 3K Matrix
Process: Factory balanced in pairs, Geometry optimized via FEA
Weight: Approx. 34.9 g per blade
Mounting Hole Spacing: M3 × Φ20 mm Universal Spacing
Reference Price: Approx. US$ 255/set
Why Recommended:
The KDE-CF245-DP is optimized for light to medium-load mapping platforms. The 24.5" size delivers high efficiency and low vibration at mid-to-low throttle, making it ideal for carrying precision sensors like LiDAR, multispectral cameras, and oblique photography cameras. The folding structure facilitates easier transport for field operations, while the 3K carbon fiber and factory balancing ensure thrust stability over long-term missions.
2. T-Motor G28×9.2 Carbon Fiber Propeller
Specifications:
Diameter: 28 inch
Pitch: 9.2 inch
Blade Count: 2 Blades
Structure: Integrated Fixed-Pitch Propeller
Material: Carbon Fiber + Epoxy Resin
Process: Internal Foam Core Structure
Weight: Approx. 85±5 g per prop
Max Thrust Limit: Approx. 27.5 kg
Recommended RPM: Approx. 1500–3700 RPM
Operating Temp: -40℃ ~ 65℃
Reference Price: Approx. US$ 311/pair
Why Recommended:
The T-Motor G28×9.2 is one of the most widely used 28" fixed propellers in industrial mapping. Its pitch and disk area are designed for "long-endurance cruising + stable vibration control," making it particularly suitable for 6–12 kg mapping and inspection airframes. Its high efficiency at low RPM improves LiDAR/camera imaging quality and extends flight time.
Summary:
Inspection and mapping drones prioritize mid-low throttle efficiency, vibration control, data acquisition stability, and flight endurance.
KDE-CF245-DP (24.5"): Light-load inspection / multispectral ag monitoring / portable field needs.
T-Motor G28×9.2 (28"): The industry classic size for 6–12 kg mapping and inspection.
Heavy-Lift & Logistics Drone Propellers
Heavy-lift and logistics drones need to maintain sufficient thrust and stable attitude at low RPM. Therefore, propellers must possess large disk static thrust and high structural rigidity. The 30–36 inch range is the industry mainstream, used for medium-to-large transport platforms with 15–40 kg MTOW (Maximum Take-Off Weight).

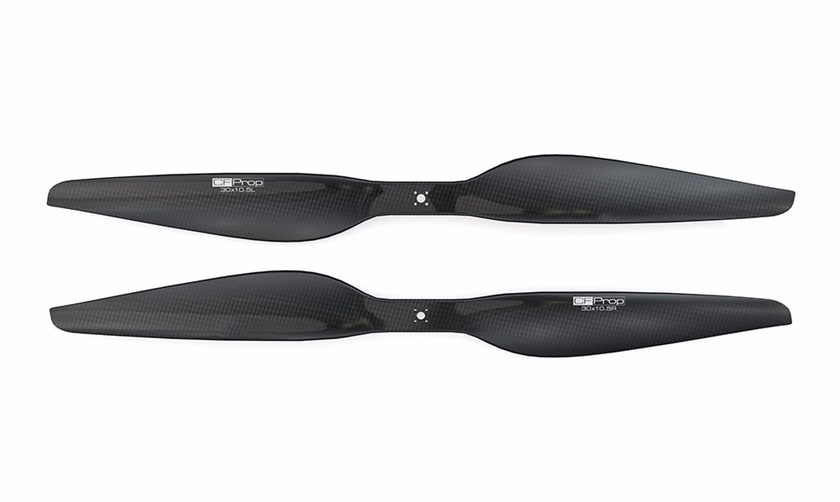

1. T-Motor G30×10.5 Carbon Fiber Propeller
Specifications:
Size: 30 inch
Pitch: 10.5 inch
Blade Count: 2 Blades
Structure: Integrated Propeller
Material: Carbon Fiber + Epoxy Resin
Process: Internal Light Foam Core
Weight: Approx. 97±5 g per prop
Max Thrust Limit: Approx. 33 kg
Recommended RPM: Approx. 1300–3000 RPM
Operating Temp: -40℃ ~ 65℃
Reference Price: Approx. US$ 336/pair
Why Recommended:
The T-Motor G30×10.5 is the standard 30" specification for 15–30 kg MTOW heavy-lift multirotors. It offers a balance of thrust and efficiency, suitable for carrying loads over time and operating in windy field conditions. Its foam core structure ensures blade rigidity and deformation control under high torque, significantly improving hover stability and reducing motor load fluctuations.
2. Xoar PJP-T-L 36×12 Precision Carbon Fiber Propeller
Specifications:
Diameter: 36 inch
Pitch: 12 inch
Blade Count: 2 Blades
Structure: Integrated Precision Fixed-Pitch Propeller
Material: High Modulus 3K Carbon Fiber Lamination
Process: Solid Composite Hub, Factory Static/Dynamic Balancing
Weight: Approx. 260 g
Center Hole: Φ10 mm
Bolt Holes: 6 × M4
Suggested Max RPM: Approx. 4000 RPM
Reference Price: Approx. US$ 305/pair
Why Recommended:
The Xoar PJP-T-L 36×12 belongs to the "large disk, high thrust" category, suitable for heavier platforms (30–50 kg MTOW). Its combination of high pitch and large diameter generates strong static thrust at low RPM. It performs exceptionally well in engineering lifting, mining transport, and emergency equipment delivery. The PJP-T-L series is renowned for high dynamic balance precision and robust hub structure, making it a highly verified choice for heavy logistics.
Summary:
Logistics and heavy-lift platforms require high thrust output, strong structural rigidity, low RPM efficiency, and wind resistance.
T-Motor G30×10.5: For 15–30 kg MTOW medium-heavy transport; balanced and widely used.
Xoar PJP-T-L 36×12: For 30–50+ kg MTOW heavy transport/lifting; provides stronger static thrust reserves.
Extra-Large Propellers for Special-Purpose UAVs
Special and ultra-large drone platforms typically operate at extremely low RPMs, requiring propellers to provide extreme static thrust redundancy and high rigidity stability. The 36–40"+ specifications are widely used in engineering lifting, hybrid gas-electric platforms, and heavy-load missions exceeding the 50kg class.

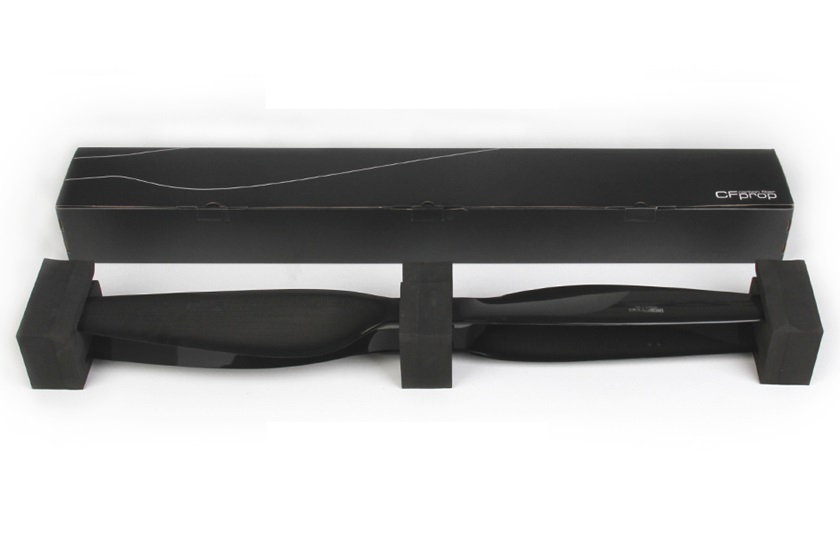

1. T-Motor G36×11.5 Carbon Fiber Propeller
Specifications:
Diameter: 36 inch
Pitch: 11.5 inch
Structure: Integrated Carbon Fiber Propeller
Material: Carbon Fiber + Epoxy Resin
Process: Foam Core Structure
Weight: Approx. 135 g per prop
Max Thrust Limit: Approx. 37 kg / pair
Recommended RPM: Approx. 1000–2600 RPM
Reference Price: Approx. US$ 405/pair
Why Recommended:
The T-Motor G36×11.5 is a classic large prop for 30–60 kg MTOW platforms. It delivers very high static thrust output and excellent attitude stability at mid-to-low RPM. The integrated structure maintains rigidity in high-torque environments, significantly reducing vibration accumulation caused by structural deformation. It is a standard propeller for engineering lifting, tethered lighting, and hybrid platforms.
2. Xoar PJP-T-L 40×10 Carbon Fiber Precision Propeller
Specifications:
Diameter: 40 inch
Pitch: 10 inch
Structure: Integrated Precision Carbon Fiber Propeller
Material: 3K Carbon Fiber Lamination
Process: CNC Machined Hub, Factory Dynamic Balancing
Weight: Approx. 380 g (Tolerance ±15 g)
Center Hole: Φ10 mm
Mounting Holes: 6 × M5
Suggested Max RPM: Approx. 4000 RPM
Reference Price: Approx. US$ 378/pair
Why Recommended:
The Xoar PJP-T-L 40×10 is a true "ultra-large" specification, primarily used for 50–100+ kg MTOW extreme payload platforms. Its large diameter combined with a medium pitch allows the blades to output massive static thrust at extremely low RPMs. It is suitable for engineering lifting, experimental industrial platforms, ultra-large hybrid drones, and special mission aircraft.
Summary:
Special and ultra-large platforms rely more on thrust redundancy, extremely low vibration, strong structural rigidity, and long-term low-RPM stability.
T-Motor G36×11.5 (36"): The main workhorse for 30–60 kg industrial and special use.
Xoar PJP-T-L 40×10 (40"): For 50–100+ kg extreme loads; one of the most mature engineering-grade ultra-large props available.
Specifications Comparison of 8 Large drone Propellers：
Model | Size (Diameter × Pitch) | Structure | Material | Weight (per piece) | Max Thrust | Recommended RPM | Price |
RJXHOBBY 28×9.2 | 28×9.2 | Fixed carbon prop | Carbon Fiber + Epoxy | 85–95 g | 27.5 kg | 1500–3700 RPM | US$ 299.99/pair |
T-Motor G32×11 | 32×11 | Fixed carbon prop | Carbon Fiber + Epoxy | 107±5 g | ≈35 kg | 1200–3000 RPM | US$ 358/pair |
KDE-CF245-DP | 24.5×8.1 | Folding prop | 3K Carbon Composite | 34.9 g | — | — | US$ 255/set |
T-Motor G28×9.2 | 28×9.2 | Fixed carbon prop | Carbon Fiber + Epoxy | 85±5 g | 27.5 kg | 1500–3700 RPM | US$ 311/pair |
T-Motor G30×10.5 | 30×10.5 | Fixed carbon prop | Carbon Fiber + Epoxy | 97±5 g | 33 kg | 1300–3000 RPM | US$ 336/pair |
Xoar PJP-T-L 36×12 | 36×12 | Fixed precision prop | 3K High-Mod Carbon Laminate | 260 g | — | ≤4000 RPM（max） | US$ 305/pair |
T-Motor G36×11.5 | 36×11.5 | Fixed carbon prop | Carbon Fiber + Epoxy | 135 g | 37 kg/pair | 1000–2600 RPM | US$ 405/pair |
Xoar PJP-T-L 40×10 | 40×10 | Fixed precision prop | 3K Carbon Fiber Laminate | 380 g (±15 g) | — | ≤4000 RPM | US$ 378/pair |
How to Choose Large Drone Propellers?
1. Large Drone Propeller Matching Table by Mission Type
Mission Type | Typical MTOW | Recommended Propeller Diameter (inch) | Motor KV Range | Core Requirements |
Industrial Inspection / Mapping | 5–15 kg | 26–30" | 150–180 KV | High efficiency, low vibration, long endurance |
Agriculture Spraying / Spreading | 10–30 kg | 28–32" | 120–150 KV | Strong static thrust, wind resistance, structural strength |
Logistics Transport / Heavy-Lift Platforms | 20–40 kg | 30–36" | 80–120 KV | High thrust, long endurance, high torque output |
Special-Purpose / Extra-Large UAV Platforms | 40–100+ kg | 36–40"+ | 50–80 KV | Large disk area, extreme load capability, safety redundancy |
2. How to Choose Large Drone Propeller Material?
Large drone propellers work under high loads, long hovers, and high torque; thus, material strength and rigidity directly affect flight safety. Propellers above 24 inches universally use Full Carbon Fiber structures. This is currently the only mature material capable of maintaining a stable shape, reducing deformation, and extending fatigue life under high torque conditions.
Compared to plastic or standard composites, full carbon fiber offers superior dynamic balance consistency, durability, and reliability in high-strength scenarios, making it the industry standard for large agricultural, mapping, logistics, and special platforms.
3. How to Choose Large Drone Propeller Structure?
Common structures include Fixed Propellers and Folding Propellers:
Fixed Propellers: Simpler structure, higher rigidity. They perform more stably in heavy-lift flights, high-torque environments, and continuous output scenarios. They are the mainstream choice for engineering lifting, logistics, and 36"+ large props.
Folding Propellers: Better suited for agriculture and mapping tasks requiring frequent site transitions. They are easier to store and reduce the risk of damage during transport. Modern folding mechanisms are sufficiently reliable in hub strength and dynamic balance to meet the needs of medium-to-large drones.
4. How to Choose Large Drone Propeller Pitch?
Pitch determines thrust, current (amperage), and vibration characteristics. The industry generally uses a medium pitch of 8–12.5 inches. This strikes a good balance between thrust output and motor load, ensuring efficiency and stability during mid-low throttle cruising and long hovering missions.
Pitch too high: Stronger thrust, but leads to increased current draw, higher vibration, and difficulty in flight control tuning.
Pitch too low: Insufficient thrust and reduced efficiency.
Therefore, large drones typically select a medium pitch to achieve safe, stable, and easy-to-tune overall flight performance.
Summary
Different mission types place very different demands on propellers:agriculture focuses on strong static thrust,mapping emphasizes low vibration and cruising efficiency,logistics platforms require a high thrust-to-weight ratio,and special-purpose UAVs prioritize structural rigidity and redundancy.This article summarizes a range of proven,commercially available large-diameter propellers across four core application scenarios,providing clear specification references for platforms of various payload levels.
By reviewing these representative models and parameter ranges,users can quickly identify the mainstream propeller diameters and structural configurations suitable for each mission,narrowing the selection scope and improving decision-making efficiency.The best propeller is not simply the largest one,but the one that matches the task requirements most closely.This guide aims to help you identify reliable,safe,and engineering-grade propellers for professional UAV applications more effectively.
