12 Best High RPM Drone Motors (2025)

A High RPM Drone Motor is a critical component that determines flight speed, response sensitivity, and control feel. Whether it's for a light and agile Tinywhoop or a high-speed Racing drone, the motor's RPM performance directly impacts the entire aircraft's capabilities.

In this curated 2025 list, we have selected 12 of the best-performing high-RPM drone motors, covering all application sizes from 1S micro platforms to 6S racing classes. All models are market-proven and flight-tested, balancing thrust, efficiency, and stability. Whether you are an FPV beginner or a seasoned pilot, this list will help you quickly find the high-RPM motors most worth buying.

Drone Motor RPM Basics

1. What is RPM ?

In a drone's power system, RPM refers to the motor's Revolutions Per Minute, the core metric for measuring motor output speed.

Higher RPM means the propeller spins faster, generating stronger airflow and thus greater thrust, giving the drone faster flight speed and more sensitive response.

For FPV pilots, a motor's RPM affects not only top-speed performance but also the throttle feel and the fluidity of flight maneuvers.

2. The Relationship Between KV Rating and RPM

The core parameter affecting motor RPM is the KV rating. KV represents the theoretical RPM a motor can achieve per volt of voltage, measured in RPM/V.

For example, a 2300KV motor can theoretically spin 2300 revolutions per minute at 1 volt. If using a 4S battery (approx. 16V), the theoretical RPM would be 2300 × 16 ≈ 36.800 RPM.

However, the actual in-flight RPM is often lower than this theoretical value because factors like air resistance, propeller load, current limiting, and motor efficiency all cause the output to drop.

Simplified Formula: RPM ≈ KV × Voltage

This shows that increasing the KV rating or using a higher voltage battery can both increase motor RPM. But this also brings higher power consumption and heat generation. Therefore, one cannot solely pursue "spinning fast"; stability and durability must also be considered.

3. Theoretical RPM vs. Actual Performance

Theoretical RPM is just an approximation; true flight performance depends on the overall system matching.

Main factors affecting actual RPM include:

Propeller Size and Pitch: Large or high-pitch props increase air resistance, thus lowering actual RPM. Conversely, small props allow the motor to spin faster more easily.

Current and ESC Power Delivery: If the ESC's current output is insufficient, it will limit motor RPM and cause heat buildup.

Air Density and Temperature: In thin air (like at high altitudes), the load on the motor is lighter, and RPM may slightly increase.

Motor Efficiency: A more efficient motor will achieve an RPM closer to the theoretical value at the same voltage.

Therefore, RPM is a comprehensive reflection of system performance, not a single value.

Scientifically matching the motor, ESC, battery, and propeller is necessary to balance RPM and thrust.

Summary:

RPM, KV rating, and voltage collectively determine the motor's speed performance.

Understanding their relationship is the first step in

choosing a high-RPM drone motor.

High RPM doesn't always mean better. Only with a reasonable system match can the motor unleash its maximum performance in a safe and efficient state.

Best High RPM Tinywhoop Motors

A Tinywhoop is a type of lightweight, extremely sensitive micro FPV drone, often used for indoor flight and pylon practice.

These drones typically run on 1S batteries and weigh no more than 25 grams, thus requiring motors that output extremely high RPM at a very low weight. A high KV rating, smooth linearity, and low vibration are the core characteristics of a quality Tinywhoop motor.

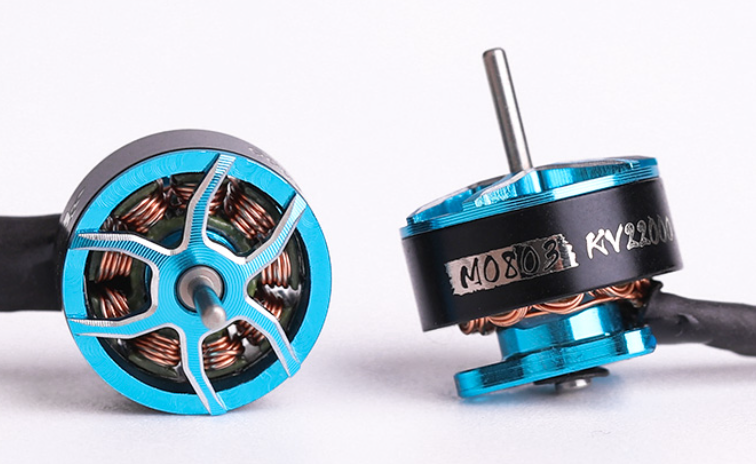

1. T-Motor M0803 22000KV

Performance Specifications：

Rated voltage (LiPo): 1S

Dimensions: Φ10.6 × 15.7 mm

Shaft diameter: 1.0 mm

Weight (incl. cable): 2.47 g

Idle current: 0.65 A @ 10 V

Internal resistance: 122 mΩ

Peak current (duration): 5.46 A (60 s)

Max power (duration): 22.66 W (60 s)

Lead & connector: ≈33 mm, JST-1.25

Price: Approx. $10.90 USD

Market Feedback:

Extremely fast throttle response, linear and smooth thrust output. Provides exceptionally strong power on a 1S platform. The motor has high machining precision, runs smoothly, and is a high-end representative in the Tinywhoop field.

Recommendation:

Combines ultra-high KV with an extremely lightweight design. It is very suitable for Tinywhoop pilots seeking sensitive control and explosive power, making it a flagship power solution for 65 mm models.

2. RCINPower GTS V3 1002 19000KV

Performance Specifications：

Rated voltage (LiPo): 1S

Dimensions: Φ13.5 × 7.75 mm

Stator: 10 × 2 mm

Shaft diameter: 1.5 mm

Weight: 2.5 g

Idle current: 1.3 A @ 5 V

Internal resistance: 89 mΩ

Max continuous current: 11.8 A (3S)

Max continuous power: 44 W (3S)

Mounting pattern: 9 × 9 mm

Configuration: 9N12P

Price: Approx. $18.90 USD

Market Feedback:

Stable power output, linear response, smooth motor operation, and excellent durability. Widely popular among pilots and used in many mainstream Tinywhoop kits.

Recommendation:

A balanced choice that considers both high RPM and good control feel, especially suited for advanced pilots using 1S 40 mm propellers. It offers speed while retaining some flight time.

3. Happymodel EX1102 13500KV

Performance Specifications：

Rated voltage (LiPo): 2–3S

Dimensions: Φ13.5 × 16 mm

Stator: Φ11 × 2 mm

Shaft diameter: 1.5 mm (Some versions are 1.0 mm, pay attention)

Weight: 2.8 g

Configuration: 9N12P

Price: Approx. $16.90 USD

Market Feedback:

Smooth operation, sensitive response, and good efficiency. Despite a slightly higher weight, it performs reliably on lightweight frames. Suitable for beginner pilots or daily training.

Recommendation:

A high-value Tinywhoop power solution, suitable for beginners or users who need frequent flight practice. It offers balanced overall performance and low maintenance costs.

Review:

The core of the Tinywhoop platform is the balance between "light" and "fast."

If pursuing ultimate response and speed, choose the T-Motor M0803 22000KV.

If you want to balance thrust, durability, and smoothness, select the RCINPower GTS V3 1002 19000KV.

If you are on a budget or use it for daily practice, the Happymodel EX1102 13500KV is an ideal entry-level model.

In a 1S system, a motor KV rating between 18.000 – 22.000KV is generally most suitable, achieving efficient power output on a lightweight frame without overheating.

Properly matching propeller size and battery capacity is key to unleashing the performance of these motors.

Best High RPM Cinewhoop Motors

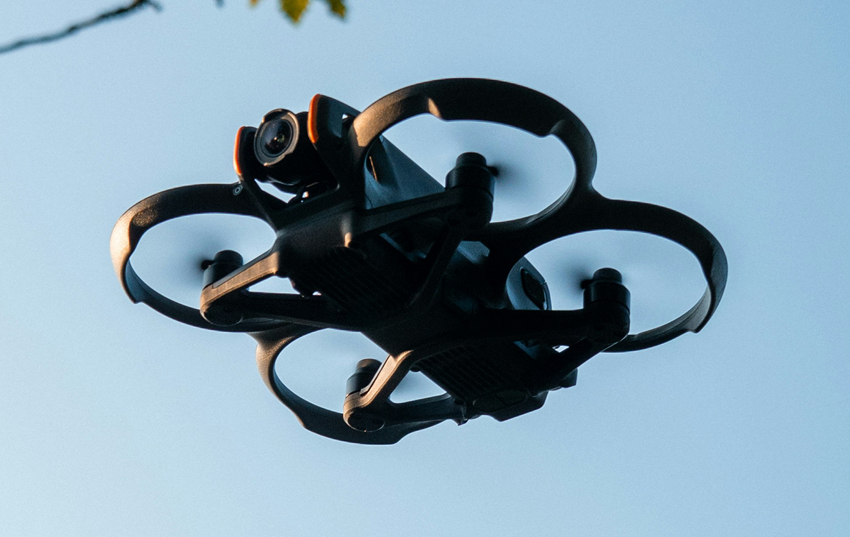

A Cinewhoop is a 2–3 inch ducted aerial photography drone focused on smooth footage and flexible control.

They typically carry a GoPro or lightweight action camera, and their motor requirements are very different from Tinywhoops: they need not only the thrust from medium-high RPM but also low vibration, low noise, and excellent linear output during high-speed operation.

The following three motors are representative models from 2025 with excellent reputations and performance.

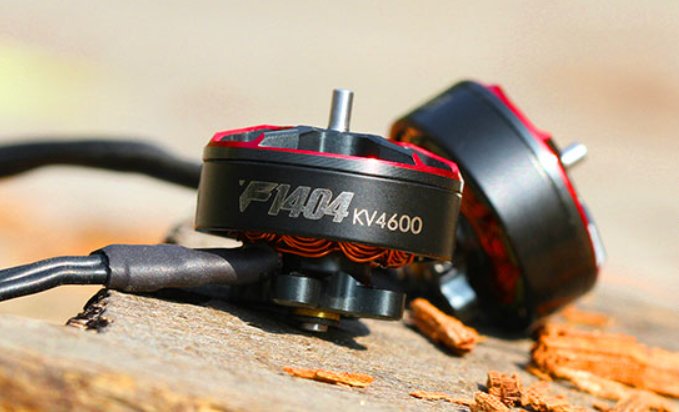

1. T-Hobby F1404 4600KV

Performance Specifications:

Rated voltage (LiPo): 3–4S

Dimensions: Φ17.9 × 16.6 mm

Shaft diameter: 1.5 mm

Weight (incl. cable): ≈9.34 g

Idle current: 0.6 A @ 10 V

Internal resistance: 138 mΩ

Peak current (duration): 20 A (60 s)

Max power (duration): 316 W (60 s)

Configuration: 9N12P

Price: Approx. $16.90 USD

Market Feedback:

Users generally praise its smooth thrust output, excellent vibration control, and low noise. It maintains stable footage on 3-inch Cinewhoop platforms, and the motor surface temperature is well-controlled, making it resistant to overheating.

Recommendation:

Features high stability and excellent linear output, making it a top choice for aerial photographers who prioritize footage smoothness and control.

It balances thrust and efficiency on 3–4S with 2.5–3.5" props, ideal for Cinewhoops pursuing stable video.

2. iFlight XING 1504 3100KV

Performance Specifications:

Rated voltage (LiPo): 3–6S

Dimensions: φ21.6 × 13.5 mm

Shaft diameter: 1.5 mm

Weight (incl. wire): 12.3 g

Interphase resistance: 247mΩ

Peak current: 12.44 A

Max power: 207 W

Mounting holes: 9 × 9 mm, M2

Configuration: 12N14P

Price: Approx. $20.90 USD

Market Feedback:

Known for its high torque and smooth output. It can easily drive 3–3.5 inch propellers, maintaining stability even when carrying a lightweight camera (like an Insta360 or GoPro Naked).

The Unibell rotor structure enhances durability, and flight noise control is excellent.

Recommendation:

Ample torque and linear control feel make this a balanced solution for both thrust and stability.

It is very suitable for Cinewhoop pilots who want a "big drone feel" in a small package.

3. GEPRC GR1404 3850KV

Performance Specifications:

Rated voltage (LiPo): 2–4S

Dimensions: Φ18.3 × 14.5 mm

Stator: 14 × 4 mm

Shaft diameter: 1.5 mm

Weight: 9.8 g

Idle current: ≤0.51 A @ 8 V

Internal resistance: 213mΩ

Max continuous current (180 s): 13.38 A

Max continuous power (180 s): 214 W

Mounting pattern: 9 mm (M2)

Price: Approx. $16.99 USD

Market Feedback:

The motor runs smoothly with ample power output, maintaining good efficiency even under moderate prop loads.

Users report its overall balance is good and noise control is superior to other products at the same price point, though its efficiency drops slightly under very high KV loads.

Recommendation:

Lightweight, smooth, and moderately powerful, it is a reliable choice for beginner Cinewhoop pilots.

It offers a good thrust-to-weight ratio and battery life balance on 2S–4S setups, providing excellent value.

Review:

The key for Cinewhoop motors is stability and smoothness.

For professional-grade aerial footage and high stability: The T-Hobby F1404 4600KV is the top choice.

For a balance of power and smooth control: The iFlight XING 1504 3100KV offers the best compromise.

For cost-effectiveness and ease of use: The GEPRC GR1404 3850KV remains a classic entry-level option.

It is generally recommended to choose motors in the 3.000–5.000KV range, paired with a 3–4S battery and 2.5–3.5 inch props, to get the ideal Cinewhoop flight experience that balances video quality, control, and battery life.

Best High RPM Freestyle Motors

Freestyle is a flight style that emphasizes the fluidity of maneuvers and throttle feel.

Unlike racing, Freestyle focuses on the balance between thrust and control: it must support high-difficulty tricks while also maintaining a smooth linear response and decent flight time.

High-RPM motors can make flight maneuvers crisper, but if not controlled properly, they can also lead to increased power consumption and vibration.

The following three motors are renowned in the current market for their smooth feel, power output, and durability, making them representative choices for Freestyle.

1. BrotherHobby Avenger V3 2306.5 2450KV

Performance Specifications:

Rated voltage (LiPo): 5–6S

Bolt pattern: 16 × 16 mm, M3

Prop adapter thread: M5

Shaft: Hollow titanium alloy

Bearing: Japan NMB 9 × 4 × 4 mm

Magnet: N52H arc magnet

Weight (incl. 16 cm leads): 33.6 g

Configuration: 12N14P

Price: Approx. $24.90 USD

Market Feedback:

Pilots widely agree that its throttle linearity is excellent, thrust is powerful, and it offers a large tuning window. Its crash-resistant structure and high-temperature stability are outstanding, remaining reliable even after repeated crashes or intense maneuvers.

Recommendation:

A classic benchmark motor for Freestyle, balancing smoothness with explosive power. It is especially suitable for intermediate to advanced pilots looking to improve their feel and detailed control, performing best with 5S–6S batteries.

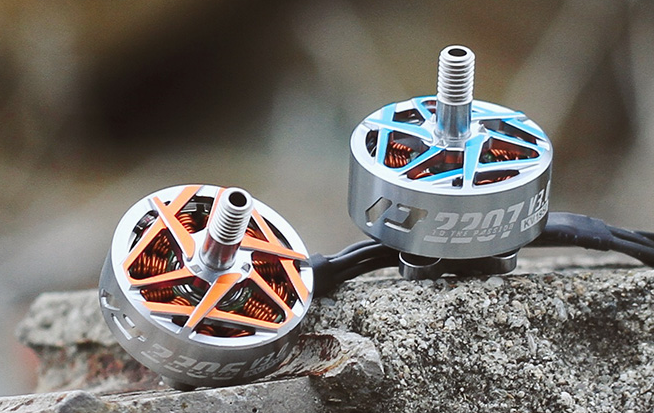

2. T-Motor P2207 V3 2550KV

Performance Specifications:

Rated voltage (LiPo): 4S

Dimensions: 28.1 × 31 mm

Shaft & prop seat: 4 mm shaft, 5 mm prop seat

Weight (incl. cable): 34.2 g

Idle current: 2.25 A @ 10 V

Peak current (duration): 43.6 A (60 s)

Max power (duration): 713 W (60 s)

Configuration: 12N14P

Lead: 20AWG × 150 mm

Price: Approx. $23.90 USD

Market Feedback:

Known for its excellent thrust and high-heat-resistance design, it maintains a low temperature rise during long flights. The motor operates smoothly, and its output is linear and stable, making it one of the main models for many Freestyle pilots.

Recommendation:

Balanced performance, reliable, and durable, suitable for a flight style that balances power with smooth maneuvers.

Whether for urban cruising or outdoor acrobatic flight, it provides strong control confidence.

3. T-Hobby Velox V2306 V3 2550KV

Performance Specifications:

Rated voltage (LiPo): 4S

Weight (incl. cable): 32.6 g

Idle current: 1.95 A @ 10 V

Peak current (duration): 34.5 A (60 s)

Max power (duration): 533.7 W (60 s)

Motor bolt pattern: 16 × 16 mm

Shaft diameter: 5 mm

Configuration: 12N14P

20 AWG Lead: 20# × 150 mm

Price: Approx. $14.90 USD

Market Feedback:

The motor response is fast and linear, with excellent overall vibration control.

Although it is a mid-range product in the Velox series, it has received high praise in the community for its stable output and excellent cost-effectiveness, making it a common model for Freestyle beginners.

Recommendation:

Lightweight, affordable, and balances speed with feel. Suitable for beginner to intermediate pilots or as a daily practice motor, providing solid power performance on a 4S platform.

Review:

Freestyle flight emphasizes "power coexisting with smoothness." When choosing a motor, focus on linear response, torque reserve, and weight control.

For pursuing throttle feel and ultimate stability: The BrotherHobby Avenger V3 2306.5 2450KV is recommended.

If you prefer reliability and all-around performance: The T-Motor P2207 V3 2550KV is a classic choice.

If you value cost-effectiveness and daily use: The T-Hobby Velox V2306 V3 2550KV performs excellently.

For Freestyle pilots, motor KV ratings are typically most suitable in the 2.300–2.600KV range. Pairing them with a 5–6S battery and 5-inch props will provide a smooth thrust curve and precise control experience.

Best High RPM Racing Motors

Racing FPV drones pursue the limits of speed and instantaneous response. In this type of flight, motors need to have a higher KV rating, faster throttle response, and stronger heat resistance to cope with frequent acceleration and abrupt stops.

Common configurations use 5–6 inch propellers with 6S batteries, placing extremely high demands on the motor's power density and stability.

The following three motors are representative models widely recognized by racing pilots in the current market, all performing exceptionally in thrust output, heat dissipation, and durability.

1. T-Motor F60 Pro V 2550KV

Performance Specifications:

Rated voltage (LiPo): 4S

Dimensions: 26.8 × 31.7 mm

Shaft diameter: 4 mm (5 mm prop seat)

Weight (incl. cable): 33.3 g

Idle current: 1.6 A @ 10 V

Peak current (duration): 50.7 A (10 s)

Max power (duration): 825 W (10 s)

Configuration: 12N14P

Lead: 20AWG × 150 mm

Price: Approx. $29 USD

Market Feedback:

The F60 series has always been regarded as one of the benchmark models for racing motors. The Pro V version features upgrades in structure and windings, providing stronger output and faster response. Pilots report that it maintains a low temperature even under high loads, with excellent explosive power and rapid RPM ramp-up.

Recommendation:

Balances power with precise control, making it a common choice for high-level Racing pilots. Its thrust reserve and thermal control performance are both excellent, suitable for 5-inch high-RPM racing platforms.

2. iFlight XING2 2207 2750KV

Performance Specifications:

Rated voltage (LiPo): 4S (2750KV)

Dimensions: Φ29 × 19.25 mm

Weight (incl. wire): 30.5 g

Interphase resistance: 74.23 mΩ (2750KV)

Peak current: 46.05 A (2750KV)

Max power: 706.9 W (2750KV)

Mounting holes: 16 × 16 mm, Φ3

Shaft: 5 mm

Magnet: N52H

Bearing: NSK 9×4×4 mm

Price: Approx. $23.99 USD

Market Feedback:

The XING2 series is known in the FPV community for being "smooth yet powerful." This 2750KV version has abundant power in the mid-to-high throttle range, and the throttle response is extremely fast. Pilots comment that its torque is strong and acceleration is outstanding, making it suitable for fast turns and short-distance sprints.

Recommendation:

Suitable for racing pilots pursuing extreme speed and sharp control feel. Its rotor strength is high and output response is fast, making it a primary high-RPM choice for 5-inch Racing frames.

3. T-Hobby Velox V2207 V3 2550KV

Performance Specifications:

Rated voltage (LiPo): 4S

Weight (incl. cable): 36.5 g

Idle current: 2.25 A @ 10 V

Peak current (duration): 41.8 A (60 s)

Max power (duration): 642.5 W (60 s)

Motor bolt pattern: 16 × 16 mm

Shaft diameter: 5 mm

Configuration: 12N14P

20 AWG Lead: 20# × 150 mm

Price: Approx. $15 USD

Market Feedback:

The Velox series is T-Hobby's high-performance line focused on value. The V3 generation 2207 has shown significant improvements in heat resistance and linear performance, with stable power output and good vibration control. Users generally find this model to be smooth in the mid-to-high throttle range with relatively high energy efficiency.

Recommendation:

Stable performance and an affordable price make it an ideal choice for entry-level Racing or daily training. It is especially suitable for pilots on a limited budget who still want to experience high-RPM racing flight.

Review:

The core of a racing motor is the balance of RPM, response, and heat dissipation.

For pursuing ultimate explosive power and precise control, choose the T-Motor F60 Pro V 2500KV.

If you value acceleration performance and a highly responsive feel, the iFlight XING2 2207 2750KV is the ideal solution.

If you need to balance cost and stability, the T-Hobby Velox V2207 V3 2550KV can meet training and daily flight needs.

Overall, a Racing motor's KV is typically in the 2.400–2.800KV range. Paired with a 6S battery and 5-inch props, it can achieve the best balance between power and control. By reasonably matching the ESC and prop size, the potential of these high-RPM motors can be maximized.

How to Choose the Best High RPM Motor

When choosing a high-RPM drone motor, don't just look at the KV number.

A truly suitable motor must work in synergy with your flight style, voltage platform, and propeller size to achieve the ideal balance between speed, efficiency, and stability for the entire aircraft.

1. Choose by Flight Style

Different flight styles dictate the motor's RPM, thrust curve, and response requirements.

Understanding these differences is the first step to making the right choice.

Tinywhoop (Indoor Micro)

Focuses on being lightweight and sensitive. Motors need extremely high KV ratings (approx. 18.000 – 22.000 KV) to provide swift throttle response on a 1S platform.

Suitable for indoor pylon/gate practice, gap-shooting, and other agile maneuvers.

Cinewhoop (Aerial Photography)

Prioritizes stability and smoothness. Motors are often in the 3.000 – 5.000 KV range, able to maintain stable thrust output at low to mid-RPM.

Suitable for carrying action cameras for stable footage.

Freestyle

Pursues control fluidity and throttle linearity. The KV range is generally 2.000 – 2.500 KV, emphasizing a balance of torque and control.

Common on 5-inch 4–6S platforms, it represents "power and feel."

Racing

Emphasizes speed and acceleration response. KV ratings are typically 2.400 – 2.800 KV.

Motors must maintain low latency, high heat dissipation, and structural strength at high RPM. Suitable for competitions or speed challenges.

2. Match KV, Voltage, and Prop Size

The motor's KV rating, voltage platform, and propeller size are all interconnected.

A reasonable match is the only way to be both fast and stable.

High KV + Large Prop → High thrust but high power consumption & easy to overheat.

Suitable for short bursts or racing scenarios.

Low KV + Small Prop → High efficiency & long flight time but slightly slower response.

Suitable for long-range and aerial photography scenarios.

Optimal Operating Range:

When a motor operates in the 70% – 85% load range, its thrust and efficiency performance are optimal, and heat generation is at its lowest.

3. High RPM Drone Motor Quick Reference Guide

Conclusion

Choosing a suitable high-RPM drone motor is far more than just looking at how high the KV value is. A truly excellent motor should find a balance between RPM, torque, efficiency, and controllability.

Whether it's the agile and lightweight Tinywhoop, the smooth and fluid Cinewhoop, the control-focused Freestyle, or the speed-demon Racing, different flight styles have their own unique power-matching logic.

The 12 motors listed in this article have all been market-proven and flight-tested, representing the mainstream and benchmark models in the high-RPM motor field for 2025. As long as you understand the relationship between RPM, KV, voltage, and propellers, you can find the ideal balance between speed and stability to build a drone that truly fits your flight style.

If you want to gain a deeper understanding of how drone motor RPM relates to performance,we recommend reading our related article:

•Drone Motor RPM Explained:The Key to Performance
