Motor speed (RPM) is one of the core metrics that determines a drone's flight performance. It not only affects the propeller's rotation speed and thrust output but also governs the aircraft's speed, stability, and endurance. Whether it's an FPV racing drone as nimble as lightning, an aerial photography drone known for its stability, or an industrial platform carrying several kilograms, the differences in their flight experience often stem from different motor RPM settings.
Understanding the significance of RPM is not just about grasping a single number; it's about seeing the power dynamics behind it: the balance between KV rating, voltage, and propeller load. Correctly calculating and controlling RPM allows a drone to find the ideal point between speed and efficiency, maximizing performance while avoiding excessive energy consumption and system damage. This article will systematically analyze the calculation principles of RPM, its impact on performance, and the optimal RPM ranges for different flight scenarios, helping you find the power profile that best fits your mission requirements in design and selection.
What is Drone Motor RPM?

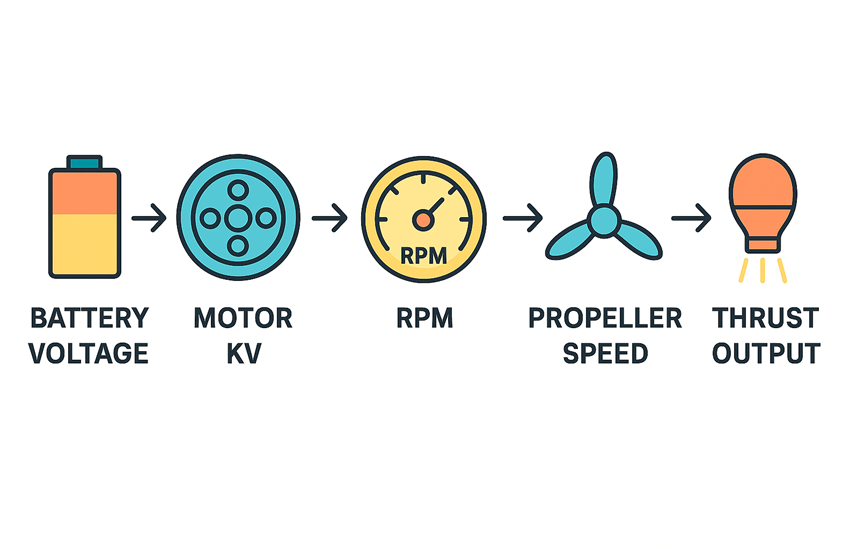

A drone motor's speed (RPM) is the starting point for the entire power system. It determines the propeller's rotation speed and directly influences key performance indicators such as thrust, lift, speed, and energy efficiency. Understanding the basics of RPM not only helps in grasping the drone's power output characteristics but is also a prerequisite for analyzing the relationship between KV rating, voltage, and load.
1. Definition and Physical Meaning
RPM stands for "Revolutions Per Minute." It indicates the number of rotations the motor's rotor completes in one minute and is the fundamental metric for measuring motor speed.
In a drone system, the higher the motor's RPM, the faster the propeller spins. This accelerates more air downwards, generating stronger thrust and lift. In other words, RPM is the direct power source that enables a drone to take off, climb, accelerate, and hover.
However, RPM is not a case of "the higher, the better." Excessive speed can lead to motor overheating, increased energy consumption, and more noise, and it may exceed the structural limits of the propeller. Only by operating within a suitable RPM range can the optimal balance of thrust, efficiency, and stability be achieved.
2. Role of RPM in the Flight Control System
The drone's Flight Controller (FC) achieves attitude stability and directional adjustments by controlling the speed of each motor. When the FC detects a change in the drone's pitch, roll, or yaw, it immediately adjusts motor RPM via signals to correct the attitude:
Motors on one side speed up → Thrust increases → The drone tilts in the opposite direction to correct.
Motors on the other side slow down → Thrust decreases → Overall balance is maintained.
Thus, the speed and precision of RPM changes directly determine the drone's agility and stability.
For example:
FPV Racing Drones require motors to respond to RPM changes in milliseconds for rapid flips and acceleration.
Camera Drones focus more on the smoothness of RPM changes to maintain a stable picture and balanced attitude.
Industrial Inspection Drones typically use low-RPM, high-torque motors to ensure payload capacity and durability.
Therefore, RPM is both an indicator of power output and the "language" used by the flight control system. The faster the motor's RPM response, the more direct and precise the drone's control experience.
3. Overview of RPM and Flight Performance
As seen, a reasonable RPM range is crucial for drone design and tuning. It affects not only flight speed and payload capacity but also energy consumption, heat dissipation, and equipment lifespan.
Performance Metric | Effect of Low RPM | Effect of Moderate RPM | Effect of High RPM |
Speed | Slow takeoff, sluggish response | Smooth flight, responsive control | Overload or severe prop vibration |
Thrust | Insufficient lift or payload capacity | Stable and sufficient thrust | Overload, excessive current draw |
Efficiency | Low thrust, poor motor efficiency | Best balance between thrust and power | High current, significant heat buildup |
Stability | Unstable or prone to shaking | Smooth control, natural flight | Increased vibration and noise |
How is Drone Motor RPM Calculated?
A drone motor's RPM is not an isolated metric; it is the result of multiple electrical and mechanical parameters. To accurately understand RPM, one must start with the basic calculation formula and then conduct a comprehensive analysis considering the dynamic relationships between KV rating, voltage, load, and efficiency.
1. RPM Basic Calculation Formula
The theoretical speed of a drone motor can be calculated using a simple, universal formula:
RPM = KV \times Voltage (V)
Where:
KV represents the motor's theoretical speed per volt (RPM/V).
Voltage (V) is determined by the battery platform, e.g., 3S = 11.1V, 4S = 14.8V, 6S = 22.2V (can reach 16.8V, 25.2V respectively when fully charged).
This means that if the motor's KV rating and operating voltage are known, its theoretical no-load speed can be estimated.
Example 1: A 2300KV motor paired with a 4S battery (16.8V fully charged) has a theoretical no-load speed of: 2300 × 16.8 = 38.640 RPM.
Example 2: A 1500KV motor paired with a 6S battery (25.2V fully charged) has a theoretical no-load speed of: 1500 × 25.2 = 37.800 RPM.
As you can see, although the second motor has a lower KV, its final speed is nearly identical due to the higher voltage. This demonstrates the complementary nature of KV rating and voltage: a higher voltage can compensate for the lower speed of a low-KV motor.
2. Difference Between Theoretical and Actual RPM
However, the theoretical RPM is only an "ideal state" result. In actual flight, the motor's speed is often 10%–25% lower than the theoretical value.
This is because:
The propeller creates air resistance (load) as it spins, causing the RPM to drop.
The battery experiences "voltage sag" under high load.
There are internal friction and electromagnetic losses within the motor.
The ESC's modulation also affects the actual output.
Therefore, in practical applications, we typically use the theoretical value as a reference and then adjust based on test data or experience to determine real-world flight performance.
3. Measurement and Verification Methods
During experiments or tuning, motor RPM can be measured or verified in several ways:
Optical Tachometer: Directly measures RPM by sensing a reflective mark on the propeller using infrared or laser.
ESC Telemetry: Some high-end ESCs can output real-time data such as RPM, current, and temperature for monitoring.
Thrust Stand: A professional test bench can simultaneously record thrust, current, voltage, and RPM, which is used for motor performance analysis.
These methods not only help pilots verify parameters but also provide reliable data for engineers to optimize the system.
What are the Main Factors Affecting Drone Motor RPM?
A drone motor's RPM is determined by a combination of electrical and mechanical parameters. Even with the same KV rating and voltage, differences in load, power supply, and environment can cause significant variations in actual speed. The following factors are the most critical.
1. Battery Voltage (V)
Voltage is the most direct variable determining RPM. According to RPM = KV × V, the higher the voltage, the higher the potential speed. For example, moving from 4S (16.8V) to 6S (25.2V) can increase theoretical RPM by 35%–40%.
However, high voltage also increases current and heat, placing greater demands on the ESC and the battery's discharge capability. Increasing voltage should be done within the rated limits of the motor and system to avoid overheating or damage.
2. KV Rating
The KV rating represents the motor's theoretical speed per volt.
High-KV Motors: Fast speed, agile response, but lower torque and high energy consumption.
Low-KV Motors: Low speed, high torque, suitable for large propellers and heavy-lift missions.
3. Propeller Size & Pitch
The larger the propeller or the higher its pitch, the greater the air resistance (load), and the more the motor's RPM will drop.
Small propellers reduce load and allow for higher RPM, but thrust is limited.
Large propellers improve efficiency and lift but will lower RPM and increase current draw.
Generally, small props with high RPM suit racing, while large props with low RPM suit aerial photography or long-endurance flights.
4. Electronic Speed Controller (ESC) Performance
The ESC's current capacity and refresh rate directly limit the motor's maximum RPM and response precision.
An insufficient current rating will trigger current limiting, preventing the RPM from reaching its theoretical value.
A higher PWM refresh rate results in smoother RPM control.
High-performance ESCs (e.g., supporting BLHeli_32 or KISS firmware) can maintain stable output under high load, reducing "desync" (stuttering) and lag.
5. Battery Discharge Rate (C-Rating)
The C-Rating indicates the battery's instantaneous discharge capability. A higher C-Rating results in less voltage sag and more stable RPM.
If the C-Rating is too low, the motor may suffer from insufficient thrust, flight instability, or even power cuts ("brownouts") during high-throttle maneuvers due to significant voltage sag.
For high-power drones, high C-Rating or large-capacity batteries are recommended to maintain sustained high-RPM output.
6. Environmental Temperature and Cooling
High temperatures can cause magnet demagnetization and increased winding resistance, leading to a drop in RPM. Low temperatures can reduce battery discharge performance, resulting in insufficient RPM.
Good ventilation and cooling design maintain motor efficiency and prevent performance degradation due to excessive heat. In high-temperature environments, it's advisable to reduce the load (e.g., use a lower-pitch prop) or use motors with metal housings for better heat dissipation.
How RPM Affects Drone Flight Performance
Changes in motor RPM not only determine the drone's flight speed but also affect thrust output, control agility, and overall energy efficiency. Different types of drones have vastly different RPM requirements based on their mission. High RPM means rapid response and strong thrust, while low RPM represents smooth control and higher energy efficiency.
1. High vs. Low RPM Motors
Feature Dimension | High-RPM Motor | Low-RPM Motor |
Response Speed | Extremely fast, strong acceleration | Smooth, soft response |
Thrust Characteristics | High thrust-to-weight ratio, ideal for fast maneuvers | Strong torque, suitable for large props and heavy loads |
Power Consumption | High current draw, short flight time | High efficiency, low heat, long endurance |
Noise & Vibration | Loud noise, noticeable prop oscillation | Quiet operation, stable footage |
Typical Applications | FPV racing, freestyle | Aerial photography, inspection, mapping, industrial drones |
High-RPM Motors have the advantage of strong burst power and rapid response, allowing them to change thrust instantly for agile flight control. The trade-off is high energy consumption, rapid heat generation, and a relatively shorter lifespan.
Low-RPM Motors are known for being smooth and efficient. Their thrust output is more gentle, making them suitable for mission-oriented drones that require high stability and endurance.
2. Comprehensive Impact of RPM Changes on Flight Performance
RPM variations affect four core dimensions of drone flight:
Speed and Agility: High RPM provides stronger thrust and faster response, ideal for racing and acrobatics.
Efficiency and Endurance: As RPM increases, power consumption rises exponentially, shortening the continuous flight time.
Stability and Video Control: Low RPM can reduce vibration and airflow disturbances, improving video image stability.
Lifespan and Reliability: The longer a motor operates at high RPM, the faster the bearings, ESC, and battery will degrade.
Therefore, in drone design, one should not blindly pursue "high" RPM. Instead, a reasonable range should be set based on the mission objective, keeping the motor operating in its most efficient and thermally manageable working segment (typically 70%–85% of maximum RPM).
Recommended RPM Range for Different Drone Applications
Drones are used in a wide variety of scenarios, each corresponding to very different power demands. Racing drones need instantaneous high-RPM bursts, camera drones pursue stability and efficiency, and industrial drones focus on sustained thrust and reliability. Selecting a reasonable motor RPM range is key to achieving the optimal balance between speed, endurance, and stability—it is the core principle of designing a power system "built for the mission."
1. Recommended RPM Range for Different Drone Types
Drone Type | Typical Motor Size | Recommended KV Range | Battery Platform | Suggested RPM Range | Typical Prop Size / Pitch |
Tinywhoop (Micro FPV) | 0802–1103 | 7000–10000KV | 1S–2S | 40,000–80,000 | 31–40 mm whoop props (3–5 blades), equivalent 1.0–1.6″ pitch |
FPV Racing | 2205–2306 | 1900–2700KV | 4S–6S | 35,000–45,000 | 5″ (e.g., 5×4.0–5.1×3 tri-blade), pitch 4.0–4.9 |
Cinewhoop (Cinematic FPV) | 1507–2004 | 2500–3800KV | 3S–4S | 30,000–40,000 | 3″ (75–76 mm) tri/quad-blade, pitch 2.5–3.5 |
Long-Range FPV | 2507–2806.5 | 1300–1600KV | 6S | 25,000–30,000 | 6–7″ (bi/tri-blade), pitch 3.0–4.0 (e.g., 7×3.5×3) |
Camera Drone | 3508–4114 | 400–900KV | 6S–8S | 10,000–20,000 | 10–13″ low-pitch props (e.g., 10×4.5 / 12×4.0 / 13×4.4) |
Industrial / Heavy Lift | 4114–6010 or larger | 300–500KV | 6S–12S | 8,000–15,000 | 15–29″ large low-RPM props, e.g., 15×5.5 / 18×6 / 22×6–8 / 24–29″ medium pitch |
2. How to Back-Calculate KV from a Target RPM?
Once the target RPM is determined, the appropriate motor KV rating can be estimated using the following formula:
KV = RPM \Voltage (V)
Example 1:
Goal: FPV Racing drone, target 36.000 RPM, using a 4S (16.8V) battery.
Calculation: KV ≈ 36.000 / 16.8 = 2140.
Recommended Motor: 2207–2306 size, 2300KV.（e.g., T-hobby V2207 V3.0）
Example 2:
Goal: Aerial Photography drone, target 14.000 RPM, using an 8S (33.6V) battery.
Calculation: KV ≈ 14.000 / 33.6 = 416.
Recommended Motor: 4114/4116. 400KV.（e.g., T-Motor MN4116）
This reverse calculation formula is a practical method for quickly narrowing down the KV range during motor selection.
Frequently Asked Questions (FAQ)
1. Will increasing voltage (e.g., 4S to 6S) damage the motor?
If the motor and ESC are rated for the higher voltage (e.g., rated for 6S), it will not cause damage. However, you must also check if the current and temperature remain within safe limits. While increasing voltage raises RPM, it also accelerates heat buildup and battery consumption.
2. Is there a relationship between RPM and propeller efficiency?
Yes. A propeller is most efficient within a specific RPM range. If the RPM is too low, thrust is insufficient. If it's too high, airflow turbulence ("prop stall" or "cavitation") can cause efficiency to drop. It is ideal to keep the motor operating in its peak efficiency range (around 70%–85% of max RPM).
3. How can I tell if a motor is being worn out by high-RPM operation?
You can judge by checking the motor's external temperature and bearing noise. If the temperature exceeds 80°C (176°F) after a long run, or if there is noticeable vibration or noise, it may indicate bearing wear or magnet demagnetization. You should stop and inspect it immediately.
4. Does the motor's RPM (high or low) affect video stability?
Yes. Camera drones typically use a low-RPM, large-propeller combination to achieve smoother thrust output and reduce airflow disturbances, thereby enhancing image stability.
5. How should RPM be adjusted in extreme environments (high temp, high altitude)?
In high-temperature environments, you should slightly decrease the propeller pitch or switch to a lower KV motor. At high altitudes, the air is thinner and thrust is reduced; you can increase propeller pitch or use a higher KV motor to compensate for the loss of lift.
6. How can I safely test a motor's maximum RPM?
It is recommended to use a professional motor test stand (thrust stand). Gradually increase the throttle in a well-ventilated area while monitoring current, voltage, and temperature. Never conduct a static, full-throttle test on a fully assembled drone with propellers installed.
